Threepwood
Threepwood
Posted
Posted

Why don't people state what brand their card is? Saying that "the Radeon 2600 PRO works if you do this!" is a bit fuzzy, since there are 20 different cards out there with that chip. This makes it really hard for those looking for a new gfx card. Please, don't forget the brand when you're posting here or on the HCL.

Link to comment
Share on other sites
drumthrasher109
drumthrasher109
Posted
Posted
Why don't people state what brand their card is? Saying that "the Radeon 2600 PRO works if you do this!" is a bit fuzzy, since there are 20 different cards out there with that chip. This makes it really hard for those looking for a new gfx card. Please, don't forget the brand when you're posting here or on the HCL.



Also post your device ID too. Just because you have a 2600PRO doesn't mean that it has the same device ID as others either.

Link to comment
Share on other sites
Wingleader
Wingleader
Posted
Posted

As stated by me i've got an Sapphire 2600 Pro 512MB pciid 0x95891002. (174B-E410 extra info from everest)

And everything is working correctly now for me even QE/CI dvd's play, frontrow is working. I'm a happy camper..



@drumtrasher did you use the whitemenufix for 10.5.1 (from the front page)? and did you have a working desktop before applying adding the pciid and menufix?

It worked for me at 640 or 800 can't remember with the standard install and after only installing the Natit.kext.tar.bz2 => natit.kext from 16/1/2008 with a contents of 16/2/08. (got this one from natit site)

Link to comment
Share on other sites
drumthrasher109
drumthrasher109
Posted
Posted
As stated by me i've got an Sapphire 2600 Pro 512MB pciid 0x95891002. (174B-E410 extra info from everest)

And everything is working correctly now for me even QE/CI dvd's play, frontrow is working. I'm a happy camper..



@drumtrasher did you use the whitemenufix for 10.5.1 (from the front page)? and did you have a working desktop before applying adding the pciid and menufix?

It worked for me at 640 or 800 can't remember with the standard install and after only installing the Natit.kext.tar.bz2 => natit.kext from 16/1/2008 with a contents of 16/2/08. (got this one from natit site)



I downloaded the 10.5.2 white menu fix because thats what I have...

Yes I had a working desktop before doing all of this...or I wouldn't have been able to do any of it in the first place.

Link to comment
Share on other sites
Threepwood
Threepwood
Posted
Posted
hey Threepwood.I have ATI Radeon HD 2400 Pro with 256 mb and id is 0x94c31002 .. osx is kalyway 10.5.2..hope this is clear for you
Ok, what manufacturer is it? Does it work correctly with dual monitors? I need a fanless card with DVI-I connectors.There's a fanless 2600 PRO from both HIS and PowerColor, I don't know which one I should get. Anyone with experience?
Link to comment
Share on other sites
erikk
erikk
Posted
Posted

thx for sharing that infos...



it might be that my sapphire hd2600xt works now... but i have still a bug... hope somebody can help me.



i never tried a game before and i was wondering why graphic intensive programms (like logic8 with graphic analyzer) crashs sometimes.

so yesterday i installed this drivers here and tried to play a 3d game... i found out that i have still graphic card problems.



my problem is: that opengl seems working, but i get graphic bugs, it looks like when i overclock a graphic card in windows.

it dont crash at me, but the game enviroment looks crazy, polygon errors, etc...



so i switched back to my old natit.kext (where only dvi2vga works) and i have the same problem... so i dont think that natit is fault...



my question: is it an opengl problem? or might it be an atindrv problem?



many thx...

Link to comment
Share on other sites
drumthrasher109
drumthrasher109
Posted
Posted
I am using leo4all v2 vanilla 9.2.





I am using an Radeon HD 2600



Type: Display

Bus: PCIe

PCIe Lane Width: x16

VRAM (Total): 256 MB

Vendor: ATI (0x1002)

Device ID: 0x9581

Revision ID: 0x0000

Kernel Extension Info: No Kext Loaded

Displays:

Display:

Resolution: 1024 x 768

Depth: 32-bit Color

Core Image: Software

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported



In Extensions



EAP-RSA.ppp

EAP-KRB.ppp

DVFamily.bundle

dsmos.kext

DSAuth.ppp

DSACL.ppp

Dont Steal Mac OS X.kext

CRYPTOCardPCCard.kext

CMD646Root.kext

CM4040.kext

cddafs.kext

Caches

BootCache.kext

IOFireWireSerialBusProtocolTransport.kext

IOFireWireSBP2.kext

IOFireWireIP.kext

IOFireWireFamily.kext

IOFireWireAVC.kext

IODVDStorageFamily.kext

IOCDStorageFamily.kext

IOBluetoothHIDDriver.kext

IOBluetoothFamily.kext

IOBDStorageFamily.kext

IOAudioFamily.kext

IOATAFamily.kext

IOAHCIFamily.kext

IOADBFamily.kext

IOACPIFamily.kext

IO80211Family.kext

ImmersionForceFeedback.kext

ICAFWKodakProDriver.kext

ICAClassicNotSeizeDriver.kext

I2CGPIO.kext

GeForceVADriver.bundle

GeForceGA.plugin

GeForceFXGLDriver.bundle

GeForce8xxxGLDriver.bundle

GeForce7xxxGLDriver.bundle

GeForce3GLDriver.bundle

GeForce2MXGLDriver.bundle

EAP-TLS.ppp

IOI2CLM8x.kext

IOI2CLM7x.kext

IOI2CLM6x.kext

IOI2CHWClock.kext

IOI2CFamily.kext

IOSCSIParallelFamily.kext

IOSCSIArchitectureModelFamily.kext

IOI2CDriveBayGPIO.kext

IOI2CDeviceLMU.kext

IOI2CDeviceFCU.kext

IOI2CCPUVoltage.kext

IOI2CControllerSMU.kext

IOI2CControllerPPC.kext

IOI2CControllerPMU.kext

IOI2CADT746x.kext

IOI2CAD741x.kext

IPFirewall.kext

IOVideoFamily.kext

IOUSBMassStorageClass.kext

IOUSBFamily.kext

IOStreamFamily.kext

ATIRadeonX2000VADriver.bundle

ATIRadeonX2000GLDriver.bundle

ATIRadeonX2000GA.plugin

ATIRadeonX1000VADriver.bundle

ATIRadeonX1000GLDriver.bundle

ATIRadeonX1000GA.plugin

ATIRadeonGLDriver.bundle

IOI2CMotionSensor.kext

IOI2CMaxim6690.kext

IOI2CMaxim1989.kext

IOI2CMaxim1631.kext

ATINDRV.kext

IOPlatformPluginFamily.kext

IOPlatformFunction.kext

IOPCIFamily.kext

IOPCCardFamily.kext

IONetworkingFamily.kext

IONDRVSupport.kext

IOKeyLargo.kext

IOI2CSMUSat.kext

IOI2CSlewClock.kext

IOI2CPulsar.kext

autofs.kext

AudioIPCDriver.kext

AudioDeviceTreeUpdater.kext

ATTOExpressPCIPlus.kext

ATIRadeonGA.plugin

ATIRadeonDVDDriver.bundle

ATIRadeon9700VADriver.bundle

ATIRadeon9700GLDriver.bundle

ATIRadeon9700GA.plugin

ATIRadeon9700DVDDriver.bundle

ATIRadeon8500VADriver.bundle

ATIRadeon8500GLDriver.bundle

ATIRadeon8500GA.plugin

ATIRadeon8500DVDDriver.bundle

IOHIDFamily.kext

IOHDIXController.kext

IOGraphicsFamily.kext

IOStorageFamily.kext

IOSMBusFamily.kext

IOSerialFamily.kext



ATIRadeonX2000.kext doesn't appear....????





I don't know how to add my ID card.Please! Can you help me



Install the Leopard Graphics Update then look for it.

Link to comment
Share on other sites
tvt
tvt
Posted
Posted
No you don't, you get a kernel panic.



Boot with -s, cd to /system/library/extensions and rm -r NVDAresman.kext. I'll post more help if you need it.

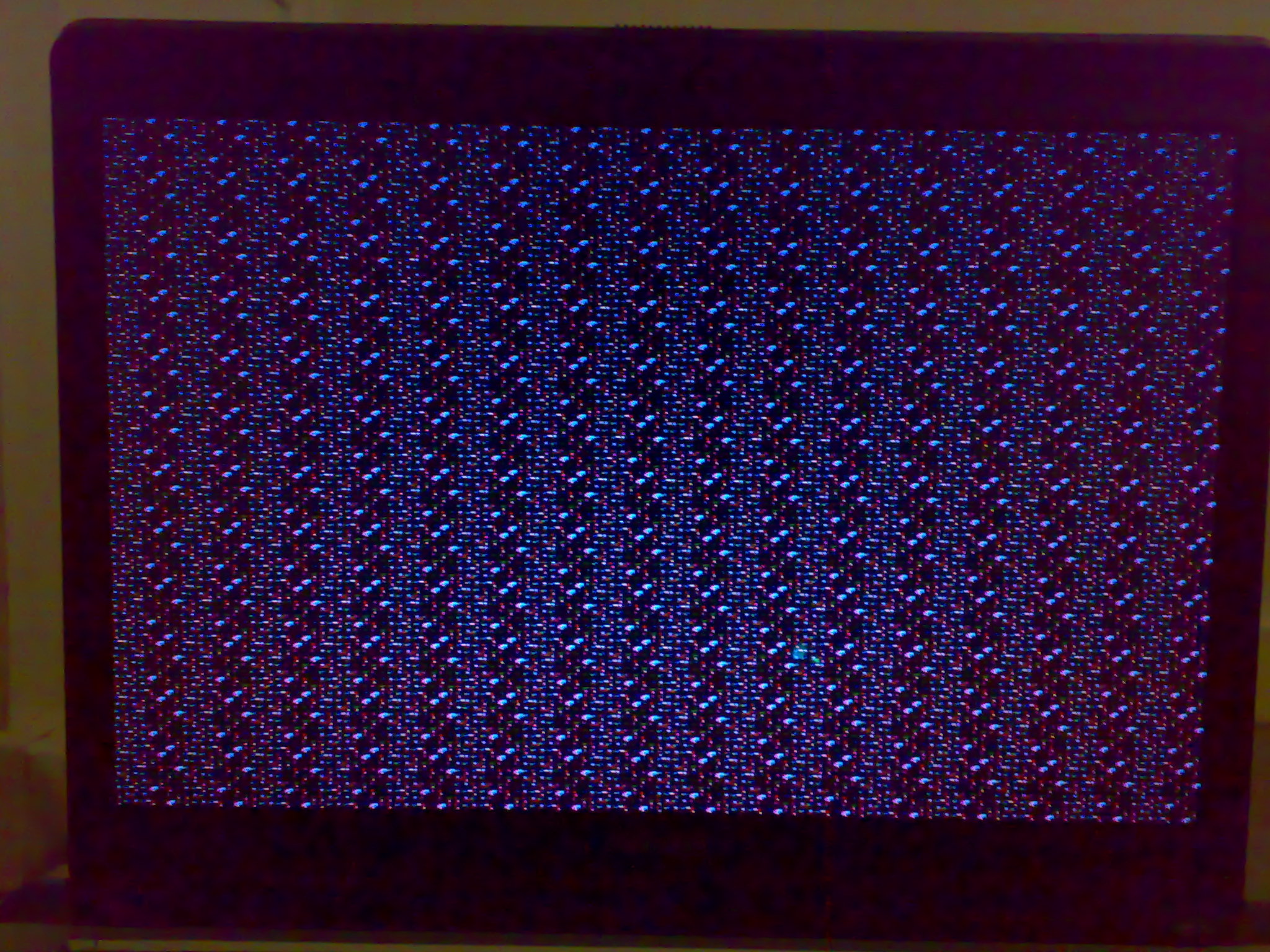

if you have the time.Now,i post an image of screen after update

it's possible can you tells me what does that mean,kernel panic?Thank again!


Link to comment
Share on other sites
ufo_all
ufo_all
Posted
Posted
Ok, what manufacturer is it? Does it work correctly with dual monitors? I need a fanless card with DVI-I connectors.There's a fanless 2600 PRO from both HIS and PowerColor, I don't know which one I should get. Anyone with experience?

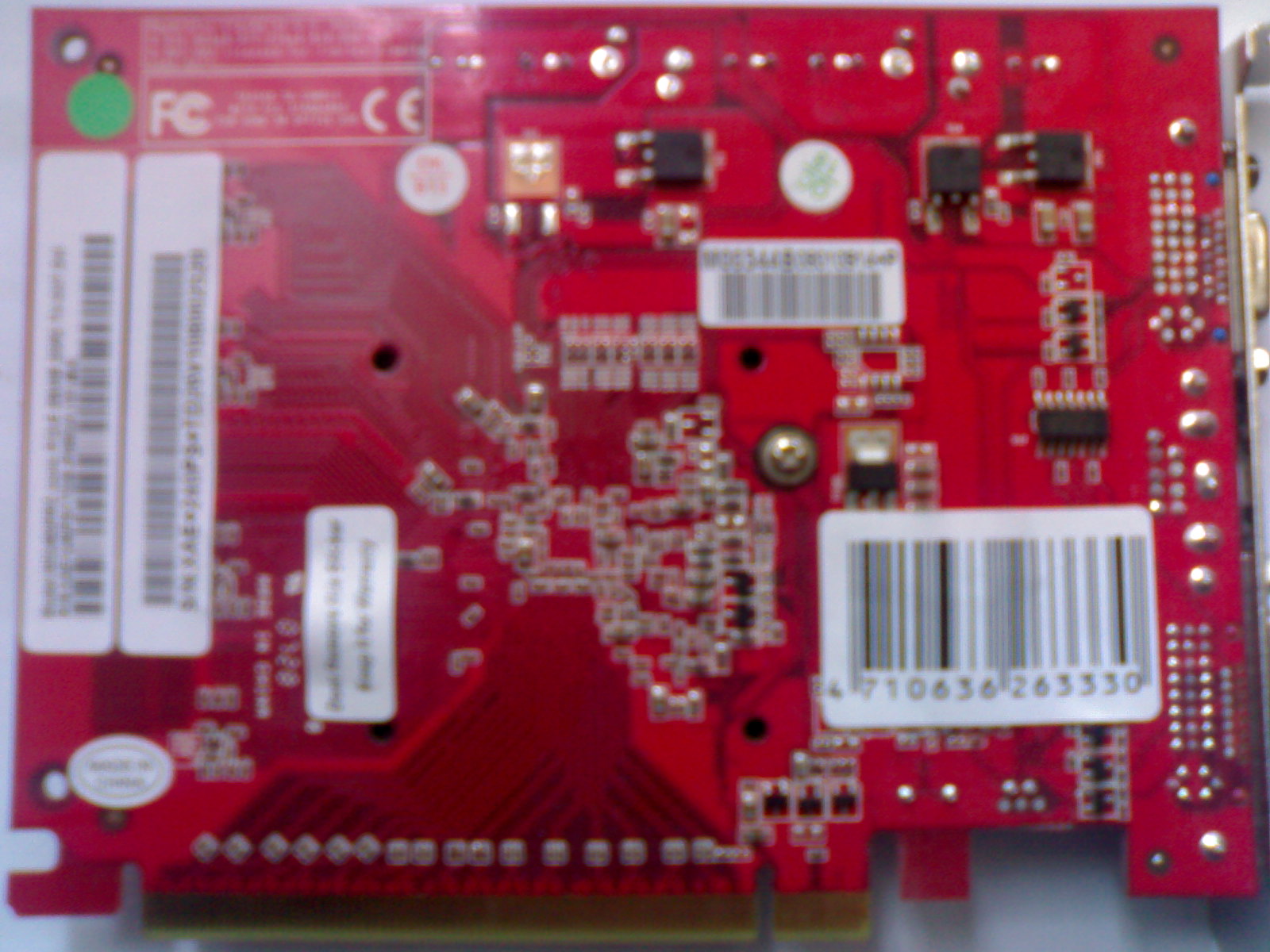

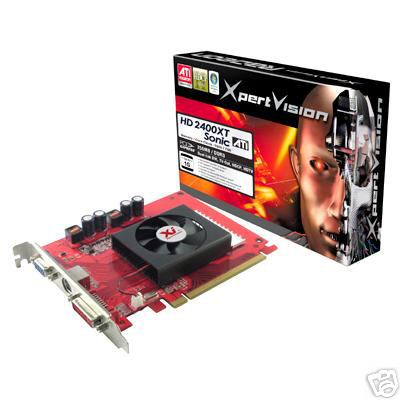

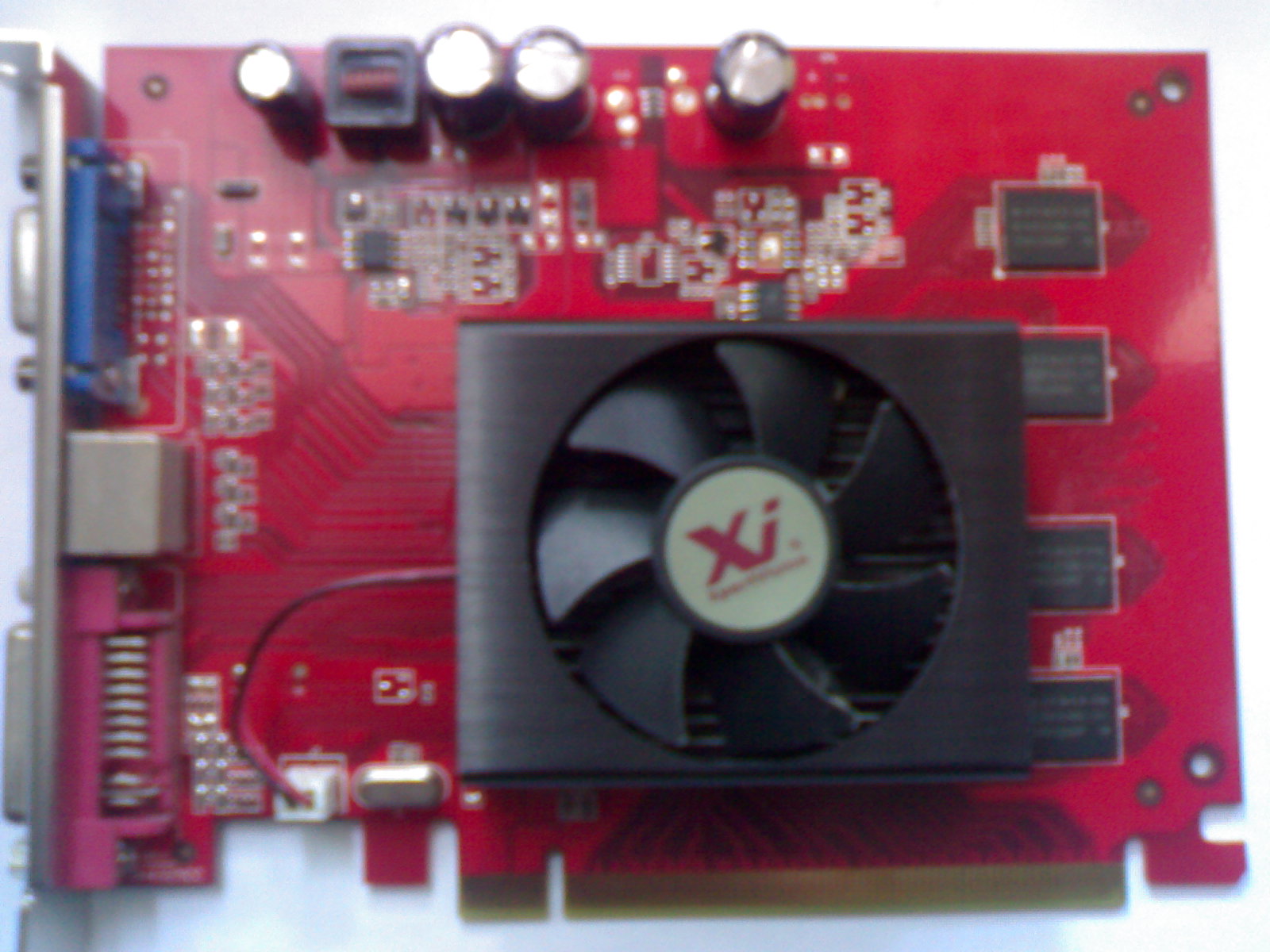

Here i attach pics of my ati graphic card and the graphics model



HD2400 PRo Sonic -PCI-E 256MB DDR2 TV-OUT DVI as it is mention on the label.




Link to comment
Share on other sites
drumthrasher109
drumthrasher109
Posted
Posted
if you have the time.Now,i post an image of screen after update

it's possible can you tells me what does that mean,kernel panic?Thank again!



Oh thats easy, do the following:

1. When you're at the Darwin/x86-Boot, type -s and press enter.

2. Once its done type /sbin/mount -uw / and press enter.

3. Then type cd /system/library/extensions and press enter.

4. Next do the following:

rm -r Natit.kext
rm - NVDAresman.kext

5. Finally do this: reboot

If it doesn't work, do the same thing but instead of removing Natit.kext and the NVDAresman.kext, this time remove ATIRADEONX2000.kext.

Link to comment
Share on other sites
optikol1
optikol1
Posted
Posted

Hey Guys,



After hours of reading , I praise you all for your time into this as without a group effort we would be nowhere! However in the midst of this almost being perfect I have a small problem that I seek your expertise on for closure...



Is there anyway to get my pci e Visiontek HD 2600 Pro 512 mb to become supported for Quartz Extreme. Running Kalyway 10.5.2



It is being recognized as a 2600XT however without support for Quartz Extreme. I have tried the Natif way and still see no difference. Everything else is lovely. Any insight is appreciated.



Thanks.

Link to comment
Share on other sites
valdok
valdok
Posted
Posted

Thanks!

Tested and working QE/CI (DVI @ 1680x1050) with:



-> KalyWay 10.5.2 clean install (without Natit bundled)

-> Gecube ATI Radeon HD2600PRO 512Mb, Device ID: 0x9589



The instructions would be better adding this:

3. In Terminal:

SUDO NANO /System/Library/Extensions/ATIRadeonX2000.kext/Contents/Info.plist

add the PCI ID of your card (check in About this MAC) over IOPCIMatch, ie: 0x95891002

CTRL + O and ENTER to save the changes.

:D

Link to comment
Share on other sites
mr_Harry_plotter_hk
mr_Harry_plotter_hk
Posted
Posted

I have used the method described and it worked pretty well in my system..



I am using



gigabyte GA-945GCM(x)-S2

2G Ram DDR2 667

Asus EAH 2600 pro DDR256

CPU E2165

IDE 80G HD



Clean install with Karlway 10.5.1 DVD ( default setting)

with sound driver Azazila OUT



Below is the mac Grahics/Display dump



ATI Radeon HD 2600:



Chipset Model: ATI Radeon HD 2600

Type: Display

Bus: PCIe

PCIe Lane Width: x16

VRAM (Total): 256 MB

Vendor: ATI (0x1002)

Device ID: 0x9589

Revision ID: 0x0000

ROM Revision: 113-B1480A-236

EFI Driver Version: 01.00.236

Displays:

Philips 200WS:

Resolution: 1680 x 1050 @ 60 Hz

Depth: 32-bit Color

Core Image: Software

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported

Display Connector:

Status: No display connected





;)

Link to comment
Share on other sites
drumthrasher109
drumthrasher109
Posted
Posted
I have used the method described and it worked pretty well in my system..



I am using



gigabyte GA-945GCM(x)-S2

2G Ram DDR2 667

Asus EAH 2600 pro DDR256

CPU E2165

IDE 80G HD



Clean install with Karlway 10.5.1 DVD ( default setting)

with sound driver Azazila OUT



Below is the mac Grahics/Display dump



ATI Radeon HD 2600:



Chipset Model: ATI Radeon HD 2600

Type: Display

Bus: PCIe

PCIe Lane Width: x16

VRAM (Total): 256 MB

Vendor: ATI (0x1002)

Device ID: 0x9589

Revision ID: 0x0000

ROM Revision: 113-B1480A-236

EFI Driver Version: 01.00.236

Displays:

Philips 200WS:

Resolution: 1680 x 1050 @ 60 Hz

Depth: 32-bit Color

Core Image: Software

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported

Display Connector:

Status: No display connected





:(



What are you talking about its not even working right.

You don't have QE/CI/GL, all you can do is change the resolution.



9589 users are out of luck...

Link to comment
Share on other sites
valdok
valdok
Posted
Posted

:) works perfect in my 9589:



Chipset Model: ATI Radeon HD 2600

Type: Display

Bus: PCIe

PCIe Lane Width: x16

VRAM (Total): 512 MB

Vendor: ATI (0x1002)

Device ID: 0x9589

Revision ID: 0x0000

ROM Revision: 113-B1480A-236

EFI Driver Version: 01.00.236

Displays: Q20wb: Resolution: 1680 x 1050 @ 60 Hz

Depth: 32-bit Color

Core Image: Hardware Accelerated

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Supported

Rotation: Supported

Link to comment
Share on other sites
Wingleader
Wingleader
Posted
Posted

As already reported earlier (also to drumtrash but he likes to trash this forum ;-) ) my Sapphire 2600 HD Pro is working like a charm with 10.5.1 and also with 10.5.2 even after updating the leopard graphics update.



1) Install natit.kext with kexthelperb7

2) Reboot and alter PCI-ID in Info.Plist under /system/library/extentions/ATIRadeaonX2000.kext

3) Install the correct whitemenufix



Tada All Support is there



Proove is under the Apple => About this Mac =>More

Chipset Model: ATI Radeon HD 2600

Type: Display

Bus: PCIe

PCIe Lane Width: x16

VRAM (Total): 512 MB

Vendor: ATI (0x1002)

Device ID: 0x9589

Revision ID: 0x0000

ROM Revision: 113-B1480A-236

EFI Driver Version: 01.00.236

Displays:

PLE2403WS:

Resolution: 1920 x 1200 @ 60 Hz

Depth: 32-bit Color

Core Image: Hardware Accelerated

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Supported

Rotation: Supported

Television: Yes

VGA Display:

Resolution: 800 x 600 @ 60 Hz

Depth: 32-bit Color

Core Image: Hardware Accelerated

Mirror: Off

Online: Yes

Quartz Extreme: Supported

Rotation: Supported

Link to comment
Share on other sites
rio678
rio678
Posted
Posted

Hi everyone



i have tried to follow the instructions for my 2400 HD PCIe card, but problem is i don't have any ATIradeonX2000.kext as mentioned in my extensions folder to edit the info.plist just the X2000 ,VA, GL, GA bundle/plugins. Am i not looking at this right ? :poster_spam:

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
