Intel Wireless 2100, 2200bg, 2915bg, 3945abg, 4965agn

[jalavoui]

how do you expect i make the drivers work if there's nobody to run a few tests?



download iwi3945.dmg and start reporting...



don't bother to post logs with errors

[TurdWise]

pablo101 you are the idiot here: first you post that you compiled and it doesn´t work, then you berate the developer of what is labelled everywhere as an *unfinished driver* (for the hard of thinking that means "It Doesn´t Work Yet") for asking for logs to help him continue? Read (e.g. this ) before spouting rancid bile next time.

[pablo101]

May 11 18:11:36 localhost kernel[0]: ADD_STA: 0x01

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_send_cmd_sync Wait REPLY_ADD_STA Condition: 49ms left

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_send_add_station REPLY_ADD_STA PASSED

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_enqueue_hcmd Sending command REPLY_TX_LINK_QUALITY_CMD (#4e), seq: 0x0408, 92 bytes at 8[8]:4

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_rx_handle r 11 i 10 No handler needed for REPLY_TX_LINK_QUALITY_CMD, 0x4e

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_send_cmd_sync Wait REPLY_TX_LINK_QUALITY_CMD Condition: 49ms left

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_mac_config leave

May 11 18:11:36 localhost kernel[0]: ieee80211_if_add_mgmt @ /Users/paul/Desktop/svn/root/compatibility.cpp:9749

May 11 18:11:36 localhost kernel[0]: ieee80211_if_sdata_init @ /Users/paul/Desktop/svn/root/compatibility.cpp:2463

May 11 18:11:36 localhost kernel[0]: ieee80211_tx_pending @ /Users/paul/Desktop/svn/root/compatibility.cpp:5934

May 11 18:11:36 localhost kernel[0]: ieee80211_tasklet_handler @ /Users/paul/Desktop/svn/root/compatibility.cpp:1858

May 11 18:11:36 localhost kernel[0]: __ieee80211_if_config @ /Users/paul/Desktop/svn/root/compatibility.cpp:6589

May 11 18:11:36 localhost kernel[0]: no netif_running

May 11 18:11:36 localhost kernel[0]: listadd

May 11 18:11:36 localhost kernel[0]: Someone called createOutputQueue()

May 11 18:11:36 localhost kernel[0]: darwin_iwi4965::configureInterface()

May 11 18:11:36 localhost kernel[0]: power state (1)

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_rx_handle r = 12, i = 11, REPLY_4965_RX, 0xc3

May 11 18:11:36 localhost kernel[0]: iwl4965: U iwl4965_rx_reply_rx Bad CRC or FIFO: 0x80000702.

May 11 18:11:38 localhost kernel[0]: check_firstup

May 11 18:11:38 localhost kernel[0]: goto system preferences -> networks and press apply if you keep seeing this

May 11 18:11:40 localhost kernel[0]: check_firstup

May 11 18:11:40 localhost kernel[0]: goto system preferences -> networks and press apply if you keep seeing this

May 11 18:11:41 localhost rpc.statd[36]: statd.notify - no notifications needed

May 11 18:11:42 localhost fseventsd[45]: bumping event counter to: 0x7383 (current 0x0) from log file '0000000000006872'

May 11 18:11:42 localhost DumpPanic[48]: Error getting a reference to IODeviceTree:/options

May 11 18:11:42 localhost com.apple.launchd[1] (com.apple.DumpPanic[48]): Exited with exit code: 1

May 11 18:11:42 localhost kernel[0]: check_firstup

May 11 18:11:42 localhost kernel[0]: goto system preferences -> networks and press apply if you keep seeing this

May 11 18:11:42 localhost DirectoryService[50]: Launched version 5.6 (v514.24)

May 11 18:11:42 localhost socketfilterfw[56]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:44 localhost kernel[0]: check_firstup

May 11 18:11:44 localhost kernel[0]: goto system preferences -> networks and press apply if you keep seeing this

May 11 18:11:44 localhost configd[52]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:44 localhost securityd[37]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:44 localhost diskarbitrationd[49]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:44 localhost mds[39]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:44 localhost DirectoryService[50]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:45 localhost backupd-helper[72]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:45 localhost ifcstart[43]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:45 localhost kernel[0]: sta_info_cleanup @ /Users/paul/Desktop/svn/root/compatibility.cpp:5820

May 11 18:11:46 localhost kernel[0]: check_firstup

May 11 18:11:46 localhost kernel[0]: goto system preferences -> networks and press apply if you keep seeing this

May 11 18:11:47 localhost ATSServer[88]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:47 localhost /usr/sbin/ocspd[89]: starting

May 11 18:11:47 localhost WindowServer[74]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35

May 11 18:11:48 localhost kernel[0]: darwin_iwi4965: Ethernet address 00:1f:3b:07:a1:1b

May 11 18:11:48 localhost kernel[0]: NTFS driver 2.1 [Flags: R/O].

May 11 18:11:48 localhost kernel[0]: check_firstup

May 11 18:11:48 localhost kernel[0]: goto system preferences -> networks and press apply if you keep seeing this

May 11 18:11:49 pauls-aoa150 configd[52]: setting hostname to "pauls-aoa150.local"

May 11 18:11:49 pauls-aoa150 kernel[0]: darwin_iwi4965::enable()

May 11 18:11:49 pauls-aoa150 kernel[0]: ifconfig going up

May 11 18:11:49 pauls-aoa150 kernel[0]: outputPacket called by someone

May 11 18:11:49 pauls-aoa150 kernel[0]: outputPacket2 called

May 11 18:11:49 pauls-aoa150 kernel[0]: outputPacket t: 1 f:0003

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_master_start_xmit @ /Users/paul/Desktop/svn/root/compatibility.cpp:9225

May 11 18:11:49 pauls-aoa150 kernel[0]: pkt_data->ifindex 1

May 11 18:11:49 pauls-aoa150 kernel[0]: pskb_expand_head @ /Users/paul/Desktop/svn/root/compatibility.cpp:9795

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx @ /Users/paul/Desktop/svn/root/compatibility.cpp:9105

May 11 18:11:49 pauls-aoa150 kernel[0]: __ieee80211_tx_prepare @ /Users/paul/Desktop/svn/root/compatibility.cpp:8149

May 11 18:11:49 pauls-aoa150 kernel[0]: sta_info_get @ /Users/paul/Desktop/svn/root/compatibility.cpp:1459

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_check_assoc @ /Users/paul/Desktop/svn/root/compatibility.cpp:9045

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_sequence @ /Users/paul/Desktop/svn/root/compatibility.cpp:9033

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_ps_buf @ /Users/paul/Desktop/svn/root/compatibility.cpp:9020

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_unicast_ps_buf @ /Users/paul/Desktop/svn/root/compatibility.cpp:8933

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_select_key @ /Users/paul/Desktop/svn/root/compatibility.cpp:8836

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_fragment @ /Users/paul/Desktop/svn/root/compatibility.cpp:8705

May 11 18:11:49 pauls-aoa150 kernel[0]: ieee80211_tx_h_rate_ctrl @ /Users/paul/Desktop/svn/root/compatibility.cpp:8522



This on a 4965agn. My network is unsecure and open. "Airport" is listed in Network, set to auto DHCP. No IP etc. I apologies for my previous rant.

[pablo101]

And just to add. I checked the Info.plist of the kext and i found you had disable turned on. I changed the value to 0 and way more stuff happened on the next restart, like finding networks in system log and trying to associate...... Why did you disable it?

[jalavoui]

...



i'll try to make this as clear as possible



iwi3945 is the only driver i'm working at this time

i don't need other logs from other drivers

i need people to test latest version from here http://iwidarwin.googlecode.com/svn/trunk/...0.5/iwi3945.dmg

run a few tests until you get a log without firmware errors/timeouts

and attach the full system.log

anything else is just a waste of good development time

[bond6]

Any ideas how to improve card/driver initialization so that we dont have to reboot so much?

Possible hacks or something?

[adityaxavier]

...



i'll try to make this as clear as possible



iwi3945 is the only driver i'm working at this time

i don't need other logs from other drivers

i need people to test latest version from here http://iwidarwin.googlecode.com/svn/trunk/...0.5/iwi3945.dmg

run a few tests until you get a log without firmware errors/timeouts

and attach the full system.log

anything else is just a waste of good development time



Hi, Jalavoui ! i was looking at your code for both 2200 abg and 3945 abg..





1) is 2200 based on ieee80211 ? and i believe you were able to break the microcode in different parts



2) cant the 2200 be ported to 3945 by changing the ucode, all the references and iopcimatch checks ?

3) By the way, do we really need country code's for setting eeeprom.?



If thats the case we can simply do that or start to port 3945 (solaris/linux) to mac.









Thanks for helping the community and enlighting us..

[eBrY]

To the developer of this driver-



Wouldn't it help if you can acquire this wireless card, and if you did, the progress would be much faster.. Its been so long, we can really use a functional driver. It doesn't make sense that you're developing this driver without the hardware to test it on constantly. I'm just saying.. your effort is hugely appreciated, thank you.







...



i'll try to make this as clear as possible



iwi3945 is the only driver i'm working at this time

i don't need other logs from other drivers

i need people to test latest version from here http://iwidarwin.googlecode.com/svn/trunk/...0.5/iwi3945.dmg

run a few tests until you get a log without firmware errors/timeouts

and attach the full system.log

anything else is just a waste of good development time

[mohammed azad]

Hi jalavoui,



This is what i get on idenebv1.4.. leopard 10.5.6 on my toshiba satellite L310...



May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: iwi3945: Starting

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: Someone called createOutputQueue()

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: settCurController [OK]

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: IOPCCard info: iwl3945: Intel® PRO/Wireless 3945ABG/BG Network Connection driver for Linux, 1.2.23d

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: IOPCCard info: iwl3945: Copyright© 2003-2007 Intel Corporation

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: ieee80211_alloc_hw [OK]

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: PCI device enabled [OK]

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: Error drv->probe

May 15 02:27:37 mohammed-azads-macpro31 kernel[0]: error iwl3945: Unable to initialize PCI module

[Xom]

iwi3945 on Leopard 10.5.6



system_log.txt

[ThinkpadOSX]

...



i'll try to make this as clear as possible



iwi3945 is the only driver i'm working at this time

i don't need other logs from other drivers

i need people to test latest version from here http://iwidarwin.googlecode.com/svn/trunk/...0.5/iwi3945.dmg

run a few tests until you get a log without firmware errors/timeouts

and attach the full system.log

anything else is just a waste of good development time



Firstly thanks for all your work so far! The card seems to be functional and network selector shows available networks, however, it does not allow me to connect to my unsecured network.(or any for that matter) It shows up as airport in Network preferences and gives a self assigned IP.



Thinkpad R61i w/3945

system.txt

[Spursboy Liv]

Hi there,



I have installed the 3945ABG driver from this thread and now I have a new Ethernet interface in Network but for some reason, its being shown as an Ethernet card rather than an AirPort device and sometimes it will either display 'Cable is unplugged' or it will be set to 'Self-Assigned IP' with a green light. I am aware that these drivers are in development, but I'm just a bit surprised as to why it's not being detected as a wireless interface at the very least. Keep up the good work though, we all appreciate it!



Liv

[Poco]

@Spursboy Liv



Why is my card detected as an ethernet adapter instead of an Airport card?

This is normal and to be expected. We wrote the driver this way because the IO80211Family is closed source and not well documented. There is more information available for "wired" adapters in Mac OS. The basic networking functions of your card will be handled by the OS, while wireless features are controlled with our NetworkSelector and nsGui utilities. Both utilities are currently under development and therefore are not expected to be fully operational.



As said on the FAQ of the iwidarwin Google Code site.

[jalavoui]

May 16 11:28:12 garrison-sweats-macbook-air kernel[0]: send authentication packet 0

May 16 11:28:12 garrison-sweats-macbook-air kernel[0]: IOPCCard debug: en1: short skb (len=0)



finally a usefull log



before posting logs check if you get this lines - if you don't reboot a few times until get this line

i'll try to fix in the svn tree and post a new release for testing

and...

don't use networkselector - if the driver loads ok it will try to associate to the first open network it finds



iwi3945 rel 1215

fixed 0 size packet

download from http://iwidarwin.googlecode.com/svn/trunk/...0.5/iwi3945.dmg



iwi2200

i have a airport broadcom on my pc

the conection keeps droping - just like in iwi2200

maybe this is a mac os x bug (10.5.5)

anyone as a fix for this?

[Nick14]

I got to ask Sorry but Network selector Gui crashes sometimes at Boot or even when i'm trying to type in the Wep key any reson for that ?

[ostaryus1]

Hi i am using the 4965agn. I have compiled the latest svn and network selector. I installed the kext perfectly fine, no kernel panics. Appears to load up in console etc. Using network selector it finds my open network, i tell it to associate but nothing happens? No ip address is got (if how or where it says it is??), the adapter doesnt show up in system prefs/network ? And nothing loads in safari.....console is saying loads of stuff with rx_Beacons etc......



Any for me or anything i can help by doing? thanks



I have exactly the same problem. After installing iwi4965 a new ethernet card is listed in network. It says that the model is 4965 agn so it is wireless card but it seems to be ethernet card. May be I did something wrong. I use netwrok selector but it only lists the wireless netwroks and cannot connect even unsecure ones. I guess a little point is missing in this driver.

[edlemur]

My 3945 is almost working. It shows up as ethernet 2. And when I run the network selector, it detects my network. Unfortunately, when I type the number for my network, it then says its attempting to associate but then goes back to the main screen without actually connecting. To clear things up, my network has no encryption or security.



I'd love to help the iwifi cause. How do I uninstall the iwifi driver so that I can try a clean install and post a log here?

[sp00ge]

iwi3945 on Leopard 10.5.7



After a few reboots it finally finds and tries to associate with my unsecured access point,

but fails.



Thanks for you hard work and I hope my logs help you.

system.log.txt

[jalavoui]

thanks for testing



iwi3945 rel 1216

authentication fix

the driver is very close to start working...



please post your comments with system.log

networkselector is disabled on this release - don't ask about it



iwi4965

wait until 3945 start to work

[sp00ge]

I've attached my system.log from iwi3945 rel 1216



The driver seems to be trying to connect to a WEP encrypted access point that is quite a distance away and is ignoring my unsecure access point located very close.



Cheers

system.log.txt

[edlemur]

Hi. I want to provide a system log to help with the development of the 3945 driver. But I need to know how to uninstall it first. Do I simply delete the kext?

[adityaxavier]

hi jalavoui,



Please find the attached logs of your latest release.. one update.. it dint detect a new interface but a weird thing happened.. it was trying to you my onboard ethernet adapter instead of adding a new ethernet adapter.. ataching the system logs and the screenshot for you reference..



I can test the same very quickly and on a day to day basis.. let me know if you need any help at all.. Thanks for the support..

iwi3945.rtf

[-osXso-]

Hi there,



I am a complete n00b to this, but somehow managed to loadkext the driver and log what happens.

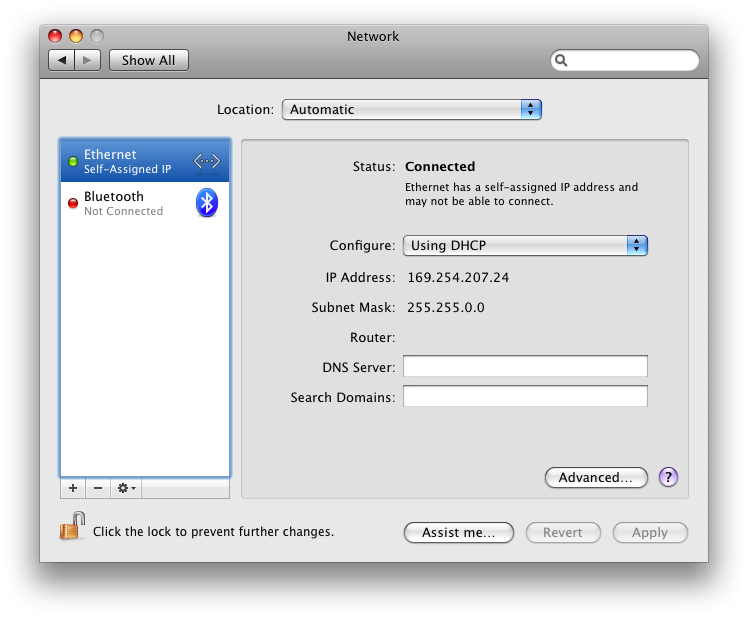

I see the same thing in network-window as the guy in the previous post.

In the log I saw some interaction with airport (check the log), however nothing visible in airport.

Otherwise network selector seems to be sort of disabled - whatever.



Hth..

Oh yeah, VAIO TZ21VN/X, iPC 10.5.5 webcam and wireless missing, rest OK, dualboot with nlite.d XP

system.log.rtf

[amh10]

thanks for testing



iwi3945 rel 1216

authentication fix

the driver is very close to start working...



please post your comments with system.log

networkselector is disabled on this release - don't ask about it



iwi4965

wait until 3945 start to work



Can someone post a link to rel 1216?

[Xom]

to amh10 link



on Leopard 10.5.6



system.txt
