hautecontre
hautecontre
Posted
Posted

Dear Chun-Nan,



Thank you for your effort. Beta2 (now beta3) kexts solved issues with my built-in O2Micro mini FireWire port instantly.



However, FireWire connections on my Belkin FireWire and USB 2.0 ExpressCard are not working. When starting-up in verbose mode it still says "FireWire: Unable to get device memory" for those hubs. At the same time USB port of the adapter is working.



Best regards,

Hautecontre

Link to comment
Share on other sites
m0use
m0use
Posted
Posted

Hi Chun-Nan,



I got ENE technologies cardbus controller for PCMCIA working.

Thank you very much, now i got wifi through my Linksys pcmcia-card and i can leave Atheros (dreaded 5007...) at peace.



When possible could you please add support for ENE technologies (vendor-id: 1524)

dev-id's: 0530, 0551, 0520 and SD host controller dev-id: 0550?



Thank you for your effort on this platform, it is much appreciated!



m0use

Link to comment
Share on other sites
jul_k
jul_k
Posted
Posted
Hi jul_k,



If you can boot with "-f" and don't get KP, it usually means the file permissions are not set correctly or the kextcache is not updated. Double check it.



If rev8 doesn't work with you, you can try beta3.



You may try another usb drivers to see if your usb sound card will work via USB PCCard.



If you still get KP, can you post kernal panic picture on the forum if possible? Thanks.



Chun-Nan



Hi Chun-Nan!



you were right with the not updated kextcache!

now I have beta3 running with the same behaviour like using only the pccardfamily.kext!



Is there a way to unplug the card without freezing my system?



could you suggest a usb driver? I don't know where to choose from except pcgenusb2!



thank you very much!

Link to comment
Share on other sites
macsandy
macsandy
Posted
Posted

Hi Chun-nan,



Thank you for the PCMCIA Driver.



I have following problem with my iATKOS 2.0i installation on Thinkpad.



1] The System Boots fine with the rev8 PCMCIA kext's. (The Buffalo 1394 card is not inserted into PCMCIA Slot during BOOT).



Here are the details from dmesg

----------------------------------

$ sudo dmesg | grep PC

Extension "com.apple.driver.ApplePCIConfigurator" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.

PCI configuration changed (bridge=0 device=0 yenta=1)

IOPCCard info: Intel PCIC probe: TI 1510 rev 00

-----------------------------------





Once system is booted, I insert the 1394 Card. Here is message from dmesg.



--------------------------------

IOPCCard info: cs: cb_alloc(bus 22): vendor 0x104c, device 0x8023

IOPCCard info: cs: cb_alloc(bus 22): found 1 functions

IOCardBusDevice: binding socket 0 function 0 to card services.

IOPCCard info: cs: cb_config(bus 22)

IOPCCard info: fn 0 bar 1: mem 0xa000d000-0xa000d7ff

IOPCCard info: fn 0 bar 3: mem 0xa000c000-0xa000c7ff

IOPCCard info: fn 0 bar 2: mem 0xa0008000-0xa000bfff

IOPCCard info: irq 16

FireWire (OHCI) TI ID 8023 CardBus now active, GUID 0000000000000000; max speed s100.

----------------------------------------------------------------------------------------



But, in System Profile, No firewire devices are displayed.



System Profile

---------------

PC Cards

|- Function : Firewire Controller

| - Vendor : Unknown

| - Type : Cardbus

| - VendorID : 4172

| - Dev ID : 32803

|

Firewire

| - Warning : The firewire drivers are not loaded

--------------------------------



2] The System Hangs while booting if the Buffalo 1394 card is inserted into PCMCIA Slot.

The kernel logs shows similar messages about PCMCIA COntroller & 1394 card.



Boot hangs with this message : kextd[10] : IOKitWaitQuiet() Timed out waiting to write kernel symbols.



Is there anything I am missing?



Thanks

Sandy

Link to comment
Share on other sites
macmusic4me
macmusic4me
Posted
Posted

Hi,



I am having trouble getting my PCMCIA card to work. I have never used a Mac before. Is there a step by step guide to installing beta 3. It says you need to copy and then replace 2 files at the same time. Where do I find those files?



Complete Mac noob query I know.

Link to comment
Share on other sites
synapse1975
synapse1975
Posted
Posted

help me! My configuration is in the signature.

I installed PCCard.10.5.2.beta3.kext.zip but sd-card not appear on desktop . Why? ... if as root, I type "dmesg | grep PC" I find PCxx21 .



..another thing, it is required AppleACPIPlatform 1.2.0 ? My version is 1.1 . If yes, where can I find it?



thanks

Link to comment
Share on other sites
huedrant
huedrant
Posted
Posted

hi!



i'm new to OSX driver cheating, but obviously, your drivers seem extraordinarily.. great! what i didn't get: do they work only for PCMCIA devices? as I read about your drivers somewhere here (in the sig of BugsBunny), it made me think that it supports almost every atheros chip.



i own an asus eeePC and became kinda addicted to try around. so is there any chance that your drivers might get the built-in atheros AR5BXB63 wifi chip working?



anyway, thanks for your work for the community!

Link to comment
Share on other sites
Onishi
Onishi
Posted
Posted

HI. FIRST OF ALL THANX FOR THE WORK !!!!!

I've got next CArd Reader:

SD Host controller [0805]: Texas Instruments PCIxx12 SDA Standard Compliant SD Host Controller [104c:803c]



It seems to me I did something wrong. What it was exactly ?

----------------------------------------------------------------------

I did next:

- I downloaded IOPCCardFamily_chunnan_Leopard_rev8.zip, unpacked it and replase IOPCCardFamily.kext and IOPCIFamily.kext.

- reboot.

- I downloaded PCCard.10.5.2.beta3.mpkg.zip, unpacked it and installed it.

- reboot.

----------------------------------------------------------------------

Then I got next reply on the command :

bash-3.2# dmesg | grep PC
PCI configuration changed (bridge=1 device=15 yenta=1)
IOPCCard info:   Mac OS X PCMCIA Card Services 3.1.22
IOPCCard info:	 options:  [pci] [cardbus] [pnp]
IOPCCard info:   Intel PCIC probe:
IOPCCard info:	 TI XX12 rev 00 PCI-to-CardBus phys mem 0x40104000 virt mem 0x2240d000
IOPCCard info:	   host opts [0]: [serial pci & irq] [pci irq 18] [lat 64/64] [bus 8/8]
IOPCCard info:	   PCI card interrupts, PCI status changes
FireWire (OHCI) TI ID 803a PCI now active, GUID 00080da0d162140b; max speed s400.
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SATA@1F,2/AppleIntelPIIXATARoot/PRID@0/AppleIntelICHxSATA/ATADeviceNub@0/AppleATADiskDriver/IOATABlockStorageDevice/IOBlockStorageDriver/HTS541010G9SA00 HTS541010G9SA00/IOFDiskPartitionScheme/Untitled 1@1
bash-3.2#



So Card Reader is no working now.

May be I have to put somewhere my Card Reader vendor and device ID (104c:803c) ???



Thanks a lot ...

Link to comment
Share on other sites
Onishi
Onishi
Posted
Posted
I get this message when the card IS working!



So what I did was correctly?

And how can I see my card reader work ? I should see new disk in Finder ?

=============================================

It seems to me I got righr message via command :

bash-3.2# dmesg | grep PC
PCI configuration changed (bridge=1 device=15 yenta=1)
IOPCCard info:   Mac OS X PCMCIA Card Services 3.1.22
IOPCCard info:	 options:  [pci] [cardbus] [pnp]
IOPCCard info:   Intel PCIC probe:
IOPCCard info:	 TI XX12 rev 00 PCI-to-CardBus phys mem 0x40104000 virt mem 0x2240d000
IOPCCard info:	   host opts [0]: [serial pci & irq] [pci irq 18] [lat 64/64] [bus 8/8]
IOPCCard info:	   PCI card interrupts, PCI status changes
FireWire (OHCI) TI ID 803a PCI now active, GUID 00080da0d162140b; max speed s400.
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SATA@1F,2/AppleIntelPIIXATARoot/PRID@0/AppleIntelICHxSATA/ATADeviceNub@0/AppleATADiskDriver/IOATABlockStorageDevice/IOBlockStorageDriver/HTS541010G9SA00 HTS541010G9SA00/IOFDiskPartitionScheme/Untitled 1@1

But my card reader doesn't work. I tried put on 1 Gb SD card ans 32 Mb CD card.

My #lspci command give next:

# lspci -nnn
00:00.0 Host bridge [0600]: Intel Corporation Mobile 945GM/PM/GMS, 943/940GML and 945GT Express Memory Controller Hub [8086:27a0] (rev 03)
00:01.0 PCI bridge [0604]: Intel Corporation Mobile 945GM/PM/GMS, 943/940GML and 945GT Express PCI Express Root Port [8086:27a1] (rev 03)
00:1b.0 Audio device [0403]: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller [8086:27d8] (rev 02)
00:1c.0 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 [8086:27d0] (rev 02)
00:1c.1 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 2 [8086:27d2] (rev 02)
00:1c.2 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 3 [8086:27d4] (rev 02)
00:1d.0 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 [8086:27c8] (rev 02)
00:1d.1 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 [8086:27c9] (rev 02)
00:1d.2 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 [8086:27ca] (rev 02)
00:1d.3 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 [8086:27cb] (rev 02)
00:1d.7 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller [8086:27cc] (rev 02)
00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev e2)
00:1f.0 ISA bridge [0601]: Intel Corporation 82801GBM (ICH7-M) LPC Interface Bridge [8086:27b9] (rev 02)
00:1f.2 IDE interface [0101]: Intel Corporation 82801GBM/GHM (ICH7 Family) SATA IDE Controller [8086:27c4] (rev 02)
00:1f.3 SMBus [0c05]: Intel Corporation 82801G (ICH7 Family) SMBus Controller [8086:27da] (rev 02)
01:00.0 VGA compatible controller [0300]: nVidia Corporation G70 [GeForce Go 7600] [10de:0398] (rev a1)
05:00.0 Network controller [0280]: Intel Corporation PRO/Wireless 3945ABG Network Connection [8086:4222] (rev 02)
07:06.0 CardBus bridge [0607]: Texas Instruments PCIxx12 Cardbus Controller [104c:8039]
07:06.1 FireWire (IEEE 1394) [0c00]: Texas Instruments PCIxx12 OHCI Compliant IEEE 1394 Host Controller [104c:803a]
07:06.2 Mass storage controller [0180]: Texas Instruments 5-in-1 Multimedia Card Reader (SD/MMC/MS/MS PRO/xD) [104c:803b]
07:06.3 SD Host controller [0805]: Texas Instruments PCIxx12 SDA Standard Compliant SD Host Controller [104c:803c]
07:08.0 Ethernet controller [0200]: Intel Corporation PRO/100 VE Network Connection [8086:1092] (rev 02)

Please help me :P

Link to comment
Share on other sites
Dfroman
Dfroman
Posted
Posted
Hello,



Here is the IOPCCardFamily file that I have worked on today. I complied the source files offered from Apple and also fixed some bugs. You do not have to edit the info.plist to match your machine. If your pccard shows "IOPCCardBridge::start failed", you can give it a try.



How to use?

  • Backup your original IOPCCardFamily driver (and IOPCIFamily driver)
  • Replace your IOPCCardFamily driver (and IOPCIFamily driver) with the attached one that contains all necessary modifications
  • Reboot
  • As root, type "dmesg | grep PC"; you should see something being found

Welcome to try it. Don't forget to backup the old files before trying it.



[iMPORTANT]

If you get the kernel panic, PLEASE check if you have replaced the following files to make your cardbus slot working before:



AppleACPIPlatform

AppleAPIC

IOACPIFamily



If you did, you probably need to find a way to restore those files first.

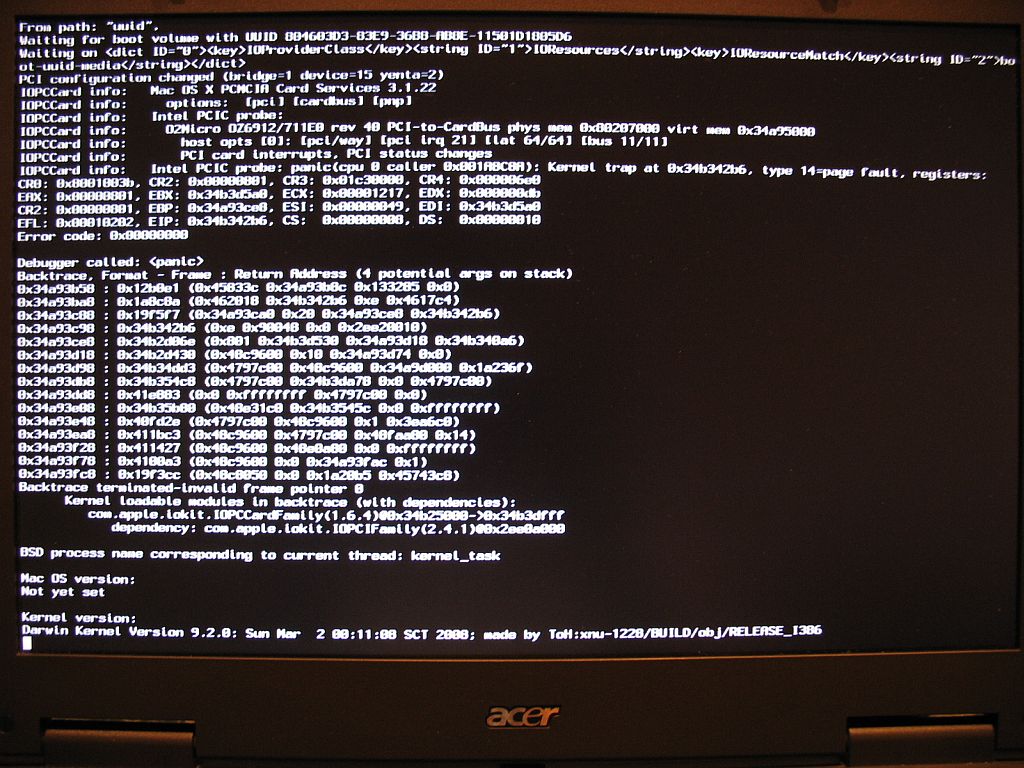

If you still get kernel panic, you can take the picture of it if possible. Thanks.



[KNOWN ISSUES]

It may cause kernel panic with AGPGart installed.....

If you have the error message "IOPCCardBridge::checkBridgeBusIDs invalid sub/cardbus/pci settings of 0x0" before trying the rev3 file, it still may not work after trying the rev3 file.

Chun-Nan



Kext File: IOPCCardFamily_chunnan_rev3.zip

Source Code: IOPCCardFamily_48_chunnan.zip



[uPDATE]

1/17/2008: rev6 and source code update

Please replace IOPCCardFamily and IOPCIFamily at the same time.

You DO NOT have to edit info.plist because it will use "ADP2,1" by default.

If you are using other revisions, please update to rev6.

If possible, let me know the result. Thanks.



IOPCCardFamily_chunnan_Leopard_rev6.zip

IOPCCardFamily_chunnan_Leopard_rev6_src.zip



1/30/2008: rev7 and source code update

Please replace IOPCCardFamily and IOPCIFamily at the same time.

You DO NOT have to edit info.plist because it will use "ADP2,1" by default.

If you are using other revisions, please update to rev7.

If possible, let me know the result. Thanks.



IOPCCardFamily_chunnan_Leopard_rev7.zip

IOPCCardFamily_chunnan_Leopard_rev7_src.zip



2/7/2008: rev8 and source code update

Please replace IOPCCardFamily and IOPCIFamily at the same time.

You DO NOT have to edit info.plist because it will use "ADP2,1" by default.

If you are using other revisions, please update to rev8.

If possible, let me know the result. Thanks.



IOPCCardFamily_chunnan_Leopard_rev8.zip

IOPCCardFamily_chunnan_Leopard_rev8_src.zip



5/25/2008: beta3 installation package update

Please choose IOPCCardFamily and IOPCIFamily at the same time.

If possible, let me know the result. Thanks.







==========

{ "Cirrus PD6729", IS_CIRRUS|IS_PCI, ID(CIRRUS, 6729) }

{ "Cirrus PD6730", IS_CIRRUS|IS_PCI, PCI_VENDOR_ID_CIRRUS, -1 }

{ "Cirrus PD6832", IS_CIRRUS|IS_CARDBUS, ID(CIRRUS, 6832) }

{ "ENE 1211", IS_TI|IS_CARDBUS, ID(ENE, 1211) } <= new added

{ "ENE 1225", IS_TI|IS_CARDBUS, ID(ENE, 1225) } <= new added

{ "ENE 1410", IS_TI|IS_CARDBUS, ID(ENE, 1410) } <= new added

{ "ENE 710/2/4", IS_TI|IS_CARDBUS, ID(ENE, 1411) } <= new added

{ "ENE 712/4", IS_TI|IS_CARDBUS, ID(ENE, 1412) } <= new added

{ "ENE 1420", IS_TI|IS_CARDBUS, ID(ENE, 1420) } <= new added

{ "ENE 720/2/4", IS_TI|IS_CARDBUS, ID(ENE, 1421) } <= new added

{ "ENE 722/4", IS_TI|IS_CARDBUS, ID(ENE, 1422) } <= new added

{ "O2Micro OZ6729", IS_O2MICRO|IS_PCI|IS_VG_PWR, ID(O2, 6729) }

{ "O2Micro OZ6730", IS_O2MICRO|IS_PCI|IS_VG_PWR, ID(O2, 6730) }

{ "O2Micro OZ6832/33", IS_O2MICRO|IS_CARDBUS, ID(O2, 6832) }

{ "O2Micro OZ6836/60", IS_O2MICRO|IS_CARDBUS, ID(O2, 6836) }

{ "O2Micro OZ6812", IS_O2MICRO|IS_CARDBUS, ID(O2, 6812) }

{ "O2Micro OZ6922", IS_O2MICRO|IS_CARDBUS, ID(O2, 6922) }

{ "O2Micro OZ6933/711E1", IS_O2MICRO|IS_CARDBUS, ID(O2, 6933) }

{ "O2Micro OZ6912/711E0", IS_O2MICRO|IS_CARDBUS, ID(O2, 6912) }

{ "O2Micro OZ711EC1/M1", IS_O2MICRO|IS_CARDBUS, ID(O2, 7112) }

{ "O2Micro OZ711EC1", IS_O2MICRO|IS_CARDBUS, ID(O2, 7113) }

{ "O2Micro OZ711M1/MC1", IS_O2MICRO|IS_CARDBUS, ID(O2, 7114) }

{ "O2Micro OZ711MP1/MS1", IS_O2MICRO|IS_CARDBUS, ID(O2, 7134) } <= new added

{ "O2Micro OZ711EZ1", IS_O2MICRO|IS_CARDBUS, ID(O2, 7135) } <= new added

{ "O2Micro OZ711SP1", IS_O2MICRO|IS_CARDBUS, ID(O2, 7136) } <= new added

{ "O2Micro OZ711E2", IS_O2MICRO|IS_CARDBUS, ID(O2, 71E2) }

{ "O2Micro OZ711M2", IS_O2MICRO|IS_CARDBUS, ID(O2, 7212) }

{ "O2Micro OZ711M3/MC3", IS_O2MICRO|IS_CARDBUS, ID(O2, 7223) }

{ "O2Micro OZ711MP3/MS3", IS_O2MICRO|IS_CARDBUS, ID(O2, 7233) } <= new added

{ "Ricoh RL5C465", IS_RICOH|IS_CARDBUS, ID(RICOH, RL5C465) }

{ "Ricoh RL5C466", IS_RICOH|IS_CARDBUS, ID(RICOH, RL5C466) }

{ "Ricoh RL5C475", IS_RICOH|IS_CARDBUS, ID(RICOH, RL5C475) }

{ "Ricoh RL5C476", IS_RICOH|IS_CARDBUS, ID(RICOH, RL5C476) }

{ "Ricoh RL5C477", IS_RICOH|IS_CARDBUS, ID(RICOH, RL5C477) } <= new added

{ "Ricoh RL5C478", IS_RICOH|IS_CARDBUS, ID(RICOH, RL5C478) }

{ "SMC 34C90", IS_CARDBUS, ID(SMC, 34C90) }

{ "TI 1130", IS_TI|IS_CARDBUS, ID(TI, 1130) }

{ "TI 1131", IS_TI|IS_CARDBUS, ID(TI, 1131) }

{ "TI 1031", IS_TI|IS_CARDBUS, ID(TI, 1031) }

{ "TI 1210", IS_TI|IS_CARDBUS, ID(TI, 1210) }

{ "TI 1211", IS_TI|IS_CARDBUS, ID(TI, 1211) }

{ "TI 1220", IS_TI|IS_CARDBUS, ID(TI, 1220) }

{ "TI 1221", IS_TI|IS_CARDBUS, ID(TI, 1221) }

{ "TI 1225", IS_TI|IS_CARDBUS, ID(TI, 1225) }

{ "TI 1250A", IS_TI|IS_CARDBUS, ID(TI, 1250A) }

{ "TI 1251A", IS_TI|IS_CARDBUS, ID(TI, 1251A) }

{ "TI 1251B", IS_TI|IS_CARDBUS, ID(TI, 1251B) }

{ "TI 1410", IS_TI|IS_CARDBUS, ID(TI, 1410) }

{ "TI 1420", IS_TI|IS_CARDBUS, ID(TI, 1420) }

{ "TI 1450", IS_TI|IS_CARDBUS, ID(TI, 1450) }

{ "TI 1451", IS_TI|IS_CARDBUS, ID(TI, 1451) }

{ "TI 1510", IS_TI|IS_CARDBUS, ID(TI, 1510) }

{ "TI 1520", IS_TI|IS_CARDBUS, ID(TI, 1520) }

{ "TI 1620", IS_TI|IS_CARDBUS, ID(TI, 1620) }

{ "TI 4410", IS_TI|IS_CARDBUS, ID(TI, 4410) }

{ "TI 4450", IS_TI|IS_CARDBUS, ID(TI, 4450) }

{ "TI 4451", IS_TI|IS_CARDBUS, ID(TI, 4451) }

{ "TI 4510", IS_TI|IS_CARDBUS, ID(TI, 4510) }

{ "TI 4520", IS_TI|IS_CARDBUS, ID(TI, 4520) }

{ "TI 7410", IS_TI|IS_CARDBUS, ID(TI, 7410) }

{ "TI 7510", IS_TI|IS_CARDBUS, ID(TI, 7510) }

{ "TI 7610", IS_TI|IS_CARDBUS, ID(TI, 7610) }

{ "TI 7420", IS_TI|IS_CARDBUS, ID(TI, 7510) } <= new added

{ "TI 7620", IS_TI|IS_CARDBUS, ID(TI, 7610) } <= new added

{ "TI XX12", IS_TI|IS_CARDBUS, ID(TI, XX12) }

{ "TI XX21", IS_TI|IS_CARDBUS, ID(TI, XX21) } <= new added

{ "TI 6515", IS_TI|IS_CARDBUS, ID(TI, 6515) } <= new added

{ "Toshiba ToPIC95-A", IS_CARDBUS|IS_TOPIC, ID(TOSHIBA, TOPIC95_A) }

{ "Toshiba ToPIC95-B", IS_CARDBUS|IS_TOPIC, ID(TOSHIBA, TOPIC95_:P }

{ "Toshiba ToPIC97", IS_CARDBUS|IS_TOPIC, ID(TOSHIBA, TOPIC97) }

{ "Toshiba ToPIC100", IS_CARDBUS|IS_TOPIC, ID(TOSHIBA, TOPIC100) }

==========

I don't know if the new added devices will work or not. However, you can give it a try and let me know the result. In addition, if your pccard slot works under linux and it is not listed on the above the list (and if you believe it may work under mac), let me know the device id and I will try to add it to the next revision.



Everything of mine was working on my Dell Dimensions 4600c except the Ethernet (I have a WiFi card in, but was trying to use it wired. I installed the above app, and now I get the Grey Apple screen non stop???? How do I undo this, with reformatting and reinstalling OS. Or, how do I get this to work? I am fairly new to macs (bought a macbook in feb) really liked it and had this dell and wanted to give it a shot. Like I state before, Iatkos v2.0 worked except for ethernet without me having to do anything. I guess I should have left well enough alone, but I thought it "COULD" be a perfect install, any and all help is greatly appreciated

Link to comment
Share on other sites
zp3dd4
zp3dd4
Posted
Posted

Hey



I have recently installed leopard on my BenQ S41.

The ethernet did not work by default, but the osx wiki

http://wiki.osx86project.org/wiki/index.ph...es#Benq_S41-C46

said that:



LAN: Yukon 88E8055 work with the PCCard.10.5.2.Beta2.pkg (http://forum.insanelymac.com/index.php?sho...1036&st=500)

Add your LAN hardware id into /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleYukon2.kext/Contents/Info.plist and then install the PCCard pkg



I dont know how to add my lan hardware ID into Info.plist, or which lines to edit



Thx a lot

Link to comment
Share on other sites
Evil_Cartman
Evil_Cartman
Posted
Posted

Hi Chun-Nan,



I've just installed PCCard.10.5.2.beta3, system boot is OK, here's system.log messages:

Jun 19 20:26:48 localhost kernel[0]: IOPCCard info:   Mac OS X PCMCIA Card Services 3.1.22
Jun 19 20:26:48 localhost kernel[0]: IOPCCard info:	 options:  [pci] [cardbus] [pnp]
Jun 19 20:26:48 localhost kernel[0]: IOPCCard info:   Intel PCIC probe:
Jun 19 20:26:48 localhost kernel[0]: IOPCCard info:	 TI XX12 rev 00 PCI-to-CardBus phys mem 0x80104000 virt mem 0x34c3a000
Jun 19 20:26:48 localhost kernel[0]: IOPCCard info:	   host opts [0]: [serial pci & irq] [pci irq 18] [lat 64/64] [bus 6/6]
Jun 19 20:26:48 localhost kernel[0]: IOPCCard info:	   PCI card interrupts, PCI status changes

but unfortunately I see no PCMCIA card on my system. Here's lspci output:

05:01.0 CardBus bridge: Texas Instruments PCIxx12 Cardbus Controller
Subsystem: QUANTA Computer Inc Unknown device 0753
Flags: bus master, medium devsel, latency 64, IRQ 18
Memory at 80104000 (32-bit, non-prefetchable)
Bus: primary=05, secondary=06, subordinate=06, sec-latency=64
I/O window 0: 00000000-00000003
I/O window 1: 00000000-00000003
16-bit legacy interface ports at 0001



Tested on Benq R55 laptop.



Thanks for developnent and I still hope to find my PCCards working.

Link to comment
Share on other sites
Arise
Arise
Posted
Posted

Hello,



After 2 days of unsuccesfull tryouts to start the Kalyway_10.5.2, I read this topic and I've made the following changes:



I have downloaded PCCard.10.5.2.beta3.kext.zip.



Under Windows, with Transmac, I've replaced the 2 folders in the System/Library/Extensions (IOPCIFamily.kext, IOPCIFamily.kext) with the ones found in the above arhive.



I've burned the iso image, rebooted, and got the following error:






The only other change I've made to the Kalyway iso was to rename IOFireWire*.kext files to IOFireWire*.kext-vanilla, because I was getting errors on Firewire too.



I've noticed that there is another arhive, PCCard.10.5.2.beta3.mpkg.zip , but I don't know what I have to do with that. ^_^



Help, I'm desperate! :( I'm a noob.



Thanks in advance, my card reader seems to be in your list, Chun-Nan: { "O2Micro OZ6912/711E0", IS_O2MICRO|IS_CARDBUS, ID(O2, 6912) }

Link to comment
Share on other sites
dRkLePtO
dRkLePtO
Posted
Posted

It worked for me!

My card:



15:00.0 CardBus bridge: Texas Instruments PCIxx12 Cardbus Controller

Subsystem: Lenovo Device 2028

Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 168, Cache Line Size: 32 bytes

Interrupt: pin A routed to IRQ 20

Region 0: Memory at e4300000 (32-bit, non-prefetchable)

Bus: primary=15, secondary=16, subordinate=17, sec-latency=176

Memory window 0: e0000000-e3fff000 (prefetchable)

Memory window 1: 50000000-53fff000

I/O window 0: 00008000-000080ff

I/O window 1: 00008400-000084ff

Secondary status: SERR

BridgeCtl: Parity- SERR- ISA- VGA- MAbort- >Reset- 16bInt- PostWrite+

16-bit legacy interface ports at 0001

Kernel driver in use: yenta_cardbus

Kernel modules: yenta_socket





I only had to delete the Extensions.mkext and reboot..

And that made my Leo4Allv3 (updated with Kalyway combo 10.5.3) install able to use a Buffalo Broadcom based PCMCIA card.. So I finally got my AirPort working..



Just three words: I LOVE YOU! :(

Link to comment
Share on other sites
phusebox
phusebox
Posted
Posted

I am a real noob here, and looking for a way to get my Intel 2100 Pro working... I have a hardware button to turn on/off the wireless and by default in osx it is turned off.

If I am correct I can use this to get it "on"?



But I don't know what and how to use it?

Link to comment
Share on other sites
phusebox
phusebox
Posted
Posted

I give up. I had to do more than 5 reinstalls and I just don't get any life into my wlan. Without it I can't live. Back to windows it is :)



I just wanted to try a mac for a few weeks to see if i would buy one , but guess not

Link to comment
Share on other sites
Audiophonicz
Audiophonicz
Posted
Posted

ok guys, ive read this whole thread to the point my eyes burn. rev8 got my TI xx21 cardbridge found, the beta fubared my system, couldnt even boot safe mode. that being said:



my TI xx21 has the integrated SD Card Reader. This is what I need the most, and I know its integrated into the cardbus, however it is still not functioning. I see users asking about it, but they never even get a reply, let alone a point in the right direction if indeed it is governed by a different driver. Any advice would be appreciated, but i need this SD Card Reader to work, AND it would bring my system to 100% working with leo 5.2. i just need a point in the right direction, so has anyone gotten thier cardreader to work? my lspci is thus:



02:06.0 CardBus bridge: Texas Instruments PCIxx21/x515 Cardbus Controller

Subsystem: Hewlett-Packard Company Unknown device 0944

Flags: bus master, medium devsel, latency 168, IRQ 18

Memory at d0101000 (32-bit, non-prefetchable)

Bus: primary=02, secondary=03, subordinate=06, sec-latency=176

Memory window 0: 80000000-83fff000 (prefetchable)

Memory window 1: 84000000-87fff000

I/O window 0: 00001400-000014ff

I/O window 1: 00001800-000018ff

16-bit legacy interface ports at 0001



02:06.3 Mass storage controller: Texas Instruments PCIxx21 Integrated FlashMedia Controller

Subsystem: Hewlett-Packard Company Unknown device 0944

Flags: bus master, medium devsel, latency 64, IRQ 22

Memory at d0102000 (32-bit, non-prefetchable)

Capabilities: <access denied>



02:06.4 SD Host controller: Texas Instruments PCI6411/6421/6611/6621/7411/7421/7611/7621 Secure Digital Controller

Subsystem: Hewlett-Packard Company Unknown device 0944

Flags: bus master, medium devsel, latency 64, IRQ 19

Memory at d0104000 (32-bit, non-prefetchable)

Memory at d0105000 (32-bit, non-prefetchable)

Memory at d0106000 (32-bit, non-prefetchable)

Capabilities: <access denied>



im a noob with technical background, so if you can point me at the kext i need to edit, and what to place, id be real appreciative. once i get 100% i plan on donating to the cause nicely. thanks in advance to all you gurus.

Link to comment
Share on other sites
gygabyte666
gygabyte666
Posted
Posted

i am need of some serious help in this department. ok so here is the deal, i have installed the beta3 package on my hackintosh running 10.5.3, it runs very well thus far. my issue is that although it appears that my internal sd reader is being recognized (the little controller thing in the toolbar is displayed when i insert a card) it never mounts the actual card.



my controller seems to be this if it helps:

Ricoh Co Ltd RL5C472 II [1180:0476] (rev ac) Cardbus bridge [0607]



Sorry if i didn't give correct info, i'm new & in desperate help, please if anyone can maybe help please do try, i'm so sick of having things fail & having to mirror my drive if something goes sour, i can't fix it on my own so i need help if i can get any. any help is better than none



Thank you in advance

----COMPUTER INFO-----

Dell Latitude X300

Kalyway 10.5.1 --> Kalyway 10.5.3

Intel Pentium M 1.2Ghz

384MB Ram

Dual boot with XP MCE 2005

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
