CardBus/PCMCIA PC Cards for Leopard

fingerr · January 31, 2008

Hi Mariusz,

What device did you plug into the firewire port? Brand name or information on that device? Do you have other devices using the firewire port to test?

Chun-Nan

I'll check exact device name later when I'm at work, but this is similiar to this one XtraStor.

Unfortunately this only one device FW I have.

Regards,

Mariusz.

snam11 · January 31, 2008

Hi snam11,

Did you put any device on both "standard and express" pccard? Is the smartcard reader built-in?

Where/when did you get that kernel panic? with rev7 or other revision?

Chun-Nan

hi Chun-Nan,

i didn't tested yet simultaneously pcmcia slots (normal and express). i've tested once per time, but i can do it if you need to test.

i have only a multicard reader as express card,and of course some pcmcia card (firewire,wifi,multicardreader)

i don't think i can't do a complete test if you want me to check the full speed of both pcmcia slot, but if you want only to check if both works at same time, piece of cake.

the smarcard reader (is used in windows like the fingerprint reader, without the proper smartcard plugged in, the pc will lock, won't do a thing)is built in, and i have no chance to disable it (also in bios).

so the "full" o2micro controller has 2 pcmcia slot, 1 smartcard reader, 1 firewire.

the kp is present since the beginning, but i thought you was busy focusing the job on pcmcia slots. If you can have a look also to this prob i'd appreciate it.

this nic (intel pro 100pm 82573e vendor 8086 id 108c) should be one of the most compatible chipset, but seems not.

The appleintel8254xethernet.kext (is located into ionetworkingfamily)generates kp related to ipcifamily. I dunno yet if this kext is ppc or macintel native (there is no such open source for it).

regards.

EqUaTe · January 31, 2008

snam11,

If the kext loads, it's intel.

Kexts only work on the arch they're compiled for - so it's intel or ppc. Only one type is installed.

Have you tried manually editing the stock kext for it from a clean install?

Do you get the KP even with stock IOPCIFamily & IOPCCardFamily ?

EqUaTe

snam11 · January 31, 2008

snam11,

If the kext loads, it's intel.

Kexts only work on the arch they're compiled for - so it's intel or ppc. Only one type is installed.

Have you tried manually editing the stock kext for it from a clean install?

Do you get the KP even with stock IOPCIFamily & IOPCCardFamily ?

EqUaTe

hi equate,

the main problem with that kext is: there is no such usefull parameter to edit.i've done a compare with working and non working plist, same parameters.

the kext worked fine with stock tiger 10.4.1-3. kp from .5 to latest leopard

if i try to use old working kext with newest iopci and ionetwork i get a superclass error on loading.

regards

EqUaTe · January 31, 2008

Hrm.. Sounds like it's shockingly like the brcm57xx kext stuff then.. Dirty hack. Probably a binary hack?

Does leopard have a version of that kext normally? (w/o replacing all the network kexts)

snam11 · January 31, 2008

Hrm.. Sounds like it's shockingly like the brcm57xx kext stuff then.. Dirty hack. Probably a binary hack?

Does leopard have a version of that kext normally? (w/o replacing all the network kexts)

hi equate,

the only kext that works with that kind of nic is the appleintel8254xethernet kext inside ionetworkingfamily.

leo and tiger have same kext, kp on both.

afaik there is a 3rd party driver (smalltree communications), it loads fine but doesn't work for me..... probably needs tweaking or hack

and with rev7 i get kp also with that driver, so i'm stucked

EqUaTe · January 31, 2008

So the driver is a stock one from Apple? You're using it w/o any modifications, but still see kernel panics?

snam11 · January 31, 2008

So the driver is a stock one from Apple? You're using it w/o any modifications, but still see kernel panics?

yes... plain kext in earliest version of osx works out of the box... kp with newest

kp also with smalltree alternative drivers kp using rev7

EqUaTe · January 31, 2008

With the smalltree kext, does it kp every time with rev7? Is it stable (ie no kp's) w/o the modded iopccardfamily & iopcifamily ?

snam11 · January 31, 2008

With the smalltree kext, does it kp every time with rev7? Is it stable (ie no kp's) w/o the modded iopccardfamily & iopcifamily ?

no kp with standard iopci ad iopccard, but still the lan doesn't work (the kext needs hack/mods)

~Eureka · January 31, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test10 IOPCIFamily. Use this one with IOPCCardFamily on rev7 and boot with "-s" to enter single user mode. Let me know the dmesg result.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily_test10.zip

snam11 · January 31, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test10 IOPCIFamily. Use this one with IOPCCardFamily on rev7 and boot with "-s" to enter single user mode. Let me know the dmesg result.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily_test10.zip

hi chun-nan

rev10 test without any pcmcia device plugged in:

Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
Probing type 0 device class-code 060000 at 0:0:0 [cpu 0] 20900006
Probing type 1 device class-code 060400 at 0:1:0 [cpu 0] 00100007
Probing type 0 device class-code 040300 at 0:27:0 [cpu 0] 00100006
Probing type 1 device class-code 060400 at 0:28:0 [cpu 0] 00100000
Probing type 1 device class-code 060400 at 0:28:1 [cpu 0] 00100000
Probing type 1 device class-code 060400 at 0:28:2 [cpu 0] 00100000
Probing type 1 device class-code 060400 at 0:28:3 [cpu 0] 00100000
Probing type 1 device class-code 060400 at 0:28:4 [cpu 0] 00100000
Probing type 1 device class-code 060400 at 0:28:5 [cpu 0] 00100000
Probing type 0 device class-code 0c0300 at 0:29:0 [cpu 0] 02800005
Probing type 0 device class-code 0c0300 at 0:29:1 [cpu 0] 02800005
Probing type 0 device class-code 0c0300 at 0:29:2 [cpu 0] 02800005
Probing type 0 device class-code 0c0300 at 0:29:3 [cpu 0] 02800005
Probing type 0 device class-code 0c0320 at 0:29:7 [cpu 0] 02900006
Probing type 1 device class-code 060401 at 0:30:0 [cpu 0] 00100004
Probing type 0 device class-code 060100 at 0:31:0 [cpu 0] 02100007
Probing type 0 device class-code 010180 at 0:31:2 [cpu 0] 02b00005
Probing type 0 device class-code 0c0500 at 0:31:3 [cpu 0] 02800001
Probing type 2 device class-code 060700 at 10:9:0 [cpu 0] 04100007
Probing type 2 device class-code 060700 at 10:9:1 [cpu 0] 04100080
Probing type 0 device class-code 0c0010 at 10:9:4 [cpu 0] 02100015
Probing type 0 device class-code 028000 at 5:0:0 [cpu 0] 00100000
Probing type 0 device class-code 020000 at 3:0:0 [cpu 0] 00100000
Probing type 0 device class-code 030000 at 1:0:0 [cpu 0] 00100007
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.mbinit: done
Security auditing service present
BSM auditing present

Starting AppleACPIPS2Nub
Found mouse PNP device
AppleACPIPS2Nub startup complete
From path: "uuid",
Waiting for boot volume with UUID F4EDFD34-C9E7-3FF1-A157-8A7E8C92493B
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
Probing type 0 device class-code 020000 at 3:0:0 [cpu 1] 00100000
Probing type 0 device class-code 030000 at 1:0:0 [cpu 0] 00100007Probing type 0 device class-code 028000 at 5:0:0 [cpu 1] 00100000
Probing type 2 device class-code 060700 at 10:9:0 [cpu 1] 04100007
Probing type 2 device class-code 060700 at 10:9:1 [cpu 1] 04100080
Probing type 0 device class-code 0c0010 at 10:9:4 [cpu 1] 02100015
PCI configuration changed (BUS free=1 needed=1 added=0)
PCI configuration changed (BUS free=1 needed=2 added=1)
 Bridge Command    = 00100007
 Device Command = 02100017
 Bridge Command    = 04100007
 Bridge Command    = 04100007
PCI configuration changed (bridge=0 device=1 yenta=2)

IOPCCard info:   Intel PCIC probe:   O2Micro OZ711MP1/MS1 rev 21
IOPCCard info:   Intel PCIC probe: ,   O2Micro OZ711MP1/MS1 rev 21
FireWire (OHCI) VendorID 1217 ID f7 PCI now active, GUID 009fc0001a119e00; max speed s400.
IOPCCard info:   cs: memory probe 0xa0000000-0xa0ffffff: clean.
IOPCCard16Device: binding socket 1 function 0 to card services.
Extension "com.apple.driver.iTunesPhoneDriver" has no explicit kernel dependency; using version 6.0.
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/USB7@1D,7/AppleUSBEHCI/NOONTEC USB Storage@fd410000/MSC Bulk-Only Transfer@0/IOUSBMassStorageClass/IOSCSIPeripheralDeviceNub/IOSCSIPeripheralDeviceType00/IOBlockStorageServices/IOBlockStorageDriver/Maxtor 6 AD1G Media/IOFDiskPartitionScheme/Untitled 1@1
BSD root: disk1s1, major 14, minor 3
USBF:	7.503	AppleUSBEHCI[0x3978800]::Found a transaction which hasn't moved in 5 seconds on bus 0xfd, timing out! (Addr: 3, EP: 0)

rev10 with the pcmcia firewire 800 card plugged in:

AppleACPIPS2Nub startup complete
Probing type 0 device class-code 060000 at 0:0:0 [cpu 1] 20900006
Probing type 1 device class-code 060400 at 0:1:0 [cpu 1] 00100007
Probing type 0 device class-code 040300 at 0:27:0 [cpu 1] 00100006
Probing type 1 device class-code 060400 at 0:28:0 [cpu 1] 00100000
Probing type 1 device class-code 060400 at 0:28:1 [cpu 1] 00100000
Probing type 1 device class-code 060400 at 0:28:2 [cpu 1] 00100000
Probing type 1 device class-codFrom path: "uuid", e 060400 at 0:28:3 [cpu 1] 00100000
Probing type 1 device class-code 060400 at 0:28:4 [cpu 1] 00100000
Probing type 1 device class-code 060400 at 0:28:5 [cpu 1] 00100000
Probing type 0 device class-code 0c0300 at 0:29:0 [cpu 1] 02800005
Probing type 0 device class-code 0c0300 at 0:29:1 [cpu 1] 02800005
Probing type 0 device class-code 0c0300 at 0:29:2 [cpu 1] 02800005
Probing type 0 device class-code 0c0300 at 0:29:3 [cpu 1] 02800005
Probing type 0 device class-code 0c0320 at 0:29:7 [cpu 1] 02900006
Probing type 1 device class-code 060401 at 0:30:0 [cpu 1] 00100004
Probing type 0 device class-code 060100 at 0:31:0 [cpu 1] 02100007
Probing type 0 device class-code 010180 at 0:31:2 [cpu 1] 02b00005
Probing type 0 device class-code 0c0500 at 0:31:3 [cpu 1] 02800001
Probing type 2 device class-code 060700 at 10:9:0 [cpu 1] 04100007
Probing type 2 device class-code 060700 at 10:9:1 [cpu 1] 04100080
Probing type 0 device class-code 0c0010 at 10:9:4 [cpu 1] 02100015
Probing type 0 device class-code 028000 at 5:0:0 [cpu 1] 00100000
Probing type 0 device class-code 020000 at 3:0:0 [cpu 1] 00100000
Probing type 0 device class-code 030000 at 1:0:0 [cpu 1] 00100007

Waiting for boot volume with UUID F4EDFD34-C9E7-3FF1-A157-8A7E8C92493B
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
Probing type 0 device class-code 030000 at 1:0:0 [cpu 0] 00100007
Probing type 0 device class-code 020000 at 3:0:0 [cpu 0] 00100000
Probing type 0 device class-code 028000 at 5:0:0 [cpu 0] 00100000
Probing type 2 device class-code 060700 at 10:9:0 [cpu 1] 04100007
Probing type 2 device class-code 060700 at 10:9:1 [cpu 1] 04100080
Probing type 0 device class-code 0c0010 at 10:9:4 [cpu 1] 02100015
PCI configuration changed (BUS free=1 needed=1 added=0)
PCI configuration changed (BUS free=1 needed=2 added=1)
 Bridge Command    = 00100007
 Device Command = 02100017
 Bridge Command    = 04100007
 Bridge Command    = 04100007
PCI configuration changed (bridge=0 device=1 yenta=2)
IOPCCard info:   Intel PCIC probe:   O2Micro OZ711MP1/MS1 rev 21
IOPCCard info:   Intel PCIC probe: ,   O2Micro OZ711MP1/MS1 rev 21
FireWire (OHCI) VendorID 1217 ID f7 PCI now active, GUID 009fc0001a119e00; max speed s400.
IOPCCard info:   cs: cb_alloc(bus 11): vendor 0x104c, device 0x8025
IOPCCard info:   cs: cb_alloc(bus 11): found 1 functions
IOCardBusDevice: binding socket 0 function 0 to card services.
IOPCCard info:   cs: cb_config(bus 11)
IOPCCard info:     fn 0 bar 1: mem 0xa0004000-0xa00047ff
IOPCCard info:     fn 0 bar 2: mem 0xa0000000-0xa0003fff
IOPCCard info:     irq 20
IOPCCard info:   cs: memory probe 0xa0000000-0xa0ffffff: excluding 0xa0000000-0xa00fffff
IOPCCard16Device: binding socket 1 function 0 to card services.
FireWire (OHCI) TI ID 8025 CardBus now active, GUID 000108000000fbf8; max speed s800.
Extension "com.apple.driver.iTunesPhoneDriver" has no explicit kernel dependency; using version 6.0.
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/USB7@1D,7/AppleUSBEHCI/NOONTEC USB Storage@fd410000/MSC Bulk-Only Transfer@0/IOUSBMassStorageClass/IOSCSIPeripheralDeviceNub/IOSCSIPeripheralDeviceType00/IOBlockStorageServices/IOBlockStorageDriver/Maxtor 6 AD1G Media/IOFDiskPartitionScheme/Untitled 1@1
BSD root: disk1s1, major 14, minor 3

i did some test booting in standard mode:

the alf error is still present.

intenal firewire (FireWire (OHCI) VendorID 1217) has still the firewire capture problem, and the no image shown problem, ,this time if i plug a firewire hdd it works at 400 as max speed.

pcmcia firewire 800 card (FireWire (OHCI) TI ID 8025)works fine with dv cam capture, but the hdd max speed is locked at 400 (instead of 800).

some improvements, but this "share" problem, and dv capture is not solved yet.

fingerr · February 1, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test10 IOPCIFamily. Use this one with IOPCCardFamily on rev7 and boot with "-s" to enter single user mode. Let me know the dmesg result.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily_test10.zip

Hi Chun-Nan,

I've tried test10 but without success.

The situation looks like this:

when I boot system, System Profiler says "cannot list firewire devices". Then I have to insert or remove PCMCIA, relaunch SystemProfiler so I can see "Unknown Device" under FireWire tab .... strange.

Here is dmesg from test10 +rev7:

Starting AppleACPIPS2Nub
Found mouse PNP device
AppleACPIPS2Nub startup complete
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
Probing type 0 device class-code 060000 at 0:0:0 [cpu 1] 20900106
Probing type 1 device class-code 060400 at 0:1:0 [cpu 1] 00100007
Probing type 0 device class-code 040300 at 0:27:0 [cpu 1] 00100006
Probing type 1 device class-code 060400 at 0:28:0 [cpu 1] 00100007
Probing type 1 device class-code 060400 at 0:28:1 [cpu 1] 00100007From path: "uuid",
Waiting for boot volume with UUID 252724EC-A21D-3FC0-94F9-BCEC237771D7
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>

Probing type 1 device class-code 060400 at 0:28:2 [cpu 1] 00100007
Probing type 0 device class-code 0c0300 at 0:29:0 [cpu 1] 02800005
Probing type 0 device class-code 0c0300 at 0:29:1 [cpu 1] 02800005
Probing type 0 device class-code 0c0300 at 0:29:2 [cpu 1] 02800005
Probing type 0 device class-code 0c0300 at 0:29:3 [cpu 1] 02800005
Probing type 0 device class-code 0c0320 at 0:29:7 [cpu 1] 02900006
Probing type 1 device class-code 060401 at 0:30:0 [cpu 1] 00100007
Probing type 0 device class-code 060100 at 0:31:0 [cpu 1] 02100007
Probing type 0 device class-code 010180 at 0:31:2 [cpu 1] 02b00005
Probing type 0 device class-code 0c0500 at 0:31:3 [cpu 1] 02800001
Probing type 2 device class-code 060700 at 7:6:0 [cpu 1] 02100000
Probing type 0 device class-code 0c0010 at 7:6:1 [cpu 1] 02100006
Probing type 0 device class-code 018000 at 7:6:2 [cpu 1] 02100006
Probing type 0 device class-code 080501 at 7:6:3 [cpu 1] 02100006
Probing type 0 device class-code 028000 at 5:0:0 [cpu 1] 00100007
Probing type 0 device class-code 020000 at 2:0:0 [cpu 1] 00100007
Probing type 0 device class-code 030000 at 1:0:0 [cpu 1] 00100007
Probing type 0 device class-code 030000 at 1:0:0 [cpu 1] 00100007Probing type 0 device class-code 028000 at 5:0:0 [cpu 0] 00100007

Probing type 0 device class-code 020000 at 2:0:0 [cpu 1] 00100007Probing type 2 device class-code 060700 at 7:6:0 [cpu 0] 02100000
Probing type 0 device class-code 0c0010 at 7:6:1 [cpu 0] 02100006
Probing type 0 device class-code 018000 at 7:6:2 [cpu 0] 02100006
Probing type 0 device class-code 080501 at 7:6:3 [cpu 0] 02100006
PCI configuration changed (BUS free=0 needed=1 added=1)
 Bridge Command    = 00100007
 Device Command = 02100006
 Device Command = 02100006
 Device Command = 02100016
 Bridge Command    = 02100007
PCI configuration changed (bridge=0 device=3 yenta=1)

IOPCCard info:   Intel PCIC probe:   TI XX12 rev 00
FireWire (OHCI) TI ID 803a PCI now active, GUID 00080da0d13f83df; max speed s400.
Extension "com.apple.driver.iTunesPhoneDriver" has no explicit kernel dependency; using version 6.0.
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SATA@1F,2/AppleIntelPIIXATARoot/PRID@0/AppleIntelICHxSATA/ATADeviceNub@0/IOATABlockStorageDriver/IOATABlockStorageDevice/IOBlockStorageDriver/TOSHIBA MK1237GSX Media/IOFDiskPartitionScheme/Untitled 3@3
BSD root: disk0s3, major 14, minor 3
IOPCCard info:   cs: cb_alloc(bus 8): vendor 0x1106, device 0x3038
IOPCCard info:   cs: cb_alloc(bus 8): found 3 functions
IOCardBusDevice: binding socket 0 function 0 to card services.
IOPCCard info:   cs: cb_config(bus 8)
IOPCCard info:     fn 0 bar 2: mem 0xa0004000-0xa00040ff
IOPCCard info:     fn 0 bar 5: io 0x120-0x13f
IOPCCard info:     fn 1 bar 2: mem 0xa0003000-0xa00030ff
IOPCCard info:     fn 1 bar 5: io 0x100-0x11f
IOPCCard info:     fn 2 bar 1: mem 0xa0002000-0xa00020ff
IOPCCard info:     fn 2 bar 2: mem 0xa0001000-0xa00010ff
IOPCCard info:     irq 18
IOCardBusDevice: binding socket 0 function 1 to card services.
IOCardBusDevice: binding socket 0 function 2 to card services.

Regards,

Mariusz.

EqUaTe · February 1, 2008

Hey folks,

I've attached my dmesg from test10..

EqUaTe

test10.dmesg.txt

evomac · February 1, 2008

@OP thanks for this. It works perfectly now, but I had to do a couple extra (odd) steps.

My laptop is a NC6000 on Kalyway 10.5.1 SSE2

After the first boot it contiunously cycled in the GUI boot.

Restarted with -f -v. Got stuck on a crash log but no kernel panic. I waited about 20 minutes, and didn't do anything.

Restarted my computer again and pulled out the PCMCIA wireless card.

Now the boot got stuck on a ethernet error. (Again no kernel panic).

Restarted the computer, and before boot I unplugged the network cable (so now both the network cable and PCMCIA Linksys wireless card are out). Used the trigger -f -v.

This booted into the OS perfectly.

Inserted my ethernet cable and IP detected perfectly.

Inserted the Linksys card and right away the Airport logo appeared.

Problem with the wireless card (and fix)

I have a WEP encryption code on my wireless router.

When I went to connct to it, it would immedietly say connection failed.

Repair your permissions again (with the card in).

Pull out the card from you laptop.

Plug it back it, it will automatically connect you into your wireless network.

Great fix, works awesome! Thanks again OP!

Slice · February 1, 2008

I think it is a way to deadend...

~Eureka · February 2, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test11 IOPCIFamily. Use this one with IOPCCardFamily on rev7.

First:

Please boot with "-s" to enter single user mode. Let me know the dmesg result.

Second:

After that, please boot with standard mode. Check if both firewire and pccard function correctly.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily.test11.zip

fingerr · February 2, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test11 IOPCIFamily. Use this one with IOPCCardFamily on rev7.

First:

Please boot with "-s" to enter single user mode. Let me know the dmesg result.

Second:

After that, please boot with standard mode. Check if both firewire and pccard function correctly.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily.test11.zip

Hi Chun-Nan,

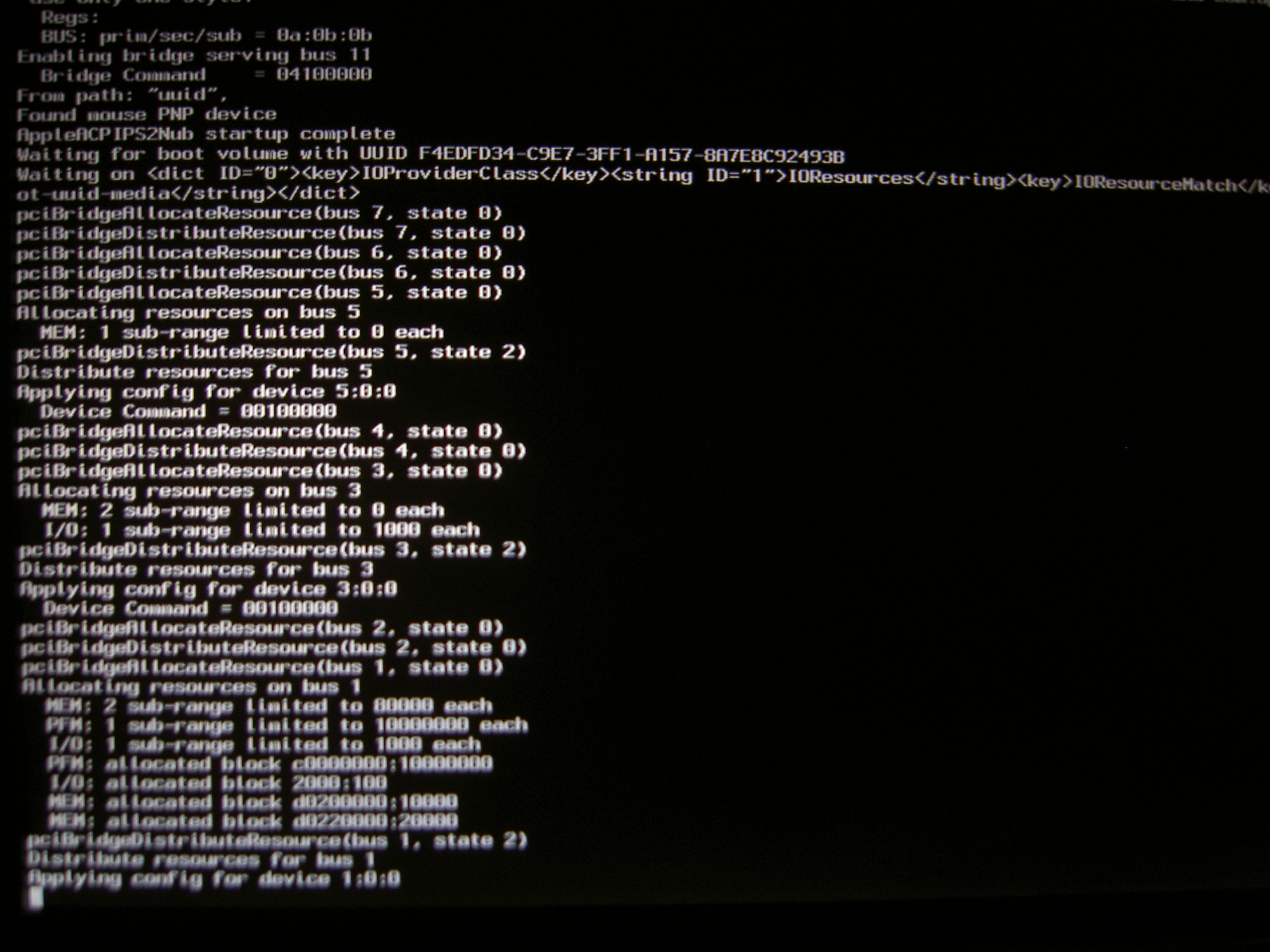

I've just tried rev7+test11 but it hangs during boot (see attached screen).

I've noticed that my DVD drive connected to FW starts to spin the inserted disc when it boots, so looks like FW port recognized attached FW device. It is something new.

Regards,

Mariusz.

snam11 · February 2, 2008

with rev11 i can't boot with -s, no matter if any pcmcia is plugged into the slot, the system hangs after the pcmcia messages

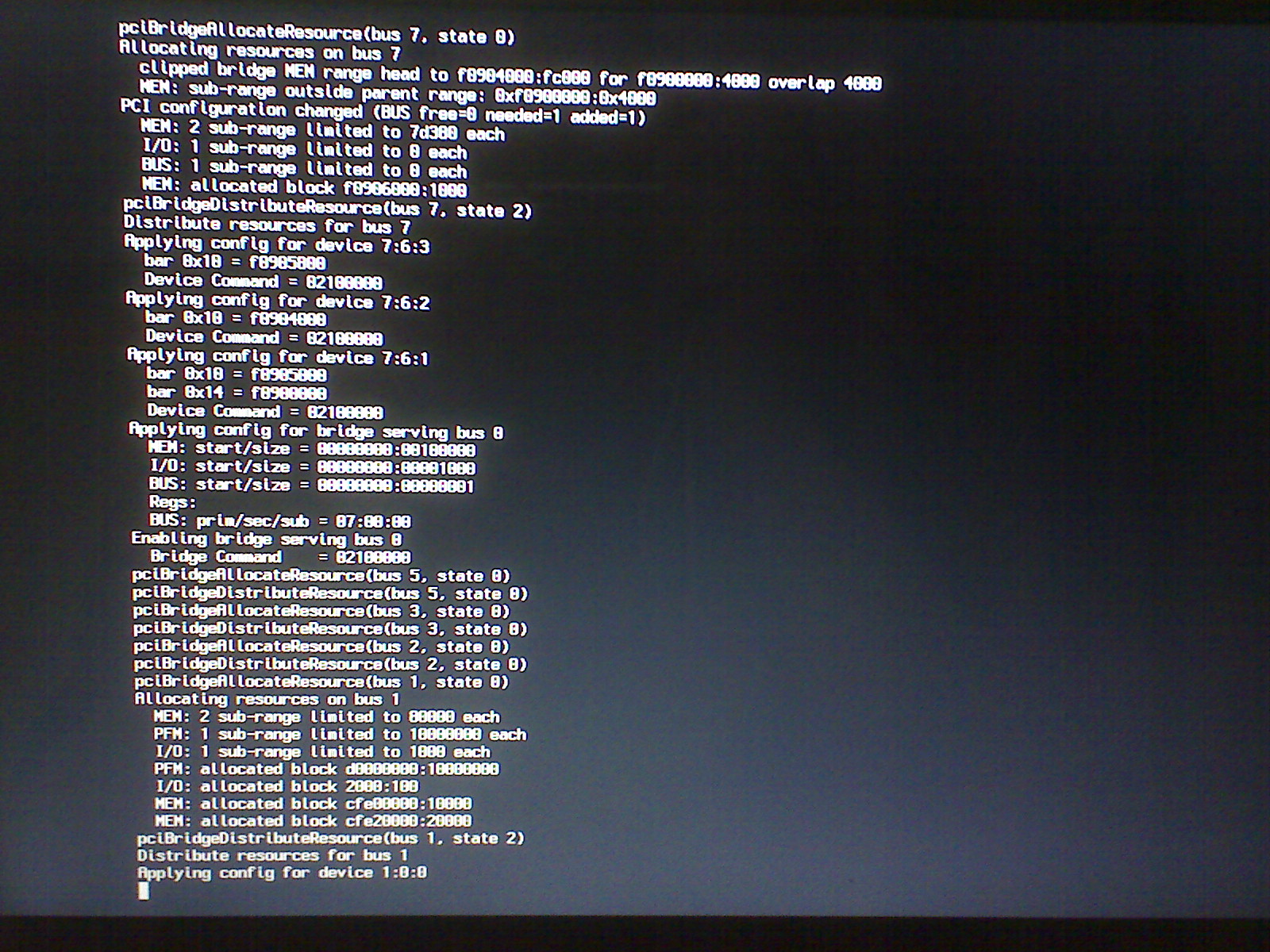

i've attached the pic.

booting with standard mode, the internal firewire is detected but has same probs of earliest releases.

alf error is still present.

pcmcia slot doesn't work anymore. smartcard slot is not detected, only the pcmcia.but no matter which device is plugged in, it doesn't work.

i cannot dump the dmesg because log is too long so dmesg buffer doesn't show pcmcia infos.

kizwan · February 2, 2008

Hi guys,

I just tested rev7 kext file to see if rev7 IOPCIFamily.kext file can properly detect my PCI-express bus. I don't have prove but I believe if my PCI-express bus properly detected/supported, my internal wireless (also my ethernet card) should be detected & working. My internal wireless device id & vendor id already listed in AirPortAtheros.kext file. But I always get "loaded unsuccessfully" error in dmesg.

However, this is not the reason why I post. I just want to ask what this message mean:-

ALF ALERT: sockwall_cntl_updaterules ctl_enqueuedata rts err 55

It look like firewall log. I attached here my full dmesg after using rev7 kexts file.

Thank you.

dmesg_rev7.txt

EqUaTe · February 2, 2008

Mariusz, snam11,

Interesting that you both see essentially the same hang..

snam11: One thing you could try - look in /var/log/system.log - you may find the info there.

More interesting is that I tried this one before it was released here, and it worked fine for me - in fact I'm using it now..

I've attached my dmesg output for reference, but Chun-Nan already has it.

EqUaTe

test_s.dmesg.txt

~Eureka · February 2, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test12 IOPCIFamily. Use this one with IOPCCardFamily on rev7.

First:

Please boot with "-s" to enter single user mode. Let me know the dmesg result.

Second:

After that, please boot with standard mode. Check if both firewire and pccard function correctly.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily.test12.zip

=======

Hi Kizwan,

I don't know what caused "ALF ALERT" to happen yet. It didn't show up on my machine.

I tried to google it and found the link: http://discussions.apple.com/thread.jspa?threadID=1269756

That is what I have so far.

If possible, you can try test12 to see if it still shows up. Thanks.

Chun-Nan

EqUaTe · February 2, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test12 IOPCIFamily. Use this one with IOPCCardFamily on rev7.

First:

Please boot with "-s" to enter single user mode. Let me know the dmesg result.

Second:

After that, please boot with standard mode. Check if both firewire and pccard function correctly.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

Here you go.

Working for me, running with it right now. Not tested firewire.

EqUaTe

test12.dmesg.txt

fingerr · February 3, 2008

Hi all,

In oreder to find out the firewire issus, I need people to test the file and report the result.

Here is the test12 IOPCIFamily. Use this one with IOPCCardFamily on rev7.

First:

Please boot with "-s" to enter single user mode. Let me know the dmesg result.

Second:

After that, please boot with standard mode. Check if both firewire and pccard function correctly.

Don't forget to backup your original file before trying it. Thanks a lot.

Chun-Nan

IOPCIFamily.test12.zip

Hi Chun-Nan,

here is dmesg from test12+rev7:

npvhash=4095
hi mem tramps at 0xffe00000
PAE enabled
Darwin Kernel Version 9.1.0: Wed Oct 31 17:46:22 PDT 2007; root:xnu-1228.0.2~1/RELEASE_I386
standard timeslicing quantum is 10000 us
vm_page_bootstrap: 510558 free pages and 13730 wired pages
mig_table_max_displ = 79
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
AppleACPICPU: ProcessorApicId=0 LocalApicId=0 Enabled
AppleACPICPU: ProcessorApicId=1 LocalApicId=1 Enabled
Loading security extension com.apple.nke.applicationfirewall
Loading security extension com.apple.security.seatbelt
calling mpo_policy_init for mb
Seatbelt MACF policy initialized
Security policy loaded: Seatbelt Policy (mb)
Loading security extension com.apple.security.TMSafetyNet
calling mpo_policy_init for TMSafetyNet
Security policy loaded: Safety net for Time Machine (TMSafetyNet)
Copyright © 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.

MAC Framework successfully initialized
using 10485 buffer headers and 4096 cluster IO buffer headers
IOAPIC: Version 0x20 Vectors 64:87
ACPI: System State [s0 S3 S4 S5] (S3)
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.mbinit: done
Security auditing service present
BSM auditing present

Starting AppleACPIPS2Nub
Found mouse PNP device
AppleACPIPS2Nub startup complete
Extension "com.apple.driver.AppleACPIPlatform" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style.
pciBridgeAllocateResource(bus 7, state 0)
Allocating resources on bus 7
 clipped bridge MEM range head to f0904000:fc000 for f0900000:4000 overlap 4000
 MEM: sub-range outside parent range: 0xf0900000:0x4000
PCI configuration changed (BUS free=0 needed=1 added=1)
 MEM: 2 sub-range limited to 7d380 each
 I/O: 1 sub-range limited to 0 each
 BUS: 1 sub-range limited to 0 each
 MEM: allocated block f0906000:1000
pciBridgeDistributeResource(bus 7, state 2)
Distribute resources for bus 7
Applying config for device 7:6:3
 bar 0x10 = f0905800
 Device Command = 02100006
Applying config for device 7:6:2From path: "uuid",
Waiting for boot volume with UUID 252724EC-A21D-3FC0-94F9-BCEC237771D7
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>

 bar 0x10 = f0904000
 Device Command = 02100006
Applying config for device 7:6:1
 bar 0x10 = f0905000
 bar 0x14 = f0900000
 Device Command = 02100016
Applying config for bridge serving bus 0
 MEM: start/size = 00000000:00100000
 I/O: start/size = 00000000:00001000
 BUS: start/size = 00000000:00000001
 Regs:
 BUS: prim/sec/sub = 07:00:00
Enabling bridge serving bus 0
 Bridge Command    = 02100007
[ PCI configuration Phase-4 ]
[ PCI configuration end ]
PCI configuration changed (bridge=0 device=3 yenta=1)
ApplePCIConfigurator::free(0x45c2000)
IOPCCardBridge::checkBridgeBusIDs invalid sub/cardbus/pci settings of 0x7
FireWire (OHCI) TI ID 803a PCI now active, GUID 00080da0d13f83df; max speed s400.

FireWire is working properly, but PCMCIA doesn't.

Regards,

Mariusz

evilturtlefromhell · February 3, 2008

I have an issue now where my screen will lock up and I have to remove the card for it to start moving normally... but then it freezes again and I have to put it back in to return to normal...

I pretty much have to repeat the process until I reboot.

CardBus/PCMCIA PC Cards for Leopard

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
