karaakeha1 Posted February 3, 2008 Author Share Posted February 3, 2008 Quick question, does the little light on the PCI card turn on when you turn the computer on? Mine stays off all the time, so it might be damaged or so? Yes blinks when connected Link to comment Share on other sites More sharing options...
chitoxl Posted February 4, 2008 Share Posted February 4, 2008 Guessed the one I bought is bad then, doesn't turn on for nothing when its connect on the computer, leo does see it, and it does see my router and everything, but just says connection failed. Gonna see if I can install windows somewhere to check it out and see if it will work in there. Link to comment Share on other sites More sharing options...
LTL Posted February 4, 2008 Share Posted February 4, 2008 I just spent the last 4 hours reading this entire thread and I'm really looking forward to trying this tomorrow. I started this journey 5 weeks ago when I downloaded Kalyway and installed it on an old rig of mine. Living in Thailand, buying a new mac is an expensive proposition because of the import taxes. I can't even get the DS4, I can only get a DS3P v 2.1, which is nearly identical except for some mods to the PCIe bus, chips are all the same. Altho, i was able to get an E8500, which is not avail in the states yet. I built my rig over the last few weeks based on 4 weeks of research here in this Forum (except for the 8800GT 512MB Gigabyte which I know is not supported correctly yet). It's a solid rig but I am not satisfied with the Kalyway solution, as a 7 year mac user, its just not vanilla enough for me. At least I can use the Kalyway install to setup and mod the target drive. I was going to follow Social Swimmer's guide, but you guys seem to be having less bugs after install and frankly it requires less mods to the Retail Install. Hope that my MOBO variation and vid selection will be a welcome addition to the group and I hope to be able to post my results ASAP. Thanks to everyone here Link to comment Share on other sites More sharing options...
macstah Posted February 4, 2008 Share Posted February 4, 2008 Sawadee krup, Long Time Listen... Good luck! It's been about an 8 week journey for me parsing all this info from here and a few other boards as well as a bunch of trial and error (and accidentally formatting and loosing a ton of data (oops)). I think I finally am where I need to be as far as putting all this together. -M Link to comment Share on other sites More sharing options...
beagio Posted February 4, 2008 Share Posted February 4, 2008 cheers guys, i am now a very happy man. see my sig for details :censored2: Link to comment Share on other sites More sharing options...
LTL Posted February 4, 2008 Share Posted February 4, 2008 by the way, here is my build... Motherboard: Gigabyte GA-P35-DS3P v 2.1BIOS: Chipset: Northbridge: P35 Express Southbridge: ICH9RBuilt in LAN: Realtek 8111BBuilt in Sound: Realtek ALC889A codecProcessor: E8500 45NM 3.16RAM: G.Skill 1000MHz 2x4 4GBGraphic: GeForce 6800 GT PCI-E 256MB DDR3 & 8800 GT 512MB (waiting on 10.5.2)Network: Will add TRENDnet if can find in ThailandDisplay: HP 23inchand how can I add that to an auto signature? I can't seem to find a place to fill out a signature Sawadee krup, Long Time Listen...Good luck! It's been about an 8 week journey for me parsing all this info from here and a few other boards as well as a bunch of trial and error (and accidentally formatting and loosing a ton of data (oops)). I think I finally am where I need to be as far as putting all this together.-MChai Krub! thanks sorry bout the data loss... are you in BKK? Link to comment Share on other sites More sharing options...
LS8 Posted February 4, 2008 Share Posted February 4, 2008 ...I can't seem to find a place to fill out a signature ... http://forum.insanelymac.com/index.php?act...rCP&CODE=22 Link to comment Share on other sites More sharing options...
Coda Posted February 4, 2008 Share Posted February 4, 2008 I can't seem to find a place to fill out a signature Click 'My controls' at the top of the page, then 'Edit Signature' in the left hand panel in the 'Personal Profile' section. Or you can just click HERE Edit: Shoot, LS8. You just beat me to it Link to comment Share on other sites More sharing options...
LTL Posted February 4, 2008 Share Posted February 4, 2008 http://forum.insanelymac.com/index.php?act...rCP&CODE=22 My controls... of course, was to busy looking under my profile... Link to comment Share on other sites More sharing options...
macstah Posted February 5, 2008 Share Posted February 5, 2008 Chai Krub! thanks sorry bout the data loss... are you in BKK? Hi Long Time' I wish I was in BKK. I'm in the US (Boston, MA). What province are you from? BTW, looks as though you have a really nice setup for your new box. -M Link to comment Share on other sites More sharing options...
LTL Posted February 6, 2008 Share Posted February 6, 2008 Finally With the Help of This wonderful Form I installed Totally untouched Retail Leopard 10.5 on Gigabyte P35 DS4 rev 2.0( only deleted AppleEFIRuntime.kext added dsmos.kext and AppleSMBIOS.kext from EFI 8.0 Folder). First I have posted latest updates , below the Updates is Install Guide PS: Using same method I installed Retail Leopard Server and updated to 10.5.1 Update 15 jan : Carbon Copy Cloner Works : Provided Disk to be cloned has EFI installed Update : on this retail 10.5.1 with EFI 8, installed Adobe CS3 Design Premium Volume version without any modification and all updates work Update 2 : How to change Icon. I attached file here of Icon.Open it than copy it( CMD+C ) .Right click the drive you want to change the icon open get info. then click on the small icon(smaller one) preview paste you just copied (CMS+V) Update 3: I replaced Few Kext to retail version , (Apple AHCIPort.kext IOATAFamily.kext ,IOAHCIFamily.kext) Can Download below With the result Now SATA Hard Drive shows as internal Hard Drive in BIOS now this works with both IDE and AHCI mode System Profile Shows as ICH9-R AHCI Check out Pictures of System Profile and disk utilities Update 4; With this P35-DS4 internal ethernet works fine , But I observed funny thing , I am unable to connect to network hard-drive on Airport Extreme , As soon as connect to Wifi (with my installed pci Wifi) shared Hard drive appears . and then even If I disable the wifi ,it stays connected and file transfer is fast. So to check this I installed another PCI gigabit network card . System recognized instantly .Now without wifi it detects all network drives and shared windows PCS etc . and File transfer lightening fast. Update 5 With the RLT8168 Drivers All Network issues Sloved . Below you can download (I noticed aslo just confirmed by Is8 : this RLY8168 does not work after wake up from sleep ,you have to restart ) So I am using PCI LAN card 8169 with vanilla Drivers with no issues also no issue with ASUS PCI wifi with vanilla Kext Update 6 : To shut down press CMD+Alt+Cotrole +Eject Dec 31, 2007 Update 7 Now able to use XFX 7600 GT with EFI Vanilla kernal without any driver Ckeck new pic belows All Credit goes to eclau Post# 100 UPdate Jan 1,2008: Good news after this above update Now Wake up from sleep is instantaneous wow! 1. Download the gfx-string from this page:- http://forum.netkas.org/index.php/topic,55.0.html For example 7600GT or 7600GS, download GF7xxx 2. Open 7600gs.hst with textedit Remove "carriage return" after each line (meaning the whole string should be in 1 line, not broken by 'return key') Now, using Find, look for d0 41 03 0a 00 00 00 00 in the GFX-string Replace with d0 41 03 0a 01 00 00 00 in GFX-string 3. Next, insert the string into /Library/Preferences/SystemConfiguration/com.apple.Boot.plist following this guige:- http://forum.netkas.org/index.php/topic,66.0.html 4. Remove nvinject.kext or Natit 5. Reboot Or Simply replace com.apple.Boot.plist attached below for XFX 7600GS or XFX 7600GT to /Library/Preferences/SystemConfiguration/ Install Guide and Findings 1. Pleasant Surprise Yellow icons of Hard Drives But I can use eSATA Hard drives hot swap-able 2. My Q6600 @3.24Gz Recognized with 4 cores 3. installed from within Leopard to Virgin SATA Hard Drive with GUID partition after applying EFI 8.0 and making it active 4. Mounted Retail 10.5 Leopard Disc 5 Used Terminal to install Leopard 10.5 disc First. cd /Volumes/Mac\ OS\ X\ Install\ DVD/System/Installation/Packages This Command Would Work for Retail DVD or its DMG Second. open osinstall.mpkg 6. After instillation very fast ( 5-6 mins) deleted InteEFI kext and placed dsmos and SMBIOS in System/Library/Extensions Folder I was able to boot without any problem to retail 10.5 totally Vanilla Kernel And Successfully applied 10.5.1 Update from apple Site 7. If for some reason does not boot , boot with F8 then -x -v will boo t in safe mode. repair permission and reboot good luck PS : If you have successful instillation. do post here So other see and helpful. Inbuilt network worked ,for display just applied Natit_1.0.pkg Of course For Sound as already everybody did. You have had great success, how about posting a real guide with step by step instructions? Not assuming we know what you know. It would be appreciated thanks! Link to comment Share on other sites More sharing options...
afiser Posted February 6, 2008 Share Posted February 6, 2008 here is a guide i used, found in the middle of this thread :censored2: http://forum.insanelymac.com/index.php?sho...mp;#entry559076 Link to comment Share on other sites More sharing options...
LTL Posted February 6, 2008 Share Posted February 6, 2008 I made a guide of my own since today... this thread and LS8 are brilliant in idea, but not very clear to start. So my update consists of this: MY GUIDE GOOD LUCK and on to EFI string land for a few days Link to comment Share on other sites More sharing options...
Bob The King Posted February 7, 2008 Share Posted February 7, 2008 I've got an Intel Q6600 but in about this mac its displayed as '2.4Ghz unknown'. How do I change this? Link to comment Share on other sites More sharing options...

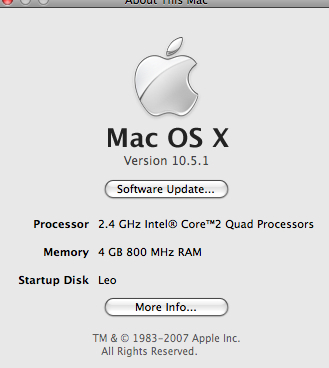

karaakeha1 Posted February 9, 2008 Author Share Posted February 9, 2008 I've got an Intel Q6600 but in about this mac its displayed as '2.4Ghz unknown'. How do I change this? Replace the file /System/Library/CoreServices/Resources/English.lproj/AppleSystemInfo.strings with attached one And final result would be See Pic AppleSystemInfo.strings.zip Link to comment Share on other sites More sharing options...
LTL Posted February 11, 2008 Share Posted February 11, 2008 Karaakeha, what you've done sounds really intriguing. Unfortunately, without a more explicit guide, I'm not sure myself and others can attempt it. Would you mind spelling out the process more clearly? Myself and others would greatly appreciate it. This isn't meant to be a criticism. There are many people here who have a hard time translating their hacking brilliance into good, plain English. Actually, I think that's one of the problems this "movement" is facing at the moment--too many guides that aren't clear enough. It's causing an increasing number of people (not just noobs) to flood the forums and IRC with basic questions seeking clarity. Thanks for your help. And nice work. try this: http://forum.insanelymac.com/index.php?showtopic=86167 Link to comment Share on other sites More sharing options...
karaakeha1 Posted February 11, 2008 Author Share Posted February 11, 2008 Pl Fix Size of your signature : Retire part of Sign which mentioned retired computer Its too big ? Hope you understand Link to comment Share on other sites More sharing options...
Da Grez Posted February 12, 2008 Share Posted February 12, 2008 ok i think im almost there, im stuck at this point- loading with -x -v log stalls at- waiting for root device (right after firewire security comment) if i boot normally i get a 'no entry' small gray logo in the mifddle of the loading screen Any ideas what im missing? Link to comment Share on other sites More sharing options...
LTL Posted February 12, 2008 Share Posted February 12, 2008 Guide on Time Machine & ALC899A fixes using EFI All credits to people who work on gfxutil You can download & learn about gfxutil here & use my 7600gs.plist below for reference. This guide assumes that you already have the EFI display string, otherwise you can learn to generate your own string from the link above. 1. Copy gfxutil & 7600gs.hst to your desktop 2. Open up Terminal & change directory to your desktop cd /Desktop 3. Rename 7600gs.hst to 7600gs.hex mv 7600gs.hst 7600gs.hex 4. Convert hex file to property list file ./gfxutil -s -n -i hex -o xml ./7600gs.hex ./7600gs.plist 5. Find the device path for "ethernet" ./gfxutil -f ethernet Example output: DevicePath = PciRoot(0x1)/Pci(0x1c,0x5)/Pci(0x0,0x0) 6. Edit 7600gs.plist with Textedit, adding the following lines: <key>PciRoot(0x1))/Pci(0x1c,0x5)/Pci(0x0,0x0)</key> <dict> <key>built-in</key> <string>0x01</string> </dict> Note: replace the device path with yours 7. Convert plist file to hex file ./gfxutil -i xml -o hex ./7600gs.plist ./7600gs.hex 8. Copy the string in the new 7600gs.hex to /Library/Preferences/SystemConfiguration/com.apple.Boot.plist 9. Replace /System/Library/Extensions/IONetworkingFamily.kext with the vanilla one & repair permissions 10. Reboot to a "vanillier" Mac 11. Repeat steps 5 to 9 for ALC899A fix 11.1 Find the device path: ./gfxutil -f pci8086,293e 11.2 Edit 7600gs.plist & add: <key>PciRoot(0x1)/Pci(0x1b,0x0)</key> <dict> <key>PinConfigurations</key> <data> </data> <key>built-in</key> <string>0x00</string> <key>layout-id</key> <string>0x0000000c</string> </dict> 11.3 Remove /System/Library/Extensions/ALCinject.kext Hope this helps... EDIT: guide updated & new files uploaded following bug fix of gfxutil 7600gs.plist for reference: 7600gs.plist.zip com.apple.Boot.plist for reference: com.apple.Boot.plist.zip Your guide is great, but leaves out some details...that I'm sure you worked hard on figuring out or you knew from past experience. Just wondering if you could post more information and share in more detail on how to use the tool. I have the tool downloaded right now, but don't know where to begin in fixing first off, my sound, then my video. And like mostly all of us, we have families, work, etc... so your share and time to share is appreciated and valued. Link to comment Share on other sites More sharing options...
hashholly Posted February 12, 2008 Share Posted February 12, 2008 ok i think im almost there, im stuck at this point- loading with -x -v log stalls at- waiting for root device (right after firewire security comment) if i boot normally i get a 'no entry' small gray logo in the mifddle of the loading screen Any ideas what im missing? im having this same issue, im going to try following the guide from sratch again, im so pissed because i know im so close to getting it running, but it stalls at the grey screen. Link to comment Share on other sites More sharing options...

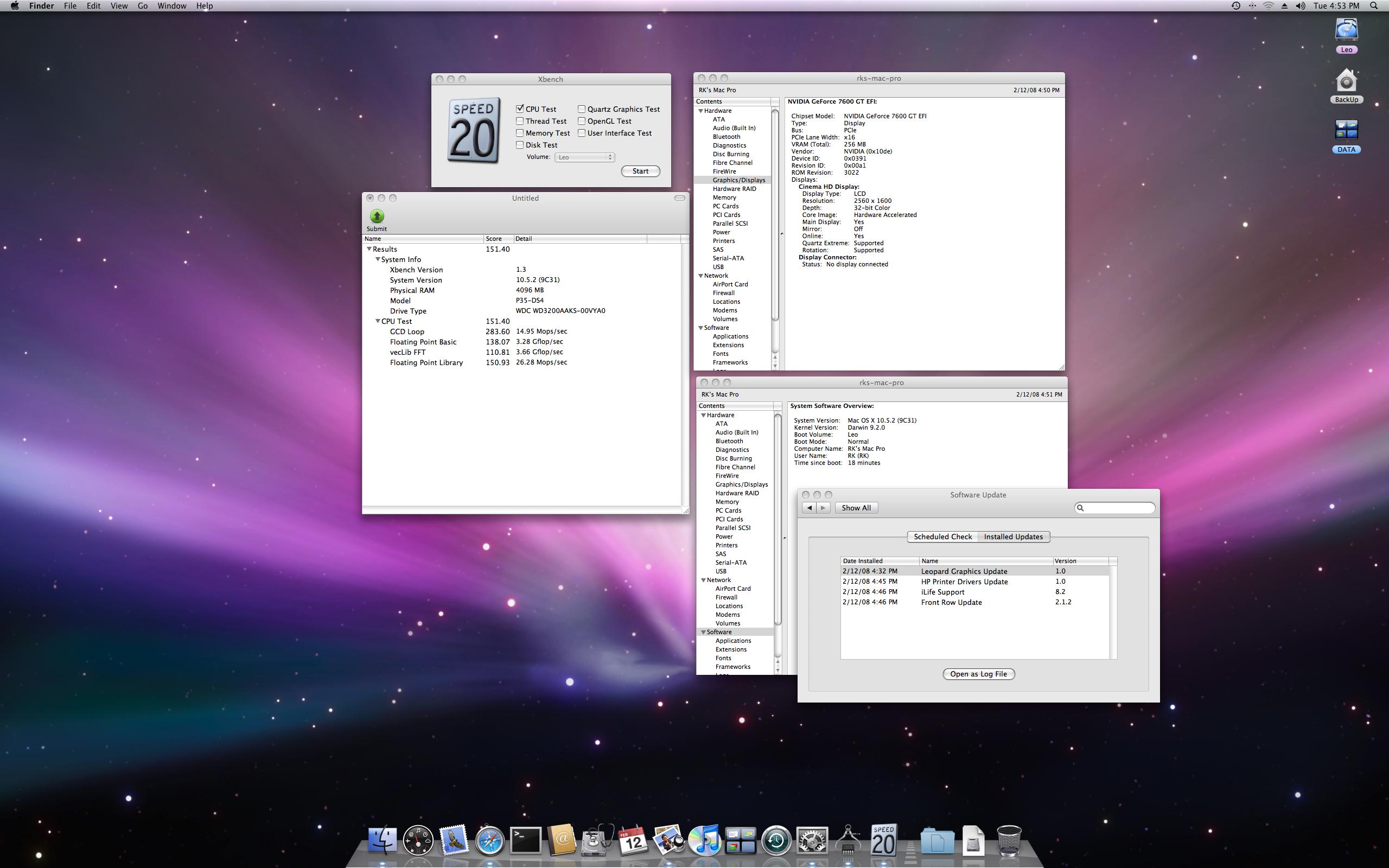

karaakeha1 Posted February 12, 2008 Author Share Posted February 12, 2008 Installed 10.5.2 Combo update on 10.5.0( retail Version with Netkas hint. Xbench score for Q6600 CPU at stock speed jumped from 138 to 151 Link to comment Share on other sites More sharing options...
hashholly Posted February 13, 2008 Share Posted February 13, 2008 Installed 10.5.2 Combo update on 10.5.0( reatil Version with Netkas hint.Xbench score for Q6600 CPU at stock speed jumped from 138 to 151 is it possible you can help with this problem, i follwed your guide to the T but im running into this issue loading with -x -v log stalls at- waiting for root device (after bluetooth comment) Link to comment Share on other sites More sharing options...
karaakeha1 Posted February 13, 2008 Author Share Posted February 13, 2008 is it possible you can help with this problem, i follwed your guide to the T but im running into this issue loading with -x -v log stalls at- waiting for root device (after bluetooth comment) It means update 10.5.2 not properly installed follow http://forum.insanelymac.com/index.php?showtopic=87078 Link to comment Share on other sites More sharing options...
Da Grez Posted February 13, 2008 Share Posted February 13, 2008 ok i think im almost there, im stuck at this point- loading with -x -v log stalls at- waiting for root device (right after firewire security comment) if i boot normally i get a 'no entry' small gray logo in the mifddle of the loading screen Any ideas what im missing? karaakeha1, any ideas about my problem? i have not got osx booted yet but i must be quite close. Link to comment Share on other sites More sharing options...
karaakeha1 Posted February 13, 2008 Author Share Posted February 13, 2008 karaakeha1, any ideas about my problem? i have not got osx booted yet but i must be quite close. follow netkas.org latest guide to update to 10.5.2 Link to comment Share on other sites More sharing options...
