Work x1950gt pro ! Dev_ID = 0x72801002 and 0x72881002 !


Bronya
 Share

1,886 posts in this topic

Recommended Posts

Hey,I'm completely new to this item, I've installed Leo4AllV2, and the 10.5.2 driver for X1950Pro, got the files, but wjere do I put them? The're now in my download-folder. I read the CLI-lines on page#1 of this topic, but I guess I have to put the files somewhere else then the download folder?
You download driver and unpack package , open folder and open file "load.command" and write password in terminal . Auto run reboot .
Very nice, i've seen that on the "boot cd" topic! Congratulations.I've tryed to load your drivers with DFE but it dont work. Do you think you can do something about that?
omg . i try gfx string . If no work , maybe conflict lol .
Link to comment
Share on other sites

You download driver and unpack package , open folder and open file "load.command" and write password in terminal . Auto run reboot .omg . i try gfx string . If no work , maybe conflict lol .



Hey Bronya,



It works! (had to run the load.command in both folders)

Only thing: I've got two Acer AL2016W's (dual monitor 1680x1050), primary is detected well (as Acer AL2016W) and gives right resolution, secondary is detected as VGA screen, no option to choose 1680x1050 in a list with many other resolutions. How can I change it?

And QE is not supported according to system information. Any way to change that?



Thanks in advance! You did a great job.

Link to comment
Share on other sites

Hey Bronya,



It works! (had to run the load.command in both folders)

Only thing: I've got two Acer AL2016W's (dual monitor 1680x1050), primary is detected well (as Acer AL2016W) and gives right resolution, secondary is detected as VGA screen, no option to choose 1680x1050 in a list with many other resolutions. How can I change it?

And QE is not supported according to system information. Any way to change that?



Thanks in advance! You did a great job.

Your system version ???

Link to comment
Share on other sites

Can someone please post one of there working GFX strings for this card, I have the PCI Express 256mb version of the x1950 pro.



Also how do I stop this error from my console log with natit:

Jul 11 23:31:52 localhost kernel[0]: Natit: Starting.

Jul 11 23:31:52 localhost kernel[0]: device-id: 0x72A0

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,compatible=ATY,Prionace

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,name=ATY,Prionace

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,display-connect-flags=0x00000400

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,ATY,EFIDisplay=TMDSA

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,AAPL,boot-display=0x00000001

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,name=ATY,Prionace

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,compatible=ATY,Prionace

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting AAPL,slot-name=Slot-1

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,ATY,EFIDisplay=TMDSB

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,device_type=display

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,device_type=display

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,display-connect-flags=0x00000400

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,DeviceID=29320

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,EFIVersion="01.00.140"

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting device_type=Display

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting name=ATY,PrionaceParent

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,AAPL,boot-display=0x00000001

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting AAPL,aux-power-connected=0x00000001

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,MemVendorID=0x00000001

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,EFIOrientation=2

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,VendorID=0x00001002

Jul 11 23:31:52 localhost kernel[0]: Natit: Setting model=ATI unknown card



Thanks,

Taylor

Link to comment
Share on other sites

System 7.5.2 from Leo4allV2, clean install.Resolution solved with DisplayConfigX, are there other methods? QE not solved. Solutions are still welcome!
You please update to 10.5.4 ! No problem !
Can someone please post one of there working GFX strings for this card, I have the PCI Express 256mb version of the x1950 pro.Also how do I stop this error from my console log with natit:Jul 11 23:31:52 localhost kernel[0]: Natit: Starting.Jul 11 23:31:52 localhost kernel[0]: device-id: 0x72A0Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,compatible=ATY,PrionaceJul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,name=ATY,PrionaceJul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,display-connect-flags=0x00000400Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,ATY,EFIDisplay=TMDSAJul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,AAPL,boot-display=0x00000001Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,name=ATY,PrionaceJul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,compatible=ATY,PrionaceJul 11 23:31:52 localhost kernel[0]: Natit: Setting AAPL,slot-name=Slot-1Jul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,ATY,EFIDisplay=TMDSBJul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,device_type=displayJul 11 23:31:52 localhost kernel[0]: Natit: Setting @0,device_type=displayJul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,display-connect-flags=0x00000400Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,DeviceID=29320Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,EFIVersion="01.00.140"Jul 11 23:31:52 localhost kernel[0]: Natit: Setting device_type=DisplayJul 11 23:31:52 localhost kernel[0]: Natit: Setting name=ATY,PrionaceParentJul 11 23:31:52 localhost kernel[0]: Natit: Setting @1,AAPL,boot-display=0x00000001Jul 11 23:31:52 localhost kernel[0]: Natit: Setting AAPL,aux-power-connected=0x00000001Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,MemVendorID=0x00000001Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,EFIOrientation=2Jul 11 23:31:52 localhost kernel[0]: Natit: Setting ATY,VendorID=0x00001002Jul 11 23:31:52 localhost kernel[0]: Natit: Setting model=ATI unknown cardThanks,Taylor
What id card ?You copy from natit from 10.5.4 .
Link to comment
Share on other sites

You please update to 10.5.4 ! No problem !



Hallo Bronya, problem(s) solved. Fixed resolution with DisplayConfigX. Fixed no CI/QE with jccool and your drivers. (First the jccools one, then the bronya right over it). But, the last time I forgot to put the original (jccool) ATINDRV.kext back in place, so stayed with Bronya's, but no problem whatsoever! What does the ATINDRV exactly do, e.g. what's the difference between jccool's and bronya's?



FYI, also changed from Leo4all to kalyway10.5.2 (I do like the spinning wheel startup!) The update to 10.5.4 stops at est. 75% with no warning at all, just the update screen and nothing more....

Link to comment
Share on other sites

Hi all,



Running Fresh Retail leopard 10.5.4 with (All Updates) and changed the following kexts (dsmos, Intelcpudisabler, Alcinject+applehda, applesmbios, jmicronata), MOBO= Ga-ep35-Ds3R, F2 bios, pentium dualcore e2180



After figuring that the videocard was a 1950pro 256mb, tried to install your (ati9e17 1054) package:

This package made 2 monitors work (dvi+hdmi) but NO QE and NO CI.



After that, tried your (ati9d34 1053 package) put the kexts OVER the 1054 ones,

This package made 2 monitors work (dvi+hdmi) and QE and CI + Sleep/wake <<<<<<<< ALMOST GOOD



Only problem is that videoplayback is very CHOPPY, from mov to avi, from 480p to 1080p h264, ONLY DVDplayer plays DVD good.



The difference between the two packages is that the 9e17 packages LACKS 2 files compared to the 9d34package:

IONDRVSupport.kext

AppleNDRV=folder



Do you have any idea?

Link to comment
Share on other sites

Kalyway 10.5.2 AMD



X1950 Pro 512mb Card PCI-E , but i get this after install

ATI Radeon X1950 Series:

 Chipset Model:	ATI Radeon X1950 Series
 Type:	Display
 Bus:	PCIe
 Slot:	Slot-1
 PCIe Lane Width:	x16
 VRAM (Total):	256 MB
 Vendor:	ATI (0x1002)
 Device ID:	0x7280
 Revision ID:	0x009a
 ROM Revision:	ATYinject X1900 0.0.1
 EFI Driver Version:	"01.00.140"
 Displays:
Display:
 Resolution:	1024 x 768
 Depth:	32-bit Color
 Core Image:	Software
 Main Display:	Yes
 Mirror:	Off
 Online:	Yes
 Quartz Extreme:	Not Supported
Display Connector:



Help Is Appreciated



NVM, fixed it, lazy ass error by the creator,



load.command should be

#/bin/sh



LOCPATH=`/usr/bin/dirname "$0"`

cd "$LOCPATH"

sudo cp -r -v ATIRNDRV.kext /System/Library/Extensions

sudo cp -r -v ATIRadeonX1000.kext /System/Library/Extensions

sudo cp -r -v ATIRadeonX1000GA.plugin /System/Library/Extensions

sudo cp -r -v Natit.kext /System/Library/Extensions

sudo rm -rf /System/Library/Extensions.mkext

sudo rm -rf /System/Library/Extensions.kextcache

sudo chown -R root:wheel /System/Library/Extensions

sudo chmod -R 755 /System/Library/Extensions

sudo reboot



I am now



ATI Radeon X1950 Series:



Chipset Model: ATI Radeon X1950 Series

Type: Display

Bus: PCIe

Slot: Slot-1

PCIe Lane Width: x16

VRAM (Total): 512 MB

Vendor: ATI (0x1002)

Device ID: 0x7280

Revision ID: 0x009a

ROM Revision: ATYinject X1900 0.0.1

EFI Driver Version: "01.00.140"

Displays:

M24EI5:

Resolution: 1920 x 1200 @ 60 Hz

Depth: 32-bit Color

Core Image: Hardware Accelerated

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Supported

Rotation: Supported

Display Connector:

Status: No display connected

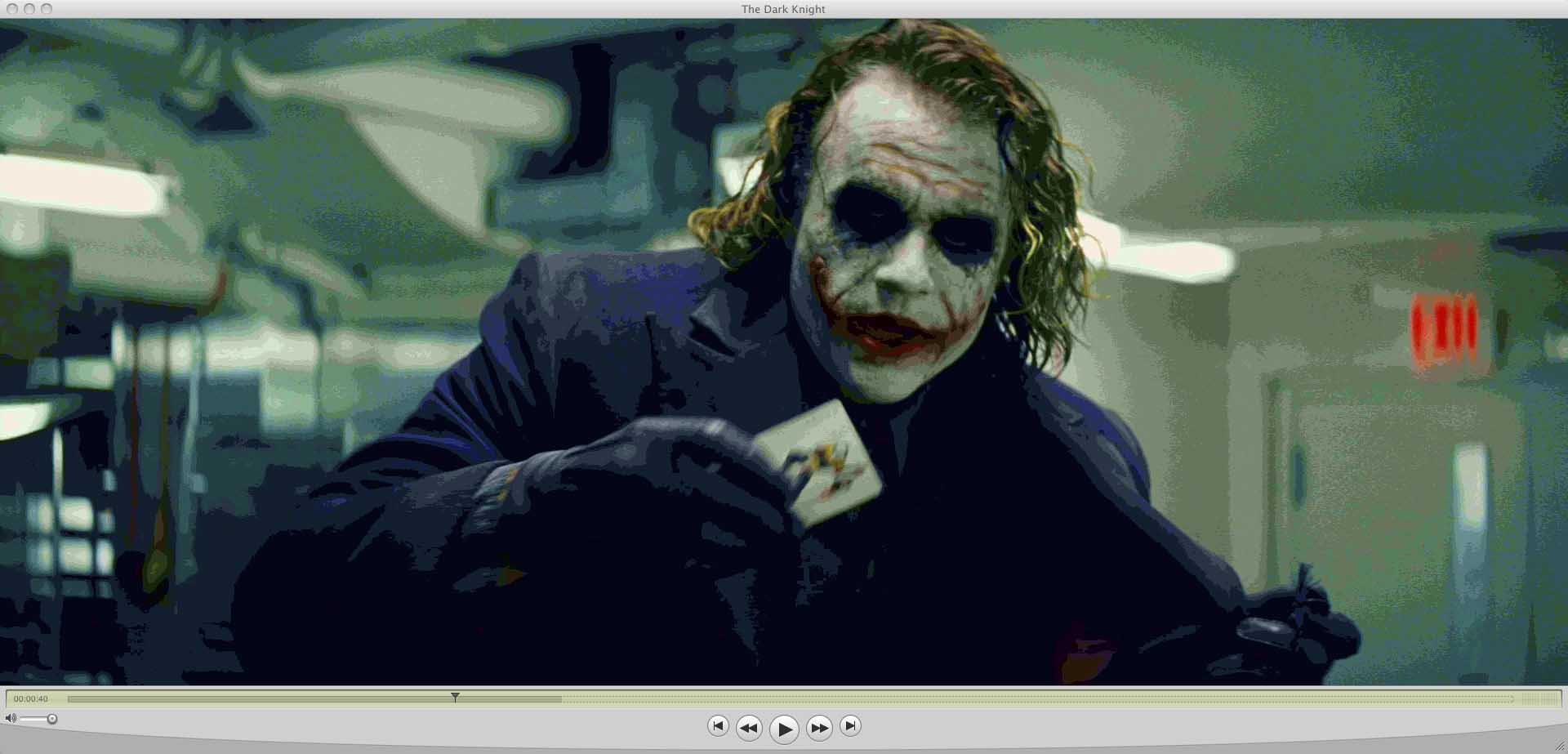

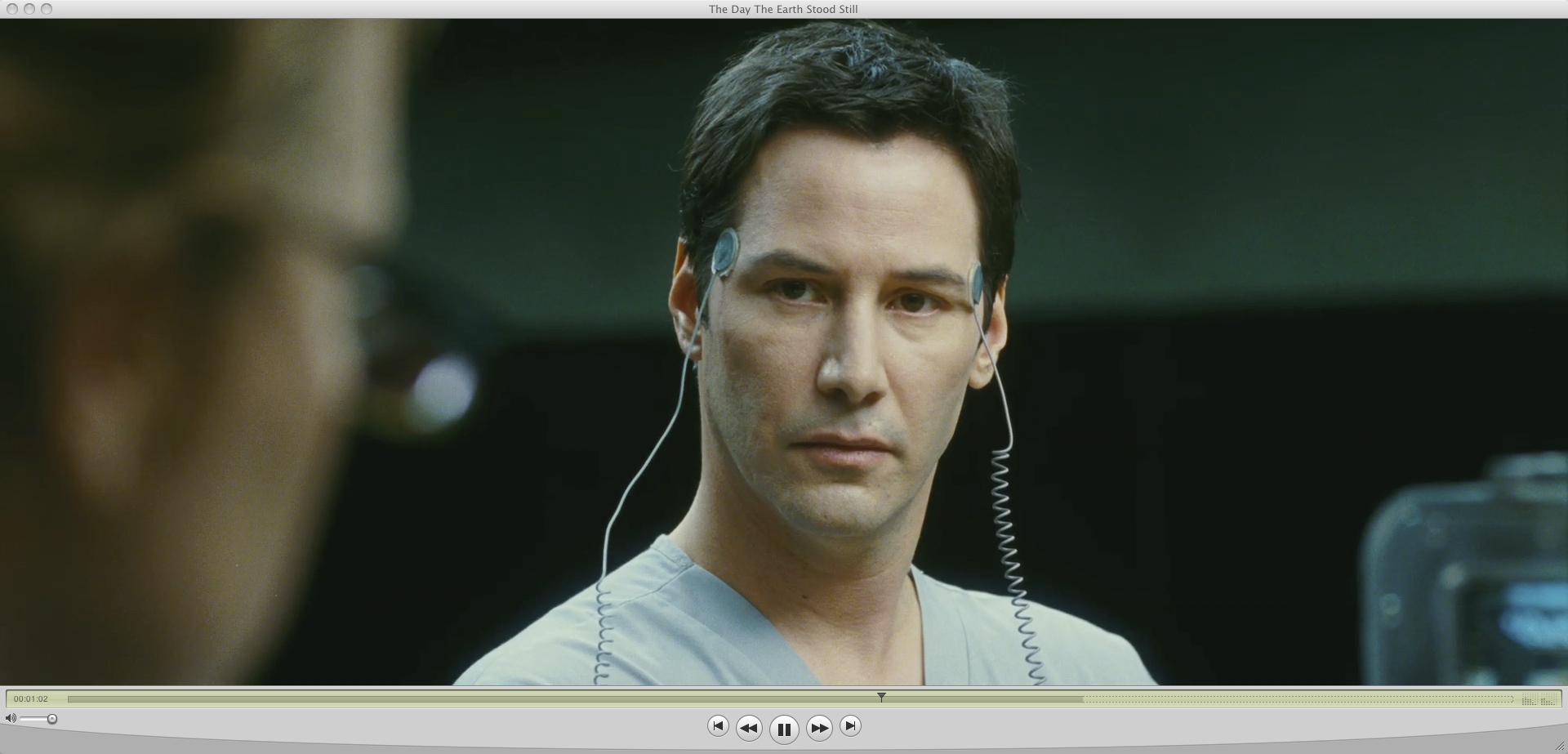

But my screen looks like this




Link to comment
Share on other sites

Ok, this is my experience Bronya. The Machine is an Intel E2200 on a Gigabyte G31 mobo with X1950Pro PCIe graphics, Leo4All Distro. Full specs below.



I'd run into problems with GL errors when starting second Life. The Leo4All V3 was installed with : 9.2.2 Modbin Kernel, 800 MHz hardcoded SMB, ICH chipset option, Built in 19X0 support, Azalea codec, no NIC kext installed. NIC driver downloaded from Realtek website.



I did the removes as stated in your first post, and installed the driver for 7280 and OSX 10.5.2, as Leo4All is 10.5.2.

After the machine rebooted, I got a blue screen, two black lines on top, and a mouse cursor. Everything else was gone.



After swearing a lot and damning Bronya to hell (several times), I reinstalled Leo4All V3, this time selecting 9.2.2 modbin, 800Mhz Hardcoded SMB, and only ICH and Azalea as supplemental drivers.



Predictably the system booted in 1024*768 with no GL support whatsoever.



I then just clicked the .command on Bronya's driver pack, and rebooted. I changed nothing else whatsoever. The system rebooted and came back with full accelerated GL support and no glitches whatsoever. I then installed OSX tools and Netkas' serial code kext, NIC kext and that was it.



Since then SL works brilliantly, Toast 9 Ti causes no more issues, all my harware works and the software for my camera and multifunctional installed with no issues.



The system is fast and very responsive, no artifacts or driver issues whatsoever.



Now I wonder what would happen if I took it to 10.5.4, but I daren't :)



Thanks Bronya !



Peter R.

Link to comment
Share on other sites

Hi all,



Running Fresh Retail leopard 10.5.4 with (All Updates) and changed the following kexts (dsmos, Intelcpudisabler, Alcinject+applehda, applesmbios, jmicronata), MOBO= Ga-ep35-Ds3R, F2 bios, pentium dualcore e2180



After figuring that the videocard was a 1950pro 256mb, tried to install your (ati9e17 1054) package:

This package made 2 monitors work (dvi+hdmi) but NO QE and NO CI.



After that, tried your (ati9d34 1053 package) put the kexts OVER the 1054 ones,

This package made 2 monitors work (dvi+hdmi) and QE and CI + Sleep/wake <<<<<<<< ALMOST GOOD



Only problem is that videoplayback is very CHOPPY, from mov to avi, from 480p to 1080p h264, ONLY DVDplayer plays DVD good.



The difference between the two packages is that the 9e17 packages LACKS 2 files compared to the 9d34package:

IONDRVSupport.kext

AppleNDRV=folder



Do you have any idea?



Found a bug in the 9e17 package from Bronya. You have to edit the info.plist ATIRadeonX1000GA.plugin search for "10027280-0000-0000-0000-000a27898d3e.aside" > change into "10027280-0000-0000-0000-000a27898d3e"

then the 9e17 driver is working fine in 10.5.4 without the 10.5.3 package



one BUG left only movies played in quicktime are very slow. Playing movies with VLC player or Front row in combination with Perian 1.1 works smooth , even 1080p movies coded with h264. .mov, mkv, avi

Link to comment
Share on other sites

am having issues with quitime playback too though not as mentioned above. i got an efi string for this card and i get full support with the atiradeon100.kext from the 9e17 package but quicktime playback is lacking some color quality(like 256). everythings else works fine jus quicktime. if i use natit it works fine alround. anyone have an idea what i need to change?



see attatched files, am running 10.5.4 retail the 9e17 package works perfect when installed. juss like the added boot upspeed from the efi string plus the spinning wheel is show properly.



got the string from the bottom of this link;;;;



http://www.insanelymac.com/lofiversion/ind...hp/t113967.html


traumacleanPrionace.hex.zip

Link to comment
Share on other sites

On a fresh install of Leo4Allv3, installed latest for 7280 with the load.command reboot and stuck at bluescreen with cursor. System was booting up fine before.



Same problem here with Leo4All V3. Found any solution?

Link to comment
Share on other sites

Yes.



You eject disk dvd ))) and work . i same have problem )))



no results. blue screen appears again.

after all i boot with -s and delete all ATI*.kext in /system/library/extensions/

then it shows 1024x768 again, but video became identified as Ati Radeon x1950 series (natit works)

Link to comment
Share on other sites

no results. blue screen appears again.

after all i boot with -s and delete all ATI*.kext in /system/library/extensions/

then it shows 1024x768 again, but video became identified as Ati Radeon x1950 series (natit works)

Sorry , i dunno .



Maybe your dvd it is problem.



If blue screen , then problem it is no original update from 10.5.4 !



Your should update original mac os x 10.5.4 combo update from apple.com !

Link to comment
Share on other sites

Do I need to install AGPGart for my X1950PRO AGP?



So I installed AGPGart 2.7.1 (the latest) and my card is recognized as AGP as expected.

Unfortunatly I can't get my Powercolor X1950PRO 256MB AGP dual DVI (7280 1002, revision 009a) to work properly and I don't know what to do.



If I install the latest package from you Bronya 10.5.3(9D34), it boots up but then I'm left with a blue screen, I can see the mouse and move it around but no desktop. In order to get the desktop, if I press the power button of my computer, and then back on, I get the desktop but the screen is locked up and I can't interact with the desktop.



I've tried many combinations, using previous versions of your drivers, using jccools drivers gives me control over the desktop, but no QE :)



Can you help?

Link to comment
Share on other sites
