Work x1950gt pro ! Dev_ID = 0x72801002 and 0x72881002 !

[gordo]

Great work, I gave up on hackintosh last year because I couldn't get accelerated graphics but clearly a lot has happened since then.



I have installed the 10.5.2 Kalyway and after deleting all the graphics stuff that came with it have 9c7010 more or less working with X1950 Pro AGP 512 MB (7280)



I have QE/CI and correct screen res. It shows PCI for bus. I tried editing Configuration.plist (deleted PCI string - it already had AGP) and Info.plist in ATIRadeonX1000.kext to change PCI to AGP - that just trashed QE/CI. There are references in the thread to AGPgart but they date back to prior to 9c7010 so not sure if that is needed.



When I run Pirates of the Caribbean (a must if my kids are to let me ditch Windows on this machine) it appears to run OK but the screen is totally black. Not sure of it's related to the AGP/PCI thing or some other problem.

[Kurmudjeon]

Component video out to HD TV anyone?



Has anyone got high definition (1920x1080i) out of an x1950 card to connect to a tv? Either by the 'SVideo-like plug' to component adaptor or the ati DVI to component adaptor.



I looked through the first 10 pages of this thread.

[Scrizz]

have you tried it?

[Bronya]

In one post i add driver for 10.5.2 9c7010 for 7280 and 7288 .

[Kurmudjeon]

Re: Component video out to HD TV.



I've tried it with the 1950 card and both types of adaptors and got something on the screen, but not the right resolution or sync. It was green too. I tried fiddling with SwitchResX, but that didn't help.



I started a topic about this here:

http://forum.insanelymac.com/index.php?showtopic=100595

[gordo]

Great work, I gave up on hackintosh last year because I couldn't get accelerated graphics but clearly a lot has happened since then.



I have installed the 10.5.2 Kalyway and after deleting all the graphics stuff that came with it have 9c7010 more or less working with X1950 Pro AGP 512 MB (7280)



I have QE/CI and correct screen res. It shows PCI for bus. I tried editing Configuration.plist (deleted PCI string - it already had AGP) and Info.plist in ATIRadeonX1000.kext to change PCI to AGP - that just trashed QE/CI. There are references in the thread to AGPgart but they date back to prior to 9c7010 so not sure if that is needed.



When I run Pirates of the Caribbean (a must if my kids are to let me ditch Windows on this machine) it appears to run OK but the screen is totally black. Not sure of it's related to the AGP/PCI thing or some other problem.





Further update: Age of Empires III also goes to black screen (with program still running audio). Word crashes with the following report:



Thread 0 Crashed:

0 libRIP.A.dylib 0x94b446fe OGL_texture_find + 148

1 libRIP.A.dylib 0x94b4771c OGL_texture_image + 5539

2 libRIP.A.dylib 0x94b4873b OGL_image + 2712

3 libRIP.A.dylib 0x94b35731 ripd_Mark + 326

4 libRIP.A.dylib 0x94b2fc88 ripl_BltImage + 1299

5 libRIP.A.dylib 0x94b19b7d ripc_RenderImage + 273

6 libRIP.A.dylib 0x94b2a274 ripc_DrawImage + 4973

7 com.apple.CoreGraphics 0x90e682bd CGContextDrawImage + 397

8 com.apple.HIToolbox 0x9191ce98 HIViewDrawCGImage + 192

9 com.microsoft.Word 0x00453895 wdCommandDispatch + 1276973



looks like OPENGL problem. Other Microsoft Office 2008 apps (excel and powerpoint) seem to work OK.

[eckythump]

Hi these drivers are working great, just one issue which may not even be issues with this driver. When my PC comes out of sleep mode, my monitor will not come back on. Anybody seen this issue?



Thanks, and great drivers!

[MaDxCrEaM]

Will this work with id 7244?

[eckythump]

I have my graphics card working great using these drivers (latest ones), HOWEVER I'm getting lock ups maybe every few hours and I think it maybe overheating. The top third of my screen gets all garbled and everything freezes.



My PC never had overheating issues with Vista, and i have played some pretty intesive games.



Any hints on how to troubleshoot what my locking issues are, and if graphics related what can I do (underlock somehow?)



Thanks

[Bronya]

eckythump , you try edit info.plist in natit.kext , replace ATY,Prionace to ATY.PrionaceB and save !

And reboot ! And -f -v !



MaDxCrEaM , try only .

[Gimmy2000]

Please Bronya,

I've got a EAX 1950 PRO , I just installed ATI_1950_LEO from dimitrik , but I don't see any quartz extreme

in system preferences .

Also if I'm trying to install aperture or the latest version of toast the applications don't run 'cause the graphic card.

Have u got any raccomandetions./ or tell me wich pachet to download .

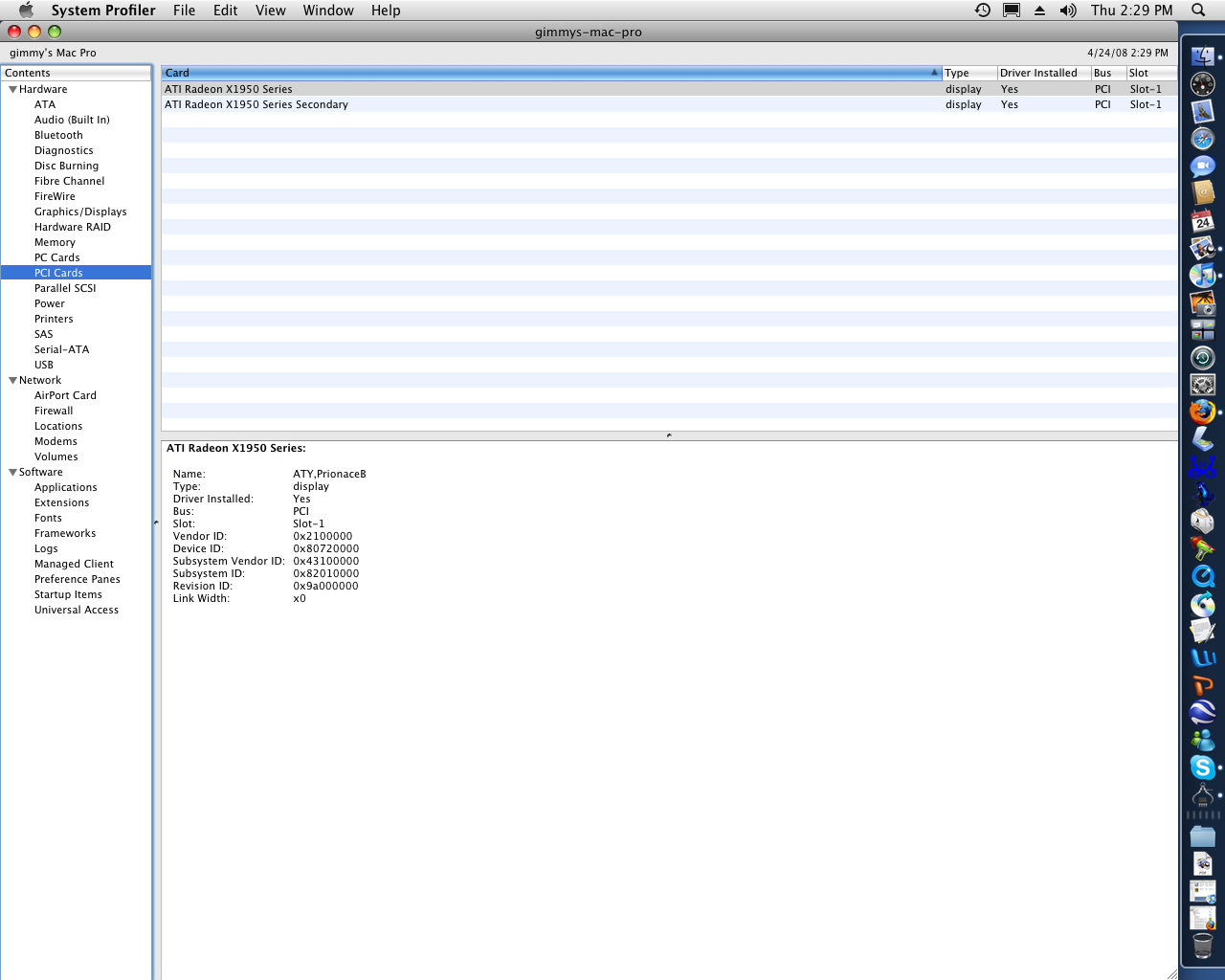

I attached the screen shot of my system profiler.

Thank u so much .

Gimmy

[Astaga]

X Bronya - Report on VD PEAK ATI RADEON X1950GT 256MB PCX - id 0x7288 and 0x72a8



Hi Bronya (forever thanks for your great work!!!)

I would report to you, my experience with your kext (practically I have successfully tried all your kext both in tiger and Leo).

The procedure described below is tested and works on a clean installation of Leopard. To have fully functionality of graphics card (CI Hardware accelerated, QE supported, QuartGL supported, rotation) I have to do the follows step:

1) install this (I don't remember where I found it, but it is necessary to have CI hardware)ATINDRV.kext.zip2) Bronya's kext in post #1

3 install this Natit.kext.zip (I found it in Bronya's thread but I don't remember where)

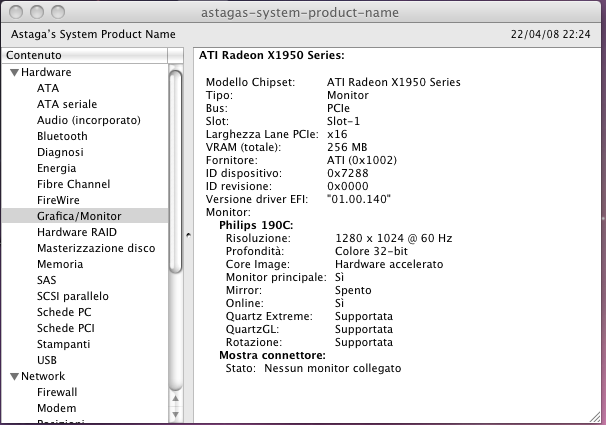

Now, the System Profiler views:

Perfect !!!!! Works with all software!!!!!

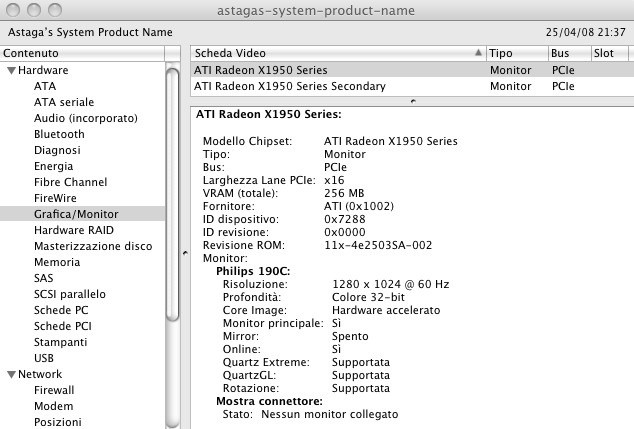

With NATIT included in your kext , I have this view in System profiler:



Apart that it is not recognized the secondary ports (72a8), but it is not a great problem, the really problem is:

after a randomize time a few seconds a few minutes, graphics cards losts all syncronisms (great confusion on the screen) and it is necessary reboot (it is possible generate repeatedly this problem for example using Software Update, about 15 sec and becomes impossible to read the monitor due to a lot of quantity of colored squares and lines)



Hoping that this experience can be helpful for the development of future kext and all other holders of this card.



Thanks again Bronya for your work



Astaga

[Bronya]

Astaga, yes , but no use atindrv.kext , you use atiRndrv.kext .



Gimmy2000, you reinstall latest driver .

[Kurmudjeon]

Gimmy2000 - I'm using an Asus EAX1959PRO with Leo4All v3. I installed without any graphics drivers, then installed the latest version from the first post in this thread (double click 'install.command')-



2.02.2008 The driver for Leopard 10.5.2(9c7010) for 7280 and 7288 !!! : X1950xxx_10_5_2-9c7010.zip

http://rapidshare.com/files/109339711/X195..._5_2-9c7010.zip



I often get the ATI logo on screen and no Quartz Extreme. I've found to fix this I have to run Disk Utility - Repair Permissions, then reinstall the 3 ATI items from the above driver folder using Kext Helper (installed by default by Leo4All).



I'm not quite sure of the reason this works and it usually doesn't last past the next restart. I'm fairly new to this OSX86 lark.

[Gimmy2000]

Kurmudjeon. Hi I had the same problem with the ATI logo. In the end what I did was a clean install also for the time machine fix.

Now I can tell you that Aperture was not working even toast and time machine.

So I install the package from Pion and now everything works .

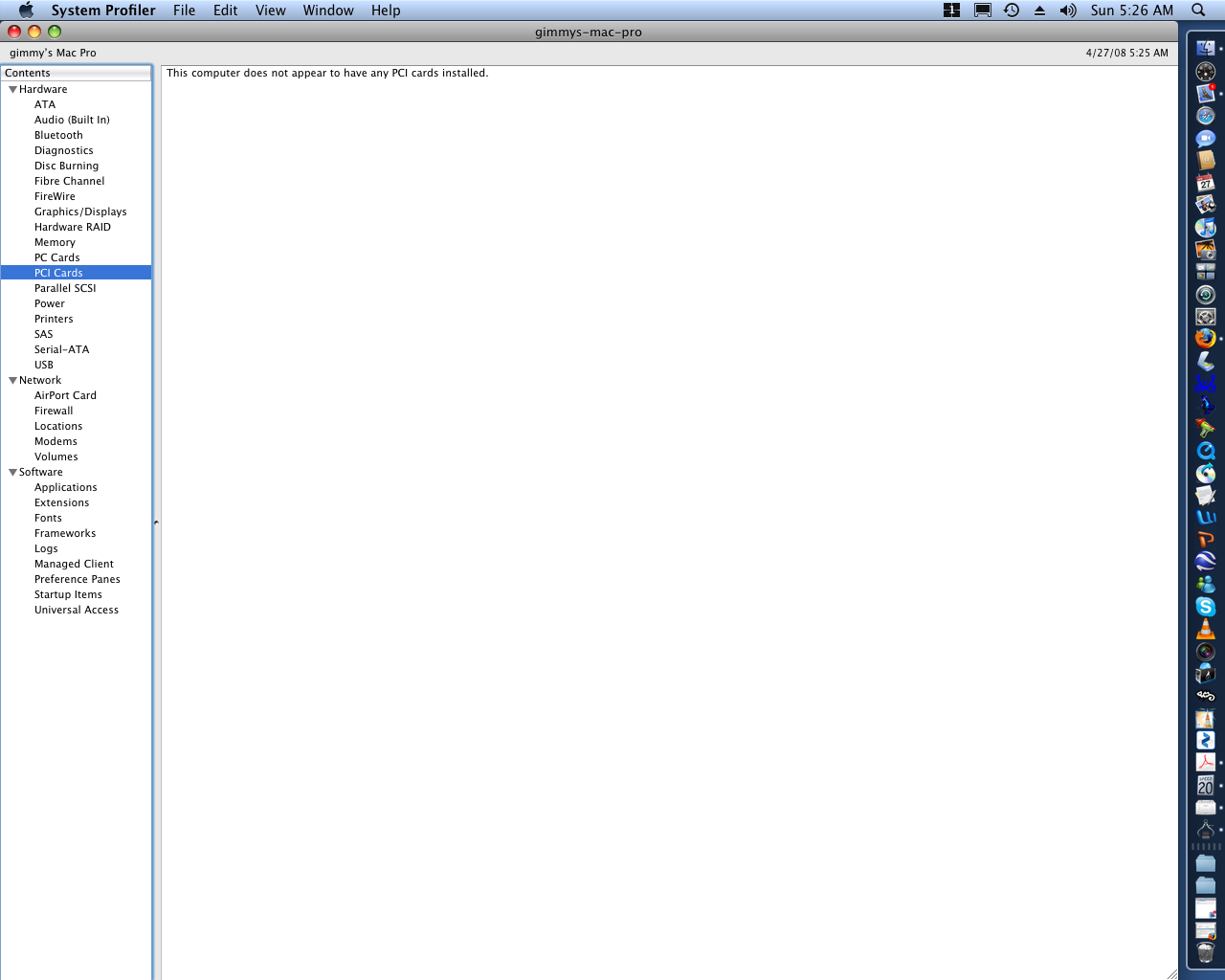

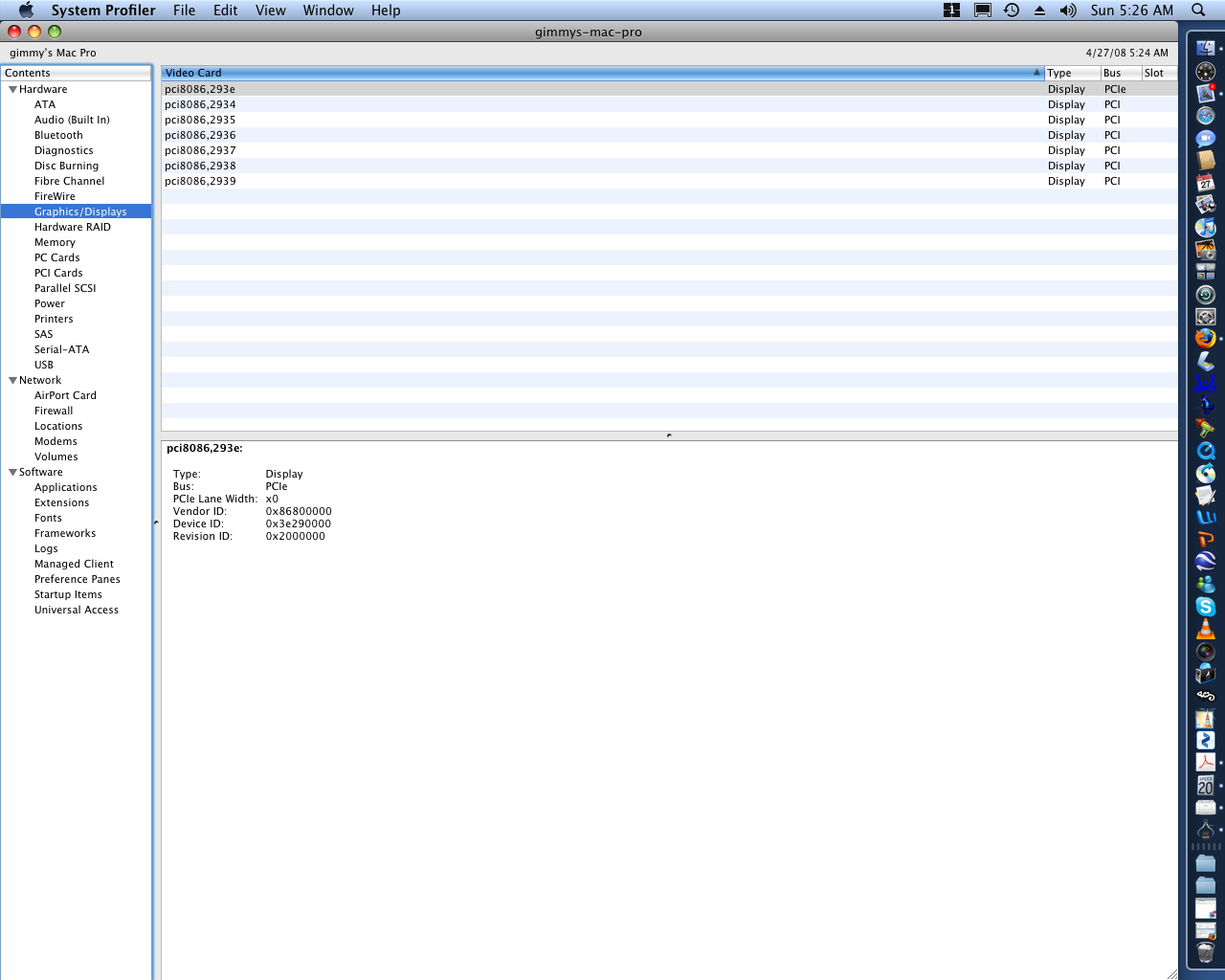

But the Pci cards are not recognised from the system profiler.

see attach.

But I get 136.00 from the graphic test (xbench)

Now I really don't now if I should keep this driver or not.

For Bronya when I installed the latest driver I got the error from above.

What we should do , how I can perform I clean install of hte GUI drver?

Many thanks again and again for the huge work.

Gimmy

[gordo]

Further update: Age of Empires III also goes to black screen (with program still running audio). Word crashes with the following report:



Thread 0 Crashed:

0 libRIP.A.dylib 0x94b446fe OGL_texture_find + 148

1 libRIP.A.dylib 0x94b4771c OGL_texture_image + 5539

2 libRIP.A.dylib 0x94b4873b OGL_image + 2712

3 libRIP.A.dylib 0x94b35731 ripd_Mark + 326

4 libRIP.A.dylib 0x94b2fc88 ripl_BltImage + 1299

5 libRIP.A.dylib 0x94b19b7d ripc_RenderImage + 273

6 libRIP.A.dylib 0x94b2a274 ripc_DrawImage + 4973

7 com.apple.CoreGraphics 0x90e682bd CGContextDrawImage + 397

8 com.apple.HIToolbox 0x9191ce98 HIViewDrawCGImage + 192

9 com.microsoft.Word 0x00453895 wdCommandDispatch + 1276973



looks like OPENGL problem. Other Microsoft Office 2008 apps (excel and powerpoint) seem to work OK.



Got this fixed for Word by doing clean Kalyway 10.5.2 and installing 7280 package. Still don't have success with fullscreen games - goes totally black but sound is playing so it doesn't hang. secondary adaptor is just showing blue screen - primary is OK with CI/QE. All opengl tests seem to work??



The AoE II log says:



------------------------------------------------------------------------

PreGame 13892: Render using: Radeon X1600 XT

PreGame 13892: Driver: Radeon X1600 XT -- version 25968.20256.12336.14641

PreGame 13892: VendorID = 0x1002

PreGame 13892: DeviceID = 0x71c0

PreGame 13892: SubSysID = 0x656e

PreGame 13892: Revision = 0xccf800

PreGame 13892: DeviceIdentifier: {bfffe948-6b45-91fa-0907-000000ccf000}

PreGame 13929: XML render config -- found vendor 0x1002 as 'ATI'

PreGame 13929: XML render config -- found device ID 0x71C0 as 'ATI R520'

PreGame 13929: XML render config -- default device configuration file 'ATI R520'

PreGame 17017: ------------------------------------------------------------------------

PreGame 17017: Render using: Radeon X1600 XT

PreGame 17017: Driver: Radeon X1600 XT -- version 25968.20256.12336.14641

PreGame 17017: VendorID = 0x1002

PreGame 17017: DeviceID = 0x71c0

PreGame 17017: SubSysID = 0x656e

PreGame 17017: Revision = 0xccf800

PreGame 17018: DeviceIdentifier: {bfffe828-6b45-91fa-0907-000000ccf000}

PreGame 17054: XML render config -- found vendor 0x1002 as 'ATI'

PreGame 17054: XML render config -- found device ID 0x71C0 as 'ATI R520'

PreGame 17054: XML render config -- default device configuration file 'ATI R520'

PreGame 43779: Game startup complete (40.99 sec)!

PreGame 43779: ------------------------------------------------------------





so it looks like it's finding the wrong DeviceID (not to mention it's a 1950PRO not 1600XT). Also the cursor in the secondary monitor (blue screen) changes to the AoE III cursor. Running AoE III and POTCO successfully in windowed - fullscreen is the problem

[Bronya]

so it looks like it's finding the wrong DeviceID (not to mention it's a 1950PRO not 1600XT). Also the cursor in the secondary monitor (blue screen) changes to the AoE III cursor. Running AoE III and POTCO successfully in windowed - fullscreen is the problem

Where download AoE III ???

I think try .



Gimmy2000, latest driver - error ??? what error ??? Logo show ??? You in screen boot : -f -v ???

[danibyte27]

Hi all!

I hope someone could help me...

Yesterday I installed Leo4allv2 - after some issues, all went well :-)

Now I have to install drivers for my graphic card and audio.

The graphic card is Ati x1950gt pci - 512 mb...

For 3 times I tried to install the package at the beginning of this thread, also with natit, atirndrv, etc, but, when I reboot, after loading of all extensions, the screen remains blank, and I have to reboot with -s option and delete the just installed kext.



Please, someone has installed with success the drivers for this card and could be so kind to tell me, step by step, how to do?

I'm a pc technician but, sorry, I only know Linux and Windows.. Mac is fantastic but I'm discovering it only from yesterday evening! :-))



Thanks and big kisses!!



Daniela

[gordo]

Where download AoE III ???

I think try .



Gimmy2000, latest driver - error ??? what error ??? Logo show ??? You in screen boot : -f -v ???





You'd either have to buy Age of Empires III or get it from the usual places (demons and pirates). Pirates of the Caribbean Online is available for free and runs in limited mode without paying the monthly fee - google it to find it.

[Dokomo]

OK guys, I'm sorry to add to the chaos of this thread, but I've tried finding my problem somewhere in the 50+ pages of posts and am still having trouble.



Basically, everything works great (DVI, Dual displays, resolution) except I get now hardware acceleration (CI/QE).



I'm working with an HIS x1950 pro 256mb pci-e card, and I followed these steps exactly:



1. Installed 10.5.1

2. Removed the following extensions to get past the "restart your computer" hurdle: radeonx1000*, ATINDRV.kekt, and ATIRNDRV.kext.

3. Upgraded to 10.5.2

4. Installed Bronya's 10.5.2(9c31) 7288 driver package via the load.command.

5. Repaired permissions (used the commands listed on page #1, BTW: when running the "rm /system/library/extensions.kextcache" command I get a "no such file or directory" message. Is this normal?).

6. Restarted and everything worked except QE/CI

7. Ran a systems update (my system version is now Mac OS X 10.5.2 (9C7010), does this make a difference?)

8. Deleted natit.kext, repaired permissions, rebooted to find that card was no longer recognized.

9. Installed the natit.ket from page 1, repaired permissions, rebooted to find everything working again except for CI/QE.



I'm hoping someone can spot a problem here and advise accordingly. Thanks for the help in advance, and also a big thumbs up and thank you for everyone that has contributed to the cause, especially Bronya!





*One more thing, what's the difference between 7280 and 7288 packs?

[thefinalprophecy]

7280 is for the pro model, 7288 is for the gt

[Dokomo]

^Thanks, switching to that and using the ATINDRV.kext.zip file that Astaga posted did the trick!

[MrVenini]

Hey.. i edit the message, i have working full the graphic card, but usb drives not mount .. and the shutdown don´t work after the ati kext installation.What can i do with those things?

[Gimmy2000]

Sorry Bronya , I could not reply before.

what I had with the newest driver was an icon blinking on the middle of the screen , showining the card with a red dot.

So I did a clean install of kalyway 10.5.2 wiht the package fom Pyon.

The max resolution which can get from the primary monitor is 1280*1024 at 75 hz.

As I write u before from my screens shoot I don't know if I get qe,cI and bla bla bla.

Also pci's are not recognized.

what I should do to have I clean install of your newest driver?

Thank u .....

[tonino85]

i had the same problem. repair your permissons with disk manager and extensions-repair.
