[Acer PT14-51 Laptop] HowTo

Stezza88

By Stezza88,
in Intel

 Share
411 posts in this topic

Recommended Posts

Stezza88
Stezza88
Posted
  • Author
Posted (edited)
18 minutes ago, jalavoui said:

RestrictEvents.kext help. check SSDT-OSYS.aml and acpi and lilu

SSDT-OSYS.aml makes os x loads certain devices/config settings it is very important

if you can get 1 that is tested for your laptop - better otherwise try make 1 or use the one i send



your nblue is all empty lol

no wonder it does nothing



add your card id here




if you wanna test tgl then set this empty and put id on TGLLE



if you wanna be sure other kexts won't load you can use 0x12348086 - but empty values are fine



you only will get problems if trying to load AppleIntelFramebufferControllerICL (ventura patches)



AppleIntelFramebufferControllerICLLE and AppleIntelFramebufferControllerTGLLE should load fine



Gen7TGL will load if using boot arg -allow3d (do that if framebuffer loads and you see os x boot screen)



dam if we had this discussion on the other thread it would reach 50 pages



it's empty because at the moment if I put there 0xA7A08086 it won't boot...

the syslog I put inside master of nblue is not showing.. so the method is never be called... I was wondering why... my acpi folder is quite empty, I don't think is that the problem..

Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)
On 10/23/2024 at 11:01 PM, jalavoui said:

RestrictEvents.kext help. check SSDT-OSYS.aml and acpi and lilu

SSDT-OSYS.aml makes os x loads certain devices/config settings it is very important

if you can get 1 that is tested for your laptop - better otherwise try make 1 or use the one i send



your nblue is all empty lol

no wonder it does nothing



add your card id here




if you wanna test tgl then set this empty and put id on TGLLE



if you wanna be sure other kexts won't load you can use 0x12348086 - but empty values are fine



you only will get problems if trying to load AppleIntelFramebufferControllerICL (ventura patches)



AppleIntelFramebufferControllerICLLE and AppleIntelFramebufferControllerTGLLE should load fine



Gen7TGL will load if using boot arg -allow3d (do that if framebuffer loads and you see os x boot screen)



dam if we had this discussion on the other thread it would reach 50 pages



on my dsdt if i try to use this


i get 100 bugs in acpi

but for some people it works fine



can you upload your ioreg using IORegistryExplorer ? maybe it helps



1) You said

Gen7TGL will load if using boot arg -allow3d (do that if framebuffer loads and you see os x boot screen)

but at me it stucks on os boot load.. so maybe i must load ICLLE or TGLLE in couple of this.. maybe i can try ICLLE or TGLLE with gen7TGL with graphicschedulerselect 0,1,3 or 5.. so i have some tests to do before surrender..



so it is the AppleIntelTGLsigned folder -> AppleintelTglGraohic.kext plus bundles, all in L/E plus permissions ?Screenshot2024-10-24alle14_24_25.thumb.png.e7ed63159735ada642dc735211f20320.png



2) I'm gonna put more SYSLOG like you said inside nootedblue code in various method... want to understand better where is the fault in my dev (at the moment I know that method processPatcher never be called... and it's bad I think)







Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

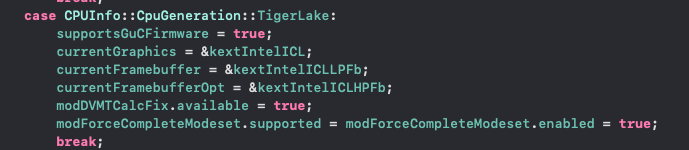

I've putted two SYSLOG in the void NBlue::init() of kern_nblue.cpp method, one at the start of the method, one at the end.



They've not shown.



init method of nootedblue never be called

Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Now if I put -v in the nvram boot args it not do verbose... I don't understand... there is something blocking my usb-pen changes.. maybe I must rebuild cache? or something similar..

Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

you can't add apple signed kexts to /L/E...



already explained here



https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/?do=findComment&comment=2826778



upload your dsdt.aml after os x boot - bet it is not working



boot with -v will help check for igpu hang



can you boot with this ?




your config as this disabled so no ota updates

i use this only when breaking os x seal



don't copy the .aml i send without checking if they work for you. for instance this




only works if you have a PC00 device. some systems have PCI0.



same for ssdt-osys


you must have a OSYS var in dsdt.aml and the value i use


might not be the best for your system



AppleIntelTGLGraphics.kext + bundles are now in /S/L/E i removed old /L/E version

don't bother use them without having a working framebuffer 1st

Edited by jalavoui
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

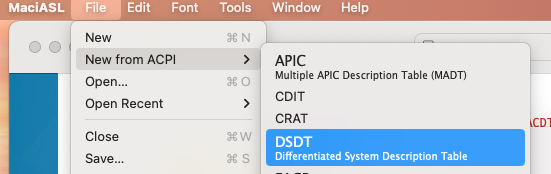

do it after booting os x

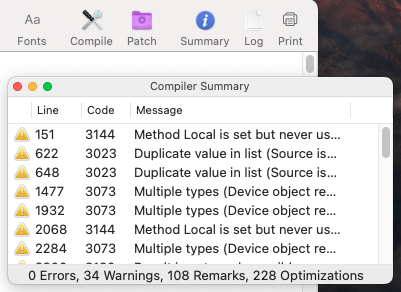

when you get dsdt.aml check for errors using macial -press compile. if you get erros fix them by creating a new SSDT-xxx file

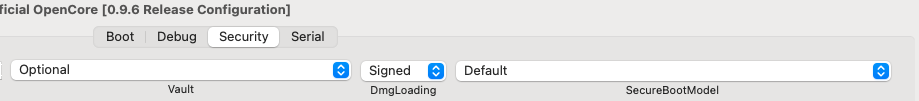

ok nvm security maybe your seal is broken

no problem



-v don't work ??? that is very strange



your system seems very bugged. it should work with default security and -v must show the console during boot

try fix it. maybe install ventura



think i got what's wrong

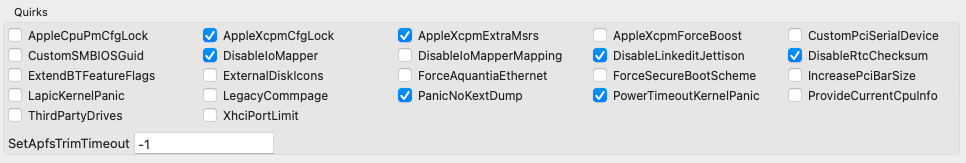

your settings of

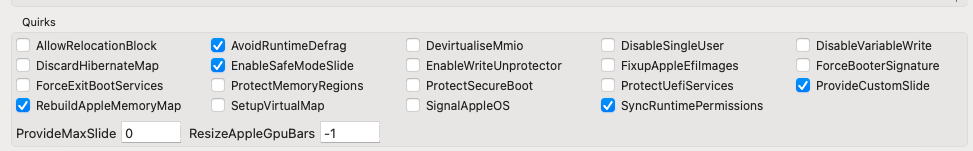

my system wont work with devirtualisemmio. others works




might be wrong and cause all this. recheck them

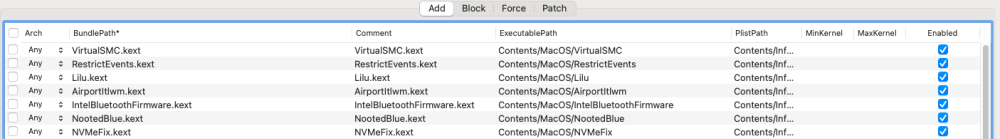

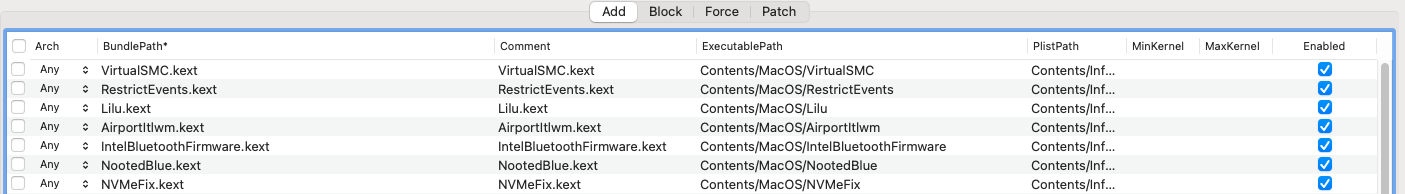

also the kexts list order might cause a bug. try this order


and remove kexts you dont need to boot (for testing if it helps)



this is my smbios - idk which will work better for you


Edited by jalavoui
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)
20 minutes ago, jalavoui said:




do it after booting os x



when you get dsdt.aml check for errors using macial -press compile. if you get erros fix them by creating a new SSDT-xxx file




ok nvm security maybe your seal is broken

no problem



-v don't work ??? that is very strange



your system seems very bugged. it should work with default security and -v must show the console during boot

try fix it. maybe install ventura



Then i did a



PS C:\Users\stefa\Downloads\mac_av\iasl-win-20240927> .\iasl.exe .\DSDT.dsl

...

Compilation successful. 0 Errors, 180 Warnings, 530 Remarks, 270 Optimizations

Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

omg u got dsdt.aml from windows ??

get it from mac os so we can check if the ssdt patches worked...



funny that when i start my laptop was like yours - total failure

it took some time to make it work

Edited by jalavoui
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Macbook14,1 supports at max ventura.. i put Macbook16,2 i want sonoma



[SOLVED] -v boot args wasn't accepted because i had Misc -> Debug -> Target = 3 now i put it to 67 and it's working newly...

Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Look at this statements, there is something wrong :

I put everything in pendrive EFI -> OC -> Kexts (Hookcase, Apple*LE and nootedblue)



01:554 00:007 AAPL: #[EB.LD.LKC|R.1] <"System\Library\KernelCollections\BootKernelExtensions.kc">
02:886 01:332 OC: Prelinked injection AppleIntelTGLGraphicsFramebuffer.kext (AppleIntelTGLGraphicsFramebuffer.kext) - Invalid Parameter
02:928 00:042 OC: Prelinked injection AppleIntelICLLPGraphicsFramebuffer.kext (AppleIntelICLLPGraphicsFramebuffer.kext) - Invalid Parameter



A clean installation cannot be done like this way.. solutions?

(i've tryed also DmgLoading String Signed, SecureBootModel String Default = same result)



[EDIT] (Inverting the order like you suggested i've got bad report

00:830 00:009 AAPL: #[EB.LD.LKC|R.1] <"System\Library\KernelCollections\BootKernelExtensions.kc">
01:703 00:872 OC: Prelinked injection VirtualSMC.kext (VirtualSMC.kext) - Invalid Parameter
01:717 00:013 OC: Prelinked injection RestrictEvents.kext (RestrictEvents.kext) - Invalid Parameter
01:899 00:181 OC: Prelinked injection AppleIntelICLLPGraphicsFramebuffer.kext (AppleIntelICLLPGraphicsFramebuffer.kext) - Invalid Parameter
01:921 00:021 OC: Prelinked injection AppleIntelTGLGraphicsFramebuffer.kext (AppleIntelTGLGraphicsFramebuffer.kext) - Invalid Parameter
01:947 00:026 OC: Prelinked injection SMCBatteryManager.kext (SMCBatteryManager.kext) - Invalid Parameter
01:958 00:011 OC: Prelinked injection SMCLightSensor.kext (SMCLightSensor.kext) - Invalid Parameter
01:970 00:011 OC: Prelinked injection SMCProcessor.kext (SMCProcessor.kext) - Invalid Parameter
01:982 00:011 OC: Prelinked injection SMCSuperIO.kext (SMCSuperIO.kext) - Invalid Parameter

)

Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

you can't load AppleIntelICLLPGraphicsFramebuffer.kext, hookcase or any other like it in opencore



on opencore only load nblue



put sle_internal/le kexts on /L/E



i've updated sle_internal to have 1 AppleIntelTGLGraphics.kext in /L/E for testing (need path change + info.plis in nblue source code)



the other AppleIntelTGLGraphics.kext is tobe installed in /S/L/E but must breal os x seal



at this stage focus on /L/E and only on framebuffer

Edited by jalavoui
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Every testing syslog i try doesn't show .. this is a problem.. something is going wrong



I've looked in the kern_util.cpp and syslog is implemented as "lilu_os_log(...)" maybe I must insert -liludbg or -NBlueDebug to show them ... today I'll try..



[EDIT] -liludbg or -liludbg liludump=30 are not printing anything of anything to me... so sad

Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

I got this on log

2024-10-26 18:41:47.252412+0200  localhost kernel[0]: (Sandbox) Sandbox: com.apple.quicklook.ThumbnailsAg(541) deny(1) file-read-xattr /Library/Extensions/AppleIntelICLLPGraphicsFramebuffer.kext
2024-10-26 18:41:47.252518+0200  localhost kernel[0]: (Sandbox) Sandbox: com.apple.quicklook.ThumbnailsAg(541) deny(1) file-read-xattr /Library/Extensions/AppleIntelTGLGraphicsFramebuffer.kext

P.S. with offline installer I've got more clean log files.. better than nothing..

Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

if u wanna do a crazy test:

- do not load nblue

- goto /L/E and add your card id to info.plist of AppleIntelICLLPGraphicsFramebuffer.kext or tgl

- rebuild /L/E cache

- boot with -v (pray for no hang)



- it probably will give a kernel panic

- boot from recovery delete /Library/KernelCollections/AuxiliaryKernelExtensions.kc

- boot mac os

- remove the card id from the kext in /L/E so you can reboot mac os

- rebuild /L/E cache

- check logs and /Library/Logs/DiagnosticReports



as for wg

the gitthub release as no support for your card family - it will do nothing

you can try my other thread wg it as this code


just change for your card family



Edited by jalavoui
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)
12 hours ago, jalavoui said:

if u wanna do a crazy test:

- do not load nblue

- goto /L/E and add your card id to info.plist of AppleIntelICLLPGraphicsFramebuffer.kext or tgl

- rebuild /L/E cache

- boot with -v (pray for no hang)



- it probably will give a kernel panic

- boot from recovery delete /Library/KernelCollections/AuxiliaryKernelExtensions.kc

- boot mac os

- remove the card id from the kext in /L/E so you can reboot mac os

- rebuild /L/E cache

- check logs and /Library/Logs/DiagnosticReports



as for wg

the gitthub release as no support for your card family - it will do nothing

you can try my other thread wg it as this code


just change for your card family





The wg try already done.. I've changed all the parts like lshbluesky.. I'm suspicious that I'm  not signed like RaptorLake...



I've added this to kern_model.cpp

{ 0xA7A0, 0x8A5A, "Intel Iris Xe Graphics" },
	// Reserved/unused/generic Raptor Lake },

this to kern_igfx.cpp

else if (cpuGeneration == CPUInfo::CpuGeneration::TigerLake)
			success = applyPlatformInformationListPatch(framebufferId, static_cast<FramebufferICLLP *>(gPlatformInformationList));
		else if (cpuGeneration == CPUInfo::CpuGeneration::RaptorLake)
			success = applyPlatformInformationListPatch(framebufferId, static_cast<FramebufferICLLP *>(gPlatformInformationList));
		else if (cpuGeneration == CPUInfo::CpuGeneration::AlderLake)
			success = applyPlatformInformationListPatch(framebufferId, static_cast<FramebufferICLLP *>(gPlatformInformationList));
case CPUInfo::CpuGeneration::RaptorLake:
			supportsGuCFirmware = true;
			currentGraphics = &kextIntelICL;
			currentFramebuffer = &kextIntelICLLPFb;
			currentFramebufferOpt = &kextIntelICLHPFb;
			modDVMTCalcFix.available = true;
			modForceCompleteModeset.supported = modForceCompleteModeset.enabled = true;
			break;

Result : nothing happened except iGPU signed like "Intel Iris Xe Graphics" instead of "???" inside Hackintool.. now I wanna put some SYSLOG to see what is my CpuGeneration inside the kext code..



Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

I read "make sure you're using either the DEBUG or NOOPT versions of OpenCore"



But i'm still using the RELEASE version... maybe is this the problem of why I can't see SYSLOG statements ??

Edited by ASUS Vivobook
Link to comment
Share on other sites
