[Acer PT14-51 Laptop] HowTo

[Stezza88]

I modified setupDisplayTiming because it's void and you did a return in the method, modified like this

void Gen11::setupDisplayTiming (void *that,void *param_1, void *param_2){
    auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<const IODetailedTimingInformationV2 *>(param_2));
    if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;
	FunctionCast(setupDisplayTiming, callback->osetupDisplayTiming)(that,param_1,param_2);
    /*auto ret= FunctionCast(setupDisplayTiming, callback->osetupDisplayTiming)(that,param_1,param_2);*/
    //return ret;
}

then got kp always at

"com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN20IntelFBClientControl24vendor_doDeviceAttributeEjPmmS0_S0_P25IOExternalMethodArguments + 0x9f"

Kernel-2024-11-23-184757.panikern_gen11.cpp

Edited 11 hours ago by Stezza88

[jalavoui]

nice seems your learning todo better code



the vendor kp seems after call

doAttribute(this,param_1,param_2,param_3,param_4,param_5,param_6);



did you try to disable vendor_doDeviceAttribute()?



do you have the IMEI device enabled in ioreg? this patch is for dsdt.aml with device name HECI



disable uint32_t Gen11::validateDetailedTiming(void *that,void *param_1,unsigned long param_2)

cause inside you have

iVar4 = maxSupportedDepths((IODetailedTimingInformationV2 *)this);



try patch

Edited 11 hours ago by jalavoui

[Stezza88]

I tryed to disable with releasedoorbell but have an other kp on

"com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN21AppleIntelFramebuffer16enableControllerEv + 0x1356"

Kernel-2024-11-23-141607.panic



after i disable this second kp with releasedoorbell too but i discovered now it has not a void return so i must apply isPanelPowerOn instead, my fault, now i try



15 minutes ago, jalavoui said:

do you have the IMEI device enabled in ioreg?



i don't know what it is

Edited 11 hours ago by Stezza88

[jalavoui]

that's kp at





patch with

find

be 04 00 00 00 48 89 da 31 c9 e8 8c ac 04 00

rep

be 04 00 00 00 48 89 da 31 c9 90 90 90 90 90



it's my old agdc disable patch



try reenable vendor code but add this patch plus

{"__ZN20IntelFBClientControl11doAttributeEjPmmS0_S0_P25IOExternalMethodArguments",wrapFBClientDoAttribute, this->orgFBClientDoAttribute},

maybe u still need vendor disable. just test it



it's possible all this patches to IODetailedTimingInformationV2 are breaking agdc. but we got no better option so far

Edited 11 hours ago by jalavoui

[Stezza88]

patch with

find

be 04 00 00 00 48 89 da 31 c9 e8 8c ac 04 00

rep

be 04 00 00 00 48 89 da 31 c9 90 90 90 90 90

plus

{"__ZN20IntelFBClientControl11doAttributeEjPmmS0_S0_P25IOExternalMethodArguments",wrapFBClientDoAttribute, this->orgFBClientDoAttribute},

with this I got a bad kp at com.apple.iokit.IOGraphicsFamily : __ZN13IOFramebuffer4openEv + 0xb9f

Kernel-2024-11-23-202343.panic

Edited 11 hours ago by Stezza88

[Stezza88]

34 minutes ago, jalavoui said:

try reenable vendor code



what? maybe I've understand.. all patches to pixelclock u mean



I try this

kern_gen11.cpp

Edited 10 hours ago by Stezza88

[Stezza88]

I got this kp with last agdc patch plus the request (

{"__ZN20IntelFBClientControl11doAttributeEjPmmS0_S0_P25IOExternalMethodArguments",wrapFBClientDoAttribute, this->orgFBClientDoAttribute},

) toggling all pixelclock patches (kern_gen11 above)



com.apple.iokit.IOGraphicsFamily : __ZN13IOFramebuffer25extValidateDetailedTimingEP8OSObjectPvP25IOExternalMethodArguments + 0x57



Kernel-2024-11-23-204238.panic

Edited 10 hours ago by Stezza88

[Stezza88]

One moment, but this you told me to use

{"__ZN20IntelFBClientControl11doAttributeEjPmmS0_S0_P25IOExternalMethodArguments",wrapFBClientDoAttribute, this->orgFBClientDoAttribute},

is a different call, it not resolve the kp I had on

"com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN20IntelFBClientControl24vendor_doDeviceAttributeEjPmmS0_S0_P25IOExternalMethodArguments + 0x9f"



Edited 10 hours ago by Stezza88

[Stezza88]

Resuming:



it is

{"__ZN21AppleIntelFramebuffer19validateDisplayModeEiPPKNS_15ModeDescriptionEPPK29IODetailedTimingInformationV2", validateDisplayMode, this->ovalidateDisplayMode},

uint8_t Gen11::validateDisplayMode(void *that, int param_1,void *param_2, void *param_3){
	auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<const IODetailedTimingInformationV2 *>(param_3));
	if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;
	auto ret= FunctionCast(validateDisplayMode, callback->ovalidateDisplayMode)(that,param_1,param_2,param_3);
	return ret;
}

that make this kp at

__ZN20IntelFBClientControl24vendor_doDeviceAttributeEjPmmS0_S0_P25IOExternalMethodArguments



So, without it

I got a new kp at

com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN21AppleIntelFramebuffer19getPixelInformationEiiiP18IOPixelInformation + 0x131

kern_gen11.cppKernel-2024-11-23-212319.panic

Edited 10 hours ago by Stezza88

[Stezza88]

1 hour ago, jalavoui said:

nice seems your learning todo better code



the vendor kp seems after call

doAttribute(this,param_1,param_2,param_3,param_4,param_5,param_6);



did you try to disable vendor_doDeviceAttribute()?



do you have the IMEI device enabled in ioreg? this patch is for dsdt.aml with device name HECI



disable uint32_t Gen11::validateDetailedTiming(void *that,void *param_1,unsigned long param_2)

cause inside you have

iVar4 = maxSupportedDepths((IODetailedTimingInformationV2 *)this);



try patch



I read this by now.. one moment.. now I try this way too instead of mine..



I removed heci to imei, disabled validateDetailedTiming

and

I did a simple

void Gen11::SetupTimings(void *that, void *param_1, void *param_2, void *param_3, void *param_4){
	FunctionCast(setupDisplayTiming, callback->osetupDisplayTiming)(that,param_1,param_2, param_3, param_4);
}

but in ida pro is 3 params

AppleIntelBaseController::SetupTimings(AppleIntelFramebuffer *, AppleIntelDisplayPath *, IODetailedTimingInformationV2 const*, CRTCParams *)

at

__ZN24AppleIntelBaseController12SetupTimingsEP21AppleIntelFramebufferP21AppleIntelDisplayPathPK29IODetailedTimingInformationV2P10CRTCParams

now I look in ghidra before test



In ghidra i got so your is good

void __thiscall
AppleIntelBaseController::SetupTimings
          (undefined8 param_1_00,long param_2,undefined8 param_3_00,long param_4,long param_5)

Edited 9 hours ago by Stezza88

[jalavoui]

try instead of ** call it with only *

i mean remove double pointer



AppleIntelFramebuffer::validateDisplayMode
          (AppleIntelFramebuffer *this,int param_1,ModeDescription *param_2,
          IODetailedTimingInformationV2 *param_3)



doubt that helps





ghidra gives better args

void
AppleIntelBaseController::SetupTimings
          (AppleIntelBaseController *this,AppleIntelFramebuffer *param_1,
          AppleIntelDisplayPath *param_2,IODetailedTimingInformationV2 *param_3,CRTCParams *param_4)



var to change is IODetailedTimingInformationV2 *param_3



so it stays



void Gen11::SetupTimings(void *that, void *param_1, void *param_2, void *param_3, void *param_4){

    auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<const IODetailedTimingInformationV2 *>(param_3));

    if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;

    FunctionCast(setupDisplayTiming, callback->osetupDisplayTiming)(that,param_1,param_2, param_3, param_4);

}



the IMEI device is enabled on my system



if you remove all pixel and agdc functions + new patches does it gives a full log ?

better start this way

then try reenable patches/functions if it doesnt give kp

you need tobe sure the base version is stable so you can try new patches. do you need f19 and f13b patches for stable version?

Edited 9 hours ago by jalavoui

[Stezza88]

I'm restarting the resume : with this conf it boot with black screen and square mouse

kern_gen11.cpp



Adding

{"__ZN21AppleIntelFramebuffer18maxSupportedDepthsEPK29IODetailedTimingInformationV2", maxSupportedDepths, this->omaxSupportedDepths},
{"__ZN21AppleIntelFramebuffer17validateModeDepthEPK29IODetailedTimingInformationV2j", validateModeDepth, this->ovalidateModeDepth},

got kp com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN21AppleIntelFramebuffer19getPixelInformationEiiiP18IOPixelInformation + 0x131



Adding

{"__ZN21AppleIntelFramebuffer19validateDisplayModeEiPPKNS_15ModeDescriptionEPPK29IODetailedTimingInformationV2", validateDisplayMode, this->ovalidateDisplayMode},

got kp "com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN20IntelFBClientControl24vendor_doDeviceAttributeEjPmmS0_S0_P25IOExternalMethodArguments + 0x9f"



1 hour ago, jalavoui said:

try instead of ** call it with only *

I already changed it to single pointer



Good log started at 22:46:37.072433+0100

x.log.zip

Edited 8 hours ago by Stezza88

[Stezza88]

Implementing the method like you said in last post

{"__ZN21AppleIntelFramebuffer18setupDisplayTimingEPK29IODetailedTimingInformationV2PS0_", setupDisplayTiming, this->osetupDisplayTiming},

void Gen11::setupDisplayTiming(void *that, void *param_1, void *param_2, void *param_3, void *param_4){
	auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<const IODetailedTimingInformationV2 *>(param_3));
	if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;
	FunctionCast(setupDisplayTiming, callback->osetupDisplayTiming)(that,param_1,param_2, param_3, param_4);
}

got kp at "com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN21AppleIntelFramebuffer14setDisplayModeEii + 0x5c5"

Kernel-2024-11-23-230243.panic



Implementing it like this

{"__ZN21AppleIntelFramebuffer18setupDisplayTimingEPK29IODetailedTimingInformationV2PS0_", setupDisplayTiming, this->osetupDisplayTiming},

void Gen11::setupDisplayTiming (void *that,void *param_1, void *param_2){
    auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<const IODetailedTimingInformationV2 *>(param_2));
    if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;
	FunctionCast(setupDisplayTiming, callback->osetupDisplayTiming)(that,param_1,param_2);
}

got no kp



I think that these two methods are from two different requests



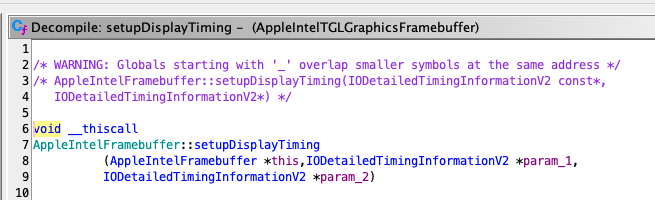

Ghidra tells to me

__ZN24AppleIntelBaseController12SetupTimingsEP21AppleIntelFramebufferP21AppleIntelDisplayPathPK29IODetailedTimingInformationV2P10CRTCParams

/* WARNING: Globals starting with '_' overlap smaller symbols at the same address */
/* AppleIntelBaseController::SetupTimings(AppleIntelFramebuffer*, AppleIntelDisplayPath*,
   IODetailedTimingInformationV2 const*, CRTCParams*) */

void __thiscall
AppleIntelBaseController::SetupTimings
          (undefined8 param_1_00,long param_2,undefined8 param_3_00,long param_4,long param_5)

so i think it has only that + 3 params

Edited 8 hours ago by Stezza88

[jalavoui]

you found a bug this as 3 params only.

nice fix





if all is working guess only question is

validateDisplayMode()

correct declaration

bninja doesnt help

vs



so i solve this using wg code



static IOReturn validateDisplayMode(IOService *framebuffer, uint32_t mode, void const **modeDescription, IODetailedTimingInformationV2 **timing) {









also add code to change pixel inside this







Edited 8 hours ago by jalavoui

[jalavoui]

yes the names are similiar SetupTimings (5 params) and setupDisplayTiming (3 params)



check wg code i just posted. you can use void instead of typed names like ioservice, etc)



IOReturn validateDisplayMode(void *framebuffer, uint32_t mode, void const **modeDescription, void **timing)

Edited 8 hours ago by jalavoui

[Stezza88]

@jalavoui

Implemented like this

IOReturn Gen11::validateDisplayMode(void *framebuffer, uint32_t mode, void const **modeDescription, void **timing){
	auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<IODetailedTimingInformationV2 *>(timing));
	if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;
	auto ret =FunctionCast(validateDisplayMode,callback->ovalidateDisplayMode)(framebuffer,mode,modeDescription,timing);
	return ret;
}

got kp at "com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN20IntelFBClientControl24vendor_doDeviceAttributeEjPmmS0_S0_P25IOExternalMethodArguments + 0x9f" like always

Kernel-2024-11-24-001723.panic

Edited 7 hours ago by Stezza88

[jalavoui]

try double pointer call at

auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<IODetailedTimingInformationV2 *>(timing));



or just disable for now the pixel var displayTimingInfo to check if the function call works - means parameters are well defined



nblue as code to load adlp firmware.

Edited 7 hours ago by jalavoui

[Stezza88]

Disabling

IOReturn Gen11::validateDisplayMode(void *framebuffer, uint32_t mode, void const **modeDescription, void **timing){
	//auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 *>(reinterpret_cast<IODetailedTimingInformationV2 *>(timing));
	//if (displayTimingInfo!=nullptr) displayTimingInfo->pixelClock = 785400000;
	auto ret =FunctionCast(validateDisplayMode,callback->ovalidateDisplayMode)(framebuffer,mode,modeDescription,timing);
	return ret;
}

it boot always black screen and square mouse, so the call it works..



Now, I try this

IOReturn Gen11::validateDisplayMode(void *framebuffer, uint32_t mode, void const **modeDescription, void **timing){
	auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 **>(reinterpret_cast<IODetailedTimingInformationV2 **>(timing));
	if (displayTimingInfo!=nullptr) (*displayTimingInfo)->pixelClock = 785400000;
	auto ret =FunctionCast(validateDisplayMode,callback->ovalidateDisplayMode)(framebuffer,mode,modeDescription,timing);
	return ret;
}



[jalavoui]

can you try call



with this check to skip if pw=pg2 ?



void Gen11::hwSetPowerWellStatePG(void *that,bool param_1,uint param_2)
{
getMember<void *>(that, 0x78) = ccont;
if (((param_2 & 8 != 0) return;
FunctionCast(hwSetPowerWellStatePG, callback->ohwSetPowerWellStatePG)(that,param_1,param_2);
}



[Stezza88]

BTW, got kp at "com.xxxxx.driver.AppleIntelTGLGraphicsFramebuffer : __ZN24AppleIntelBaseController13GetLinkConfigEP16AGDCLinkConfig_tS1_ + 0x492"



Kernel-2024-11-24-010949.panic



now try this

void Gen11::hwSetPowerWellStatePG(void *that,bool param_1,uint param_2)
{
	getMember<void *>(that, 0x78) = ccont;
	if((param_2 & 8) != 0) return;
	FunctionCast(hwSetPowerWellStatePG, callback->ohwSetPowerWellStatePG)(that,param_1,param_2);
}

Edited 6 hours ago by Stezza88

[jalavoui]

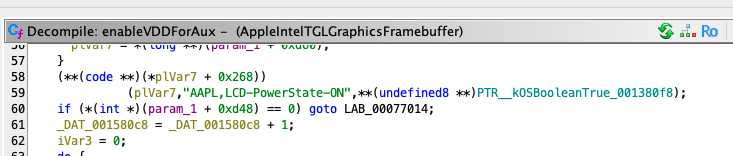

AppleGraphicsDeviceControl doesnt like you. maybe cause you patched agdc call with bytes at enablecontroller ?



also check if you still need to disable this code

cause here the lcd-powerstate is changed

Edited 6 hours ago by jalavoui

[Stezza88]

6 minutes ago, Stezza88 said:

void Gen11::hwSetPowerWellStatePG(void *that,bool param_1,uint param_2)
{
	getMember<void *>(that, 0x78) = ccont;
	if((param_2 & 8) != 0) return;
	FunctionCast(hwSetPowerWellStatePG, callback->ohwSetPowerWellStatePG)(that,param_1,param_2);
}



It doesn't skip, got vertical bars

Edited 6 hours ago by Stezza88

[jalavoui]

your link panic is here. after this call





means the function call is bugged. wrong parameters type or pointers  in function?



if the hwSetPowerWellStatePG() fix doesnt kp keep it. cause the remaining code of the function is now working



the firmware hang at hwConfigureCustomAUX() need tobe fixed. gonna updated nblue to call by default. try test with adl code maybe



the linkconfig and others calls pass zero to modedescript and a pointer to iodetailedtimmg so

try this



IOReturn Gen11::validateDisplayMode(void *framebuffer, uint32_t mode, void const **modeDescription, void **timing){

if (modeDescription!=nullptr) {

auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 **>(reinterpret_cast<IODetailedTimingInformationV2 **>(timing));

if (displayTimingInfo!=nullptr) (*displayTimingInfo)->pixelClock = 785400000;

}

auto ret =FunctionCast(validateDisplayMode,callback->ovalidateDisplayMode)(framebuffer,mode,modeDescription,timing); return ret; }

Edited 5 hours ago by jalavoui

[Stezza88]

12 minutes ago, jalavoui said:

if the hwSetPowerWellStatePG() fix doesnt kp keep it.



hwSetPowerWellStatePG() fix did a kp with vertical bars

[jalavoui]

ok you can disable and try to fix later with this logic -check kernel panic log line

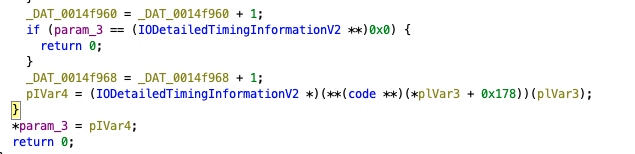

found the bug of validateDisplayMode here

the value is passed at function call end







so the patch as tobe at function end



IOReturn Gen11::validateDisplayMode(void *framebuffer, uint32_t mode, void const **modeDescription, void **timing){



auto ret =FunctionCast(validateDisplayMode,callback->ovalidateDisplayMode)(framebuffer,mode,modeDescription,timing);



if (timing != (IODetailedTimingInformationV2 **)0x0) {

auto displayTimingInfo = const_cast<IODetailedTimingInformationV2 **>(reinterpret_cast<IODetailedTimingInformationV2 **>(timing));

 (*displayTimingInfo)->pixelClock = 785400000; // not sure if  (*displayTimingInfo) works maybe just displayTimingInfo

}



return ret;



}

Edited 5 hours ago by jalavoui
