[Acer PT14-51 Laptop] HowTo

Stezza88

By Stezza88,
in Intel

 Share
364 posts in this topic

Recommended Posts

Stezza88
Stezza88
Posted
Posted (edited)

Laptop's Motherboard : Acer Predator PT14-51

CPU : 14 Core Intel i7-13700H

Integrated graphics : Intel Iris Xe Graphics (Raptor Lake gen)

Dedicated GPU : NVIDIA GeForce RTX 4070 Laptop GPU

Bios : Insyde UEFI V1.08



Final working stable versions of my OC config.plist with native NVRAM.. to change the Platform - Generic part, I'm still using those serials, btw generate it with the generator in the Opencore guide... boot arg lilucpu=17 isn't always needed but my system resulted like gen unknown so I must use it... dGPU must be disabled taking your path with gfxutil app (https://github.com/acidanthera/gfxutil/releases) .. I'm using Sonoma 14.7.1 so SMBIOS setupped at MacBook16,2 but maybe is better to use ventura..



BTW

- Touchpad is still not working

- Screen turned on and off isn't working during the installation

- audio is not setupped

- It detects (to me) a generic iGPU card with 15 MB of ram



GUIDES

- I have followed this guide : https://chriswayg.gitbook.io/opencore-visual-beginners-guide/advanced-topics/using-alder-lake

- followed @jalavoui hints in the later part of this topic for better config parameters

- follow this topic can help too



Here the config.plist.



confignb.plist

Edited by Stezza88
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)
19 hours ago, miliuco said:

@ASUS Vivobook

This card is not supported.

See here supported models:

https://openintelwireless.github.io/itlwm/Compat



Please add a signature to your Account Details.



EDIT: Nvidia not supported. iGPU is a work in progress.





I've resolved with an "hama" usb ethernet adapter (the package told compatible for win and mac both)

Edited by ASUS Vivobook
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Using Whatevergreen (instead of nootedblue) (latest version) putting only AAPL,ig-platform-id taken by the previous "nootedblue conf" it gives to me a

iGPU : Generic iGPU 15MB
PCIe : Intel Raptor Lake-P [Iris Xe Graphics]
AAPL,ig-platform-id <02005C8A>
device-id <A0A70000>

and setting this too :



<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>AAPL,ig-platform-id</key>
				<data>AAAF/w==</data>
				<key>acpi-path</key>
				<string>IOACPIPlane:/_SB/PC00/GFX0@20000</string>
				<key>AAPL,GfxYTile</key>
				<data>AQAAAA==</data>
				<key>AAPL,slot-name</key>
				<string>Internal@0,2,0</string>
				<key>AAPL00,override-no-connect</key>
				<data>AP///////wAw5HycAAAAAAAfAQSVIhNgA2+xp1VMniUMUFQAAAABAQEBAQEBAQEBAQEBAQEBLjaAoHA4H0AwIDUAWMIQAAAaHySAoHA4H0AwIDUAWMIQAAAaAAAAAAAAAAAAAAAAAAAAAAAAAAAAAgAMOv8KPH0SFCR9AAAAAEY=</data>
				<key>complete-modeset</key>
				<data>AQAAAA==</data>
				<key>disable-agdc</key>
				<data>AQAAAA==</data>
				<key>dpcd-max-link-rate</key>
				<data>CgAAAA==</data>
				<key>rps-control</key>
				<data>AQAAAA==</data>
				<key>igfxfw</key>
				<data>AgAAAA==</data>
				<key>framebuffer-stolenmem</key>
				<data>AAAwAQ==</data>
				<key>framebuffer-fbmem</key>
				<data>AACQAA==</data>
				<key>framebuffer-patch-enable</key>
				<data>AQAAAA==</data>
				<key>enable-dvmt-calc-fix</key>
				<data>AQAAAA==</data>
				<key>enable-dbuf-early-optimizer</key>
				<data>AQAAAA==</data>
				<key>enable-dpcd-max-link-rate-fix</key>
				<data>AQAAAA==</data>
				<key>enable-cdclk-frequency-fix</key>
				<data>AQAAAA==</data>
				<key>enable-backlight-smoother</key>
				<data>AQAAAA==</data>
				<key>enable-backlight-registers-fix</key>
				<data>AQAAAA==</data>
				<key>force-online</key>
				<data>AQAAAA==</data>
				<key>framebuffer-con0-alldata</key>
				<data>AAAAAAAAAAAAAAAAAAAAAAIAAAAYAAAA</data>
				<key>framebuffer-con0-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-con1-alldata</key>
				<data>AgAAAAAAAAABAAAAAQAAAAAEAADBAgAA</data>
				<key>framebuffer-con1-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-con2-alldata</key>
				<data>AwAAAAoAAAABAAAAAQAAAAAEAADBAgAA</data>
				<key>framebuffer-con2-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-unifiedmem</key>
				<data>AAAAgA==</data>
				<key>hda-gfx</key>
				<string>onboard-1</string>
				<key>model</key>
				<string>Intel Raptor Lake-P [Iris Xe Graphics]</string>



- and emulating kernel like this (https://chriswayg.gitbook.io/opencore-visual-beginners-guide/advanced-topics/using-alder-lake) but maybe better inserting Ice Lake kernel datas (i applied the Fake but setting the Ice Lake CPU ID 0x0706E5, instead of Comet lake of the guide mentioned) :



Cpuid1Data : E5060700 00000000 00000000 00000000
Cpuid1Mask : FFFFFFFF 00000000 00000000 00000000

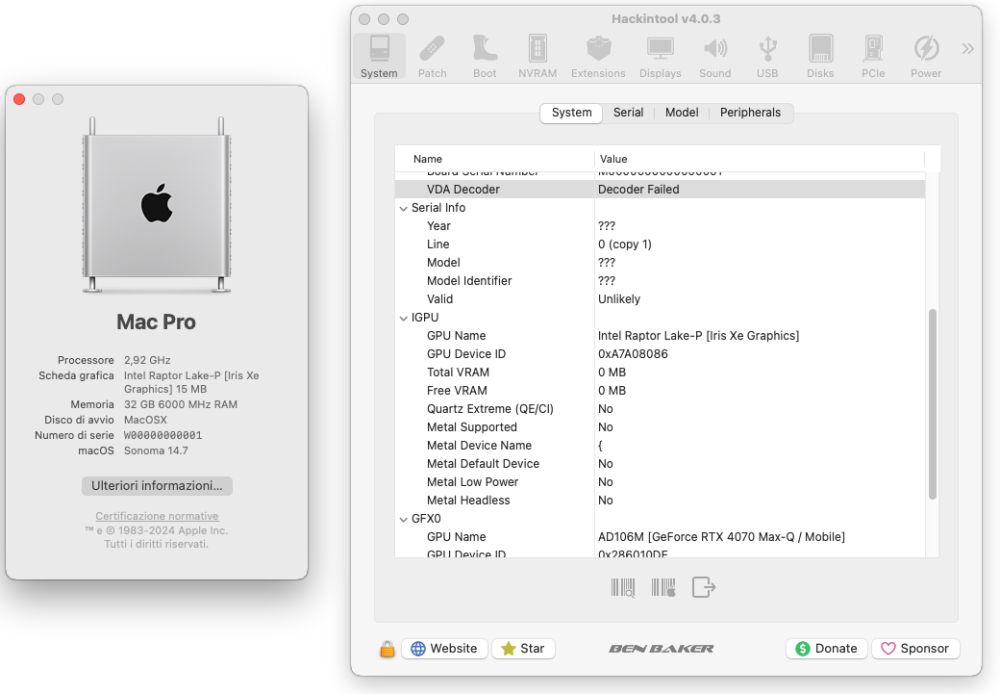

It's working but still 15 MB of RAM on system informations and no acceleration (either metal or QE/CI graphics acceleration didn't work)

So, today i discovered that there is a little bit accent of support tò Raptor Lake gen.. i think i must wait future release of Whatevergreen tò have full support.. or maybe i'm not seeing right the Hackintool logs ..





Edited by ASUS Vivobook
  • Like 1
  • Confused 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

How can i get and where can i get HW Graphics debugging for fails with Whenevergreen kext ? Please tell me precisely

I want to investigate on the reboot of my machine with tiger lake spoofing... i don't understand very much easier in this topic...



-liludbg ?

  • Add -liludbg to enable debug printing (available in DEBUG binaries).

-wegdbg ?

  • Enable debug printing (available in DEBUG binaries)



Must i use debug version of the kexts?



-v ?



Any other methods?

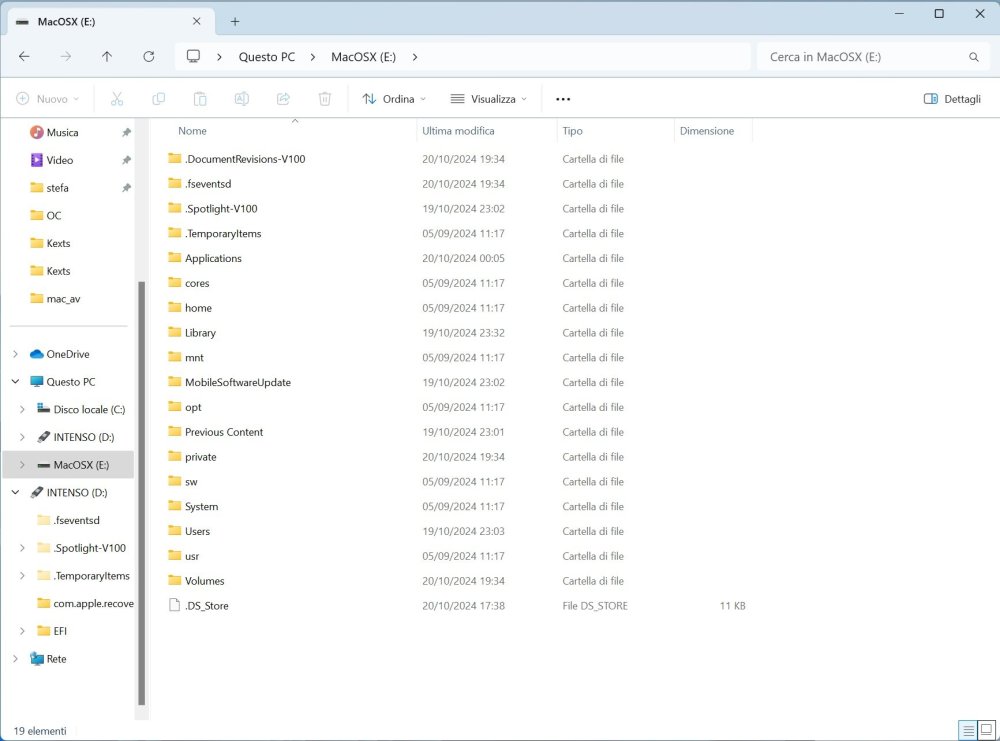

This is the folder i can access from windows




I've found E:\private\var\log\system.log but there are no related messages ..  i cannot reach to find/to have log output or system log related to the graphic fail.. i cannot understand without these

[EDIT] I'm looking now inside Mac with dmesg or Hackintool... nothing found related to graphic or framebuffer loading..





Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

I'm going forward and reaching to understand how nootedblue (rebuilded from master version) works.. before i used it without inserting my real device-id that is "0xA7A08086" in info.plist IOPrimaryMatch .. i've updated/erased some early posts

Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

since you're in adl i think it's better to discuss it here.



to get logs open terminal and paste



log show --style syslog --predicate 'processID == 0' --last 1h --info --debug  > /tmp/x.log



then open  /tmp/x.log



1st step is install the framebuffers kexts in /L/E

next build and install hookcase.kext in /L/E



fix permissions for kexts /L/E - os x will ask for permission to use the new kexts. if this fails delete /Library/KernelCollections/AuxiliaryKernelExtensions.kc

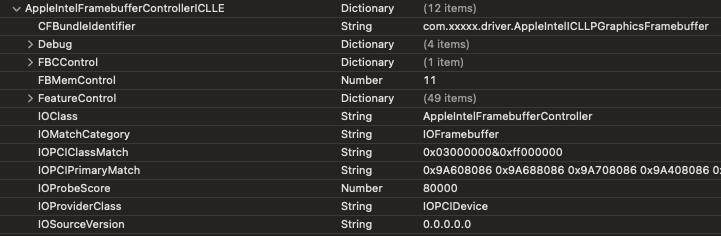

bulid nblue.kext install in opencore kexts folder. add your card id to the correct info.plist entry



boot with -v debug=0x100 keepsyms=1 IGLogLevel=8



dont use whatevergreen with nblue !



on panic,hang some logs will be on /Library/Logs/DiagnosticReports



as for adl cards i think enabling/disabling some patches (from nblue or whatevergreen code) might make the framebuffer to load



your config.ini don't need PciRoot(0x0)/Pci(0x2,0x0) if using nblue

Edited by jalavoui
  • Like 1
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Found nothing of useful with





"log show --style syslog --predicate 'processID == 0' --last 1h --info --debug  > /tmp/x.log

then open  /tmp/x.log"

Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

I've found a method : is that to remove IONDRVSupport.kext from the system ... but I don't have a root with write permission

I've got csrutil disabled but Authenticated Root status: enabled

[EDIT] But wtf is a kext in use ... i cannot perform this...

Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

very bad idea remove iondrv - it is needed by other kexts.

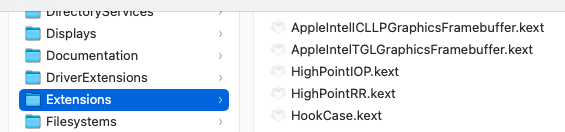

when your system is fine just install the kexts i said in /Library/Extensions






you only will get logs after correctly install nblue



don't mount the system rw - you only will break it.



i would start by installing only this 2 kexts +hookcase.kext in /L/E

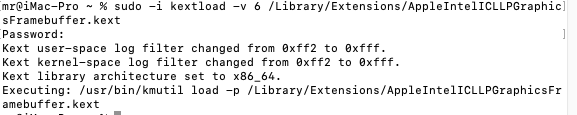

and test for loading using kextload -v

then try load nblue in opencore



when all his is done check for log files and post them here



btw get a linux log file for your card so we can check how it works



Edited by jalavoui
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

I've strip down to the bone my config files however... adding this to wg doesn't change... maybe with the linux log things could go better



<key>AAPL,GfxYTile</key>
				<data>AQAAAA==</data>
				<key>AAPL,slot-name</key>
				<string>Internal@0,2,0</string>
				<key>AAPL00,override-no-connect</key>
				<data>AP///////wAw5HycAAAAAAAfAQSVIhNgA2+xp1VMniUMUFQAAAABAQEBAQEBAQEBAQEBAQEBLjaAoHA4H0AwIDUAWMIQAAAaHySAoHA4H0AwIDUAWMIQAAAaAAAAAAAAAAAAAAAAAAAAAAAAAAAAAgAMOv8KPH0SFCR9AAAAAEY=</data>
				<key>complete-modeset</key>
				<data>AQAAAA==</data>
				<key>disable-agdc</key>
				<data>AQAAAA==</data>
				<key>dpcd-max-link-rate</key>
				<data>CgAAAA==</data>
				<key>rps-control</key>
				<data>AQAAAA==</data>
				<key>igfxfw</key>
				<data>AgAAAA==</data>
				<key>framebuffer-stolenmem</key>
				<data>AAAwAQ==</data>
				<key>framebuffer-fbmem</key>
				<data>AACQAA==</data>
				<key>framebuffer-patch-enable</key>
				<data>AQAAAA==</data>
				<key>enable-dvmt-calc-fix</key>
				<data>AQAAAA==</data>
				<key>enable-dbuf-early-optimizer</key>
				<data>AQAAAA==</data>
				<key>enable-dpcd-max-link-rate-fix</key>
				<data>AQAAAA==</data>
				<key>enable-cdclk-frequency-fix</key>
				<data>AQAAAA==</data>
				<key>enable-backlight-smoother</key>
				<data>AQAAAA==</data>
				<key>enable-backlight-registers-fix</key>
				<data>AQAAAA==</data>
				<key>force-online</key>
				<data>AQAAAA==</data>
				<key>framebuffer-con0-alldata</key>
				<data>AAAAAAAAAAAAAAAAAAAAAAIAAAAYAAAA</data>
				<key>framebuffer-con0-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-con1-alldata</key>
				<data>AgAAAAAAAAABAAAAAQAAAAAEAADBAgAA</data>
				<key>framebuffer-con1-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-con2-alldata</key>
				<data>AwAAAAoAAAABAAAAAQAAAAAEAADBAgAA</data>
				<key>framebuffer-con2-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-unifiedmem</key>
				<data>AAAAgA==</data>





Edited by ASUS Vivobook
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

Here the linux /var/log/syslog



syslog



sgiammoript@sgiammoript-Predator-PT14-51:~$ sudo lshw -C display
  *-display
       description: VGA compatible controller
       product: Raptor Lake-P [Iris Xe Graphics]
       vendor: Intel Corporation
       physical id: 2
       bus info: pci@0000:00:02.0
       logical name: /dev/fb0
       version: 04
       width: 64 bits
       clock: 33MHz
       capabilities: pciexpress msi pm vga_controller bus_master cap_list rom fb
       configuration: depth=32 driver=i915 latency=0 resolution=2560,1600
       resources: iomemory:620-61f iomemory:400-3ff irq:194 memory:6202000000-6202ffffff memory:4000000000-400fffffff ioport:4000(size=64) memory:c0000-dffff memory:4010000000-4016ffffff memory:4020000000-40ffffffff
sgiammoript@sgiammoript-Predator-PT14-51:~$ lspci | grep ' VGA ' | cut -d" " -f 1 | xargs -i lspci -v -s {}

00:02.0 VGA compatible controller: Intel Corporation Raptor Lake-P [Iris Xe Graphics] (rev 04) (prog-if 00 [VGA controller])
	Subsystem: Acer Incorporated [ALI] Raptor Lake-P [Iris Xe Graphics]
	Flags: bus master, fast devsel, latency 0, IRQ 194, IOMMU group 0
	Memory at 6202000000 (64-bit, non-prefetchable) [size=16M]
	Memory at 4000000000 (64-bit, prefetchable) [size=256M]
	I/O ports at 4000 [size=64]
	Expansion ROM at 000c0000 [virtual] [disabled] [size=128K]
	Capabilities: <access denied>
	Kernel driver in use: i915
	Kernel modules: i915, xe
sgiammoript@sgiammoript-Predator-PT14-51:~$ glxinfo | egrep -i 'device|memory'
    Device: Mesa Intel(R) Graphics (RPL-P) (0xa7a0)
    Video memory: 31797MB
    Unified memory: yes
    GL_AMD_performance_monitor, GL_AMD_pinned_memory,
    GL_EXT_framebuffer_object, GL_EXT_framebuffer_sRGB, GL_EXT_memory_object,
    GL_EXT_memory_object_fd, GL_EXT_packed_depth_stencil, GL_EXT_packed_float,
    GL_AMD_pinned_memory, GL_AMD_query_buffer_object,
    GL_EXT_gpu_program_parameters, GL_EXT_gpu_shader4, GL_EXT_memory_object,
    GL_EXT_memory_object_fd, GL_EXT_multi_draw_arrays,
    GL_EXT_instanced_arrays, GL_EXT_map_buffer_range, GL_EXT_memory_object,
    GL_EXT_memory_object_fd, GL_EXT_multi_draw_arrays,



Edited by ASUS Vivobook
Link to comment
Share on other sites
jalavoui
jalavoui
Posted
Posted (edited)

u forgot to use debug args


you can remove the linux boot args as it produces huge log files when done



i use this boot args to get logs - but only if nblue loads to boot screen




Edited by jalavoui
Link to comment
Share on other sites
Stezza88
Stezza88
Posted
  • Author
Posted (edited)

kernel: Command line: BOOT_IMAGE=/boot/vmlinuz-6.8.0-47-generic root=UUID=67dccc2e-d519-46e1-9d0b-3d6ce52c15ab drm.debug=0x1e log_buf_len=100M ro splash



it has produced a syslog file of 40Mb

and i have done "sudo truncate -s 0 /var/log/syslog" before restarting so the file was cleaned

Edited by ASUS Vivobook
