[pre-release] macOS Sequoia


2,186 posts in this topic

Recommended Posts

Can anyone confirm which kexts are now required for broadcom wifi / bluetooth with Sequoia.

Last time i used my laptop (yesterday) wifi was working, today it has an error. The below kexts are what I have and would like to know if they are all needed.

I am still on beta 4.
AirportBrcmFixup?
BlueToolFixup?

BrcmFirmwareData?

BrcmPatchRAM3?

IO80211FamilyLegacy?
IOSkywalkFamily?


  • Like 1
Link to comment
Share on other sites

On 8/6/2024 at 10:19 AM, Max.1974 said:



Need check your RE version and revpatches





Try this version from @lorys89 GitHub



https://github.com/Lorys89/RestrictEvents/releases/tag/1.1.4



Don't forget put -lilubetaall

Thanks my friend @MaLd0n for your tutorial





How to mount EFI partition on Sequoia



Can you please reflect this commit in the official RestrictEvents?

The official RestrictEvents found it impossible.

Sequoia recent beta update is available. thank you

  • Like 2
Link to comment
Share on other sites

1 hour ago, Sherlocks said:



Can you please reflect this commit in the official RestrictEvents?

The official RestrictEvents found it impossible.

Sequoia recent beta update is available. thank you



@Sherlocks Hello, I'm not a programmer or coder but I can ask a friend to do the update by referring me. I use compiled kext, manually or through programs with the SDK and Lilu debug. However, some people noticed that Lorys89's kext works fine too, unless I'm misunderstanding what he actually means.

Edited by Max.1974
Link to comment
Share on other sites

1 hour ago, SavageAUS said:

Can anyone confirm which kexts are now required for broadcom wifi / bluetooth with Sequoia.

Last time i used my laptop (yesterday) wifi was working, today it has an error. The below kexts are what I have and would like to know if they are all needed.

I am still on beta 4.
AirportBrcmFixup?
BlueToolFixup?

BrcmFirmwareData?

BrcmPatchRAM3?

IO80211FamilyLegacy?
IOSkywalkFamily?




I use the same kexts, but for my card, I have been running on my EFI only IOSkywalkFamily.kext (1.0), IO80211FamilyLegacy.kext (12.0) and AMFIPass.kext (1.4.1).



Using this OCLP 1.6.0 nightly build khronokernel pushed   - fb88795 -  sequoia-development

Link to comment
Share on other sites

58 minutes ago, Max.1974 said:



I use the same kexts, but for my card, I have been running on my EFI only IOSkywalkFamily.kext (1.0), IO80211FamilyLegacy.kext (12.0) and AMFIPass.kext (1.4.1).



Using this OCLP 1.6.0 nightly build khronokernel pushed   - fb88795 -  sequoia-development

What about kext order? and AirportBrcmFixup plugins?

Would this be correct?

AirportBrcmFixup

AirportBrcmFixup > AirportBrcm4360 > enabled

AirportBrcmFixup > AirportBrcmNIC > disabled
BlueToolFixup

BrcmFirmwareData

BrcmPatchRAM3

IO80211FamilyLegacy
IOSkywalkFamily

  • Like 1
Link to comment
Share on other sites

26 minutes ago, SavageAUS said:

What about kext order? and AirportBrcmFixup plugins?

Would this be correct?

AirportBrcmFixup

AirportBrcmFixup > AirportBrcm4360 > enabled

AirportBrcmFixup > AirportBrcmNIC > disabled
BlueToolFixup

BrcmFirmwareData

BrcmPatchRAM3

IO80211FamilyLegacy
IOSkywalkFamily



Because im using Clover not need order, but if you open with Opencore Configurator, you will receive message about orders from kexts.



See my OC folder Opened with OCC








If something is wrong its opened message here on left menu:




















Link to comment
Share on other sites

About Airport you can check here



https://github.com/acidanthera/BrcmPatchRAM





https://github.com/acidanthera/AirportBrcmFixup



:happymac:



Spoiler

Matching device-id and kext name in different macOS versions

[10.8]

  • AirPortBrcm4360: 43a0, IOProbeScore = 641
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 615

[10.9]

  • AirPortBrcm4360: 43a0, IOProbeScore = 842
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 700

[10.10]

  • AirPortBrcm4360: 43ba, 43a3, 43a0, 4331, 4353, IOProbeScore = 930
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 900

[10.11]

  • AirPortBrcm4360: 43ba, 43a3, 43a0, 4331, 4353, IOProbeScore = 1040
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 800

[10.12]

  • AirPortBrcm4360: 43ba, 43a3, 43a0, 4331, 4353, IOProbeScore = 1152
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 800

[10.13]

  • AirPortBrcm4360: 4331, 4353, IOProbeScore = 1240
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 800
  • AirPortBrcmNIC: 43ba, 43a3, 43a0, IOProbeScore = 1241
  • AirPortBrcmNIC-MFG: 43ba, 43a3, 43a0, IOProbeScore = -1000

[10.14]

  • AirPortBrcm4360: 4331, 4353, IOProbeScore = 1400
  • AirPortBrcm4331: 4331, 4353, 432b, IOProbeScore = 800
  • AirPortBrcmNIC: 43ba, 43a3, 43a0, IOProbeScore = 1400
  • AirPortBrcmNIC-MFG: 43ba, 43a3, 43a0, IOProbeScore = -1000

[10.15]

  • AirPortBrcm4360: 4331, 4353, IOProbeScore = 1400
  • AirPortBrcm4331: removed
  • AirPortBrcmNIC: 43ba, 43a3, 43a0, IOProbeScore = 1400
  • AirPortBrcmNIC-MFG: removed

[11]

  • AirPortBrcm4360: removed
  • AirPortBrcm4331: removed
  • AirPortBrcmNIC: 43ba, 43a3, 43a0, IOProbeScore = 1400
  • AirPortBrcmNIC-MFG: removed

[12]

  • AirPortBrcm4360: removed
  • AirPortBrcm4331: removed
  • AirPortBrcmNIC: 43ba, 43a3, 43a0, IOProbeScore = 1400, kext is moved to the new location - IO80211FamilyLegacy.kext/Contents/PlugIns
  • AirPortBrcmNIC-MFG: removed

[13]

  • AirPortBrcm4360: removed
  • AirPortBrcm4331: removed
  • AirPortBrcmNIC: 43ba, 43a3, 43a0, IOProbeScore = 1400, kext is moved to the new location - IO80211FamilyLegacy.kext/Contents/PlugIns
  • AirPortBrcmNIC-MFG: removed

[14]

  • AirPortBrcm4360: removed
  • AirPortBrcm4331: removed
  • AirPortBrcmNIC: removed
  • AirPortBrcmNIC-MFG: removed

Use with OCLP



Link to comment
Share on other sites

2 hours ago, Max.1974 said:



@Sherlocks Hello, I'm not a programmer or coder but I can ask a friend to do the update by referring me. I use compiled kext, manually or through programs with the SDK and Lilu debug. However, some people noticed that Lorys89's kext works fine too, unless I'm misunderstanding what he actually means.

Can you please ask him for an update? We need to use a working code. thank in advance

  • Thanks 1
Link to comment
Share on other sites

7 hours ago, chris1111 said:

 Drop-EFI Is Updated for Sequoia 15 Drop-EFI :wink_anim: Uninstall the previous one.

Thank you Maestro, excellent work.:thumbsup_anim:

Exactly what I was hoping and looking for.

Simplicity and ease of operation.

  • Like 4
  • Thanks 1
Link to comment
Share on other sites

To You Guys With ESP/EFI Mounting Problems, Try This Easy Fix,

It Has To Be Done On A Freshly Formatted Disk.

The Trick Is To Create A Fat32 Partition At The Start Of The disk

Size Is User Choice, So I Do 500MB



Place Your EFI Folder On The Fat32 Partition, It Will Boot As Normal And You Don't Need to

Stuff Around The OLD Way.

If You Want To Change Your EFI Folder, It's Just A Matter Of Opening The Fat32 Partition

And Deleting The Old Folder And Putting On It Your New EFI Folder.



Now If You  Want To Be Adventuress,

You Can Make Several Of The Fat32 Partitions,

Each With It's Own EFI Folder



To Boot You Select With Your Boot Menu Key, Mine Is F11 And You Will

See All The Fat32 Partitions You Created, Boot The One You Want.



Hope This Helps A Lot Of People. ;)

  • Like 5
  • Thanks 1
Link to comment
Share on other sites

1 hour ago, kaoskinkae said:

In the end I managed to activate WIFI OCPL Nocturno 1.6.0 updated kext and OpenCore 1.0.1 patch OpenCore-Patcher.pkg#1613






Can you share your config.plist please. Remove serial numbers.

Link to comment
Share on other sites

9 minutes ago, SavageAUS said:

¿Puedes compartir tu config.plist, por favor? Elimina los números de serie.

I already did it, look at my config, be careful, you must have updated opencore 1.0.1 kext and the ocpl version placed in the photo

OpenCore-Patcher.pkg#1613

Link to comment
Share on other sites

@chris1111



OT: my Drop-EFI collection :)



Spoiler




2 hours ago, kaoskinkae said:

In the end I managed to activate WIFI OCPL Nocturno 1.6.0 updated kext and OpenCore 1.0.1 patch OpenCore-Patcher.pkg#1613



I can't see the image, can you delete and upload it again? Thanks.

  • Like 2
  • Haha 1
Link to comment
Share on other sites

6 minutes ago, miliuco said:

@chris1111



OT: mi colección Drop-EFI :)



  Revelar contenidos ocultos






No puedo ver la imagen, ¿puedes borrarla y volverla a subir? Gracias.

There you have my config with my configuration on both computers. Look at my screen, that SSD with USB adapter works and on the internal disks too.

configuración.plist

  • Like 1
Link to comment
Share on other sites

Hi all Hackintoshers

You can find applefskit for Exfat and msdos in Settings/General/Extensions. There are enable by default.



Capture d’écran 2024-08-07 à 14.21.03.png

  • Like 1
  • Confused 1
Link to comment
Share on other sites

41 minutes ago, Matgen84 said:

Hi all Hackintoshers

You can find applefskit for Exfat and msdos in Settings/General/Extensions. There are enable by default.





Capture d’écran 2024-08-07 à 14.21.03.png

What does it do to be helpful for us?

  • Thanks 1
Link to comment
Share on other sites

51 minutes ago, Matgen84 said:

Hi all Hackintoshers

You can find applefskit for Exfat and msdos in Settings/General/Extensions. There are enable by default.





Capture d’écran 2024-08-07 à 14.21.03.png

hi they are grayed out in my case you cannot toggle them on and off What about you???





Screenshot 2024-08-07 at 15.22.24.png

Edited by robi62
Link to comment
Share on other sites

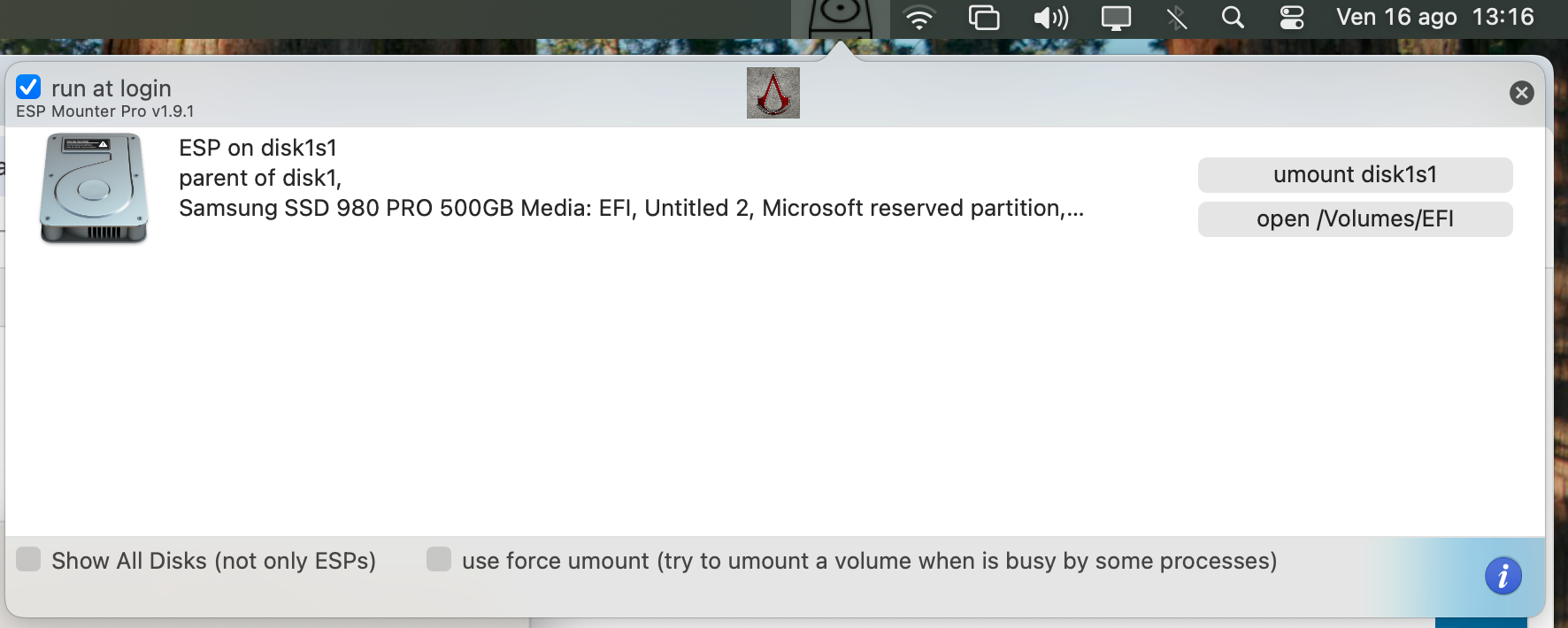

Easy to use automator app to mount EFI.



Config is for  /dev/disk0s1, change if yours is different.



Can be used to mount other partitions if cofigured for target disk and slice.  For other than EFI/ESP msdos partitions check with "mount" command first, and if listed, unmount before executing modified script for target drive.

EFI.app.7z

4 minutes ago, mek21 said:



Tested Sonoma and Sequoia b5.

Edited by mek21
Link to comment
Share on other sites
