[pre-release] macOS Sequoia

PoMpIs · June 22

10 minutes ago, deeveedee said:

@PoMpIs Maybe you can figure out how to get WhateverGreen to generate debug output. See here.

I can't use WEG, it's a RX6700 10Gb...it just needs NootRX.kext to work

https://github.com/ChefKissInc/NootRX

With switchResX I can create the resolution and it works perfectly, but I would like to not have to use that to have the real monitor resolution...

Maybe it could be because it is a 6700 that is not native to MacOS... I have an RX6650XT here too, which does work with WEG... I will try it to see if that is why

PoMpIs · June 22

Well, it doesn't go with the 6650XT either... MacOS doesn't like this monitor... 😭

We rule out that it is a matter of the RX6700 and NootRX.kext....

In the end I will have to use SwitchResX.... very bad to have to do that at this point to use a monitor ☹️

deeveedee · June 22

@PoMpIs I'm not a graphics expert, but maybe you need to inject EDID.

chris1111 · June 22

5 hours ago, miliuco said:

It's the same for me.

I also revert the patch, its just a test :moil:

fabiosun · June 22

3 hours ago, SavageAUS said:

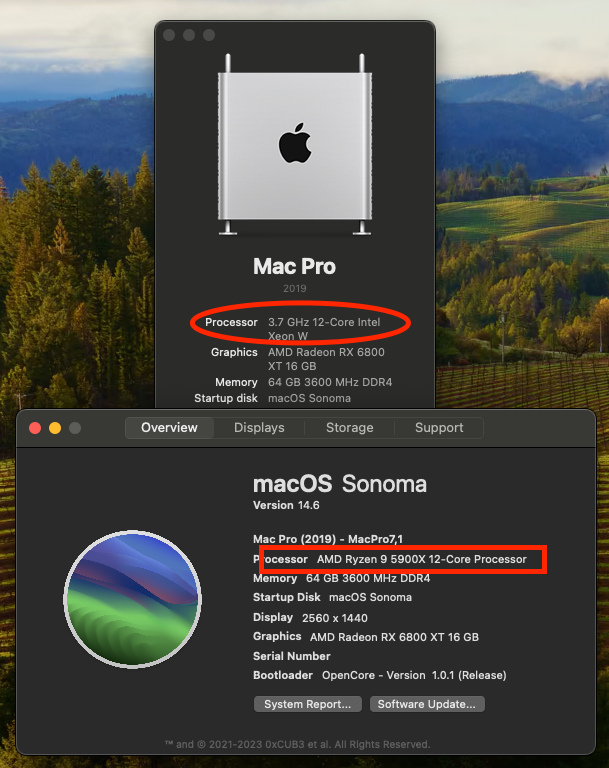

About this mac on Sequoia and now Sonoma are both showing a 3.7Ghz 12 Core Intel Xeon W when I have and AMD Ryzen 9 5900x.

It used to show properly but now in both OS it shows wrong.

I am using -revbeta flag with no luck.

Has this changed to 14.6 beta and 15?

try to use resstrictevents.kext don by @lorys89 on sequoia thread on macos86 forum

it should help to see again your AMD CPU

Shaneee · June 22

4 hours ago, PoMpIs said:

Guys... I bought a new monitor:

https://iiyama.com/es_es/productos/prolite-xcb4594dqsn-b1/

And Sequoia does not recognize the monitor resolution (5120x1440p@165Hz)

It stays at a very low resolution and looks like {censored}... (the same thing happens in Sonoma...)

On Windows it works wonderfully

I can adjust the resolution with SwitchRes, but I don't like that, should it work without doing anything, or does MacOS not support this screen format?

From what I can tell it only supports that resolution either at 60Hz or with certain HDMI 2.1 cables. macOS seems to be fussy about it. SwitchResX or BetterDisplay are your best options, https://github.com/waydabber/BetterDisplay

Stefanalmare · June 22

3 hours ago, PoMpIs said:

Well, it doesn't go with the 6650XT either... MacOS doesn't like this monitor... 😭

We rule out that it is a matter of the RX6700 and NootRX.kext....

In the end I will have to use SwitchResX.... very bad to have to do that at this point to use a monitor ☹️

I had same issue time ago with Samsung odyssey g9. A firmware upgrade of the monitor, resolved my problem. You should wait.

PoMpIs · June 22

56 minutes ago, Shaneee said:

From what I can tell it only supports that resolution either at 60Hz or with certain HDMI 2.1 cables. macOS seems to be fussy about it. SwitchResX or BetterDisplay are your best options, https://github.com/waydabber/BetterDisplay

Well, I don't like having to use third-party applications for something that MacOS should detect without problems...

Another monitor that I have at 3440x1440p@165Hz is recognized perfectly and with variable frequency by FreeSync.... This is also FreeSyn and it neither recognizes the variable frequency nor the maximum resolution...

I have extracted the EDID and injected it into Opencore but it does nothing....



	-----------------------------------------------------

	------------------- RAW DATA ------------------------

	-----------------------------------------------------

	     00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

	-----------------------------------------------------

	0  | 00 FF FF FF FF FF FF 00 26 CD 01 09 01 01 01 01

	1  | 08 22 01 04 B5 6D 1F 78 3B 2D 65 AD 4F 4A A6 24

	2  | 0D 50 54 BF EF 80 71 4F 81 40 81 80 81 C0 95 00

	3  | B3 00 D1 C0 01 01 1A 68 00 A0 F0 38 1F 40 30 20

	4  | 3A 00 3F 32 41 00 00 1A 00 00 00 FF 00 31 32 32

	5  | 32 37 34 30 38 30 30 31 31 38 00 00 00 FD 00 37

	6  | A6 F7 F7 82 01 0A 20 20 20 20 20 20 00 00 00 FC

	7  | 00 50 4C 34 35 39 34 44 51 0A 20 20 20 20 02 8D



	-----------------------------------------------------

	     00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

	-----------------------------------------------------

	0  | 02 03 34 F1 48 01 03 04 10 11 13 1F 3F 23 09 07

	1  | 07 83 01 00 00 6D 1A 00 00 02 03 30 A5 00 04 64

	2  | 2D 64 2D E2 00 EA E3 05 E0 00 E6 06 07 01 64 64

	3  | 01 E2 0F 80 1C D2 00 B4 F0 38 23 40 30 20 3A 00

	4  | 3F 32 41 00 00 1A 6F C2 00 A0 A0 A0 55 50 30 20

	5  | 35 00 3F 32 41 00 00 1A 00 00 00 00 00 00 00 00

	6  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

	7  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 63



	-----------------------------------------------------

	     00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

	-----------------------------------------------------

	0  | 70 12 79 06 00 03 01 64 BE FB 01 88 FF 13 9F 00

	1  | 2F 80 3F 00 9F 05 33 00 05 00 07 00 8B 6E 01 08

	2  | FF 13 9F 00 2F 80 1F 00 9F 05 28 00 02 00 09 00

	3  | A2 03 01 08 FF 13 9F 00 2F 80 1F 00 9F 05 28 00

	4  | 02 00 09 00 17 E5 00 08 FF 13 9F 00 2F 80 1F 00

	5  | 9F 05 28 00 02 00 09 00 33 B7 00 08 FF 13 9F 00

	6  | 2F 80 1F 00 9F 05 28 00 02 00 09 00 00 00 00 00

	7  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 45 90



	-----------------------------------------------------

	 < 00FFFFFF FFFFFF00 26CD0109 01010101 08220104 B56D1F78 3B2D65AD 4F4AA624 0D5054BF EF80714F 81408180 81C09500 B300D1C0 01011A68 00A0F038 1F403020 3A003F32 4100001A 000000FF 00313232 32373430 38303031 31380000 00FD0037 A6F7F782 010A2020 20202020 000000FC 00504C34 35393444 510A2020 2020028D 020334F1 48010304 1011131F 3F230907 07830100 006D1A00 00020330 A5000464 2D642DE2 00EAE305 E000E606 07016464 01E20F80 1CD200B4 F0382340 30203A00 3F324100 001A6FC2 00A0A0A0 55503020 35003F32 4100001A 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000063 70127906 00030164 BEFB0188 FF139F00 2F803F00 9F053300 05000700 8B6E0108 FF139F00 2F801F00 9F052800 02000900 A2030108 FF139F00 2F801F00 9F052800 02000900 17E50008 FF139F00 2F801F00 9F052800 02000900 33B70008 FF139F00 2F801F00 9F052800 02000900 00000000 00000000 00000000 00000000 00004590 >



	-----------------------------------------------------

	 { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x26, 0xCD, 0x01, 0x09, 0x01, 0x01, 0x01, 0x01, 0x08, 0x22, 0x01, 0x04, 0xB5, 0x6D, 0x1F, 0x78, 0x3B, 0x2D, 0x65, 0xAD, 0x4F, 0x4A, 0xA6, 0x24, 0x0D, 0x50, 0x54, 0xBF, 0xEF, 0x80, 0x71, 0x4F, 0x81, 0x40, 0x81, 0x80, 0x81, 0xC0, 0x95, 0x00, 0xB3, 0x00, 0xD1, 0xC0, 0x01, 0x01, 0x1A, 0x68, 0x00, 0xA0, 0xF0, 0x38, 0x1F, 0x40, 0x30, 0x20, 0x3A, 0x00, 0x3F, 0x32, 0x41, 0x00, 0x00, 0x1A, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x31, 0x32, 0x32, 0x32, 0x37, 0x34, 0x30, 0x38, 0x30, 0x30, 0x31, 0x31, 0x38, 0x00, 0x00, 0x00, 0xFD, 0x00, 0x37, 0xA6, 0xF7, 0xF7, 0x82, 0x01, 0x0A, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x50, 0x4C, 0x34, 0x35, 0x39, 0x34, 0x44, 0x51, 0x0A, 0x20, 0x20, 0x20, 0x20, 0x02, 0x8D, 0x02, 0x03, 0x34, 0xF1, 0x48, 0x01, 0x03, 0x04, 0x10, 0x11, 0x13, 0x1F, 0x3F, 0x23, 0x09, 0x07, 0x07, 0x83, 0x01, 0x00, 0x00, 0x6D, 0x1A, 0x00, 0x00, 0x02, 0x03, 0x30, 0xA5, 0x00, 0x04, 0x64, 0x2D, 0x64, 0x2D, 0xE2, 0x00, 0xEA, 0xE3, 0x05, 0xE0, 0x00, 0xE6, 0x06, 0x07, 0x01, 0x64, 0x64, 0x01, 0xE2, 0x0F, 0x80, 0x1C, 0xD2, 0x00, 0xB4, 0xF0, 0x38, 0x23, 0x40, 0x30, 0x20, 0x3A, 0x00, 0x3F, 0x32, 0x41, 0x00, 0x00, 0x1A, 0x6F, 0xC2, 0x00, 0xA0, 0xA0, 0xA0, 0x55, 0x50, 0x30, 0x20, 0x35, 0x00, 0x3F, 0x32, 0x41, 0x00, 0x00, 0x1A, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x63, 0x70, 0x12, 0x79, 0x06, 0x00, 0x03, 0x01, 0x64, 0xBE, 0xFB, 0x01, 0x88, 0xFF, 0x13, 0x9F, 0x00, 0x2F, 0x80, 0x3F, 0x00, 0x9F, 0x05, 0x33, 0x00, 0x05, 0x00, 0x07, 0x00, 0x8B, 0x6E, 0x01, 0x08, 0xFF, 0x13, 0x9F, 0x00, 0x2F, 0x80, 0x1F, 0x00, 0x9F, 0x05, 0x28, 0x00, 0x02, 0x00, 0x09, 0x00, 0xA2, 0x03, 0x01, 0x08, 0xFF, 0x13, 0x9F, 0x00, 0x2F, 0x80, 0x1F, 0x00, 0x9F, 0x05, 0x28, 0x00, 0x02, 0x00, 0x09, 0x00, 0x17, 0xE5, 0x00, 0x08, 0xFF, 0x13, 0x9F, 0x00, 0x2F, 0x80, 0x1F, 0x00, 0x9F, 0x05, 0x28, 0x00, 0x02, 0x00, 0x09, 0x00, 0x33, 0xB7, 0x00, 0x08, 0xFF, 0x13, 0x9F, 0x00, 0x2F, 0x80, 0x1F, 0x00, 0x9F, 0x05, 0x28, 0x00, 0x02, 0x00, 0x09, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x45, 0x90    }



	-----------------------------------------------------

	    Valid EDID block #0: checksum ok

	    Valid EDID block #1: checksum ok

	    Valid EDID block #2: checksum ok



	-----------------------------------------------------

	------------------- MAIN EDID BLOCK -----------------

	-----------------------------------------------------



	    EDID Version........1.4

	    Manufacturer........IVM (26CD)

	    Product ID..........2305 (0901)

	    Serial Number.......01010101



	    Manufactured........Week 8 of year 2024

	    Max H Size..........109 cm

	    Max V Size..........31 cm

	    Gamma...............2.20



	Display Supported Features:

	---------------------------

	    Power Management: Active off





	Display type:

	-------------

	    RGB 4:4:4 & YCrCb 4:4:4 & YCrCb 4:2:2 Color Encoding Formats

	    Display is continuous frequency

	    Default color space is not sRGB standard

	    First detailed Timing includes native Pixel Format and preferred Refresh Rate





	Input signal & sync:

	--------------------

	    Digital Input

	        10 Bits per Primary Color

	        DisplayPort interface





	Color info:

	-----------

	    Red x = 0.676  Green x = 0.292  Blue x = 0.142  White x = 0.313

	    Red y = 0.311  Green y = 0.649  Blue y = 0.053  White y = 0.329



	Established Timings supported:

	------------------------------

	        # 0:     720 x  400 @ 70Hz

	        # 1:     640 x  480 @ 60Hz

	        # 2:     640 x  480 @ 67Hz

	        # 3:     640 x  480 @ 72Hz

	        # 4:     640 x  480 @ 75Hz

	        # 5:     800 x  600 @ 56Hz

	        # 6:     800 x  600 @ 60Hz

	        # 7:     800 x  600 @ 72Hz

	        # 8:     800 x  600 @ 75Hz

	        # 9:     832 x  624 @ 75Hz

	        #10:    1024 x  768 @ 60Hz

	        #11:    1024 x  768 @ 70Hz

	        #12:    1024 x  768 @ 75Hz

	        #13:    1280 x 1024 @ 75Hz

	        #14:    1152 x  870 @ 75Hz



	Standard Timing supported:

	--------------------------

	        # 0:    1152 x  864 @ 75Hz     (714F)

	        # 1:    1280 x  960 @ 60Hz     (8140)

	        # 2:    1280 x 1024 @ 60Hz     (8180)

	        # 3:    1280 x  720 @ 60Hz     (81C0)

	        # 4:    1440 x  900 @ 60Hz     (9500)

	        # 5:    1680 x 1050 @ 60Hz     (B300)

	        # 6:    1920 x 1080 @ 60Hz     (D1C0)



	Monitor Description blocks:

	---------------------------

	    Descriptor #0 - Timing definition:

	    Mode = 3840 x 1080 @ 59.968Hz

	        Pixel Clock............. 266.50 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 3840 pixels        1080 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels          10 lines

	        Back Porch..............   80 pixels          18 lines

	        Blanking................  160 pixels          31 lines

	        Total................... 4000 pixels        1111 lines

	        Scan Rate...............  66.625 kHz         59.968 Hz

	        Image Size.............. 1087 mm             306 mm

	        Border..................    0 pixels           0 lines



	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	    Descriptor #1 - Serial number:

	        1222740800118



	    Descriptor #2 - Monitor range:

	        Horizontal frequency range.......247-247 kHz

	        Vertical frequency range.........55-166 Hz

	        Maximum bandwidth range..........1300 MHz

	        Range Limits Only



	    Descriptor #3 - Monitor name:

	        PL4594DQ





	-----------------------------------------------------

	------------ EXTENSION EDID BLOCK   1 ---------------

	-----------------------------------------------------



	CTA-EXT: CTA 861 Series Extension:

	----------------------------------

	    Revision:...........................3

	    First DTD block at offset...........48

	    Display Supports:

	        Underscan on PC modes

	        Basic audio

	        YCbCr 4:4:4

	        YCbCr 4:2:2



	    Data Block #1

	    Video Type: standard CTA Timings

	        VIC # 0: (  1) 640 x 480 @ 60Hz - 4:3

	        VIC # 1: (  3) 720 x 480 @ 60Hz - 16:9

	        VIC # 2: (  4) 1280 x 720 @ 60Hz - 16:9

	        VIC # 3: ( 16) 1920 x 1080 @ 60Hz - 16:9

	        VIC # 4: ( 17) 720 x 576 @ 50Hz - 4:3

	        VIC # 5: ( 19) 1280 x 720 @ 50Hz - 16:9

	        VIC # 6: ( 31) 1920 x 1080 @ 50Hz - 16:9

	        VIC # 7: ( 63) 1920 x 1080 @ 120Hz - 16:9



	    Data Block #2

	    Audio Data Block

	        Supported format:        Linear PCM, on 2 channels

	        Supported sample rates (kHz):    32kHz, 44.1kHz, 48kHz

	        Supported sample sizes (bits):    16 bit, 20 bit, 24 bit





	    Data Block #3

	    Speaker allocation data block

	        Speaker map:

	            FL/FR - Front Left/Right



	    Data Block #4

	    Vendor specific Data Block - Vendor Identifier: 00:00:1A (AMD)

	        Payload:

	        02 03 30 A5 00 04 64 2D 64                      '..0...d-d'



	    Data Block #5

	    Extended Data Block:     Video Capability Data Block

	        CE scan behaviour: Always Underscanned

	        IT scan behaviour: Always Underscanned

	        PT scan behaviour: Always Underscanned

	        RGB quantization: Selectable (via AVI Q)

	        YCbCr quantization: Selectable (via AVI Q)



	    Data Block #6

	    Extended Data Block:     Colorimetry Data Block

	        BT2020cYCC

	        BT2020YCC

	        BT2020RGB



	    Data Block #7

	    Extended Data Block:     HDR static metadata data block

	        Electro optical transfer functions:

	            Traditional gamma - SDR luminance range

	            Traditional gamma - HDR luminance range

	            SMPTE ST2084

	        Supported static metadata descriptors:

	            Static metadata type 1

	        Desired content max luminance: 100 (436.203 cd/m^2)

	        Desired content max frame-average luminance: 100 (436.203 cd/m^2)

	        Desired content min luminance: 1 (0.000 cd/m^2)



	    Data Block #8

	    Extended Data Block:     YCbCr 4:2:0 capability map data block

	        VIC # 7: ( 63) 1920 x 1080 @ 120Hz - 16:9



	    Detailed Timing Blocks - 1 is native

	    Detailed Timing Block #1 - Timing definition:

	    Mode = 3840 x 1080 @ 120.001Hz

	        Pixel Clock............. 537.88 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 3840 pixels        1080 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels          10 lines

	        Back Porch..............  100 pixels          22 lines

	        Blanking................  180 pixels          35 lines

	        Total................... 4020 pixels        1115 lines

	        Scan Rate............... 133.801 kHz        120.001 Hz

	        Image Size.............. 1087 mm             306 mm

	        Border..................    0 pixels           0 lines



	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	    Detailed Timing Block #2 - Timing definition:

	    Mode = 2560 x 1440 @ 119.998Hz

	        Pixel Clock............. 497.75 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 2560 pixels        1440 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels           5 lines

	        Back Porch..............   80 pixels          77 lines

	        Blanking................  160 pixels          85 lines

	        Total................... 2720 pixels        1525 lines

	        Scan Rate............... 182.996 kHz        119.998 Hz

	        Image Size.............. 1087 mm             306 mm

	        Border..................    0 pixels           0 lines



	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	-----------------------------------------------------

	------------ EXTENSION EDID BLOCK   2 ---------------

	-----------------------------------------------------



	DID-EXT: Display ID Extension:

	------------------------------

	    DisplayID version........1.2

	    Display Product Type: DIRECT DRIVE monitor



	    Detailed Timings Block type 1

	    Detailed Timing #1 in Block

	    Mode = 5120 x 1440 @ 165.000Hz

	        Pixel Clock............. 1299.83 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 5120 pixels        1440 lines

	        Front Porch.............   48 pixels           6 lines

	        Sync Width..............   64 pixels           8 lines

	        Back Porch..............   48 pixels          38 lines

	        Blanking................  160 pixels          52 lines

	        Total................... 5280 pixels        1492 lines

	        Scan Rate............... 246.180 kHz        165.000 Hz



	            Is default Mode

	            3D stereo: no

	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	    Detailed Timing #2 in Block

	    Mode = 5120 x 1440 @ 120.000Hz

	        Pixel Clock............. 938.36 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 5120 pixels        1440 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels          10 lines

	        Back Porch..............   80 pixels          28 lines

	        Blanking................  160 pixels          41 lines

	        Total................... 5280 pixels        1481 lines

	        Scan Rate............... 177.720 kHz        120.000 Hz



	            Is not default Mode

	            3D stereo: no

	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	    Detailed Timing #3 in Block

	    Mode = 5120 x 1440 @ 85.000Hz

	        Pixel Clock............. 664.67 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 5120 pixels        1440 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels          10 lines

	        Back Porch..............   80 pixels          28 lines

	        Blanking................  160 pixels          41 lines

	        Total................... 5280 pixels        1481 lines

	        Scan Rate............... 125.884 kHz         85.000 Hz



	            Is not default Mode

	            3D stereo: no

	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	    Detailed Timing #4 in Block

	    Mode = 5120 x 1440 @ 75.001Hz

	        Pixel Clock............. 586.48 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 5120 pixels        1440 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels          10 lines

	        Back Porch..............   80 pixels          28 lines

	        Blanking................  160 pixels          41 lines

	        Total................... 5280 pixels        1481 lines

	        Scan Rate............... 111.076 kHz         75.001 Hz



	            Is not default Mode

	            3D stereo: no

	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity



	    Detailed Timing #5 in Block

	    Mode = 5120 x 1440 @ 59.977Hz

	        Pixel Clock............. 469.00 MHz        Not Interlaced



	                                Horizontal        Vertical

	        Active.................. 5120 pixels        1440 lines

	        Front Porch.............   48 pixels           3 lines

	        Sync Width..............   32 pixels          10 lines

	        Back Porch..............   80 pixels          28 lines

	        Blanking................  160 pixels          41 lines

	        Total................... 5280 pixels        1481 lines

	        Scan Rate...............  88.826 kHz         59.977 Hz



	            Is not default Mode

	            3D stereo: no

	            Sync: Digital separate with

	                * Negative vertical polarity

	                * Positive horizontal polarity[/CODE]

With BetterDisplay it works at the correct resolution, but you shouldn't have to use that to be able to use the monitor on MacOS... I have already read more people with problems on real Mac computers with problems with these 32:9 monitors 😅

At least there is a solution, with BetterDisplay or SwitchResX it works fine, but it looks bad on the login screen because the native resolution is not activated until BetterDisplay or switchResX is loaded.


Thank you so much!! 🤗

Edited June 22 by PoMpIs

deeveedee · June 22

@PoMpIs How did you inject EDID via OpenCore? (asking because I'd like to learn). Thanks.

PoMpIs · June 22

8 minutes ago, deeveedee said:

@PoMpIs How did you inject EDID via OpenCore? (asking because I'd like to learn). Thanks.

I have no idea about this either, it's the first time I've done it... following a tutorial I found on elitemac...

But the problem here is the monitor that MacOS doesn't like, I have read that it happened to a lot with real Macs with the 49" Samsung G9 5120x1440@240Hz...

I have now sent a mail to iiyama to see what they tell me, because I really like the monitor 😄

Stefanalmare · June 22

34 minutes ago, PoMpIs said:

I have no idea about this either, it's the first time I've done it... following a tutorial I found on elitemac...

But the problem here is the monitor that MacOS doesn't like, I have read that it happened to a lot with real Macs with the 49" Samsung G9 5120x1440@240Hz...

I have now sent a mail to iiyama to see what they tell me, because I really like the monitor 😄

With firmware updated I have 49" Samsung G9 5120x1440@variable freq (60 to 240). Sonoma and sequoia. Some time ago, true, I had problems like you.

PlutoDelic · June 22

7 hours ago, PoMpIs said:

Guys... I bought a new monitor:

https://iiyama.com/es_es/productos/prolite-xcb4594dqsn-b1/

And Sequoia does not recognize the monitor resolution (5120x1440p@165Hz)

It stays at a very low resolution and looks like {censored}... (the same thing happens in Sonoma...)

On Windows it works wonderfully

I can adjust the resolution with SwitchRes, but I don't like that, should it work without doing anything, or does MacOS not support this screen format?

Had a hard time with this myself

Edited June 22 by PlutoDelic

cankiulascmnfye · June 22

I've noticed issues with external displays myself, so just wait for the next update. This is beta software after all…

PoMpIs · June 22

2 hours ago, Stefanalmare said:

With firmware updated I have 49" Samsung G9 5120x1440@variable freq (60 to 240). Sonoma and sequoia. Some time ago, true, I had problems like you.

If the problem is the EDID, I would need the manufacturer to provide me with an update in which the EDID contains the resolution 5120x1440p@165Hz

I have extracted the information from the monitor in Windows and it does not show 5120x1440p, it only shows 3840x1080p, which is what MacOS recognizes as maximum 😑



	; INF file generated by Monitor Asset Manager (2.91.0.1043), 22/06/2024

	; Copyright (c) 1995-2019, EnTech Taiwan.

	; Internet: http://www.entechtaiwan.com



	[Version]

	Signature="$WINDOWS NT$"

	Class=Monitor

	ClassGUID={4d36e96e-e325-11ce-bfc1-08002be10318}

	Provider=%MFG%

	DriverVer=22/06/2024, 1.0.0.0

	;CatalogFile=YourSignedCatalogFile.cat



	[DestinationDirs]

	DefaultDestDir=23



	[SourceDisksNames]

	1=%DISC%



	[SourceDisksFiles]

	;YourColorProfileFile.icm



	[Manufacturer]

	%VENDOR%=EDID_OVERRIDE,NTx86,NTamd64



	[EDID_OVERRIDE.NTx86]

	%PRODUCTID%=OVERRIDDEN-EDID.Install, MONITOR\IVM0901



	[EDID_OVERRIDE.NTamd64]

	%PRODUCTID%=OVERRIDDEN-EDID.Install.NTamd64, MONITOR\IVM0901



	[OVERRIDDEN-EDID.Install.NTx86]

	DelReg=DEL_CURRENT_REG

	AddReg=OVERRIDDEN-EDID.AddReg, MODE1, DPMS

	CopyFiles=OVERRIDDEN-EDID.CopyFiles



	[OVERRIDDEN-EDID.Install.NTamd64]

	DelReg=DEL_CURRENT_REG

	AddReg=OVERRIDDEN-EDID.AddReg, MODE1, DPMS

	CopyFiles=OVERRIDDEN-EDID.CopyFiles



	[OVERRIDDEN-EDID.Install.NTx86.HW]

	AddReg=OVERRIDDEN-EDID_AddReg



	[OVERRIDDEN-EDID.Install.NTamd64.HW]

	AddReg=OVERRIDDEN-EDID_AddReg



	[OVERRIDDEN-EDID_AddReg]

	;Base EDID

	HKR,EDID_OVERRIDE,"0",0x01,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x26,0xCD,0x01,0x09,0x01,0x01,0x01,0x01,0x08,0x22,0x01,0x04,0xB5,0x6D,0x1F,0x78,0x3B,0x2D,0x65,0xAD,0x4F,0x4A,0xA6,0x24,0x0D,0x50,0x54,0xBF,0xEF,0x80,0x71,0x4F,0x81,0x40,0x81,0x80,0x81,0xC0,0x95,0x00,0xB3,0x00,0xD1,0xC0,0x01,0x01,0x1A,0x68,0x00,0xA0,0xF0,0x38,0x1F,0x40,0x30,0x20,0x3A,0x00,0x3F,0x32,0x41,0x00,0x00,0x1A,0x00,0x00,0x00,0xFF,0x00,0x31,0x32,0x32,0x32,0x37,0x34,0x30,0x38,0x30,0x30,0x31,0x31,0x38,0x00,0x00,0x00,0xFD,0x00,0x37,0xA6,0xF7,0xF7,0x82,0x01,0x0A,0x20,0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0xFC,0x00,0x50,0x4C,0x34,0x35,0x39,0x34,0x44,0x51,0x0A,0x20,0x20,0x20,0x20,0x02,0x8D

	;Extension bloc #1, e.g., CEA/CTA-EXT, DID-EXT, etc.

	HKR,EDID_OVERRIDE,"1",0x01,0x02,0x03,0x34,0xF1,0x48,0x01,0x03,0x04,0x10,0x11,0x13,0x1F,0x3F,0x23,0x09,0x07,0x07,0x83,0x01,0x00,0x00,0x6D,0x1A,0x00,0x00,0x02,0x03,0x30,0xA5,0x00,0x04,0x64,0x2D,0x64,0x2D,0xE2,0x00,0xEA,0xE3,0x05,0xE0,0x00,0xE6,0x06,0x07,0x01,0x64,0x64,0x01,0xE2,0x0F,0x80,0x1C,0xD2,0x00,0xB4,0xF0,0x38,0x23,0x40,0x30,0x20,0x3A,0x00,0x3F,0x32,0x41,0x00,0x00,0x1A,0x6F,0xC2,0x00,0xA0,0xA0,0xA0,0x55,0x50,0x30,0x20,0x35,0x00,0x3F,0x32,0x41,0x00,0x00,0x1A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x63



	[DEL_CURRENT_REG]

	HKR,MODES

	HKR,EDID_OVERRIDE

	HKR,,MaxResolution

	HKR,,PreferredMode

	HKR,,DPMS

	HKR,,ICMProfile



	[DPMS]

	HKR,,DPMS,,1



	HKR,,PreferredMode,,"3840,1080,60"

	[MODE1]

	HKR,,MaxResolution,,"3840,1080,60"



	[OVERRIDDEN-EDID.AddReg]

	HKR,"MODES\3840,1080,60",Mode1,,"247.0-247.0,55.0-166.0,+,+"



	[OVERRIDDEN-EDID.CopyFiles]

	;YourColorProfileFile.icm for non-sRGB displays



	[Strings]

	MFG="EnTech Taiwan"

	DISC="Monitor EDID Override Installation Disk"

	PRODUCTID="Iiyama PL4594DQ (IVM0901 EDID Override)"

	VENDOR="Iiyama"[/CODE]

38 minutes ago, cankiulascmnfye said:

I've noticed issues with external displays myself, so just wait for the next update. This is beta software after all…

It also happens in Sonoma, it is a problem with the EDID of the monitor 😔

Edited June 22 by PoMpIs

deeveedee · June 23

3 hours ago, PoMpIs said:

It also happens in Sonoma, it is a problem with the EDID of the monitor 😔

This looks interesting.

SavageAUS · June 23

Did anyone have to change audio setting for this macOS? Sonoma works great but no sound on 15.

Sent from my iPhone using Tapatalk

Stefanalmare · June 23

10 hours ago, deeveedee said:

This looks interesting.

Done that time ago. Nothing spectacular.

deeveedee · June 23

20 minutes ago, Stefanalmare said:

Done that time ago. Nothing spectacular.

Not looking for spectacular - just that it works. Does FixEDID successfully add unspecified monitor resolutions to an existing EDID? I have no experience with it (or any EDID editing).

EDIT: @PlutoDelic 's earlier post here and the linked thread suggest that OC-injected EDID don't affect macOS (only UEFI), so I'm not sure if EDID editing will help.

Edited June 23 by deeveedee

CloverLeaf · June 23

7 hours ago, SavageAUS said:

Did anyone have to change audio setting for this macOS? Sonoma works great but no sound on 15.

No changes here, my Coconut rig and my Dell 7400 both have audio working with no changes. Other things are broken compared to Sonoma tho...

Stefanalmare · June 23

1 hour ago, deeveedee said:

Not looking for spectacular - just that it works. Does FixEDID successfully add unspecified monitor resolutions to an existing EDID? I have no experience with it (or any EDID editing).

EDIT: @PlutoDelic 's earlier post here and the linked thread suggest that OC-injected EDID don't affect macOS (only UEFI), so I'm not sure if EDID editing will help.

Everytime I had problem with monitors resolution, I tried this method. No help, for me at least.

strangeron · Sunday at 01:28 PM

1 hour ago, CloverLeaf said:

Did anyone have to change audio setting for this macOS? Sonoma works great but no sound on 15.

AppleALC 1.9.1AppleALC.kext.zip

deeveedee · Sunday at 01:41 PM

9 hours ago, SavageAUS said:

Did anyone have to change audio setting for this macOS? Sonoma works great but no sound on 15

When upgrading to a new major macOS, you must use -lilubetaall boot arg or lilu-dependent kexts that have been updated for the new macOS. Without your EFI, it's hard to guess at another answer.

PoMpIs · Sunday at 03:04 PM

14 hours ago, deeveedee said:

This looks interesting.

Yes, I have already tried all the options, including the one you recommend... nothing works, I can only reach the maximum resolution of the monitor with SitchresX or BetterDisplay 🤷‍♂️

CloverLeaf · Sunday at 04:45 PM

I played with Sequoia on my Dell 7400 and it seems to work well except for a few issues I have:

-Touchscreen is not working - not a big deal since I barely used it in Sonoma

-Touchpad acts like a mouse, no multitouch, tap is working - VoodooInput.kext uploaded recently in this topic

-HDMI not working - screen blinks as it registers the cable but no output to the TV - seems like DP for Sequoia should be changed

-Backlight change is not smooth - tried a few whatevergreen boot-args but still doesn't work as it should. Basically only 3 levels of brightness available at the moment.

The positive part is that the MicroSD card reader works despite it shows missing in System Report. Boots relatively the same or a bit faster than Sonoma. Audio is working fine with the latest AppleALC and ALCPlugFix. Wifi is working with HeliPort + itlwm.kext. Bluetooth is not working (doesn't bother me at all, used it once or twice for the last year). Haven't tested the USB-C to Ethernet adapter yet. Thunderbolt is working.

If I manage to fix the touchpad, backlight and the HDMI output this can be a good daily driver.

My Coconut rig works great with Sonoma and the Mini G4 as well.

deeveedee · Sunday at 07:04 PM

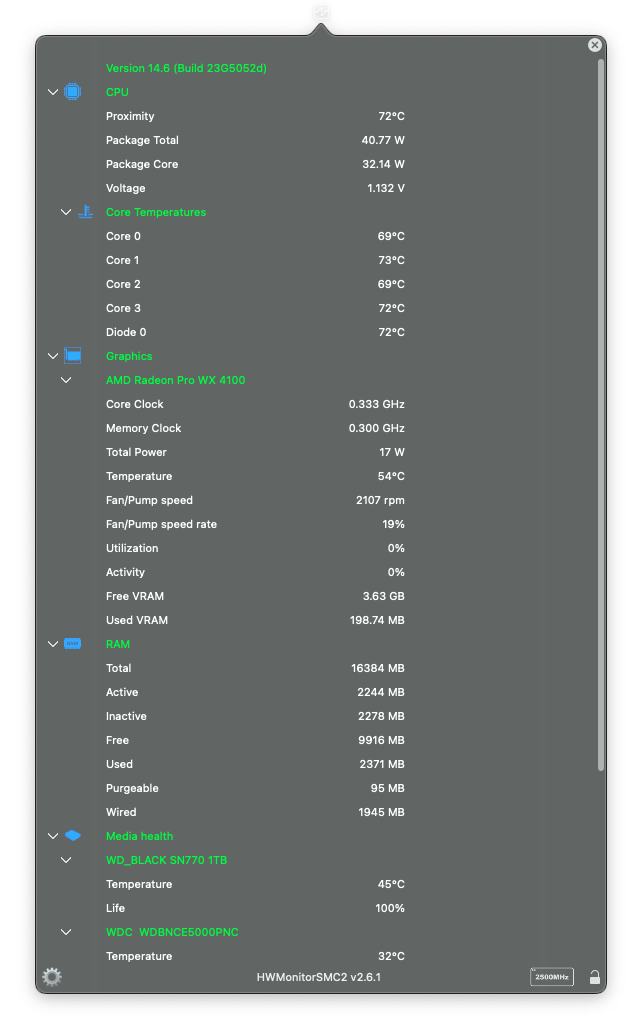

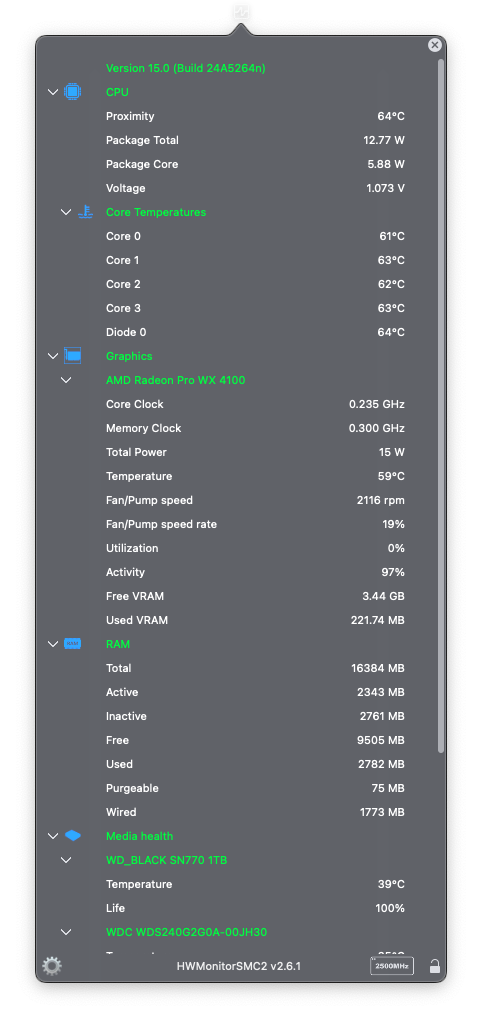

Does anyone have a favorite utility they'd recommend to monitor Radeon dGPU temps in Sequoia? If so, what application and kexts? VirtualSMC or FakeSMC? Thank you!

[pre-release] macOS Sequoia

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
