AlfredoM Posted June 16 Share Posted June 16 Something else by the way, which is probably off topic here but never mind, maybe someone can help. I have a lot of good .qtz files that I would like to look at. Unfortunately, it doesn't work with Quicktime Player anymore. How can I look at these Quartz .qtz files in Sonoma and Sequoia? Thanks for the info on this. 1 Link to comment Share on other sites More sharing options...
Max.1974 Posted June 17 Share Posted June 17 (edited) Im confirm that works to me without -lilubetaall new kexts Lilu.kext and WhateverGreen.kext versions from Dortania Bye Bye So long, ops Sonoma Edited June 17 by Max.1974 2 1 Link to comment Share on other sites More sharing options...
STLVNUB Posted June 17 Share Posted June 17 9 minutes ago, Max.1974 said: Bye Bye So long, ops Sonoma You Really Should Wait For The Release Version It's Ok For Testing But That's About It 1 Link to comment Share on other sites More sharing options...
Max.1974 Posted June 17 Share Posted June 17 (edited) 1 hour ago, STLVNUB said: You Really Should Wait For The Release Version It's Ok For Testing But That's About It Thanks my brother, for your advise but Sequoia to my work is much better and stable, so I decide take a little bit risk to enjoy it God bless you!! Edited June 17 by Max.1974 5 Link to comment Share on other sites More sharing options...
Max.1974 Posted June 17 Share Posted June 17 (edited) @camillionario my sound card was recognized but im use Clover 5159 commit 30b3ac544 My Bluetooth is Broadcom (working) with Wireless (deprecated) and using Intel Wi-Fi 6 (without bluetooth intel) and working Smooth here without lilubetaall Edited June 17 by Max.1974 2 Link to comment Share on other sites More sharing options...
Alpha22 Posted June 17 Share Posted June 17 Fenvi T919 Bluetooth working no Wifi 1 Link to comment Share on other sites More sharing options...
kinhhoang161 Posted June 17 Share Posted June 17 @Alpha22 Wait Opencore Legacy Patcher 1 Link to comment Share on other sites More sharing options...
Alpha22 Posted June 17 Share Posted June 17 @kinhhoang161 no, I am reading here which BT/WIFI works 1 Link to comment Share on other sites More sharing options...
kinhhoang161 Posted June 17 Share Posted June 17 Currently, only Intel Wifi Cards can use Wifi. Broadcom need Opencore Legacy Update 2 Link to comment Share on other sites More sharing options...
Alpha22 Posted June 17 Share Posted June 17 7 minutes ago, kinhhoang161 said: Currently, only Intel Wifi Cards can use Wifi. Broadcom need Opencore Legacy Update Yes, i know 1 Link to comment Share on other sites More sharing options...
hiphopboy Posted June 17 Share Posted June 17 5 hours ago, camillionario said: Installation: There were no problems during the process. Flags were not necessary. (no -lilubeta) After Installation: My sound card is not recognized. Not bluetooth. Wifi with Heliport add lilubeta to normal bluetooth, sound i dont know 1 Link to comment Share on other sites More sharing options...
ruslan61 Posted June 17 Share Posted June 17 My configuration file that I use in Sonoma, I could not install Sequoia. Can you help me? Config.plist Link to comment Share on other sites More sharing options...
PMheart Posted June 17 Share Posted June 17 (edited) For better research on bluetoothd, could anyone please upload /usr/sbin/bluetoothd from macOS 12? Thanks. Got it already, thanks anyway. https://github.com/acidanthera/BrcmPatchRAM/actions/runs/9544779789 This is test #2. Please try and report. Edited June 17 by PMheart 1 Link to comment Share on other sites More sharing options...
strangeron Posted June 17 Share Posted June 17 1 hour ago, PMheart said: Please try and report. USB Bluetooth is ok in Ventura but not working in Sequoia. 1 Link to comment Share on other sites More sharing options...
ohsnap Posted June 17 Share Posted June 17 Same here with AX201, not working. crash log Spoiler "vmRegionInfo" : "0 is not in any region. Bytes before following region: 4343959552\n REGION TYPE START - END [ VSIZE] PRT\/MAX SHRMOD REGION DETAIL\n UNUSED SPACE AT START\n---> \n __TEXT 102eb9000-10383d000 [ 9744K] r-x\/r-x SM=COW \/usr\/sbin\/bluetoothd", "exception" : {"codes":"0x0000000000000001, 0x0000000000000000","rawCodes":[1,0],"type":"EXC_BAD_ACCESS","signal":"SIGSEGV","subtype":"KERN_INVALID_ADDRESS at 0x0000000000000000"}, "termination" : {"flags":0,"code":11,"namespace":"SIGNAL","indicator":"Segmentation fault: 11","byProc":"exc handler","byPid":3112}, "ktriageinfo" : "VM - (arg = 0x0) A memory corruption was found in executable text\n", "vmregioninfo" : "0 is not in any region. Bytes before following region: 4343959552\n REGION TYPE START - END [ VSIZE] PRT\/MAX SHRMOD REGION DETAIL\n UNUSED SPACE AT START\n---> \n __TEXT 102eb9000-10383d000 [ 9744K] r-x\/r-x SM=COW \/usr\/sbin\/bluetoothd", "extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0}, "faultingThread" : 1, "threads" : [{"id":10790,"threadState":{"r13":{"value":140390610267377},"rax":{"value":140704637171760,"symbolLocation":0,"symbol":"__mutablePlaceholder"},"rflags":{"value":582},"cpu":{"value":0},"r14":{"value":140703559431040,"symbolLocation":0,"symbol":"objc_msgSend"},"rsi":{"value":140704088304294,"objc-selector":"allocWithZone:"},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":140704685062328,"symbolLocation":0,"symbol":"OBJC_METACLASS_$_NSMutableString"},"r9":{"value":140390610267377},"r15":{"value":4007870753277474913},"rbx":{"value":4007870753277474913},"trap":{"value":222},"err":{"value":0},"r11":{"value":140703580881910,"symbolLocation":0,"symbol":"+[NSMutableString allocWithZone:]"},"rip":{"value":140703580881938},"rbp":{"value":140702004830032},"rsp":{"value":140702004830032},"r12":{"value":140704635033960},"rcx":{"value":140704684948792,"symbolLocation":0,"symbol":"objc_debug_taggedpointer_obfuscator"},"flavor":"x86_THREAD_STATE","rdi":{"value":140704685057248,"symbolLocation":0,"symbol":"OBJC_CLASS_$_NSMutableString"}},"queue":"com.apple.main-thread","frames":[{"imageOffset":21522,"symbol":"+[NSMutableString allocWithZone:]","symbolLocation":28,"imageIndex":3},{"imageOffset":43731,"symbol":"-[NSString mutableCopyWithZone:]","symbolLocation":34,"imageIndex":3},{"imageOffset":123548,"symbol":"parseStringTag","symbolLocation":1450,"imageIndex":4},{"imageOffset":120360,"symbol":"parseXMLElement","symbolLocation":1292,"imageIndex":4},{"imageOffset":1318785,"symbol":"parseDictTag","symbolLocation":285,"imageIndex":4},{"imageOffset":1317479,"symbol":"parsePListTag","symbolLocation":59,"imageIndex":4},{"imageOffset":116291,"symbol":"_CFPropertyListCreateFromUTF8Data","symbolLocation":1346,"imageIndex":4},{"imageOffset":1092824,"symbol":"_CFPropertyListCreateWithData","symbolLocation":641,"imageIndex":4},{"imageOffset":113636,"symbol":"CFPropertyListCreateWithData","symbolLocation":51,"imageIndex":4},{"imageOffset":2914627,"imageIndex":2},{"imageOffset":2925368,"imageIndex":2},{"imageOffset":7028525,"imageIndex":2},{"imageOffset":7031929,"imageIndex":2},{"imageOffset":5204884,"imageIndex":2},{"imageOffset":5207459,"imageIndex":2},{"imageOffset":5199138,"imageIndex":2},{"imageOffset":209172,"imageIndex":2},{"imageOffset":25293,"symbol":"start","symbolLocation":1805,"imageIndex":5}]},{"triggered":true,"id":10791,"instructionState":{"instructionStream":{"bytes":[137,4,36,72,141,5,94,120,133,0,233,153,0,0,0,72,141,61,225,136,107,0,235,55,65,191,102,0,0,0,233,136,0,0,0,72,141,61,25,137,107,0,69,49,255,49,192,232,143,109,7,0,72,141,5,53,118,133,0,73,137,4,36,72,141,5,146,117,133,0,235,96,72,141,61,59,137,107,0,69,49,255,49,192,232,106,109,7,0,72,141,5,120,124,133,0,73,137,4,36,72,141,5,213,123,133,0,235,59,72,141,61,189,135,107,0,69,49,255,49,192,232,69,109,7,0,191,112,23,0,0,232,188,37,249,255,72,141,61,218,136,107,0,49,192,232,45,109,7,0,72,141,5,155,155,133,0,73,137,4,36,72,141,5,248,154,133,0,73,137,6,72,139,5,166,105,127,0,72,139,0,72,59,69,208,117,21,68,137,248,72,129],"offset":96}},"threadState":{"r13":{"value":30739},"rax":{"value":4354340296},"rflags":{"value":66054},"cpu":{"value":0},"r14":{"value":4354341168},"rsi":{"value":140390610118272},"r8":{"value":140704686891984,"symbolLocation":0,"symbol":"_os_log_current_test_callback"},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":144115192639258624},"r9":{"value":513},"r15":{"value":0},"rbx":{"value":0},"trap":{"value":14,"description":"(no mapping for user data write)"},"err":{"value":6},"r11":{"value":18446620932621278878},"rip":{"value":4345592144,"matchesCrashFrame":1},"rbp":{"value":123145443210176},"rsp":{"value":123145443209824},"r12":{"value":0},"rcx":{"value":123145443204656},"flavor":"x86_THREAD_STATE","rdi":{"value":123145443209360}},"queue":"com.apple.bluetooth.root","frames":[{"imageOffset":1632592,"imageIndex":2},{"imageOffset":1103032,"imageIndex":2},{"imageOffset":1154658,"imageIndex":2},{"imageOffset":766842,"imageIndex":2},{"imageOffset":4702322,"imageIndex":2},{"imageOffset":4707849,"imageIndex":2},{"imageOffset":4571068,"imageIndex":2},{"imageOffset":4570022,"imageIndex":2},{"imageOffset":9429,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":8},{"imageOffset":14434,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":8},{"imageOffset":39387,"symbol":"_dispatch_lane_serial_drain","symbolLocation":739,"imageIndex":8},{"imageOffset":42082,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":8},{"imageOffset":82228,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":8},{"imageOffset":80448,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":653,"imageIndex":8},{"imageOffset":11391,"symbol":"_pthread_wqthread","symbolLocation":326,"imageIndex":9},{"imageOffset":7131,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":9}]},{"id":10792,"frames":[{"imageOffset":7116,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":9}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":16131},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145443225600},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145443749888},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703563406284},"rbp":{"value":0},"rsp":{"value":123145443749888},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145443749888}}},{"id":10793,"frames":[{"imageOffset":7116,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":9}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":12035},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145443762176},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145444285312},"rbx":{"value":123145444286464},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703563406284},"rbp":{"value":0},"rsp":{"value":123145444286464},"r12":{"value":1982472},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145444286464}}},{"id":10794,"frames":[{"imageOffset":7116,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":9}],"threadState":{"r13":{"value":0},"rax":{"value":0},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":0},"r8":{"value":278532},"cr2":{"value":0},"rdx":{"value":123145444298752},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":0},"trap":{"value":0},"err":{"value":0},"r11":{"value":0},"rip":{"value":140703563406284},"rbp":{"value":0},"rsp":{"value":123145444823040},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145444823040}}},{"id":10812,"name":"StackLoop","threadState":{"r13":{"value":4354368624},"rax":{"value":4},"rflags":{"value":515},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":258},"r8":{"value":8352},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":10791},"r9":{"value":258},"r15":{"value":258},"rbx":{"value":4354368592},"trap":{"value":133},"err":{"value":33554733},"r11":{"value":514},"rip":{"value":140703563165966},"rbp":{"value":123145445359392},"rsp":{"value":123145445359336},"r12":{"value":4354368616},"rcx":{"value":123145445359336},"flavor":"x86_THREAD_STATE","rdi":{"value":4354368592}},"frames":[{"imageOffset":12558,"symbol":"__psynch_mutexwait","symbolLocation":10,"imageIndex":10},{"imageOffset":15188,"symbol":"_pthread_mutex_firstfit_lock_wait","symbolLocation":78,"imageIndex":9},{"imageOffset":6464,"symbol":"_pthread_mutex_firstfit_lock_slow","symbolLocation":214,"imageIndex":9},{"imageOffset":766278,"imageIndex":2},{"imageOffset":767635,"imageIndex":2},{"imageOffset":25171,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":9},{"imageOffset":7151,"symbol":"thread_start","symbolLocation":15,"imageIndex":9}]}], "usedImages" : [ { "source" : "P", "arch" : "x86_64", "base" : 4356993024, "CFBundleShortVersionString" : "900.4.2", "CFBundleIdentifier" : "com.apple.iokit.IOUSBLib", "size" : 36864, "uuid" : "c0f8f10b-e21f-3c9f-adfb-b72b0858c0c7", "path" : "\/System\/Library\/Extensions\/IOUSBHostFamily.kext\/Contents\/PlugIns\/IOUSBLib.bundle\/Contents\/MacOS\/IOUSBLib", "name" : "IOUSBLib", "CFBundleVersion" : "900.4.2" }, { "source" : "P", "arch" : "x86_64", "base" : 4357206016, "size" : 573440, "uuid" : "84189706-9569-38d5-89c4-639521ca1680", "path" : "\/System\/Library\/PrivateFrameworks\/WirelessDiagnostics.framework\/Versions\/A\/Libraries\/libAWDProtobufBluetooth.dylib", "name" : "libAWDProtobufBluetooth.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 4343959552, "size" : 9977856, "uuid" : "b95b9be8-2bef-328a-b928-9e7c1b03a74a", "path" : "\/usr\/sbin\/bluetoothd", "name" : "bluetoothd" }, { "source" : "P", "arch" : "x86_64", "base" : 140703580860416, "CFBundleShortVersionString" : "6.9", "CFBundleIdentifier" : "com.apple.Foundation", "size" : 14807027, "uuid" : "e5d235c9-2e46-3b55-b728-111c8d225645", "path" : "\/System\/Library\/Frameworks\/Foundation.framework\/Versions\/C\/Foundation", "name" : "Foundation", "CFBundleVersion" : "3028" }, { "source" : "P", "arch" : "x86_64h", "base" : 140703563857920, "CFBundleShortVersionString" : "6.9", "CFBundleIdentifier" : "com.apple.CoreFoundation", "size" : 4849651, "uuid" : "46d6bd32-7fa4-3e29-abde-8445f8e14b91", "path" : "\/System\/Library\/Frameworks\/CoreFoundation.framework\/Versions\/A\/CoreFoundation", "name" : "CoreFoundation", "CFBundleVersion" : "3028" }, { "source" : "P", "arch" : "x86_64", "base" : 140703559675904, "size" : 571232, "uuid" : "b8451115-3c2a-3a18-bfbd-381a5b385c1a", "path" : "\/usr\/lib\/dyld", "name" : "dyld" }, { "size" : 0, "source" : "A", "base" : 0, "uuid" : "00000000-0000-0000-0000-000000000000" }, { "source" : "P", "arch" : "x86_64h", "base" : 140703559401472, "size" : 274372, "uuid" : "2802e0cf-75b9-3964-b059-9f98ea49ac4e", "path" : "\/usr\/lib\/libobjc.A.dylib", "name" : "libobjc.A.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 140703561674752, "size" : 294906, "uuid" : "5935f8c0-699c-3256-aac2-b541663e9b24", "path" : "\/usr\/lib\/system\/libdispatch.dylib", "name" : "libdispatch.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 140703563399168, "size" : 49152, "uuid" : "5ba4dd04-c130-399e-9036-a509f2c95814", "path" : "\/usr\/lib\/system\/libsystem_pthread.dylib", "name" : "libsystem_pthread.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 140703563153408, "size" : 245760, "uuid" : "5c741c11-c4d7-39d7-8adc-becd4c9f253c", "path" : "\/usr\/lib\/system\/libsystem_kernel.dylib", "name" : "libsystem_kernel.dylib" } ], "sharedCache" : { "base" : 140703558926336, "size" : 25769803776, "uuid" : "27e29b15-c407-3b2d-b593-3e74a47e083b" }, "vmSummary" : "ReadOnly portion of Libraries: Total=742.2M resident=0K(0%) swapped_out_or_unallocated=742.2M(100%)\nWritable regions: Total=190.0M written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=190.0M(100%)\n\n VIRTUAL REGION \nREGION TYPE SIZE COUNT (non-coalesced) \n=========== ======= ======= \nActivity Tracing 256K 1 \nDispatch continuations 96.0M 1 \nKernel Alloc Once 8K 1 \nMALLOC 82.7M 33 \nMALLOC guard page 32K 8 \nSQLite page cache 384K 3 \nSTACK GUARD 56.0M 6 \nStack 10.5M 6 \nVM_ALLOCATE 28K 4 \n__CTF 824 1 \n__DATA 12.8M 536 \n__DATA_CONST 52.1M 556 \n__DATA_DIRTY 1337K 192 \n__FONT_DATA 2352 1 \n__INFO_FILTER 8 1 \n__LINKEDIT 183.5M 5 \n__OBJC_RO 75.6M 1 \n__OBJC_RW 2340K 3 \n__TEXT 558.8M 565 \n__TPRO_CONST 272K 2 \nmapped file 32.0M 8 \nowned unmapped memory 24K 1 \nshared memory 624K 9 \n=========== ======= ======= \nTOTAL 1.1G 1944 \n", "legacyInfo" : { "threadTriggered" : { "queue" : "com.apple.bluetooth.root" } 1 Link to comment Share on other sites More sharing options...
eSaF Posted June 17 Share Posted June 17 (edited) I don't know but I think it's a bit too early to worry about B/T or WiFi connection as Sequoia is half cooked so to speak. Yes in an ideal world all operations would be up and running from the word go, but our hacks come in different varieties and flavors. What work for some won't for some others unfortunately and as far as I can imagine, the Devs has to find a middle ground to fit all in the best way possible. Badgering the Devs what is/was working in Sonoma or Ventura I don't think is being constructive to the cause. I have faith all solutions will be solved if we give them some space and report logs when asked for but filling the forum with what I think is complaints (my interpretation) is counter productive. Patience is the key is my thinking. Now I am going to get off my soap box and go tinker with my car and possibly break it. Edited June 17 by eSaF 4 2 Link to comment Share on other sites More sharing options...
AmigaOS Posted June 17 Share Posted June 17 (edited) Sequoia Beta 1 successfully installed. I used Lilu 1.6.8 and Whatevergreen 1.6.7 from GitHub instead of using -lilubetaall. Works fine so far. AppleALC 1.91 fixed the audio. I did a clean install on a fresh WD M.2 and used Migration Assistant to copy from the Sonoma M.2. I was afraid to update Sonoma directly to Sequoia so I took the chicken way out. No Bluetooth or Wifi but ethernet connection is fine. Asrock Z490-ITX/ac i9 10900 32GB Ram Built in 630 Graphics Quad Boot Sequoia, Sonoma 14.5, Opensuse Tumbleweed, Windows 11 LG 660 4k 27" Monitor Edited June 17 by AmigaOS correct mispelling 2 Link to comment Share on other sites More sharing options...

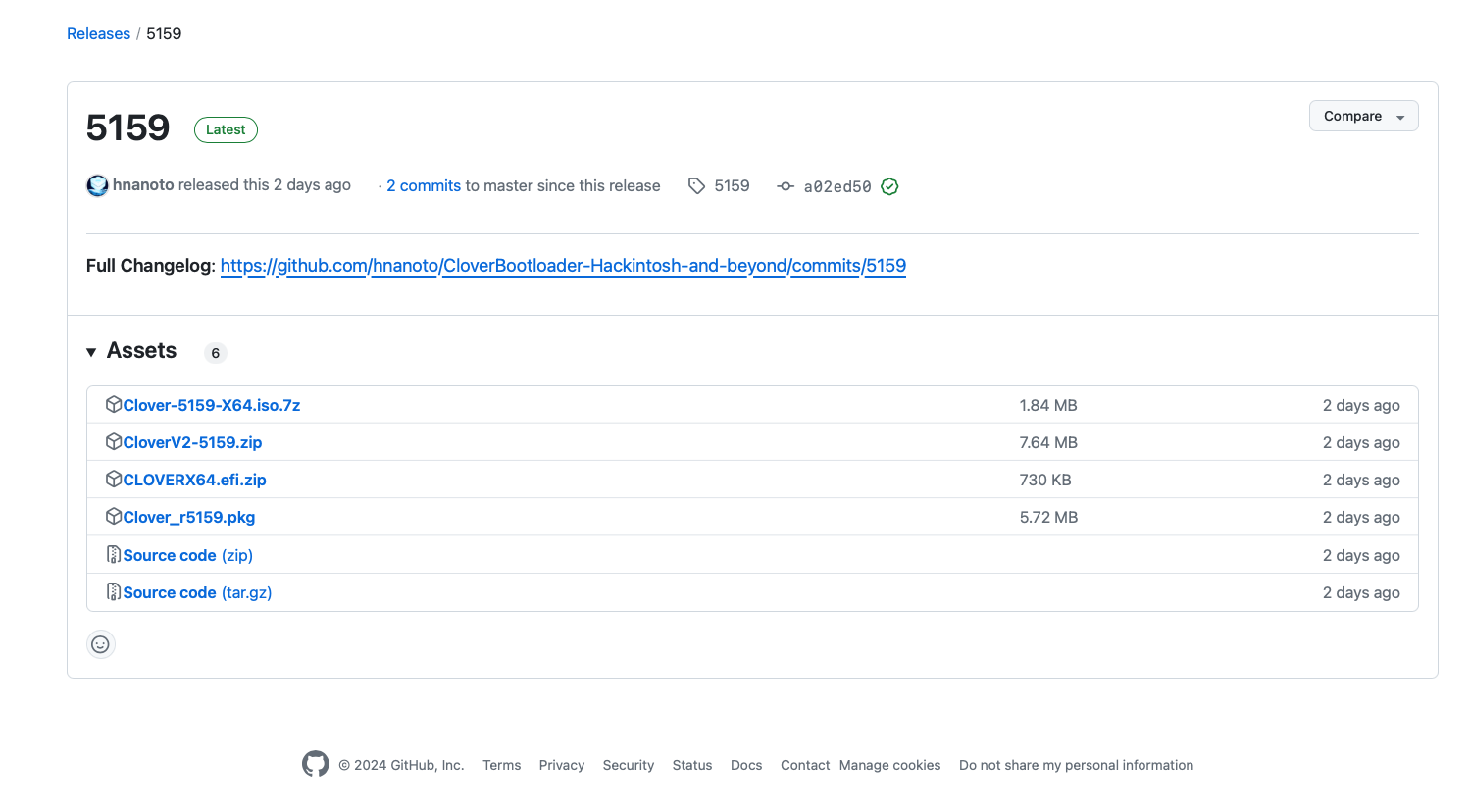

ANTIKO Posted June 17 Share Posted June 17 11 hours ago, Max.1974 said: Clover 5159 commit 30b3ac544 Good afternoon! Where did you get it? please share, there is no time to collect yourself. 1 Link to comment Share on other sites More sharing options...
Alpha22 Posted June 17 Share Posted June 17 6 minutes ago, ANTIKO said: Good afternoon! Where did you get it? please share, there is no time to collect yourself. https://github.com/CloverHackyColor/CloverBootloader/releases 2 Link to comment Share on other sites More sharing options...
ANTIKO Posted June 17 Share Posted June 17 2 minutes ago, Alpha22 said: https://github.com/CloverHackyColor/CloverBootloader/releases Oh! Thanks! I haven't seen him here. https://github.com/CloverHackyColor/CloverBootloader 1 Link to comment Share on other sites More sharing options...
Shaneee Posted June 17 Share Posted June 17 4 hours ago, ohsnap said: Same here with AX201, not working. crash log Reveal hidden contents "vmRegionInfo" : "0 is not in any region. Bytes before following region: 4343959552\n REGION TYPE START - END [ VSIZE] PRT\/MAX SHRMOD REGION DETAIL\n UNUSED SPACE AT START\n---> \n __TEXT 102eb9000-10383d000 [ 9744K] r-x\/r-x SM=COW \/usr\/sbin\/bluetoothd", "exception" : {"codes":"0x0000000000000001, 0x0000000000000000","rawCodes":[1,0],"type":"EXC_BAD_ACCESS","signal":"SIGSEGV","subtype":"KERN_INVALID_ADDRESS at 0x0000000000000000"}, "termination" : {"flags":0,"code":11,"namespace":"SIGNAL","indicator":"Segmentation fault: 11","byProc":"exc handler","byPid":3112}, "ktriageinfo" : "VM - (arg = 0x0) A memory corruption was found in executable text\n", "vmregioninfo" : "0 is not in any region. Bytes before following region: 4343959552\n REGION TYPE START - END [ VSIZE] PRT\/MAX SHRMOD REGION DETAIL\n UNUSED SPACE AT START\n---> \n __TEXT 102eb9000-10383d000 [ 9744K] r-x\/r-x SM=COW \/usr\/sbin\/bluetoothd", "extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0}, "faultingThread" : 1, "threads" : [{"id":10790,"threadState":{"r13":{"value":140390610267377},"rax":{"value":140704637171760,"symbolLocation":0,"symbol":"__mutablePlaceholder"},"rflags":{"value":582},"cpu":{"value":0},"r14":{"value":140703559431040,"symbolLocation":0,"symbol":"objc_msgSend"},"rsi":{"value":140704088304294,"objc-selector":"allocWithZone:"},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":140704685062328,"symbolLocation":0,"symbol":"OBJC_METACLASS_$_NSMutableString"},"r9":{"value":140390610267377},"r15":{"value":4007870753277474913},"rbx":{"value":4007870753277474913},"trap":{"value":222},"err":{"value":0},"r11":{"value":140703580881910,"symbolLocation":0,"symbol":"+[NSMutableString allocWithZone:]"},"rip":{"value":140703580881938},"rbp":{"value":140702004830032},"rsp":{"value":140702004830032},"r12":{"value":140704635033960},"rcx":{"value":140704684948792,"symbolLocation":0,"symbol":"objc_debug_taggedpointer_obfuscator"},"flavor":"x86_THREAD_STATE","rdi":{"value":140704685057248,"symbolLocation":0,"symbol":"OBJC_CLASS_$_NSMutableString"}},"queue":"com.apple.main-thread","frames":[{"imageOffset":21522,"symbol":"+[NSMutableString allocWithZone:]","symbolLocation":28,"imageIndex":3},{"imageOffset":43731,"symbol":"-[NSString mutableCopyWithZone:]","symbolLocation":34,"imageIndex":3},{"imageOffset":123548,"symbol":"parseStringTag","symbolLocation":1450,"imageIndex":4},{"imageOffset":120360,"symbol":"parseXMLElement","symbolLocation":1292,"imageIndex":4},{"imageOffset":1318785,"symbol":"parseDictTag","symbolLocation":285,"imageIndex":4},{"imageOffset":1317479,"symbol":"parsePListTag","symbolLocation":59,"imageIndex":4},{"imageOffset":116291,"symbol":"_CFPropertyListCreateFromUTF8Data","symbolLocation":1346,"imageIndex":4},{"imageOffset":1092824,"symbol":"_CFPropertyListCreateWithData","symbolLocation":641,"imageIndex":4},{"imageOffset":113636,"symbol":"CFPropertyListCreateWithData","symbolLocation":51,"imageIndex":4},{"imageOffset":2914627,"imageIndex":2},{"imageOffset":2925368,"imageIndex":2},{"imageOffset":7028525,"imageIndex":2},{"imageOffset":7031929,"imageIndex":2},{"imageOffset":5204884,"imageIndex":2},{"imageOffset":5207459,"imageIndex":2},{"imageOffset":5199138,"imageIndex":2},{"imageOffset":209172,"imageIndex":2},{"imageOffset":25293,"symbol":"start","symbolLocation":1805,"imageIndex":5}]},{"triggered":true,"id":10791,"instructionState":{"instructionStream":{"bytes":[137,4,36,72,141,5,94,120,133,0,233,153,0,0,0,72,141,61,225,136,107,0,235,55,65,191,102,0,0,0,233,136,0,0,0,72,141,61,25,137,107,0,69,49,255,49,192,232,143,109,7,0,72,141,5,53,118,133,0,73,137,4,36,72,141,5,146,117,133,0,235,96,72,141,61,59,137,107,0,69,49,255,49,192,232,106,109,7,0,72,141,5,120,124,133,0,73,137,4,36,72,141,5,213,123,133,0,235,59,72,141,61,189,135,107,0,69,49,255,49,192,232,69,109,7,0,191,112,23,0,0,232,188,37,249,255,72,141,61,218,136,107,0,49,192,232,45,109,7,0,72,141,5,155,155,133,0,73,137,4,36,72,141,5,248,154,133,0,73,137,6,72,139,5,166,105,127,0,72,139,0,72,59,69,208,117,21,68,137,248,72,129],"offset":96}},"threadState":{"r13":{"value":30739},"rax":{"value":4354340296},"rflags":{"value":66054},"cpu":{"value":0},"r14":{"value":4354341168},"rsi":{"value":140390610118272},"r8":{"value":140704686891984,"symbolLocation":0,"symbol":"_os_log_current_test_callback"},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":144115192639258624},"r9":{"value":513},"r15":{"value":0},"rbx":{"value":0},"trap":{"value":14,"description":"(no mapping for user data write)"},"err":{"value":6},"r11":{"value":18446620932621278878},"rip":{"value":4345592144,"matchesCrashFrame":1},"rbp":{"value":123145443210176},"rsp":{"value":123145443209824},"r12":{"value":0},"rcx":{"value":123145443204656},"flavor":"x86_THREAD_STATE","rdi":{"value":123145443209360}},"queue":"com.apple.bluetooth.root","frames":[{"imageOffset":1632592,"imageIndex":2},{"imageOffset":1103032,"imageIndex":2},{"imageOffset":1154658,"imageIndex":2},{"imageOffset":766842,"imageIndex":2},{"imageOffset":4702322,"imageIndex":2},{"imageOffset":4707849,"imageIndex":2},{"imageOffset":4571068,"imageIndex":2},{"imageOffset":4570022,"imageIndex":2},{"imageOffset":9429,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":8},{"imageOffset":14434,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":8},{"imageOffset":39387,"symbol":"_dispatch_lane_serial_drain","symbolLocation":739,"imageIndex":8},{"imageOffset":42082,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":8},{"imageOffset":82228,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":8},{"imageOffset":80448,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":653,"imageIndex":8},{"imageOffset":11391,"symbol":"_pthread_wqthread","symbolLocation":326,"imageIndex":9},{"imageOffset":7131,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":9}]},{"id":10792,"frames":[{"imageOffset":7116,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":9}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":16131},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145443225600},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145443749888},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703563406284},"rbp":{"value":0},"rsp":{"value":123145443749888},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145443749888}}},{"id":10793,"frames":[{"imageOffset":7116,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":9}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":12035},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145443762176},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145444285312},"rbx":{"value":123145444286464},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703563406284},"rbp":{"value":0},"rsp":{"value":123145444286464},"r12":{"value":1982472},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145444286464}}},{"id":10794,"frames":[{"imageOffset":7116,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":9}],"threadState":{"r13":{"value":0},"rax":{"value":0},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":0},"r8":{"value":278532},"cr2":{"value":0},"rdx":{"value":123145444298752},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":0},"trap":{"value":0},"err":{"value":0},"r11":{"value":0},"rip":{"value":140703563406284},"rbp":{"value":0},"rsp":{"value":123145444823040},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145444823040}}},{"id":10812,"name":"StackLoop","threadState":{"r13":{"value":4354368624},"rax":{"value":4},"rflags":{"value":515},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":258},"r8":{"value":8352},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":10791},"r9":{"value":258},"r15":{"value":258},"rbx":{"value":4354368592},"trap":{"value":133},"err":{"value":33554733},"r11":{"value":514},"rip":{"value":140703563165966},"rbp":{"value":123145445359392},"rsp":{"value":123145445359336},"r12":{"value":4354368616},"rcx":{"value":123145445359336},"flavor":"x86_THREAD_STATE","rdi":{"value":4354368592}},"frames":[{"imageOffset":12558,"symbol":"__psynch_mutexwait","symbolLocation":10,"imageIndex":10},{"imageOffset":15188,"symbol":"_pthread_mutex_firstfit_lock_wait","symbolLocation":78,"imageIndex":9},{"imageOffset":6464,"symbol":"_pthread_mutex_firstfit_lock_slow","symbolLocation":214,"imageIndex":9},{"imageOffset":766278,"imageIndex":2},{"imageOffset":767635,"imageIndex":2},{"imageOffset":25171,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":9},{"imageOffset":7151,"symbol":"thread_start","symbolLocation":15,"imageIndex":9}]}], "usedImages" : [ { "source" : "P", "arch" : "x86_64", "base" : 4356993024, "CFBundleShortVersionString" : "900.4.2", "CFBundleIdentifier" : "com.apple.iokit.IOUSBLib", "size" : 36864, "uuid" : "c0f8f10b-e21f-3c9f-adfb-b72b0858c0c7", "path" : "\/System\/Library\/Extensions\/IOUSBHostFamily.kext\/Contents\/PlugIns\/IOUSBLib.bundle\/Contents\/MacOS\/IOUSBLib", "name" : "IOUSBLib", "CFBundleVersion" : "900.4.2" }, { "source" : "P", "arch" : "x86_64", "base" : 4357206016, "size" : 573440, "uuid" : "84189706-9569-38d5-89c4-639521ca1680", "path" : "\/System\/Library\/PrivateFrameworks\/WirelessDiagnostics.framework\/Versions\/A\/Libraries\/libAWDProtobufBluetooth.dylib", "name" : "libAWDProtobufBluetooth.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 4343959552, "size" : 9977856, "uuid" : "b95b9be8-2bef-328a-b928-9e7c1b03a74a", "path" : "\/usr\/sbin\/bluetoothd", "name" : "bluetoothd" }, { "source" : "P", "arch" : "x86_64", "base" : 140703580860416, "CFBundleShortVersionString" : "6.9", "CFBundleIdentifier" : "com.apple.Foundation", "size" : 14807027, "uuid" : "e5d235c9-2e46-3b55-b728-111c8d225645", "path" : "\/System\/Library\/Frameworks\/Foundation.framework\/Versions\/C\/Foundation", "name" : "Foundation", "CFBundleVersion" : "3028" }, { "source" : "P", "arch" : "x86_64h", "base" : 140703563857920, "CFBundleShortVersionString" : "6.9", "CFBundleIdentifier" : "com.apple.CoreFoundation", "size" : 4849651, "uuid" : "46d6bd32-7fa4-3e29-abde-8445f8e14b91", "path" : "\/System\/Library\/Frameworks\/CoreFoundation.framework\/Versions\/A\/CoreFoundation", "name" : "CoreFoundation", "CFBundleVersion" : "3028" }, { "source" : "P", "arch" : "x86_64", "base" : 140703559675904, "size" : 571232, "uuid" : "b8451115-3c2a-3a18-bfbd-381a5b385c1a", "path" : "\/usr\/lib\/dyld", "name" : "dyld" }, { "size" : 0, "source" : "A", "base" : 0, "uuid" : "00000000-0000-0000-0000-000000000000" }, { "source" : "P", "arch" : "x86_64h", "base" : 140703559401472, "size" : 274372, "uuid" : "2802e0cf-75b9-3964-b059-9f98ea49ac4e", "path" : "\/usr\/lib\/libobjc.A.dylib", "name" : "libobjc.A.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 140703561674752, "size" : 294906, "uuid" : "5935f8c0-699c-3256-aac2-b541663e9b24", "path" : "\/usr\/lib\/system\/libdispatch.dylib", "name" : "libdispatch.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 140703563399168, "size" : 49152, "uuid" : "5ba4dd04-c130-399e-9036-a509f2c95814", "path" : "\/usr\/lib\/system\/libsystem_pthread.dylib", "name" : "libsystem_pthread.dylib" }, { "source" : "P", "arch" : "x86_64", "base" : 140703563153408, "size" : 245760, "uuid" : "5c741c11-c4d7-39d7-8adc-becd4c9f253c", "path" : "\/usr\/lib\/system\/libsystem_kernel.dylib", "name" : "libsystem_kernel.dylib" } ], "sharedCache" : { "base" : 140703558926336, "size" : 25769803776, "uuid" : "27e29b15-c407-3b2d-b593-3e74a47e083b" }, "vmSummary" : "ReadOnly portion of Libraries: Total=742.2M resident=0K(0%) swapped_out_or_unallocated=742.2M(100%)\nWritable regions: Total=190.0M written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=190.0M(100%)\n\n VIRTUAL REGION \nREGION TYPE SIZE COUNT (non-coalesced) \n=========== ======= ======= \nActivity Tracing 256K 1 \nDispatch continuations 96.0M 1 \nKernel Alloc Once 8K 1 \nMALLOC 82.7M 33 \nMALLOC guard page 32K 8 \nSQLite page cache 384K 3 \nSTACK GUARD 56.0M 6 \nStack 10.5M 6 \nVM_ALLOCATE 28K 4 \n__CTF 824 1 \n__DATA 12.8M 536 \n__DATA_CONST 52.1M 556 \n__DATA_DIRTY 1337K 192 \n__FONT_DATA 2352 1 \n__INFO_FILTER 8 1 \n__LINKEDIT 183.5M 5 \n__OBJC_RO 75.6M 1 \n__OBJC_RW 2340K 3 \n__TEXT 558.8M 565 \n__TPRO_CONST 272K 2 \nmapped file 32.0M 8 \nowned unmapped memory 24K 1 \nshared memory 624K 9 \n=========== ======= ======= \nTOTAL 1.1G 1944 \n", "legacyInfo" : { "threadTriggered" : { "queue" : "com.apple.bluetooth.root" } My AX210 is mostly working. Using itlwm + Heliport for WiFi and these kexts that I updated to work for BT. Intel_BT_Sequoia.zip 10 5 Link to comment Share on other sites More sharing options...
lorys89 Posted June 17 Share Posted June 17 (edited) 4 hours ago, Shaneee said: My AX210 is mostly working. Using itlwm + Heliport for WiFi and these kexts that I updated to work for BT. Intel_BT_Sequoia.zip 10.92 MB · 11 downloads but add nvram setting bluetoothExternalDongleFailed DATA 00 bluetoothInternalControllerInfo DATA 0000000000000000000000000000 and work Edited June 17 by lorys89 5 1 Link to comment Share on other sites More sharing options...
ohsnap Posted June 17 Share Posted June 17 With the kexts from @Shaneee and the nvram entries mentioned by @lorys89 the BT on AX201 now works. Ty! 5 Link to comment Share on other sites More sharing options...
ovidoi Posted June 17 Share Posted June 17 Yessss, confirm, itlwm + Heliport for WiFi working ok Intel Centrino WIRELESS-N 1000, BT work without IntelBTPatcher only with IntelBluetoothFirmware and BlueToolFixup, IntelBTPatcher causes restart system, sdhc working only with RealtekCardReader.kext, now I wait next OCLP for patching video card Radeon HD6850m. Still NEC USB 3.0 issue like Sonoma not woking. 2 Link to comment Share on other sites More sharing options...
PlutoDelic Posted June 17 Share Posted June 17 Oh wow, from using: IntelBTPatcher, IntelBluetoothFirmware and BlueToolFixup; to only IntelBTPatcher, that's quite the feat. I'll try that as well and report back. Honestly, i was expecting Sequoia to resist but seems like an armistice from Apple. Link to comment Share on other sites More sharing options...
