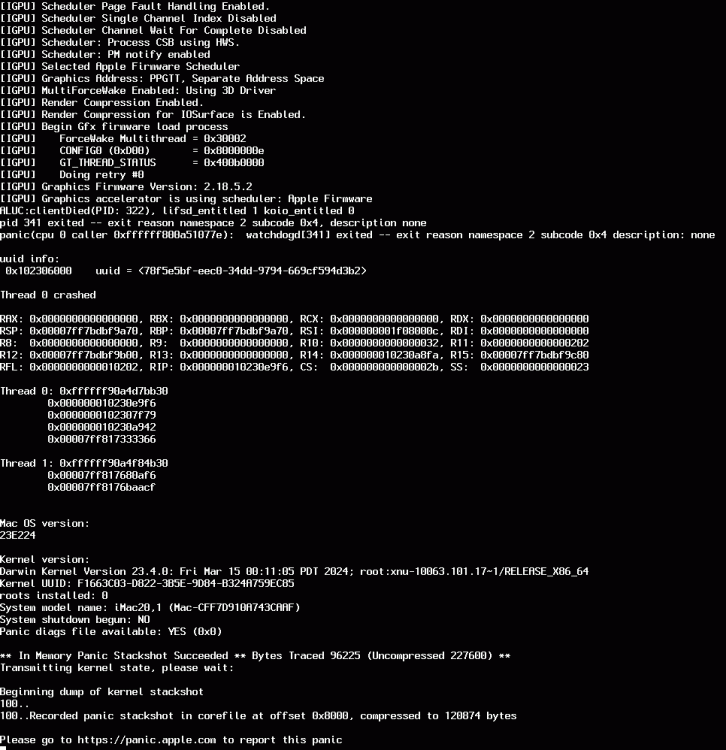

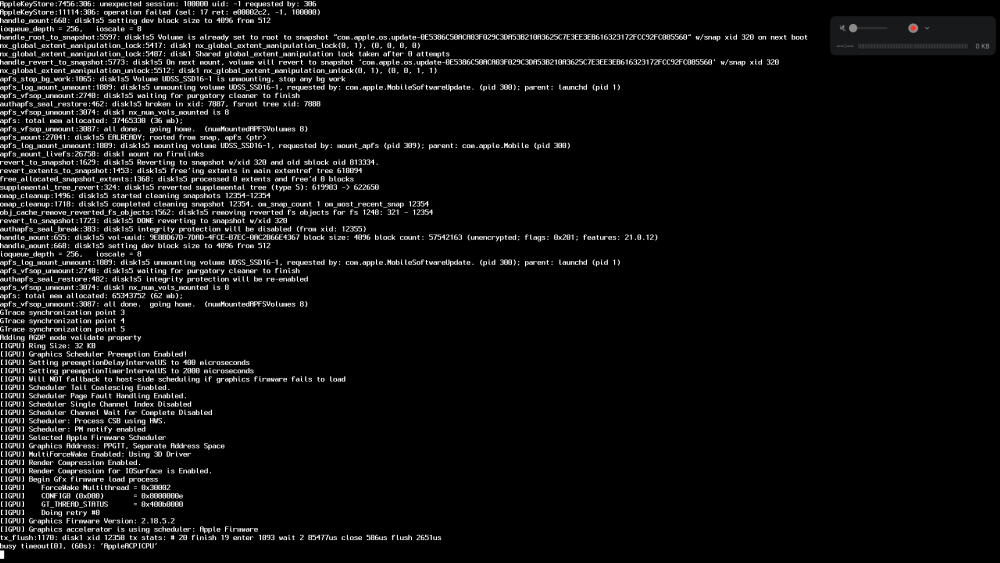

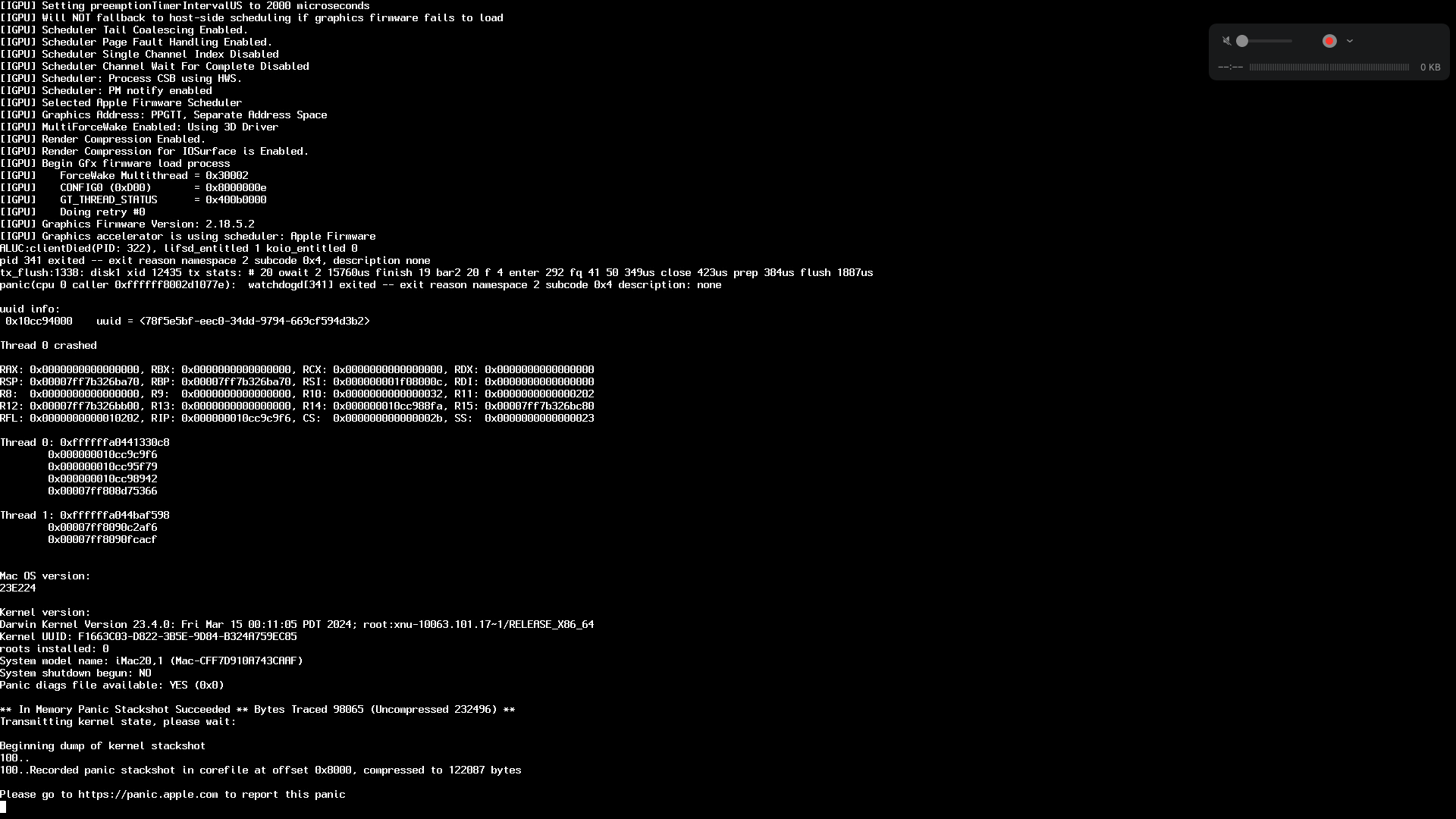

vtec100000000rpm Posted April 30 Share Posted April 30 (edited) I'm struggling with KP. Sonoma + Clover r5158 -> Kernel Panic Sonoma + Clover r5158 -igfxvesa -> Kernel Panic Sonoma + Clover r5158 -wegoff -> Kernel Panic Monterey + Clover r5158 -> busy timeout Sonoma + OpenCore -> boot Any Idea? I want to boot with Clover. Thanks in advance. ASUS PRIME H410M-A + i3-10105 + UHD630 https://www.asus.com/motherboards-components/motherboards/prime/prime-h410m-a/ H410M-A.zip Edited June 23 by vtec100000000rpm success Link to comment Share on other sites More sharing options...
bluenote56 Posted April 30 Share Posted April 30 HI I'm sure there are more prepared people here that can help you but (just to try) I found an EFI that helped me to boot monterey on ASUS P8Z77-V LX2 but as you know it's a 1155 socket. Even if I use Clover I had to relate to OC to boot this Asus mobo and it worked. I don't know if it can help maybe modifying something for your system. Check if it makes any sense to try and in case I'll share it. Ciao Link to comment Share on other sites More sharing options...

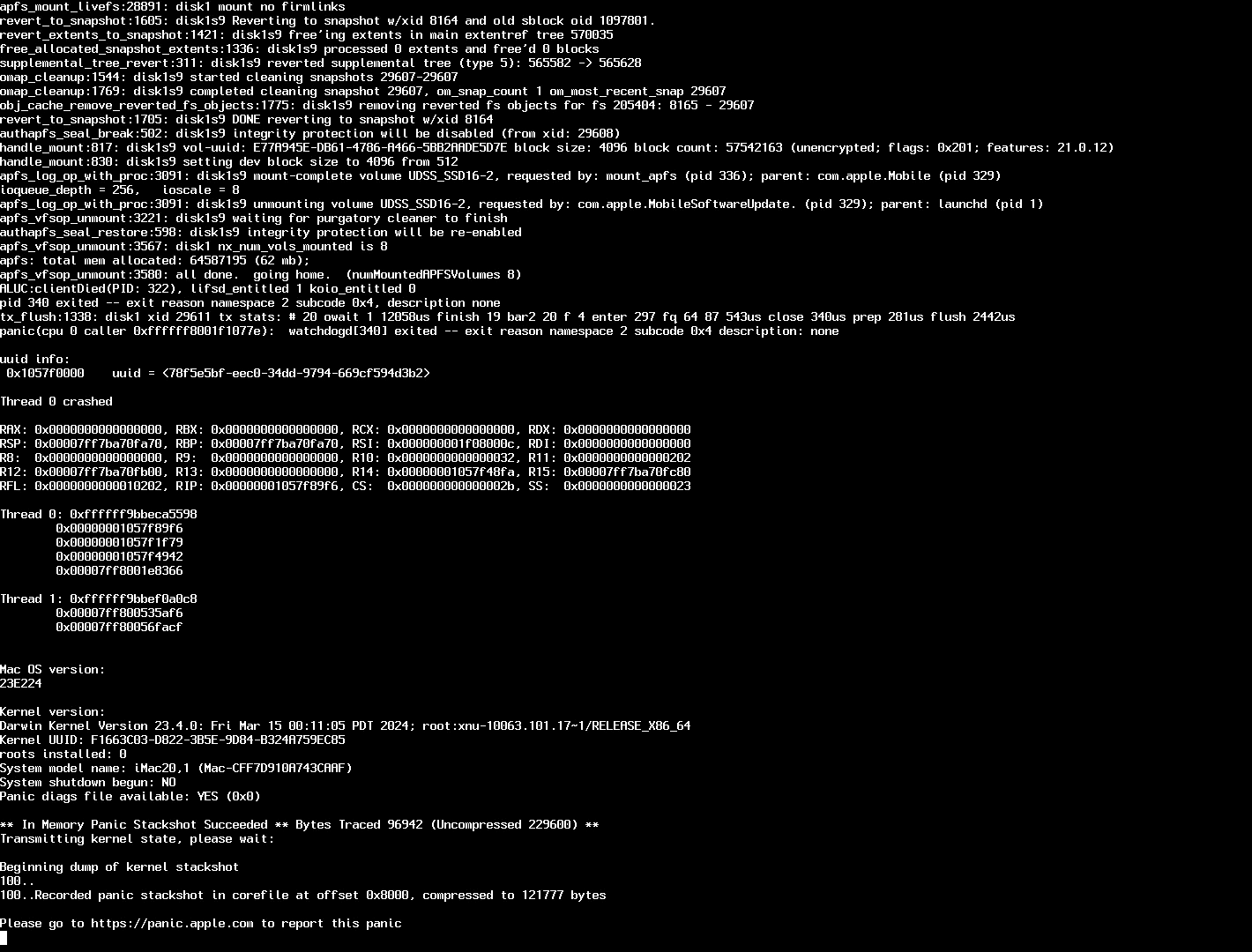

vtec100000000rpm Posted May 1 Author Share Posted May 1 23 hours ago, bluenote56 said: HI I'm sure there are more prepared people here that can help you but (just to try) I found an EFI that helped me to boot monterey on ASUS P8Z77-V LX2 but as you know it's a 1155 socket. Even if I use Clover I had to relate to OC to boot this Asus mobo and it worked. I don't know if it can help maybe modifying something for your system. Check if it makes any sense to try and in case I'll share it. Ciao Thank you for your reply. 10th gen core i series + 400 series + Clover success EFI is hard to find.... Tried to add GeForce GPU but same KP. Link to comment Share on other sites More sharing options...
Slice Posted May 1 Share Posted May 1 Show preboot.log obtained by F2 in Clover GUI. We might see what is wrong. 1 Link to comment Share on other sites More sharing options...
vtec100000000rpm Posted May 2 Author Share Posted May 2 14 hours ago, Slice said: Show preboot.log obtained by F2 in Clover GUI. We might see what is wrong. Thank you for your reply. This log is with UHD630. I'll put the other ( with GeForce 630) later. preboot.log Link to comment Share on other sites More sharing options...
vtec100000000rpm Posted May 2 Author Share Posted May 2 config(add_some_boot-args).plist preboot(UHD630+Kepler).log H410M-A(OpenCore).ioreg.zip Link to comment Share on other sites More sharing options...
Slice Posted May 2 Share Posted May 2 2 hours ago, vtec100000000rpm said: config(add_some_boot-args).plist 21.09 kB · 1 download preboot(UHD630+Kepler).log 25.74 kB · 0 downloads H410M-A(OpenCore).ioreg.zip 683.71 kB · 1 download VirtualSMC is not compatible with Clover. Use FakeSMC instead. Link to comment Share on other sites More sharing options...

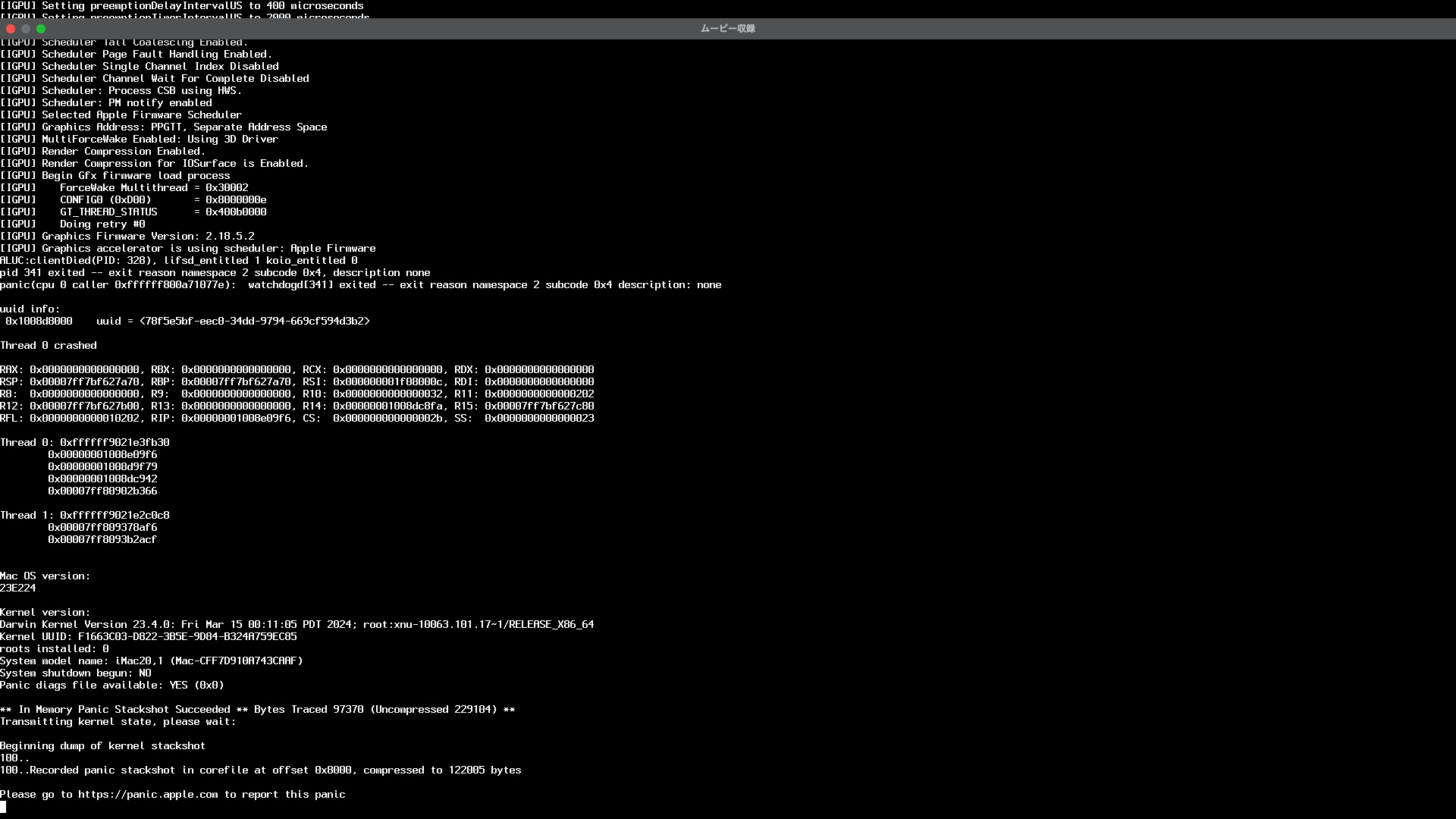

vtec100000000rpm Posted May 3 Author Share Posted May 3 21 hours ago, Slice said: VirtualSMC is not compatible with Clover. Use FakeSMC instead. Added FakeSMC.kext and removed VirtualSMC.kext. But didn't work.... (T_T) config.plist drivers.zip ACPI.zip preboot.log Link to comment Share on other sites More sharing options...
Slice Posted May 3 Share Posted May 3 You have Graphics->Inject->ATI=NO OK, but I recommend to do same for Nvidia and Intel because default values are YES. Why you set device-id as <C59B0000>? Your native 9BC8 is supported by macOS Sonoma at least. And I don't know about ig-platform-id for your card. You may choose between 0x3EA50009 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E920009 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E9B0009 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA50000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E920000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E000000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E9B0000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA50004 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA50005 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA60005 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E9B0006 (mobile, 1 connectors, no fbmem, 39 MB) 0x3E9B0008 (mobile, 1 connectors, no fbmem, 58 MB) 0x3E9B0007 (desktop, 3 connectors, no fbmem, 58 MB) 0x3E920003 (desktop, 0 connectors, no fbmem, 1 MB) 0x3E910003 (desktop, 0 connectors, no fbmem, 1 MB) 0x3E980003 (desktop, 0 connectors, no fbmem, 1 MB) 0x9BC80003 (desktop, 0 connectors, no fbmem, 1 MB) 0x9BC50003 (desktop, 0 connectors, no fbmem, 1 MB) 0x9BC40003 (desktop, 0 connectors, no fbmem, 1 MB) Link to comment Share on other sites More sharing options...
vtec100000000rpm Posted May 4 Author Share Posted May 4 On 5/4/2024 at 2:11 AM, Slice said: You have Graphics->Inject->ATI=NO OK, but I recommend to do same for Nvidia and Intel because default values are YES. Why you set device-id as <C59B0000>? Your native 9BC8 is supported by macOS Sonoma at least. And I don't know about ig-platform-id for your card. You may choose between 0x3EA50009 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E920009 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E9B0009 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA50000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E920000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E000000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E9B0000 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA50004 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA50005 (mobile, 3 connectors, no fbmem, 58 MB) 0x3EA60005 (mobile, 3 connectors, no fbmem, 58 MB) 0x3E9B0006 (mobile, 1 connectors, no fbmem, 39 MB) 0x3E9B0008 (mobile, 1 connectors, no fbmem, 58 MB) 0x3E9B0007 (desktop, 3 connectors, no fbmem, 58 MB) 0x3E920003 (desktop, 0 connectors, no fbmem, 1 MB) 0x3E910003 (desktop, 0 connectors, no fbmem, 1 MB) 0x3E980003 (desktop, 0 connectors, no fbmem, 1 MB) 0x9BC80003 (desktop, 0 connectors, no fbmem, 1 MB) 0x9BC50003 (desktop, 0 connectors, no fbmem, 1 MB) 0x9BC40003 (desktop, 0 connectors, no fbmem, 1 MB) Thank you for your reply again and again. I tried, but same KP. Hmm.... config(Inject-NO).plist preboot(UHD630Only).log preboot(KeplerOnly).log Link to comment Share on other sites More sharing options...
vtec100000000rpm Posted June 23 Author Share Posted June 23 Success! (1) OpenCore -> Clover chainload (2) Get DSDT/SSDT patched by OpenCore with F4 key (3) Replace DSDT/SSDT aml files from "origin" folder (4) Boot Clover without OpenCore Link to comment Share on other sites More sharing options...
