DW1820A mislabeled CN-0VW3T3 (real CN-08PKF4) macOS Monterey WiFi OFF in HP 840 G3

[sebus]

I have this unit running Catalina (from M2 SSD), Big Sur (from SATA SSD)

In either I do not use

<string>pci14e4,4353</string>



WiFi & BT work fine in both (with AirportBrcmFixup.kext/AirPortBrcmNIC_Injector.kext, BrcmBluetoothInjector.kext, BrcmFirmwareData.kext, BrcmPatchRAM3.kext)



Trying to get Monterey working (replacing BrcmBluetoothInjector.kext with BlueToolFixup.kext)

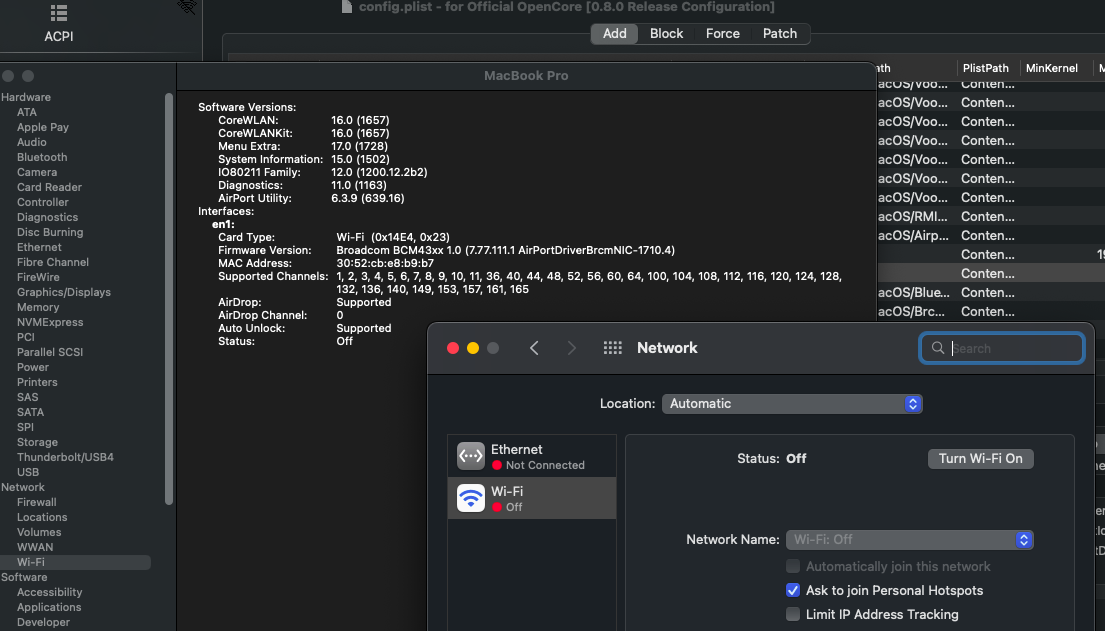

No matter what I try, I never get WiFi working, WiFi shows but turned OFF & I cannot turn it back ON



ASPM is zeroed (disabled) by



<key>pci-aspm-default</key>



PCI\VEN_14E4&DEV_43A3&SUBSYS_00231028&REV_08



(that should be CN-08PKF4 but it is a mislabeled as CN-0VW3T3 which ofcourse is not correct)



I am stumped why it works so easily in 10.15 & 11, but not 12 (I though there was all known about this card by now)



Help much apprecied

Edited January 27 by sebus

[sebus]

In the end I just gave up on this card & used Intel AX200NGW (that I had laying around)



With itlwm + Heliport WiFi works fine in any OS booted, the same for BT with IntelBluetoothFirmware.kext, IntelBTPatcher.kext & BlueToolFixup.kext

Edited January 28 by sebus
