Modmike Posted June 8 Share Posted June 8 (edited) I am in Sonoma and followed all the instructions for OCLP to get my original Broadcom card to work. Would you mind looking at my config (not my serial) to see if I messed up? Been trying for 2 days. Really would like to preserve my continuity functions. I tried to drop my EFI but it's larger than 10mb. config.plist Edited June 8 by Modmike Link to comment Share on other sites More sharing options...
chris1111 Posted June 9 Share Posted June 9 4 hours ago, Modmike said: I've been using a Broadcom N.2 card on an Asus Z390 board for 5 years with no issue until Sonoma. Some people dispute that this could work but it did. I can't get the Broadcom card to work with the OLPC no matter what I do. Do you think the N.2 version of the intel card will work? what exactly is the card because broadcom n2 means nothing Link to comment Share on other sites More sharing options...
STLVNUB Posted June 9 Share Posted June 9 8 hours ago, Modmike said: I tried to drop my EFI but it's larger than 10mb. Look Inside EFI Folder And DELETE Apple Folder 1 Link to comment Share on other sites More sharing options...
Modmike Posted June 9 Share Posted June 9 19 hours ago, chris1111 said: what exactly is the card because broadcom n2 means nothing Sorry, it's a OEM Dell Wireless DW1560 802.11ac Broadcom BCM94352Z M.2 NGFF WIFI Card 1 Link to comment Share on other sites More sharing options...
chris1111 Posted June 9 Share Posted June 9 1 hour ago, Modmike said: Sorry, it's a OEM Dell Wireless DW1560 802.11ac Broadcom BCM94352Z M.2 NGFF WIFI Card Did you see this on the patcher Link to comment Share on other sites More sharing options...
miliuco Posted June 10 Author Share Posted June 10 @Modmike Can you get the device-id? These are OCLP root patch compatible: Not needing AirportBrcmFixup: device-id 12e4,43ba >> BCM43602 device-id 12e4,43e3 >> BCM4350 device-id 12e4,43a0 >> BCM4360 (Fenvi cards) device-id 12e4,4331 >> BCM94331 device-id 12e4,4353 >> BCM943224. Needing AirportBrcmFixup: device-id 12e4,4357 >> BCM43225 device-id 12e4,43B1 >> BCM4352 device-id 12e4,43B2 >> BCM4352 (2.4 GHz). 3 Link to comment Share on other sites More sharing options...
Modmike Posted June 10 Share Posted June 10 6 hours ago, miliuco said: @Modmike Can you get the device-id? These are OCLP root patch compatible: Not needing AirportBrcmFixup: device-id 12e4,43ba >> BCM43602 device-id 12e4,43e3 >> BCM4350 device-id 12e4,43a0 >> BCM4360 (Fenvi cards) device-id 12e4,4331 >> BCM94331 device-id 12e4,4353 >> BCM943224. Needing AirportBrcmFixup: device-id 12e4,4357 >> BCM43225 device-id 12e4,43B1 >> BCM4352 device-id 12e4,43B2 >> BCM4352 (2.4 GHz). It's a Dell 1560 card with a Broadcom BCM94352Z. I looked it up and chipset BCM4352 so it looks like I need it. I kind of thought so because I needed to load the firmware into it previously. Sorry about the bold, can't seem to remove it when I copy paste from another source. I will try again. 1 Link to comment Share on other sites More sharing options...
Modmike Posted June 11 Share Posted June 11 (edited) @miliuco Super frustrated, trying to get this to work for 1 week. Can you take a look at my kext list and let me know if they are in the right order and which ones I don't need? As mentioned before, my Broadcom is a BCM4352. I know some are disabled but I also tested enabled, neither way worked.. I suspect the airportbrcm are in the wrong order. I previously need the brcmpatchram3 so I left those in. Thanks! Edited June 11 by Modmike Link to comment Share on other sites More sharing options...
derpuma Posted October 5 Share Posted October 5 On 3/12/2024 at 11:09 PM, Max.1974 said: @derpuma my friend, so glad to help you, don't worry about me, you can count with me and other people here. So pleasure help you!! Im just study others EFI from GitHub and try use some parameters that is similar. Hackintosh is like a garden, always we have something to do!! God Bless you and all here!! Reveal hidden contents PM: AirPort Utility.kext and Bluetooth File Exchange.kext is a friend that compile, and use only Apple parameters. just to effort Bluetooth. Its not recognize by OC Team, but its not problem. Is optional, I use because like you said, gave me LIFE for my HID Proxy (Keyboard BT recognize on boot - BT Broadcom) to be better smooth and always connect without clicks after reboot. It's 100% Apple Xcode parameters, so don't worry, use with ANY BT resources. https://github.com/hnanoto If you not fix Audio, will try put on Devices properties. Its the reason that im ask to you run Essential List tool, you can extract with Hackintool too your Devices. If you not know, im explain. Backup your EFI and I avoid to use OCAT or OCLP, but I prefer use just Xcode, Plist Editor Pro or ProperTree, MAciASl, Clover Configurator, Opencore Configurator. If you decide to use, is at on your risk. You can run AIDA64 on Windows too to get exactly what is your Soud card. Or try use VoodooHDA kext instead to AppleALC. No use both kexts. Hello my friend, a couple of month ago, you helped me with my opencore and the intelli compatibility. Hope you remember. Any chance, that you could update the file to the latest open core for me? I'd like to run the latest version of Sonoma, but I am still struggeling to update the opencore and driver. Right now I am still at macOS 14.4 and heard, that this has some security issues. If you need any information, please let me know. Here in this posting was the file you sende me: Have a nice weekend. 1 Link to comment Share on other sites More sharing options...
Max.1974 Posted October 5 Share Posted October 5 Hi @derpuma sure my friend. I will try soon. Im out of home now, but i will try update for you. Link to comment Share on other sites More sharing options...
Max.1974 Posted October 6 Share Posted October 6 @Derpuma my friend, I try send PM message for you, and need check you account. Her just simple update, now I believe that your Wireless will be fine with itlwm.kext for intel Wi-Fi and use Heliport App from OpenintelWireless project on Git Hub https://github.com/OpenIntelWireless Here your EFI, but im not sure about all configuration for AMD Ryzen processors so I just update Opencore, Kexts and Drivers. Hope help you and backup your data files and EFI EFI RYZEN 9 5950X 16 cores EFI-RYZEN-Use-Heliport-OpenintelWireless 5 de outubro de 2024.zip Link to comment Share on other sites More sharing options...

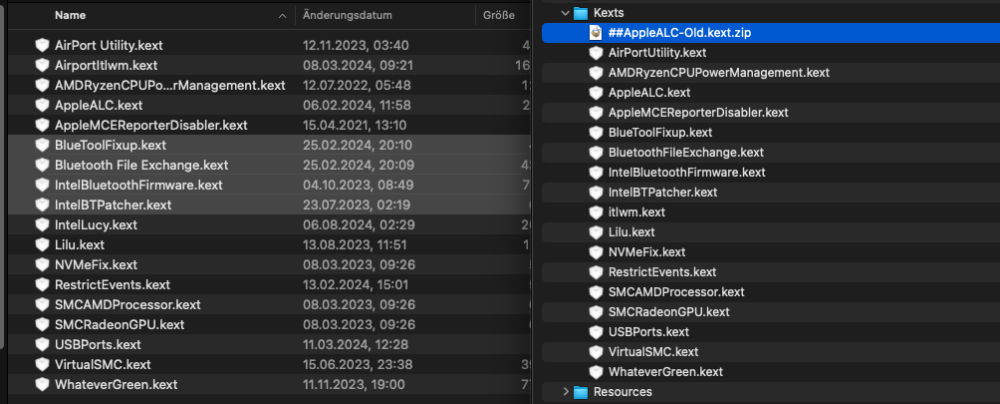

derpuma Posted October 6 Share Posted October 6 (edited) 7 hours ago, Max.1974 said: @Derpuma my friend, I try send PM message for you, and need check you account. Her just simple update, now I believe that your Wireless will be fine with itlwm.kext for intel Wi-Fi and use Heliport App from OpenintelWireless project on Git Hub https://github.com/OpenIntelWireless Here your EFI, but im not sure about all configuration for AMD Ryzen processors so I just update Opencore, Kexts and Drivers. Hope help you and backup your data files and EFI EFI RYZEN 9 5950X 16 cores EFI-RYZEN-Use-Heliport-OpenintelWireless 5 de outubro de 2024.zip 38.16 MB · 2 downloads Hello, I send you a PM with all the detaiils, where we can figure out the problems. I can boot up in Sonoma 14.7 with the EFI, thanks for that. Still some work to do for Intelli Wifi and Bluetooth. In 14.4 I used: IntelBTPatcher.kext 2.3.0 IntelBluetoothFirmware.kext 2.3.0 BlueToolFixup.kext 2.6.9 and the Bluetooth File Exchange.kext 1.0.0 which was from you! 🙂 Here you see the files! I think maybe itlwm.kext still does not work? Edited October 6 by derpuma 1 Link to comment Share on other sites More sharing options...
LockDown Posted October 6 Share Posted October 6 2 hours ago, derpuma said: Bluetooth File Exchange.kext 1.0.0 which was from you! 🙂 Where is that kext? 1 Link to comment Share on other sites More sharing options...
derpuma Posted October 6 Share Posted October 6 4 hours ago, LockDown said: Where is that kext? Ceers! It is in the EFI Zip File he dropped in his comment for me to download. 1 1 Link to comment Share on other sites More sharing options...
