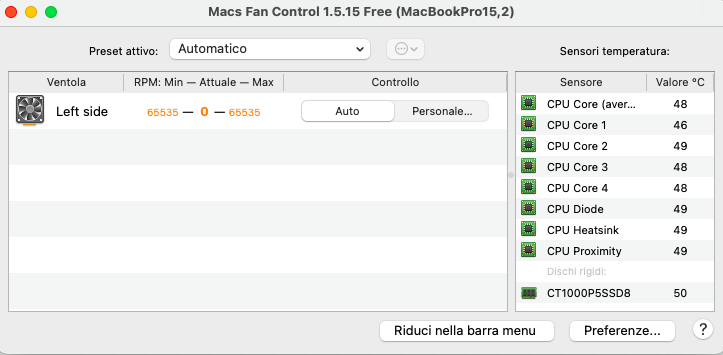

lollo78 Posted August 21, 2023 Share Posted August 21, 2023 Hi guys, my hackintosh laptop is perfect; the only things that doesn't work is the fan sensor. I installed all the required kexts and following this guide I added on my config: <key>PciRoot(0x0)/Pci(0x1F,0x0)</key> <dict> <key>ec-device</key> <string>generic</string> <key>fan-count</key> <data>AQAAAA==</data> <key>fan0-addr</key> <data>EQAAAA==</data> <key>fan0-big</key> <data>AQAAAA==</data> <key>fan0-div</key> <data>AgAAAA==</data> <key>fan0-mul</key> <data>hwAAAA==</data> <key>fan0-size</key> <data>AQAAAA==</data> </dict> My EC RAM details (dumped from DSDT.aml): OperationRegion (ECMM, SystemMemory, 0xFC7E0800, 0x1000) Field (ECMM, AnyAcc, Lock, Preserve) { REC1, 8, REC2, 8, WEC1, 8, WEC2, 8, WMIM, 8, Offset (0x06), STMS, 2, MBMS, 2, ACLS, 1, MBSS, 1, CSHE, 1, ACSP, 1, PSAC, 1, PSBC, 1, PSED, 1, Offset (0x08), PSPD, 8, BCPD, 8, BSTH, 8, PRDT, 8, UCPT, 8, HHKP, 8, SADP, 8, FANE, 1, CPUO, 1, M4GO, 1, FNSW, 1, SBTC, 1, AMDK, 1, , 1, EHP1, 1, SAD2, 8, FRPM, 8, FNMX, 8, FNMN, 8, FWPM, 8, RSTV, 8, CPTV, 8, GPTV, 8, PHTV, 8, FNTV, 8, BTTV, 8, HDTV, 8, , 1, , 1, W2BS, 1, SK6U, 1, BARD, 1, , 1, FNHK, 1, Offset (0x1D), FBST, 1, NGPS, 1, BCDG, 1, DGPS, 1, DGRS, 1, Offset (0x1E), DGPE, 1, DGHR, 1, FBPC, 1, EC6I, 1, EC6O, 1, GC6E, 1, RG12, 1, Offset (0x21), BTNO, 8, Offset (0x23), NVDX, 8, Offset (0x25), CFBE, 1, EPCF, 1, Offset (0x26), DPTC, 8, Offset (0x2A), PBSM, 2, SBSM, 2, , 2, BMNC, 1, BCLC, 1, Offset (0x2C), IOAF, 8, BCTL, 128, Offset (0x45), ATTE, 16, RTTE, 16, BC00, 8, BC01, 8, BC02, 8, BC03, 8, BC04, 8, BC05, 8, BC06, 8, BC07, 8, MXER, 8, ATTF, 16, SBVR, 16, NBM1, 1, BBM1, 1, PBM1, 1, Offset (0x58), IOST, 16, BMNE, 16, WACL, 1, Offset (0x5D), ERIB, 16, Offset (0x61), SMST, 8, SMAD, 8, SMCM, 8, SMD0, 256, BCNT, 8, SMAA, 24, SMBN, 8, Offset (0x90), BMNN, 72, BN00, 8, BN01, 8, BN02, 8, BN03, 8, BN04, 8, BN05, 8, BN06, 8, Offset (0xA1), , 1, VIDO, 1, TOUP, 1, Offset (0xA2), ODTS, 8, OSTY, 4, , 1, PBOV, 1, ECRD, 1, ADPT, 1, PWAK, 1, MWAK, 1, LWAK, 1, RWAK, 1, WWAK, 1, UWAK, 1, KWAK, 1, TWAK, 1, CCAC, 1, AOAC, 1, BLAC, 1, PSRC, 1, BOAC, 1, LCAC, 1, AAAC, 1, ACAC, 1, S3ST, 1, S3RM, 1, S4ST, 1, S4RM, 1, S5ST, 1, S5RM, 1, CSST, 1, CSRM, 1, OSTT, 8, OSST, 8, THLT, 8, TCNL, 8, MODE, 1, DFLG, 1, , 1, INIT, 1, FAN1, 1, FAN2, 1, FANT, 1, SKNM, 1, SDTM, 8, FSSN, 4, FANU, 4, PCVL, 6, SWTO, 1, TTHR, 1, TTHM, 1, THTL, 1, TFCT, 1, NPST, 5, CTMP, 8, CTML, 8, EST3, 8, SKTB, 8, SKTC, 8, DPOT, 8, EST1, 8, EST2, 8, , 1, LIDF, 1, PMEE, 1, PWBE, 1, RNGE, 1, BTWE, 1, Offset (0xB9), BRTS, 8, S35M, 1, S35S, 1, , 1, MSFG, 1, FFEN, 1, FFST, 1, Offset (0xBB), WLAT, 1, BTAT, 1, WLEX, 1, BTEX, 1, KLSW, 1, WLOK, 1, AT3G, 1, EX3G, 1, PJID, 8, CPUJ, 3, CPNM, 3, GATY, 2, BTP0, 1, BTP1, 1, , 2, BCC0, 1, BCC1, 1, Offset (0xBF), Offset (0xC0), BTY0, 1, BAM0, 1, BAL0, 1, , 1, BMF0, 3, Offset (0xC1), BST0, 8, BRC0, 16, BSN0, 16, BPV0, 16, BDV0, 16, BDC0, 16, BFC0, 16, GAU0, 8, BAT0, 8, BPC0, 16, BAC0, 16, BCG0, 16, BFCB, 16, BTPB, 16, BOL0, 1, BFS0, 1, Offset (0xDB), ORRF, 1, Offset (0xDC), , 2, SBIS, 1, Offset (0xE3), BCV1, 16, BCV2, 16, BCV3, 16, BCV4, 16, MUAC, 16, Offset (0xEE), CYC1, 8, Offset (0xF1), BSSB, 16, Offset (0xF5), CYC0, 8, BACV, 16, Offset (0xFB), OTAW, 8, Offset (0xFD), BDN0, 8, BMD0, 16, Offset (0x2C3), , 3, GBTC, 1, Offset (0x3B0), Offset (0x3BC), CPUT, 8, Offset (0x3BE), CPUU, 8, EXTS, 8, Offset (0x3C1) } Now, apps like iStat, HWMonitorSMC2, TG Pro and Mac Fan Control can see the sensor, but there are some issue. The value seems not to be in real time and I can't control the fan speed manually. For example, with Mac Fan Control min and max value as the same: Maybe I did some error in my config. Could you help me please to make a good settings? Thanks to all Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/ Share on other sites More sharing options...
Slice Posted August 21, 2023 Share Posted August 21, 2023 Real Mac controls FAN other way then hackingtosh does. First of all I am not sure if your Fan sensor kext is able to understand the FAN WRITE COMMANDS. Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/#findComment-2810405 Share on other sites More sharing options...
lollo78 Posted August 21, 2023 Author Share Posted August 21, 2023 How could I check if Fan Write Command Is supported? Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/#findComment-2810406 Share on other sites More sharing options...
Slice Posted August 21, 2023 Share Posted August 21, 2023 2 hours ago, lollo78 said: How could I check if Fan Write Command Is supported? Ask developers of the kext. If there are no documents. Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/#findComment-2810408 Share on other sites More sharing options...
surenmunoo Posted August 21, 2023 Share Posted August 21, 2023 This has not worked properly in a long while now. You could adjust fan speeds previously but not now. Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/#findComment-2810410 Share on other sites More sharing options...
Slice Posted August 21, 2023 Share Posted August 21, 2023 Depends on. Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/#findComment-2810412 Share on other sites More sharing options...
lollo78 Posted August 21, 2023 Author Share Posted August 21, 2023 @vit9696 could point me in the right direction, please? Thanks a lot Link to comment https://www.insanelymac.com/forum/topic/357474-fan-control-settings/#findComment-2810413 Share on other sites More sharing options...
