[Solved] Long delay during boot after upgrade to 12.6.7

BiTRiP

By BiTRiP,
in OSx86 12.0 (Monterey)

 Share
5 posts in this topic

Recommended Posts

BiTRiP
BiTRiP
Posted
Posted (edited)

Hi,



I'm using OC for a long time and always without problems. All updates are going fine.

But now, after upgrading to 12.6.7 I have a long delay during boot (some minutes) but eventually it boots.

What is wrong? De debug log is too complicated for me.



Can you see the problem here?



P.S: SecureBootModel is disabled.

00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:010 00:010 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:020 00:009 AAPL: #[EB|H:IS] 0
00:034 00:013 AAPL: #[EB|LOG:INIT] 2023-07-01T21:57:32
00:043 00:009 AAPL: #[EB|VERSION] <"boot.efi 540.120.3~22 (Official), built 2022-08-09T02:54:43-0700">
00:053 00:009 AAPL: #[EB|BUILD] <"BUILD-INFO[300]:{"DisplayName":"boot.efi","DisplayVersion":"540.120.3~22","RecordUuid":"00B6081F-F5C9-4522-BC64-9BE15F83D2AE","BuildTime":"2022-08-09T02:54:43-0700","ProjectName":"efiboot","ProductName":"boot.efi","SourceVersion":"540.120.3","BuildVersion":"22","BuildConfiguration":"Release","BuildType":"Official"}">
00:063 00:009 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:072 00:009 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
00:084 00:011 AAPL: #[EB|H:IS] 0
00:093 00:009 AAPL: #[EB|WL:MODE] 0
00:102 00:009 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
00:112 00:009 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
00:121 00:009 AAPL: #[EB|CFG:ARG] console       0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
00:137 00:016 AAPL: #[EB|CFG:ARG] serial        0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
00:147 00:009 AAPL: #[EB|CFG:ARG] preoslog      0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
00:156 00:009 AAPL: #[EB|CFG:ARG] timestamps    0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
00:166 00:009 AAPL: #[EB|CFG:ARG] log-level     0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
00:175 00:009 AAPL: #[EB|CFG:ARG] breakpoint    0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:186 00:011 AAPL: #[EB|CFG:ARG] kc-read-size  0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
00:196 00:009 AAPL: #[EB|H:IS] 0
00:208 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   0 0x00
00:219 00:010 AAPL: #[EB|BRD:NV] Mac-AA95B1DDAB278B95
00:233 00:014 AAPL: #[EB|B:VAw]
00:242 00:009 AAPL: #[EB|B:IAw]
00:252 00:009 AAPL: #[EB|WL] 0 0 0x01 0x01   2 0x00
00:265 00:013 AAPL: #[EB.BST.IDT|+]
00:275 00:010 AAPL: #[EB.BST.IDT|-]
00:284 00:009 AAPL: #[EB|WL] 0 0 0x01 0x01   3 0x00
00:294 00:009 AAPL: #[EB|WL] 0 0 0x01 0x01   4 0x00
00:309 00:015 AAPL: #[EB|BRD:NV] Mac-AA95B1DDAB278B95
00:322 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   5 0x00
00:331 00:009 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
00:341 00:009 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:351 00:009 AAPL: #[EB|WL] 0 0 0x01 0x01  23 0x0E
00:362 00:011 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:373 00:011 AAPL: #[EB|WL] 0 0 0x01 0x01  24 0x0E
00:386 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:396 00:009 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:411 00:015 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:421 00:009 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:430 00:009 AAPL: #[EB|H:NOT]
00:441 00:010 AAPL: #[EB|SB:P] 0x0
00:456 00:015 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(17|0)/SATA(1,FFFF)/HD(Part2,SigE72E1F51-00E7-42BC-B0EE-222953E1A77B)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842)
00:470 00:013 AAPL: #[EB|LIMG:FP] \E1BB6566-AB14-4656-A383-C9CE05183021\System\Library\CoreServices\boot.efi
00:479 00:009 AAPL: #[EB|LIMG:OPT]
00:490 00:010 AAPL: #[EB.OPT.LXF|F] <"\\E1BB6566-AB14-4656-A383-C9CE05183021\\System\\Library\\CoreServices\\com.apple.Boot.plist">
00:500 00:009 AAPL: #[EB.LD.LF|IN] 0 1 <"\\E1BB6566-AB14-4656-A383-C9CE05183021\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
00:513 00:013 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\E1BB6566-AB14-4656-A383-C9CE05183021\\System\\Library\\CoreServices\\com.apple.Boot.plist">
00:525 00:011 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
00:534 00:009 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
00:544 00:009 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
00:556 00:011 AAPL: #[EB|KF] <"">
00:568 00:012 AAPL: #[EB|MBA:CL] <"">
00:577 00:009 AAPL: #[EB|MBA:NV] <"keepsyms=1 agdpmod=pikera alcid=1">
00:586 00:009 AAPL: #[EB|MBA:KF] <"">
00:596 00:009 AAPL: #[EB|MBA:OUT] <"keepsyms=1 agdpmod=pikera alcid=1">
00:611 00:015 AAPL: #[EB|OPT:BM] 0x80100
00:620 00:009 AAPL: #[EB.OPT.LXF|F] <"\\E1BB6566-AB14-4656-A383-C9CE05183021\\System\\Library\\CoreServices\\PlatformSupport.plist">
00:630 00:009 AAPL: #[EB.LD.LF|IN] 0 1 <"\\E1BB6566-AB14-4656-A383-C9CE05183021\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
00:641 00:011 AAPL: #[EB|P:CPR] N
00:651 00:009 AAPL: #[EB|P:MPI] N
00:663 00:011 AAPL: #[EB|P:BPI] N
00:673 00:009 AAPL: #[EB|KMR] 221331456
00:682 00:009 AAPL: #[EB.CS.CSKSD|+]
00:692 00:009 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
00:708 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01   6 0x0E
00:719 00:011 AAPL: #[EB.CS.LFC|+]
00:729 00:009 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\Caches\\com.apple.corestorage\\EncryptedRoot.plist.wipekey"> <"0">
00:749 00:019 AAPL: #[EB.FS.AGSVH|PU] E1BB6566-AB14-4656-A383-C9CE05183021
00:758 00:009 AAPL: #[EB.FS.AGSVH|!] Err(0xE) <- BS.LocHB 59D76AE4-37E3-55A7-B460-EF13D46E6020
00:773 00:014 AAPL: #[EB.G.CS|-?] Ok(0)
01:021 00:247 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
01:033 00:012 AAPL: #[EB.B.SBS|SZ] 723512
01:048 00:015 AAPL: #[EB|B:SHA] <89e4888f0beff9f352d9761a265a05de99e89918>
01:063 00:014 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:072 00:009 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
01:082 00:009 AAPL: #[EB|WL:DT] 0xedb37126
01:092 00:009 AAPL: #[EB.LD.LKC|D] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc.development">
01:103 00:011 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
01:116 00:012 AAPL: #[EB.LD.LKC|R.2] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc">
01:792 00:675 AAPL: #[EB.LD.LKFS|-?] Ok(0)
01:803 00:011 AAPL: #[EB.LD.LKC|-?] Ok(0)
01:814 00:011 AAPL: #[EB|BST:REV1]
01:830 00:016 AAPL: #[EB|CSR:IN] 0x00000FFF
01:840 00:009 AAPL: #[EB|CSR:OUT] 0x00000FEF
01:849 00:009 AAPL: #[EB.BST.FBS|+]
01:860 00:010 AAPL: #[EB.BST.FBS|ADSZ] 0
01:869 00:009 AAPL: #[EB.BST.FBS|KSSZ] 0
01:881 00:011 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m
01:890 00:009 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
01:900 00:009 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m">
01:909 00:009 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
01:927 00:017 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> <"0">
01:940 00:013 AAPL: #[EB.BST.FBS|RHPSZ] 229
01:949 00:009 AAPL: #[EB.BST.FBS|RHMSZ] 3627
01:959 00:010 AAPL: #[EB|LOG:DT] 2023-07-01T21:57:34
01:969 00:010 AAPL: #[EB|LOG:EXITBS:START] 2023-07-01T21:57:34

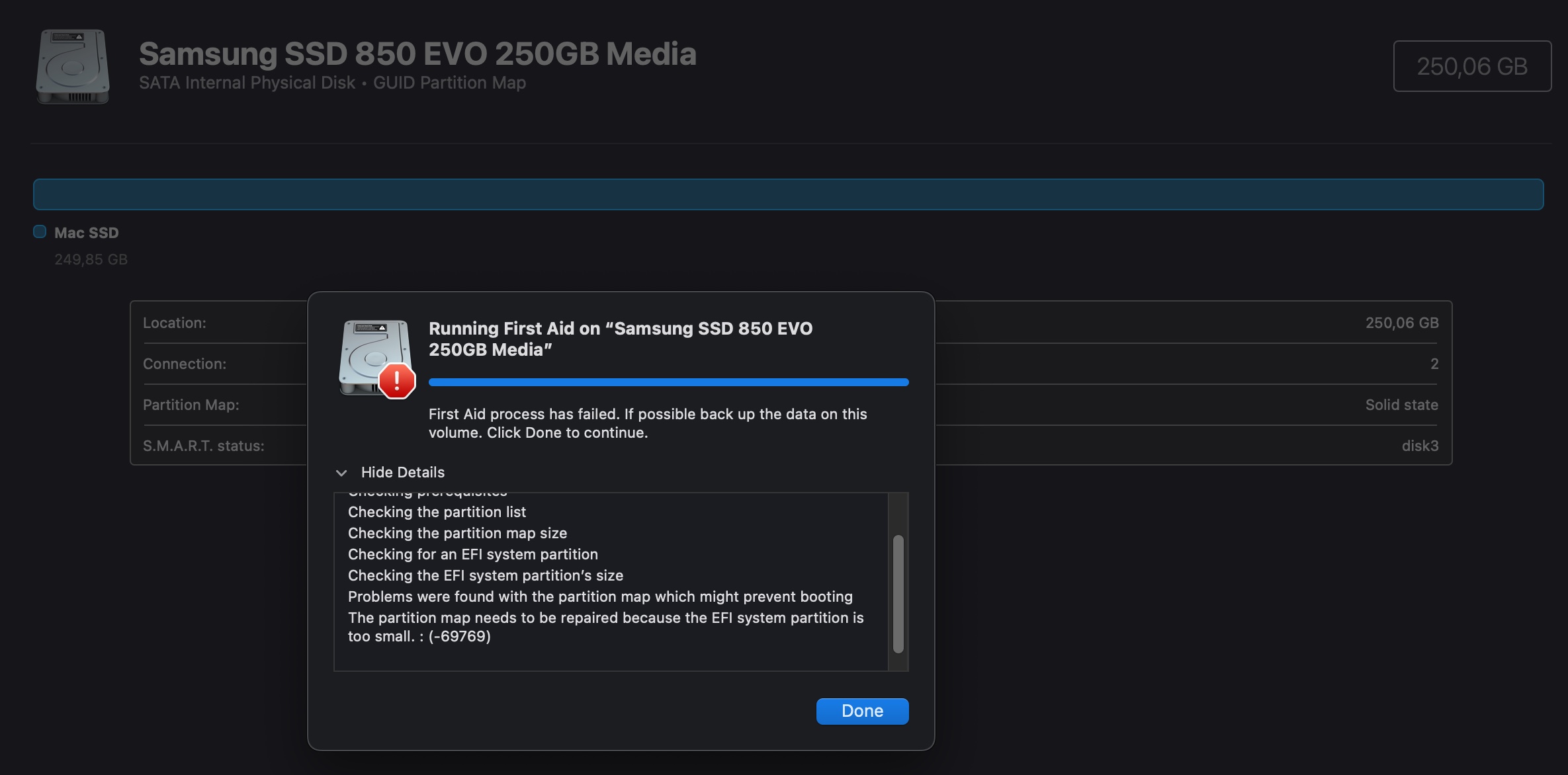

I also noticed an error if I scan my disk but I don't know if this was already the case in earlier verions....



1049168958_ScreenShot2023-07-01at22_53_54.thumb.jpg.3660d73d7badeeb13c1e17b126af99b3.jpg

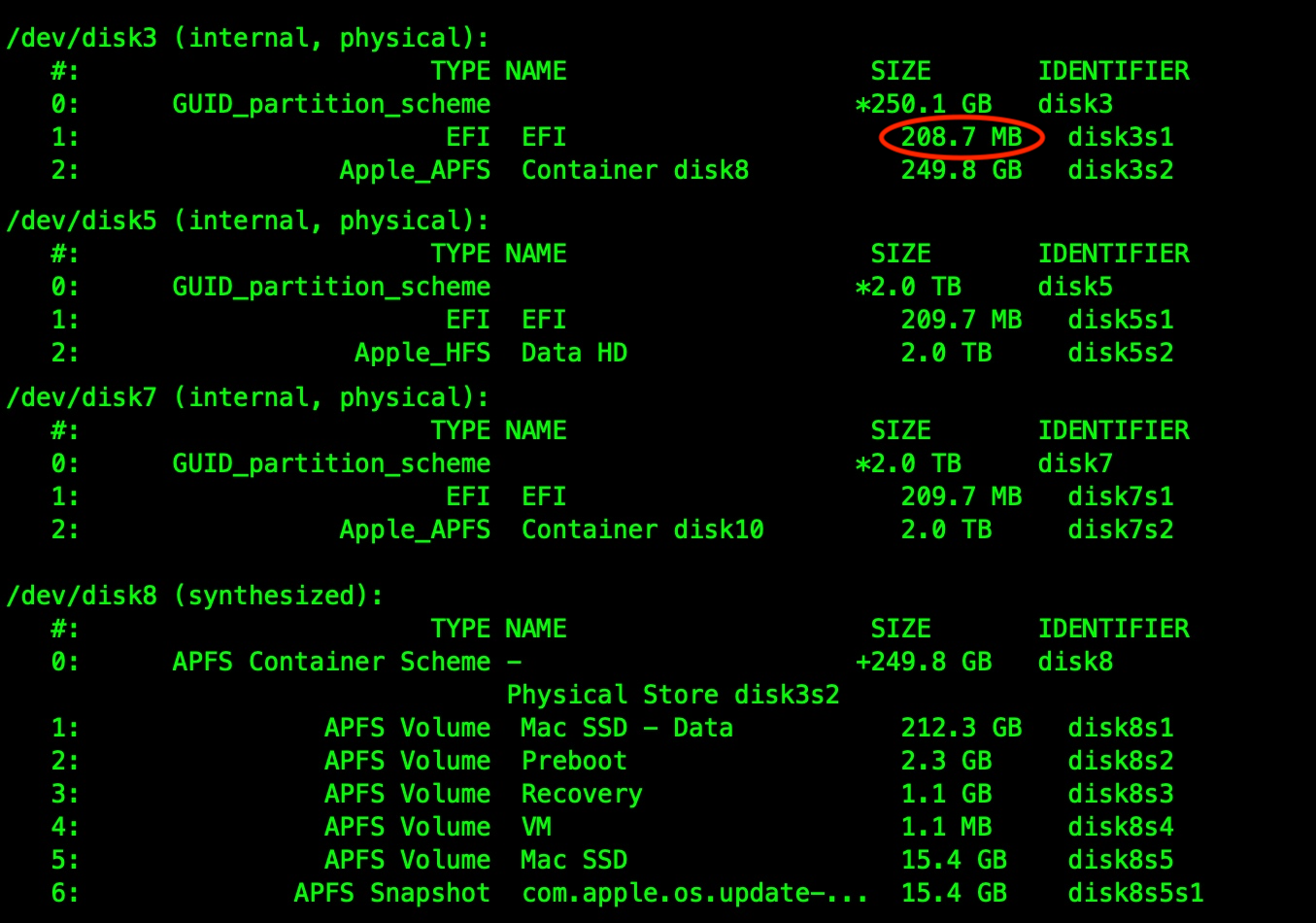

I reformatted the EFI partition but I can't make it larger. I noticed that the size is 208,7 MB while my other EFI partitions are 209,7 MB.

But I don't know if this has something to do with my problem at all....



354906817_ScreenShot2023-07-01at22_58_45.thumb.png.cfac1f5782b1ceb7cecee6e7189f4c8a.png









Edited by BiTRiP
Link to comment
Share on other sites
BiTRiP
BiTRiP
Posted
  • Author
Posted
12 hours ago, Cyberdevs said:

@BiTRiP

What is the value for SetApfsTrimTimeout? if it is -1 set to 0, you can find it under Kernel->Quirks



It was set to -1 and i've set it to 0 now but it didn't fix it unfortunately. Thanks for the suggestion though. :)



Link to comment
Share on other sites
Cyberdevs
Cyberdevs
Posted
Posted
23 minutes ago, BiTRiP said:

It was set to -1 and i've set it to 0 now but it didn't fix it unfortunately. Thanks for the suggestion though. :)

Boot with verbose mode and see where it stalls.

you can add -v to nvram for verbose mode.

Link to comment
Share on other sites
BiTRiP
BiTRiP
Posted
  • Author
Posted (edited)

I solved it.

Although I had no problems with bluetooth, I added the BlueToolFixup.kext to my EFI and surprisingly this fixed it!

Now it starts in 3 seconds again :)



Thanks for help.
