Hi, there,
I've been having this problem for 3 days now, so I think I need some personalized help.



i9 13900K
Asrock Z790 Taichi
128Gb Ram DDR5
RX 580 + RTX 4090 (Disabled on Mac via OpenCore tuto)



I followed the OpenCore + https://www.reddit.com/r/hackintosh/comments/11xqvcx/success_macos_ventura_on_asrock_z790_taichi_with/ guide.

Installation done, I'm on Mac, I can use it but I have to connect to HDMI on the motherboard to boot.

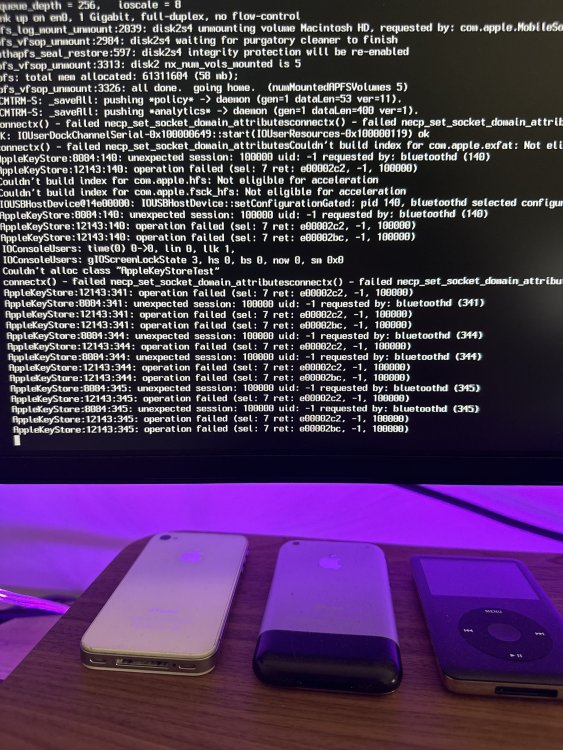

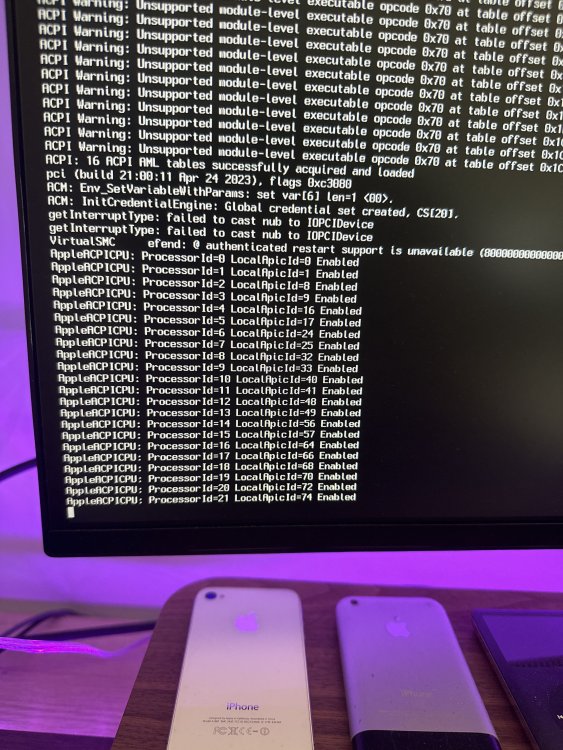

My RX 580 is visible in the hardware info>Video cards/Monitor of the Mac preferences but if I try to boot on it with HDMI or DisplayPort on the RX 580 I get a boot block at this stage (see PJ "Error1" I also had "Error2" at one point). I'm also attaching my current EFI.



Thank you very much!




error 1.jpg

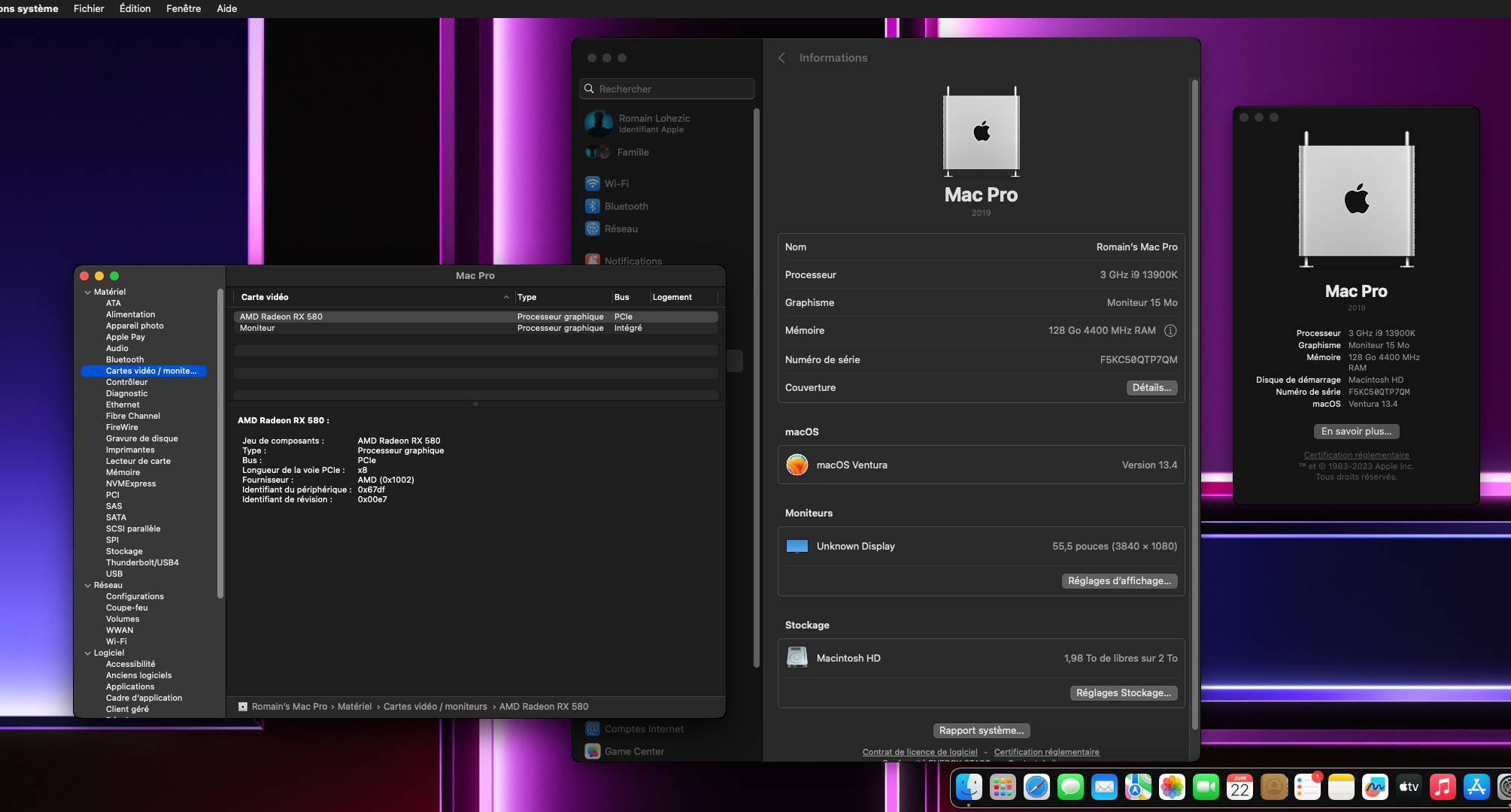

Capture d’écran 2023-06-22 à 16.02.24.pngerror 2.jpg

EFI.zip

Edited by TraumAmnesia
Link to comment
Share on other sites

Finally I succeeded!

It's a Sapphire Pulse RX 580.

All I had to do was change the ResizeAppleGpuBars from -1 to 0, and now I've got a hackintosh that's almost 100% functional! I'm waiting to receive my Fenvi t919 card.

40223 points on Geekbench, that's awesome!

  • Like 2
Link to comment
Share on other sites

  • 1 month later...
On 6/23/2023 at 12:41 AM, TraumAmnesia said:

Finally I succeeded!

It's a Sapphire Pulse RX 580.

All I had to do was change the ResizeAppleGpuBars from -1 to 0, and now I've got a hackintosh that's almost 100% functional! I'm waiting to receive my Fenvi t919 card.

40223 points on Geekbench, that's awesome!

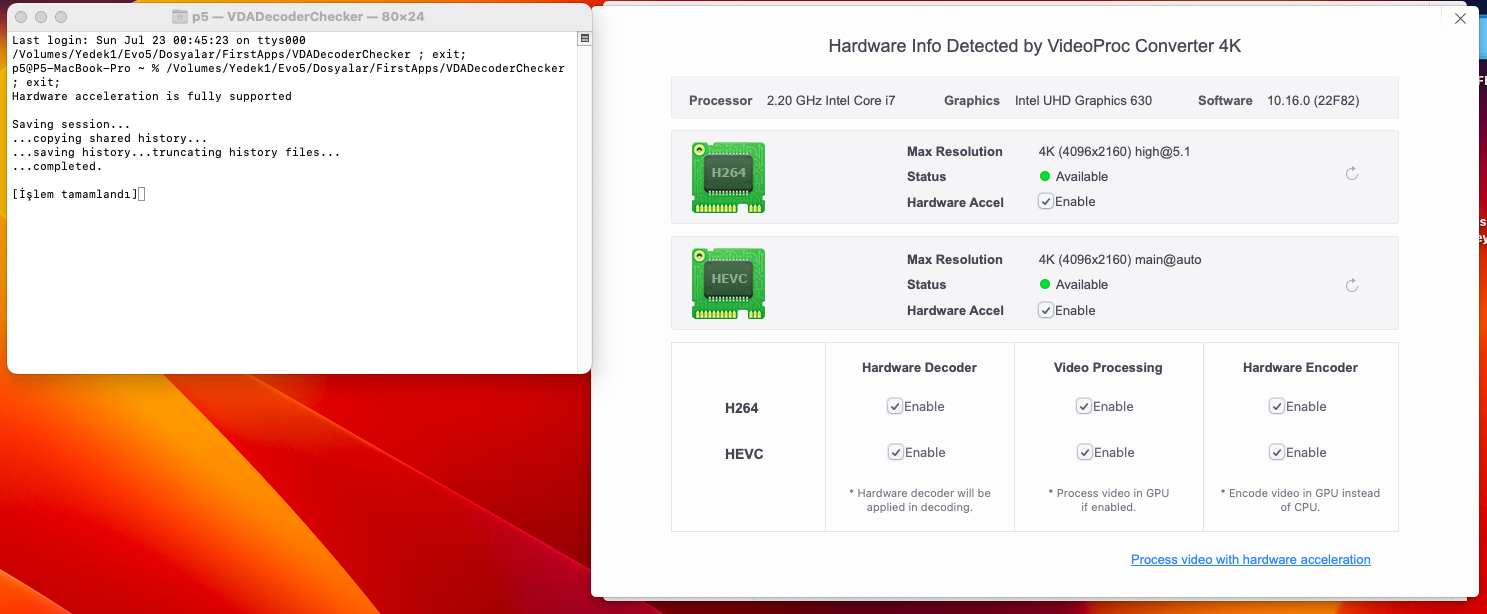

Have you done any tests on the operation of graphics acceleration? As I shared pictures below.



2081577555_EkranResmi2023-07-2300_48_31.thumb.png.4a6e8e9494dd640181794f4aa1ff6f1f.png
