[pre-release] macOS Sonoma


1,844 posts in this topic

Recommended Posts

I would like to thank Hervé about this detailed recap that I just copied.

I paste it here in order to let people stop arguing about wireless issues, both related to 1st beta (or ongoing betas) and broadcom chipsets.



- Sonoma 1st beta officially drops 7th gen. Kaby Lake platforms (on top of older ones of course) but, for the moment, retains KBL graphics drivers. Why? Simple: because it's required to support Amber Lake UHD617 graphics of MBA8,1.
- Sonoma 1st beta drops Broadcom legacy 802.11ac wireless chipsets that Ventura still supported through IO80211FamilyLegacy kext: 14e4:43ba, 14e4:43a3 and 14e4:43a0, i.e. BCM43602, BCM4350 and BCM4360. Big Sur had already dropped support for the last 802.11bgn cards that Apple had retained up to Catalina. Supporting those older 802.11ac chipsets through a kext bearing the name "legacy" should have been quite an obvious hint in itself as far as what the future held...
- Sonoma 1st beta supports only the following Broadcom chipsets: 14e4:43dc, 14e4:4464, 14e4:4488, 14e4:4425, 14e4:4433 and 14e4:4434, i.e. BCM4355 (802.11ac), BCM4364 (802.11ac), BCM4377b (802.11ac), BCM4378 (802.11ax), BCM4387 (802.11ax) and BCM4388 (802.11ax). Afaik, all those are provided as specific SOCs to Apple by Broadcom, i.e. chips to be soldered on Apple motherboards and not available on add-on mini-PCIe/M.2 cards.



With regards to the wireless chipsets fitted to Intel Mac platforms supported by Sonoma, it's as follows:
- 2018 Mac mini8,1 -> BCM4364 (pci14e4,4464)
- 2018/2019 MacBookAir8,x -> BCM4355 (pci14e4,43dc)
- 2020 MacBookAir9,1 -> BCM4377b (pci14e4,4488)
- 2018/2019 MacBookPro15,x -> BCM4364 (pci14e4,4464)
- 2019/2020 MacBookPro16,x -> BCM4364 (pci14e4,4464)
- 2019 iMac19,x -> BCM4364 (pci14e4,4464)
- 2020 iMac20,x -> BCM4364 (pci14e4,4464)
- 2017 iMacPro1,1 -> BCM4355 (pci14e4,43dc)
- 2019 MacPro7,1 -> BCM4364 (pci14e4,4464)



Make your own considerations

  • Like 7
  • Thanks 2
Link to comment
Share on other sites

21 minutes ago, acquarius13 said:

I would like to thank Hervé about this detailed recap that I just copied.

I paste it here in order to let people stop arguing about wireless issues, both related to 1st beta (or ongoing betas) and broadcom chipsets.



- Sonoma 1st beta officially drops 7th gen. Kaby Lake platforms (on top of older ones of course) but, for the moment, retains KBL graphics drivers. Why? Simple: because it's required to support Amber Lake UHD617 graphics of MBA8,1.
- Sonoma 1st beta drops Broadcom legacy 802.11ac wireless chipsets that Ventura still supported through IO80211FamilyLegacy kext: 14e4:43ba, 14e4:43a3 and 14e4:43a0, i.e. BCM43602, BCM4350 and BCM4360. Big Sur had already dropped support for the last 802.11bgn cards that Apple had retained up to Catalina. Supporting those older 802.11ac chipsets through a kext bearing the name "legacy" should have been quite an obvious hint in itself as far as what the future held...
- Sonoma 1st beta supports only the following Broadcom chipsets: 14e4:43dc, 14e4:4464, 14e4:4488, 14e4:4425, 14e4:4433 and 14e4:4434, i.e. BCM4355 (802.11ac), BCM4364 (802.11ac), BCM4377b (802.11ac), BCM4378 (802.11ax), BCM4387 (802.11ax) and BCM4388 (802.11ax). Afaik, all those are provided as specific SOCs to Apple by Broadcom, i.e. chips to be soldered on Apple motherboards and not available on add-on mini-PCIe/M.2 cards.



With regards to the wireless chipsets fitted to Intel Mac platforms supported by Sonoma, it's as follows:
- 2018 Mac mini8,1 -> BCM4364 (pci14e4,4464)
- 2018/2019 MacBookAir8,x -> BCM4355 (pci14e4,43dc)
- 2020 MacBookAir9,1 -> BCM4377b (pci14e4,4488)
- 2018/2019 MacBookPro15,x -> BCM4364 (pci14e4,4464)
- 2019/2020 MacBookPro16,x -> BCM4364 (pci14e4,4464)
- 2019 iMac19,x -> BCM4364 (pci14e4,4464)
- 2020 iMac20,x -> BCM4364 (pci14e4,4464)
- 2017 iMacPro1,1 -> BCM4355 (pci14e4,43dc)
- 2019 MacPro7,1 -> BCM4364 (pci14e4,4464)



Make your own considerations

Give to people 2 or maybe at least 3 post...and you find a new one asking "why my BT work and not my wifi?!" 🤣 LoL

Edited by D3v1L
  • Haha 3
Link to comment
Share on other sites

hello, anyone heave an idea what I'm doing wrong? I have all kexts up to date as I said before I did installer like in this topic OC 0.9.3. I was able install I mean first stage on smbios iMac20,1 then on second stage of installation I'm getting KP. I think I've tried everything but maybe I've missed something. can someone have a look on my refi please and tell me what's wrong? thank you for any help.

SonomaEFI.zip

Link to comment
Share on other sites

30 minutes ago, marsuss said:

hello, anyone heave an idea what I'm doing wrong? I have all kexts up to date as I said before I did installer like in this topic OC 0.9.3. I was able install I mean first stage on smbios iMac20,1 then on second stage of installation I'm getting KP. I think I've tried everything but maybe I've missed something. can someone have a look on my refi please and tell me what's wrong? thank you for any help.

SonomaEFI.zip 5.01 MB · 0 downloads



I am using iMac20,2 on my 10th gen comet lake and I didn't had to change a single thing for installing Sonoma. So it's possible a config issue. Use the debug version of OpenCore and generate a bootlog

48 minutes ago, D3v1L said:

Give to people 2 or maybe at least 3 post...and you find a new one asking "why my BT work and not my wifi?!" 🤣 LoL



That's a problem of linear structured forums using pages in general.

1 hour ago, Henties said:



Oh thank you, you are now echoing precisely what I have been writing all along on this particular topic.



Well done.



Greetings Henties







Ball flach halten…

  • Haha 1
Link to comment
Share on other sites

Thanks for your post acquarius13.

the next round of questions will inevitably be, what M.2 WIFI/BT combo cards are available that will run natively on Sonoma.



It’s getting tiring, I have the BCM94360NG bought for Ventura and its about the 5th Wifi and or BT bit of hardware I’ve had to buy, had several WIFI pcie cards, various BT USB adapters now the BCM94360NG, what’s next thats needed, cos I don’t have PCIe slots for another WIFI card and no more USB ports for a new BT adapter.



  • Confused 1
Link to comment
Share on other sites

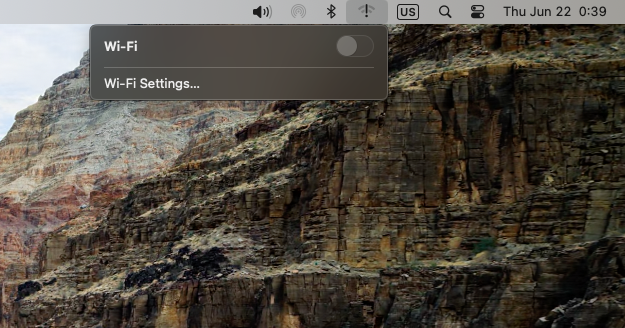

I suppose another question is, if WIFI is gona be broken in Sonoma for many of us, will Airdrop work (or can we get it working) if enable and connect to the network with wired ethernet, that’s one alternative to think about.

Link to comment
Share on other sites

@draylax

I strongly suggest to wait and see what happens with the future releases of Sonoma in regard to WiFi compatibility and support before buying devices. Things may have change in the next releases or maybe developers find a way to add the legacy support back.

  • Like 7
Link to comment
Share on other sites

3 hours ago, The Tech said:

O RX 6900XT requer este Kext? Se sim, onde está a fonte desse kext?



For my desktop only used SSDT and DeviceProperties to RX6900XT






Boot args: -lilubeta -alcbeta -revbeta -wegbeta shikigva=40 alcid=12 watchdog=0 agdpmod=pikera npci=0x2000 keepsyms=1 (for sonoma)





SSDT-BRG0.aml.zip

  • Like 1
Link to comment
Share on other sites

8 hours ago, marsuss said:

hello, anyone heave an idea what I'm doing wrong? I have all kexts up to date as I said before I did installer like in this topic OC 0.9.3. I was able install I mean first stage on smbios iMac20,1 then on second stage of installation I'm getting KP. I think I've tried everything but maybe I've missed something. can someone have a look on my refi please and tell me what's wrong? thank you for any help.

SonomaEFI.zip 5.01 MB · 5 downloads



I suggest you use MacBookPro15,1



And based on my boot-args in this EFI



https://osxlatitude.com/forums/topic/19378-lenovo-thinkpad-e470-efi-opencore-093-sonoma-14-beta/?_fromLogin=1



Just look your intel UHD and change your own DDST or SSDT and serial SMBIOS.



Change Kexts what you need. Try this first.





My boot-args



-no_compat_check brcmfx-country=#a darkwake=0 swd_panic=1 -noDC9 -lilubetaall








824908019_EFIOC0.9.3LENOVOThinkpadE470Sonoma.zip

Captura de Tela 2023-06-19 às 15.59.25.png

Edited by Max.1974
Link to comment
Share on other sites

On 6/18/2023 at 12:56 PM, Cyberdevs said:

This one works amazingly well, Drop Copy can't handle large files but local send is pretty amazing. In case we can't get the WiFi to work in Sonoma this one can replace AirDrop!



Awesome my friend, im try used LocalSend but no success

On 6/18/2023 at 10:24 AM, AlfredoM said:

For the AirDrop problems, there is an alternative that is not quite as convenient, but it also works well for people who absolutely need it.

It's called Drop Copy



Thanks Alfredo I will try use it!!

Link to comment
Share on other sites

9 hours ago, acquarius13 said:

Gostaria de agradecer a Hervé por esta recapitulação detalhada que acabei de copiar.

Eu colo aqui para que as pessoas parem de discutir sobre problemas sem fio, ambos relacionados ao 1o beta (ou betas em andamento) e chipsets broadcom.



- Sonoma 1a versão beta lança oficialmente a 7a geração. Plataformas Kaby Lake (além das mais antigas, é claro), mas, por enquanto, mantém os drivers gráficos KBL. Por quê? Simples: porque é necessário suportar gráficos Amber Lake UHD617 do MBA8,1.
- Sonoma 1st beta lança chipsets sem fio 802.11ac legados Broadcom que Ventura ainda suportava através do IO80211FamilyLegacy kext: 14e4:43ba, 14e4:43a3 e 14e4:43a0, i.e. BCM43602, BCM4350 e BCM4360. A Big Sur já havia deixado cair o suporte para os últimos cartões 802.11bgn que a Apple havia mantido até o Catalina. Apoiar esses chipsets 802.11ac mais antigos através de um kext com o nome "legado" deveria ter sido uma dica bastante óbvia em si mesmo no que diz respeito ao que o futuro guardava...
- Sonoma 1st beta suporta apenas os seguintes chipsets Broadcom: 14e4:43dc, 14e4:4464, 14e4:4488, 14e4:4425, 14e4:4433 e 14e4:4434, ou seja, BCM4355 (802.11ac), BCM4364 (802.11ac), BCM4377b (802.11ac), BCM4378 (802.11ax), BCM4387 (802.11ax) e BCM4388 (802.11ax). Afaik, todos eles são fornecidos como SOCs específicos para a Apple pela Broadcom, ou seja, chips a serem soldados em placas-mãe da Apple e não disponíveis em placas mini-PCIe/M.2 adicionais.



No que diz respeito aos chipsets sem fio instalados nas plataformas Intel Mac suportadas pela Sonoma, é o seguinte:
- 2018 Mac mini8,1 -> BCM4364 (pci14e4,4464)
- 2018/2019 MacBookAir8,x -> BCM4355 (pci14e4,43dc)
- 2020 MacBookAir9,1 -> BCM4377b (pci14e4,4488)
- 2018/2019 MacBookPro15,x -> BCM4364 (pci14e4,4464)
- 2019/2020 MacBookPro16,x -> BCM4364 (pci14e4,4464)
- 2019 iMac19,x -> BCM4364 (pci14e4,4464)
- 2020 iMac20,x -> BCM4364 (pci14e4,4464)
- 2017 iMacPro1,1 -> BCM4355 (pci14e4,43dc)
- 2019 MacPro7,1 -> BCM4364 (pci14e4,4464)



Faça suas próprias considerações



The information is very useful, in my MBA I have one of them, and apparently all of them are soldered on mobo?

I believe that Chinese manufacturers do not forgive a lot of time and will make others, compatible, soon.

Edited by Max.1974
  • Haha 1
Link to comment
Share on other sites

8 minutes ago, Max.1974 said:

Awesome my friend, im try used LocalSend but no success

You need to have it installed on the devices that you want to transfer files between them, then add a file to transfer then select the destination as shown in the list.

Select Send on the computer you want to send the file from and you'll see the list of nearby devices that can receive the file



Spoiler




  • Like 3
  • Thanks 1
Link to comment
Share on other sites

Are you using USB 2.0?
opencore version?

3 hours ago, Cyberdevs said:

You need to have it installed on the devices that you want to transfer files between them, then add a file to transfer then select the destination as shown in the list.

Select Send on the computer you want to send the file from and you'll see the list of nearby devices that can receive the file



  Reveal hidden contents




So glad for your help. Im Will test today alter work. Thanks a lot

  • Like 1
Link to comment
Share on other sites

22 hours ago, cankiulascmnfye said:



I am using iMac20,2 on my 10th gen comet lake and I didn't had to change a single thing for installing Sonoma. So it's possible a config issue. Use the debug version of OpenCore and generate a bootlog



Hello again, this are boot logs from OC 0.9.3 Debug. Usb installer and macOS installer second stage. Thank you cankiulascmnfye.



opencore-2023-06-20-0945usbinstaller.txt opencore-2023-06-20-092812.txt

Edited by marsuss
  • Like 1
Link to comment
Share on other sites

@marsuss



Your config is not up to date:



00:000 00:000 OCS: Missing key DisableIoMapperMapping, context <Quirks>!
00:000 00:000 OCS: Missing key ConsoleFont, context <Output>!
00:000 00:000 OCS: Missing key GopBurstMode, context <Output>!
00:000 00:000 OCS: Missing key InitialMode, context <Output>!
00:000 00:000 OCS: Missing key PciIo, context <ProtocolOverrides>!
00:000 00:000 OCS: Missing key ResizeUsePciRbIo, context <Quirks>!



Resource Files for the Boot Menu theme seem to be missing:



611:863 01:931 OCUI: Failed to load image (1/1) Resources\Image\Acidanthera\GoldenGate\Background.icns prefix:Acidanthera\GoldenGate icon:0 - Not Found
613:775 01:911 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Apple.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
615:662 01:886 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtWindows.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
617:537 01:874 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Other.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
619:413 01:876 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtTool.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
621:290 01:876 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtResetNVRAM.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
623:162 01:872 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtShell.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found



I don't know what the actual problem is. You could try to set SecureBootModel to DIsabled and try again



Check your config for errors using https://sanitychecker.ocutils.me/

Check Dortania's Troubleshooting guide for error codes: https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/troubleshooting.html#table-of-contents





  • Like 3
Link to comment
Share on other sites

28 minutes ago, cankiulascmnfye said:

@marsuss



Your config is not up to date:



00:000 00:000 OCS: Missing key DisableIoMapperMapping, context <Quirks>!
00:000 00:000 OCS: Missing key ConsoleFont, context <Output>!
00:000 00:000 OCS: Missing key GopBurstMode, context <Output>!
00:000 00:000 OCS: Missing key InitialMode, context <Output>!
00:000 00:000 OCS: Missing key PciIo, context <ProtocolOverrides>!
00:000 00:000 OCS: Missing key ResizeUsePciRbIo, context <Quirks>!



Resource Files for the Boot Menu theme seem to be missing:



611:863 01:931 OCUI: Failed to load image (1/1) Resources\Image\Acidanthera\GoldenGate\Background.icns prefix:Acidanthera\GoldenGate icon:0 - Not Found
613:775 01:911 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Apple.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
615:662 01:886 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtWindows.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
617:537 01:874 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Other.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
619:413 01:876 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtTool.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
621:290 01:876 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtResetNVRAM.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
623:162 01:872 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtShell.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found



I don't know what the actual problem is. You could try to set SecureBootModel to DIsabled and try again



Check your config for errors using https://sanitychecker.ocutils.me/

Check Dortania's Troubleshooting guide for error codes: https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/troubleshooting.html#table-of-contents

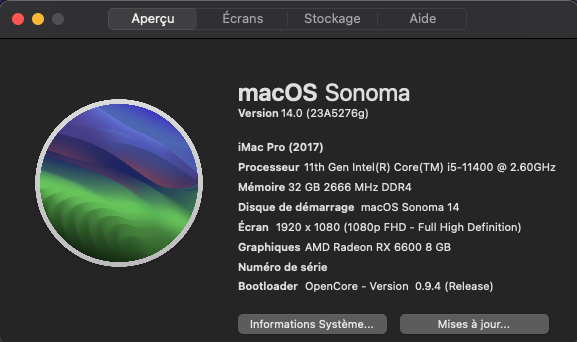

That's worked. Thank you so much, I've just completed installation Sonoma on my laptop. Thank you cankiulascmnfye 😁.

  • Like 3
Link to comment
Share on other sites
