DMhackintosh Posted February 1, 2023 Share Posted February 1, 2023 (edited) I have installed Ventura 13.2 (22D49) on a Dell latitude 3440 - intel hd graphics 4400 OC.0.8.9 Successfully installed but can't patch with OCLP The Start Root Patching button cannot be pressed. How do I fix it? https://github.com/dortania/OpenCore-Legacy-Patcher/issues/1008?fbclid=IwAR1_DlaUkuQOH_baIWOYHLUEZViY7CjocLw5G-yE47ELkdCAmQDPUVurpj0 Edited February 1, 2023 by diamondhackintosh Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/ Share on other sites More sharing options...
1Revenger1 Posted February 1, 2023 Share Posted February 1, 2023 (edited) OCLP tries to automatically detect what patches are needed by device ID/devices that exist within your system. Because OCLP mostly looks at devices that exist in apple devices, it doesn't look for the HD 4400 as it was never in any apple devices. You likely need to spoof the device ID anyway to get the graphics kexts to work (even after OCLP patched them in), so it is probably worth seeing if you can set your device-id to match one of those listed in the link above. Edited February 1, 2023 by 1Revenger1 2 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2800855 Share on other sites More sharing options...
DMhackintosh Posted February 1, 2023 Author Share Posted February 1, 2023 20 minutes ago, 1Revenger1 said: OCLP tries to automatically detect what patches are needed by device ID/devices that exist within your system. Because OCLP mostly looks at devices that exist in apple devices, it doesn't look for the HD 4400 as it was never in any apple devices. You likely need to spoof the device ID anyway to get the graphics kexts to work (even after OCLP patched them in), so it is probably worth seeing if you can set your device-id to match one of those listed in the link above. Thanks a lot, I'll try it out. Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2800857 Share on other sites More sharing options...
DMhackintosh Posted February 1, 2023 Author Share Posted February 1, 2023 (edited) I still have no luck I don't know if I set this up correctly or not. I've attached the EFI, just in case it's useful. i use MacbookPro 14,1 My smbios EFI Edited February 1, 2023 by diamondhackintosh Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2800863 Share on other sites More sharing options...
1Revenger1 Posted February 1, 2023 Share Posted February 1, 2023 Do you have Whatever green or have an ACPI patch to rename the iGPU device to IGPU? Looking a bit closer, it seems like OCLP checks the ioregistry to detect the device, and it specifically looks for devices named IGPU with the right device id. Whatever green will rename it automatically. The device id you have set currently looks fine. 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2800866 Share on other sites More sharing options...
arcade33 Posted February 23, 2023 Share Posted February 23, 2023 On 2/1/2023 at 8:47 AM, diamondhackintosh said: I still have no luck I don't know if I set this up correctly or not. I've attached the EFI, just in case it's useful. i use MacbookPro 14,1 My smbios EFI like that it's ok !!!! 2 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2801715 Share on other sites More sharing options...
DMhackintosh Posted February 24, 2023 Author Share Posted February 24, 2023 On 2/23/2023 at 4:44 PM, arcade33 said: like that it's ok !!!! Thank you 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2801765 Share on other sites More sharing options...
Iceman Posted March 12, 2023 Share Posted March 12, 2023 On 2/23/2023 at 10:44 AM, arcade33 said: like that it's ok !!!! Hello, Is it Haswell? Which SMBIOS did you choose? Is Metal working? (are you able to set "Deriva" as screensaver, just for example...?) Let me know Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2802313 Share on other sites More sharing options...
arcade33 Posted March 13, 2023 Share Posted March 13, 2023 8 hours ago, Iceman said: Hello, Is it Haswell? Which SMBIOS did you choose? Is Metal working? (are you able to set "Deriva" as screensaver, just for example...?) Let me know yes is an Haswell processor smbios 15.2 macbook pro metal is working and also DERIVA as Screensaver Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2802331 Share on other sites More sharing options...
Iceman Posted March 13, 2023 Share Posted March 13, 2023 i have a strange behaviour, because system is graphic accelerated, but any "metal" thing is freezing the system. After tried different platform-id, i realized the most important flag is "framebuffer-cursormem", because without it, i can't open neither "Terminal" (freezing suddenly on click... Safari too, for example) On bios i switched AUTO to 64MB, but i don't know how important it is... because i set even framebuffer-stolenmem/framebuffer-fbmem Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2802337 Share on other sites More sharing options...
Iceman Posted April 8, 2023 Share Posted April 8, 2023 (edited) Just to let you (all) know, i solved by changing CPU... my i3-4150 had HD4400 that has glitching (choosing, for example, Drift as screensaver, the system freeze for a couple of seconds). No mem patches has worked... i really tried EVERY SINGLE ONE... Leaving 128MB share size on BIOS (exactly how it was when trying with i3), without making anything else, and just switching CPU to an i5-4460, everything works perfect now... because this CPU has HD4600 I upgraded my Catalina system installed previously with the i3, straight to Monterey and everything went better than making it on a real Mac 😂 Edited April 8, 2023 by Iceman Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2803325 Share on other sites More sharing options...
oldman20 Posted November 24, 2023 Share Posted November 24, 2023 On 4/8/2023 at 9:18 PM, Iceman said: Just to let you (all) know, i solved by changing CPU... my i3-4150 had HD4400 that has glitching (choosing, for example, Drift as screensaver, the system freeze for a couple of seconds). No mem patches has worked... i really tried EVERY SINGLE ONE... Leaving 128MB share size on BIOS (exactly how it was when trying with i3), without making anything else, and just switching CPU to an i5-4460, everything works perfect now... because this CPU has HD4600 I upgraded my Catalina system installed previously with the i3, straight to Monterey and everything went better than making it on a real Mac 😂 Im stuck over a week for it, i tried Ventura, Sonoma with OLCP and it still 4Mb Graphics, tried Catalina but cant boot Anyone has same spec or has experience please help, many thank CPU └── Intel(R) Core(TM) i3-4160 CPU @ 3.60GHz ├── Cores: 2 ├── Threads: 4 ├── SSE: SSE4.2 └── SSSE3: Supported ─ Motherboard ├── Model: H81M-DS2 └── Manufacturer: Gigabyte Technology Co., Ltd. ─ GPU ├── Intel(R) HD Graphics 4400 │ ├── Device ID: 0x041E │ ├── Vendor: 0x8086 │ ├── PCI Path: PciRoot(0x0)/Pci(0x2,0x0) │ └── ACPI Path: \_SB.PCI0.GFX0 └── NVIDIA GeForce GT 730 ├── Device ID: 0x0F02 ├── Vendor: 0x10DE ├── PCI Path: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0) └── ACPI Path: \_SB.PCI0.PEG0.PEGP Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813834 Share on other sites More sharing options...
ArcaneRhapsody Posted November 24, 2023 Share Posted November 24, 2023 5 hours ago, oldman20 said: Im stuck over a week for it, i tried Ventura, Sonoma with OLCP and it still 4Mb Graphics, tried Catalina but cant boot Anyone has same spec or has experience please help, many thank I'm under the impression that swapping out the i3-4150 for an i5-4460 was a smart move, especially given the improved graphics capability with the HD4600. Regarding your current issue: Have you tried updating your BIOS to the latest version? Sometimes, this can resolve compatibility issues. You can also check the compatibility of the NVIDIA GeForce GT 730 with the newer macOS versions. There might be some driver conflicts causing the boot issues. Just my 2 cents ... Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813843 Share on other sites More sharing options...
cankiulascmnfye Posted November 24, 2023 Share Posted November 24, 2023 @oldman20 8 hours ago, oldman20 said: Im stuck over a week for it, i tried Ventura, Sonoma with OLCP and it still 4Mb Graphics, tried Catalina but cant boot Anyone has same spec or has experience please help, many thank CPU └── Intel(R) Core(TM) i3-4160 CPU @ 3.60GHz ├── Cores: 2 ├── Threads: 4 ├── SSE: SSE4.2 └── SSSE3: Supported ─ Motherboard ├── Model: H81M-DS2 └── Manufacturer: Gigabyte Technology Co., Ltd. ─ GPU ├── Intel(R) HD Graphics 4400 │ ├── Device ID: 0x041E │ ├── Vendor: 0x8086 │ ├── PCI Path: PciRoot(0x0)/Pci(0x2,0x0) │ └── ACPI Path: \_SB.PCI0.GFX0 └── NVIDIA GeForce GT 730 ├── Device ID: 0x0F02 ├── Vendor: 0x10DE ├── PCI Path: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0) └── ACPI Path: \_SB.PCI0.PEG0.PEGP Please upload your config.plist Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813847 Share on other sites More sharing options...
oldman20 Posted November 25, 2023 Share Posted November 25, 2023 10 hours ago, ArcaneRhapsody said: I'm under the impression that swapping out the i3-4150 for an i5-4460 was a smart move, especially given the improved graphics capability with the HD4600. Regarding your current issue: Have you tried updating your BIOS to the latest version? Sometimes, this can resolve compatibility issues. You can also check the compatibility of the NVIDIA GeForce GT 730 with the newer macOS versions. There might be some driver conflicts causing the boot issues. Just my 2 cents ... sadly i just using i3-4160 for my desktop, its too old but i have another laptop. And i read somebody can make hd4400 working 7 hours ago, cankiulascmnfye said: @oldman20 Please upload your config.plist config.plist Sure, thank for your attention. Hope u look at little and found solution Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813855 Share on other sites More sharing options...
cankiulascmnfye Posted November 25, 2023 Share Posted November 25, 2023 @oldman20 Before I begin: which OC version are you using and : this is for the i5-4460, correct? Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813864 Share on other sites More sharing options...
oldman20 Posted November 26, 2023 Share Posted November 26, 2023 On 11/25/2023 at 4:24 PM, cankiulascmnfye said: @oldman20 Before I begin: which OC version are you using and : this is for the i5-4460, correct? Lastest version 0.9.5 bro, and cpu i3-4160 desktop 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813906 Share on other sites More sharing options...
cankiulascmnfye Posted November 26, 2023 Share Posted November 26, 2023 (edited) 48 minutes ago, oldman20 said: Lastest version 0.9.5 bro, and cpu i3-4160 desktop Cleaned it up a little, merged missing keys so OC Validate is happy. Edited framebuffer patch. config_iMac14,4_i3-4160.plist.zip Edited November 26, 2023 by cankiulascmnfye 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813907 Share on other sites More sharing options...
ArcaneRhapsody Posted November 27, 2023 Share Posted November 27, 2023 On 11/24/2023 at 6:41 PM, oldman20 said: sadly i just using i3-4160 for my desktop, its too old but i have another laptop. And i read somebody can make hd4400 working I also think that the HD4400 can be made to work. Since you also have a laptop, you might find it useful for tasks that require more power or newer technology. 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813949 Share on other sites More sharing options...

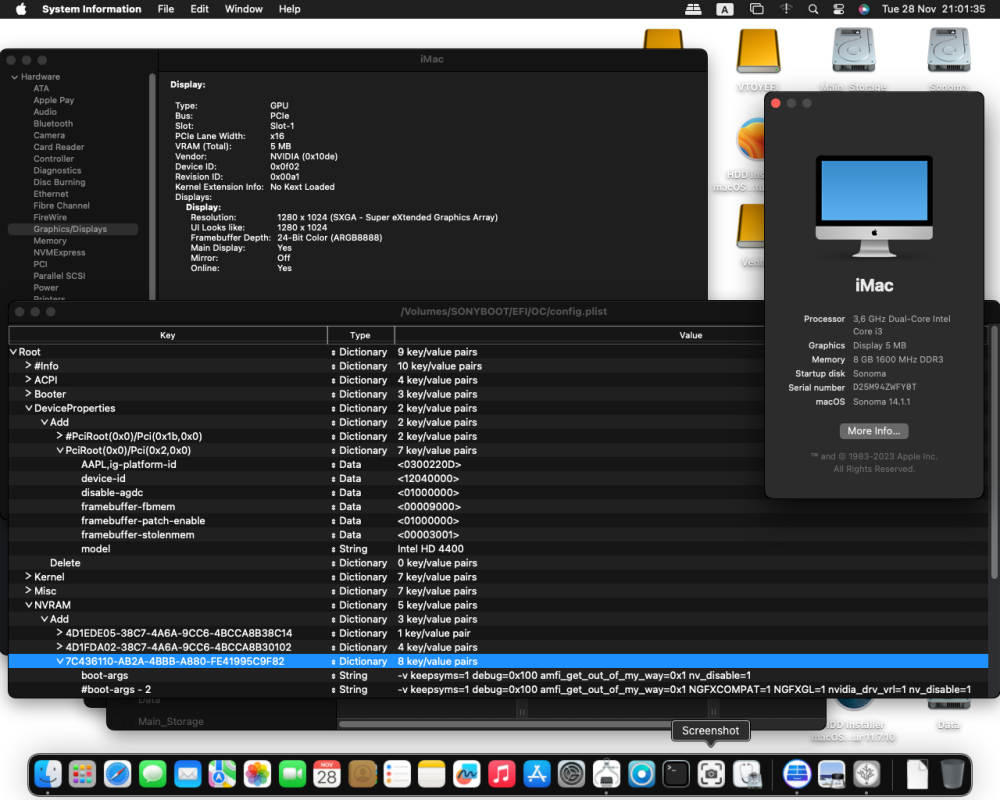

oldman20 Posted November 28, 2023 Share Posted November 28, 2023 On 11/27/2023 at 8:15 PM, ArcaneRhapsody said: I also think that the HD4400 can be made to work. Since you also have a laptop, you might find it useful for tasks that require more power or newer technology. Thank, i try it but still not working. I installed Sonoma on this, olcp patcheable but stuck when boot, need remove patched kext. I tried boot Big Sur or Catalina but cant bootable usb installer I want to use nvidia GT730 (kepler) on that hack. Any suggestions? Many thank Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813997 Share on other sites More sharing options...
cankiulascmnfye Posted November 28, 2023 Share Posted November 28, 2023 1 minute ago, oldman20 said: Thank, i try it but still not working. I installed Sonoma on this, olcp patcheable but stuck when boot, need remove patched kext. I tried boot Big Sur or Catalina but cant bootable usb installer I want to use nvidia GT730 (kepler) on that hack. Any suggestions? Many thank OpenCore Legacy Patcher. Use an empty Framebuffer for the iGPU for IQSV. And use nv_disable=1 boot-arg, so the card runs in VESA mode. After applying root patches, you can remove the boot-arg 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2813999 Share on other sites More sharing options...
oldman20 Posted November 29, 2023 Share Posted November 29, 2023 10 hours ago, cankiulascmnfye said: OpenCore Legacy Patcher. Use an empty Framebuffer for the iGPU for IQSV. And use nv_disable=1 boot-arg, so the card runs in VESA mode. After applying root patches, you can remove the boot-arg sorry, more clearly about empty framebuffer? what is IQSV? I using this boot for installing process (success) but failed when trying enable hd4400 or kepler gt730 on Sonoma -v keepsyms=1 debug=0x100 amfi_get_out_of_my_way=0x1 NGFXCOMPAT=1 NGFXGL=1 nvidia_drv_vrl=1 nv_disable=1 Tried boot Big Sur or Catalina but cant 10 hours ago, cankiulascmnfye said: OpenCore Legacy Patcher. Use an empty Framebuffer for the iGPU for IQSV. And use nv_disable=1 boot-arg, so the card runs in VESA mode. After applying root patches, you can remove the boot-arg must i need add anything in DeviceProperties in config.plist for nvidia card? Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2814031 Share on other sites More sharing options...

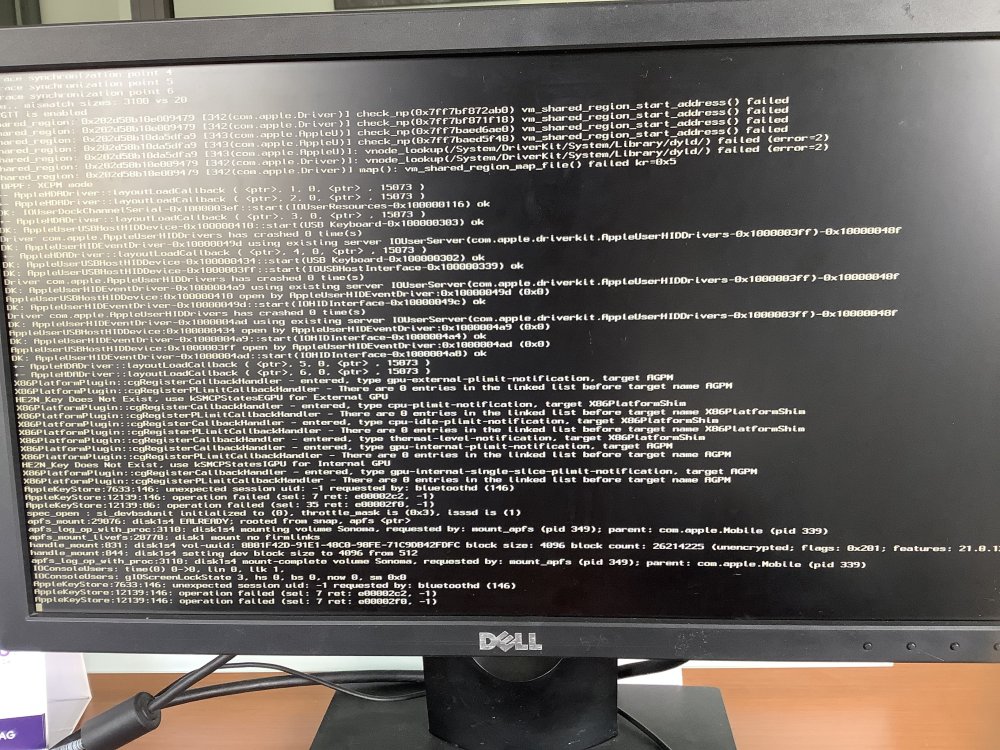

oldman20 Posted November 29, 2023 Share Posted November 29, 2023 (edited) 13 hours ago, cankiulascmnfye said: OpenCore Legacy Patcher. Use an empty Framebuffer for the iGPU for IQSV. And use nv_disable=1 boot-arg, so the card runs in VESA mode. After applying root patches, you can remove the boot-arg i tried olcp and cant boot, but system not freeze (Pic. 2) (keyboard Caps Lock still respon) must plugout power to reboot and restore snapshot to boot (Pic. 1) Edited November 29, 2023 by oldman20 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2814034 Share on other sites More sharing options...
cankiulascmnfye Posted November 29, 2023 Share Posted November 29, 2023 (edited) @oldman20 Empty Framebuffer = iGPU is only used for computational tasks and not displaying a picture. IQSV (= Intel QuickSync Video) is a computational task, for example. And since you didn't follow my instructions your iGPU is now misconfigured. Because you have BOTH iGPU and GPU configured for displaying picture. So, change the following: AAPL,ig-platform-id to 04001204 Leave Device ID as is Disable framebuffer… entries (put # in front), dlete the agdc entry Delete nvidia_drv_vrl=1 >> Not required for kepler card. Otherwise you tell the system to load web drivers (which are not present anyway) while telling it to use VESA mode at the same ime. BTW: the correct boot-arg is nvda_drv_vrl=1 NOT nvidia_drv_vrl=1 Save the config.plist and Reboot. Edited November 30, 2023 by cankiulascmnfye 2 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2814043 Share on other sites More sharing options...
ArcaneRhapsody Posted November 29, 2023 Share Posted November 29, 2023 21 hours ago, oldman20 said: Thank, i try it but still not working. I installed Sonoma on this, olcp patcheable but stuck when boot, need remove patched kext. I tried boot Big Sur or Catalina but cant bootable usb installer I want to use nvidia GT730 (kepler) on that hack. Any suggestions? Many thank Hmmm... NVIDIA GT730 might work. Just check those BIOS settings and make sure your bootable USB for Big Sur or Catalina has the right setup. It can be tricky, but you've got this. 1 Link to comment https://www.insanelymac.com/forum/topic/355531-can%E2%80%99t-patch-graphics-with-oclp-on-intel-intel-hd-graphics-4400-ventura/#findComment-2814052 Share on other sites More sharing options...
