Drop DMAR Table vs DisableIOMapper

[J Lamp]

A quick question regarding "DropForAllOS." I've not found a lot of info on it, but I have found a couple places where it suggests I have it set correctly, though Slice informs me it is not;



This suggests it has no effect on MacOS;

https://github.com/CloverHackyColor/CloverBootloader/issues/145



This also seems to imply that I had it set correctly;

https://elitemacx86.com/threads/how-to-fix-dmar-table-on-macos-memory-mapping.964/



So what is the impact of this setting and what is its correct usage?

[J Lamp]

OK, I've tested all this out, here are the results;

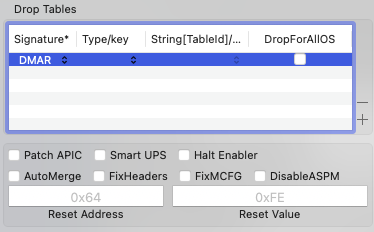

1)  I do not drop the DMAR table in Clover, machine panics early in the boot process.





2) I do drop the DMAR table



Machine boots fine, but loads the DMAR table anyway. If I try to use a patched DMAR I end up with 2 DMAR tables

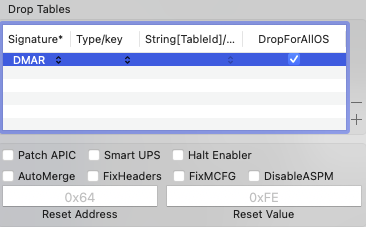

3) I drop the DMAR table and enable DropForAllOS



Results are the same as 2. The DMAR table still loads. If I have a patched table I end up with 2 DMAR tables in ACPI





4)  (THE WINNER!!!) AutoMerge;



With this enabled I get only 1 DMAR table in MacOS (my patched one) and in Windows the only original DMAR table with the Reserved Memory Regions gets loaded. This is exactly the result I was hoping for.



I realize that @Slice has not been able to replicate this, though from the posts it seems I'm not the only one encountering this. I don't know if there is a common ACPI issue that I and @cankiulascmnfye have that is causing this. Obviously setting Clover to drop the DMAR table is doing something, otherwise my system won't boot, but I still do end up with the table loaded.



@miliuco thanks for the tip. That finally got things sorted out.
