inusebyanothermember Posted June 27, 2022 Share Posted June 27, 2022 Yet, another problem! Hello, I'm having a problem where macos recovery cannot find the hard drive. However, the hard drive works. I don't have "Configure SATA as" option in my bios. My OS: El Capitan. Thanks. Link to comment Share on other sites More sharing options...
Slice Posted June 27, 2022 Share Posted June 27, 2022 May be you forget to put the driver HFSPlus.efi in the bootloader? Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 27, 2022 Author Share Posted June 27, 2022 2 minutes ago, Slice said: May be you forget to put the driver HFSPlus.efi in the bootloader? I have HFSPlusLegacy.efi in my bootloader. Link to comment Share on other sites More sharing options...
Slice Posted June 27, 2022 Share Posted June 27, 2022 I had an experience with ASUS P5B and successfully installed ElCapitan there. So no hardware problem expected. See your mistake. Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 27, 2022 Author Share Posted June 27, 2022 30 minutes ago, Slice said: I had an experience with ASUS P5B and successfully installed ElCapitan there. So no hardware problem expected. See your mistake. I can send you my efi folder. Link to comment Share on other sites More sharing options...
Slice Posted June 27, 2022 Share Posted June 27, 2022 Make a photo what do you see in DiskUtility in Recovery. Link to comment Share on other sites More sharing options...

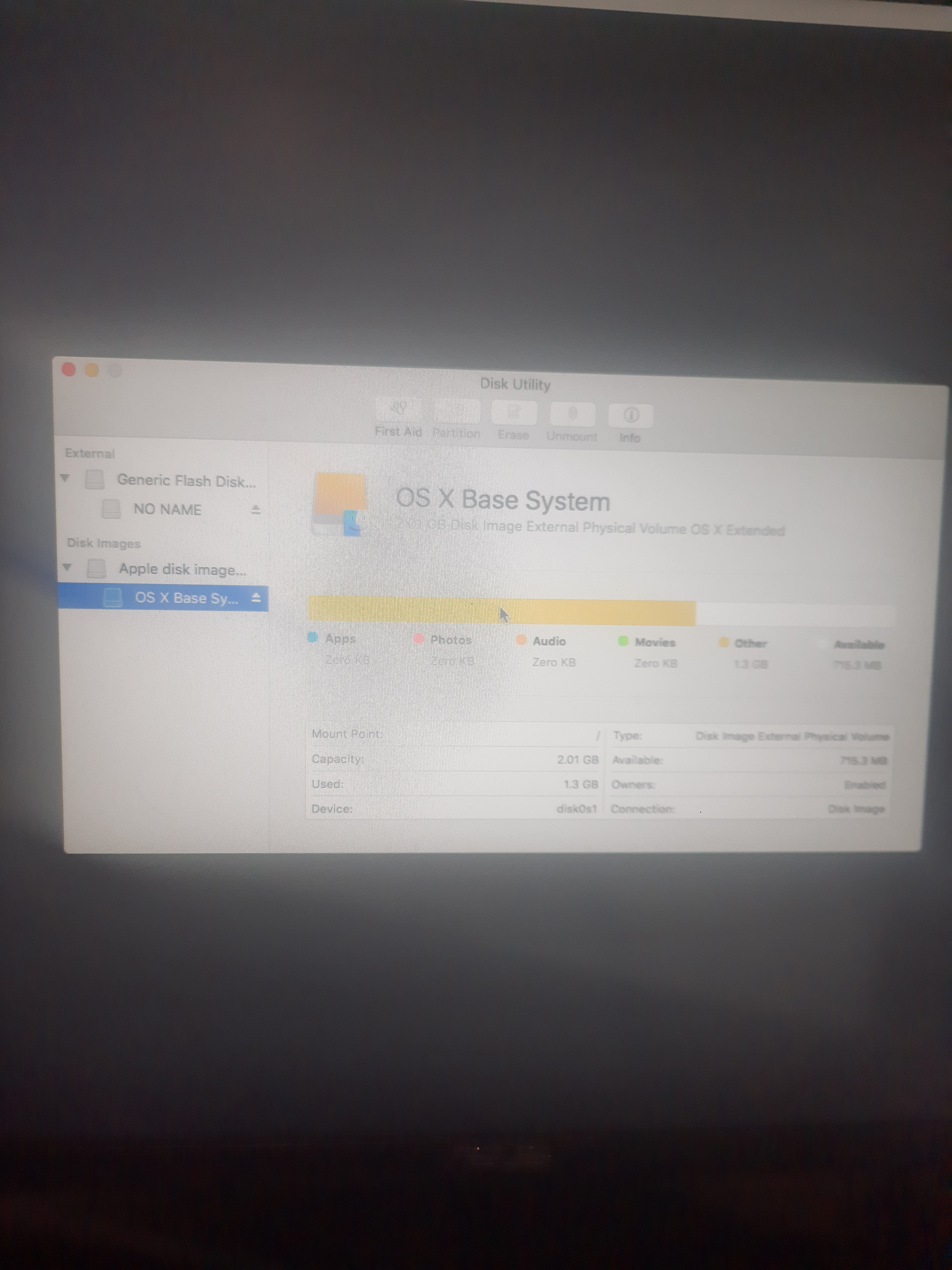

inusebyanothermember Posted June 27, 2022 Author Share Posted June 27, 2022 1 hour ago, Slice said: Make a photo what do you see in DiskUtility in Recovery. Link to comment Share on other sites More sharing options...
Slice Posted June 27, 2022 Share Posted June 27, 2022 What settings are in BIOS concerning SATA? Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 27, 2022 Author Share Posted June 27, 2022 Just now, Slice said: What settings are in BIOS concerning SATA? Only IDE Configuration and specific SATA cables. Link to comment Share on other sites More sharing options...
ichelash Posted June 27, 2022 Share Posted June 27, 2022 10 minutes ago, inusebyanothermember said: Only IDE Configuration and specific SATA cables. How is your bios settings looks like? Seems like you on Raid. Can you post a pic of the bios Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 27, 2022 Author Share Posted June 27, 2022 Just now, ichelash said: How is your bios settings looks like? Seems like you on Raid. Can you post a pic of the bios Which section? Link to comment Share on other sites More sharing options...
ichelash Posted June 27, 2022 Share Posted June 27, 2022 I don’t know how your computer displays this but..just add them all sections 3 minutes ago, ichelash said: I don’t know how your computer displays this but..just add them all sections I want to see something Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted June 27, 2022 Share Posted June 27, 2022 (edited) According to your motherboard's manual it has the ICH8 and as far as I know ICH8 has no support for AHCI. Only ICH8R, ICH8M and ICH8M-E support AHCI but I might be wrong. If you know the device ID of your controller then you might be able to inject it into AppleIntelPIIXATA.kext to allow El Capitan to boot from IDE (assuming that method still works in El Capitan, it's been awhile...) To get your controller's Device ID, you could boot into Windows (if installed), open up device manager, right click your IDE/ATA Controller and go to properties. Select details and then hardware IDs. Edited June 27, 2022 by ricoc90 Additional info Link to comment Share on other sites More sharing options...
Slice Posted June 27, 2022 Share Posted June 27, 2022 35 minutes ago, ricoc90 said: According to your motherboard's manual it has the ICH8 and as far as I know ICH8 has no support for AHCI. Only ICH8R, ICH8M and ICH8M-E support AHCI but I might be wrong Remember I had a success exactly with this board and macOS 10.11.6, Nvidia 9600GT and Clover actual 4 years ago. The SATA was good. The LAN was good. The user was good. Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted June 27, 2022 Share Posted June 27, 2022 (edited) 43 minutes ago, Slice said: Remember I had a success exactly with this board and macOS 10.11.6, Nvidia 9600GT and Clover actual 4 years ago. The SATA was good. The LAN was good. The user was good. The manual states it is a ICH8, which is Intel 82801HB and according to the AHCI specs that chipset has no support. Only the 82801HBM (ICH8M) or the 82801HEM (ICH8M-E) are supported: https://www.intel.com/content/www/us/en/support/articles/000005642/technologies.html I believe some vendors added AHCI support on their own, which Asus seems to have done with their P5B-VM board. That board supports RAID which auto-enables AHCI on the controller. However, OP has the P5B-VM SE which lacks RAID functionality as well Edited June 27, 2022 by ricoc90 Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 27, 2022 Author Share Posted June 27, 2022 (edited) 2 hours ago, ichelash said: I don’t know how your computer displays this but..just add them all sections I want to see something Spoiler SATA#NUMBER#: HARD DISK: LBA/Large More:Auto Block(Multi-Sector Transfer) M: Auto PIO Mode: Auto DMA Mode: Auto SMART Monitoring: Auto 32Bit Data Transfer: Enabled IDE Configuration: SATA#1,2 Configuration: Enabled Hard Disk Write protect: Disabled IDE Detect time out: 35 seconds JM368 Controller: Enabled JumperFree: AI OverClocking: standard USB Configuration: USB Functions: 10 USB Ports Legacy USB Support: Enabled USB 2.0 Controller Mode: HiSpeed BIOS EHCI Hand-off: enabled CPU Configuration: CPU ratio adjustment: Auto C1E Support: Enabled Hardware Prefetcher: Enabled Adjacent Cache Line Prefetch: Enabled Max CPUID Value limit: Disabled Vanderpool: Enabled CPU TM Function: Enabked Execute disable bit: Enabled PECI: Disabled Core Multi Processing: Enabled EIST: Enabled Chipset: Northbridge: Memory things and peg ports South bridge: LAN Config On board devices configuration: Serial Port Address: 3F8/IRQ4 Parallel Port Address: 378 Parallel Port Mode: ECP ECP Mode DMA channel: DMA3 Parallel Port IRQ: IRQ7 PCI/PnP: Plug and Play O/S: No PCI Latency timer: 64 Allocate IRQ to PCI VGA: Yes Palette snooping: disabled IRQ-(3,15) assigned to: PCI Device Suspend Mode: Auto ACPI Version Features: ACPI V3.0 ACPI APIC Support: Enabled APM: Not useful Hardware monitor: fan management Boot settings Configuration: quick boot: Enabled Full screen logo: enabled Addon rom display mode: force bios Bootup numlock: on Ps/2 mouse support: auto Wait for f1 if error: enabled Hit del message display: enabled Interrupt 19 capture: disabled. Edited June 27, 2022 by Cyberdevs Please use Spoiler tool for long texts. Link to comment Share on other sites More sharing options...
Slice Posted June 27, 2022 Share Posted June 27, 2022 3 hours ago, inusebyanothermember said: Only IDE Configuration and specific SATA cables. See Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 28, 2022 Author Share Posted June 28, 2022 12 hours ago, Slice said: See Where can I download this modified bios? Link to comment Share on other sites More sharing options...
Slice Posted June 28, 2022 Share Posted June 28, 2022 May be some masters exist on other site who can modify the BIOS. May ASUS support can do this. Link to comment Share on other sites More sharing options...
inusebyanothermember Posted June 28, 2022 Author Share Posted June 28, 2022 Just now, Slice said: May be some masters exist on other site who can modify the BIOS. May ASUS support can do this. They surely wont with that old motherboard xd. Link to comment Share on other sites More sharing options...
