$tealth Posted June 14, 2022 Share Posted June 14, 2022 (edited) @Hervé I have installed macOS Monterey on my Lenovo M93p Tower. I have 6 screens out of which 5 are working problem with a native resolution 2450 x 1440 , Display 1 Resolution 1080 p - iGPU 4600 - problem Display 2 Resolution 2560 x 1440 - iGPU 4600 Display 3 Resolution 2560 x 1440 - dGPU Nvdia 710, 730 Display 4 Resolution 2560 x 1440 - dGPU Nvdia 710, 730 Display 5 Resolution 2560 x 1440 - dGPU Nvdia 710, 730 Display 6 Resolution 2560 x 1440 - dGPU Nvdia 710, 730 I am trying to fix the problem for the screen 1 but I cannot get the solution once screen is working properly another screen is not working problem. I was able to solve the problem of GRABLED GRAPHICS for INTEL HDA 4600 by following the setting as below. If you have a display port its ID is 00040000 Now as per the OPENCORE Team... Whatevergreen.kext treats Display port as HDMI so you have to replace Displayport ID 00040000 by HDMI ID as 00080000 Reference from OPEN CORE TEAM Website https://dortania.github.io/OpenCore-Post-Install/gpu-patching/intel-patching/connector.html Quote Looking closer, we see that the HDMI port was actually listed as a DisplayPort. This is where WhateverGreen's patching mechanisms come into play. Since the incorrect port was located at AppleIntelFramebuffer@1, this is port 1. Next we'll to enable WhateverGreen's patching mechanism for con1, and then set the connector type to HDMI. To do this, we set the following Properties under DeviceProperties -> Add -> PciRoot(0x0)/Pci(0x2,0x0) Everything will properly now. I appreciate Help of @Hervé, @Slice and Open Core team USE THESE PARAMETERS FOR INTEL HDA 4600 for FULL QE/CI and ACCELERATION PLEASE find the attached config.plist to make changes. config.plist Edited June 17, 2022 by $tealth Problem Solved Link to comment Share on other sites More sharing options...
Allan Posted June 14, 2022 Share Posted June 14, 2022 @$tealth and here you can discuss about the Intel HD 4600 Link to comment Share on other sites More sharing options...

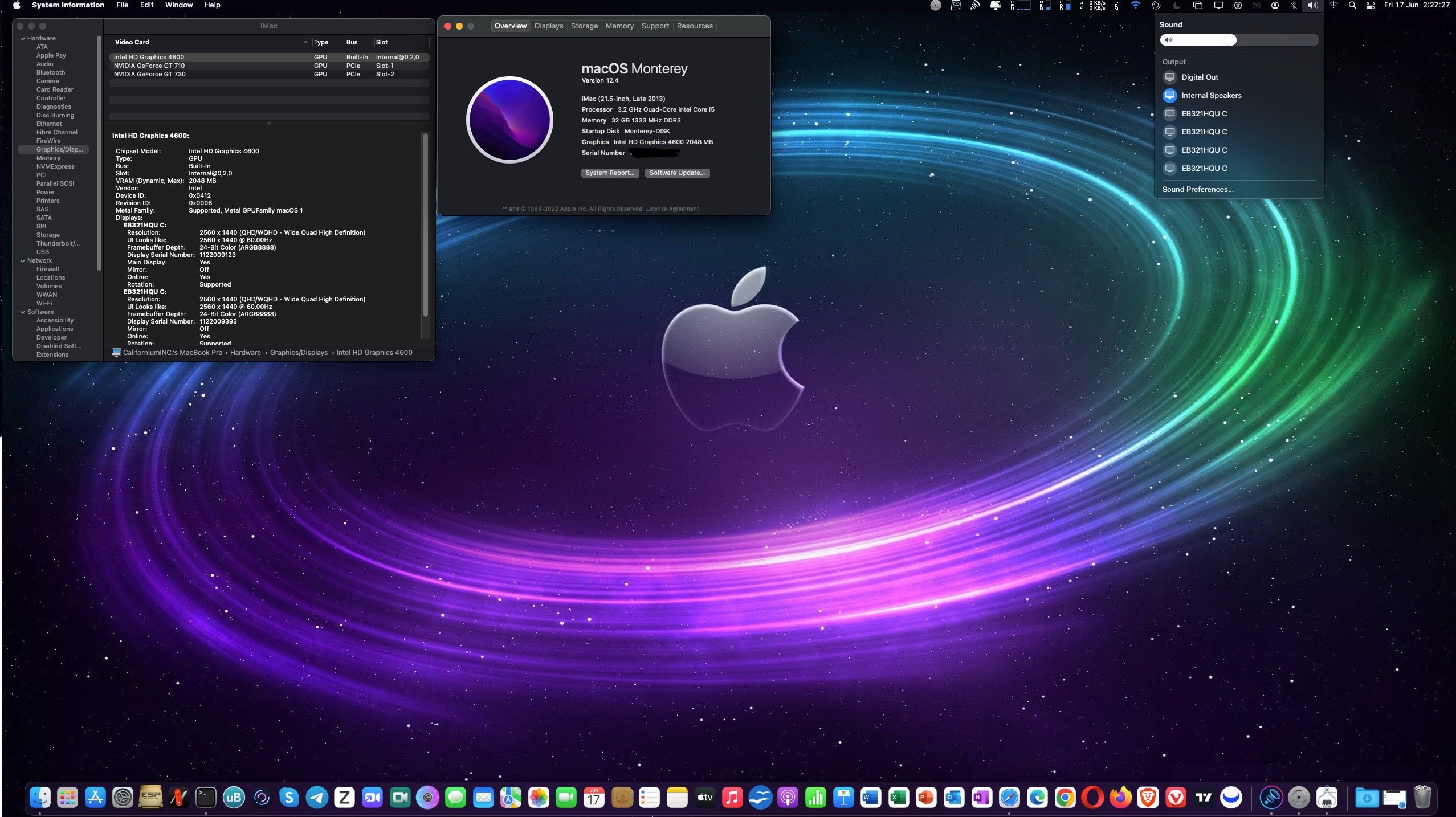

$tealth Posted June 16, 2022 Author Share Posted June 16, 2022 @ANONIMNIQ Please check if these setting work for MacOS Monterey 12.4 for me its working perfectly Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 @$tealth can you share your config.plist for faster settings copy. do you have 4k resolution? btw I have 2 DP, did this settings replaced id-s for the two ports? Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 (edited) Okay no problem I will upload in 5 to 10 min Edited June 17, 2022 by $tealth Link to comment Share on other sites More sharing options...

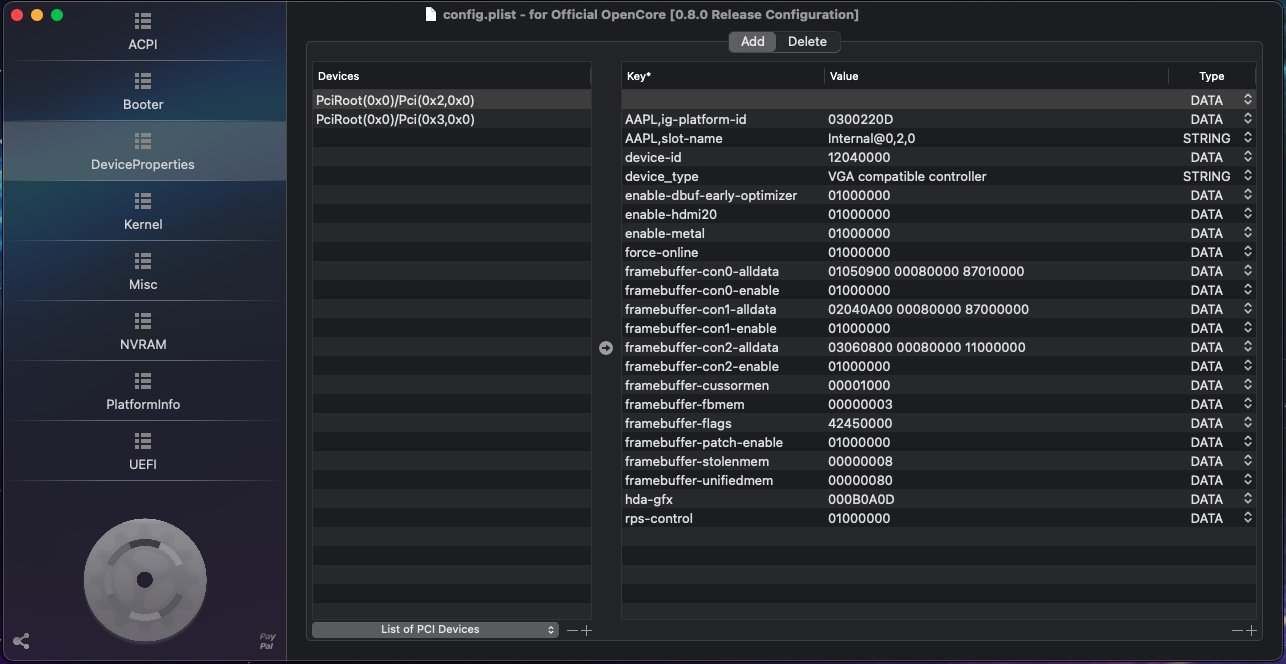

$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 @ANONIMNIQ I have uploaded the required config Plist just make changes as per that config.plist. Let me know config.plist Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 41 minutes ago, $tealth said: @ANONIMNIQ I have uploaded the required config Plist just make changes as per that config.plist. Let me know config.plist 26.92 kB · 0 downloads Thank you but it's not working for me, when I switch to 4k my display lose signal. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 (edited) Get yourself a hackin tool and find out the right IDs <02 00 00 00> LVDS and eDP - Laptop displays <10 00 00 00> VGA - Unsupported in 10.8 and newer <00 04 00 00> DisplayPort - USB-C display-out are DP internally <01 00 00 00> DUMMY - Used when there is no physical port <00 08 00 00> HDMI <80 00 00 00> S-Video <04 00 00 00> DVI (Dual Link) <00 02 00 00> DVI (Single Link) ID 01050900 00080000 87010000 Change to 01050900 00040000 87010000 Edited June 17, 2022 by $tealth Link to comment Share on other sites More sharing options...

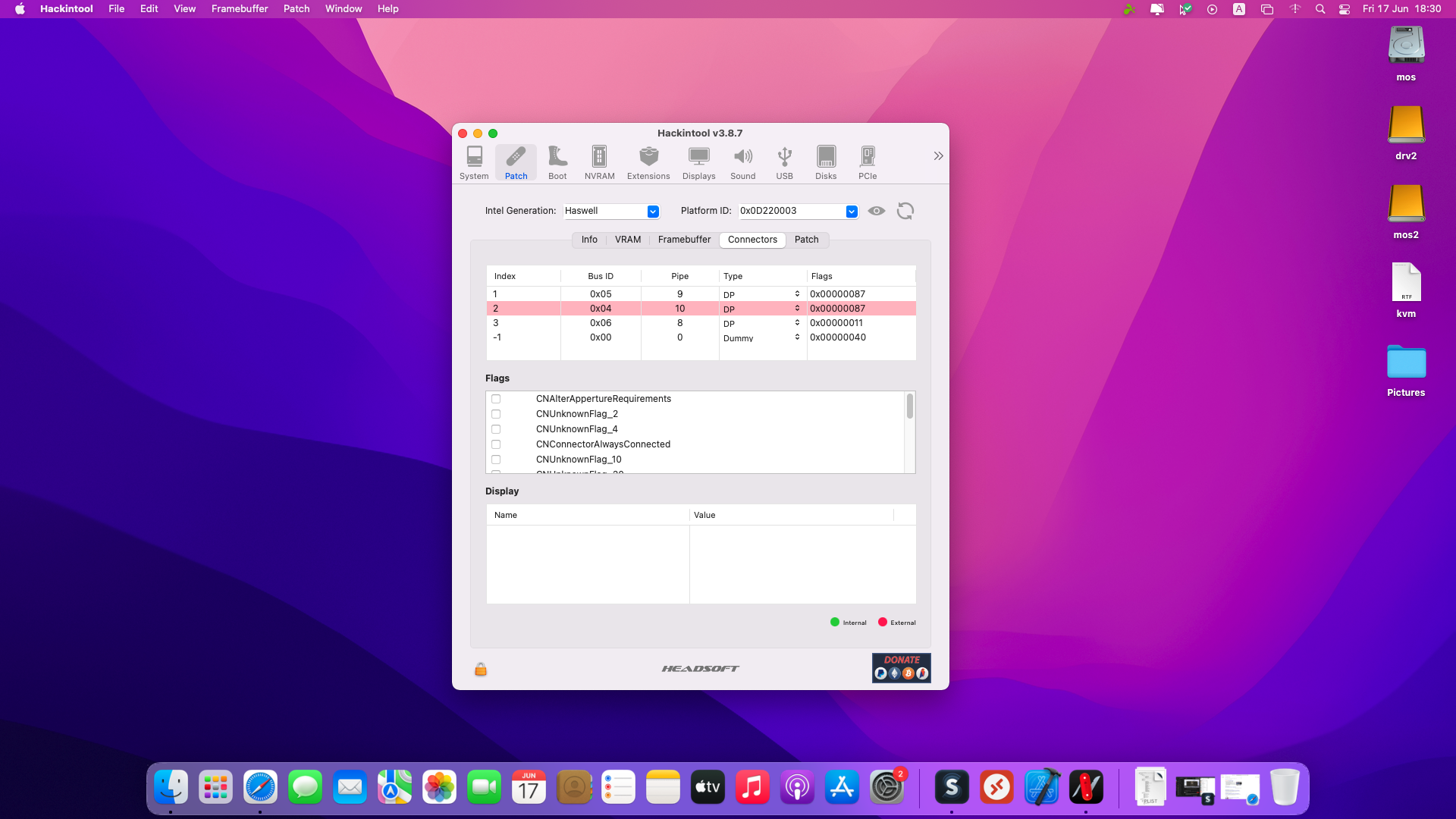

ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 how you find id? I see only this on hackintool: Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 (edited) You are on the right track just change the following settings framebuffer-con0-alldata. 01050900 00040000 87010000 Middle ID is the connector Type in your current setting you have 00080000 change it to 00040000 Edited June 17, 2022 by $tealth Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 What Resolution are you getting at the moment Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 37 minutes ago, $tealth said: What Resolution are you getting at the moment without the patch only 1080p. did I need all framebuffer lines, or only con0? Also, why 87010000 at the end and not 87000000? btw I have Remote Desktop and I see that it actually boots with 4k resolution, but don't output signal from DP. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 Just keep the lines as it is don't change anything just change the middle number from 0008000 to 00040000 that is it It has to done for all the lines for con0, con1, con2 change the middle number to 00040000 Link to comment Share on other sites More sharing options...

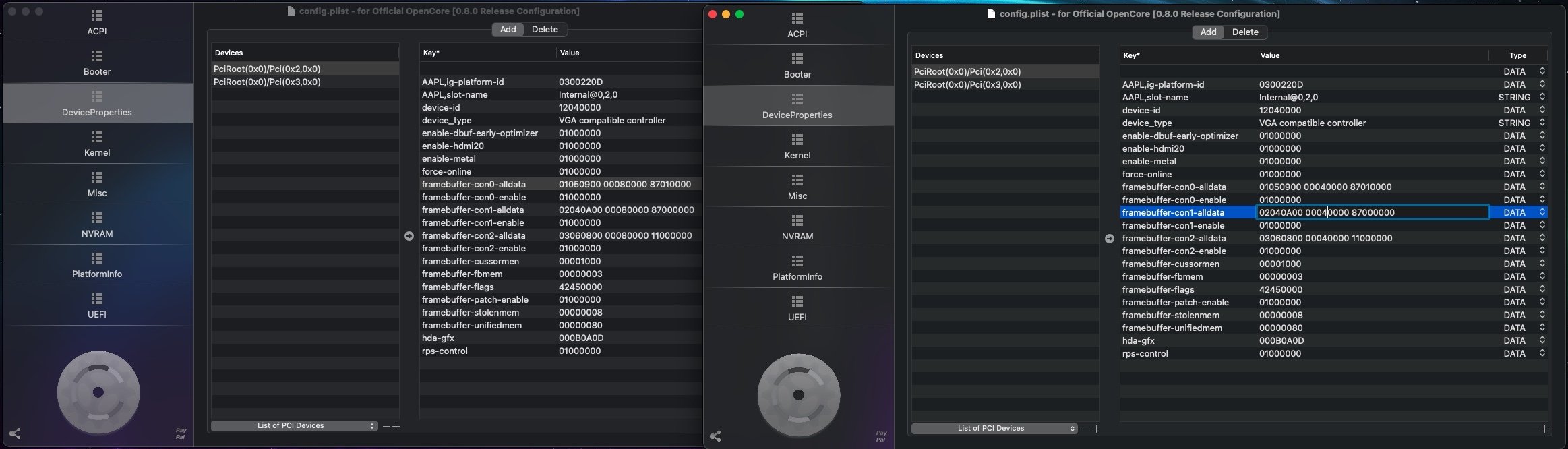

ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 15 minutes ago, $tealth said: Just keep the lines as it is don't change anything just change the middle number from 0008000 to 00040000 that is it It has to done for all the lines for con0, con1, con2 change the middle number to 00040000 I do it but now I lost 4K resolution in settings, only 1080p again. If I change only con0 I have 4K but lost signal. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 (edited) That means the setting is right change back the setting 00040000 to 0008000 for try these combination 00040000 00080000 00080000 00040000 00040000 00080000 00040000 00040000 00080000 Edited June 17, 2022 by $tealth Link to comment Share on other sites More sharing options...

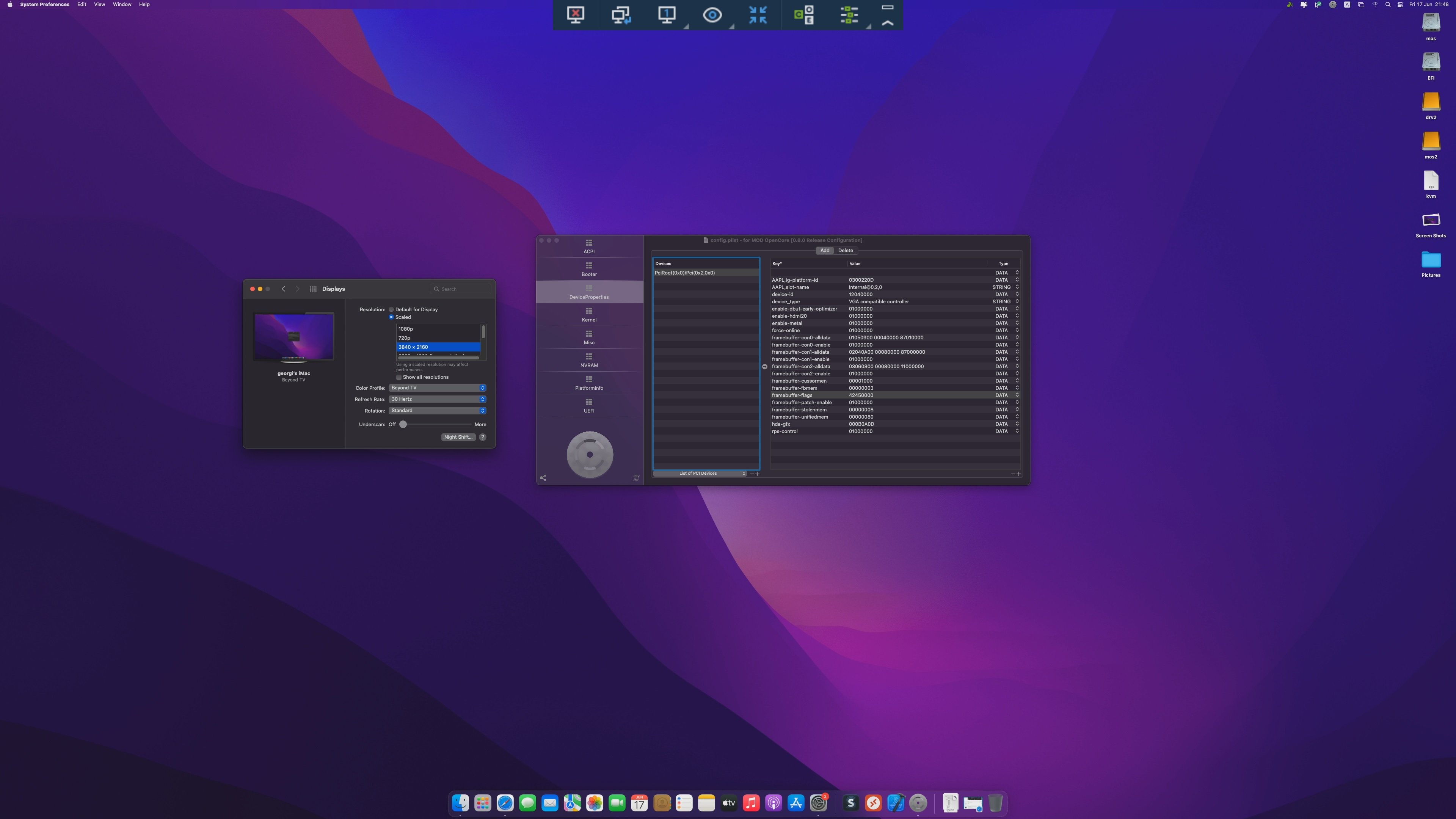

ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 I tried many combinations, but still no luck. As you can see from this screenshot from Splashtop remote desktop, 4k resolution is working, but no signal to display. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 Change the con1 to 00040000 see what happens Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 5 minutes ago, $tealth said: Change the con1 to 00040000 see what happens 00040000 00040000 00080000 I already tried this combination, also few others too. Its 1080p only, or 4k with no signal. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 what kind of adapter is there Display port , HDMI or DVI 00080000 00040000 00080000 Intel 4600 will show 4k Video with 24 hz only that is the limitation Link to comment Share on other sites More sharing options...

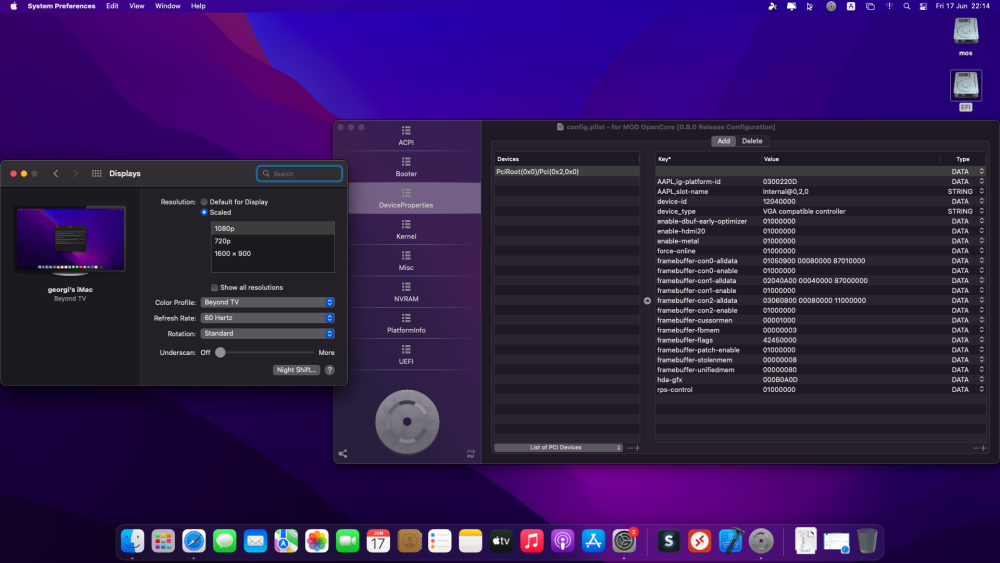

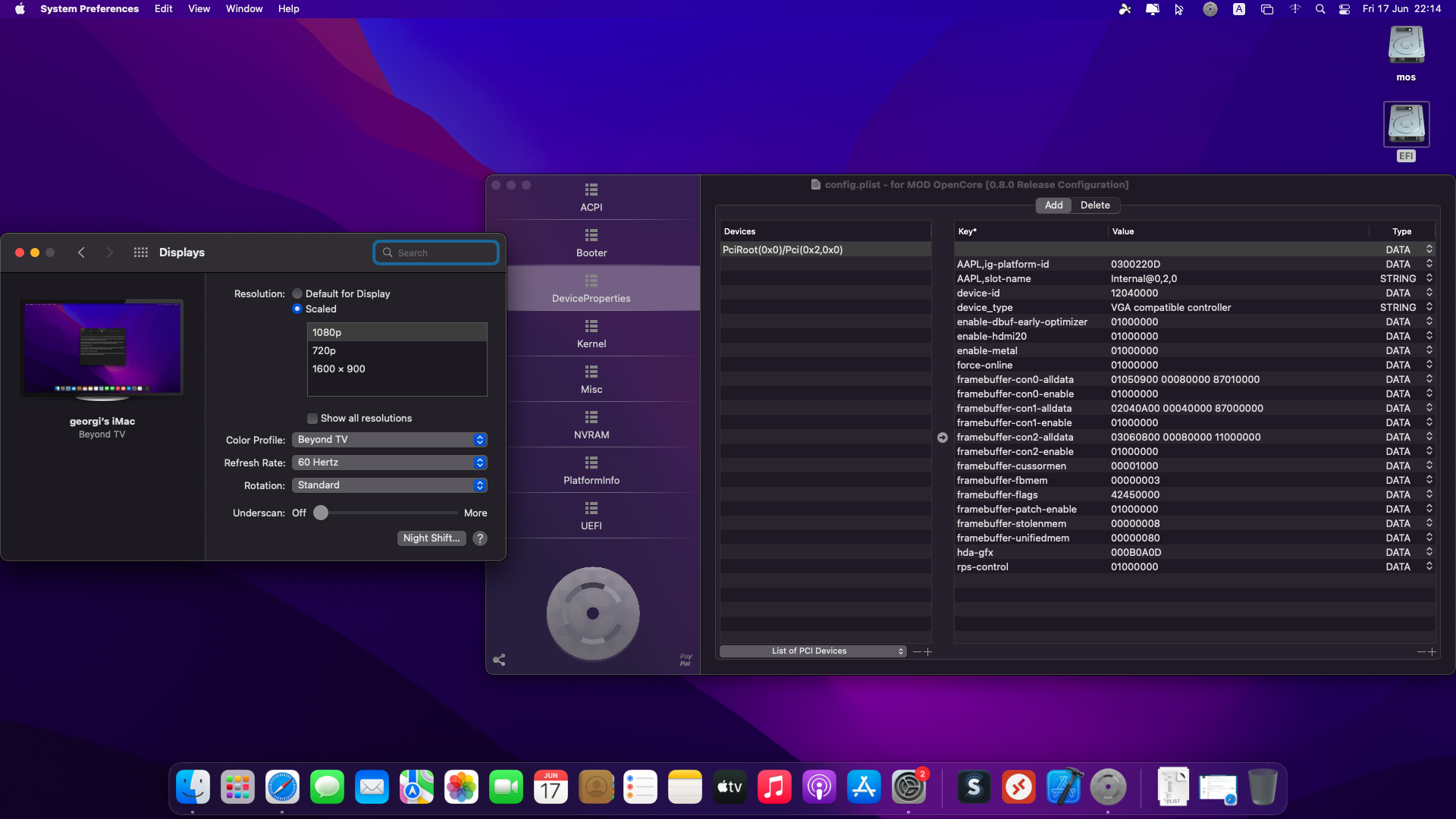

ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 13 minutes ago, $tealth said: what kind of adapter is there Display port , HDMI or DVI 00080000 00040000 00080000 Intel 4600 will show 4k Video with 24 hz only that is the limitation I have signal but only 1080p with this combination. My iGPU is 4400. It's DP out > DP to HDMI adapter > HDMI in. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 try this combination 00000800 02000000 30000000 - con0 01050900 00040000 87000000 - con1 02040900 00040000 87000000 - con2 Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 16 minutes ago, $tealth said: try this combination 00000800 02000000 30000000 - con0 01050900 00040000 87000000 - con1 02040900 00040000 87000000 - con2 Sill same, only 1080p. Link to comment Share on other sites More sharing options...
$tealth Posted June 17, 2022 Author Share Posted June 17, 2022 Well change back to the original setting I am out of ideas man Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted June 17, 2022 Share Posted June 17, 2022 10 minutes ago, $tealth said: Well change back to the original setting I am out of ideas man OK, thank you anyway! Link to comment Share on other sites More sharing options...
