davidm71 Posted May 30, 2022 Share Posted May 30, 2022 Hi, Wanted to see if it was possible to install Bigsur from a Virtualbox VM of the installer within Windows by accessing the solid state disk directly within a raw VMDK disk image so was able to figure that out and installed Bigsur onto the harddrive. The problem I am having is that when I directly boot up onto that 2nd disk I have Opencore boot picker graphical menu appears and when I click that Bigsur install the screen goes black for like 3-5 seconds and then returns to the boot picker graphical menu. Don't see any verbose details at all and no clue therefore whats going on. At least I can load Windows from that boot picker menu. Half the battle. Worth noting using Opencore 0.80 with a modified config.plist from another working Z270 motherboard that I have tried to modify. Maybe should have started with a fresh config.plist. In anycase how can I see verbose details to figure out whats going on? Thanks Specs: MSI Z270M Mortar 7600K cpu motherboard RX470 AMD GPU Broadcom 7020X wifi card Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 30, 2022 Share Posted May 30, 2022 @davidm71 Hi, you need to add -v bootflag to your config under the nvram section to be able to see the verbose mode. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2022 Share Posted May 30, 2022 Use this efi folder https://tinyurl.com/yc8dv9cd from here https://www.olarila.com/topic/25111-hackintosh-efi-folders-for-all-chipsets-with-opencore-mod/ Link to comment Share on other sites More sharing options...
davidm71 Posted May 30, 2022 Author Share Posted May 30, 2022 38 minutes ago, Cyberdevs said: @davidm71 Hi, you need to add -v bootflag to your config under the nvram section to be able to see the verbose mode. I did that and still saw nothing. Maybe its because I'm using opencanopy? Or should I use the Debug version? Also does it matter that my bios doesn't have a setting for cfg lock disable or VT-d? Thanks Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 30, 2022 Share Posted May 30, 2022 OpenCanopy is just for OC's picker, once you select a disk to boot if the -v boot argument is available in the config.plist macOS will boot in the verbose mode and then you can see where it stops. If the system reboots you can add keepsyms=1 boot argument to see where the boot process stops. Link to comment Share on other sites More sharing options...

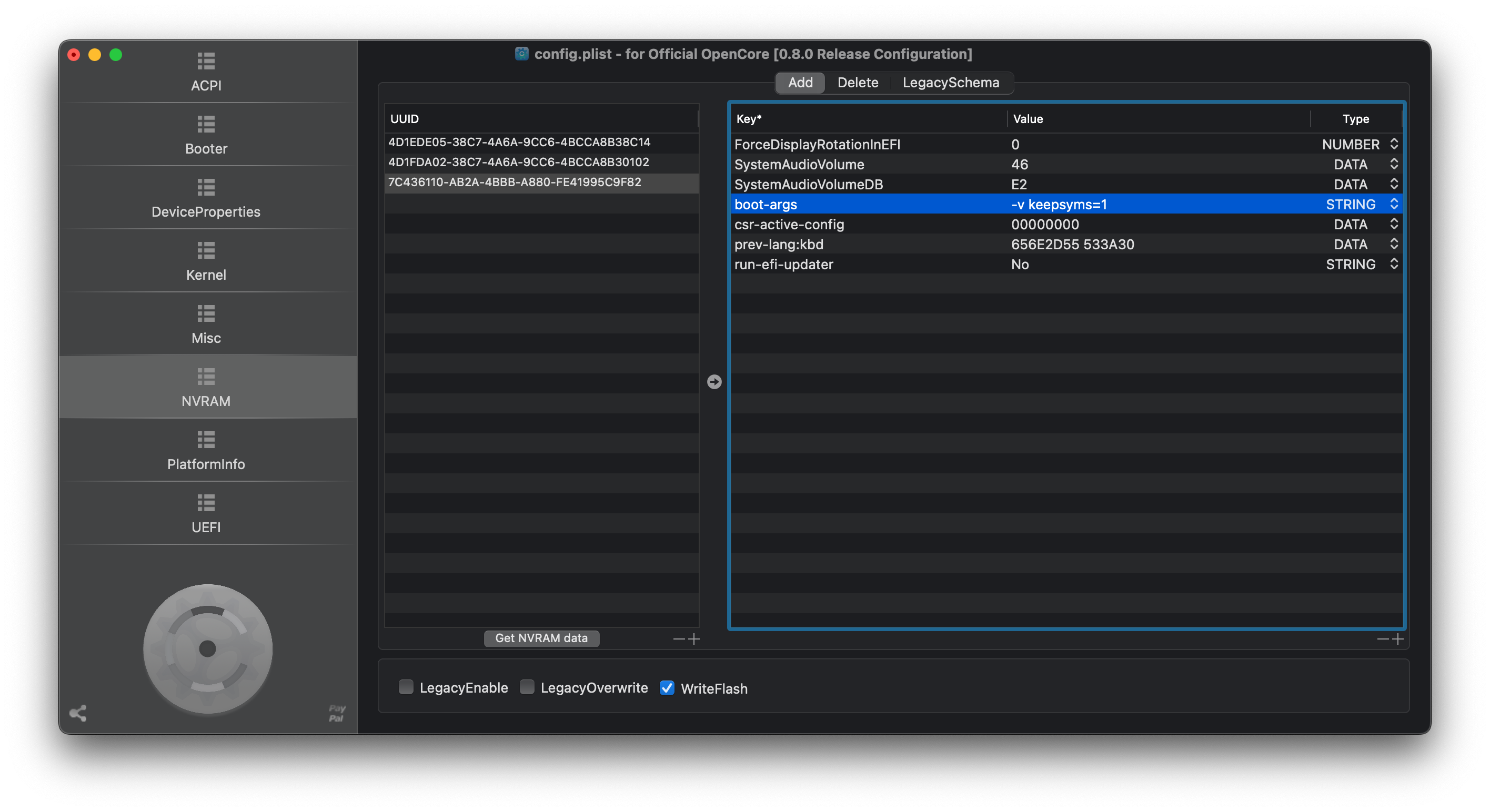

davidm71 Posted May 30, 2022 Author Share Posted May 30, 2022 I swear I had all of the above boot-args including "-v keepsyms=1" and saw nothing on the screen once I clicked Bigsur Icon in the picker menu. Just went black and returned back to the menu after 3-5 seconds. Is there a way to get it to write to a txt file? Thanks Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 30, 2022 Share Posted May 30, 2022 post your EFI folder and I'll take a look. 1 Link to comment Share on other sites More sharing options...
davidm71 Posted May 30, 2022 Author Share Posted May 30, 2022 Heres my base efi folder. Thanks. EFI.zip Link to comment Share on other sites More sharing options...
davidm71 Posted May 30, 2022 Author Share Posted May 30, 2022 Well I have good news. I copied the boot-args and csr config security setting from Mald0ns efi into my config.plist and it worked. Got verbose messaging too. Only thing is don't have ethernet or wifi and the screen colors looked really washed out. Not sure why colors look weak. Read that my BCM4352 802.11ac Wireless Network Adapter and i219-V network adapter are hackable. Think I can handle that part on my own. Just find the right kexts. The washed out colors not sure. Thanks again for the help. Much appreciate it! Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 31, 2022 Share Posted May 31, 2022 Try booting without the boot arguments, remove all the unnecessary boot arguments from the nvram section. Link to comment Share on other sites More sharing options...
davidm71 Posted May 31, 2022 Author Share Posted May 31, 2022 Think it was the monitor. Using a different older DVI style monitor and colors look good now. Probably was an issue with the EDID or even because using dvi to hdmi adapter. Got Ethernet working. Just not wifi. Probably audio as well havent tested. Though was able to move forward thanks to your suggestions. Think the issue was related to CSR security settings perhaps. Link to comment Share on other sites More sharing options...
