ANONIMNIQ Posted May 29, 2022 Author Share Posted May 29, 2022 4 minutes ago, Slice said: From Windows, from Linux or from Clover. I don't have other OS in this machine, is it possible from Opencore? or from USB Clover? Link to comment Share on other sites More sharing options...
Slice Posted May 29, 2022 Share Posted May 29, 2022 2 minutes ago, ANONIMNIQ said: I don't have other OS in this machine, is it possible from Opencore? or from USB Clover? Yes, from USB Clover. Boot it on the computer up to GUI, then press F4. You may find all your origin ACPI tables in the folder .../EFI/CLOVER/ACPI/origin/ Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 29, 2022 Author Share Posted May 29, 2022 @Hervé @Slice Here is my raw DSDT: DSDT.aml.zip Link to comment Share on other sites More sharing options...
aben Posted May 30, 2022 Share Posted May 30, 2022 (edited) @ANONIMNIQ Hello there! I reviewed both EFI-configs you've shared on this thread and both have issues with ACPI config. Why SSDT for USBX? It's intended for Skylake and above; you need SSDT-EC for Haswell. The "raw" DSDT you shared above has syntax errors while compiling. I took the liberty to help fix these errors + some corrections to your EFI config. Please test EFI attached below and report back. EFI.zip Edited May 30, 2022 by aben EFI upload Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 (edited) @aben thank you! I tried it, but can'r boot, it just restart system after some lines in verbose, its really fast so I can't shot the last lines. Edited May 30, 2022 by ANONIMNIQ Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 @aben btw this is my latest working EFI (boot but have freezes in settings and some folders and apps - even more when I update my system BIOS) - I don't have SSDT for USBX in it. When boot from USB without graphic acceleration I don't have freezes. https://we.tl/t-bVzkCjcBxo Link to comment Share on other sites More sharing options...
aben Posted May 30, 2022 Share Posted May 30, 2022 5 hours ago, ANONIMNIQ said: @aben btw this is my latest working EFI (boot but have freezes in settings and some folders and apps - even more when I update my system BIOS) - I don't have SSDT for USBX in it. When boot from USB without graphic acceleration I don't have freezes. https://we.tl/t-bVzkCjcBxo Good luck! EFI.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2022 Share Posted May 30, 2022 5 hours ago, ANONIMNIQ said: @aben btw this is my latest working EFI (boot but have freezes in settings and some folders and apps - even more when I update my system BIOS) - I don't have SSDT for USBX in it. When boot from USB without graphic acceleration I don't have freezes. SOME UPDATES in this efi folder EFI 01.zip Avoid a bunch of non-sense SSDTs if u have all into DSDT, SSDT is just a easy way to people with no knowledge and just inject things into DSDT check video patch. i think this problem is that. if freeze don't appear with -igfxvesa this is a proof. Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 @aben Thank you for your hard work! Sadly, still can't boot. I send email to the author of the patch, but still no response from him. @MaLd0n It boots with EFI you send me, but freeze when I try to click anywhere - desktop, dock, menu bar. what you suggested me to change in video patch? Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2022 Share Posted May 30, 2022 use this efi folder with -igfxvesa and save one ioreg EFI Rescue.zip https://olarila.com/files/Utils/IORegistryExplorer.app.zip u tried bigsur and same problem appear? Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 3 minutes ago, MaLd0n said: use this efi folder with -igfxvesa and save one ioreg EFI Rescue.zip 4.52 MB · 0 downloads https://olarila.com/files/Utils/IORegistryExplorer.app.zip u tried bigsur and same problem appear? It works ok without freezes with -igfxvesa with first EFI you send me, I'll try with this one and report you back. I don't tried with Big Sur, only Monterey. @MaLd0n Here is IOReg: iMac.ioreg Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 @MaLd0n for video patch, what to change in parameters? framebuffer, device id, ig platform id? Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2022 Share Posted May 30, 2022 Ill check ioreg soon. On the road for 2 hours. 1 Link to comment Share on other sites More sharing options...

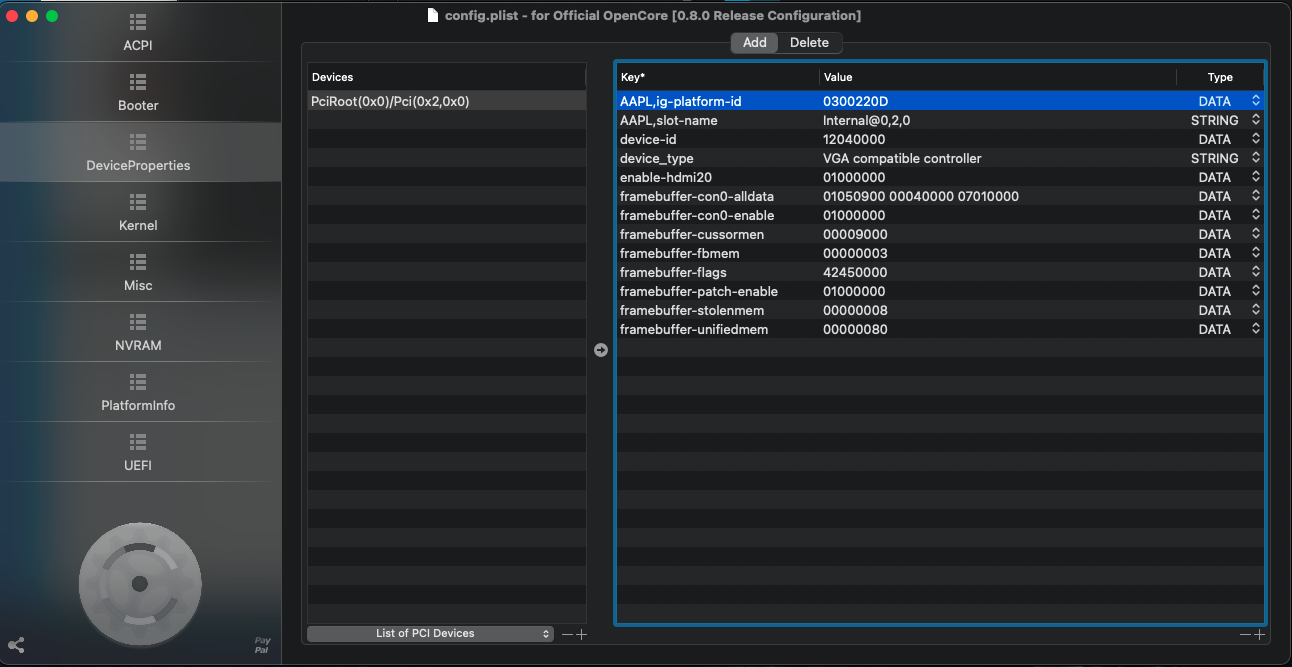

$tealth Posted May 30, 2022 Share Posted May 30, 2022 @ANONIMNIQ I also had issue with jumpy mouse and garbled issues with the cursor I was able to fix the setting with the help of these settings given in the picture. These setting are given by @Silce and @ @herve in this post. My graphics card is Intel HD 4600 Quite closer to your one This has fixed my issue on BigSur and Monterey. This is the link Follow these settings in open core Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 6 minutes ago, MaLd0n said: Ill check ioreg soon. On the road for 2 hours. Thank you very much! Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 @$tealth thank you, I tried with your settings, but still have freezes. btw I noticed some ugly 3d borders on my os too. I use DP for output from my PC it this matters. Link to comment Share on other sites More sharing options...
$tealth Posted May 30, 2022 Share Posted May 30, 2022 Hang on I will upload my Efi folder to you Link to comment Share on other sites More sharing options...
$tealth Posted May 30, 2022 Share Posted May 30, 2022 This EFI works for Catalina, BigSur, Monterey for me. Original EFI was provided @olarila Website EFI for Intel i4570 motherBoard.zip Boot arguments I have modified from looking across many forums and reading a lot Boot arguments watchdog=0 -igfxdbeo -igfxbls -igfxcdc -igfxmlr -igfxmpc-no_compat_check -cdfon igfxrpsc=1 igfxmetal=1 igfxonln=1 Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 (edited) @Hervé can't find such option in my BIOS. VGA settings in BIOS are greyed out, maybe because I use DP output, I don't know, so I can't check there. @$tealth Still same with your EFI as with EFI MaLd0n send me earlier - freeze when I tried to press anything with the mouse. At first mouse cursor start spinning, everything stop responding but cursor is still moving, and eventually after few minutes cursor disappear and os reboot itself. And as I mentioned few times before, this happened only with video patch, with -igfxvesa without graphics acceleration system works without freezes. Edited May 30, 2022 by ANONIMNIQ Link to comment Share on other sites More sharing options...
$tealth Posted May 30, 2022 Share Posted May 30, 2022 I had same problems initially when I was installing the Mac OS Monterey but after a lot of fidling and working around Hang on I will give you something Pre Install Boot Flags -v alcid=1 watchdog=0 igfxonln=1 -no_compat_check keepsyms=1 -cdfon -igfxmlr -igfxvesa Post Install Boot Flags -v alcid=3 watchdog=0 igfxonln=1 -no_compat_check Link to comment Share on other sites More sharing options...
$tealth Posted May 30, 2022 Share Posted May 30, 2022 The same thing has happened with me on Monterey with me I was able to fix the issue. Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 @$tealth Sadly, still same freezes even with these boot args. Link to comment Share on other sites More sharing options...
$tealth Posted May 30, 2022 Share Posted May 30, 2022 I don't know man I am not the expert. Mine is working perfectly . What is mother board type is it Haswell Broadwell which one Link to comment Share on other sites More sharing options...
ANONIMNIQ Posted May 30, 2022 Author Share Posted May 30, 2022 (edited) 9 minutes ago, $tealth said: I don't know man I am not the expert. Mine is working perfectly . What is mother board type is it Haswell Broadwell which one I'm not sure for the motherboard, It's some custom HP motherboard for this tiny form factor pc. Edited May 30, 2022 by ANONIMNIQ Link to comment Share on other sites More sharing options...
aben Posted May 31, 2022 Share Posted May 31, 2022 It's possible you've most likely end up with a faulty hardware here. Sounds like the iGPU module is locking up when there is a power spike during hardware acceleration; probably coz you're trying to force HD 4400 to run on a macOS version that's not actually supported natively by Apple. I believe the best way to go about troubleshooting this is to first test-run a macOS version that has native vanilla support for this hardware combo without having to compromise SIP in order to apply 3rd-party patches; that would be Big Sur with SMBIOS iMac14,4. Would also recommend running a compute benchmark/stress for the iGPU via tools like GB5 or CPU-Z on Windows NOT macOS. This should help rule out a faulty hardware situation. Link to comment Share on other sites More sharing options...
