Stefanalmare Posted July 4, 2022 Share Posted July 4, 2022 4 hours ago, Cyberdevs said: Yeah I know, but usually the EFI folder will let you boot into macOS but when I use your EFI it reboots right after OC tries to load macOS. Another thing that was interesting for me was that you don'y use BlueToolFixup.kext so my guess is that Fenvi T919 doesn't require BlueToolFixup.kext is that correct? My card it's natively supported. Don't need any kext for Bluetooth or wifi. SSDT-Z690-ARPT give the card the same ioreg path as iMacPro. 1 Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted July 4, 2022 Share Posted July 4, 2022 @Cyberdevs Looks like it disables 2 things (PXSX and HRUS), injects Product Descriptions and some packets to fix wake issues (_PRW) Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 4, 2022 Author Share Posted July 4, 2022 30 minutes ago, Stefanalmare said: My card it's natively supported. Don't need any kext for Bluetooth or wifi. SSDT-Z690-ARPT give the card the same ioreg path as iMacPro. Yeah that’s great because I have the same card. I’ll remove bluetoolfixup and use your SSDT. last night I tested sleep and system went to sleep, sort of which all the lights stayed on but when I moved the mouse it came back with no issues. Didn’t crash or give black screen. 22 minutes ago, 5T33Z0 said: @Cyberdevs Looks like it disables 2 things (PXSX and HRUS), injects Product Descriptions and some packets to fix wake issues (_PRW) I’ll use it and see how it goes on my rig. Thanks for the info. 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 4, 2022 Author Share Posted July 4, 2022 @Stefanalmare I had to change RP04 to RP05 because my Fenvi seems to be connected to PR05 and it works fine otherwise macOS couldn't load. I also removed BluetoolFixup as well thanks for the reminder. Another great thing about these Fenvi cards is that they work in BIOS/UEFI and OC picker with my Magic keyboard and mouse. The down side is that sleep doesn't seem to work properly display goes to sleep but when system tries to power down it turns itself back on but the display stays off unless i move the mouse or hit a key on keyboard but as I mentioned earlier i never put the system to sleep at all so I don't care if it's not working on my rig. Link to comment Share on other sites More sharing options...
Stefanalmare Posted July 4, 2022 Share Posted July 4, 2022 22 minutes ago, Cyberdevs said: I had to change RP04 to RP05 because my Fenvi seems to be connected to PR05 and it works fine otherwise macOS couldn't load. I also removed BluetoolFixup as well thanks for the reminder. Another great thing about these Fenvi cards is that they work in BIOS/UEFI and OC picker with my Magic keyboard and mouse. I removed the intel wifi original card and put the Fenvi. Thist is whay is RP04 in SSDT. 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 4, 2022 Author Share Posted July 4, 2022 2 minutes ago, Stefanalmare said: I removed the intel wifi original card and put the Fenvi. Thist is whay is RP04 in SSDT. Yeah that explains it. lol I didn't remove mine and I'm using the PCIe version of Fenvi T919. @Stefanalmare One thing that I don't understand is why i get lower Geekbench score it's always below 2000 on multicore maybe it's silicon lottery or a misconfiguration on my part. Can I trouble you to share some details on your BIOS/UEFI settings? If you could send me some screenshots i'll be grateful if that's not too much to trouble for you. 1 Link to comment Share on other sites More sharing options...
Stefanalmare Posted July 4, 2022 Share Posted July 4, 2022 17 minutes ago, Cyberdevs said: Yeah that explains it. lol I didn't remove mine and I'm using the PCIe version of Fenvi T919. @Stefanalmare One thing that I don't understand is why i get lower Geekbench score it's always below 2000 on multicore maybe it's silicon lottery or a misconfiguration on my part. Can I trouble you to share some details on your BIOS/UEFI settings? If you could send me some screenshots i'll be grateful if that's not too much to trouble for you. Man, I use a slightly overclock. All P core 52 and E cores 41. 1 Link to comment Share on other sites More sharing options...
Stefanalmare Posted July 4, 2022 Share Posted July 4, 2022 For @Cyberdevs: SettingsBIOS.zip 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 4, 2022 Author Share Posted July 4, 2022 @Stefanalmare Thanks a lot man. I really appreciate it. 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 27, 2022 Author Share Posted July 27, 2022 Gigabyte released a new BIOS for Z690 Aorus Master today F20a for support of upcoming Intel 13th gen (and probably other 600 Series) so I updated the BIOS. The good thing is that it fixed the XMP profile issue and now my memory runs at 6200MHz instead of 4800 but i couldn't boot into macOS with the same EFI folder. After a while I realized i had to enable SetupVirtualMap quirk under Booter and I also had to update the OC and all the kexts to their latest versions. 2 Link to comment Share on other sites More sharing options...
Slice Posted July 27, 2022 Share Posted July 27, 2022 32 minutes ago, Cyberdevs said: Gigabyte released a new BIOS for Z690 Aorus Master today F20a for support of upcoming Intel 13th gen (and probably other 600 Series) so I updated the BIOS. The good thing is that it fixed the XMP profile issue and now my memory runs at 6200MHz instead of 4800 but i couldn't boot into macOS with the same EFI folder. After a while I realized i had to enable SetupVirtualMap quirk under Booter and I also had to update the OC and all the kexts to their latest versions. Hm, I always think so https://github.com/CloverHackyColor/CloverBootloader/wiki/OC-integration#quirks- 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 27, 2022 Author Share Posted July 27, 2022 1 minute ago, Slice said: Hm, I always think so https://github.com/CloverHackyColor/CloverBootloader/wiki/OC-integration#quirks- I didn't need it on previous BIOS tho but i'll keep it enable from now on, thanks for the confirmation. Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 27, 2022 Author Share Posted July 27, 2022 Latest OC for Z690 Aorus Master Z690 Aorus Master OC 0.8.3 EFI.zip Link to comment Share on other sites More sharing options...
surenmunoo Posted July 27, 2022 Share Posted July 27, 2022 5 hours ago, Cyberdevs said: Latest OC for Z690 Aorus Master Z690 Aorus Master OC 0.8.3 EFI.zip 4.25 MB · 2 downloads Do you think there is anyway to get a RX6950XT to work on the Z690? My 6800XT is giving issues on HDMI so I got my self a new card. Since I could not find any new 6800xt or 6900xt I got the 6950. Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 27, 2022 Author Share Posted July 27, 2022 10 minutes ago, surenmunoo said: Do you think there is anyway to get a RX6950XT to work on the Z690? My 6800XT is giving issues on HDMI so I got my self a new card. Since I could not find any new 6800xt or 6900xt I got the 6950. You might be able to spoof the 6800 or 6900 device id but I’m not sure if that’s gonna work. Link to comment Share on other sites More sharing options...
surenmunoo Posted July 27, 2022 Share Posted July 27, 2022 10 minutes ago, Cyberdevs said: You might be able to spoof the 6800 or 6900 device id but I’m not sure if that’s gonna work. Tried with 6800XT and does not work, I managed to find this SSDT on the web. SSDT-6950XT-73A5-GPU-SPOOF.aml Link to comment Share on other sites More sharing options...
Stefanalmare Posted July 27, 2022 Share Posted July 27, 2022 8 hours ago, Cyberdevs said: Gigabyte released a new BIOS for Z690 Aorus Master today F20a for support of upcoming Intel 13th gen (and probably other 600 Series) so I updated the BIOS. The good thing is that it fixed the XMP profile issue and now my memory runs at 6200MHz instead of 4800 but i couldn't boot into macOS with the same EFI folder. After a while I realized i had to enable SetupVirtualMap quirk under Booter and I also had to update the OC and all the kexts to their latest versions. Same here. 2 hours to fix this little s......it. 🤮 1 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 28, 2022 Author Share Posted July 28, 2022 Hi @Stefanalmare How's you hack's stability on Ventura? mine is a bit flaky after the BIOS update. On Monterey it's stable tho. Link to comment Share on other sites More sharing options...
Stefanalmare Posted July 28, 2022 Share Posted July 28, 2022 1 hour ago, Cyberdevs said: Hi @Stefanalmare How's you hack's stability on Ventura? mine is a bit flaky after the BIOS update. On Monterey it's stable tho. I feel it same like before upgrade. Link to comment Share on other sites More sharing options...
surenmunoo Posted July 29, 2022 Share Posted July 29, 2022 On 7/28/2022 at 6:52 AM, Cyberdevs said: You might be able to spoof the 6800 or 6900 device id but I’m not sure if that’s gonna work. I just thought to give some feedback. The RX6950Xt works with my Gigabyte Aero D Z690 now thanks to Mald0n. He edited my EFI and now it works perfectly. 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 29, 2022 Author Share Posted July 29, 2022 3 minutes ago, surenmunoo said: I just thought to give some feedback. The RX6950Xt works with my Gigabyte Aero D Z690 now thanks to Mald0n. He edited my EFI and now it works perfectly. Nice! Thanks for the feedback. Can you check something for me please? Can you please check and see the Hyper-Threading Technology's status under System Report -> Hardware. Link to comment Share on other sites More sharing options...

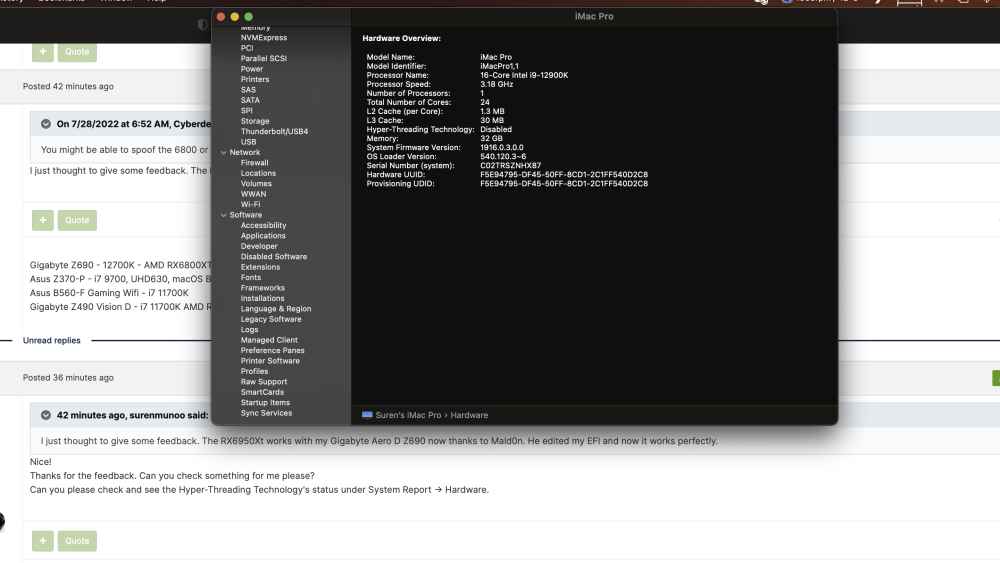

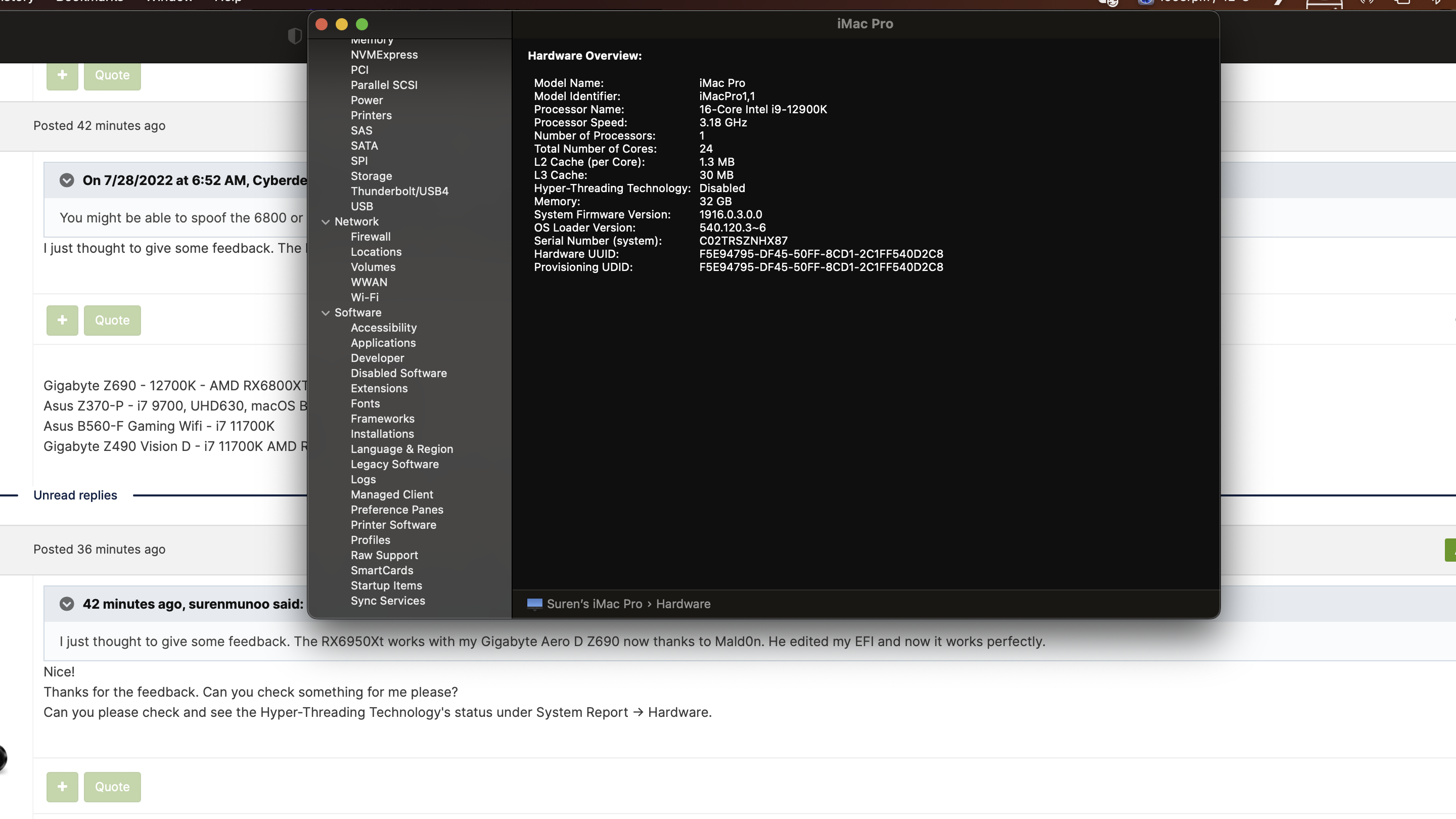

surenmunoo Posted July 29, 2022 Share Posted July 29, 2022 39 minutes ago, Cyberdevs said: Nice! Thanks for the feedback. Can you check something for me please? Can you please check and see the Hyper-Threading Technology's status under System Report -> Hardware. Shows as disabled. 1 Link to comment Share on other sites More sharing options...

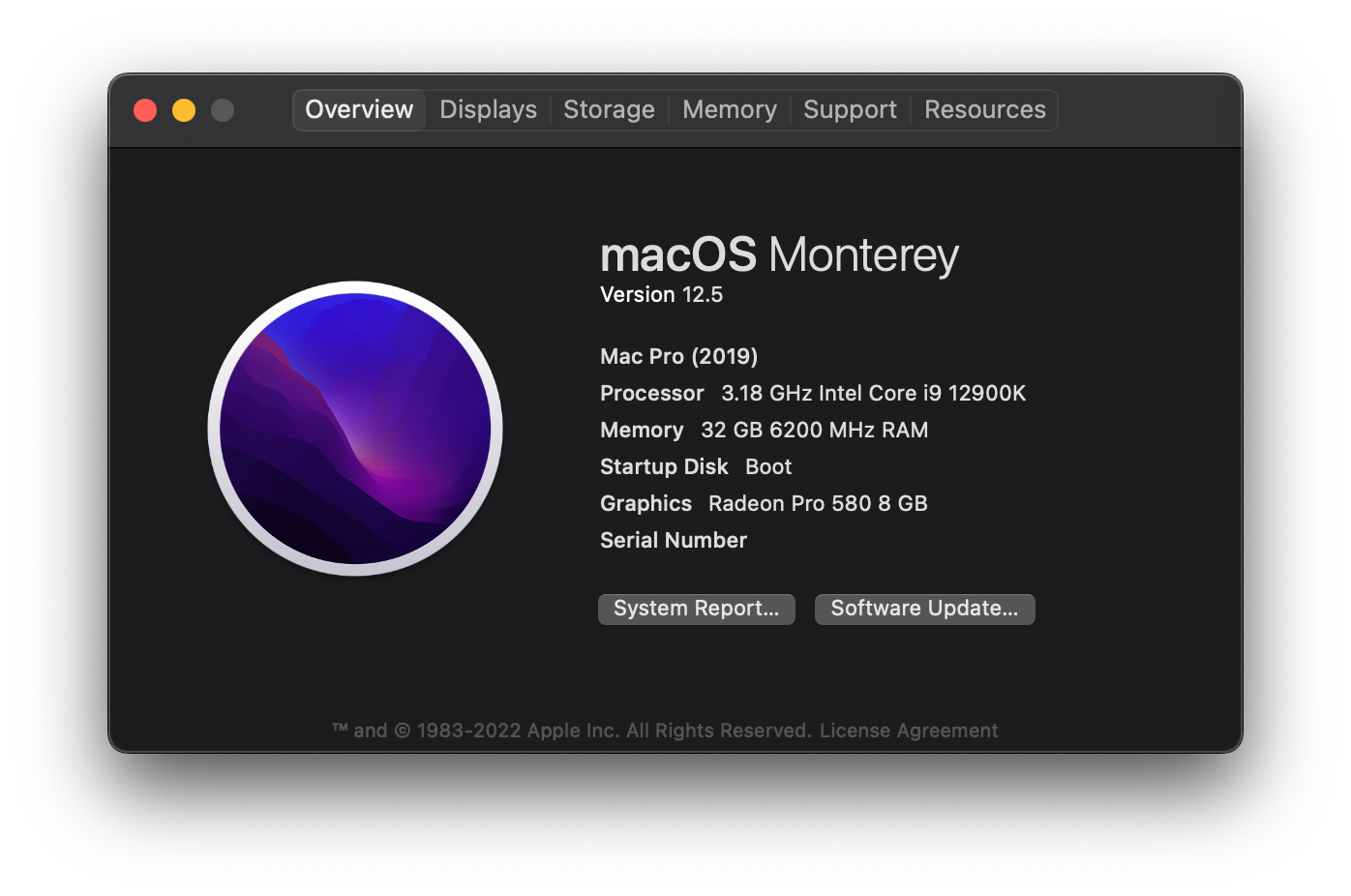

Stefanalmare Posted July 29, 2022 Share Posted July 29, 2022 (edited) 1 hour ago, Cyberdevs said: Nice! Thanks for the feedback. Can you check something for me please? Can you please check and see the Hyper-Threading Technology's status under System Report -> Hardware. But, like you see, I have no more the correct CPU. Spoiler Edited July 29, 2022 by Stefanalmare Link to comment Share on other sites More sharing options...

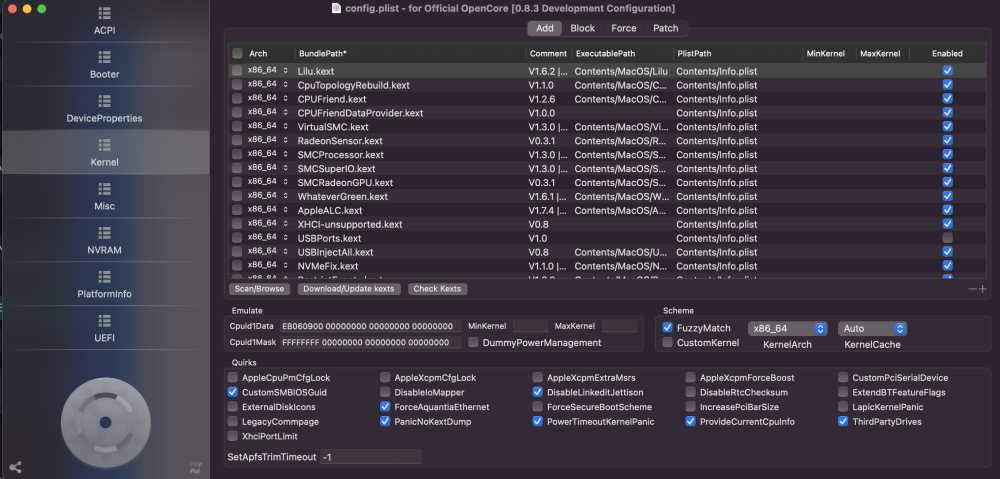

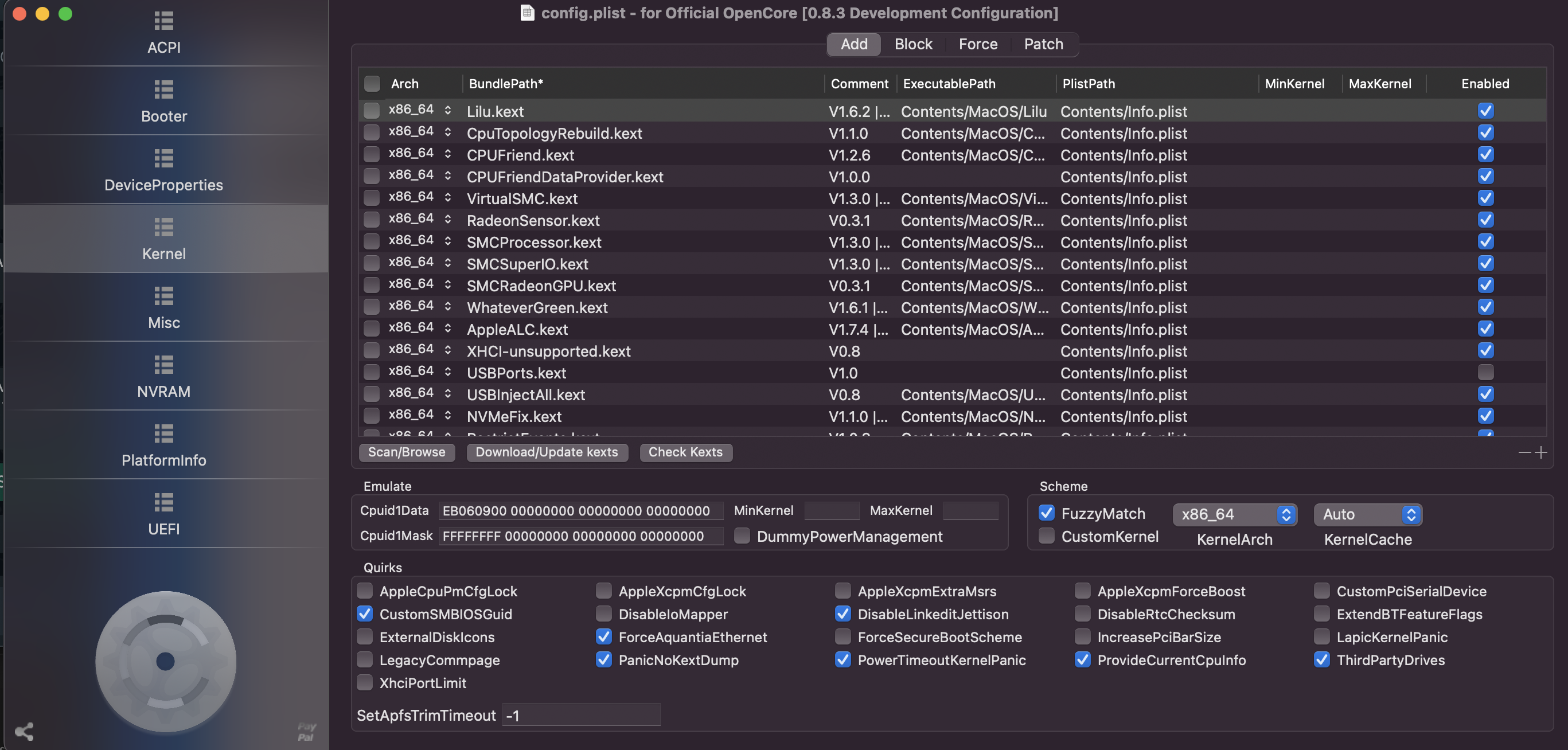

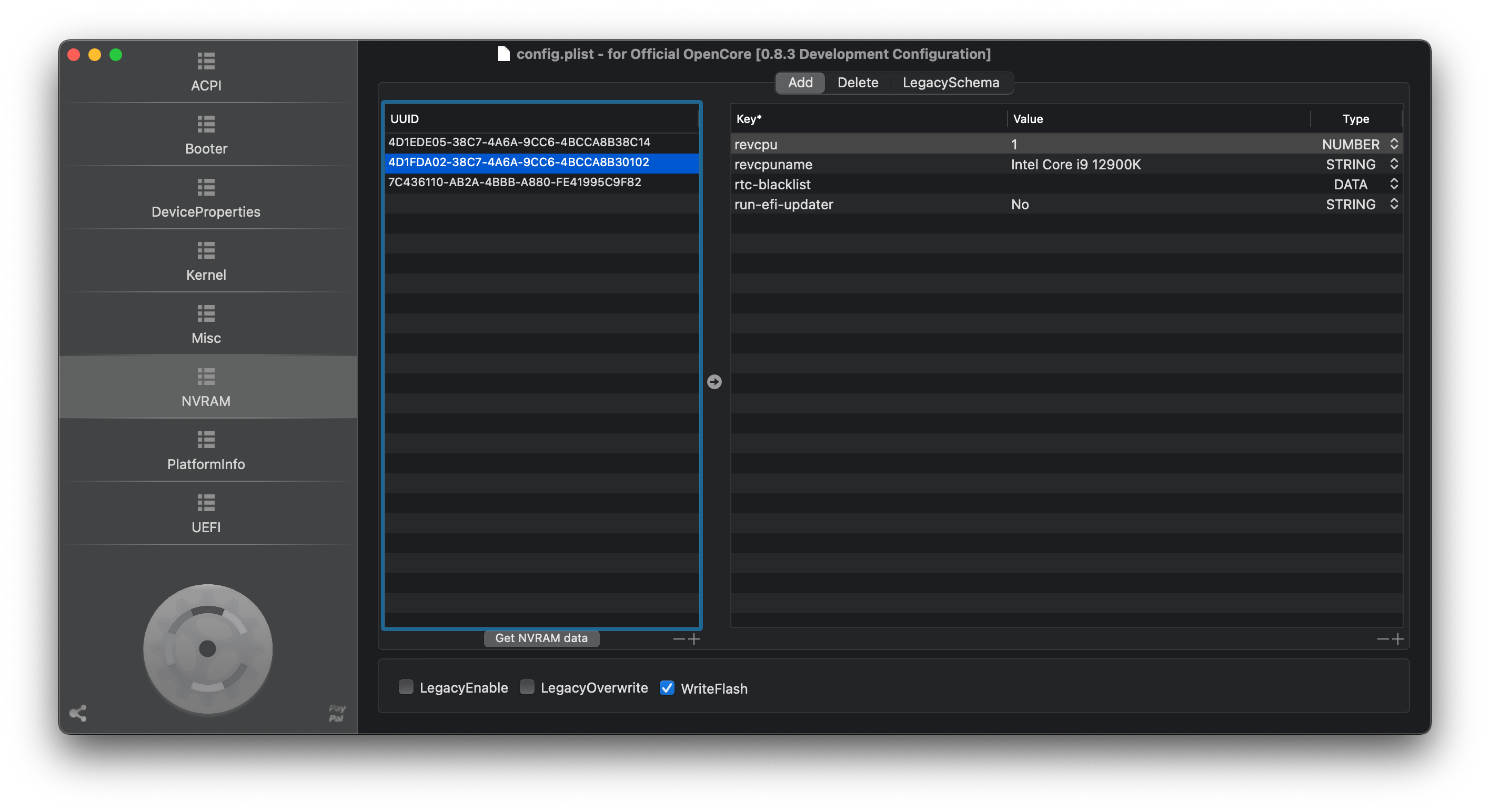

Cyberdevs Posted July 29, 2022 Author Share Posted July 29, 2022 14 minutes ago, Stefanalmare said: But, like you see, I have no more the correct CPU. How's yours enabled? And the correct CPU name can be shown if you set the ProcessorType to 0 or just use these settings: Link to comment Share on other sites More sharing options...

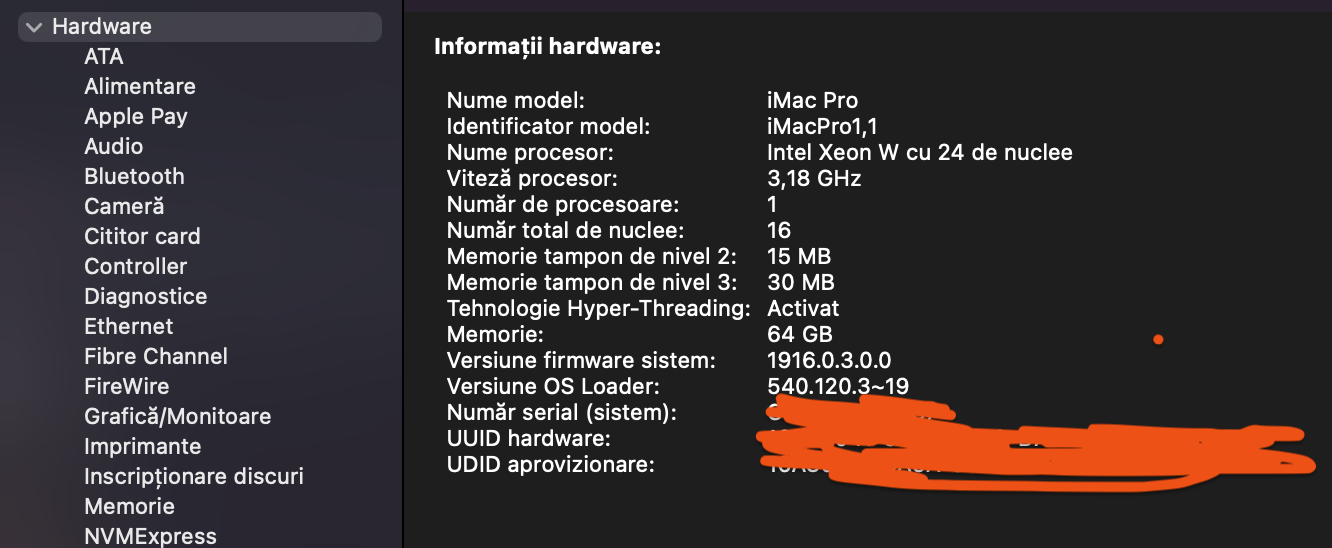

Stefanalmare Posted July 29, 2022 Share Posted July 29, 2022 32 minutes ago, Cyberdevs said: How's yours enabled? Spoiler 33 minutes ago, Cyberdevs said: And the correct CPU name can be shown if you set the ProcessorType to 0 or just use these settings: I know, but until few days ago I don't needed this solution. Link to comment Share on other sites More sharing options...
