nefilim Posted October 31, 2019 Share Posted October 31, 2019 36 minutes ago, canyondust said: Updated to OC 0.5.2, brilliant. No more random cursor and faster boot. What need to be set to see the output of VerifyMsrE2? I can launch it, but the screen remains black for a few seconds and then returns to the boot manager... Thanks! Added in Tools? I used it just last night with OC 0.5.2 and it showed me the expected output (locked!) <dict> <key>Arguments</key> <string></string> <key>Name</key> <string>VerifyMsrE2</string> <key>Comment</key> <string>Not signed for security reasons</string> <key>Enabled</key> <true/> <key>Path</key> <string>VerifyMsrE2.efi</string> </dict> Link to comment Share on other sites More sharing options...
justin Posted October 31, 2019 Share Posted October 31, 2019 (edited) 2 hours ago, canyondust said: Updated to OC 0.5.2, brilliant. No more random cursor and faster boot. What need to be set to see the output of VerifyMsrE2? I can launch it, but the screen remains black for a few seconds and then returns to the boot manager... Thanks! You can add OpenCore Shell.efi to tools, Launch shell, manually execute VerifyMsrE2.efi (it is located in fs0:/EFI/OC/Tools/ or fs1:/EFI/OC/Tools/) in the shell. Edited October 31, 2019 by justin 1 Link to comment Share on other sites More sharing options...
canyondust Posted October 31, 2019 Share Posted October 31, 2019 2 hours ago, nefilim said: Added in Tools? I used it just last night with OC 0.5.2 and it showed me the expected output (locked!) <dict> <key>Arguments</key> <string></string> <key>Name</key> <string>VerifyMsrE2</string> <key>Comment</key> <string>Not signed for security reasons</string> <key>Enabled</key> <true/> <key>Path</key> <string>VerifyMsrE2.efi</string> </dict> Yep, it’s in config.plist and enabled, shows up in the picker, I can select it, but it doesn’t seem to print any output to screen, just goes back to picker after about 10s Link to comment Share on other sites More sharing options...
navmessier63 Posted October 31, 2019 Share Posted October 31, 2019 11 hours ago, AliPas52 said: Gigabyte GA-B360N WIFI | i3 8100 | 16GB DDR4-2400 | RX 570 4GB | its my hardware opencore-2019-10-30-173832.txt Is your CPU ssdt okay? Link to comment Share on other sites More sharing options...
birdbird Posted October 31, 2019 Share Posted October 31, 2019 On 10/28/2019 at 9:15 AM, kjp4756 said: I had some similar issues with my new XFX RX580. Mine had a newer GOP driver dated may of this year. Wouldn't boot mac os at all. I then flashed the xfx bios from tech power up and got corrupted graphics with that. I ended up going with a sapphire bios and now things are perfect. It was Sapphire.RX580.8192.180719.rom from tech power up. I tried that and it didn't work with my card. I tried a few others and they either borked graphics or didn't solve the problem. Finally I found a utility to add/fix the UEFI GOP and that didn't do much. I'm starting to think this long pause is just due to the fact that I have like 8 various hard drives, some for other OSs (like the Linux I'm using now), some for backups, some as fusion drives, etc, which are making it take a year to parse all of them. On 10/28/2019 at 6:53 AM, n.d.k said: try copy this config.plist setting for ivybridge board. Thanks, I'll do this next. I suspect there's some issue during/after kext loading which is causing the final failure to boot. Hopefully this plist will help! Link to comment Share on other sites More sharing options...

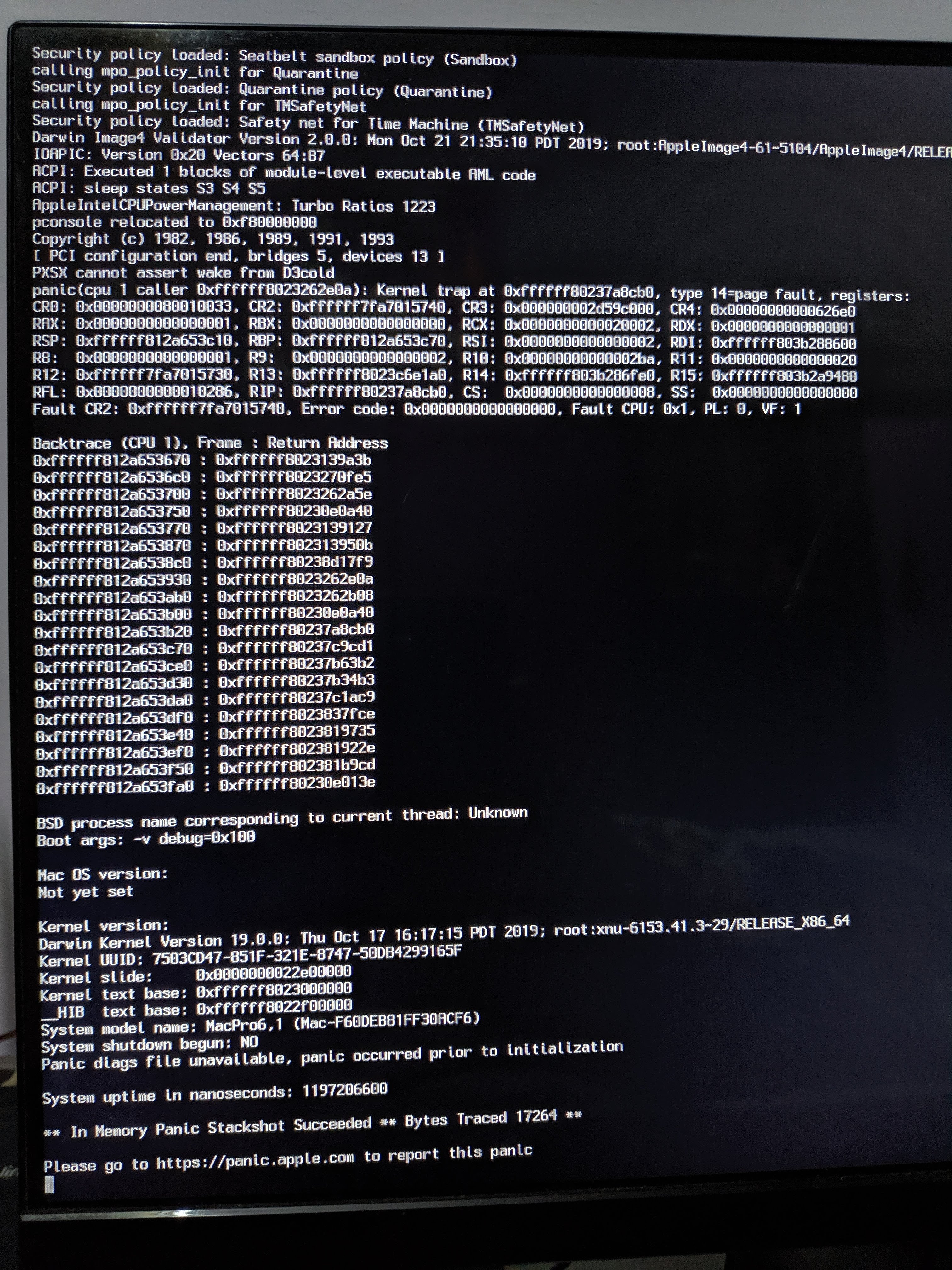

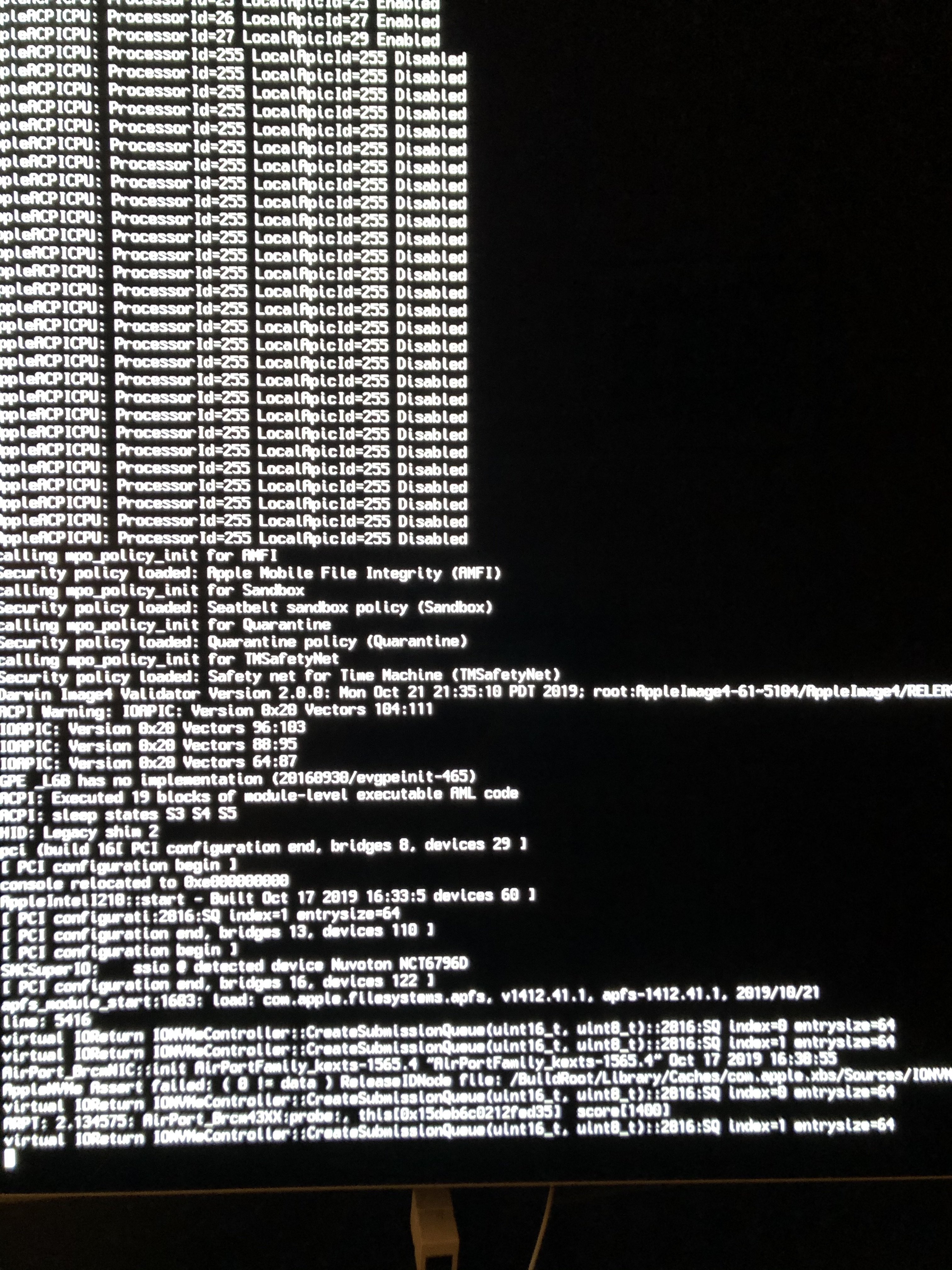

Elende Posted October 31, 2019 Share Posted October 31, 2019 @Andrey1970 Thank you very much. It was indeed an issue with UsbKbDxe.efi and HFSPlus is way faster. Sadly I'm stuck just a bit further down: On the Mojave recovery partition it block at the line apfs_module_start:1683 load: com.apple.filesystems.apfs ... And if I'm starting on the Catalina partition I end in a Kernel Panic shortly after HID Legacy shim 2 Does it ring any bell? Any recommendation? Link to comment Share on other sites More sharing options...
navmessier63 Posted October 31, 2019 Share Posted October 31, 2019 Hi, I am trying to boot recovery partition but getting this error where it stops going further. I am able to boot Catalina 10.15.1 just fine. 46:389 00:048 OCB: Matched default boot option: Awesome Drive 46:437 00:048 OCB: Initial default is 3 50:996 04:558 OCB: Should boot from Recovery 10.15.1 (T:2|F:1) 55:461 04:464 OCRAM: Extent allocation of 498540537 bytes (A) gave 100000000 (avoid high 0) Any help? Link to comment Share on other sites More sharing options...
canyondust Posted October 31, 2019 Share Posted October 31, 2019 8 hours ago, justin said: You can add OpenCore Shell.efi to tools, Launch shell, manually execute VerifyMsrE2.efi (it is located in fs0:/EFI/OC/Tools/ or fs1:/EFI/OC/Tools/) in the shell. Calling it from Shell worked perfectly! Thanks for that! Link to comment Share on other sites More sharing options...
manmo71 Posted October 31, 2019 Share Posted October 31, 2019 I have Catalina 10.15 on 2 different drive's. One running the latest Clover version and the other OC 0.5.1 I had the drive with OC 0.5.1 working perfectly fine. I just updated OC from 0.5.1 to 0.5.2 (before I did the update, I did backup the entire EFI folder for safety). Now after the update, when i restarted the system, I come to the Boot selection options and it stays there even after I select the correct drive with OC. I don't see anything happening, or any progress. Earlier I could see the verbose screen. I am unable to restart the system using Ctrl+Alt+Del. Only hard reset restarts the PC. I am new to OC and just beginning to get the grasp of it. I can try replacing the back EFI folder and see if I can get back into the system. But I prefer to figure out where the problem might be and fix it. Can someone help me out on this? EFI.zip Link to comment Share on other sites More sharing options...
Pavo Posted October 31, 2019 Share Posted October 31, 2019 4 minutes ago, manmo71 said: I have Catalina 10.15 on 2 different drive's. One running the latest Clover version and the other OC 0.5.1 I had the drive with OC 0.5.1 working perfectly fine. I just updated OC from 0.5.1 to 0.5.2 (before I did the update, I did backup the entire EFI folder for safety). Now after the update, when i restarted the system, I come to the Boot selection options and it stays there even after I select the correct drive with OC. I don't see anything happening, or any progress. Earlier I could see the verbose screen. I am unable to restart the system using Ctrl+Alt+Del. Only hard reset restarts the PC. I am new to OC and just beginning to get the grasp of it. I can try replacing the back EFI folder and see if I can get back into the system. But I prefer to figure out where the problem might be and fix it. Can someone help me out on this? EFI.zip You are missing a ton of sections in your config and in the EFI>OC folder structure. Read the doc and look at the folder structure and compare to this, you will see what you are missing. Also take the Sample.plist and compare to yours, you will see what is missing. Main thing to remember about OC config is that all parent and child sections in the config are mandatory but mainly all key:values in the Quirks section are mandatory to be in the config. OC added somethings in the config going from 0.5.1 to 0.5.2. Link to comment Share on other sites More sharing options...
manmo71 Posted October 31, 2019 Share Posted October 31, 2019 1 minute ago, Pavo said: You are missing a ton of sections in your config and in the EFI>OC folder structure. Read the doc and look at the folder structure and compare to this, you will see what you are missing. Also take the Sample.plist and compare to yours, you will see what is missing. Main thing to remember about OC config is that all parent and child sections in the config are mandatory but mainly all key:values in the Quirks section are mandatory to be in the config. OC added somethings in the config going from 0.5.1 to 0.5.2. Thank you Pavo for your quick response. I will do my best to figure it out. Link to comment Share on other sites More sharing options...
manmo71 Posted October 31, 2019 Share Posted October 31, 2019 2 hours ago, Pavo said: You are missing a ton of sections in your config and in the EFI>OC folder structure. Read the doc and look at the folder structure and compare to this, you will see what you are missing. Also take the Sample.plist and compare to yours, you will see what is missing. Main thing to remember about OC config is that all parent and child sections in the config are mandatory but mainly all key:values in the Quirks section are mandatory to be in the config. OC added somethings in the config going from 0.5.1 to 0.5.2. Thank you Pavo I managed to fix the boot issues. Now my OC system is working fine, also updated macOS to Catalina 10.15.1 (19B88) Link to comment Share on other sites More sharing options...
Addrii30 Posted October 31, 2019 Share Posted October 31, 2019 Hi i change Clover to Opencore 0.5.2. Now the system not boot. OS: Catalina 10.15 EFI.zip Link to comment Share on other sites More sharing options...
mhaeuser Posted October 31, 2019 Share Posted October 31, 2019 @Addrii30 As recommended by the manual, use a DEBUG version for logging. Link to comment Share on other sites More sharing options...
Addrii30 Posted October 31, 2019 Share Posted October 31, 2019 opencore-2019-10-29-151834.txt Link to comment Share on other sites More sharing options...

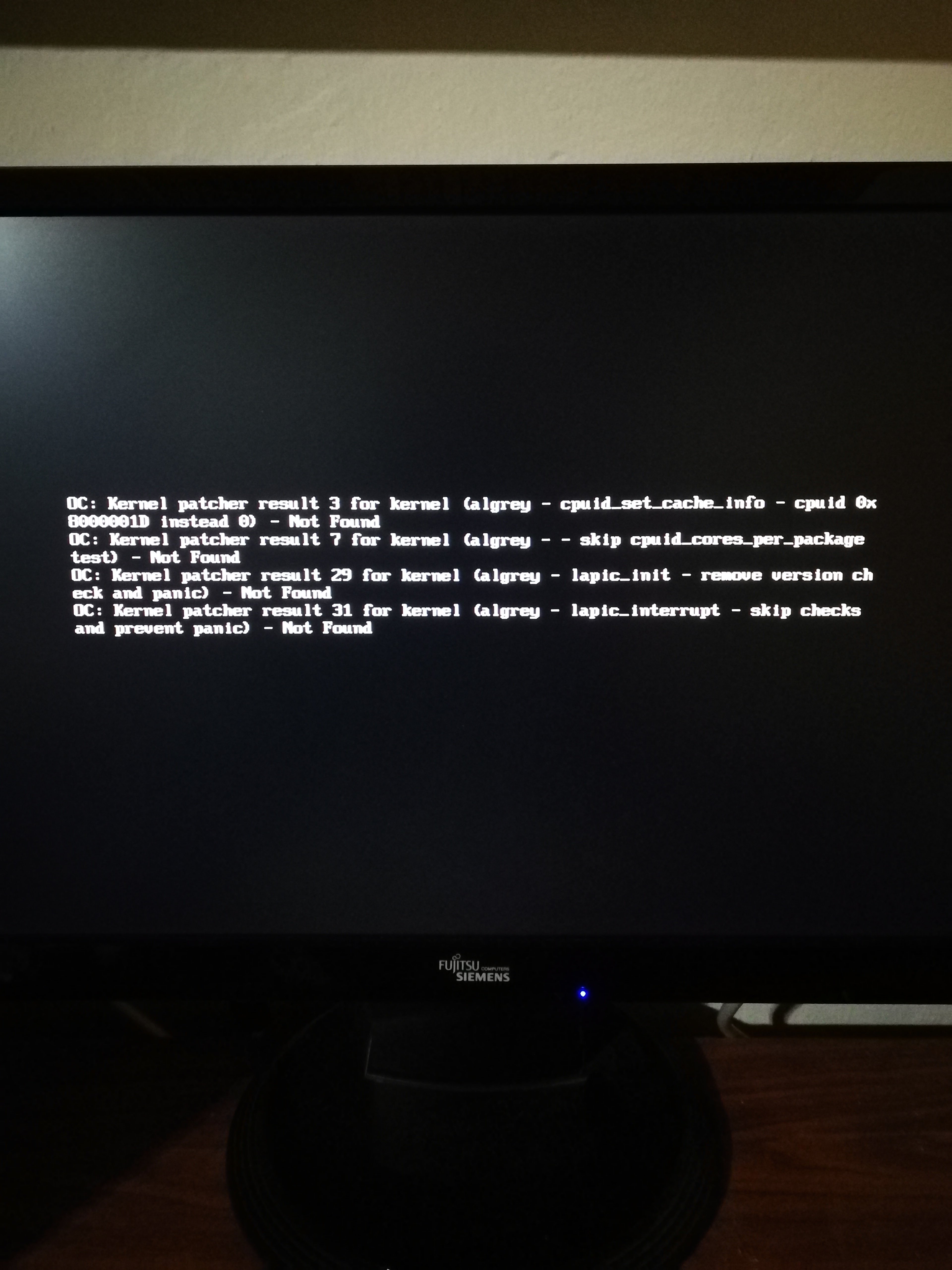

mhaeuser Posted October 31, 2019 Share Posted October 31, 2019 @Addrii30 There were no changes to the code handling this and the error does not seem to occur due to malformed PLIST, the patches simply do not apply, unrelated to OC. Link to comment Share on other sites More sharing options...
Addrii30 Posted October 31, 2019 Share Posted October 31, 2019 simply wrong plist file? Link to comment Share on other sites More sharing options...
nagha Posted October 31, 2019 Share Posted October 31, 2019 Has anyone had success with GA Z170m-d3h? I can't seem to get past the volume selection. Nothing happens after that. Thanks. Link to comment Share on other sites More sharing options...
mhaeuser Posted October 31, 2019 Share Posted October 31, 2019 Read the manual regarding troubleshooting, it is not decoration Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Share Posted October 31, 2019 (edited) Hello all! Updated my bios today and was suddenly running in to huge problems. OC doesn't boot and I can't downgrade my bios. Everything was working perfect with the old (1202) bios and OC 0.5.2. Can anybody have a look att my attached log please? opencore-2019-10-31-214336.txt config.plist Edited October 31, 2019 by obus Forgot config.plist Link to comment Share on other sites More sharing options...
moozuki Posted November 1, 2019 Share Posted November 1, 2019 8 hours ago, nagha said: Has anyone had success with GA Z170m-d3h? I can't seem to get past the volume selection. Nothing happens after that. Thanks. Mine works just fine. OC 0.5.2 and Catalina 10.15.1. Link to comment Share on other sites More sharing options...

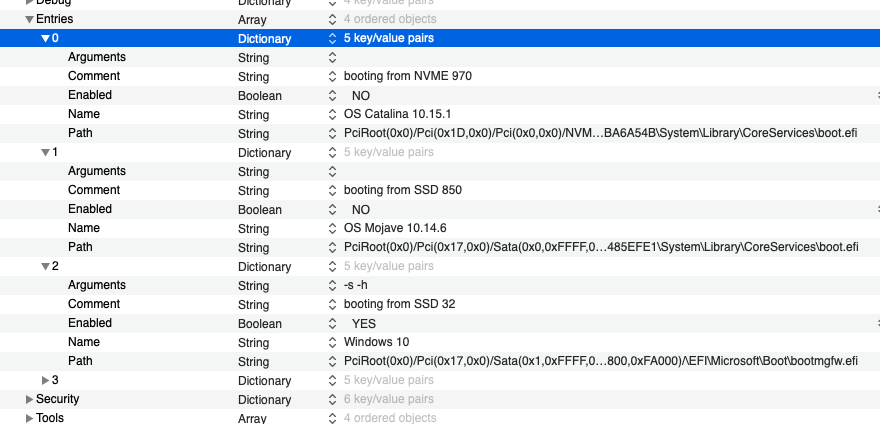

Ellybz Posted November 1, 2019 Share Posted November 1, 2019 (edited) On 10/29/2019 at 9:51 AM, Badruzeus said: Many thanks, it answers my curious. Now may I ask about "config.plist - Misc - Entries"... With 10.13.6 (HFS+) I'm able to boot using this custom "Path": PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(3,GPT,C456A6F1-04EB-46FC-9D03-A72480F3FC3B,0x50EA800,0xBF68000)/\System\Library\CoreServices\boot.efi But with 10.14.x - 10.15 (APFS) it won't boot with: PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(5,GPT,82C9F5B0-9BE3-4ABC-9DC1-D0241EEB93B2,0x11188800,0x4082800)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,42110296967A1A469B7D207A294F0602)/\A3897DBE-ECFB-4EF4-91EC-0F7E28C2E7F3\System\Library\CoreServices\boot.efi These paths are taken from OpenCore boot logs when using "Misc - Security - ScanPolicy: 0x003F0002" < This one actually works just fine, but on my case I'm trying with Custom Entries and prevent OC from scanning with ScanPolicy=0x00000001. Is it possible using custom path for APFS volume, or.. if not; is it bcoz APFS Volume actually not exist (virtual)..? I was also interested in using OC only with Custom Entries ( Hiding the "Recovery" options for all OSX versions in the picker ). I was able to able to boot from the custom entries on APFS formatted drives ( NVMe & SATA ) on both Mojave & Catalina. ( see path below, taken from OC Bootlog ) However If I don't add the APFS Scan ( bit 8 ), the entries appear in the bootpicker but the image cannot be loaded. I tried several options. At this point Custom entries for OSX become irrelevant because OSX will appear in the picker regardless. I wish OC had an option to hide specific volumes...Maybe someone has an idea to go around it? ScanPolicy :2689795 / 0X290B03 OSX Catalina /NVMe PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,A5-98-B1-81-55-38-25-00)/HD(2,GPT,F251C3AA-7ABA-4D2A-BC1E-E3EAD981644A,0x64028,0x1D161920)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8E8B6F004C6B484A904985395D582201)/\23CC1388-E765-4718-A905-7E64BBA6A54B\System\Library\CoreServices\boot.efi OSX Mojave /SATA PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,6FF6D2A5-1CE9-4291-8DDB-A672DB33CBC8,0x64028,0x1D161920)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D5FB95EF42BFFE4CB50ABB85733FE172)/\0EBB8B8D-271C-47E8-B251-3D4DC485EFE1\System\Library\CoreServices\boot.efi Edited November 1, 2019 by Ellybz 1 Link to comment Share on other sites More sharing options...
navmessier63 Posted November 1, 2019 Share Posted November 1, 2019 21 hours ago, NavHac said: Hi, I am trying to boot recovery partition but getting this error where it stops going further. I am able to boot Catalina 10.15.1 just fine. 46:389 00:048 OCB: Matched default boot option: Awesome Drive 46:437 00:048 OCB: Initial default is 3 50:996 04:558 OCB: Should boot from Recovery 10.15.1 (T:2|F:1) 55:461 04:464 OCRAM: Extent allocation of 498540537 bytes (A) gave 100000000 (avoid high 0) Any help? Bump Link to comment Share on other sites More sharing options...
AliPas52 Posted November 1, 2019 Share Posted November 1, 2019 Works just fine. OC 0.5.2 and Catalina 10.15.1. config.plist Link to comment Share on other sites More sharing options...
navmessier63 Posted November 1, 2019 Share Posted November 1, 2019 https://www.insanelymac.com/forum/?app=core&module=system&controller=content&do=find&content_class=forums_Topic&content_id=338516&content_commentid=2695569 Some progress: Avoid High set to yes and booting into recovery. Link to comment Share on other sites More sharing options...
