hitman478 Posted October 22, 2019 Share Posted October 22, 2019 I have tried to boot with OpenCore on my Dell XPS 9550 and after I have selected the Boot Partition with OS X Catalina, I only get a Black Screen and nothing happens anymore. Can you please have a look and check, what I did wrong? Thanks. EFI.zip Link to comment Share on other sites More sharing options...
ameenjuz Posted October 22, 2019 Share Posted October 22, 2019 23 minutes ago, Andres ZeroCross said: Just use if _OSI to fix this condition,, not big problem I didn't get understand I have already SSDT-XOSI.aml and rename please explain clearly Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 34 minutes ago, anmool said: I didn't get understand I have already SSDT-XOSI.aml and rename please explain clearly You must't Use SSDT-XOSI.aml in OpenCore,, SSDT-XOSI.aml is not compatible with Windows. I have tried it. Jus upload your OC folder. I will take a look. Btw,, i need to see your ORIGIN DSDT table. Dump it from Linux, RW Everything or Clover Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 @vit9696 @Download-Fritz Can OC dump ACPI table like other bootloader do??? just curious 1 Link to comment Share on other sites More sharing options...
manmo71 Posted October 22, 2019 Share Posted October 22, 2019 Hope someone can help me out on this issue. I have added PCI devices under DeviceProperties following a video on youtube, which showed adding the PCI devices using Headkaze's Hackintool by exporting the list and copying it into your config.plist under OC. Though the system booted up it did take quite long 1-2 minutes compared to its boot time before I added that (which was around 30sec-1 min). Boot times are also less than a minute under Clover on the second drive. I am not familiar with DSDT and find it a bit too intriguing to wrap my head around it. So, is there a better or a proven way to add the PCI devices under OC? Link to comment Share on other sites More sharing options...
ameenjuz Posted October 22, 2019 Share Posted October 22, 2019 1 hour ago, Andres ZeroCross said: You must't Use SSDT-XOSI.aml in OpenCore,, SSDT-XOSI.aml is not compatible with Windows. I have tried it. Jus upload your OC folder. I will take a look. Btw,, i need to see your ORIGIN DSDT table. Dump it from Linux, RW Everything or Clover I attached OC folder and original SSDTs dump OC.zip origin.zip Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 3 minutes ago, anmool said: I attached OC folder and original SSDTs dump OC.zip origin.zip Write detail of your Specifications, update your signature Link to comment Share on other sites More sharing options...
ameenjuz Posted October 22, 2019 Share Posted October 22, 2019 15 minutes ago, Andres ZeroCross said: Write detail of your Specifications, update your signature I think that you want my laptop's Specifications Lenovo Ideapad 320-14IKB CPU Intel(R) Core(TM) i5-7200U CPU @ 2.50GHz Kaby Lake GPU Name Intel HD Graphics 620 GPU Device ID 0x59168086 RAM 4.00 GB Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 (edited) On 10/23/2019 at 3:45 AM, anmool said: I think that you want my laptop's Specifications Lenovo Ideapad 320-14IKB CPU Intel(R) Core(TM) i5-7200U CPU @ 2.50GHz Kaby Lake GPU Name Intel HD Graphics 620 GPU Device ID 0x59168086 RAM 4.00 GB Try this. Remove old OC folder and replace with this ,, post the result Edited November 17, 2019 by Andres ZeroCross Link to comment Share on other sites More sharing options...
ameenjuz Posted October 22, 2019 Share Posted October 22, 2019 14 minutes ago, Andres ZeroCross said: Try this. Remove old OC folder and replace with this ,, post the result OC.zip thanks worked perfectly with this DSDT but I don't want DSDT I want ACPI Hotpatch like my Clover ACPI hotpatch because whenever I change my bois setting then DSDT become corrupt but SSDTs doesn't corrupt to changing bois setting Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 (edited) 42 minutes ago, anmool said: thanks worked perfectly with this DSDT but I don't want DSDT I want ACPI Hotpatch like my Clover ACPI hotpatch because whenever I change my bois setting then DSDT become corrupt but SSDTs doesn't corrupt to changing bois setting I have set "Rebase Region : Yes" in config.plist. No worry change setup in BIOS. Enjoy your hackintosh Sent from my iPhone using Tapatalk Edited October 22, 2019 by Andres ZeroCross Link to comment Share on other sites More sharing options...
ameenjuz Posted October 22, 2019 Share Posted October 22, 2019 27 minutes ago, Andres ZeroCross said: I have set "Rebase Region : Yes" in config.plist. No worry change setup in BIOS. Enjoy your hackintosh Sent from my iPhone using Tapatalk I have set "Rebase Region : Yes" in config.plist. No worry change setup in BIOS. Enjoy your hackintosh Sent from my iPhone using Tapatalk thanks for helping me sound is not working can I change my layout id in DSDT? Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 thanks for helping me sound is not working can I change my layout id in DSDT?Yes, just change it in hdefSent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 6 minutes ago, anmool said: thanks for helping me sound is not working can I change my layout id in DSDT? use this,, i have set it to 0x14, 0x00, 0x00, 0x00 DSDT.aml Link to comment Share on other sites More sharing options...

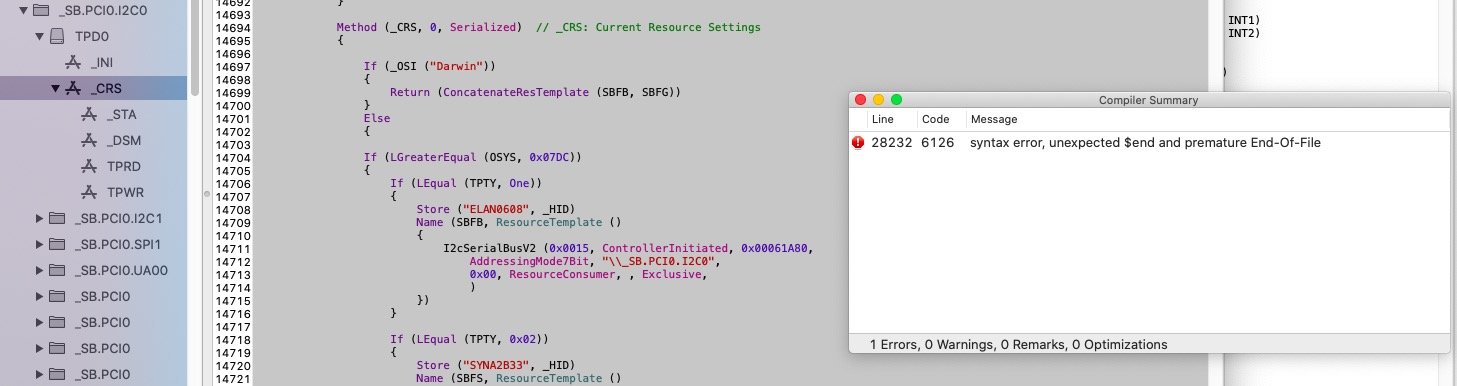

ameenjuz Posted October 23, 2019 Share Posted October 23, 2019 10 hours ago, Andres ZeroCross said: use this,, i have set it to 0x14, 0x00, 0x00, 0x00 DSDT.aml Thanks sound working How to apply if _OSI manually in dsdt and where where apply Clearly explain one by one Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 23, 2019 Share Posted October 23, 2019 31 minutes ago, anmool said: Thanks sound working How to apply if _OSI manually in dsdt and where where apply Clearly explain one by one I am not english, my english is not good. Just take a look at patched DSDT that i have given to you. Search "_OSI" in maciASL as keyword. You will understand 1 Link to comment Share on other sites More sharing options...
UefiBooter Posted October 23, 2019 Share Posted October 23, 2019 15 hours ago, Andres ZeroCross said: @vit9696 @Download-Fritz Can OC dump ACPI table like other bootloader do??? just curious there is an official ACPICA uefi tool to dump tables https://www.acpica.org/downloads/uefi-support 3 Link to comment Share on other sites More sharing options...
ameenjuz Posted October 23, 2019 Share Posted October 23, 2019 6 hours ago, Andres ZeroCross said: I am not english, my english is not good. Just take a look at patched DSDT that i have given to you. Search "_OSI" in maciASL as keyword. You will understand sometime automatically wake from sleep during sleep how to apply instant wake patch on DSDT Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 23, 2019 Share Posted October 23, 2019 1 minute ago, anmool said: sometime automatically wake from sleep during sleep how to apply instant wake patch on DSDT It's depend,, what's device cause that?? upload IOREG output. Link to comment Share on other sites More sharing options...
ameenjuz Posted October 23, 2019 Share Posted October 23, 2019 I extracted debug file with RunMe.app please analyze my DSDT where is fault I think that this is bug of 10.15 in 10.14.6 fine Send me Mohammads-MacBook-Pro.zip Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 23, 2019 Share Posted October 23, 2019 Just now, anmool said: I extracted debug file with RunMe.app please analyze my DSDT where is fault I think that this is bug of 10.15 in 10.14.6 fine Send me Mohammads-MacBook-Pro.zip It's OUT OF TOPIC here,, I just need IOREG Output,, not other useless files Link to comment Share on other sites More sharing options...
ameenjuz Posted October 23, 2019 Share Posted October 23, 2019 1 minute ago, Andres ZeroCross said: It's OUT OF TOPIC here,, I just need IOREG Output,, not other useless files sorry I uploaded only IOREG Mohammad’s MacBook Pro.ioreg Link to comment Share on other sites More sharing options...

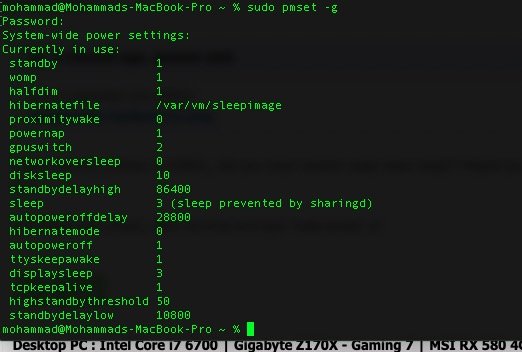

Andres ZeroCross Posted October 23, 2019 Share Posted October 23, 2019 Just now, anmool said: sorry I uploaded only IOREG Mohammad’s MacBook Pro.ioreg I don't see any problem in IOREG,, Did you mean random wake when sleep?? Maybe you can set proximitywake to 0. Just check your pmset,, open terminal and type "sudo pmset -g" Link to comment Share on other sites More sharing options...
ameenjuz Posted October 23, 2019 Share Posted October 23, 2019 2 minutes ago, Andres ZeroCross said: I don't see any problem in IOREG,, Did you mean random wake when sleep?? Maybe you can set proximitywake to 0. Just check your pmset,, open terminal and type "sudo pmset -g" I mean sometime sleep break I think random wake from sleep I have already set proximitywake to 0 and also tried proximitywake to 1 no luck Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 23, 2019 Share Posted October 23, 2019 2 minutes ago, anmool said: I mean sometime sleep break I think random wake from sleep I have already set proximitywake to 0 and also tried proximitywake to 1 no luck Use this,, your system will be sleep well.. DSDT.aml Link to comment Share on other sites More sharing options...
