Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 (edited) 36 minutes ago, anmool said: No same hard drive and same EFI folder Honestly i don't know exactly how bless overide work but maybe this can help you https://www.insanelymac.com/forum/topic/338516-opencore-discussion/?do=findComment&comment=2687140 But i am still use my old ways (my previous video uses old way) with Single EFI Partition for 2 Operating System, this my old way Edited October 21, 2019 by Andres ZeroCross Link to comment Share on other sites More sharing options...
Andrey1970 Posted October 21, 2019 Share Posted October 21, 2019 22 minutes ago, anmool said: No same hard drive and same EFI folder HideSelf=Nо ScanPolicy resolve EFI or set 0 Check a way to the file bootmgfw.efi in BlessOverride. Link to comment Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 24 minutes ago, Andres ZeroCross said: Honestly i don't know exactly how bless overide work but maybe this can help you https://www.insanelymac.com/forum/topic/338516-opencore-discussion/?do=findComment&comment=2687140 But i am still use my old ways (may video before use old way) with Single EFI Partition for 2 Operating System, this my old way I readed your old dual boot solution I have no option boot entry in my bois I m not familiar bcfg boot add 05 "path file" "entry name" please tell me about custom boot entry in Misc → Boot → CustomPaths how to do Link to comment Share on other sites More sharing options...
obus Posted October 21, 2019 Share Posted October 21, 2019 56 minutes ago, anmool said: I readed your old dual boot solution I have no option boot entry in my bois I m not familiar bcfg boot add 05 "path file" "entry name" please tell me about custom boot entry in Misc → Boot → CustomPaths how to do Try this: Misc -> Boot > HideSelf = NO Misc -> Security -> ScanPolicy = 722 179 This combination reads as: OC_SCAN_FILE_SYSTEM_LOCK OC_SCAN_DEVICE_LOCK OC_SCAN_ALLOW_FS_APFS OC_SCAN_ALLOW_DEVICE_SATA OC_SCAN_ALLOW_DEVICE_SASEX OC_SCAN_ALLOW_FS_ESP OC_SCAN_ALLOW_DEVICE_NVME Link to comment Share on other sites More sharing options...

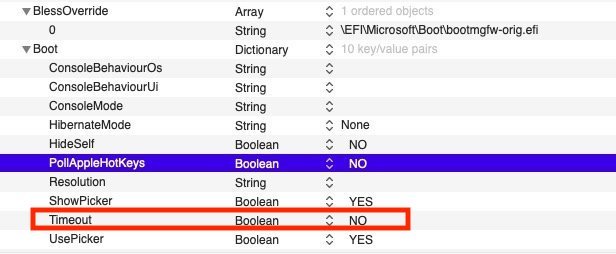

ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 17 minutes ago, obus said: Try this: Misc -> Boot > HideSelf = NO Misc -> Security -> ScanPolicy = 722 179 This combination reads as: OC_SCAN_FILE_SYSTEM_LOCK OC_SCAN_DEVICE_LOCK OC_SCAN_ALLOW_FS_APFS OC_SCAN_ALLOW_DEVICE_SATA OC_SCAN_ALLOW_DEVICE_SASEX OC_SCAN_ALLOW_FS_ESP OC_SCAN_ALLOW_DEVICE_NVME hay great job thanks obus you are solved my problem to provide me this ScanPolicy = 722179 I put \EFI\Microsoft\Boot\bootmgfw-orig.efi on Misc -> BlessOverride then I booted windows 10 successfully but I couldn't see my hidden EFI partition on boot picker Link to comment Share on other sites More sharing options...
obus Posted October 21, 2019 Share Posted October 21, 2019 3 minutes ago, anmool said: hay great job thanks obus you are solved my problem to provide me this ScanPolicy = 722179 I put \EFI\Microsoft\Boot\bootmgfw-orig.efi on Misc -> BlessOverride then I booted windows 10 successfully but I couldn't see my hidden EFI partition on boot picker If you want the EFI-folder in BootMenu try set set HideSelf = YES Link to comment Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 5 minutes ago, obus said: If you want the EFI-folder in BootMenu try set set HideSelf = YES when I set HideSelf = YES my bootcamp partition become disappear on BootMenu when I set HideSelf = No my EFI partition become disappear on BootMenu how to solve this both Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 8 minutes ago, anmool said: when I set HideSelf = YES my bootcamp partition become disappear on BootMenu when I set HideSelf = No my EFI partition become disappear on BootMenu how to solve this both Why did you need EFI partition to be shown in boot picker??? 2 Link to comment Share on other sites More sharing options...
obus Posted October 21, 2019 Share Posted October 21, 2019 11 minutes ago, anmool said: when I set HideSelf = YES my bootcamp partition become disappear on BootMenu when I set HideSelf = No my EFI partition become disappear on BootMenu how to solve this both If you want both EFI-folder and Boot Camp in Boot Menu then you have to put your Windows installation on a second disk and set HideSelf = NO. That's it! Link to comment Share on other sites More sharing options...

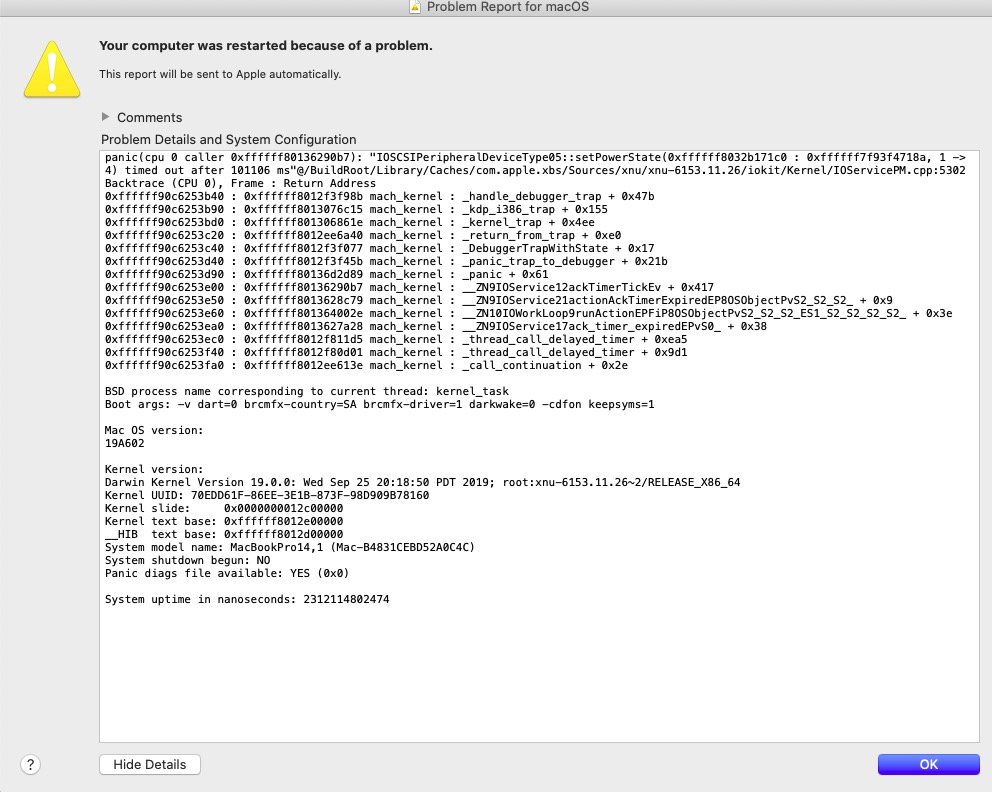

ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 1 minute ago, Andres ZeroCross said: Why did you need EFI partition to be shown in boot picker??? just forget EFI partition no need I have another issue my laptop sometime my laptop occurs automatically reboot when I boot again from start this screenshot I captured Link to comment Share on other sites More sharing options...
obus Posted October 21, 2019 Share Posted October 21, 2019 Hey @Andres ZeroCross! Still can't boot my HP EliteBook 840 -G1 with OC. Any new suggestions! Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 1 minute ago, obus said: Hey @Andres ZeroCross! Still can't boot my HP EliteBook 840 -G1 with OC. Any new suggestions! What do you mean by "can't boot"?? No entry of macOS?? After press entry number button no response?? or something else? Link to comment Share on other sites More sharing options...
obus Posted October 21, 2019 Share Posted October 21, 2019 (edited) 20 minutes ago, Andres ZeroCross said: What do you mean by "can't boot"?? No entry of macOS?? After press entry number button no response?? or something else? Buggy HP firmware? 00:993 00:002 OCB: Filesystem 0 (B2160518) named EFI (Success) has 1 entries 00:999 00:006 OCB: Adding entry 0, external - 0, skip recovery - 0 01:002 00:002 DevicePath - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0x0,0x0)/HD(1,GPT,9F4B1F10-9F1E-4ED4-8293-9AA8317A89EE,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 01:004 00:002 OCBP: APFS recovery volume handle missing - \EFI\BOOT\ 01:007 00:002 OCB: Adding entry 0 recovery (<null>) - Not Found 01:009 00:002 Scanning got 1 entries 01:012 00:002 Trying to get label from \EFI\BOOT\.contentDetails 01:014 00:002 Trying to get label from \EFI\BOOT\.disk_label.contentDetails 01:017 00:002 Trying to detect Microsoft BCD 01:019 00:002 Entry 0 is EFI at \EFI\BOOT\ (T:0|F:0) 01:026 00:006 Entry 0 is EFI at dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0x0,0x0)/HD(1,GPT,9F4B1F10-9F1E-4ED4-8293-9AA8317A89EE,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 01:028 00:002 OCB: Performing OcShowSimpleBootMenu... 0 01:031 00:002 OCB: BootNext has not been found 01:033 00:002 OCB: BootOrder is unavailable - Not Found 01:035 00:002 OCB: Initial default is 0, fallback 06:117 05:081 OCB: Should boot from EFI (T:0|F:0) 06:121 00:003 OCB: Perform boot EFI to dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0x0,0x0)/HD(1,GPT,9F4B1F10-9F1E-4ED4-8293-9AA8317A89EE,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI (0/0) 06:124 00:002 OCB: Matching <> args on type 0 0 06:126 00:002 OCC: Configuring behaviour 4 06:266 00:140 BS: Starting OpenCore... 06:270 00:003 BS: Booter path - \EFI\BOOT\BOOTX64.EFI 06:272 00:002 OCF: Trying to locate filesystem on B2160518 B25CAD18 06:275 00:002 OCF: Filesystem DP is \EFI\BOOT\BOOTX64.EFI 06:277 00:002 BS: Trying to start loaded OpenCore image... 06:280 00:002 OC: ReRun executed! 06:282 00:002 OC: Nested ReRun is not supported 06:285 00:002 BS: Trying to load OpenCore image... 06:288 00:003 BS: Read OpenCore image of 464064 bytes 06:291 00:002 BS: Loaded OpenCore image at B25BC618 handle 06:394 00:103 OC: Starting OpenCore... 06:398 00:003 OC: Found previous image, aborting 06:401 00:002 BS: Failed to start OpenCore image - Already started 06:403 00:002 BS: Failed to load OpenCore from disk - Already started 06:406 00:002 OC: Boot failed - Not Found 06:408 00:002 OCC: Configuring behaviour 3 06:496 00:087 OCB: StartImage failed - Not Found Edited October 21, 2019 by obus Link to comment Share on other sites More sharing options...
vandroiy2012 Posted October 21, 2019 Share Posted October 21, 2019 22 minutes ago, anmool said: just forget EFI partition no need I have another issue my laptop sometime my laptop occurs automatically reboot when I boot again from start this screenshot I captured OpenCore 0.5.2 Kernel->Quirk->PowerTimeoutKernelPanic=true Link to comment Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 2 minutes ago, vandroiy2012 said: OpenCore 0.5.2 Kernel->Quirk->PowerTimeoutKernelPanic=true I m running OpenCore 0.5.2 now I kept Kernel->Quirk->PowerTimeoutKernelPanic=true I m testing if any issue occur I will report back thanks for reply Link to comment Share on other sites More sharing options...
Andrey1970 Posted October 21, 2019 Share Posted October 21, 2019 1 hour ago, anmool said: hay great job thanks obus you are solved my problem to provide me this ScanPolicy = 722179 I put \EFI\Microsoft\Boot\bootmgfw-orig.efi on Misc -> BlessOverride then I booted windows 10 successfully but I couldn't see my hidden EFI partition on boot picker There shall be a number. Link to comment Share on other sites More sharing options...
moozuki Posted October 22, 2019 Share Posted October 22, 2019 21 hours ago, justin said: 1. Remove EFICheckDisabler.kext and it's item in config.plist, why the heck did you use that kext. 2. set DisableVariableWrite=YES, if your motherboard does not have a HARDWARE NVRAM. you need to check that by your self. 3. notes for SSDT-PLUG.aml, is your CPU at _PR_.CPU0 or _SB_.PR00, check that with your DSDT. 4. if you can turn off CFG LOCK in your BIOS, then set AppleCpuPmCfgLock=NO, AppleXcpmCfgLock=NO 5. you set ScanPolicy=1117955, that's mess, it will not scan your NVME drive if you have one, set it to 0 for god sake. 1. Holdover from Clover, sorry 2. My hardware NVRAM works just fine 3. SSDT-PLUG.aml was adjusted for my board 4. no way in BIOS 5. All my drives are SATA. Had to make USB installer and re-install Catalina to get it to boot again, not the best solution. It seems everytime I update kexts or OC , it gets the unable to load kernel cache error. Link to comment Share on other sites More sharing options...

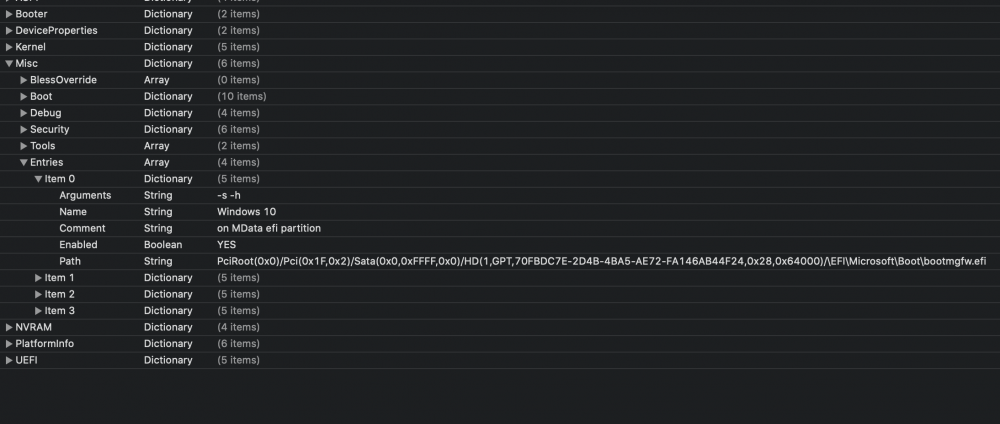

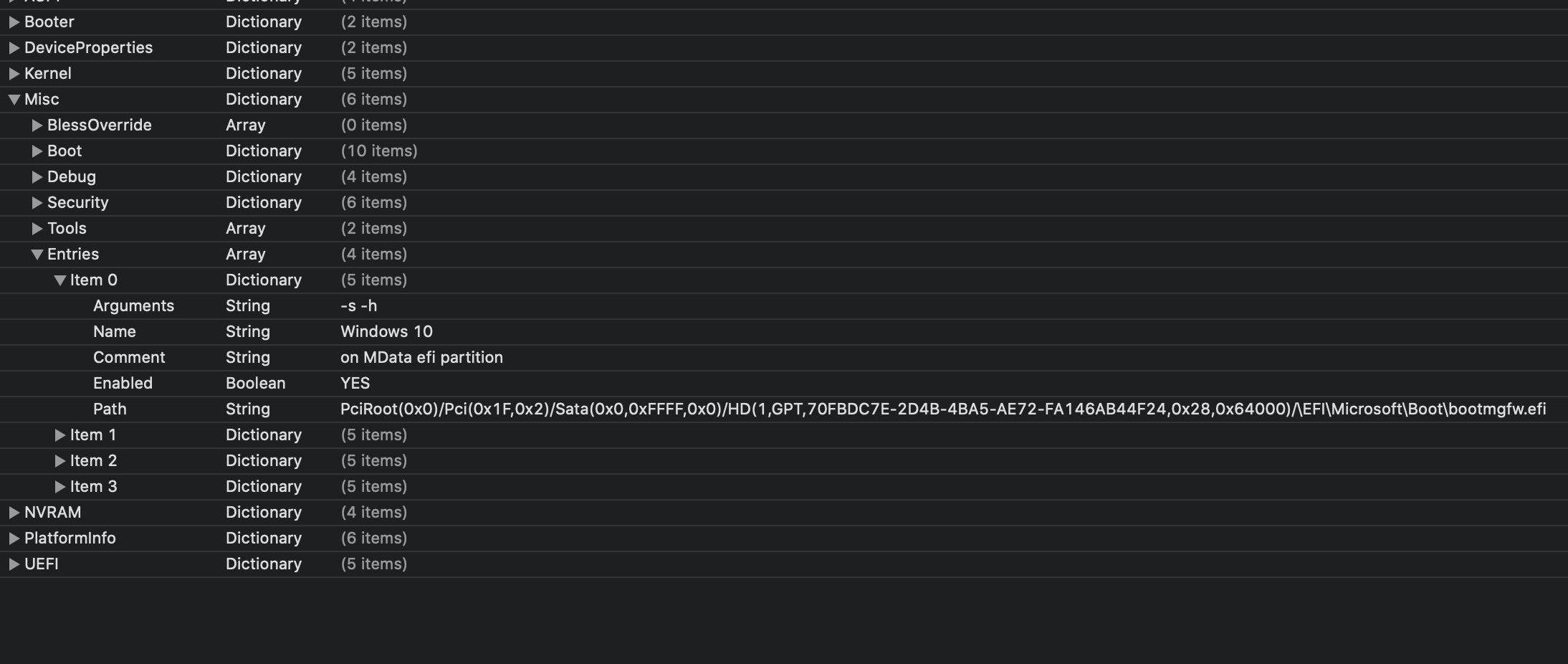

n.d.k Posted October 22, 2019 Share Posted October 22, 2019 10 hours ago, obus said: If you want both EFI-folder and Boot Camp in Boot Menu then you have to put your Windows installation on a second disk and set HideSelf = NO. That's it! Don't forget OC have Misc->Entries->Item 0, this is where you add your custom entries and UEFI shell tools, you can add any custom entry for your Windows, Linux, FreeBsd, or macOS, or even other boot loaders. Why bother with scan policy and setting HideSelf = No. I hope there's an option to set Auto Scan to Off soon, so I can just add my own custom entry for each of the OS with the name I choose..:) Else I am gonna add it myself. Screen Shot below is my custom Window 10 entry with HideSelf=Yes, and Default scan policy, and it happens to sit on the same EFI folder that OC is. If you don't know your device path, you can look it up in the boot log. It tell you where everything is. 1 1 Link to comment Share on other sites More sharing options...
ameenjuz Posted October 22, 2019 Share Posted October 22, 2019 16 hours ago, Andrey1970 said: There shall be a number. 6 hours ago, n.d.k said: Don't forget OC have Misc->Entries->Item 0, this is where you add your custom entries and UEFI shell tools, you can add any custom entry for your Windows, Linux, FreeBsd, or macOS, or even other boot loaders. Why bother with scan policy and setting HideSelf = No. I hope there's an option to set Auto Scan to Off soon, so I can just add my own custom entry for each of the OS with the name I choose..:) Else I am gonna add it myself. Screen Shot below is my custom Window 10 entry with HideSelf=Yes, and Default scan policy, and it happens to sit on the same EFI folder that OC is. If you don't know your device path, you can look it up in the boot log. It tell you where everything is. when I remove my DSDT from ACPI folder then windows 10 show me error message during boot I think that OpenCore force to use DSDT for windows can't we boot windows without DSDT? second when I put DSDT in ACPI folder windows 10 boot fine no error message but I can't boot my macOS to cause of VoodooI2C or SSDTI2C.aml or _CRS METHOD patching I don't know hasn't OpenCore dual boot option without DSDT? and how to get bootlog using OpenCore to find boot path for Misc/Entries I extremely sorry for my bad English Link to comment Share on other sites More sharing options...
danif Posted October 22, 2019 Share Posted October 22, 2019 On 10/19/2019 at 12:53 PM, Download-Fritz said: The check is here: https://github.com/acidanthera/OcSupportPkg/blob/5e0f400c69115b2d21f402f3ba694bc595e23ba9/Library/OcBootManagementLib/PolicyManagement.c#L78 The most trivial change would be to add a case for MSG_DEVICE_LOGICAL_UNIT_DP, but unsure of how much (security-related) use that is, really. If you're concerned with security, you should probably integrate edk2's NvmExpressDxe into your FW (this is out of scope for this thread though, so please do not ask questions about that here) Thank you!. I added that case and now I can use DEVICE_LOCK bit. I'd like to ask for your opinion about my main problem with oc right now, maybe you can orient me in the right direction. My MB is not posting ocasionally (with led code AA, meaning no problem), when i try reseting or switch off-on, after 3-9 times it will rarely post but when it does bios setup has some unasked changes (most of the time CSM is enabled, once it enabled SecureBoot...). What 'fixes' the problem always is to reflash the latest bios. This problem started at the same time that I started using Open Core. I am uploading my current EFI folder just in case it is related to configuration. Thanks again. EFI - danif.zip Link to comment Share on other sites More sharing options...

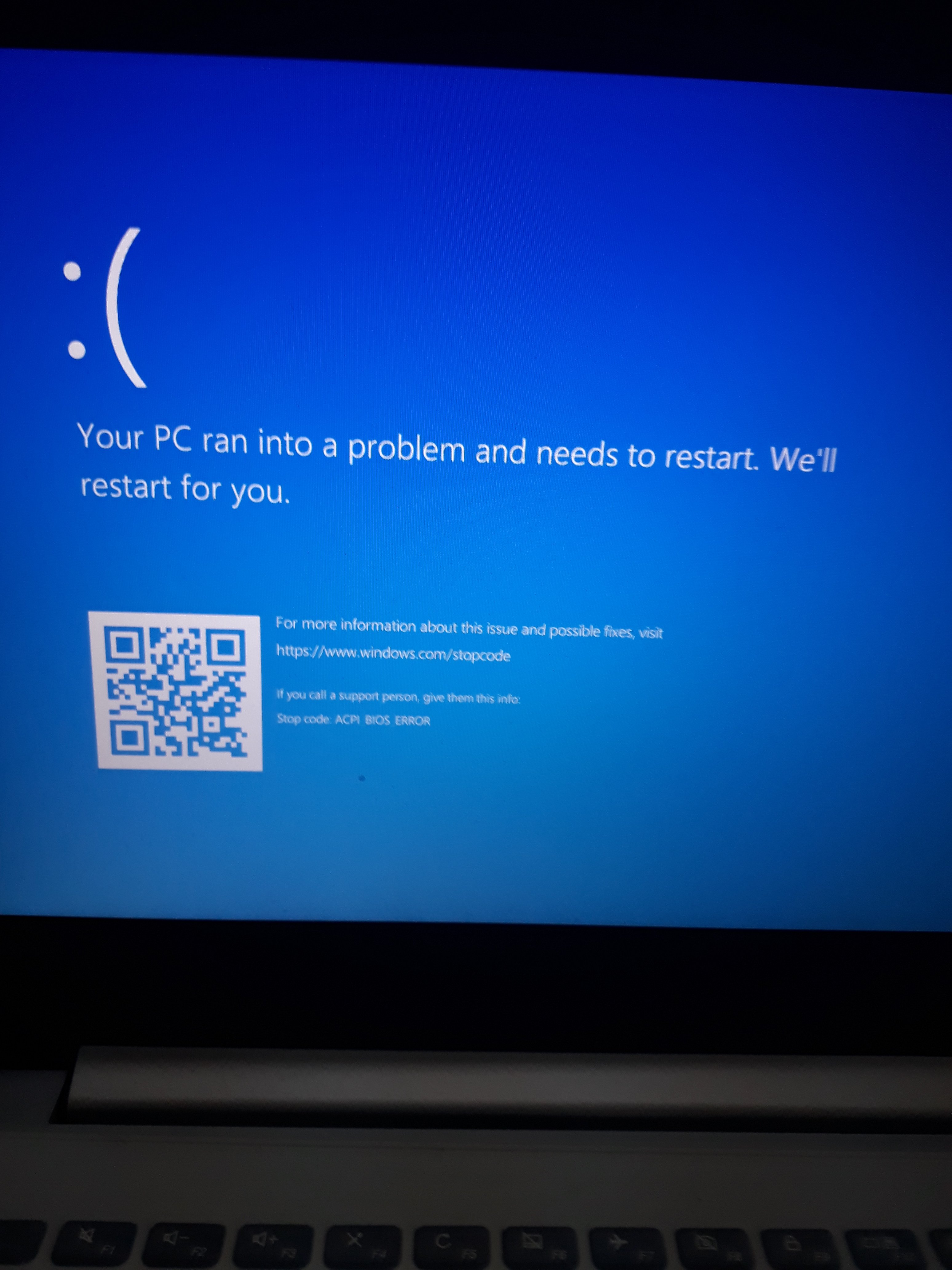

n.d.k Posted October 22, 2019 Share Posted October 22, 2019 2 hours ago, anmool said: when I remove my DSDT from ACPI folder then windows 10 show me error message during boot I think that OpenCore force to use DSDT for windows can't we boot windows without DSDT? second when I put DSDT in ACPI folder windows 10 boot fine no error message but I can't boot my macOS to cause of VoodooI2C or SSDTI2C.aml or _CRS METHOD patching I don't know hasn't OpenCore dual boot option without DSDT? and how to get bootlog using OpenCore to find boot path for Misc/Entries I extremely sorry for my bad English Let's say OC is still at the developing/testing stage, there's still many features or changes that may be coming depending on how widely it will be adopted among hackintosh community. There's nothing wrong with voicing your opinion or requesting features that you would like to see in OC here. I think OC direction is try to make your PC hardware look like a Mac hardware (not cosmetic though) as much as possible, so macOs think it's a Mac that's installing on while other bootloaders doesn't care which methods it uses, as long as it works.. As a long time hackintosh user, I get used to patching everything on my DSDT.aml and CPU on SSDT.aml. I didn't say which boot log, did I?...it's other boot loader's boot log. Link to comment Share on other sites More sharing options...
mhaeuser Posted October 22, 2019 Share Posted October 22, 2019 That OC applies ACPI modifications agnostic of the OS booted was a conscious design decision and is not a shortcut as for "developing/testing stage". The whole point of ACPI in the first place is a platform-side abstraction towards any ACPI-compatible OS, and as they *all* have their own quirks regarding that (macOS the most), "OSI" is a thing and shall be used for OS-conditionals 1 Link to comment Share on other sites More sharing options...
Adomorns Posted October 22, 2019 Share Posted October 22, 2019 Hi everyone, I'm a long time Hackintosher and now I'm trying to switch my year-old Hackintosh laptop to OpenCore. I have a Lifebook e744 i5 4300m 16gb ram 128gb SSD. I've managed to get verbose but I get a KP about a watchdog. I did a video of the verbose that I've uploaded here: https://mega.nz/#!t8JTiAyA!kBQsfydgvlEI5cDYq7Epfi8su-peVedYO7AqUdB7bsE And I have my configuration here: https://mega.nz/#!x5IVhQwa!uQDtRZDIrUQIsdIEJWsGEag6lqyrtBq1qUG5NIa7sW4 Currently opencore is on a usb stick because i use my hackintosh to work and i need it perfectly running. Hope someone can help. Thanks in advance. Link to comment Share on other sites More sharing options...
n.d.k Posted October 22, 2019 Share Posted October 22, 2019 9 minutes ago, Adomorns said: Hi everyone, I'm a long time Hackintosher and now I'm trying to switch my year-old Hackintosh laptop to OpenCore. I have a Lifebook e744 i5 4300m 16gb ram 128gb SSD. I've managed to get verbose but I get a KP about a watchdog. I did a video of the verbose that I've uploaded here: https://mega.nz/#!t8JTiAyA!kBQsfydgvlEI5cDYq7Epfi8su-peVedYO7AqUdB7bsE And I have my configuration here: https://mega.nz/#!x5IVhQwa!uQDtRZDIrUQIsdIEJWsGEag6lqyrtBq1qUG5NIa7sW4 Currently opencore is on a usb stick because i use my hackintosh to work and i need it perfectly running. Hope someone can help. Thanks in advance. First, try moving the Lilu.kext to first priority loading before any other kexts in Kernel->Patches, You have your VirtualSmc.kext in front of Lilu.kext. Many other kexts depend on Lilu.kext. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 22, 2019 Share Posted October 22, 2019 5 hours ago, anmool said: when I remove my DSDT from ACPI folder then windows 10 show me error message during boot I think that OpenCore force to use DSDT for windows can't we boot windows without DSDT? second when I put DSDT in ACPI folder windows 10 boot fine no error message but I can't boot my macOS to cause of VoodooI2C or SSDTI2C.aml or _CRS METHOD patching I don't know hasn't OpenCore dual boot option without DSDT? and how to get bootlog using OpenCore to find boot path for Misc/Entries I extremely sorry for my bad English Just use if _OSI to fix this condition,, not big problem Link to comment Share on other sites More sharing options...
