viper69 Posted October 10, 2019 Share Posted October 10, 2019 (edited) I need some assistance on getting XPCM to work properly on a Xeon E5-2683 v3 with OpenCore v0.5.1. With Clover all I needed was a FakeCPUID of 0x040674 along with SSDT-PLUG.aml. When I try to emulate what Clover does with FakeCPUID by using the following with OpenCore the processors frequency scaling doesn't behave properly, performance is down, and the system hard locks frequently: Cpuid1Data: <74 06 04 00 00 00 00 00 00 00 00 00 00 00 00 00> Cpuid1Mask: <FF FF FF FF 00 00 00 00 00 00 00 00 00 00 00 00> Without doing the above the process is running max turbo frequency, and 99% utilization all of the time according to Intel Power Gadget. The processor is also running hot for being idle, but the system is rock solid, and performance is good. So what am I missing, or does the Cpuid1Data not perform the same function as FakeCPUID does in Clover? Also, this behavior is the same rather I'm using Mojave or Catalina. Thanks! Edited October 10, 2019 by viper69 Link to comment Share on other sites More sharing options...
tmbt Posted October 10, 2019 Share Posted October 10, 2019 38 minutes ago, Pavo said: You have to create them yourself and I have already posted an example of how to do renames with SSDT, but if its to hard for someone to search the forums for that example, I'll hold your hands..... Here is an example of renaming a BR1B organic device to a Apple ETH0 device for ethernet on an Asus Z9PE-D8 WS board. DefinitionBlock ("", "SSDT", 2, "Pavo", "LAN", 0x00001000) { External (_SB_.PCI0.PEX0, DeviceObj) External (_SB_.PCI0.PEX0.BR1B, DeviceObj) If (_OSI ("Darwin")) { Scope (\_SB.PCI0.PEX0) { Scope (BR1B) { Method (_STA, 0, NotSerialized) // _STA: Status { Return (Zero) } } Device (ETH0) { Name (_ADR, Zero) // _ADR: Address Method (_STA, 0, NotSerialized) // _STA: Status { Return (0x0F) } } } } } Thanks Pavo for the answer. I saw some examples like the one you've posted here but one thing is too see an example and another is to adapt that example to your need if you don't know how ACPI works. Just to give you an idea : I've an ACPI patch to rename _CRS method for my touchpad so i can return what VoodooI2C wants. Attached you will find a screenshot of 2 patchs i'm using in OpenCore to rename _CRS and SBFG for my touchpad and here is the SSDT i've created to integrate the patches : DefinitionBlock ("", "SSDT", 2, "hack", "TPD0", 0x00000000) { External (_SB_.PCI0.GPI0, DeviceObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0, DeviceObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0.SBFB, FieldUnitObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0.SBFI, FieldUnitObj) // (from opcode) Scope (_SB.PCI0.I2C0.TPD0) { Name (SBFG, ResourceTemplate () { GpioInt (Level, ActiveLow, ExclusiveAndWake, PullDefault, 0x0000, "\\_SB.PCI0.GPI0", 0x00, ResourceConsumer, , ) { // Pin list 0x0000 } }) Method (_CRS, 0, NotSerialized) // _CRS: Current Resource Settings { Return (ConcatenateResTemplate (SBFB, SBFG)) } } Scope (_SB.PCI0.GPI0) { Method (_STA, 0, NotSerialized) // _STA: Status { Return (0x0F) } } Is there a way to do this only with SSDT ? Thanks Mattia Link to comment Share on other sites More sharing options...
HBP Posted October 10, 2019 Share Posted October 10, 2019 3 hours ago, Pavo said: You are missing a ton of things that have to be in the config. Try this EFI EFI.zip tried your EFI, tried updating BIOS to F7 and your files, still getting the couldn't allocate runtime area, or just nothing(on attempt to load recovery partition) HBP Link to comment Share on other sites More sharing options...

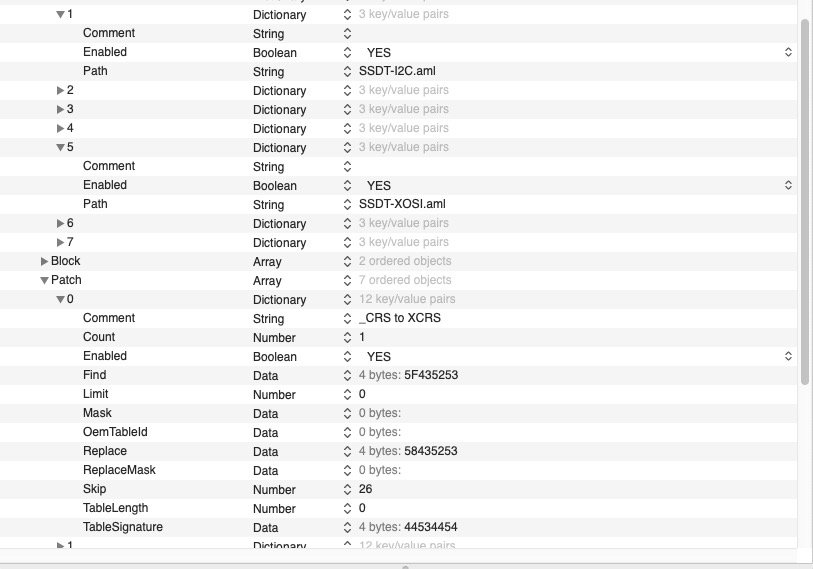

Pavo Posted October 10, 2019 Share Posted October 10, 2019 1 hour ago, tmbt said: Thanks Pavo for the answer. I saw some examples like the one you've posted here but one thing is too see an example and another is to adapt that example to your need if you don't know how ACPI works. Just to give you an idea : I've an ACPI patch to rename _CRS method for my touchpad so i can return what VoodooI2C wants. Attached you will find a screenshot of 2 patchs i'm using in OpenCore to rename _CRS and SBFG for my touchpad and here is the SSDT i've created to integrate the patches : DefinitionBlock ("", "SSDT", 2, "hack", "TPD0", 0x00000000) { External (_SB_.PCI0.GPI0, DeviceObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0, DeviceObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0.SBFB, FieldUnitObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0.SBFI, FieldUnitObj) // (from opcode) Scope (_SB.PCI0.I2C0.TPD0) { Name (SBFG, ResourceTemplate () { GpioInt (Level, ActiveLow, ExclusiveAndWake, PullDefault, 0x0000, "\\_SB.PCI0.GPI0", 0x00, ResourceConsumer, , ) { // Pin list 0x0000 } }) Method (_CRS, 0, NotSerialized) // _CRS: Current Resource Settings { Return (ConcatenateResTemplate (SBFB, SBFG)) } } Scope (_SB.PCI0.GPI0) { Method (_STA, 0, NotSerialized) // _STA: Status { Return (0x0F) } } Is there a way to do this only with SSDT ? Thanks Mattia _CRS is a Resource Setting not a device. You can't rename Resource Methods, but you can give your own Current Resource Setting for the device. You need to figure out what exactly you are replacing in the SBFG ResourceTemplate in order to create a SSDT to do it. Link to comment Share on other sites More sharing options...
HBP Posted October 10, 2019 Share Posted October 10, 2019 (edited) 1 hour ago, HBP said: tried your EFI, tried updating BIOS to F7 and your files, still getting the couldn't allocate runtime area, or just nothing(on attempt to load recovery partition) HBP I have narrowed it down to something in 10.15 boot.efi does weird things with open core. I have a working OpenCore setup on the same machine(USB) using OC .3 and it boots into 10.14.6 installer just fine, but the same install if I have it boot into 10.15 gives the Error messages about not allocation runtime area. also when trying to get into the 10.14 installer with current fresh compiled OC it fails in preboot. I have tried many different EFI folders, but none (even the one I was using) seem to be able to get boot.EFI to fire off. UEFI Shell works, lets me explore the drives, but I launch Boot.efi and it Panics. HBP Attached, Error messages from OC .3 that mirror messages from .5.1+ TLDR:: I can get OC .3 to boot 10.14.6 installer, but will not boot 10.15 anything. I can not get OC .5.1+ to boot any OS, even 10.14.6 installer. System is the Z390 DESIGNARE. Edited October 10, 2019 by HBP Link to comment Share on other sites More sharing options...
nagha Posted October 11, 2019 Share Posted October 11, 2019 Hello - I've tried building an OC 0.5.1 EFI using the guide for Skylake. My build is a GA z170m-d3h/Intel 6700K/Intel RX 570. I appreciate any insight as to what's wrong with the config.plist. The computer freezes after choosing the Hack volume for booting. It doesn't transition to any sort of loading of MacOS. Thanks. config-sanitized.plist Link to comment Share on other sites More sharing options...
ameenjuz Posted October 11, 2019 Share Posted October 11, 2019 10 hours ago, tmbt said: Thanks Pavo for the answer. I saw some examples like the one you've posted here but one thing is too see an example and another is to adapt that example to your need if you don't know how ACPI works. Just to give you an idea : I've an ACPI patch to rename _CRS method for my touchpad so i can return what VoodooI2C wants. Attached you will find a screenshot of 2 patchs i'm using in OpenCore to rename _CRS and SBFG for my touchpad and here is the SSDT i've created to integrate the patches : DefinitionBlock ("", "SSDT", 2, "hack", "TPD0", 0x00000000) { External (_SB_.PCI0.GPI0, DeviceObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0, DeviceObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0.SBFB, FieldUnitObj) // (from opcode) External (_SB_.PCI0.I2C0.TPD0.SBFI, FieldUnitObj) // (from opcode) Scope (_SB.PCI0.I2C0.TPD0) { Name (SBFG, ResourceTemplate () { GpioInt (Level, ActiveLow, ExclusiveAndWake, PullDefault, 0x0000, "\\_SB.PCI0.GPI0", 0x00, ResourceConsumer, , ) { // Pin list 0x0000 } }) Method (_CRS, 0, NotSerialized) // _CRS: Current Resource Settings { Return (ConcatenateResTemplate (SBFB, SBFG)) } } Scope (_SB.PCI0.GPI0) { Method (_STA, 0, NotSerialized) // _STA: Status { Return (0x0F) } } Is there a way to do this only with SSDT ? Thanks Mattia I got my VoodooI2C trackpad to work on OpenCore using Skip Count feature you can count manually _CRS METHOD in DSDT and count _CRS METHOD without comment for example my _CRS Method 26 I put 26 skip and 1 count if didn't work after reboot then check your System DSDT find XCRS where is apply, Sorry for my poor English if you didn't understand contact this https://olarila.com/forum/viewtopic.php?f=46&t=8087&sid=b9b492a8d81fa14154584686fad19813&start=420 I appreciate to help of Onemanosx Link to comment Share on other sites More sharing options...
HBP Posted October 11, 2019 Share Posted October 11, 2019 5 minutes ago, nagha said: Hello - I've tried building an OC 0.5.1 EFI using the guide for Skylake. My build is a GA z170m-d3h/Intel 6700K/Intel RX 570. I appreciate any insight as to what's wrong with the config.plist. The computer freezes after choosing the Hack volume for booting. It doesn't transition to any sort of loading of MacOS. Thanks. config-sanitized.plist looks like you are having the same issue I am/was having. I don't know which is worse the not do anything at all, or the unable to Alloc Error. I have had both. if you look at the last 2 -3 pages in this forum topic Pavo and others have given me pointers, but I am still stuck with a non-booting Z390. yes I know you have a Z170, but the symptoms are almost identical. HBP Link to comment Share on other sites More sharing options...
wern apfel Posted October 11, 2019 Share Posted October 11, 2019 To the Acidanthera team. I updated from OC 0.0.3 (where the trackpad.kext could not be loaded with a note that the Info.plist is missing) to OC 0.5.2 where VirtualSMC and Lilu are not loading due to a missing Info.plist. The path is correct. On startup, there is an error "NVRAM is full, cannot log!" Could that be the issue? The NVRAM works so far. It's an SandyBridge Laptop, the log is attached. If necessary, I give you more infos. OC_0.5.2.log.rtf.zip OC_NVRAM.zip Link to comment Share on other sites More sharing options...
justin Posted October 11, 2019 Share Posted October 11, 2019 Hi Guys Are you able to boot into Safe Mode (bootargs -x ) on Catalina 10.15? I got a black screen on the second stage, but im able to ssh into my hack, and i did some debug, logs showed here : https://github.com/acidanthera/bugtracker/issues/507#event-2702187778 Anyone with same issue? Link to comment Share on other sites More sharing options...
kjp4756 Posted October 11, 2019 Share Posted October 11, 2019 (edited) On 10/11/2019 at 10:00 AM, justin said: Hi Guys Are you able to boot into Safe Mode (bootargs -x ) on Catalina 10.15? I got a black screen on the second stage, but im able to ssh into my hack, and i did some debug, logs showed here : https://github.com/acidanthera/bugtracker/issues/507#event-2702187778 Anyone with same issue? I just tested this and I get the same issue. Not a big deal for me though as I can't remember the last time I've needed safe boot in the last 10 years. EDIT: I think it's an issue with AMD cards. No issues if I remove my RX 580 and use onboard intel. It's either an issue with macOS itself or some glitch in whatevergreen. Edited October 12, 2019 by kjp4756 1 Link to comment Share on other sites More sharing options...
ic005k Posted October 12, 2019 Share Posted October 12, 2019 Booting from win10 via OC to macos will cause the keyboard to be invalid. But restarting the keyboard is normal again, I am using VoodooPS2Controller.kext v2.0.4. What is the reason for this? Thank you! Link to comment Share on other sites More sharing options...

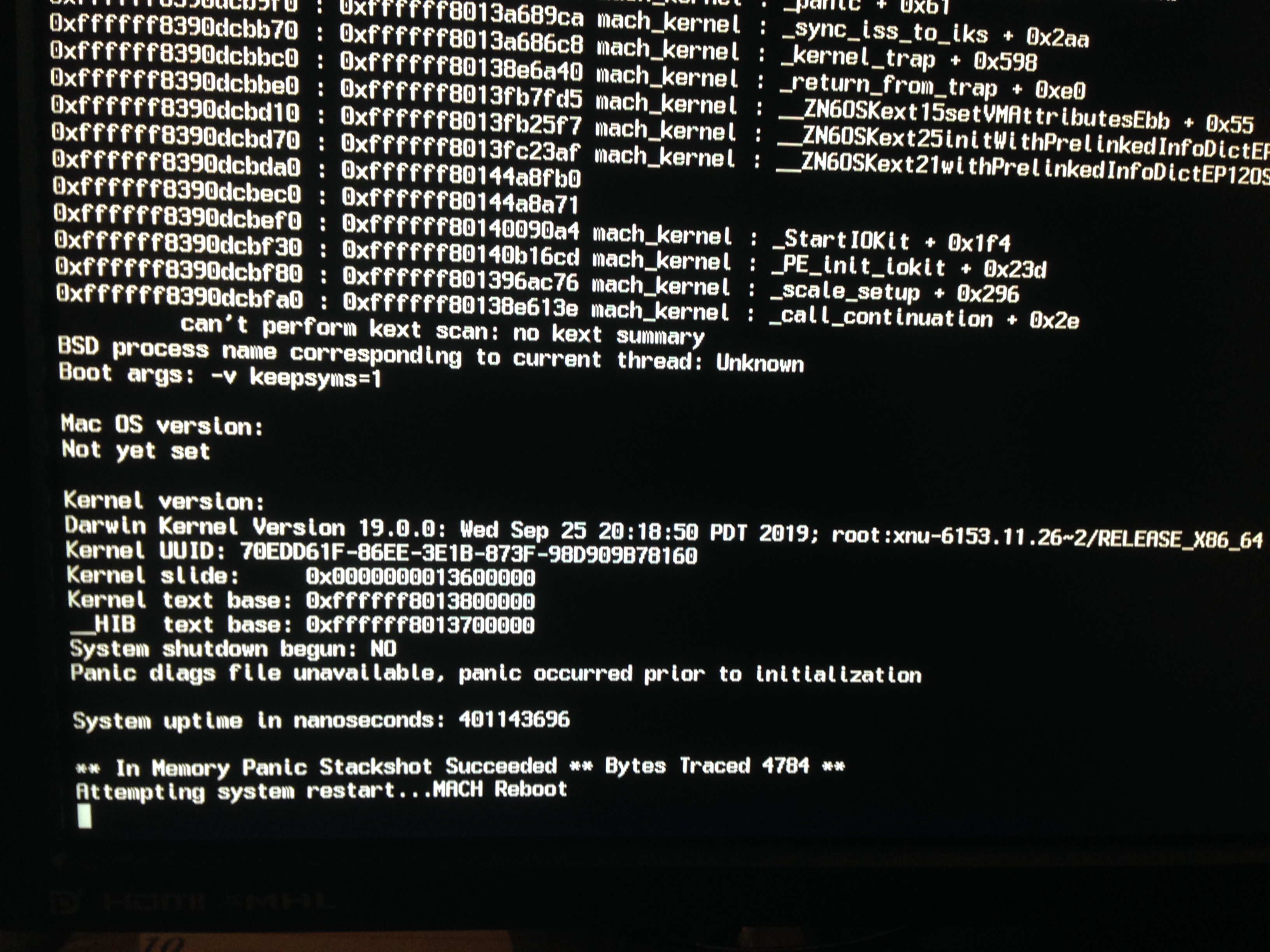

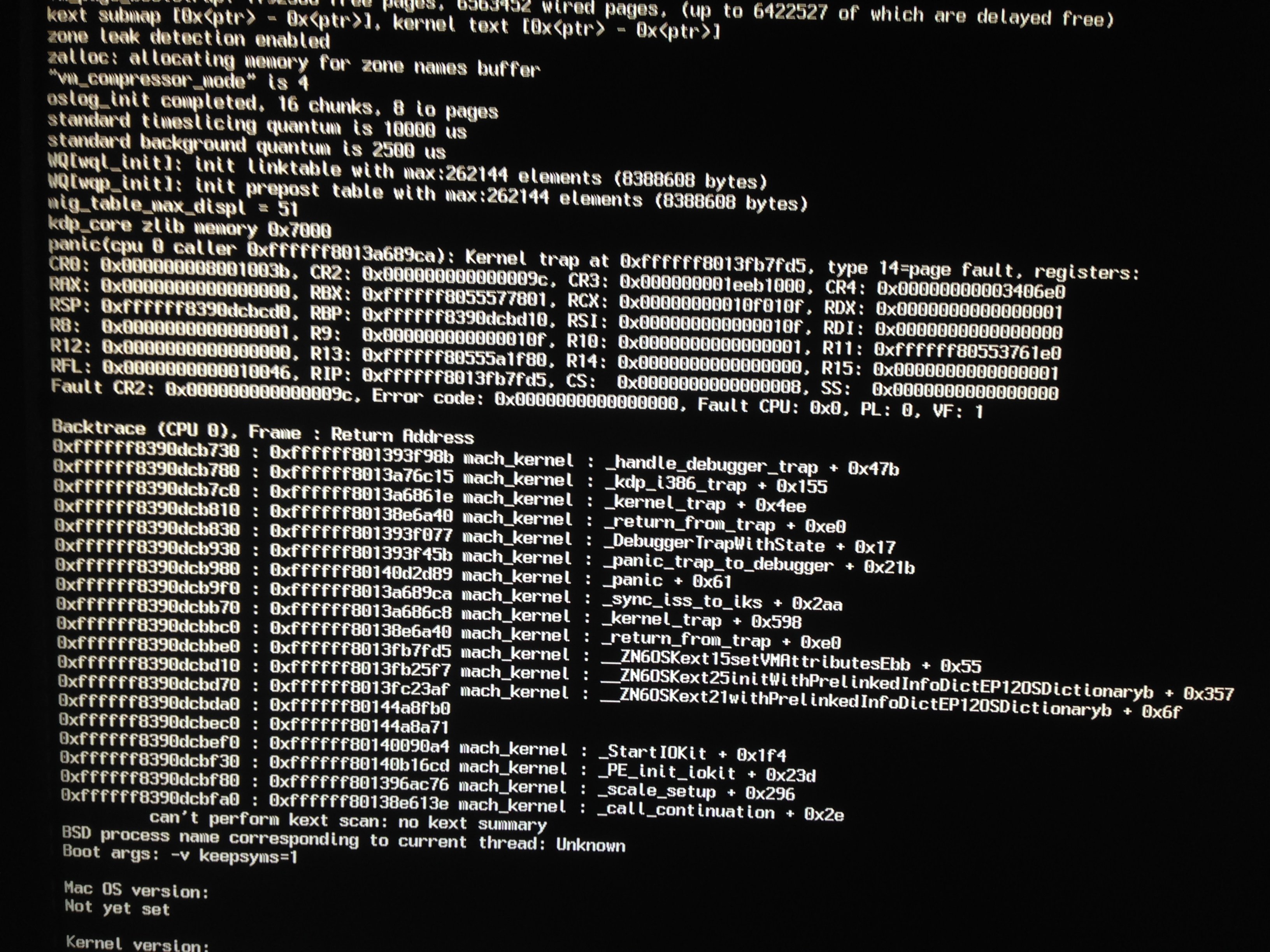

jsl2000 Posted October 12, 2019 Share Posted October 12, 2019 Booting with OC 0.5.0 in Ryzen 1700X hackintosh got KP as shown here My config.plist was attached How to fix it ? config.plist Link to comment Share on other sites More sharing options...
mhaeuser Posted October 12, 2019 Share Posted October 12, 2019 @ic005k It is not (directly(?)) related to OpenCore @jsl2000 Please upload your prelinkedkernel and OC folder Link to comment Share on other sites More sharing options...
jsl2000 Posted October 12, 2019 Share Posted October 12, 2019 (edited) 1 hour ago, Download-Fritz said: @ic005k It is not (directly(?)) related to OpenCore @jsl2000 Please upload your prelinkedkernel and OC folder Here are them: The size of prelikedkernel.zip is > 10 MB which is not allowed to upload. So use the link of Google Driver https://drive.google.com/file/d/1wBPm4B_j9OJfY8wTnaGbDVylOEmq4MIm/view?usp=sharing OC.zip Edited October 12, 2019 by jsl2000 Link to comment Share on other sites More sharing options...
mhaeuser Posted October 12, 2019 Share Posted October 12, 2019 (edited) @jsl2000 your prelinkedkernel is borked, rebuild it EDIT: Sorry, incorrect, will try to investigate Edited October 12, 2019 by Download-Fritz 1 Link to comment Share on other sites More sharing options...
jsl2000 Posted October 12, 2019 Share Posted October 12, 2019 6 minutes ago, Download-Fritz said: @jsl2000 your prelinkedkernel is borked, rebuild it EDIT: Sorry, incorrect, will try to investigate Thanks for your prompt reply and waiting for your kind help again ! Link to comment Share on other sites More sharing options...
mhaeuser Posted October 12, 2019 Share Posted October 12, 2019 @jsl2000 You don't declare ExecutablePath for VoodooTSCSyncAMD-8-Core.kext 1 Link to comment Share on other sites More sharing options...

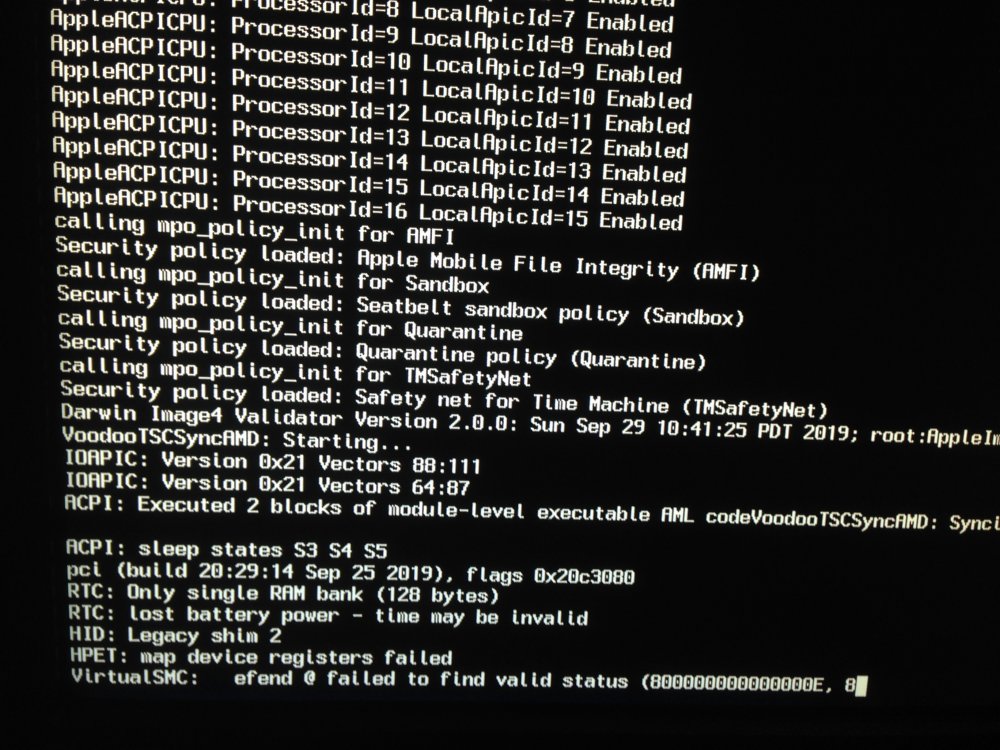

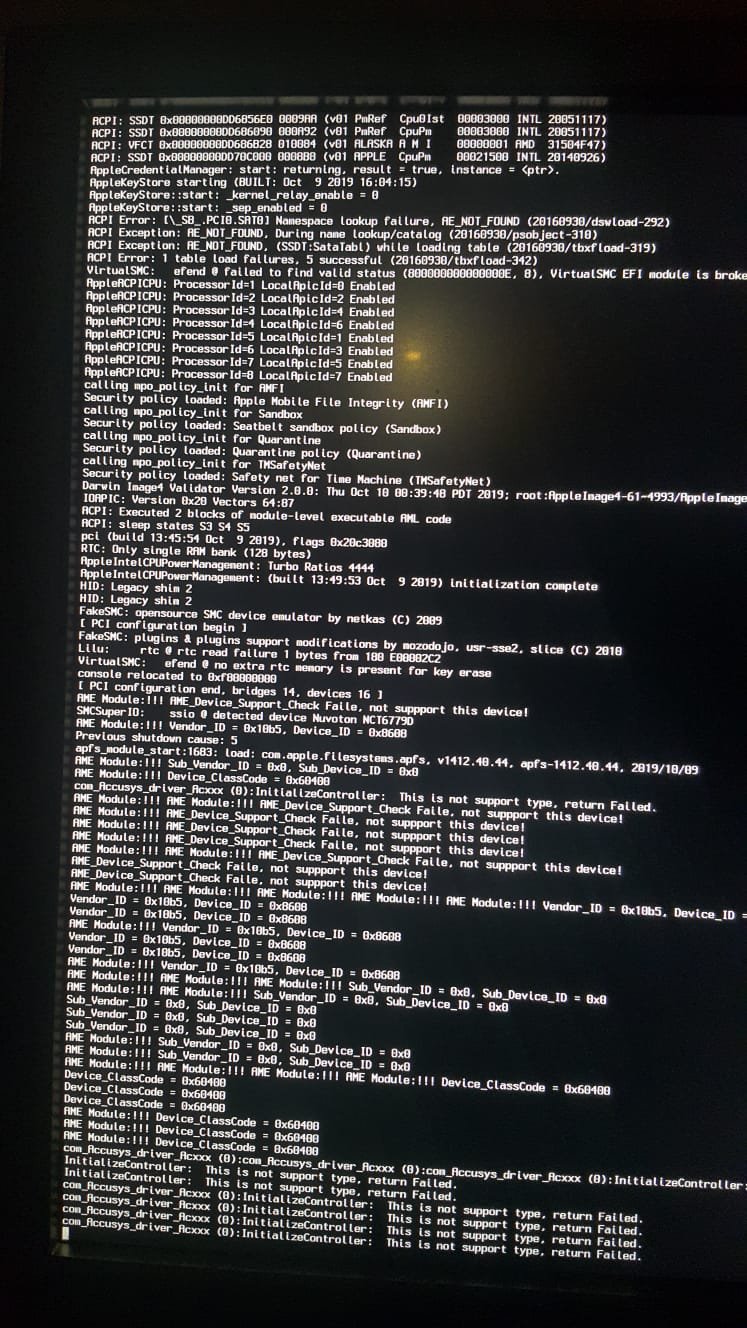

jsl2000 Posted October 12, 2019 Share Posted October 12, 2019 (edited) 2 hours ago, Download-Fritz said: @jsl2000 You don't declare ExecutablePath for VoodooTSCSyncAMD-8-Core.kext After correcting it I got another KP as shown here: New OC.zip was attached too for your reference. May I use FakeSMC instead of VirtualSMC which always got KP when I bootede with Clover & OpenCore ? OC.zip Edited October 12, 2019 by jsl2000 Link to comment Share on other sites More sharing options...
mhaeuser Posted October 12, 2019 Share Posted October 12, 2019 @jsl2000 That is not a KP and has nothing to do with OC, please research that error and if unsuccessful ask in the VSMC thread 1 Link to comment Share on other sites More sharing options...

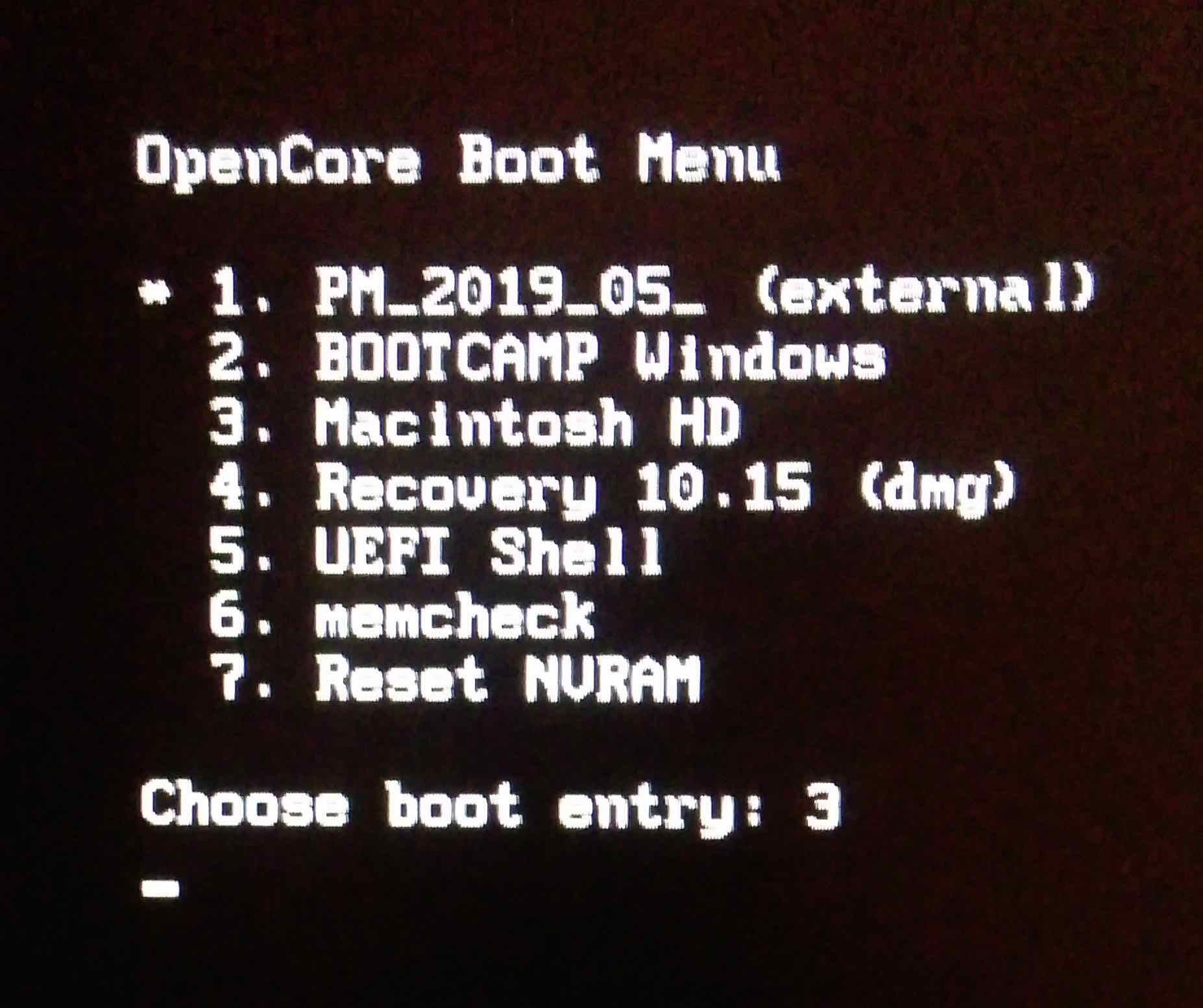

bittantone Posted October 12, 2019 Share Posted October 12, 2019 Here I am again, asking for advices. I've been trying to replace "ShowPicker" with "Default" in the OC configuration, because I'd like to get a vanilla experience. In particular, I'd like to start MacOS by default, occasionally switching to Windows through the startup utility. As far as I understand, the option "Default" should do the trick. Unfortunately, it is not working. I select "Macintosh HD" from the startup utility, but when I reboot the following error pops up: OCS: No schema for Default at 3 index! Any input? config.plist opencorelog.txt Link to comment Share on other sites More sharing options...

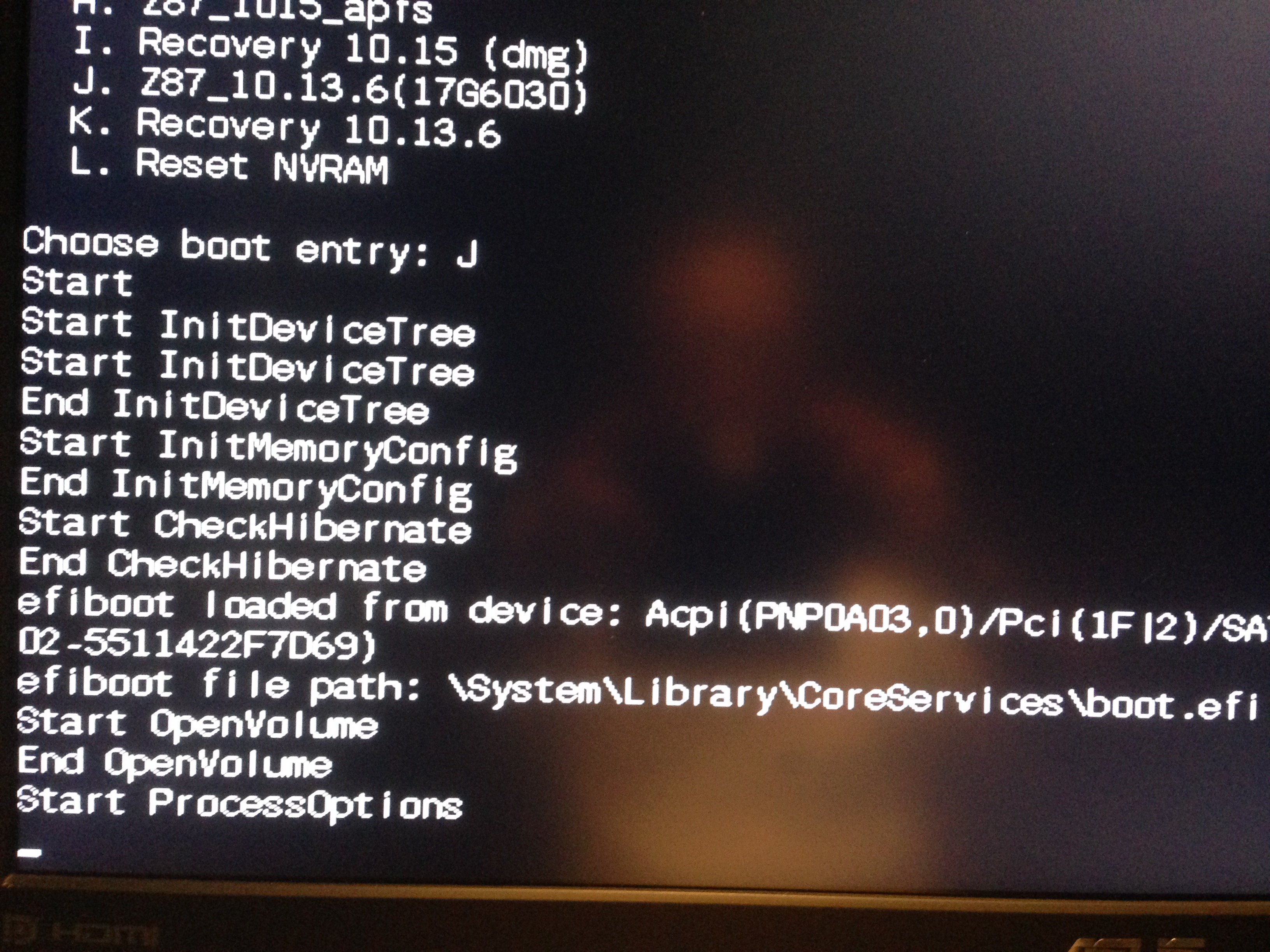

jsl2000 Posted October 13, 2019 Share Posted October 13, 2019 (edited) On 10/12/2019 at 9:37 PM, Download-Fritz said: @jsl2000 That is not a KP and has nothing to do with OC, please research that error and if unsuccessful ask in the VSMC thread In Z87 hackintosh booting OpenCore 0.5.1 got a different frozen as shown here How to fix it with my OpenCore folder attached here too: OC.zip [Solved] Removal of AMD RX-580 GPU it can work on Intel HD 4600 alone now ! Edited October 16, 2019 by jsl2000 1 Link to comment Share on other sites More sharing options...
xXiGeniusXx Posted October 13, 2019 Share Posted October 13, 2019 I've been trying to migrate to OpenCore from Clover, but no matter what configuration changes I make it freezes on "Boot Menu"! Odd thing is no log is printed to the screen, although I managed to get a text log output by installing the debug version. The log and the OC EFI folder is attached. Any help is appreciated. Thanks in advance. OC.zip Link to comment Share on other sites More sharing options...
mhaeuser Posted October 13, 2019 Share Posted October 13, 2019 (edited) @xXiGeniusXx The log clearly indicates boot.efi calls ExitBootServices(), but its usual output is missing. Please refer to the manual about ConsoleControl configuration and the ProvideConsoleGop quirk. Boot verbose Edited October 13, 2019 by Download-Fritz 1 Link to comment Share on other sites More sharing options...

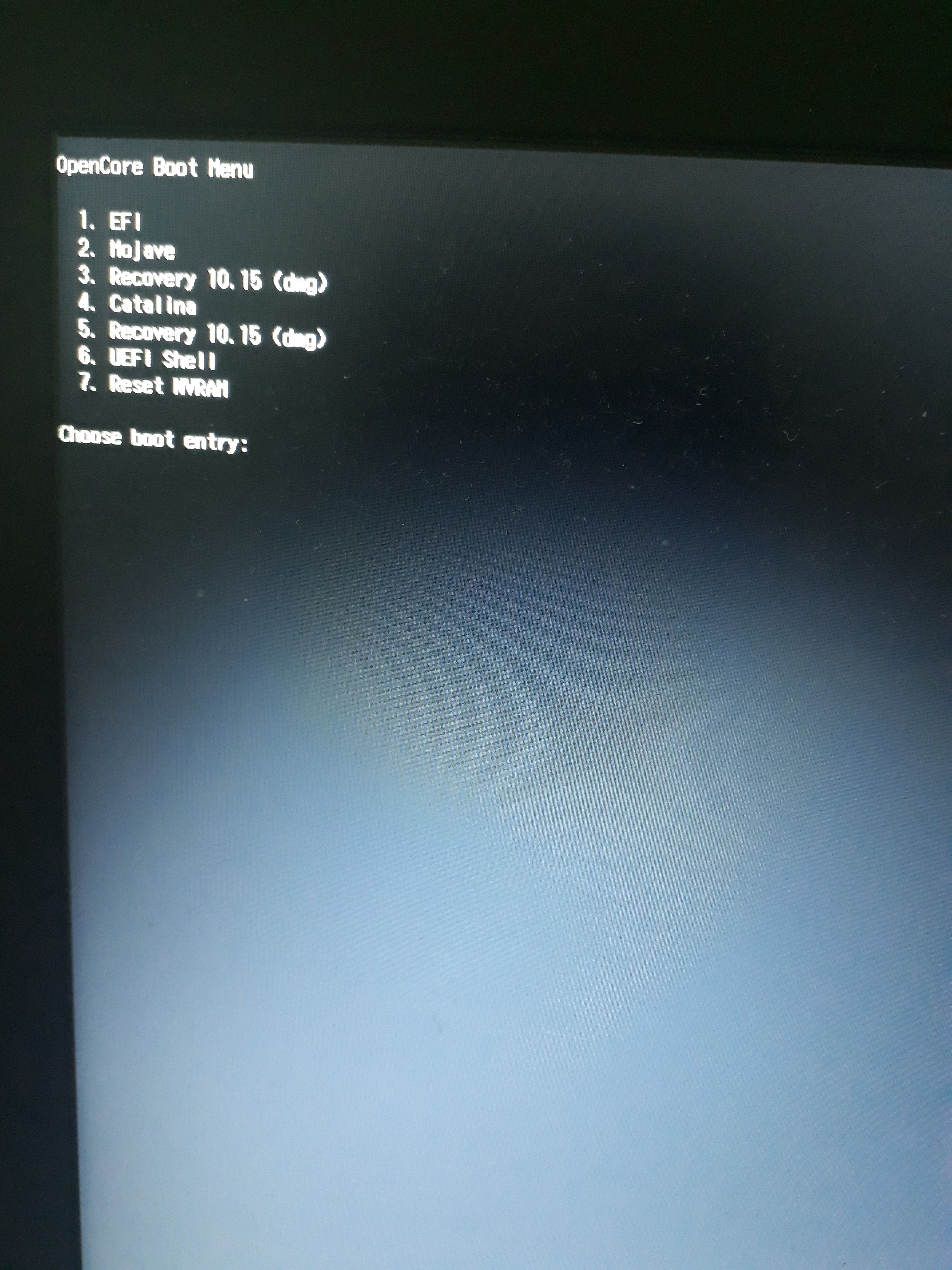

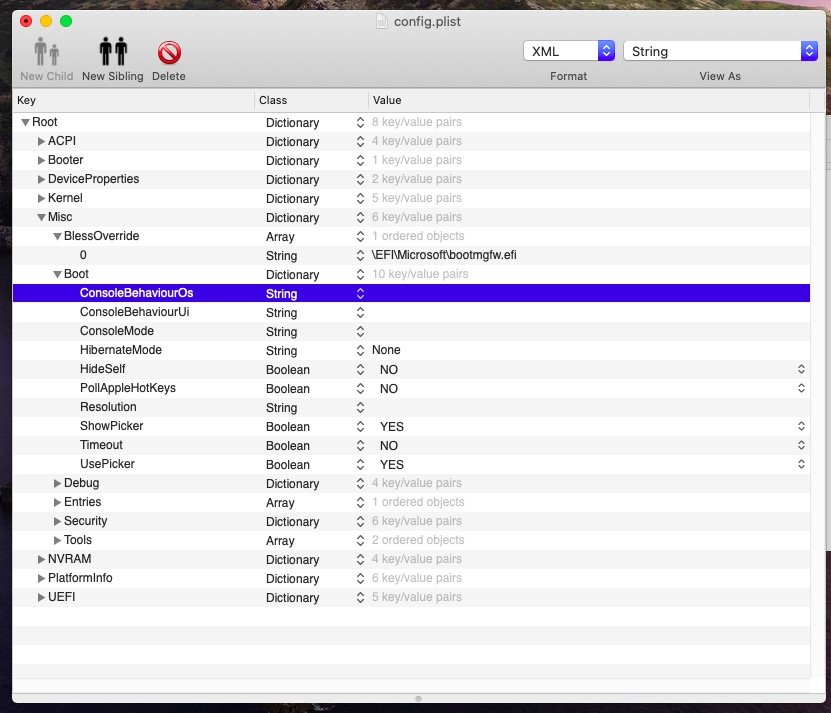

ameenjuz Posted October 13, 2019 Share Posted October 13, 2019 53 minutes ago, Download-Fritz said: @xXiGeniusXx The log clearly indicates boot.efi calls ExitBootServices(), but its usual output is missing. Please refer to the manual about ConsoleControl configuration and the ProvideConsoleGop quirk. Boot verbose I couldn't boot my windows 10 partition from a same drive and how to add and find path entries for windows 10 I attached my OC EFI.zip Link to comment Share on other sites More sharing options...
