OpenCore General Discussion

[xtddd]

2 hours ago, droples said:

What is your motherboard model? Does she have working nvram?

mine is GA Z270-HD3

[ctich]

3 hours ago, xtddd said:

mine is GA Z270-HD3

let's look at your EFI folder

[hardcorehenry]

Anyone has PollAppleHotKeys working on PS2 keyboard? With PollAppleHotKeys=YES, ShowPicker=NO and AppleGenericInput.efi no success while boot with pressed OPT or with constantly pressing Esc. Just direct boot into startup disk(partition) system.

[Andrey1970]

21 minutes ago, hardcorehenry said:

Anyone has PollAppleHotKeys working on PS2 keyboard? With PollAppleHotKeys=YES, ShowPicker=NO and AppleGenericInput.efi no success while boot with pressed OPT or with constantly pressing Esc. Just direct boot into startup disk(partition) system.



PollAppleHotKeys=YES, ShowPicker=NO and AppleGenericInput.efi

I have the worker ESC with PS2



[hardcorehenry]

6 hours ago, Andrey1970 said:



PollAppleHotKeys=YES, ShowPicker=NO and AppleGenericInput.efi

I have the worker ESC with PS2



Thanks for response. Was going to abandon this mission. Any hint how to reach -v or -s with hotkeys on PS2.

Edited September 19, 2019 by hardcorehenry

[xtddd]

3 hours ago, ctich said:

let's look at your EFI folder



EFI--oc.zip

[rtwick]

On 9/18/2019 at 3:53 AM, obus said:

Why are you using XhciPortLimit-patch when you already have the Z270-XHCI.kext? Don't change anything in the config.plist I provided you earlier.

XhciPortLimit -> NO.



And then you should update to 0.5.0



done and done but still the same issue

panic(cpu 0 caller 0xffffff801a4a33dc): Sleep transition timed out after 180 seconds while entering darkwake on way to sleep. Suspected bundle: com.apple.driver.usb.AppleUSBXHCI. Thread 0x6cdec.
Failure code:: 0xf13e0f43 00000031

Backtracing specified thread
Backtrace (CPU 0), Frame : Return Address
0xffffffa3f598b900 : 0xffffff8019e65b28
0xffffffa3f59bbb70 : 0xffffff8019d63514
0xffffffa3f59bbbe0 : 0xffffff8019d61cff
0xffffffa3f59bbc30 : 0xffffff8019d529f0
0xffffffa3f59bbc70 : 0xffffff801a4419fc
0xffffffa3f59bbcb0 : 0xffffff801a442edb
0xffffffa3f59bbce0 : 0xffffff7f9a8017f3
0xffffffa3f59bbd70 : 0xffffff801a444838
0xffffffa3f59bbdd0 : 0xffffff7f9d2b6b0f
0xffffffa3f59bbe00 : 0xffffff801a429f3b
0xffffffa3f59bbea0 : 0xffffff801a429934
0xffffffa3f59bbec0 : 0xffffff8019d833b5
0xffffffa3f59bbf40 : 0xffffff8019d82ee1
0xffffffa3f59bbfa0 : 0xffffff8019ce813e
      Kernel Extensions in backtrace:
         com.apple.iokit.IOUSBHostFamily(1.2)[F46B3AE6-8B93-3942-9230-C7ABF38BF6FD]@0xffffff7f9a7df000->0xffffff7f9a8d7fff
            dependency: com.apple.driver.AppleBusPowerController(1.0)[330A7F5E-DEFE-3049-A0F1-BD668BB49EEF]@0xffffff7f9a7c5000
            dependency: com.apple.driver.AppleUSBHostMergeProperties(1.2)[996EDB57-9C63-3650-8A00-556A162FA608]@0xffffff7f9a7cd000
            dependency: com.apple.driver.usb.AppleUSBCommon(1.0)[303167EB-D69E-39A2-9F29-36909BAA4C49]@0xffffff7f9a7d1000
         com.apple.driver.usb.AppleUSBXHCI(1.2)[EDADB85D-E1AD-3E5E-8486-D9E4385585D7]@0xffffff7f9d283000->0xffffff7f9d2dafff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[69BFC9C0-F2F3-3C97-AEF4-41DDD9834BCB]@0xffffff7f9a706000
            dependency: com.apple.iokit.IOUSBHostFamily(1.2)[F46B3AE6-8B93-3942-9230-C7ABF38BF6FD]@0xffffff7f9a7df000
            dependency: com.apple.driver.usb.AppleUSBCommon(1.0)[303167EB-D69E-39A2-9F29-36909BAA4C49]@0xffffff7f9a7d1000



[notthebee]

Hello everyone

First of all, huge thanks to the developers for putting so much effort into OpenCore!



I've been trying to make OpenCore work on my Lenovo Thinkpad T440p for a few days now, and today I was finally able to boot! However, even though the OS itself mostly works fine, it seems like the hardware side of things doesn't work very well – no brightness control, battery reporting or audio.



My Clover configuration utilizes some Clover functions like FixHPET and others, and I imagine, since they're not present on OpenCore, the ACPI doesn't work like it should.

Is there anything I can do to make brightness, sound and battery reporting work? Thanks in advance!

EFI.zip

CLOVER_config.plist

[droples]

37 minutes ago, xtddd said:



EFI--oc.zip

[xtddd]

5 minutes ago, droples said:

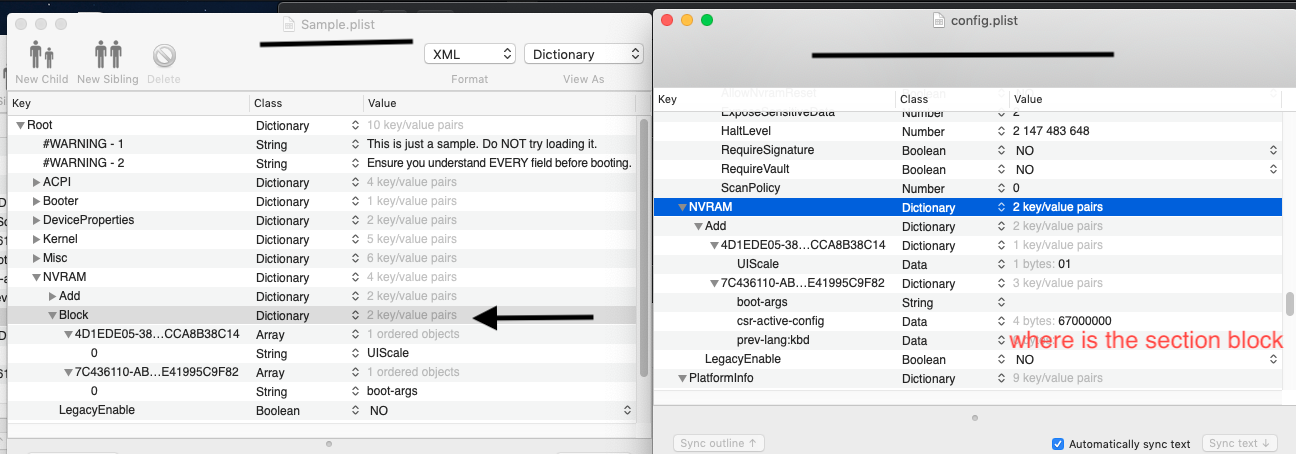

thanks, i will check it. section block should be needed?

Edited September 19, 2019 by xtddd

[droples]

9 minutes ago, xtddd said:

thanks, i will check it. section block should be needed?

yes sure.

[xtddd]

10 minutes ago, droples said:

yes sure.

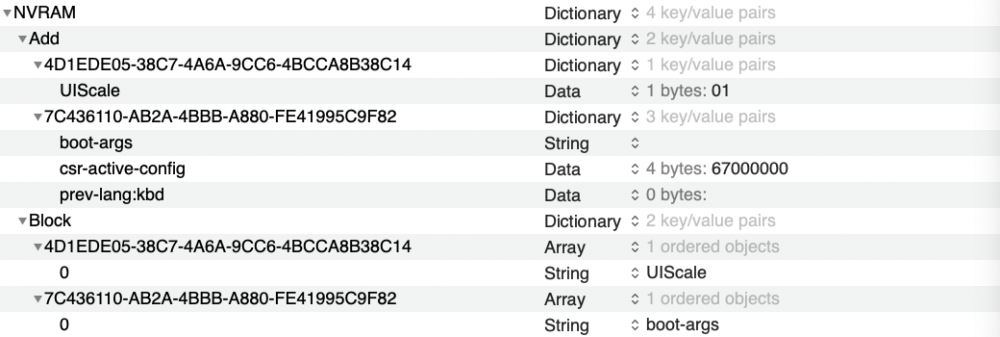

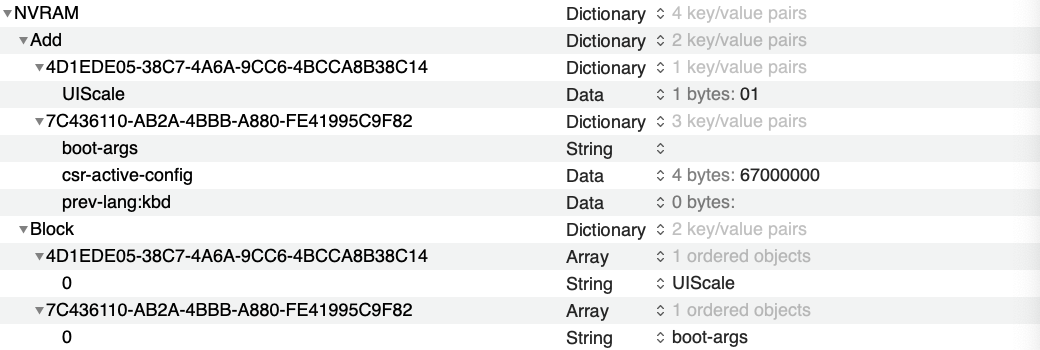

that is right?

[Andrey1970]

1 hour ago, hardcorehenry said:

Any hint how to reach -v or -s with hotkeys on PS2.



On PS2 hotkeys works only in the menu. At first come into the menu with the help ESC or use ShowPicker=Yes

Edited September 19, 2019 by Andrey1970

[droples]

9 minutes ago, xtddd said:

that is right?

Outwardly is correct. Lok in the documentation Sample.plist. And what are the problems?

[xtddd]

1 minute ago, droples said:

Outwardly is correct. Lok in the documentation Sample.plist. And what are the problems?

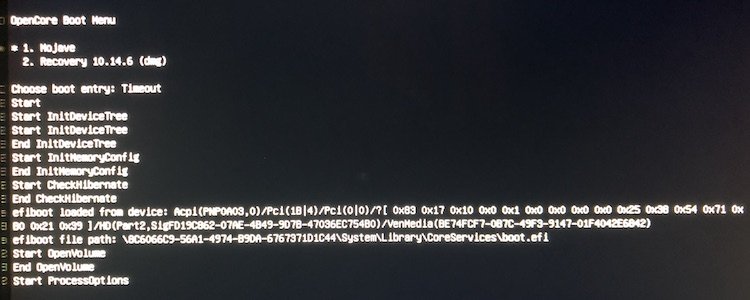

the problem is that i should select disk manually everytime.

[droples]

49 minutes ago, xtddd said:

the problem is that i should select disk manually everytime.



In the config.plist replace NO with YES.

UEFI->Quirks->RequestBootVarRouting=YES

Reboot.There will be many more fixes.

[e97]

Working on porting X99 C612 Xeon v3 Haswell-EP on macOS 10.14.6 with Clover over to OpenCore



I need to specify the memory modules (quad channel, 8 ECC RDIMMs DDR3) to get past End RandomSeed because there is no XMP for ECC RDIMMs, only SPD.

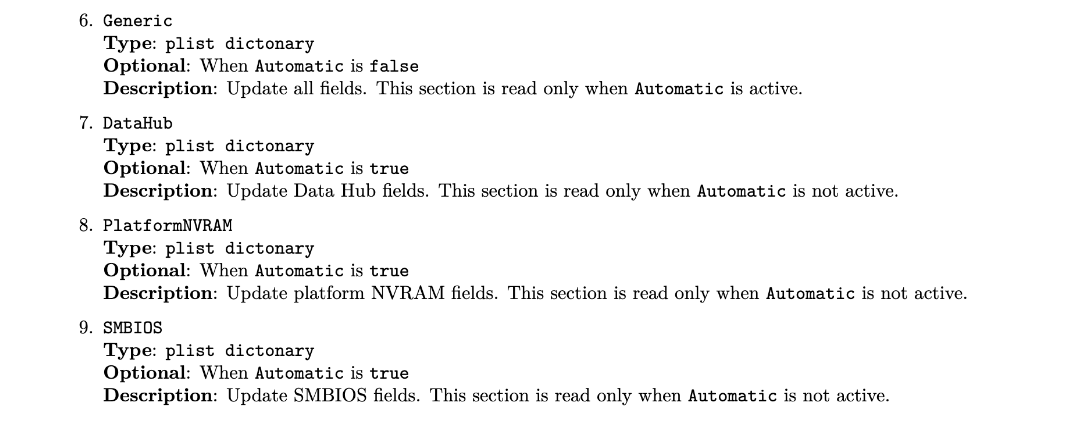

The configuration document does not specify this option is available under PlatformInfo/{NVRAM,SMBIOS} where it is in Clover. Is this a feature request / bug report or did I miss the option somewhere?



custom memory map is not implemented yet: https://github.com/acidanthera/bugtracker/issues/381



Tried this:



On 9/17/2019 at 10:29 PM, tacoeater said:

[Resolved] This is MSR register asynchronicity issue particularly noticable on Gigabyte 100/200 series motherboard. Toggle AppleCpuPmCfgLock and AppleXcpmCfgLock will resolve this issue.



Hi there. I'm switching from Clover to OpenCore 0.5.1 on Skylake platform (Gigabyte H170N-Wifi) and is now stuck in "End Randomseed". I was thinking it might be the APTIOMemoryFix thing but I've found out it has been merged in AppleSupportPkg, and as long as I have ConsoleControl enabled it should be fine. I've checking the reference manual for days but still cannot figure out what's going on.

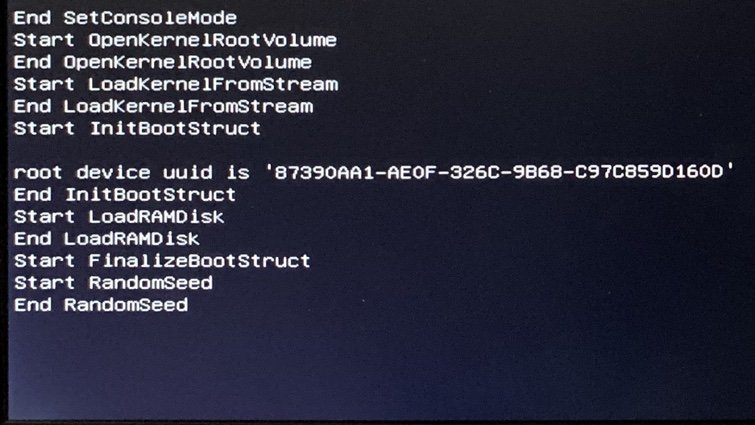

Being desperate I'd like to kindly ask for advice, with the only boot message, my EFI folder tree and my config.plist (following the vanilla guide, Skylake section). Thanks.



Enabling AppleCpuPmCfgLock and AppleXcpmCfgLock did not result in any progress. Nor did Enabling AppleXcpmExtraMsrs.



Attached log and config.plist and EFI





opencore-2019-09-19-214650.txt

config.plist

EFI.zip

Edited September 19, 2019 by e97

[ctich]

3 hours ago, xtddd said:



EFI--oc.zip

replace and try.



EFI-6.zip

[hardcorehenry]

6 hours ago, Andrey1970 said:



On PS2 hotkeys works only in the menu. At first come into the menu with the help ESC or use ShowPicker=Yes

Unfortunately verbose and single user mode won’t work via hotkeys(tried with shift and cmd no go).  I saw similar issue on Acidanthera bugtracker. Good news, ShowPicker=Yes instead of ESC. Without it my keyboard would’ve been done within week. Thanks anyway.

Edited September 19, 2019 by hardcorehenry

[obus]

5 hours ago, rtwick said:

done and done but still the same issue



 Try with this kext and report back.

Z270-XHCI.kext.zip

[PC IT]

Hi , may i have open core configurator if there is any new release.. thank you

[Erroruser]

21 minutes ago, PC IT said:

Hi , may i have open core configurator if there is any new release.. thank you

there are no configuators that work with Opencore only plist editor pro  an xcode should be used

[PC IT]

Just now, errorexists said:

there are no configuators that work with Opencore only plist editor pro  an xcode should be used

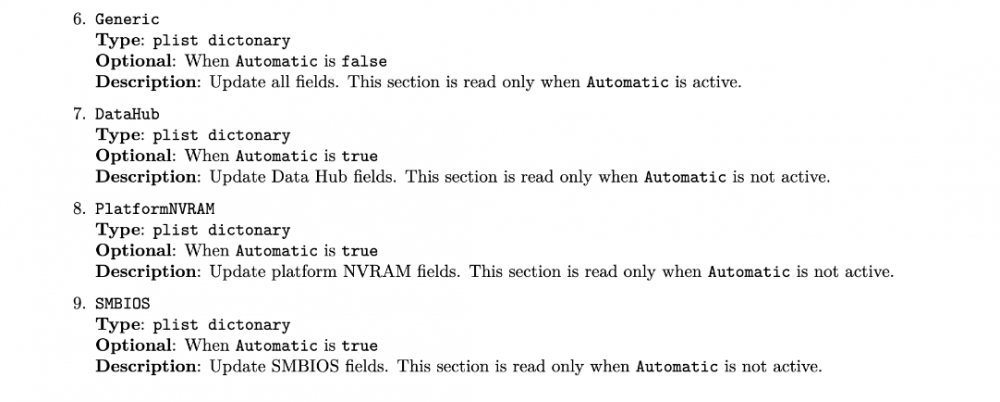

Thank you , i need to edit the smbios properly as the oc smbios entries are not as smbios in clover, can you send me only smbios for imac 19.2 so i can use in oc config plist?

[xtddd]

11 hours ago, ctich said:

replace and try.



EFI-6.zip

thanks, i will have a try

11 hours ago, ctich said:

replace and try.



EFI-6.zip

thanks, i have tested your efi..it can boot successfully...then what should i do next?



13 hours ago, droples said:



In the config.plist replace NO with YES.

UEFI->Quirks->RequestBootVarRouting=YES

Reboot.There will be many more fixes.

thank you

Edited September 20, 2019 by xtddd

[rtwick]

8 hours ago, obus said:

 Try with this kext and report back.

Z270-XHCI.kext.zip

My port usage is bit different. Attached is my kext. Please see if there's anything wrong.



I have a Corsair H100i v2 cpu cooler connected to HS14. Could that be causing issue?



I have also attached my ioreg

Thanks

Z270-XHCI.kext.zip

iMac.ioreg
