uglyJoe Posted August 24, 2019 Share Posted August 24, 2019 @Proxary Try FwRuntimeServices.efi with <key>Booter</key> <dict> <key>Quirks</key> <dict> <key>AvoidRuntimeDefrag</key> <true/> <key>DisableVariableWrite</key> <false/> <key>DiscardHibernateMap</key> <false/> <key>EnableSafeModeSlide</key> <false/> <key>EnableWriteUnprotector</key> <true/> <key>ForceExitBootServices</key> <false/> <key>ProtectCsmRegion</key> <false/> <key>ProvideCustomSlide</key> <false/> <key>SetupVirtualMap</key> <true/> <key>ShrinkMemoryMap</key> <false/> </dict> </dict> And to get the apple back, set ProvideConsoleGop=TRUE Link to comment Share on other sites More sharing options...
uglyJoe Posted August 24, 2019 Share Posted August 24, 2019 (edited) Hi, I am trying to boot linux <key>Entries</key> <array> <dict> <key>Name</key> <string>LibreElec</string> <key>Comment</key> <string>VDR Media Client</string> <key>Enabled</key> <true/> <key>Path</key> <string>PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x1,0x0)/HD(1,GPT,886ea49d-fb01-4685-ada6-842ce476367f,0x2000,0x100000)/\EFI\BOOT\syslinux.efi</string> </dict> </array> or refind <key>Entries</key> <array> <dict> <key>Name</key> <string>Refind</string> <key>Comment</key> <string>Not signed for security reasons</string> <key>Enabled</key> <true/> <key>Path</key> <string>PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x0,0x0)/HD(1,GPT,df9f014d-e07b-4cae-a8b2-0b80f9f06600,0x28,0x64000)/\EFI\Refind\refind.efi</string> </dict> </array> I am working with to two different hacks and on both I added the efi files via bcfg boot... to get the Path. Both are working from bios boot menu but from OpenCore I get: 04:500 00:741 Should boot from Refind (W:0|R:0|F:0) 04:503 00:002 OCB: Perform boot Refind to dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0x0,0x0)/HD(1,GPT,DF9F014D-E07B-4CAE-A8B2-0B80F9F06600,0x28,0x64000)/\EFI\Refind\refind.efi (0/0) 04:505 00:002 OCB: LoadImage failed - Not Found What's wrong? Edited August 24, 2019 by uglyJoe Link to comment Share on other sites More sharing options...
mhaeuser Posted August 24, 2019 Share Posted August 24, 2019 (edited) @uglyJoe idk whether your Shell is borked or whatever, but SATA has three operands, it should be SATA(0x0,0xFFFF,0x0) Edited August 24, 2019 by Download-Fritz 2 1 Link to comment Share on other sites More sharing options...
uglyJoe Posted August 24, 2019 Share Posted August 24, 2019 50 minutes ago, Download-Fritz said: @uglyJoe idk whether your Shell is borked or whatever, but SATA has three operands, it should be SATA(0x0,0xFFFF,0x0) I fixed the path like you said and it works. syslinux/LibreElec and refind are loading correctly (and I can start macOS from refind). Thanks a lot! But my shell is not borked because I tried different versions with two pc's and all gives me the path like I used it before. bcfg simply does not add the 0xFFFF to the path and the firmware does not need it for booting. UEFI Interactive Shell v2.2 EDK II UEFI v2.31 (American Megatrends, 0x0004028D) Option: 00. Variable: Boot0080 Desc - Mac OS X DevPath - PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x0,0x0,0x0)/HD(2,GPT,0e24b55c-ac2b-4cbf-aadf-3a13409a3ddd,0x64028,0x1d161920)/VenMedia(be74fcf7-0b7c-49f3-9147-01f4042e6842,b4e5b22b3b8ed24cb3d6c832ed0ae1c8)/\141E13A7-2343-30EF-A414-4E40632F276A\System\Library\CoreServices\boot.efi Optional- N Option: 01. Variable: Boot0001 Desc - UEFI OS DevPath - HD(1,GPT,df9f014d-e07b-4cae-a8b2-0b80f9f06600,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI Optional- N Option: 02. Variable: Boot0000 Desc - Windows Boot Manager DevPath - HD(1,GPT,f9933d89-0bd2-4a3a-85ea-4395d6cf0ce8,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi Optional- Y Option: 03. Variable: Boot0003 Desc - UEFI: KINGSTON SA400S37120G DevPath - PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x4,0x0)/HD(1,GPT,ce93fbb9-5aad-4897-ba61-7c9cdee187fd,0x28,0x64000) Optional- Y Option: 04. Variable: Boot0004 Desc - UEFI: ST1000LM024 HN-M101MBB DevPath - PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x5,0x0)/HD(1,GPT,e4409a95-a817-4d06-b9ea-e0b7c60c9e8d,0x28,0x64000) Optional- Y Option: 05. Variable: Boot0005 Desc - UEFI: ST1000LM024 HN-M101MBB DevPath - PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x5,0x0)/HD(4,GPT,73612ed4-ef49-4981-8d6d-7f8ad35e694a,0x745ac548,0x15a840) Optional- Y Option: 06. Variable: Boot0002 Desc - Refind DevPath - PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x0,0x0)/HD(1,GPT,df9f014d-e07b-4cae-a8b2-0b80f9f06600,0x28,0x64000)/\EFI\OpenCore\refind.efi Optional- N EFI Specification Revision : 2.31 EFI Vendor : American Megatrends EFI Revision : 4.653 EFI Build Version : HermitCrabs-Lab-20151103 The boot option list is: 01. PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x0,0x0,0x0)/HD(2,GPT,0e24b55c-ac2b-4cbf-aadf-3a13409a3ddd,0x64028,0x1d161920)/VenMedia(be74fcf7-0b7c-49f3-9147-01f4042e6842,b4e5b22b3b8ed24cb3d6c832ed0ae1c8)/\141E13A7-2343-30EF-A414-4E40632F276A\System\Library\CoreServices\boot.efi "Mac OS X" 02. HD(1,GPT,df9f014d-e07b-4cae-a8b2-0b80f9f06600,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI "UEFI OS" 03. HD(1,GPT,f9933d89-0bd2-4a3a-85ea-4395d6cf0ce8,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi "Windows Boot Manager" OPT 04. PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x4,0x0)/HD(1,GPT,ce93fbb9-5aad-4897-ba61-7c9cdee187fd,0x28,0x64000) "UEFI: KINGSTON SA400S37120G" OPT 05. PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x5,0x0)/HD(1,GPT,e4409a95-a817-4d06-b9ea-e0b7c60c9e8d,0x28,0x64000) "UEFI: ST1000LM024 HN-M101MBB" OPT 06. PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x5,0x0)/HD(4,GPT,73612ed4-ef49-4981-8d6d-7f8ad35e694a,0x745ac548,0x15a840) "UEFI: ST1000LM024 HN-M101MBB" OPT 07. PciRoot(0x0)/Pci(0x1f,0x2)/Sata(0x0,0x0)/HD(1,GPT,df9f014d-e07b-4cae-a8b2-0b80f9f06600,0x28,0x64000)/\EFI\Refind\refind.efi "Refind" Link to comment Share on other sites More sharing options...
mhaeuser Posted August 24, 2019 Share Posted August 24, 2019 (edited) 19 minutes ago, uglyJoe said: bcfg simply does not add the 0xFFFF to the path and the firmware does not need it for booting. DPs are not stored in text format, they are converted. Lack of 0xFFFF means the conversion is screwed, not that the value is "not needed". Which Shell are you using? The only I can recommend is OpenCoreShell, though even it needs more refinement. EDIT: Ah, you use HermitShell... don't Edited August 24, 2019 by Download-Fritz 1 Link to comment Share on other sites More sharing options...
uglyJoe Posted August 24, 2019 Share Posted August 24, 2019 @Download-Fritz Of course I use OpenCoreShell, HermitShell was only for double testing. Link to comment Share on other sites More sharing options...
NorthAmTrans Posted August 24, 2019 Share Posted August 24, 2019 @dracoflar, im looking back on an old comment about how my hardware shouldn't need a DSM>XDSM patch. How can I confirm this? Link to comment Share on other sites More sharing options...
rusty-bits Posted August 24, 2019 Share Posted August 24, 2019 (edited) Here is another tool for building OpenCore from the command line that I'm working on if anyone wants to try it out https://github.com/rusty-bits/OC-tool It updates required packages, builds the files, and copies them into an EFI directory It also makes the required vault files if you have the RequireVault option set in your config.plist Screen Recording 2019-08-24 at 1.25.15 PM.mov Edited September 15, 2019 by rusty-bits remove unnecessary matter from general discussion 4 Link to comment Share on other sites More sharing options...
Erroruser Posted August 24, 2019 Share Posted August 24, 2019 1 hour ago, rusty-bits said: Here is another tool for building OpenCore from the command line that I'm working on if anyone wants to try it out https://github.com/rusty-bits/OC-tool It updates required packages, builds the files, and copies them into an EFI directory It also makes the required vault files if you have the RequireVault option set in your config.plist Reveal hidden contents Screen Recording 2019-08-24 at 1.25.15 PM.mov i think i rather stick with this one https://github.com/Pavo-IM/ocbuilder Link to comment Share on other sites More sharing options...
rusty-bits Posted August 24, 2019 Share Posted August 24, 2019 (edited) On 8/24/2019 at 2:48 PM, errorexists said: On 8/24/2019 at 1:38 PM, rusty-bits said: Here is another tool for building OpenCore from the command line that I'm working on if anyone wants to try it out https://github.com/rusty-bits/OC-tool It updates required packages, builds the files, and copies them into an EFI directory It also makes the required vault files if you have the RequireVault option set in your config.plist i think i rather stick with this one https://github.com/Pavo-IM/ocbuilder I tried that one, but I didn't like it much -It wants administrator privileges, but I'm not sure why -It pulls and builds everything, whether you are using it in your EFI or not, makes it a bit slow -It builds Release, NoOpt, and Debug every time, whether you want them all or not, also makes it a bit slow -It doesn't make the vault files, I like the RequireVault option, has saved me a couple of times -It doesn't seem to make a logfile anywhere, but I may have missed that -It doesn't make an EFI folder that I can just drop in my EFI partition and reboot to try it out Anyways, that's some of the reasons why I wanted to make a simple command line tool that grabs only what you tell it and builds it into a bootable EFI directory I still need to add on ACPI file handling, not a priority for me yet since I don't use them, but it might be nice to have And a NoOpt option as well, right now I just have a release and debug option Also I need to include the Tools folder as well, it's nice to be able to boot into OpenCoreShell That's next on my agenda Screen Recording 2019-08-24 at 1.25.15 PM.mov Edited September 15, 2019 by rusty-bits strikeout incorrect comments Link to comment Share on other sites More sharing options...

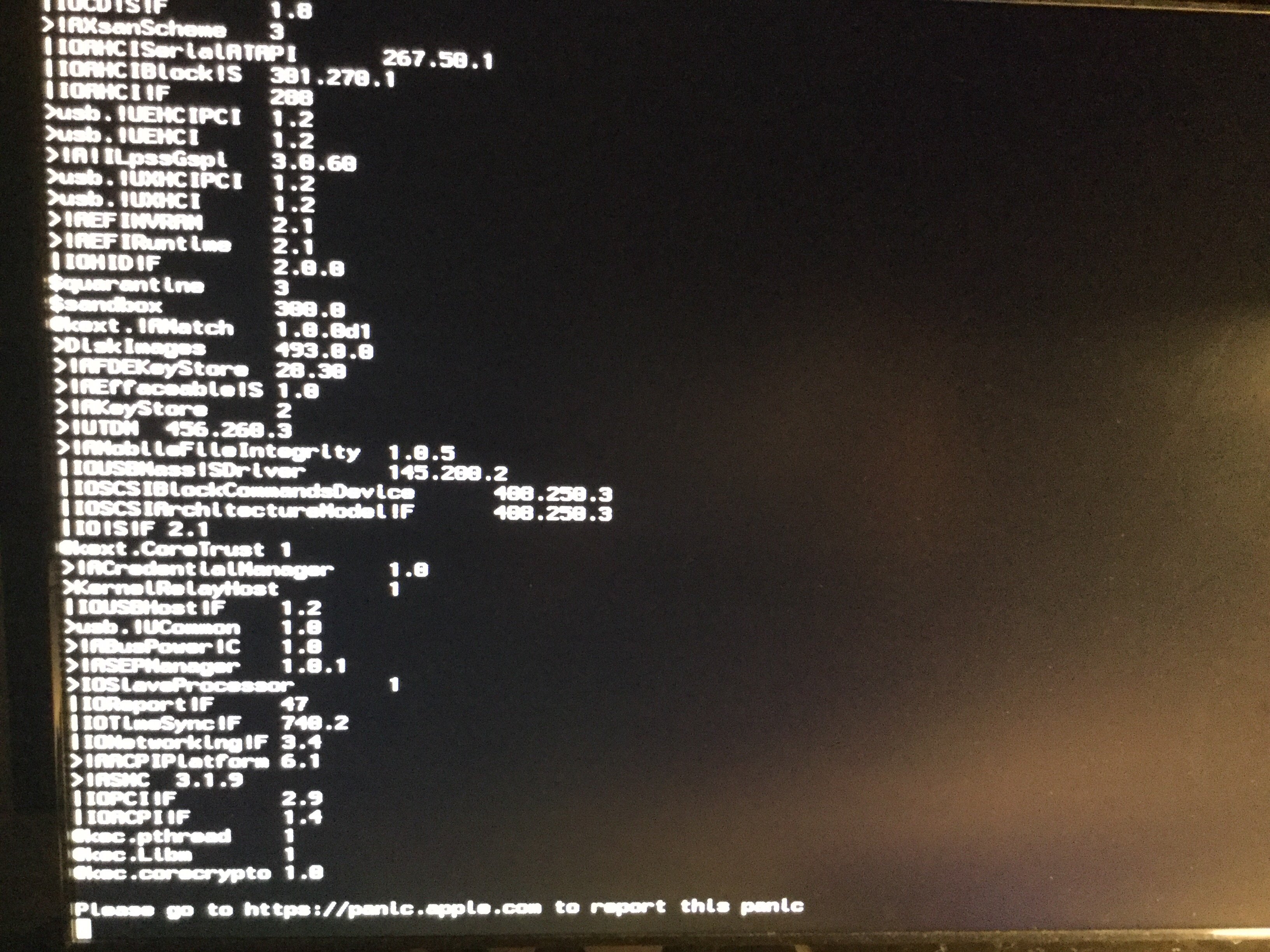

Proxary Posted August 24, 2019 Share Posted August 24, 2019 Hello guys I have successfully updated my opencore and my settings and now I can boot Without osxfixdrv2.efi them I have removed it but I have only VirtualSMC.efi and all the files from applesupportpkg but when I try to boot I have a panic error but i don’t know from what I hope the are Can fix the problem here a picture as appendix Link to comment Share on other sites More sharing options...
Erroruser Posted August 24, 2019 Share Posted August 24, 2019 24 minutes ago, rusty-bits said: I tried that one, but I didn't like it much -It wants administrator privileges, but I'm not sure why -It pulls and builds everything, whether you are using it in your EFI or not, makes it a bit slow -It builds Release, NoOpt, and Debug every time, whether you want them all or not, also makes it a bit slow -It doesn't make the vault files, I like the RequireVault option, has saved me a couple of times -It doesn't seem to make a logfile anywhere, but I may have missed that -It doesn't make an EFI folder that I can just drop in my EFI partition and reboot to try it out Anyways, that's some of the reasons why I wanted to make a simple command line tool that grabs only what you tell it and builds it into a bootable EFI directory I still need to add on ACPI file handling, not a priority for me yet since I don't use them, but it might be nice to have And a NoOpt option as well, right now I just have a release and debug option Also I need to include the Tools folder as well, it's nice to be able to boot into OpenCoreShell That's next on my agenda i think @Pavo would explain that better when he gets the chance Link to comment Share on other sites More sharing options...
rusty-bits Posted August 24, 2019 Share Posted August 24, 2019 2 minutes ago, errorexists said: i think @Pavo would explain that better when he gets the chance I'm not sure what @Pavo would need to explain, his README.md makes it pretty clear what his tool does. I simply needed something less all encompassing than ocbuilder, but if it works well for you, great! 1 Link to comment Share on other sites More sharing options...
Erroruser Posted August 24, 2019 Share Posted August 24, 2019 1 minute ago, rusty-bits said: I'm not sure what @Pavo would need to explain, his README.md makes it pretty clear what his tool does. I simply needed something less all encompassing than ocbuilder, but if it works well for you, great! works great for many others Link to comment Share on other sites More sharing options...
Sniki Posted August 25, 2019 Share Posted August 25, 2019 (edited) How to solve the problem with Haswell MSR Lock on Laptops so i can boot with OC ? Is there a kernel patch or quirk like there is on clover for this aside from having to mod the bios and remove it ? @vit9696 @PMheart any suggestions ? Edited August 25, 2019 by "Sniki" Link to comment Share on other sites More sharing options...
Andrey1970 Posted August 25, 2019 Share Posted August 25, 2019 1 hour ago, "Sniki" said: How to solve the problem with Haswell MSR Lock on Laptops so i can boot with OC ? Is there a kernel patch or quirk like there is on clover for this aside from having to mod the bios and remove it ? @vit9696 @PMheart any suggestions ? AppleXcpmCfgLock Link to comment Share on other sites More sharing options...

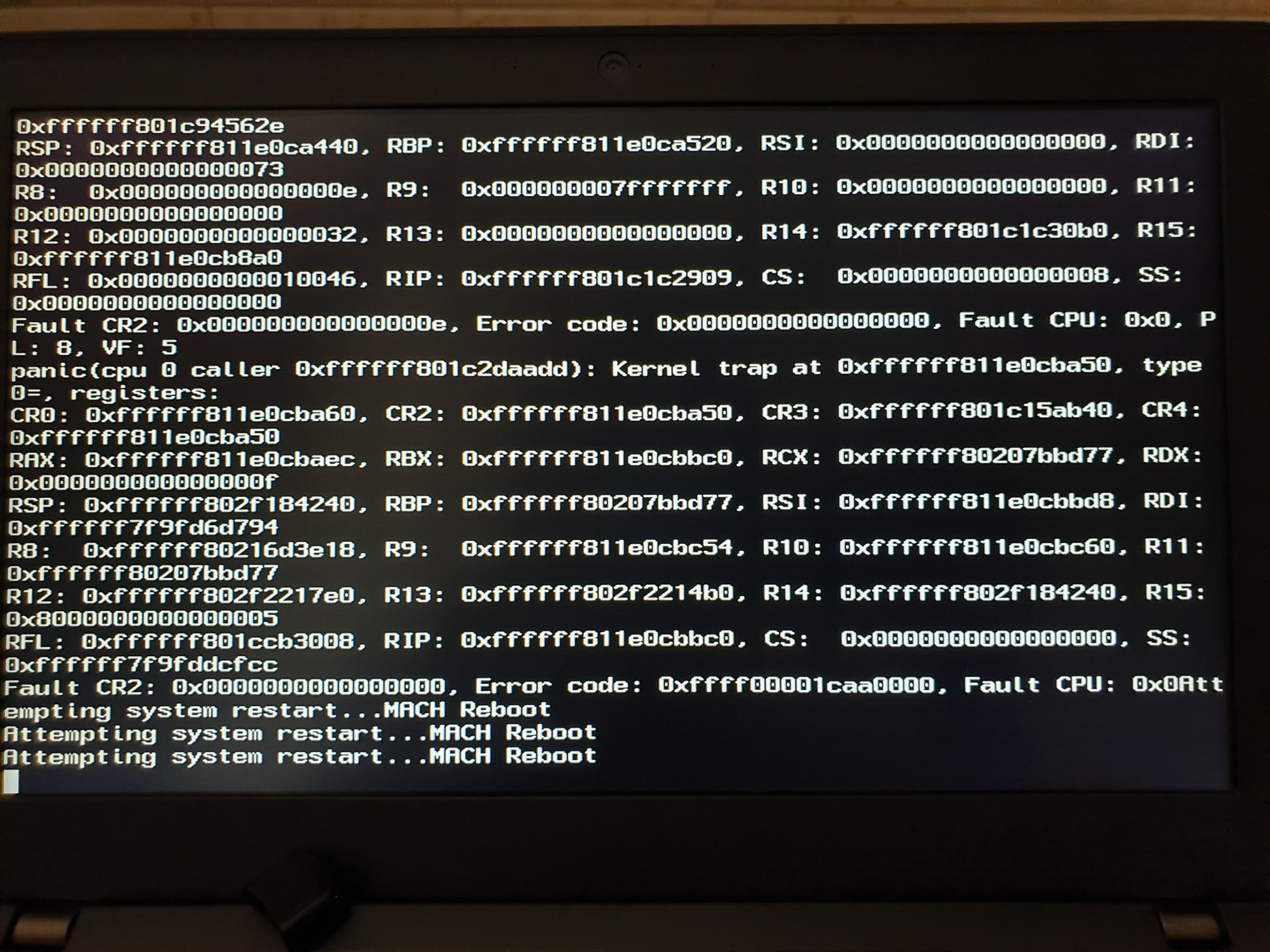

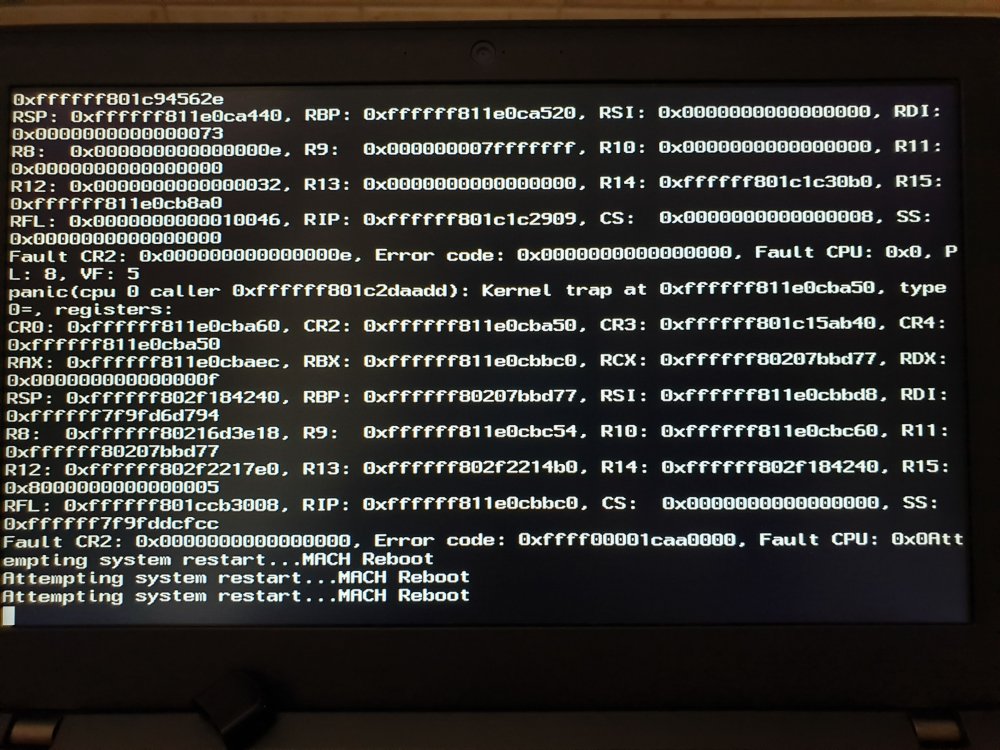

Sniki Posted August 25, 2019 Share Posted August 25, 2019 26 minutes ago, Andrey1970 said: AppleXcpmCfgLock I still get this panic: Lenovo ThinkPad X240 with Core i5 4300U OC 0.0.4 Release with EFIRuntimeServices.efi (latest release) Attached my OC as well: OC.zip Link to comment Share on other sites More sharing options...
Pavo Posted August 25, 2019 Share Posted August 25, 2019 16 hours ago, rusty-bits said: -It wants administrator privileges, but I'm not sure why -It pulls and builds everything, whether you are using it in your EFI or not, makes it a bit slow -It builds Release, NoOpt, and Debug every time, whether you want them all or not, also makes it a bit slow -It doesn't make the vault files, I like the RequireVault option, has saved me a couple of times -It doesn't seem to make a logfile anywhere, but I may have missed that -It doesn't make an EFI folder that I can just drop in my EFI partition and reboot to try it out I still need to add on ACPI file handling, not a priority for me yet since I don't use them, but it might be nice to have Also I need to include the Tools folder as well, it's nice to be able to boot into OpenCoreShell - It needs administrative privileges, because it checks to see if you have the build tools such as nasm and mtoc are installed and if not, it uses those privileges to install them for you automatically. - It pulls only the drivers, kexts repos that are commonly used. - It builds only Release versions. - It adds all the Utility files that you would need if you need to make vault files. Which is done separately yes. - A log file is only made if there is any errors. No reason to make a log file if there is no errors. - It makes a complete EFI folder that can be dropped into your ESP upon build complete. All you have to do is make your config.plist file. - All the ACPI files are included in the completed build folder. - It also includes the ClearNVRAM, MSRCheck and OpenCoreShell in the Tools folder inside the EFI folder upon completing the build. 1 Link to comment Share on other sites More sharing options...
Sniki Posted August 25, 2019 Share Posted August 25, 2019 5 hours ago, "Sniki" said: I still get this panic: Lenovo ThinkPad X240 with Core i5 4300U OC 0.0.4 Release with EFIRuntimeServices.efi (latest release) Attached my OC as well: OC.zip any idea/suggestion someone ? Link to comment Share on other sites More sharing options...
NorthAmTrans Posted August 25, 2019 Share Posted August 25, 2019 @sniki you should add your hardware to your signature. Link to comment Share on other sites More sharing options...
rusty-bits Posted August 25, 2019 Share Posted August 25, 2019 4 hours ago, Pavo said: - It needs administrative privileges, because it checks to see if you have the build tools such as nasm and mtoc are installed and if not, it uses those privileges to install them for you automatically. [snip] - All the ACPI files are included in the completed build folder. - It also includes the ClearNVRAM, MSRCheck and OpenCoreShell in the Tools folder inside the EFI folder upon completing the build. Hey @Pavo Thanks for the reply. Sorry for appearing critical of ocBuilder, the point I was making to @errorexists is that ocBuilder isn't the tool for me. I pretty much live in the terminal even when I'm not remoted in. I wouldn't know the first thing about creating a GUI app. Your app was one of the inspirations I had for trying to create my own command line tool to build an EFI which is currently a work in progress. I'd love your critique of it if you have time. I tend to shy away from things than need admin privileges. I try to put binaries into /usr/local/bin when possible to avoid the need for admin. As for ACPI and the Tools folder, I'm well aware that ocBuilder takes care of those, the point was that my tool doesn't yet. My tool definitely won't be for everyone. Some people don't like the command line or don't know how to install build tools. That's not a feature I'm ever going to add. I thought it would be a fun challenge to see if I could make a command line tool that will read the config.plist and then build a complete EFI folder based on it. Anyways, thanks again for the reply, and thanks for all your work! 2 Link to comment Share on other sites More sharing options...
STLVNUB Posted August 25, 2019 Share Posted August 25, 2019 22 minutes ago, rusty-bits said: I thought it would be a fun challenge to see if I could make a command line tool that will read the config.plist and then build a complete EFI folder based on it. good job 1 Link to comment Share on other sites More sharing options...
Sniki Posted August 25, 2019 Share Posted August 25, 2019 (edited) 1 hour ago, NorthAmTrans said: @sniki you should add your hardware to your signature. Thanks for pointing that out, added my hardware. But im more concerned about my current issue, i read the Configuration.pdf but can't seem to find a reason why i have a kernel panic related to my CPU. Managed to fix everything recently into all my other hardware, it's just this kernel panic that i cannot figure out why it is happening. Edited August 25, 2019 by Snikii Link to comment Share on other sites More sharing options...
NorthAmTrans Posted August 25, 2019 Share Posted August 25, 2019 @Snikii of course! A couple things. Rename patches are frowned on with OC. Someone here with a more articulate answer can fill in the blanks here but the short of it all is that they cause problems and should be avoided. I would go through and figure out which ones are actually necessary and then find some help here about how to make or find a patch for them. I don't know much about laptops here but for pure lucks sake try setting LegacyEnable to YES. You should join the InsanelHack Discord. There is a channel there for OpenCore Laptops. Best of luck to ya. Report back with some progress! Link to comment Share on other sites More sharing options...

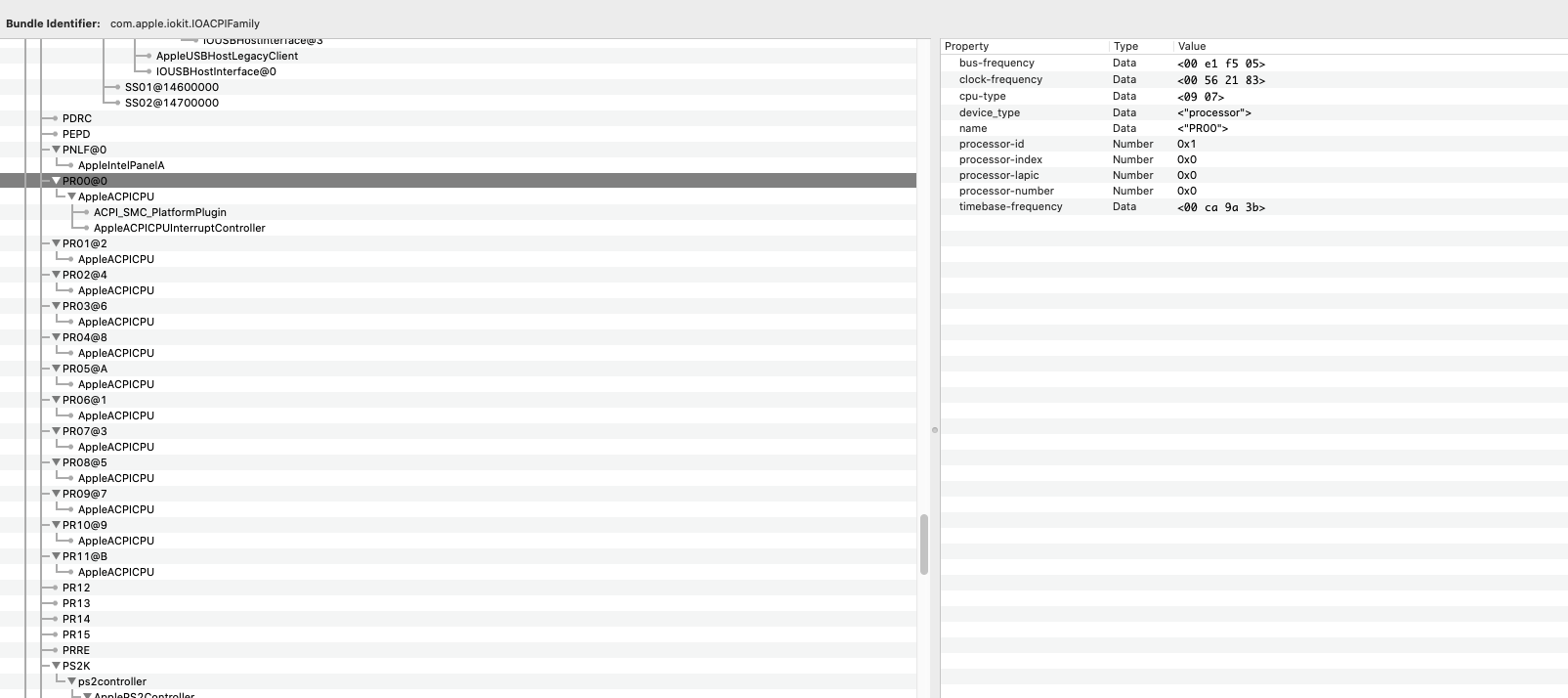

DonBronko Posted August 25, 2019 Share Posted August 25, 2019 (edited) I am not able to load X86 Platform Plugin. With Clover it was working. I edited SSDT-PLUG to match my cpu name with no effect. Can someone point me to the right direction. SSDT-0.aml DSDT.aml SSDT-PLUG.aml Edited August 25, 2019 by Quipper Link to comment Share on other sites More sharing options...
