MacPato Posted August 6, 2019 Share Posted August 6, 2019 2 hours ago, maddie said: About the aforementioned supplemental update problem, my Z370 rig updates just fine, but my another Z97 rig also fails, boots into Apple logo with progress bar, hangs at about 1/3 of the progress and reboots. So this makes 2 out of 3 of my hacks fail to install the update (one Asrock Deskmini 310 with i7-8700 and UHD 630, one Z97 rig with i7-4790K and RX580) Just compiled the latest OpenCore and its components from the repository, and updated the configuration according to the latest Configuration.pdf and SampleFull.plist (also comments in OcAppleBootCompatLib.h from OcSupportPkg for the Booter section), then tried again. This time: 1. In normal boot (not booting into update installer), OpenCore menu just stays on screen for a while, then suddenly the Apple logo with an almost done progress bar shows up (second stage?) and went into login screen in a second 2. Now I'm able to select both update installer (macOS Installer) and macOS itself (wasn't able to when I was using the older build, only macOS Installer shows up if I selected "Restart to update" in the OS) 3. Selecting "macOS Installer", OpenCore menu also stays on screen for a while, then reboots Attached is my config.plist for my Z97 rig with board info redacted. Am I doing anything wrong? config.plist If you have used the latest compiled version of Opencore, there have been some changes as to how it works, Booter has been added to config with no documentation yet. also, Aptio has been merged into AppleSupport. so it's probably best to stick to release version until the documentation is updated. Link to comment Share on other sites More sharing options...

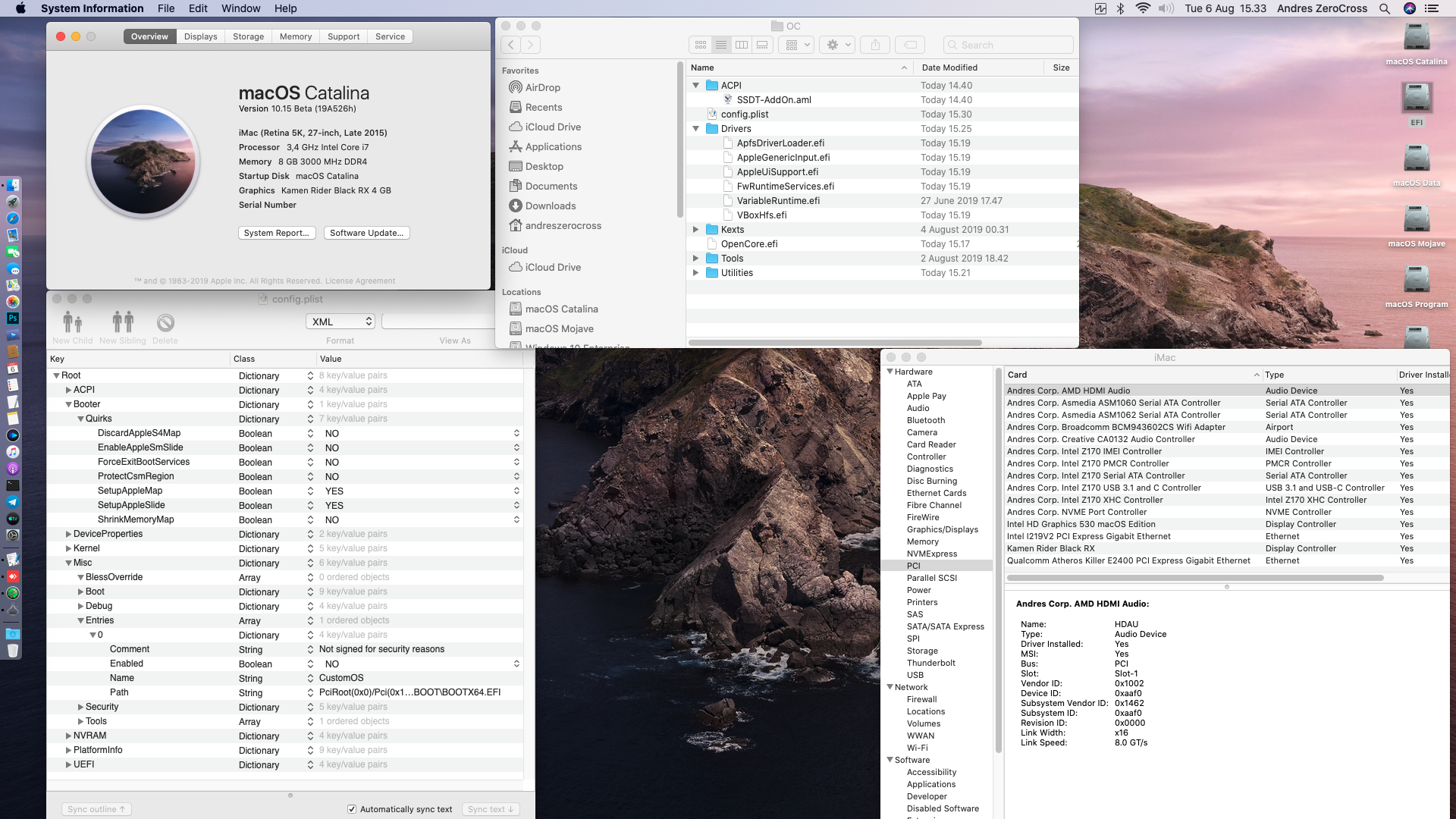

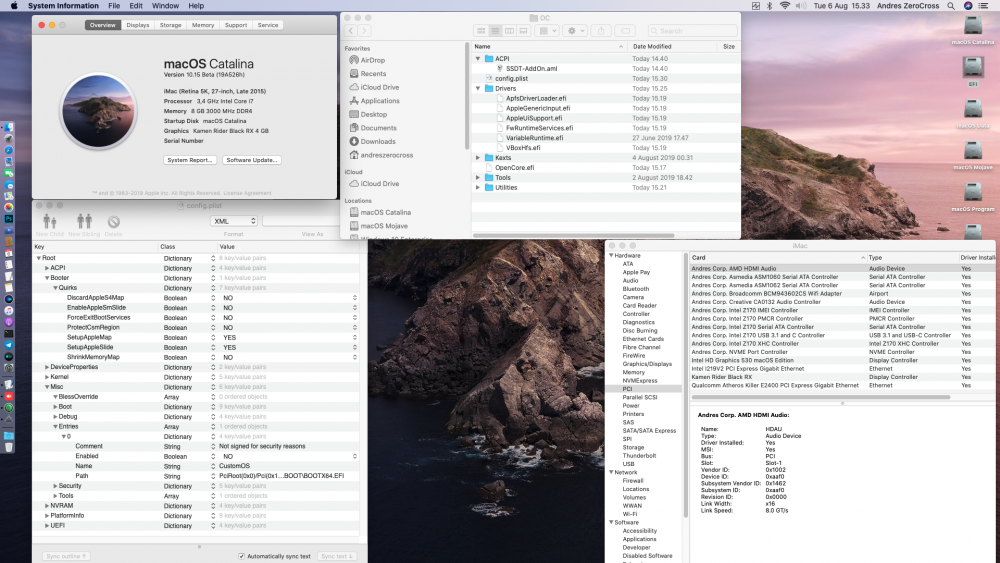

Andres ZeroCross Posted August 6, 2019 Share Posted August 6, 2019 Still get smooth booting with latest OpenCore Bootloader and new drivers 3 Link to comment Share on other sites More sharing options...
maddie Posted August 6, 2019 Share Posted August 6, 2019 1 hour ago, MacFriedIntel said: If you have used the latest compiled version of Opencore, there have been some changes as to how it works, Booter has been added to config with no documentation yet. also, Aptio has been merged into AppleSupport. so it's probably best to stick to release version until the documentation is updated. Yeah, I'm aware of that, I found some comments regarding the Booter section, so I think it should be fine. Also, I'm aware that Aptio has been merged into AppleSupport. I'm booted into macOS just fine with the HEAD version, it's just the supplemental update that can't run properly. Link to comment Share on other sites More sharing options...
maddie Posted August 6, 2019 Share Posted August 6, 2019 Here's the log from the updater's reboot. Can't really spot anything though.. opencore-2019-08-06-100737.txt Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 6, 2019 Share Posted August 6, 2019 @Download-Fritz Any clue how to hidden auto discover entry by OC?? I have added these 4 entry. I jus need to hidden entry from 1 -> 6. Entry from 7 -> B are My Custom entry. 1 Link to comment Share on other sites More sharing options...
mhaeuser Posted August 6, 2019 Share Posted August 6, 2019 @Andres ZeroCross There is no way to hide detected entries and we do not see any reason to implement such 3 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 6, 2019 Share Posted August 6, 2019 56 minutes ago, Download-Fritz said: @Andres ZeroCross There is no way to hide detected entries and we do not see any reason to implement such No problem,, I shouldn't use custom entry because i have use separated disk for each Operating System. Every disk have own EFI/Boot/Bootx64.efi. So actually i don't need use those features. I just want to change entry name instead default ones, i just need to use ._contentDetails files to edit entry name. Thanks again 1 Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 6 hours ago, Andres ZeroCross said: Still get smooth booting with latest OpenCore Bootloader and new drivers Do you see Apple Logo after choosing macOS boot entry? I don't see it, it straightly booted into the second stage (where AMD GPU screen flashes happens) and login shows. Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 6, 2019 Share Posted August 6, 2019 (edited) 9 minutes ago, justin said: Do you see Apple Logo after choosing macOS boot entry? I don't see it, it straightly booted into the second stage (where AMD GPU screen flashes happens) and login shows. ConsoleControl=true ProvideConsoleGop=true Edited August 6, 2019 by vandroiy2012 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 6, 2019 Share Posted August 6, 2019 9 minutes ago, justin said: Do you see Apple Logo after choosing macOS boot entry? I don't see it, it straightly booted into the second stage (where AMD GPU screen flashes happens) and login shows. There is no strange issue, just like before. Try @vandroiy2012 solution above 1 Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 (edited) 17 minutes ago, vandroiy2012 said: ConsoleControl=true ProvideConsoleGop=true Hey thanks. ConsoleControl has been true since the first try I was always able to see Apple Logo until I, one hour ago, compiled and updated my EFI with opencore-version REL-004-2019-08-06, of cause I replaced AptioMemoryFix.efi and VariableRuntimeDxe.efi with FwRuntimeServices.efi, also added Booter/Quiks with SetupAppleMap=YES, SetupAppleSlide=YES (which was default from samplefull.plist) Adding ProvideConsoleGop=true does not help. Adding this works, Sorry i forgot to save config.plist before restarting. By the way, the boot time seems longer than before but this does not bother me. Edited August 6, 2019 by justin Link to comment Share on other sites More sharing options...
obus Posted August 6, 2019 Share Posted August 6, 2019 (edited) 9 minutes ago, justin said: Hey thanks. ConsoleControl has been true since the first try I was always able to see Apple Logo until I, one hour ago, compiled and updated my EFI with opencore-version REL-004-2019-08-06, of cause I replaced AptioMemoryFix.efi and VariableRuntimeDxe.efi with FwRuntimeServices.efi, also added Booter/Quiks with SetupAppleMap=YES, SetupAppleSlide=YES (which was default from samplefull.plist) Adding ProvideConsoleGop=true does not help. Same setup as above and working Apple logo, though with wrong resolution but that is normal without a nvram reseat for me. Edited August 6, 2019 by obus Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 1 minute ago, obus said: Same setup as above and working Apple logo, though with wrong resolution but that is normal without a nvram reseat for me. Thanks, i edited my post, i forgot to save before restarting, adding ProvideConsoleGop=true worked for me. thanks for your info also. Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 1 hour ago, Andres ZeroCross said: I just want to change entry name instead default ones, i just need to use ._contentDetails files to edit entry name. Thanks again Still not able to set default boot entry? in your example, you'll boot into Windows if no choice made. Link to comment Share on other sites More sharing options...

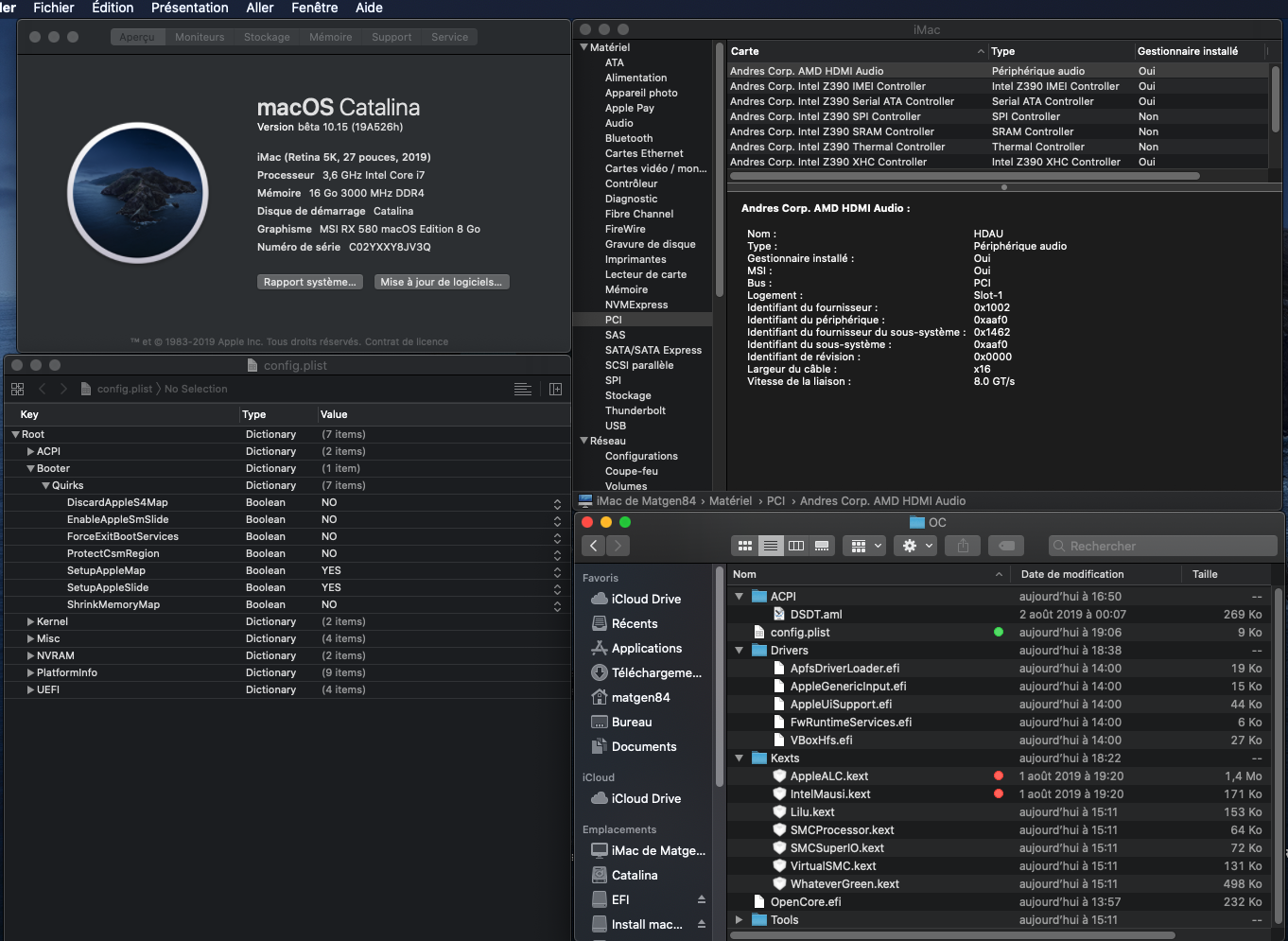

Matgen84 Posted August 6, 2019 Share Posted August 6, 2019 Hi Guys Still get smooth booting with latest OpenCore Bootloader 0.0.4 and new drivers I don't find VariableRuntime.efi Where is it? AppleALC don't load at the beginning, now all is OK. Question: how to use USB port limit patch in Opencore config.plist? Special thanks to @Andres ZeroCross Clover DSDT for Z390 Aorus Master works fine. Need more test. Link to comment Share on other sites More sharing options...
Andrey1970 Posted August 6, 2019 Share Posted August 6, 2019 9 minutes ago, Matgen84 said: I don't find VariableRuntime.efi Now it FwRuntimeServices.efi 1 Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 28 minutes ago, Andrey1970 said: Now it FwRuntimeServices.efi With this one replacing VariableRuntimeDxe.efi and AptioMemoryFix.efi, and with SetupAppleMap=YES, SetupAppleSlide=YES, i'm able to boot smoothly, but shutdown turns reboot, sleep does not work. If SetupAppleMap=NO, SetupAppleSlide=NO, shutdown and sleep both works, but on boot menu, if i let it choose automatically, there will be a "timeout" message , wait for a while it boots into macOS login windows directly. Guessing i'm waiting for docs to explain the Booter/Quirks. 1 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 6, 2019 Share Posted August 6, 2019 2 hours ago, justin said: Still not able to set default boot entry? in your example, you'll boot into Windows if no choice made. Just go to system preferences, and go to startup disk. Select disk and restart,, it will be your default disk 1 Link to comment Share on other sites More sharing options...

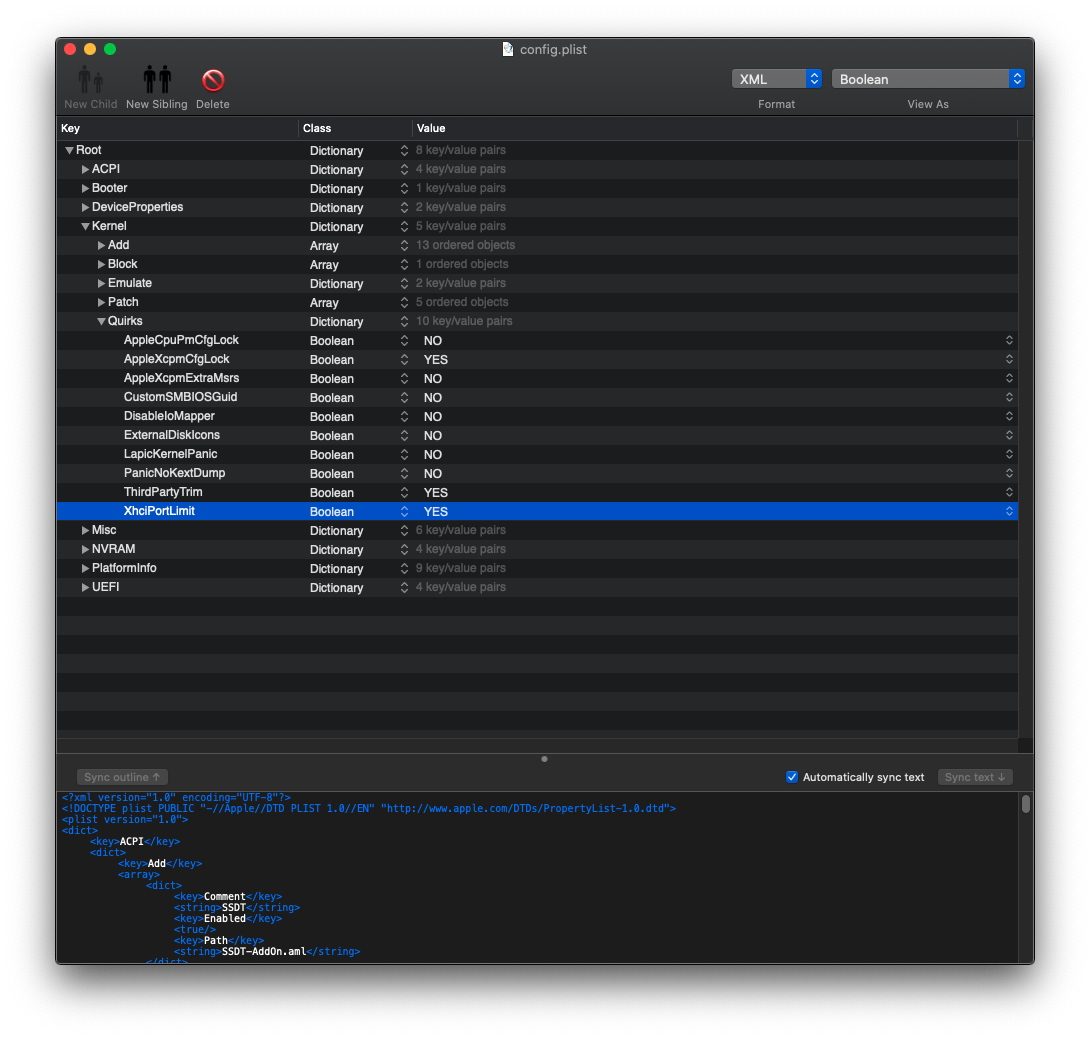

Andres ZeroCross Posted August 6, 2019 Share Posted August 6, 2019 40 minutes ago, Andrey1970 said: Now it FwRuntimeServices.efi Thanks for the informati0n,, i just deleted VariableRuntime.efi from my drivers. I tested in windows, Sleep and Restart are still working in Windows (NVRAM Problem before). I need this file (from @vit9696) before to fix my NVRAM in Windows 57 minutes ago, Matgen84 said: Hi Guys Still get smooth booting with latest OpenCore Bootloader 0.0.4 and new drivers I don't find VariableRuntime.efi Where is it? AppleALC don't load at the beginning, now all is OK. Question: how to use USB port limit patch in Opencore config.plist? Special thanks to @Andres ZeroCross Clover DSDT for Z390 Aorus Master works fine. Need more test. Just set YES to this options to enable "Unlock limit patch",, it's in Kernel -> Quirks 1 Link to comment Share on other sites More sharing options...
dgsga Posted August 6, 2019 Author Share Posted August 6, 2019 (edited) @justin @Andres ZeroCross I have a z390 rig too. With the new driver system I have also found that if SetupAppleMap=NO and SetupAppleSlide=NO, shutdown and sleep both work without the need for VariableRuntimeDxe.efi. This is a step forward but without VariableRuntimeDxe.efi I still don't get persistent NVRAM across boots. Have either of you managed to get NVRAM working on z390 without the VariableRuntimeDxe driver and NVRAM > LegacyEnable set to YES? Edited August 6, 2019 by dgsga Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 17 minutes ago, dgsga said: LegacyEnable set to YES? Set this option = YES requires LogoutHook.command to be installed. But i'm not able to get boot-path variable with FwRuntimeServices.efi, thus the LogoutHook.command will fail to find EFI partition automatically. Link to comment Share on other sites More sharing options...
obus Posted August 6, 2019 Share Posted August 6, 2019 Can't select startup disk in OC boot menu manually. Boots fine with default disk but as soon as I change boot disk manually everything seems to hang and I need to do a reset. Link to comment Share on other sites More sharing options...
dgsga Posted August 6, 2019 Author Share Posted August 6, 2019 10 minutes ago, justin said: Set this option = YES requires LogoutHook.command to be installed. But i'm not able to get boot-path variable with FwRuntimeServices.efi, thus the LogoutHook.command will fail to find EFI partition automatically. Me neither, that's why I still need to use the VariableRuntimeDxe driver even though shutdown/restart/sleep now work without it... It's confusing. Link to comment Share on other sites More sharing options...
zsirmo Posted August 6, 2019 Share Posted August 6, 2019 On 8/5/2019 at 2:17 AM, Pavo said: This is your issue: As the documentation says, you should not do ACPI table renames in config. You should use SSDTs. Test this EFI EFI.zip working thank you! i see diff configs Link to comment Share on other sites More sharing options...
justin Posted August 6, 2019 Share Posted August 6, 2019 15 hours ago, maddie said: In normal boot (not booting into update installer), OpenCore menu just stays on screen for a while, then suddenly the Apple logo with an almost done progress bar shows up (second stage?) and went into login screen in a second B360M here, exactly same. Link to comment Share on other sites More sharing options...
