OpenCore General Discussion

[MattsCreative]

1 hour ago, iCanaro said:

@WarDoc change:



DisableWatchDog --> YES

IgnoreInvalidFlexRatio --> YES

that worked but i get endless booting now

[apianti]

This looks like a good start guys, very interested in where this will go. I have a question though, the boot strap for an application why does it not boot strap itself if the driver is not found instead of an error?

[obus]

Hi guys:

I need help to put FakeCPUID in my config.plist but I can't figure out how.

Any help appreciated.

config.plist

Edited April 27, 2019 by obus

[uglyJoe]

Runs fine on my ZBoxNano



While playing around, I tried loading OC from refind and in general it's working.

This means refind is detecting OpenCore.efi and after selecting - the bootpicker appears and I can select macOS or Recovery.

But I can't start macOS or Recovery from the refind gui.

If I put BootX64.efi into refind/drivers, the bootpicker appears directly after loading and I didn't get to the refind gui.

Enabling/Disabling BootPicker and/or Timeout didn't change anything at this behavior.



Is there a possibility to load OpenCore 'in the background' like with Ozmosis?

[MattsCreative]

1 hour ago, obus said:

Hi guys:

I need help to put FakeCPUID in my config.plist but I can't figure out how.

Any help appreciated.

config.plist

would be great if you include your specs

[obus]

Sorry @WarDoc I missed that

FakeCPUID 0x0506E4

[MattsCreative]

Z97 seems to have issues working so far 3 of our users in discord is have no boot

[iCanaro]

my Z97 and Z370 start with OC, only problems, SSDT does not seem to be loaded completely correctly. Excuse me if I speak little, but I don't speak English, I use translators, and it's not always easy to understand each other.



mia Z97 e Z370 si avviano con OC, unici problemi, SSDT sembra non vengano caricati del tutto correttamente.
Scusatemi se intervengo poco, ma non parlo inglese, mi avvalgo dei traslatori, e non sempre è facile capirsi

[Erroruser]

42 minutes ago, iCanaro said:

my Z97 and Z370 start with OC, only problems, SSDT does not seem to be loaded completely correctly. Excuse me if I speak little, but I don't speak English, I use translators, and it's not always easy to understand each other.



mia Z97 e Z370 si avviano con OC, unici problemi, SSDT sembra non vengano caricati del tutto correttamente.
Scusatemi se intervengo poco, ma non parlo inglese, mi avvalgo dei traslatori, e non sempre è facile capirsi



can you post your config please for z97

Edited April 27, 2019 by errorexists

[iCanaro]

@errorexists

okay, here it is, removed the serials ... if used with mojave probably need to change ig-platform-id



va bene, eccolo, tolti i seriali... se usato con mojave probabilmente occorre modificare ig-platform-id





config_OC_Z97_HD4600_HighSierra.plist.zip

[MattsCreative]

Nothing seems to work and man you got one hacky config its like looking at a config from a distro

[MacPato]

All is working good, this is probably better than clover, just 2 things i want to ask, 1st is i use a 2k monitor and the boot seems to sit at low resolution and 2nd at the picker screen i have to press "2" to boot otherwise it defaults to 1. "EFI" and hangs.

[MattsCreative]

Ok this will i hope be short:



First off For me it would not work no matter what unless all drives where removed until i figured out why The image below i turned on a pure uefi setting and OpenCore Worked perfect even my RX 570 4GB worked



My network stil works OOB

My audio Works OOB

My gpu WorkS OOB

it was a fun go Thanks for all the help

[Guest]

sometime in my rig I loose internal audio and others audio feature (internal speakers, line out,mic, digital output and so on) only DP port audio is working in this condition

With a simple reboot all audio works fine again

how to debug this?



Edited April 28, 2019 by Guest

[uglyJoe]

8 hours ago, MacFriedIntel said:

All is working good, this is probably better than clover, just 2 things i want to ask, 1st is i use a 2k monitor and the boot seems to sit at low resolution and 2nd at the picker screen i have to press "2" to boot otherwise it defaults to 1. "EFI" and hangs.



Try HideSelf=True to hide the EFI entry.

2K is ok with my Dell Display.



		<key>Boot</key>
		<dict>
			<key>ConsoleMode</key>
			<string></string>
			<key>HideSelf</key>
			<true/>
			<key>ReinstallProtocol</key>
			<false/>
			<key>Resolution</key>
			<string></string>
			<key>ShowPicker</key>
			<true/>
			<key>Timeout</key>
			<integer>5</integer>
		</dict>



[MacPato]

35 minutes ago, uglyJoe said:



Try HideSelf=True to hide the EFI entry.

2K is ok with my Dell Display.



		<key>Boot</key>
		<dict>
			<key>ConsoleMode</key>
			<string></string>
			<key>HideSelf</key>
			<true/>
			<key>ReinstallProtocol</key>
			<false/>
			<key>Resolution</key>
			<string></string>
			<key>ShowPicker</key>
			<true/>
			<key>Timeout</key>
			<integer>5</integer>
		</dict>

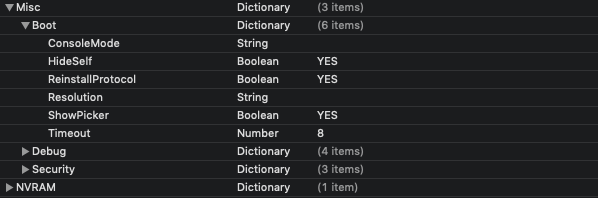

this is already set to YES

[obus]

Hi @Andrey1970

Need "_xcpm_pkg_scope_msrs_PMhart".and FakeCPUID 0x0506E4 to boot my rig with working XCPM.

Now booting with "xcpm_bootstrap © Pike R. Alpha" but with no PM.

Is there a way to inject FakeCPUID?









config.plist

[uglyJoe]

@MacFriedIntel

strange, for me this option is hiding the EFI entry.

Are there any other boot-loaders installed to your ESP?



@vit9696

I did an update from 10.13.3 to 10.13.6 and the BootPicker was hiding the macOS entry during the process.

Only 'Install macOS' and Recovery was shown and direct after the reboots, there where some debug output like 'Start LoadRamDisk' that was blowing away my apple-logo, progress bar was still there.

I don't use verbose and with a normal boot there are no such messages.

[MacPato]

46 minutes ago, uglyJoe said:

@MacFriedIntel

strange, for me this option is hiding the EFI entry.

Are there any other boot-loaders installed to your ESP?



@vit9696

I did an update from 10.13.3 to 10.13.6 and the BootPicker was hiding the macOS entry during the process.

Only 'Install macOS' and Recovery was shown and direct after the reboots, there where some debug output like 'Start LoadRamDisk' that was blowing away my apple-logo, progress bar was still there.

I don't use verbose and with a normal boot there are no such messages.

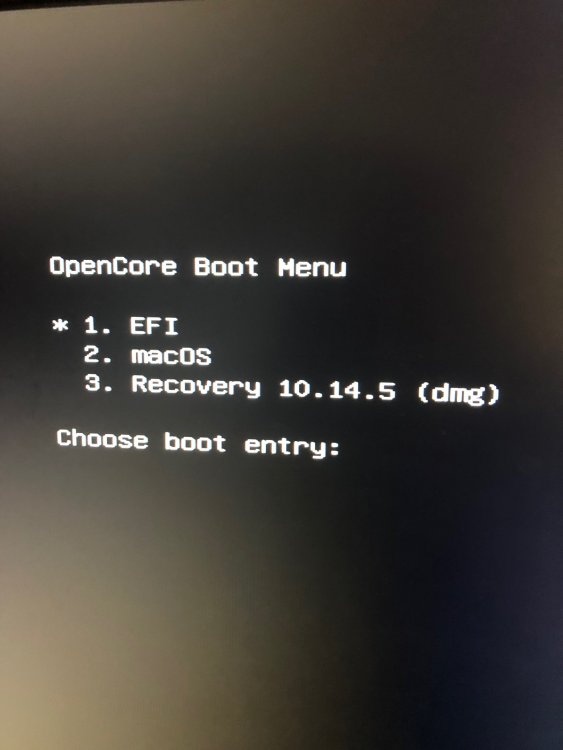

i don't have anything else other than OC and this is what i get.



[MacPato]

Fixed it, my fault left a USB drive attached to the machine. it now boots.

[Badruzeus]

I'm able to reach macOS Desktop (specs on sig) using OpenCore, but cannot get ApplePS2SmartTouchpad (or VoodooPS2Controller), AppleALC (not sure with other 3rd party kexts) to work. And how if a kext contains "Contents/PlugIns"..? Can you plz check my config.plist? And hi, from where getting "NVRAM - Add - GUID"..? Is this magic number? Thanks.

config.plist.zip

Edited April 28, 2019 by Badruzeus

[nikitenich]

11 minutes ago, Badruzeus said:

Can you plz check my config.plist?

Incorrect kext order in config: lilu plugins should located after lilu.kext.

Similarly with VoodooPS2 and its plugins.

Example for ApplePS2Touchpad.



17 minutes ago, Badruzeus said:

And hi, from where getting "NVRAM - Add - GUID"..? Is this magic number? Thanks.

Page 21 of OpenCore Reference Manual.



[Badruzeus]

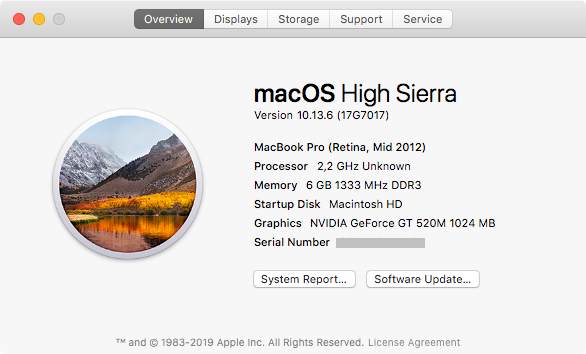

Thanks, now my 3rd party kexts are loaded & working. But just, well.. am not really sure why on "About This Mac" my Processor (should be Core i3) is "Unknown" uhmmmb... I guess I missed something on config.plist about "cpus".

Edited April 28, 2019 by Badruzeus

[Andrey1970]

4 hours ago, obus said:

Is there a way to inject FakeCPUID?

Ask vit9696

[Badruzeus]

Hi @Andrey1970, referring to this:

https://sourceforge.net/p/cloverefiboot/code/HEAD/tree/rEFIt_UEFI/Platform/cpu.c#l1310

My CPU is Intel Core i3-2330M (SandyBridge) = 0x903.

Is this correct if using Integer (Number) on config.plist - PlatformInfo - SMBIOS (?) It's just cosmetic for sure.

<key>ProcessorType</key>
<integer>2307</integer>

Thanks.
