hardcorehenry Posted August 24, 2020 Share Posted August 24, 2020 (edited) 12 hours ago, jmacie said: My Asus x99 pro won't boot OC BigSur install. I did manage to install Catalina and have tried to figure out what is blocking this install. In Dortania BigSir instructions there is an instruction for "some" Asus x299 boards to use a ssdt-rtco for areas Asus didn't write to, in the rtc, that might block booting. I have tried to figure out if my x99 is affected the same way, and I can't figure it out after days of trying and asking. If anyone has an idea of how I might proceed from my Catalina working OC 0.6.0 to BigSur , I appreciate it. It seems most all of us x99ers are stuck in the same spot. Thank you johnm DSDT.aml config.plist Add this hotpatch to your ACPI folder and replace config.plist SSDT-RTC0-RANGE.aml config.plist Edited August 24, 2020 by hardcorehenry 1 Link to comment Share on other sites More sharing options...
vit9696 Posted August 24, 2020 Share Posted August 24, 2020 @fabiosun, it is not possible to use NVIDIA Web Drivers with Apple Secure Boot I believe. Basically this is the reason there are no drivers for 10.14+ You will have to disable it. Link to comment Share on other sites More sharing options...
Guest Posted August 24, 2020 Share Posted August 24, 2020 Thanks vi9696 Do you see in my log I am using Apple Secure Boot? Or your answer is related to my OC 061 problem? TY again Link to comment Share on other sites More sharing options...
vit9696 Posted August 24, 2020 Share Posted August 24, 2020 In your log I do not see the Secure Boot being used, I referred to 0.6.1 issues with NVDA drivers in general. I am not sure of your other issue, and do not have much of an idea, sorry. Link to comment Share on other sites More sharing options...
Guest Posted August 24, 2020 Share Posted August 24, 2020 Thank you vi9696, I think my problem is related to weird SIP on TRX40 but I am not be able to reproduce the only time I have had it fully working with open core 060 However thank you for your time Link to comment Share on other sites More sharing options...
d5aqoep Posted August 24, 2020 Share Posted August 24, 2020 I am using 22nd August 2020 compiled OC 0.6.1 with Aquantia AQN107 and with Beta 5 kext patch for Big Sur. My card is working normally as it did before. The only thing to note for everyone is, cards which previously worked in Catalina without kext patch now require it in Big Sur. Apple has changed something in detection. However, external thunderbolt cards are unaffected and continue to work as before. It’s still a beta. Let’s see what happens at the time of final release in October. Link to comment Share on other sites More sharing options...
iGPU Posted August 24, 2020 Share Posted August 24, 2020 (edited) 8 hours ago, vit9696 said: Right, if you installed Acquantia driver to /Library/Extensions, you will not be able to patch it when SecureBoot is enabled or on 11.0 at all. - For 10.15 either set SecureBootModel to Disabled, or install patched Acquantia driver to OpenCore. - For 11.0 your only option is to inject via OpenCore. Thanks, so it's a SecureBootModel issue, which is why things seemingly 'broke' in v061 for Aquantia: SecureBootModel was set to 'Default' rather than 'Disabled' (following sample config file). BTW, I installed no drivers for Aquantia AQC107 as macOS has natively supported it (and, I've only placed kexts in OC/Kexts/ not in /L/E/). Now Aquantia is working in Big Sur with the patch Pavo showed above and SecureBootModel disabled (no special kexts added). fabiosun, Pavo: a side benefit is that Shutdown is now working for our bare metal TRX40 build, if selected from the Apple menu (it does not work if Shutdown is selected at the login window). This seems to be repeatable in both Catalina and Big Sur, using OC debug v061 a97b74e. Edited August 24, 2020 by iGPU added Shutdown info 1 Link to comment Share on other sites More sharing options...
jmacie Posted August 24, 2020 Share Posted August 24, 2020 (edited) 8 hours ago, hardcorehenry said: Add this hotpatch to your ACPI folder and replace config.plist SSDT-RTC0-RANGE.aml config.plist @hardcorehenry Thanks but it does not boot. The patch you sent is the same as on Dortania. I had tried that over and over with changes to my quirks, no luck. That's why I came here to see if @vit9696 or one of the Opencore authors might be able to tell me if this rtc issue extends to the Asus x99 boards as well as the patch for Asus x299. The address for my rtc is _SB_.PCI0.LPC0.RTC_, not _SB_.PC00.LPC0. I did change it to the correct PCI0, but it KPs when booting BigSur installer. It will boot to Catalina. I appreciate your help, and maybe someone will see this and we can all go forward. johnm Edited August 24, 2020 by jmacie 1 Link to comment Share on other sites More sharing options...
hardcorehenry Posted August 24, 2020 Share Posted August 24, 2020 (edited) 2 hours ago, jmacie said: @hardcorehenry Thanks but it does not boot. The patch you sent is the same as on Dortania. I had tried that over and over with changes to my quirks, no luck. That's why I came here to see if @vit9696 or one of the Opencore authors might be able to tell me if this rtc issue extends to the Asus x99 boards as well as the patch for Asus x299. The address for my rtc is _SB_.PCI0.LPC0.RTC_, not _SB_.PC00.LPC0. I did change it to the correct PCI0, but it KPs when booting BigSur installer. It will boot to Catalina. I appreciate your help, and maybe someone will see this and we can all go forward. johnm My bad, in hotpatch PC00 should be replaced with PCI0 rest should be ok. In your config Kernel>Add kext order should be: first Lilu then Lilu plug-ins then the rest(consider adding VirtualSMC plugins(SMCProcessor.kext and SMCSuperIO.kext). In PlatformInfo: there shouldn’t be PlatformNVRAM when Automatic YES(see Sample.plist). Assuming in PlatformInfo>Generic everything generated correctly(ROM?). AFAIK NVRAM>Add>rtc-blacklist shouldn’t be empty(fix or remove if not needed). Maybe someone else add something more helpful. Edited August 24, 2020 by hardcorehenry Link to comment Share on other sites More sharing options...
jmacie Posted August 24, 2020 Share Posted August 24, 2020 22 minutes ago, hardcorehenry said: My bad, in hotpatch PC00 should be replaced with PCI0 rest should be ok. In your config Kernel>Add kext order should be: first Lilu then Lilu plug-ins then the rest(consider adding VirtualSMC plugins(SMCProcessor.kext and SMCSuperIO.kext). In PlatformInfo: there shouldn’t be PlatformNVRAM when Automatic YES(see Sample.plist). Assuming in PlatformInfo>Generic everything generated correctly(ROM?). AFAIK NVRAM>Add>rtc-blacklist shouldn’t be empty(fix or remove if not needed). Maybe someone else add something more helpful. yeah, no. Catalina boots, so the missing rom and other comments are irrelevant. It has to have something to do with the ssdt-rtc, just like the x299s, but I'm no programmer or developer. When Big Sur proper goes live there will be a slew of x99's asking for help on reddit, but for now reddit blocks beta help. I do appreciate you even bothering to help. Good on YOU, take care, johnm 22 minutes ago, hardcorehenry said: My bad, in hotpatch PC00 should be replaced with PCI0 rest should be ok. In your config Kernel>Add kext order should be: first Lilu then Lilu plug-ins then the rest(consider adding VirtualSMC plugins(SMCProcessor.kext and SMCSuperIO.kext). In PlatformInfo: there shouldn’t be PlatformNVRAM when Automatic YES(see Sample.plist). Assuming in PlatformInfo>Generic everything generated correctly(ROM?). AFAIK NVRAM>Add>rtc-blacklist shouldn’t be empty(fix or remove if not needed). Maybe someone else add something more helpful. yeah, no. Catalina boots, so the missing rom and other comments are irrelevant. It has to have something to do with the ssdt-rtc, just like the x299s, but I'm no programmer or developer. When Big Sur proper goes live there will be a slew of x99's asking for help on reddit, but for now reddit blocks beta help. I do appreciate you even bothering to help. Good on YOU, take care, johnm Link to comment Share on other sites More sharing options...

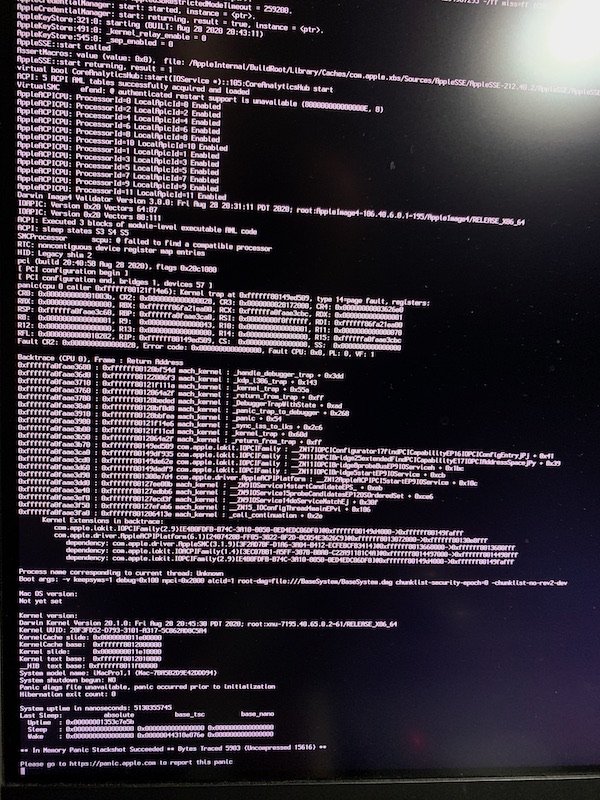

Pavo Posted August 24, 2020 Share Posted August 24, 2020 Just now, jmacie said: yeah, no. Catalina boots, so the missing rom and other comments are irrelevant. It has to have something to do with the ssdt-rtc, just like the x299s, but I'm no programmer or developer. When Big Sur proper goes live there will be a slew of x99's asking for help on reddit, but for now reddit blocks beta help. I do appreciate you even bothering to help. Good on YOU, take care, johnm This looks like the device-id of whatever device this is kping, may have lost support in BigSur. Check the device-ids comparison from the IOPCIFamily kext from Catalina and BigSur. 1 Link to comment Share on other sites More sharing options...
jmacie Posted August 24, 2020 Share Posted August 24, 2020 Thank you @Pavo, I'm attaching info.plists. I don't see device-ids. There are differences, but the differences, lines 38-46, I don't know what to do with. Not like plugging a device-id # in. I appreciate your help, thanks johnm InfoBigSur.plist Info.plist 1 Link to comment Share on other sites More sharing options...
Gigamaxx Posted August 25, 2020 Share Posted August 25, 2020 2 hours ago, jmacie said: Thank you @Pavo, I'm attaching info.plists. I don't see device-ids. There are differences, but the differences, lines 38-46, I don't know what to do with. Not like plugging a device-id # in. I appreciate your help, thanks johnm InfoBigSur.plist Info.plist Dont know if it will help but have you tried a CPUID? This is for Pentiums using IVY bridge ID. Maybe a Skylake 506E3? 0xe30605zero, zero etc like pictured. count them its crucial to be correct. Link to comment Share on other sites More sharing options...
jmacie Posted August 25, 2020 Share Posted August 25, 2020 Thanks @Gigamaxx, yes I already use cpuid's I can boot Catalina 10.15.6 fine with my opencore 0.6.0, it's just BigSur won't install. @Pavo looked at the KP and said to look at the IOPCIFAMILY.kext and I'm on that direction now. Thanks again, hope you're well! 1 Link to comment Share on other sites More sharing options...
canyondust Posted August 25, 2020 Share Posted August 25, 2020 (edited) Hi Devs! Any known reason why OC 0.6.1 would be borked for 10.13 and/or skylake (Z170)? 0.6.0 is fine, 0.6.1 reboots directly after "End OpenKernelRootVolume” Thanks! EDIT: setting SecureBootModel to Disabled fixed booting. Thanks! Edited August 25, 2020 by canyondust New info Link to comment Share on other sites More sharing options...
canyondust Posted August 25, 2020 Share Posted August 25, 2020 (edited) 18 hours ago, fabiosun said: Thank you vi9696, I think my problem is related to weird SIP on TRX40 but I am not be able to reproduce the only time I have had it fully working with open core 060 However thank you for your time I’m also experiencing this issue, 10.13.6, Nvidia card as well. Reboots at End OpenKernelRootVolume. (If this helps with information) edit: solved. See previous post. Edited August 25, 2020 by canyondust Link to comment Share on other sites More sharing options...
紫米 Posted August 25, 2020 Share Posted August 25, 2020 Hello! My Hackintosh can't boot Big Sur beta 5 with the latest OC 0.6.1 & kexts. but it can boot Big Sur beta 4 & recovery correctly. Anybody have ideas to fix this error? The specs of my Hackintosh: CPU: i7-7700K GPU: AMD-R9 270X 2GB MainBoard: ASUS PRIME Z270-A (BIOS: 1302) EFI.zip 1 1 Link to comment Share on other sites More sharing options...
D-an-W Posted August 25, 2020 Share Posted August 25, 2020 Hi folks, As far as I am aware the need for ApfsDriverLoader.efi is removed (v0.5.8) but if I remove the driver and entry for it in UEFI/Drivers I cannot boot past the BIOS Splash screen, would anyone have any ideas what I might have done wrong please? Link to comment Share on other sites More sharing options...
Matgen84 Posted August 25, 2020 Share Posted August 25, 2020 11 minutes ago, D-an-W said: Hi folks, As far as I am aware the need for ApfsDriverLoader.efi is removed (v0.5.8) but if I remove the driver and entry for it in UEFI/Drivers I cannot boot past the BIOS Splash screen, would anyone have any ideas what I might have done wrong please? Have you looked on Dortania Guide for IvyBridge Maybe It can help you. Link to comment Share on other sites More sharing options...
D-an-W Posted August 25, 2020 Share Posted August 25, 2020 (edited) 38 minutes ago, Matgen84 said: Have you looked on Dortania Guide for IvyBridge Maybe It can help you. Hi @Matgen84 I have looked at that thanks, for the section that relates to APFS it just says to leave at default which I have done. I'm going to try -1 for MinDate and MinVersion just as a test. EDIT: That didn't make any difference. Edited August 25, 2020 by D-an-W 1 Link to comment Share on other sites More sharing options...
Gigamaxx Posted August 25, 2020 Share Posted August 25, 2020 15 hours ago, 紫米 said: Hello! My Hackintosh can't boot Big Sur beta 5 with the latest OC 0.6.1 & kexts. but it can boot Big Sur beta 4 & recovery correctly. Anybody have ideas to fix this error? The specs of my Hackintosh: CPU: i7-7700K GPU: AMD-R9 270X 2GB MainBoard: ASUS PRIME Z270-A (BIOS: 1302) EFI.zip There are some things that don't look right. the bios rom file in ACPI, the order of your plists are not normal. You may want to get a new sample plist and start over. Use OpenCore Sanity Checker, and Propertree to edit it. Google both to download them. Link to comment Share on other sites More sharing options...
AlfredoM Posted August 26, 2020 Share Posted August 26, 2020 hello @Gigamaxx It was similar for me, I was able to boot with Open Core 0.6.1 Nightly Build 8/18/2020 but Mojave no longer worked with it booting with it and no recovery boot worked, neither from Catalina nor from Big Sur Beta4 and also not Beta5. I am then back to Open Core 0.6.0 Final, released on August 3rd, 2020. With that I can boot everything again, including all Recovery 1 Link to comment Share on other sites More sharing options...
chris1111 Posted August 26, 2020 Share Posted August 26, 2020 (edited) @AlfredoM Booting Mojave with OC 0.6.1 you need to do this I have also Moja and this what I need to do Spoiler Edited August 26, 2020 by chris1111 2 Link to comment Share on other sites More sharing options...
紫米 Posted August 26, 2020 Share Posted August 26, 2020 @Gigamaxx Thanks for reply! The 1302 file is not bios rom, it is a blank file to note down bios version. I can confirm that the structure of config.plist is correct. I just change the order to make me feel better. then I still fix it to default order, but I get the same error. The EFI is fixed version. EFI.zip Link to comment Share on other sites More sharing options...
Gigamaxx Posted August 26, 2020 Share Posted August 26, 2020 9 minutes ago, 紫米 said: @Gigamaxx Thanks for reply! The 1302 file is not bios rom, it is a blank file to note down bios version. I can confirm that the structure of config.plist is correct. I just change the order to make me feel better. then I still fix it to default order, but I get the same error. The EFI is fixed version. EFI.zip Try using Open Core Sanity Checker. https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&cad=rja&uact=8&ved=2ahUKEwj0qMrr_rfrAhXpFjQIHdmMAn8QFjAAegQIARAC&url=https%3A%2F%2Fopencore.slowgeek.com%2F&usg=AOvVaw3vc7b10-hRY_8BjVBDDl2Y Link to comment Share on other sites More sharing options...
