Andres ZeroCross
Andres ZeroCross
Posted
Posted (edited)

PROBLEM SOLVED :D

MUST : Apply Windows Emulation patch in my DSDT.
Thanks @vandroiy2012 and @vit9696, i check your sample "SSDT-EC-USBX.dsl". I found interesting method about _STA

Method (_STA, 0, NotSerialized)  // _STA: Status
                {
                    If (_OSI ("Darwin"))
                    {
                        Return (0x0F)
                    }
                    Else
                    {
                        Return (Zero)
                    }
                }

And i got idea for my patch,
example. I always Zeroing STA of HDAS in ACPI and create new device HDEF + _DSM, and make new device EC + USBX because default device is H_EC.
So my step

I add this code below to HDAS,

                Method (_STA, 0, NotSerialized)  // _STA: Status
                {
                    If (_OSI ("Darwin"))
                    {
                        Return (Zero)
                    }
                    Else
                    {
                        Return (0x0F)
                    }
                }

Then i make new device HDEF + DSM + STA,


Method (_STA, 0, NotSerialized)  // _STA: Status
                {
                    If (_OSI ("Darwin"))
                    {
                        Return (0x0F)
                    }
                    Else
                    {
                        Return (Zero)
                    }
                }

So, when i boot to windows, HDAS will get STA 0x0F and HDEF get STA Zero. And when i boot to macOS, HDEF get STA 0x0F and HDAS get STA Zero.

No problem now boot to windows, i implemented that patch to my all "new devices"

Edited by Andres ZeroCross
  • Like 4
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted

Cool, I learn something today: After doing:

bcfg driver add 00 FS0:\EFI\OC\OpenCore.efi "OC Boot"

.. I'm no longer able to access my BIOS (Aptio UEFI 2.0) with combo key. It drives me directly to OC, yeah my bad IDK what does this command mean but.. nevermind, I've done disassembling my laptop parts then unplug CMOS Battery to fix it. OK, guessing not bcoz of OC but my fault.

My question is, how to access UEFI Shell via OpenCore?

Link to comment
Share on other sites
blackosx
blackosx
Posted
Posted (edited)

You could have booted in to macOS, mounted ESP and renamed EFI\OC\OpenCore.efi to something else so the driver option you added would fail to find it's target, in this case EFI\OC\OpenCore.efi.



EDIT:

Then, of course, recover as described here



Edited by blackosx
  • Like 2
Link to comment
Share on other sites
PMheart
PMheart
Posted
Posted
1 hour ago, Badruzeus said:

Cool, I learn something today: After doing:

bcfg driver add 00 FS0:\EFI\OC\OpenCore.efi "OC Boot"

 .. I'm no longer able to access my BIOS (Aptio UEFI 2.0) with combo key. It drives me directly to OC, yeah my bad IDK what does this command mean but.. nevermind, I've done disassembling my laptop parts then unplug CMOS Battery to fix it. OK, guessing not bcoz of OC but my fault.

 My question is, how to access UEFI Shell via OpenCore?

It can be done via OpenCore Tools.

See https://github.com/acidanthera/OpenCorePkg/blob/e39cd101db97168bbd18d5922a90c342c2fa73d8/Docs/Sample.plist#L432-L441 for example.



As for Shell.efi, you know it. ;)

(You can either use TianoCore edk2 ShellPkg, or our fork of it, whatever fits you best.)

  • Like 2
  • Thanks 1
Link to comment
Share on other sites
MacPato
MacPato
Posted
Posted
54 minutes ago, vit9696 said:

@MacFriedIntel that HFSPlus driver is not compatible with your CPU supposedly due to missing rdrand instruction (most of exception data is not probably screenshoted). You must use the one from an older Mac like MacPro5,1 or similar.

its okay i fixed the issue and now fully boots. Legacy is a tough one but it's fully working. at least i now know OC works

  • Like 1
Link to comment
Share on other sites
vandroiy2012
vandroiy2012
Posted
Posted
38 minutes ago, Muntashir said:

I've got the following error:




OC: Configuration requires vault but no vault provided!

What does it mean?



This mean you didn't read the manual:)

Quote

  1. RequireVault
    Type: plist boolean
    Default value: true
    Description: Require vault.plist file present in OC directory.

This file should contain SHA-256 hashes for all files used by OpenCore. Presence of this file is highly recommended to ensure that unintentional file modifications (including filesystem corruption) do not happen unnoticed. To create this file automatically use create_vault.sh script.

Regardless of the underlying filesystem, path name and case must match between config.plist and vault.plist.Note: vault.plist is tried to be read regardless of the value of this option, but setting it to true will ensure

configuration sanity, and abort the boot process. The complete set of commands to:

• Create vault.plist.
• Create a new RSA key (always do this to avoid loading old configuration).• Embed RSA key into OpenCore.efi.
• Create vault.sig.

Can look as follows:

cd /Volumes/EFI/EFI/OC
/path/to/create_vault.sh .
/path/to/RsaTool -sign vault.plist vault.sig vault.pub
off=$(($(strings -a -t d OpenCore.efi | grep "=BEGIN OC VAULT=" | cut -f1 -d' ')+16))dd of=OpenCore.efi if=vault.pub bs=1 seek=$off count=520 conv=notrunc
rm vault.pub

Note: While it may appear obvious, but you have to use an external method to verify OpenCore.efi andBOOTx64.efi for secure boot path. For this you are recommended to at least enable UEFI SecureBoot with a custom certificate, and sign OpenCore.efi and BOOTx64.efi with your custom key. More details on customising secure boot on modern firmwares can be found in Taming UEFI SecureBoot paper (in Russian).



You can just disable it - RequireVault=false

  • Like 2
  • Haha 2
Link to comment
Share on other sites
obus
obus
Posted
Posted

@vit9696



Sorry if I bring this up again but I need to know why I need to produce a SSDT-PM with PikerAlpha:s

ssdtPRGen.sh to get X86PlatformPlugin/shim to work. I am sure I didn't need that in the first beta release of OC and I definitely don't need it in clover. In clover I just need to check plugin and then I have Fully working Powermanagment an XPCM.

Have I missed something?

Link to comment
Share on other sites
Pavo
Pavo
Posted
Posted
12 minutes ago, obus said:

@vit9696



Sorry if I bring this up again but I need to know why I need to produce a SSDT-PM with PikerAlpha:s

ssdtPRGen.sh to get X86PlatformPlugin/shim to work. I am sure I didn't need that in the first beta release of OC and I definitely don't need it in clover. In clover I just need to check plugin and then I have Fully working Powermanagment an XPCM.

Have I missed something?

Because there is no automatic quirk in OC that injects plugin-type into your original ACPI tables for CPU. You don't have to generate a SSDT using ssdtPRGen.sh, you can simply use the one on OC's GitHub.

https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/AcpiSamples/SSDT-PLUG.dsl

  • Like 2
Link to comment
Share on other sites
Pavo
Pavo
Posted
Posted
3 minutes ago, obus said:

Sorry if I wasn't clear enough but this doesn't work even with the SSDT-PLUG for me.

I tried to explain its in this post above.


sysctl -a | grep xcpm_OC.png


sysctl -a | grep xcpm_clover.png

Screenshot 2019-05-29 at 11.55.20.png

Thats because the "example" SSDT-PLUG from GitHub is for CPUs that are named CPU0, your original ACPI table for your specific CPU is named PR00 as highlighted in your IOReg screenshot. You have 2 options, either rename all your PR0x to CPUx or change the SSDT-PLUG from CPU0 to PR00.

  • Like 1
Link to comment
Share on other sites
obus
obus
Posted
Posted
1 minute ago, Pavo said:

Thats because the "example" SSDT-PLUG from GitHub is for CPUs that are named CPU0, your original ACPI table for your specific CPU is named PR00 as highlighted in your IOReg screenshot. You have 2 options, either rename all your PR0x to CPUx or change the SSDT-PLUG from CPU0 to PR00.

All my CPU is renamed to PRXX and my plugin too???

Link to comment
Share on other sites
gengik84
gengik84
Posted
Posted

You need to change it
It is not always the same as everyone... Docs/SSDT_PLUG is just an example

You don't have

  Scope (\_PR.CPU0)

Change to:

SB.PR00

and try...



EDIT:Sorry for the double answer, but the forum is slow here



  • Like 5
Link to comment
Share on other sites
Pavo
Pavo
Posted
Posted
Just now, obus said:

All my CPU is renamed to PRXX and my plugin too???

Then you need to do more research and make sure that you have the correct scope in the SSDT-PLUG. \_PR.PRO0 vs \_SB.PR.PRO0 etc.

  • Like 1
Link to comment
Share on other sites
obus
obus
Posted
Posted

Take a look.

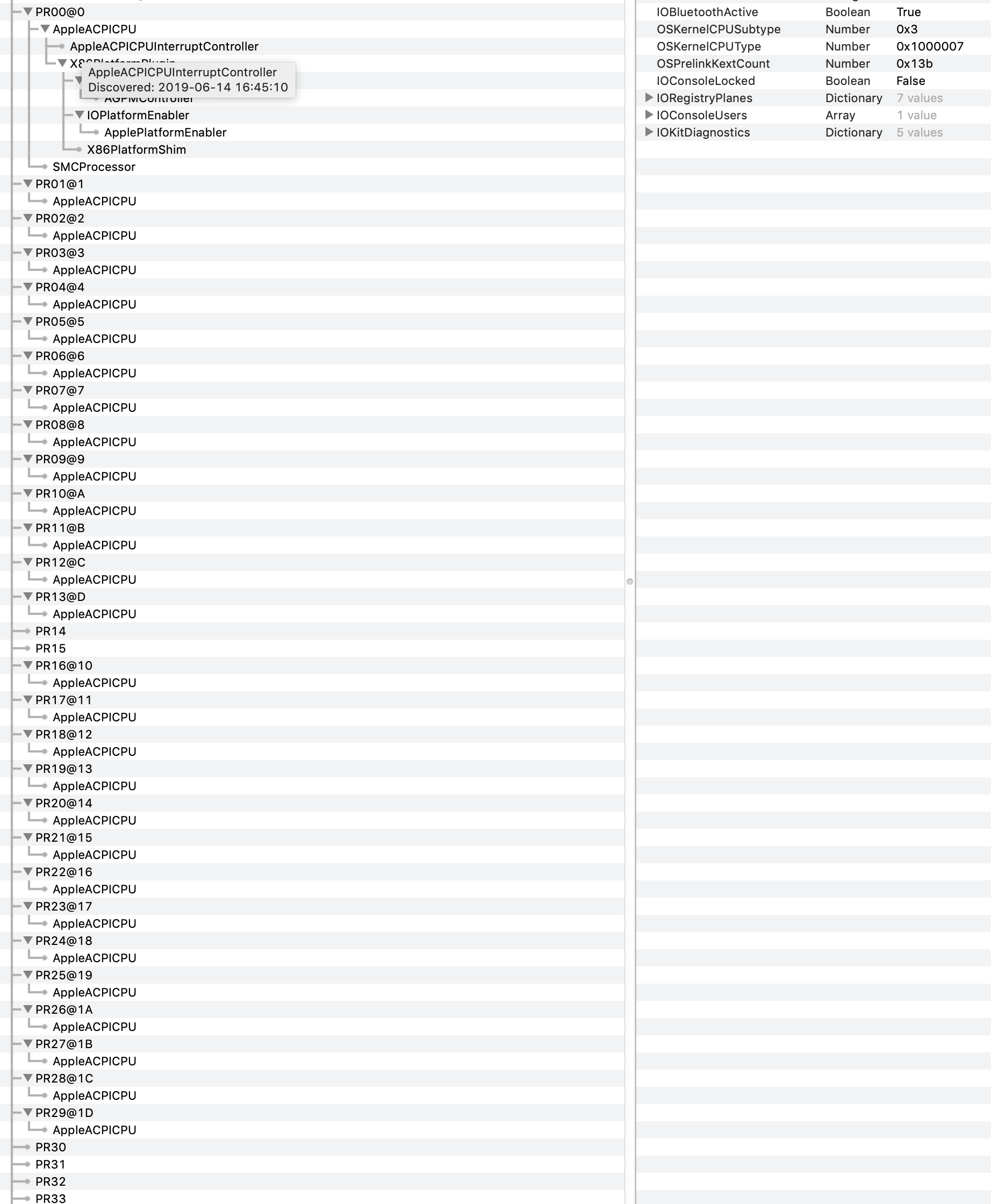

Screenshot 2019-06-14 at 16.46.29.png

SSDT-PLUG.aml

1 minute ago, gengik84 said:

You need to change it
It is not always the same as everyone... Docs/SSDT_PLUG is just an example

You don't have

  Scope (\_PR.CPU0)

Change to:

SB.PR00

and try...







Ok. I will try that.

Link to comment
Share on other sites
obus
obus
Posted
Posted
44 minutes ago, Pavo said:

Then you need to do more research and make sure that you have the correct scope in the SSDT-PLUG. \_PR.PRO0 vs \_SB.PR.PRO0 etc.

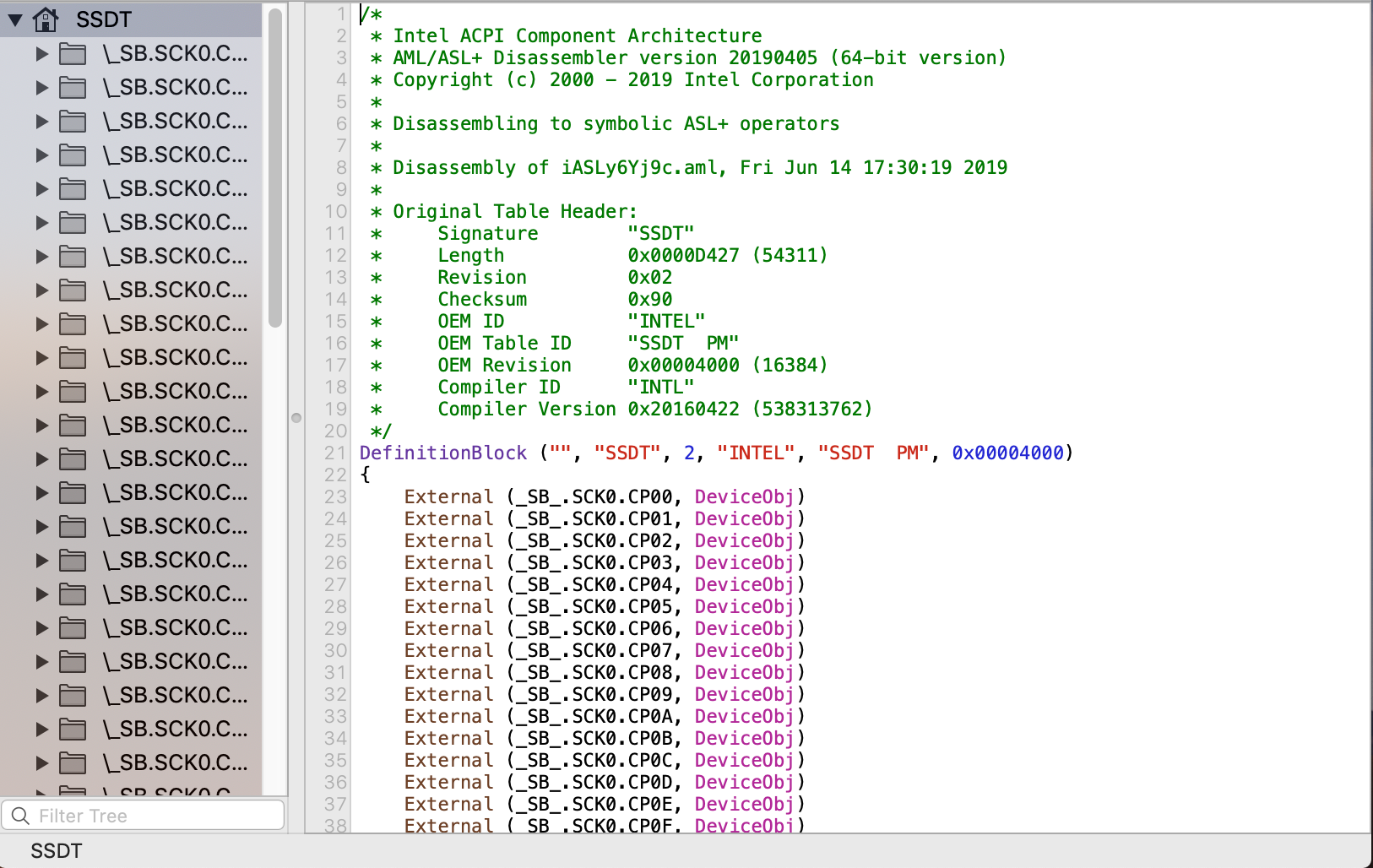

So this is a screenshoot from my original SSDT-0_PM.

Is the right scope according to this: (_SB_.SCK0.CP00, ?

And if so if I renamed CPU:s on my rig to PRxx the right Scope should be:(_SB_.SCK0.PR00, ?

Screenshot 2019-06-14 at 17.31.20.png

Link to comment
Share on other sites
Guest
Guest
Posted
Posted

@obus

without any CPU renames in config..I use this

DefinitionBlock ("", "SSDT", 2, "CpuRef", "CpuSsdt", 0x00003000)
{
    External (_SB_.SCK0.CP00, DeviceObj)

    Scope (\_SB.SCK0.CP00)
    {
        Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
        {
            Debug = "Writing plugin-type to Registry!"
            If ((Arg2 == Zero))
            {
                Return (Buffer (One)
                {
                     0x03                                             // .
                })
            }

            Return (Package (0x02)
            {
                "plugin-type",
                One
            })
        }
    }
}

thanks to macos86.it for help to solve it ;)



Link to comment
Share on other sites
obus
obus
Posted
Posted (edited)
13 minutes ago, fabiosun said:

@obus

without any CPU renames in config..I use this


DefinitionBlock ("", "SSDT", 2, "CpuRef", "CpuSsdt", 0x00003000)
{
    External (_SB_.SCK0.CP00, DeviceObj)

    Scope (\_SB.SCK0.CP00)
    {
        Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
        {
            Debug = "Writing plugin-type to Registry!"
            If ((Arg2 == Zero))
            {
                Return (Buffer (One)
                {
                     0x03                                             // .
                })
            }

            Return (Package (0x02)
            {
                "plugin-type",
                One
            })
        }
    }
}

thanks to macos86.it for help to solve it ;)



Unfortunately it doesn't work for my rig. I don't know what I'am doing wrong?

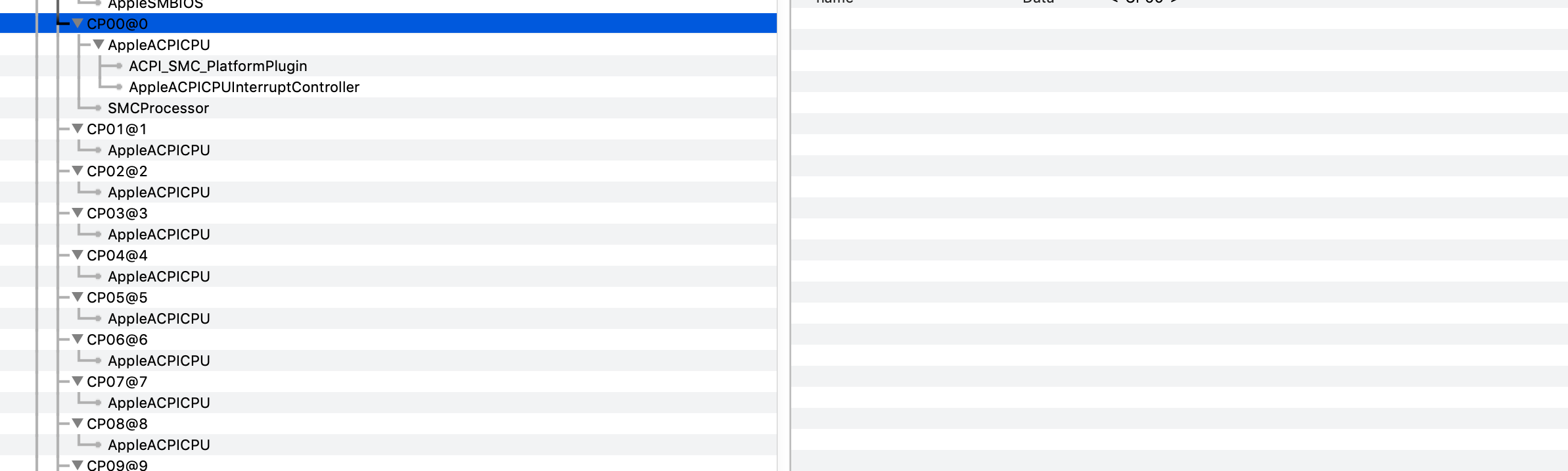

Screenshot 2019-06-14 at 17.50.37.png

Edited by obus
Link to comment
Share on other sites
obus
obus
Posted
Posted
20 minutes ago, fabiosun said:

@obus

without any CPU renames in config..I use this


DefinitionBlock ("", "SSDT", 2, "CpuRef", "CpuSsdt", 0x00003000)
{
    External (_SB_.SCK0.CP00, DeviceObj)

    Scope (\_SB.SCK0.CP00)
    {
        Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
        {
            Debug = "Writing plugin-type to Registry!"
            If ((Arg2 == Zero))
            {
                Return (Buffer (One)
                {
                     0x03                                             // .
                })
            }

            Return (Package (0x02)
            {
                "plugin-type",
                One
            })
        }
    }
}

thanks to macos86.it for help to solve it ;)



My Bad I made a TYP0.:wallbash:

Changed that and everything works like a charm. Thank you @fabiosun for showing sharing your SSDT-PLUG.aml.



  • Like 1
Link to comment
Share on other sites
obus
obus
Posted
Posted (edited)

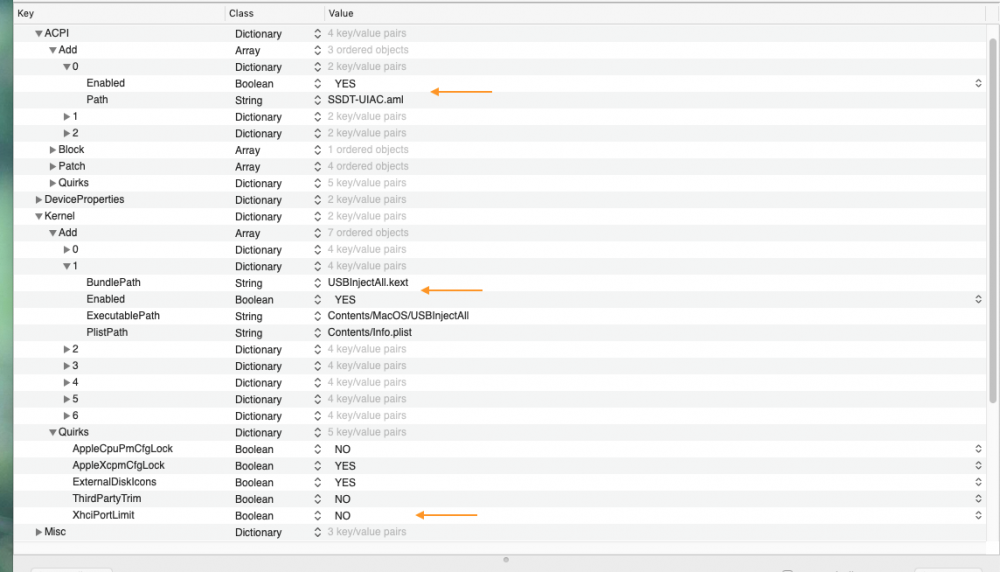

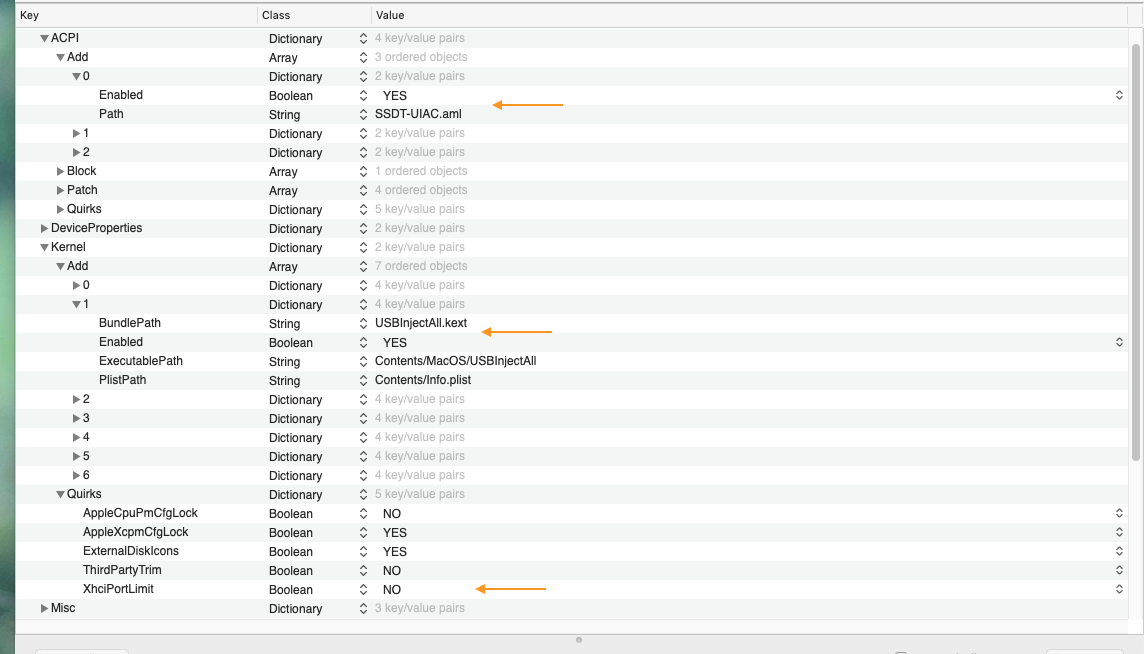

It works fine for me but according to @vit9696 we shouldn't use it or with his own words:

  • UsbInjectAll, do not use it, create legacy kext describing your USB ports, even at a price of losing some.

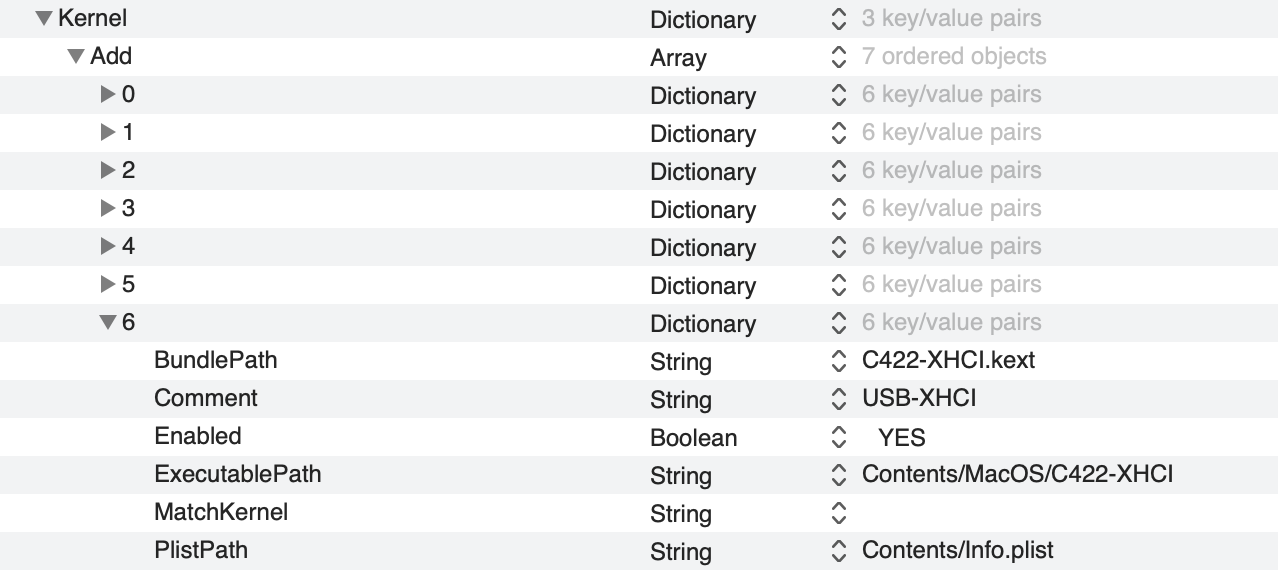

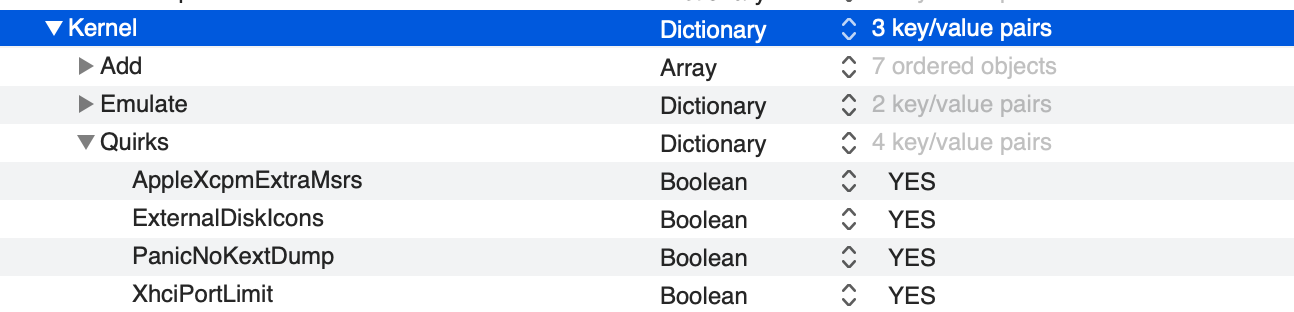

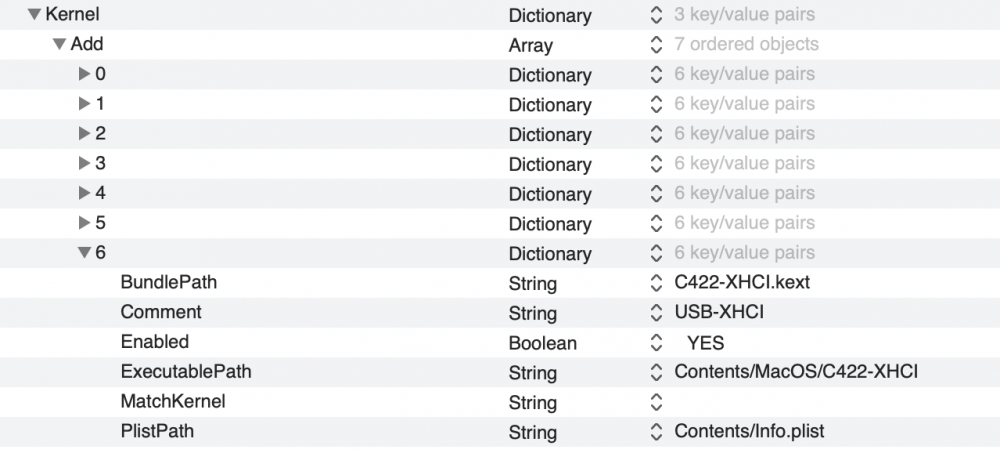

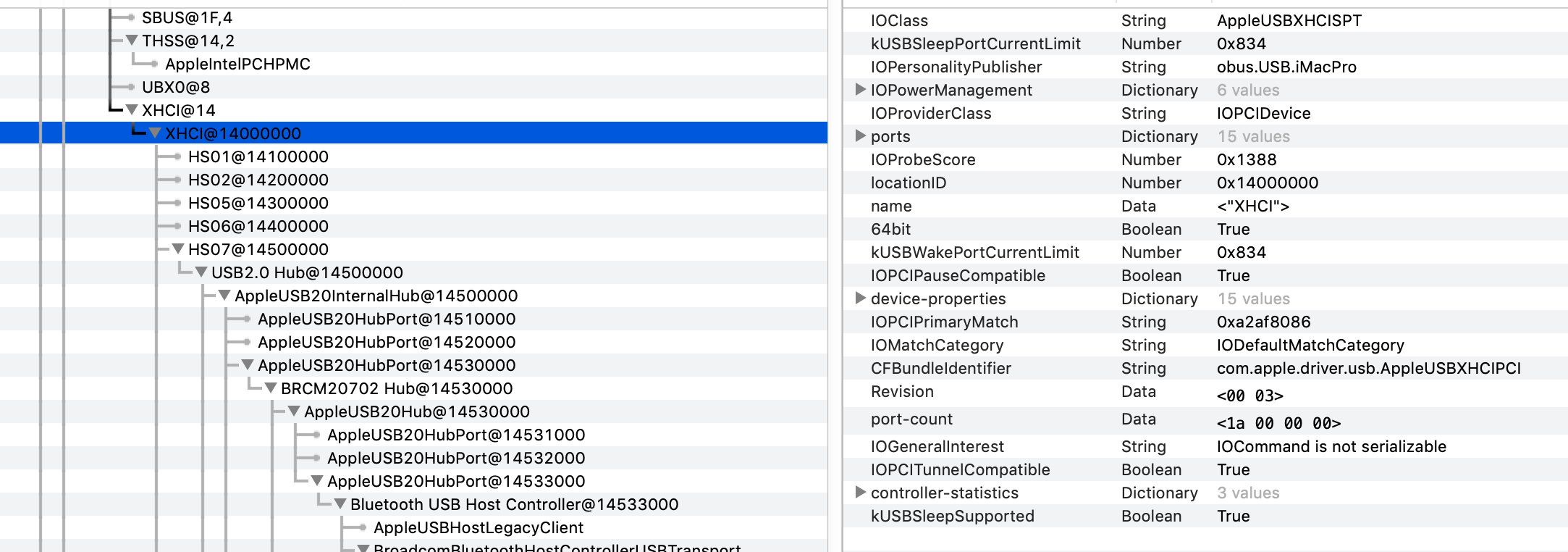

So I made my own kext instead and put XhciPortLimit to YES:317938829_Screenshot2019-06-14at19_36_10.thumb.png.c87238869b9263aa2601d039da2bc647.png

Edited by obus
  • Like 1
Link to comment
Share on other sites
