OpenCore General Discussion

[sudoali]

15 hours ago, Andrey1970 said:

In OC ACPI patch goes more conditions.
I showed as it to do, look for in this topic.

Can you point out the page where you mentioned it?



I googled it for hours but the only solution I found, was to extend the binary for `find` to make it unique. it is not a robust solution.

Edited June 11, 2020 by sudoali

[makk]

11 hours ago, vit9696 said:



Where do you see a 64-bit constant in that table? You keep repeating the same thing, but I am afraid that:

• I do not understand what you are talking about (i.e. what particular place of the SSDT table you are concerned about).
• I do not understand what you experience (i.e. what issue do you have from the compiler/macOS/whatever as I do not have it).
• I do not understand why do you make the conclusions (about 32-bit/64-bit maths).

Could you explain things properly?

Greetings Vit,



I use the SSDT-PNLF.aml that comes wth Whatevergreen and place it in  ACPI folder.

on boot up, the message flashes across the screen:



ACPI Warning: 64 bit constant found in 32 bit table -> ( bunch information then the number associated with the problem)  dsobject - 832



Rehabman has a post at tonymac site about these types of issues.



https://www.tonymacx86.com/threads/solved-boot-problems-with-high-sierra.248266/page-2



He suggested that ACPI table is out of sync with the compiled and hacked ones and to repatch and recomplie.  I did this for all my ACPI .aml files. and inserted them one at a time to see which one is causing the problem.



DSDT.aml + SSDT-PNLF. aml creates this problem.

When I read the header portion the DSDT it says, 32bit ; no 64 bit math

I assume that the SSDT-PNFL.aml is 64bit and because this laptop's table is probably where the DSDT is, is 32bit table?  not sure.



So I have tried without DSDT and leaving the SSDT-PNLF, all the other SSDTs and booting up.



I got no audio doing this way.  Previously I did have audio without DSDT. But now cannot get audio at all.  AppleALC.kext.  I've tried several thing.



I placed DSDT and SSDT file

attached a quickin progress config.plist

sort of lost here on AAPL,snb-platform-id  is the HEX reversed or straight?



Thank you







Archive.zip

config.plist.zip

[vit9696]

@makk, SSDT-PNLF is unrelated here. And "64-bit" here has nothing to do to 64-bit, it is just that some address calculation overflowed and changed sign. What it likely means is that your DSDT that apparently needs reextraction and/or region fixup (there is a quirk for it). However you approach this, make sure that you extract DSDT via SysReport functionality.

[ltooz_audis]

OK, I just hacked Dell Latitude i7-8650u with 0.5.9, works perfectly, one problem I've seen so far with NVME internal hard drive, OpenCore can see it, but can't install. On this laptop, I can't even see the Windows partition. The NVME USB external hard drive I can boot catalina 15.5+. Is there a problem with laptop internal hard drive NVME?

[yetties]

On 6/9/2020 at 2:24 AM, vit9696 said:

All who have issues with AudioDxe, please check 0.6.0 master and provide logs in verbose mode if they are still present. Here is how:

https://github.com/acidanthera/bugtracker/issues/963#issuecomment-640363465



Thanks for the info and appreciate your great contribution on OC!  I enabled the debug log and opened an issue https://github.com/acidanthera/bugtracker/issues/970

[ltooz_audis]

I used 0.5.9 to boot to my MacBook Pro 14,2 i7-7500u, HD620. I got kernel panic when boot to internal hard drive NVME but not my external USB NVME, they're both Catalina 15.5. What's the difference between internal and usb?

The hard drive was installed with Clover and older Lilu and whatever green, update the latest and still kp. Can someone help me on this one?

[ltooz_audis]

0.5.9 with opencanopy doesn't auto boot after 5sec delay. Do I have to do something else?

thanks,

Louis

[ltooz_audis]

Alright, I fixed the kernel panic, the hard drive was installed with Clover, the lilu.kext, whatevergreen, applealc, airportfix were installed in the LE folder with older version. Needed to boot with clover, removed all the kexts and updated caches, then it work.

The 0.5.9 definitely not autoboot after timeout. I used the 0.5.8 then it works.

I can't use OpenCore bootloader since it freezes like crazy and I can't boot into Windows without being broken and fixed by HP.

What's the differences? It just a bootloader. I like it because I don't need to use preloader.efi to boot into my HP laptop without kp, but these are really deal breaker.

If I use entries to create the short cut, it worked on one laptop and doesn't work on this new Kaby Lake i7-7500u Envy 13. The Clover bootloader works flawlessly.

If I use the entries to create the shortcut to Clover then from clover boot Windows then it's perfect.

If every time you update the software, try to make it backward compatible with the previous version and not breaking things. This is the reason why people can't boot with OpenCore with laptops.

I found the guide on laptops are hit and missed, I need to figure out for the Kaby Lake, Sky Lake, Coffee Lake and if I followed the guide to the T, it won't boot.

Now, all my laptops IvyBridge, Haswell HD4400 and HD4600, Broadwell HD5500, Sky Lake HD520, Kaby Lake HD620 and Coffee Lake UHD620 can be booted with OpenCore solidly, unless I make the EFI folder big enough for both Clover and OC, I can't dual boot OC and Windows.

Most people use bootloader to hack, dual boot windows and mac, don't try to make it for real macs, it defeat the purpose.

Show me how to boot to windows without breaking it every time so I can test.

Cheers,

Louis

[makk]

On 6/10/2020 at 6:21 PM, vit9696 said:

@makk, SSDT-PNLF is unrelated here. And "64-bit" here has nothing to do to 64-bit, it is just that some address calculation overflowed and changed sign. What it likely means is that your DSDT that apparently needs reextraction and/or region fixup (there is a quirk for it). However you approach this, make sure that you extract DSDT via SysReport functionality.

Vit,



yes thank you.  I will do that.

Region Fix and using SysReport





[SavageAUS]

3 hours ago, ltooz_audis said:

Alright, I fixed the kernel panic, the hard drive was installed with Clover, the lilu.kext, whatevergreen, applealc, airportfix were installed in the LE folder with older version. Needed to boot with clover, removed all the kexts and updated caches, then it work.
The 0.5.9 definitely not autoboot after timeout. I used the 0.5.8 then it works.
I can't use OpenCore bootloader since it freezes like crazy and I can't boot into Windows without being broken and fixed by HP.
What's the differences? It just a bootloader. I like it because I don't need to use preloader.efi to boot into my HP laptop without kp, but these are really deal breaker.
If I use entries to create the short cut, it worked on one laptop and doesn't work on this new Kaby Lake i7-7500u Envy 13. The Clover bootloader works flawlessly.
If I use the entries to create the shortcut to Clover then from clover boot Windows then it's perfect.
If every time you update the software, try to make it backward compatible with the previous version and not breaking things. This is the reason why people can't boot with OpenCore with laptops.
I found the guide on laptops are hit and missed, I need to figure out for the Kaby Lake, Sky Lake, Coffee Lake and if I followed the guide to the T, it won't boot.
Now, all my laptops IvyBridge, Haswell HD4400 and HD4600, Broadwell HD5500, Sky Lake HD520, Kaby Lake HD620 and Coffee Lake UHD620 can be booted with OpenCore solidly, unless I make the EFI folder big enough for both Clover and OC, I can't dual boot OC and Windows.
Most people use bootloader to hack, dual boot windows and mac, don't try to make it for real macs, it defeat the purpose.
Show me how to boot to windows without breaking it every time so I can test.
Cheers,
Louis

Sorry o/t
Dude clean your desk!



Sent from my iPhone using Tapatalk

Edited June 12, 2020 by SavageAUS

[Balamut]

Can anyone check my conf file? What am I doing wrong? I can freeze on the boot.

Xeon W-32xx and Asus C621 motherboard.





Debug log

Spoiler

00:000 00:000 OC: OpenCore DBG-059-2020-06-01 is loading in Optional mode (0/0)...
00:016 00:016 OC: Boot timestamp - 2020.06.12 05:15:19
00:033 00:016 OCCPU: MP services threads 48 (enabled 48) - Success
00:049 00:016 OCCPU: MP services Pkg 1 Cores 30 Threads 2 - Success
00:066 00:016 OCCPU: Found Intel(R) Xeon(R) W-3265M CPU @ 2.70GHz
00:082 00:016 OCCPU: Signature 50657 Stepping 7 Model 55 Family 6 Type 0 ExtModel 5 ExtFamily 0 uCode 500002B
00:099 00:016 OCCPU: Detected Apple Processor Type: 0F -> 0F01
00:116 00:016 OCCPU: EIST CFG Lock 0
00:132 00:016 OCCPU: Ratio Min 10 Max 27 Current 27 Turbo 46 44 41 41
00:422 00:289 OCCPU: TSC Adjust 0
01:465 01:042 OCCPU: Core Crystal Clock Frequency from TSC    25000984Hz =  2700106308Hz * 2 / 216
01:481 00:016 OCCPU: CPUFrequencyFromART  2700000000Hz  2700MHz = 25000984 * 216 / 2
01:498 00:016 OCCPU: Timer address is 508 from PMC ACPI
01:615 00:117 OCCPU: CPUFrequencyFromTSC  2700106848Hz  2700MHz
01:631 00:016 OCCPU: CPUFrequency  2700000000Hz  2700MHz
01:648 00:016 OCCPU: FSBFrequency   100000000Hz   100MHz
01:664 00:016 OCCPU: Pkg 1 Cores 24 Threads 48
01:681 00:016 OC: OcLoadNvramSupport...
01:698 00:017 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
01:961 00:262 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - ignored, exists
01:976 00:015 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success
02:226 00:250 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - Success
02:243 00:017 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - Success
02:260 00:016 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists
02:276 00:016 OC: Current version is DBG-059-2020-06-01
02:293 00:016 OC: OcMiscMiddleInit...
02:310 00:016 OC: LoadHandle 6192BA98 with BootProtect in None mode - Success
02:327 00:017 OC: OcLoadUefiSupport...
02:344 00:016 OCRTC: Wake log is 0xFF 0xFF  247 0xFF
02:607 00:263 OCII: gST->ConIn 66D831C8 vs found 66D831C8
02:623 00:015 OCABC: RTDFRG 1 DEVMMIO 1 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 0 WRUNPROT 1
02:639 00:016 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 PRSRV 1 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 1
02:656 00:016 OCABC: Firmware has 41813530 free pages (394778 in lower 4 GB)
02:673 00:016 OCABC: Awaiting rendezvous with OpenRuntime r11
02:689 00:016 OC: RBVR 1 DDBR 1
02:707 00:017 OC: Got 5 drivers
02:723 00:016 OC: Driver AudioDxe.efi at 0 is being loaded...
02:745 00:021 OCABC: Recovering trashed GetMemoryMap pointer
02:763 00:018 OC: Driver AudioDxe.efi at 0 is successfully loaded!
03:028 00:264 OC: Driver AudioDxe.efi at 0 needs connection.
03:043 00:015 OC: Driver HfsPlus.efi at 1 is being loaded...
03:063 00:020 OCABC: Recovering trashed GetMemoryMap pointer
03:082 00:018 OC: Driver HfsPlus.efi at 1 is successfully loaded!
03:098 00:016 OC: Driver HfsPlus.efi at 1 needs connection.
03:115 00:016 OC: Driver OpenCanopy.efi at 2 is being loaded...
03:137 00:021 OCABC: Recovering trashed GetMemoryMap pointer
03:155 00:018 OC: Driver OpenCanopy.efi at 2 is successfully loaded!
03:172 00:016 OC: Driver OpenRuntime.efi at 3 is being loaded...
03:188 00:016 OCABC: Recovering trashed GetMemoryMap pointer
03:453 00:264 OCABC: Got rendezvous with OpenRuntime r11
03:468 00:015 OCABC: MAT support is 1
03:485 00:016 OC: Driver OpenRuntime.efi at 3 is successfully loaded!
03:502 00:016 OC: Driver VirtualSmc.efi at 4 is being loaded...
03:520 00:018 OCABC: Recovering trashed GetMemoryMap pointer
03:644 00:123 OC: Driver VirtualSmc.efi at 4 is successfully loaded!
03:660 00:016 OC: Connecting drivers...
08:685 05:025 OC: Connecting drivers done...
09:060 00:375 OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
09:077 00:016 OC: Requested resolution is 0x0@0 (max: 1) from Max
09:093 00:016 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 8
09:110 00:016 OCC: Mode 0 - 1920x1080:1
09:127 00:017 OCC: Mode 1 - 640x480:1
09:144 00:016 OCC: Mode 2 - 800x600:1
09:160 00:016 OCC: Mode 3 - 1024x768:1
09:177 00:016 OCC: Mode 4 - 1280x1024:1
09:194 00:016 OCC: Mode 5 - 1400x1050:1
09:483 00:289 OCC: Mode 6 - 1280x960:1
09:498 00:014 OCC: Mode 7 - 1280x720:1
09:514 00:016 OCC: Current mode matches desired mode 0
09:530 00:016 OC: Changed resolution to 0x0@0 (max: 1) from Max - Already started
09:547 00:016 OCC: Using builtin text renderer with 1 scale
09:569 00:022 OCC: Install console control (667B5DC0/0/0), current - Success
09:586 00:016 OC: Requested console mode is 0x0 (max: 0) from
09:602 00:016 OC: Requested not to use audio
09:619 00:016 OC: OcLoadAcpiSupport...
09:635 00:016 OCA: Found 28 ACPI tables
09:899 00:263 OCA: Detected table 50434146 (00002049204D2041) at 6B9BF608 of 276 bytes at index 0
09:914 00:014 OCA: Detected table 54445046 (00002049204D2041) at 6B9BF720 of 68 bytes at index 1
09:930 00:016 OCA: Detected table 54444946 (00000049204D2041) at 6B9BF768 of 156 bytes at index 2
09:947 00:016 OCA: Detected table 4A4E4945 (00002049204D2041) at 6BA89850 of 304 bytes at index 3
09:963 00:016 OCA: Detected table 54445353 (54414C5852444441) at 6B9BF860 of 1132 bytes at index 4
09:980 00:016 OCA: Detected table 4746434D (00000049204D2041) at 6B9BFCD0 of 60 bytes at index 5
09:996 00:016 OCA: Detected table 54455048 (00002049204D2041) at 6B9BFD10 of 56 bytes at index 6
10:013 00:016 OCA: Detected table 43495041 (00002049204D2041) at 6B9BFD48 of 5854 bytes at index 7
10:271 00:258 OCA: Detected table 5447494D (00002049204D2041) at 6B9C1428 of 64 bytes at index 8
10:287 00:016 OCA: Detected table 5443534D (00002049204D2041) at 6B9C1468 of 144 bytes at index 9
10:551 00:264 OCA: Detected table 54414350 (00002049204D2041) at 6B9C14F8 of 104 bytes at index 10
10:566 00:014 OCA: Detected table 54434350 (00002049204D2041) at 6B9C1560 of 110 bytes at index 11
10:582 00:016 OCA: Detected table 46534152 (00002049204D2041) at 6B9C15D0 of 48 bytes at index 12
10:599 00:016 OCA: Detected table 54494C53 (00002049204D2041) at 6B9C1600 of 1068 bytes at index 13
10:616 00:016 OCA: Detected table 54415253 (00002049204D2041) at 6B9C1A30 of 11568 bytes at index 14
10:633 00:016 OCA: Detected table 534F5653 (00002049204D2041) at 6B9C4760 of 50 bytes at index 15
10:649 00:016 OCA: Detected table 54444457 (00002049204D2041) at 6B9C4798 of 64 bytes at index 16
10:665 00:016 OCA: Detected table 314D454F (5453494520555043) at 6B9C47D8 of 172740 bytes at index 17
10:682 00:016 OCA: Detected table 324D454F (5057482020555043) at 6B9EEAA0 of 191108 bytes at index 18
10:699 00:016 OCA: Detected table 54445353 (4D50202054445353) at 6BA1D528 of 211344 bytes at index 19
10:964 00:264 OCA: Detected table 334D454F (5453542020555043) at 6BA50EB8 of 157284 bytes at index 20
10:978 00:014 OCA: Detected table 54445353 (00002049204D2041) at 6BA77520 of 2849 bytes at index 21
10:995 00:016 OCA: Detected table 54434656 (00002049204D2041) at 6BA78048 of 59524 bytes at index 22
11:011 00:016 OCA: Detected table 54445353 (2020206D4E737053) at 6BA868D0 of 11024 bytes at index 23
11:028 00:016 OCA: Detected table 52414D44 (00002049204D2041) at 6BA893E0 of 356 bytes at index 24
11:045 00:016 OCA: Detected table 54534548 (00002049204D2041) at 6BA89548 of 168 bytes at index 25
11:061 00:016 OCA: Detected table 54524542 (00002049204D2041) at 6BA895F0 of 48 bytes at index 26
11:078 00:016 OCA: Detected table 54535245 (00002049204D2041) at 6BA89620 of 560 bytes at index 27
11:100 00:021 OCA: Inserted table 54445353 (0067756C50757043) of 693 bytes into ACPI at index 28
11:118 00:018 OCA: Inserted table 54445353 (0000434574647353) of 278 bytes into ACPI at index 29
11:383 00:264 OCA: Inserted table 54445353 (0000000043415741) of 80 bytes into ACPI at index 30
11:398 00:014 OCA: FACS signature is 0 (0)
11:414 00:016 OCA: Exposing XSDT table 50434146 (00002049204D2041) at 6B9BF608 of 276 bytes at index 0
11:431 00:016 OCA: Exposing XSDT table 54445046 (00002049204D2041) at 6B9BF720 of 68 bytes at index 1
11:447 00:016 OCA: Exposing XSDT table 54444946 (00000049204D2041) at 6B9BF768 of 156 bytes at index 2
11:464 00:016 OCA: Exposing XSDT table 4A4E4945 (00002049204D2041) at 6BA89850 of 304 bytes at index 3
11:481 00:016 OCA: Exposing XSDT table 54445353 (54414C5852444441) at 6B9BF860 of 1132 bytes at index 4
11:497 00:016 OCA: Exposing XSDT table 4746434D (00000049204D2041) at 6B9BFCD0 of 60 bytes at index 5
11:514 00:016 OCA: Exposing XSDT table 54455048 (00002049204D2041) at 6B9BFD10 of 56 bytes at index 6
11:531 00:016 OCA: Exposing XSDT table 43495041 (00002049204D2041) at 6B9BFD48 of 5854 bytes at index 7
11:795 00:264 OCA: Exposing XSDT table 5447494D (00002049204D2041) at 6B9C1428 of 64 bytes at index 8
11:810 00:014 OCA: Exposing XSDT table 5443534D (00002049204D2041) at 6B9C1468 of 144 bytes at index 9
11:827 00:016 OCA: Exposing XSDT table 54414350 (00002049204D2041) at 6B9C14F8 of 104 bytes at index 10
11:844 00:016 OCA: Exposing XSDT table 54434350 (00002049204D2041) at 6B9C1560 of 110 bytes at index 11
11:860 00:016 OCA: Exposing XSDT table 46534152 (00002049204D2041) at 6B9C15D0 of 48 bytes at index 12
11:877 00:016 OCA: Exposing XSDT table 54494C53 (00002049204D2041) at 6B9C1600 of 1068 bytes at index 13
11:894 00:016 OCA: Exposing XSDT table 54415253 (00002049204D2041) at 6B9C1A30 of 11568 bytes at index 14
11:910 00:016 OCA: Exposing XSDT table 534F5653 (00002049204D2041) at 6B9C4760 of 50 bytes at index 15
11:927 00:016 OCA: Exposing XSDT table 54444457 (00002049204D2041) at 6B9C4798 of 64 bytes at index 16
11:944 00:016 OCA: Exposing XSDT table 314D454F (5453494520555043) at 6B9C47D8 of 172740 bytes at index 17
12:209 00:265 OCA: Exposing XSDT table 324D454F (5057482020555043) at 6B9EEAA0 of 191108 bytes at index 18
12:224 00:014 OCA: Exposing XSDT table 54445353 (4D50202054445353) at 6BA1D528 of 211344 bytes at index 19
12:240 00:016 OCA: Exposing XSDT table 334D454F (5453542020555043) at 6BA50EB8 of 157284 bytes at index 20
12:257 00:016 OCA: Exposing XSDT table 54445353 (00002049204D2041) at 6BA77520 of 2849 bytes at index 21
12:273 00:016 OCA: Exposing XSDT table 54434656 (00002049204D2041) at 6BA78048 of 59524 bytes at index 22
12:290 00:016 OCA: Exposing XSDT table 54445353 (2020206D4E737053) at 6BA868D0 of 11024 bytes at index 23
12:307 00:016 OCA: Exposing XSDT table 52414D44 (00002049204D2041) at 6BA893E0 of 356 bytes at index 24
12:323 00:016 OCA: Exposing XSDT table 54534548 (00002049204D2041) at 6BA89548 of 168 bytes at index 25
12:340 00:016 OCA: Exposing XSDT table 54524542 (00002049204D2041) at 6BA895F0 of 48 bytes at index 26
12:357 00:016 OCA: Exposing XSDT table 54535245 (00002049204D2041) at 6BA89620 of 560 bytes at index 27
12:622 00:265 OCA: Exposing XSDT table 54445353 (0067756C50757043) at 6C927000 of 693 bytes at index 28
12:637 00:015 OCA: Exposing XSDT table 54445353 (0000434574647353) at 6C926000 of 278 bytes at index 29
12:653 00:016 OCA: Exposing XSDT table 54445353 (0000000043415741) at 6C925000 of 80 bytes at index 30
12:670 00:016 OCA: Exposing RSDT table 50434146 (00002049204D2041) at 6B9BF608 of 276 bytes at index 0
12:687 00:016 OCA: Exposing RSDT table 54445046 (00002049204D2041) at 6B9BF720 of 68 bytes at index 1
12:703 00:016 OCA: Exposing RSDT table 54444946 (00000049204D2041) at 6B9BF768 of 156 bytes at index 2
12:719 00:016 OCA: Exposing RSDT table 4A4E4945 (00002049204D2041) at 6BA89850 of 304 bytes at index 3
12:736 00:016 OCA: Exposing RSDT table 54445353 (54414C5852444441) at 6B9BF860 of 1132 bytes at index 4
12:753 00:016 OCA: Exposing RSDT table 4746434D (00000049204D2041) at 6B9BFCD0 of 60 bytes at index 5
12:770 00:016 OCA: Exposing RSDT table 54455048 (00002049204D2041) at 6B9BFD10 of 56 bytes at index 6
13:034 00:264 OCA: Exposing RSDT table 43495041 (00002049204D2041) at 6B9BFD48 of 5854 bytes at index 7
13:252 00:218 OCA: Exposing RSDT table 5447494D (00002049204D2041) at 6B9C1428 of 64 bytes at index 8
13:269 00:016 OCA: Exposing RSDT table 5443534D (00002049204D2041) at 6B9C1468 of 144 bytes at index 9
13:286 00:016 OCA: Exposing RSDT table 54414350 (00002049204D2041) at 6B9C14F8 of 104 bytes at index 10
13:302 00:016 OCA: Exposing RSDT table 54434350 (00002049204D2041) at 6B9C1560 of 110 bytes at index 11
13:319 00:016 OCA: Exposing RSDT table 46534152 (00002049204D2041) at 6B9C15D0 of 48 bytes at index 12
13:335 00:016 OCA: Exposing RSDT table 54494C53 (00002049204D2041) at 6B9C1600 of 1068 bytes at index 13
13:352 00:016 OCA: Exposing RSDT table 54415253 (00002049204D2041) at 6B9C1A30 of 11568 bytes at index 14
13:369 00:016 OCA: Exposing RSDT table 534F5653 (00002049204D2041) at 6B9C4760 of 50 bytes at index 15
13:386 00:016 OCA: Exposing RSDT table 54444457 (00002049204D2041) at 6B9C4798 of 64 bytes at index 16
13:651 00:265 OCA: Exposing RSDT table 314D454F (5453494520555043) at 6B9C47D8 of 172740 bytes at index 17
13:666 00:014 OCA: Exposing RSDT table 324D454F (5057482020555043) at 6B9EEAA0 of 191108 bytes at index 18
13:682 00:016 OCA: Exposing RSDT table 54445353 (4D50202054445353) at 6BA1D528 of 211344 bytes at index 19
13:699 00:016 OCA: Exposing RSDT table 334D454F (5453542020555043) at 6BA50EB8 of 157284 bytes at index 20
13:716 00:016 OCA: Exposing RSDT table 54445353 (00002049204D2041) at 6BA77520 of 2849 bytes at index 21
13:732 00:016 OCA: Exposing RSDT table 54434656 (00002049204D2041) at 6BA78048 of 59524 bytes at index 22
13:749 00:016 OCA: Exposing RSDT table 54445353 (2020206D4E737053) at 6BA868D0 of 11024 bytes at index 23
13:765 00:016 OCA: Exposing RSDT table 52414D44 (00002049204D2041) at 6BA893E0 of 356 bytes at index 24
13:782 00:016 OCA: Exposing RSDT table 54534548 (00002049204D2041) at 6BA89548 of 168 bytes at index 25
13:799 00:016 OCA: Exposing RSDT table 54524542 (00002049204D2041) at 6BA895F0 of 48 bytes at index 26
14:064 00:265 OCA: Exposing RSDT table 54535245 (00002049204D2041) at 6BA89620 of 560 bytes at index 27
14:079 00:014 OCA: Exposing RSDT table 54445353 (0067756C50757043) at 6C927000 of 693 bytes at index 28
14:095 00:016 OCA: Exposing RSDT table 54445353 (0000434574647353) at 6C926000 of 278 bytes at index 29
14:112 00:016 OCA: Exposing RSDT table 54445353 (0000000043415741) at 6C925000 of 80 bytes at index 30
14:128 00:016 OC: OcLoadPlatformSupport...
14:145 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success
14:162 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (20) - Success
14:179 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (26) - Success
14:195 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success
14:212 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success
14:477 00:264 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success
14:491 00:014 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success
14:508 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success
14:524 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success
14:541 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:ARTFrequency (8) - Success
14:558 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success
14:574 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success
14:591 00:016 OCSMB: Found DMI Anchor 6EC57000 v3.2 Table Address 6EC53000 Length 0E88
14:607 00:016 OCSMB: Found DMI Anchor 6EC56000 v3.2 Table Address 6EC53000 Length 0E88
14:624 00:016 OCSMB: Number of CPU cache entries is 3
14:890 00:265 OCSMB: Applying 3346 (1) prev 6EC57000 (3720/31), 6EC56000 (3720/24)
14:905 00:015 OCSMB: Patched 67D90000 v3.2 Table Address 67D91000 Length 0D12 1E 87
14:922 00:017 OC: Setting HW_BID Mac-27AD2F918AE68F61 - Success
14:939 00:017 OC: Setting HW_MLB F5K050902J9K3F7JC - Success
14:956 00:017 OC: Setting MLB F5K050902J9K3F7JC - Success
14:974 00:017 OC: Setting FirmwareFeatures FDAFF066 - Success
14:991 00:016 OC: Setting ExtendedFirmwareFeatures 00000000FDAFF066 - Success
15:008 00:016 OC: Setting FirmwareFeaturesMask FFFFFF7F - Success
15:024 00:016 OC: Setting ExtendedFirmwareFeaturesMask 00000000FFFFFF7F - Success
15:041 00:016 OC: OcLoadDevPropsSupport...
15:307 00:266 OC: Setting devprop PciRoot(0x0)/Pci(0x1f,0x3):layout-id - Success
15:322 00:015 OC: OcMiscLateInit...
15:339 00:016 OC: Translated HibernateMode None to 0
15:356 00:016 OC: Hibernation detection status is Not Found
15:373 00:016 OC: Panic log does not exist
15:389 00:016 OC: OcLoadKernelSupport...
15:406 00:016 OC: All green, starting boot management...
15:422 00:016 OC: Ready for takeoff in 0 us
15:439 00:016 OCB: Adding fs 6192BA98 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x4,0x0)/HD(1,MBR,0x0008D7FA,0x1000,0x64000)
15:455 00:016 OCB: Adding fs 6144CD18 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,MBR,0x32F15C03,0x3F,0x190000)
15:721 00:265 OCB: Adding fs 6192AC98 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x4,0x0)/HD(2,MBR,0x0008D7FA,0x65000,0xE42140)
15:736 00:014 OCB: Adding fs 6144CC98 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,MBR,0x32F15C03,0x19003F,0x1B4FFC1)
15:753 00:016 OCB: Found 4 potentially bootable filesystems
15:770 00:016 OCB: BootOrder/BootNext are not present or unsupported
15:989 00:219 OCB: Processing blessed list
16:006 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x4,0x0)/HD(1,MBR,0x0008D7FA,0x1000,0x64000)
16:023 00:016 OCBP: Blessed file is missing
16:039 00:016 OCBP: Blessed folder is missing
16:056 00:016 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
16:072 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
16:337 00:264 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found
16:352 00:014 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x4,0x0)/HD(1,MBR,0x0008D7FA,0x1000,0x64000)/\EFI\BOOT\BOOTX64.EFI
16:369 00:016 OCB: Discarding discovered OpenCore bootloader
16:385 00:016 OCBP: APFS recovery volume handle missing - \EFI\BOOT\
16:402 00:016 OCB: APFS recovery is not present - Not Found
16:418 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,MBR,0x32F15C03,0x3F,0x190000)
16:435 00:016 OCBP: Blessed file is missing
16:451 00:016 OCBP: Blessed folder is missing
16:468 00:016 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
16:485 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
16:750 00:264 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found
16:765 00:014 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,MBR,0x32F15C03,0x3F,0x190000)/\EFI\BOOT\BOOTX64.EFI
16:782 00:017 OCB: Trying to get label from \EFI\BOOT\.contentDetails
16:799 00:016 OCB: Trying to get label from \EFI\BOOT\.disk_label.contentDetails
16:816 00:016 OCB: Trying to detect Microsoft BCD
16:832 00:016 OCB: Registering entry MACPRO7 (T:1|F:0|G:1|E:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,MBR,0x32F15C03,0x3F,0x190000)/\EFI\BOOT\BOOTX64.EFI
16:848 00:016 OCBP: APFS recovery volume handle missing - \EFI\BOOT\
16:866 00:017 OCB: APFS recovery is not present - Not Found
16:882 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x4,0x0)/HD(2,MBR,0x0008D7FA,0x65000,0xE42140)
16:899 00:016 OCBP: Blessed file is missing
17:164 00:265 OCBP: Blessed folder is missing
17:179 00:014 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
17:195 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
17:212 00:016 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
17:229 00:017 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,MBR,0x32F15C03,0x19003F,0x1B4FFC1)
17:247 00:017 OCBP: BlessedFileHEX (1/3 150) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 14 03 05 06 00 15 00 04 01 2A 00 02 00 00 00 3F 00 19 00 00 00 00 00 C1 FF B4 01 00 00 00 00 03 5C F1 32 00 00 00 00 00 00 00 00 00 00 00 00
17:264 00:016 OCBP: BlessedFileHEX (2/3 150) - 01 01 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00
17:281 00:016 OCBP: BlessedFileHEX (3/3 150) - 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
17:297 00:016 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,MBR,0x32F15C03,0x19003F,0x1B4FFC1)/\System\Library\CoreServices\boot.efi
17:314 00:016 OCBP: Blessed file is valid
17:580 00:265 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,MBR,0x32F15C03,0x19003F,0x1B4FFC1)/\System\Library\CoreServices\boot.efi
17:595 00:014 OCB: Trying to get label from \System\Library\CoreServices\.contentDetails
17:611 00:016 OCB: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
17:628 00:016 OCB: Registering entry Install macOS Catalina (T:2|F:0|G:0|E:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,MBR,0x32F15C03,0x19003F,0x1B4FFC1)/\System\Library\CoreServices\boot.efi
17:645 00:016 OCBP: APFS recovery volume handle missing - \System\Library\CoreServices\
17:661 00:016 OCB: APFS recovery is not present - Not Found
17:678 00:016 OCB: Adding fs 2007C5F5 for 1 custom entries and nvram reset (aux shown)
17:694 00:016 OCB: Adding custom entry VerifyMsrE2 (tool) -> VerifyMsrE2.efi
17:711 00:016 OCB: Registering entry VerifyMsrE2 (T:128|F:0|G:0|E:0) - <nil>
17:728 00:016 OCB: Adding system entry Reset NVRAM
17:993 00:265 OCB: Registering entry Reset NVRAM (T:256|F:0|G:0|E:0) - <nil>
18:008 00:015 OCB: Showing menu...
22:627 04:618 OCB: Should boot from 2. Install macOS Catalina (T:2|F:0|G:0|E:1|DEF:0)
22:832 00:204 OCB: Perform boot Install macOS Catalina to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,MBR,0x32F15C03,0x19003F,0x1B4FFC1)/\System\Library\CoreServices\boot.efi (0/0)
22:867 00:035 OCB: Matching <> args on type 2 0
22:884 00:016 OCABC: Recovering trashed GetMemoryMap pointer
22:901 00:016 AAPL: [EB|#LOG:INIT] 2020-06-12T05:15:41
22:918 00:016 AAPL: [EB|#VERSION] bootbase.efi 422.120.8~3 (Official), built 2020-04-25T13:24:41-0700
22:934 00:016 AAPL: [EB|#BUILD] BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"422.120.8~3","RecordUuid":"66066909-B30A-4C33-9E16-6BEC64D1BB3D","BuildTime":"2020-04-25T13:24:41-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"422.120.8","BuildVersion":"3","BuildConfiguration":"Release","BuildType":"Official"}
22:951 00:016 AAPL: [EB|#H:IS] 0
22:984 00:033 AAPL: [EB|#WL:MODE] 0
23:001 00:016 AAPL: [EB|#CONFIG:SRC] <default>
23:291 00:290 AAPL: [EB|#CONFIG| 0] boot-save-log : 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) <default>
23:306 00:014 AAPL: [EB|#CONFIG| 1] wake-save-log : 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) <default>
23:323 00:016 AAPL: [EB|#CONFIG| 2] console       : 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) <default>
23:339 00:016 AAPL: [EB|#CONFIG| 3] serial        : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
23:356 00:016 AAPL: [EB|#CONFIG| 4] embed-log-dt  : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
23:373 00:016 AAPL: [EB|#CONFIG| 5] timestamps    : 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) <default>
23:389 00:016 AAPL: [EB|#CONFIG| 6] log-level     : 0x0000000000000001 (0x0000000000000001 & 0x0000000000000001) <default>
23:406 00:016 AAPL: [EB|#CONFIG| 7] breakpoint    : 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) <default>
23:423 00:016 AAPL: [EB|#CONFIG| 8] kc-read-size  : 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) <default>
23:439 00:016 AAPL: [EB|#H:IS] 0
23:704 00:264 AAPL: [EB|#WL|0] 0x01 0x01   0 0x00
23:719 00:014 AAPL: [EB|#BRD:NV] Mac-27AD2F918AE68F61
23:735 00:016 OCOS: OS set: <null> Mac OS X 10.15
23:985 00:249 OCOS: OS set: Apple Inc. Mac OS X 10.15
24:002 00:016 AAPL: [EB|#WL|1] 0x01 0x01   2 0x00
24:019 00:017 AAPL: [EB|#B:RRVAR] 2d253034782d
24:035 00:016 AAPL: [EB|`BST:IDT] {
24:052 00:016 AAPL: [EB|`BST:IDT] }
24:068 00:016 AAPL: [EB|#WL|2] 0x01 0x01   3 0x00
24:085 00:016 AAPL: [EB|#WL|3] 0x01 0x01   4 0x00
24:349 00:264 AAPL: [EB|#BRD:NV] Mac-27AD2F918AE68F61
24:364 00:014 AAPL: [EB|#WL|4] 0x01 0x01   5 0x00
24:381 00:016 AAPL: [EB|`H:CHK] BM: 0x0000000000000000
24:397 00:016 AAPL: [EB|`H:CHK] Err(0xE) @ GV boot-signature
24:413 00:016 AAPL: [EB|#WL|5] 0x01 0x01  23 0x0E
24:430 00:016 AAPL: [EB|`H:CPM] Err(0xE), (24, 24) @ GV Persistent-memory-note
24:446 00:016 AAPL: [EB|`SB:EN] Err(0xE) @ LocP 24B73556-2197-4702-82A8-3E1337DAFBF2
24:463 00:016 AAPL: [EB|#LIMG:DP] Acpi(PNP0A03,0)/Pci(14|0)/Usb(15, 0)/HD(Part2,Sig32F15C03)
24:480 00:016 AAPL: [EB|#LIMG:FP] \System\Library\CoreServices\boot.efi
24:496 00:016 AAPL: [EB|#LIMG:OPT] ()
24:760 00:264 AAPL: [EB|#RPS] R?0 P?0 S?0
24:776 00:015 OCABC: MMIO devirt start
24:792 00:016 OCABC: MMIO devirt 0x80000000 (0x10000 pages, 0x8000000000000001) skip 0
24:809 00:016 OCABC: MMIO devirt 0xFD000000 (0x1800 pages, 0x800000000000100D) skip 0
24:826 00:017 OCABC: MMIO devirt 0xFED20000 (0x25 pages, 0x800000000000100D) skip 0
24:842 00:016 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x800000000000100D) skip 0
24:859 00:016 OCABC: MMIO devirt end, saved 303252 KB
24:875 00:016 OCABC: All slides are usable! You can disable ProvideCustomSlide!
24:891 00:016 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
24:908 00:016 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\com.apple.Boot.plist, DP: 0
25:172 00:264 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
25:187 00:014 AAPL: [EB|`OPT:LXF] Err(0xE) @ 'LF
25:204 00:016 AAPL: [EB|`OPT:LXF] 'LF (Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist)
25:220 00:016 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist, DP: 0
25:238 00:017 AAPL: [EB:#KF] (root-dmg=file:///Install%20macOS%20Catalina.app/Contents/SharedSupport/BaseSystem.dmg)
25:254 00:016 AAPL: [EB|#MBA:CL] ()
25:271 00:016 AAPL: [EB|#MBA:NV] (keepsyms=1 debug=0x100 -v -no_compat_check)
25:288 00:016 AAPL: [EB|#MBA:KF] (root-dmg=file:///Install%20macOS%20Catalina.app/Contents/SharedSupport/BaseSystem.dmg)
25:304 00:016 AAPL: [EB|#MBA:OUT] (keepsyms=1 debug=0x100 -v -no_compat_check root-dmg=file:///Install%20macOS%20Catalina.app/Contents/SharedSupport/BaseSystem.dmg)
25:321 00:016 AAPL: [EB|#LOG:VERBOSE] 2020-06-12T05:15:44
25:586 00:265 AAPL: [EB|#OPT:BM] 0x4082
25:601 00:015 AAPL: [EB|`P:DCCPR] Err(0xE) @ GV AAPL,CoProcessorReboot
25:618 00:016 AAPL: [EB|#P:MPI] N
25:634 00:016 AAPL: [EB|`CS:CSKSD] {
25:651 00:016 AAPL: [EB|`CS:CSKSD] Err(0xE) @ GV 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF:boot-info-payload
25:667 00:016 AAPL: [EB|`G:CS] } Ok(0)
25:687 00:019 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: <null string>, DP: 1
25:723 00:036 AAPL: [EB|`B:SBS] SZ: 617016
25:748 00:024 AAPL: [EB|#B:SHA] 462dad30d0060217458b69a6670eb7f6b1e5f421
25:768 00:019 AAPL: [EB|`WL:PWLFNV] Err(0x5) @ GV wake-failure
26:034 00:266 AAPL: [EB|`WL:DT] Err(0x5) @ WL:PWLFNV
26:054 00:020 AAPL: [EB|`LD:LKC] BPDK -> (System\Library\PrelinkedKernels\prelinkedkernel.development)
26:077 00:022 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (System\\Library\\PrelinkedKernels\\prelinkedkernel.development)
26:099 00:021 AAPL: [EB|`LD:LKC] BPDK,!R -> (System\Library\PrelinkedKernels\prelinkedkernel)
26:115 00:016 OC: Trying XNU hook on System\Library\PrelinkedKernels\prelinkedkernel
26:159 00:043 OC: Kext reservation size 6004736
28:554 02:395 OC: Result of XNU hook on System\Library\PrelinkedKernels\prelinkedkernel is Success
29:247 00:693 OC: Read kernel version 19.5.0 (190500)
29:298 00:050 OCAK: PanicKextDump replace count - 1
29:315 00:016 OCAK: Patch success kext dump
29:643 00:328 OCAK: AppleIoMapper replace count - 1
29:658 00:014 OCAK: Patch success com.apple.iokit.IOPCIFamily AppleIoMapper
29:704 00:046 OC: Prelink injection Lilu.kext () - Success
29:738 00:033 OC: Prelink injection VirtualSMC.kext () - Success
29:773 00:034 OC: Prelink injection WhateverGreen.kext () - Success
29:882 00:108 OC: Prelinked status - Success
29:909 00:027 AAPL: [EB|`LD:LKFS] } Ok(0)
29:935 00:025 AAPL: [EB|`LD:LKC] } Ok(0)
29:953 00:018 AAPL: [EB|#FWFM] 0xFFFFFF7F
29:971 00:018 AAPL: [EB|#FWFT] 0xFDAFF066
30:235 00:264 AAPL: [EB|#CSR:IN] 0x00000067
30:252 00:016 AAPL: [EB|#CSR:OUT] 0x00000067
30:270 00:017 AAPL: [EB|`BST:FBS] {
30:288 00:018 AAPL: [EB|`BST:FBS] BA.ADSZ: 0
30:306 00:018 AAPL: [EB|`BST:FBS] BA.KSDSZ: 0
30:328 00:021 AAPL: [EB|`B:WFDW] Err(0xE), 0 @ LocHB 71B4903C-14EC-42C4-BDC6-CE1449930E49
30:346 00:018 AAPL: [EB|#LOG:DT] 2020-06-12T05:15:49
30:365 00:019 AAPL: [EB|#LOG:EXITBS:START] 2020-06-12T05:15:49


config.plist

[SavageAUS]

On my laptop i use a DSDT patch to remap my brightness keys

into method label _Q11 replace_contentbegin// Brightness Down\nNotify(\_SB.PCI0.LPCB.PS2M, 0x0205)\nNotify(\_SB.PCI0.LPCB.PS2M, 0x0285)\nend;into method label _Q12 replace_contentbegin// Brightness Up\nNotify(\_SB.PCI0.LPCB.PS2M, 0x0206)\nNotify(\_SB.PCI0.LPCB.PS2M, 0x0286)\nend;




But when using it, my brightness keys do not work in windows.

Also i would prefer to have it made into a SSDT instead of using a DSDT just for brightness keys.

Can i do this with OC? and not impact windows functions?

[Awesome Donkey]

Here's a "quickie" issue I've noticed. I haven't had time to try to debug and log it yet, hopefully this weekend I will try to (unless somebody else figures it out first).



But I've noticed if you use the CrScreenshotDxe.efi driver in OC, then in OC boot to a GRUB entry (which GRUB is the bootloader for Arch Linux in this case) the keyboard doesn't work after OC boots to the GRUB bootloader. Example being the arrow keys to select a boot entry or E to edit or C for a command line, none of them works. The moment you disable CrScreenshotDxe.efi in config.plist and reboot it works again.



The Arch Linux/GRUB boot entry isn't a custom entry either, it's what OC detects and shows in the boot picker. It'll probably happen with anything that uses GRUB, so Ubuntu, Mint, Debian, etc.



Edited June 12, 2020 by Awesome Donkey

[markl18]

Hi anyone help now my pc boots into Windows and forgot about opencore

[jangoux]

I am getting huge icons on OpenCanopy (OC 0.5.9), only getting three viewable boot option icons shown. How can I fix this ? Already trie UIScale=01 and 02

[eSaF]

10 hours ago, markl18 said:

Hi anyone help now my pc boots into Windows and forgot about opencore



Reboot machine, at the boot menu press space bar and click on Clean/Clear NVRAM, the machine will reboot, quickly press the delete key to into the BIOS. Once in the BIOS go to where you set which disk to boot from and set Opencore as the boot disk and disable the named disk Catalina is on save and reboot and all should be ok.

[mhkmichaell]

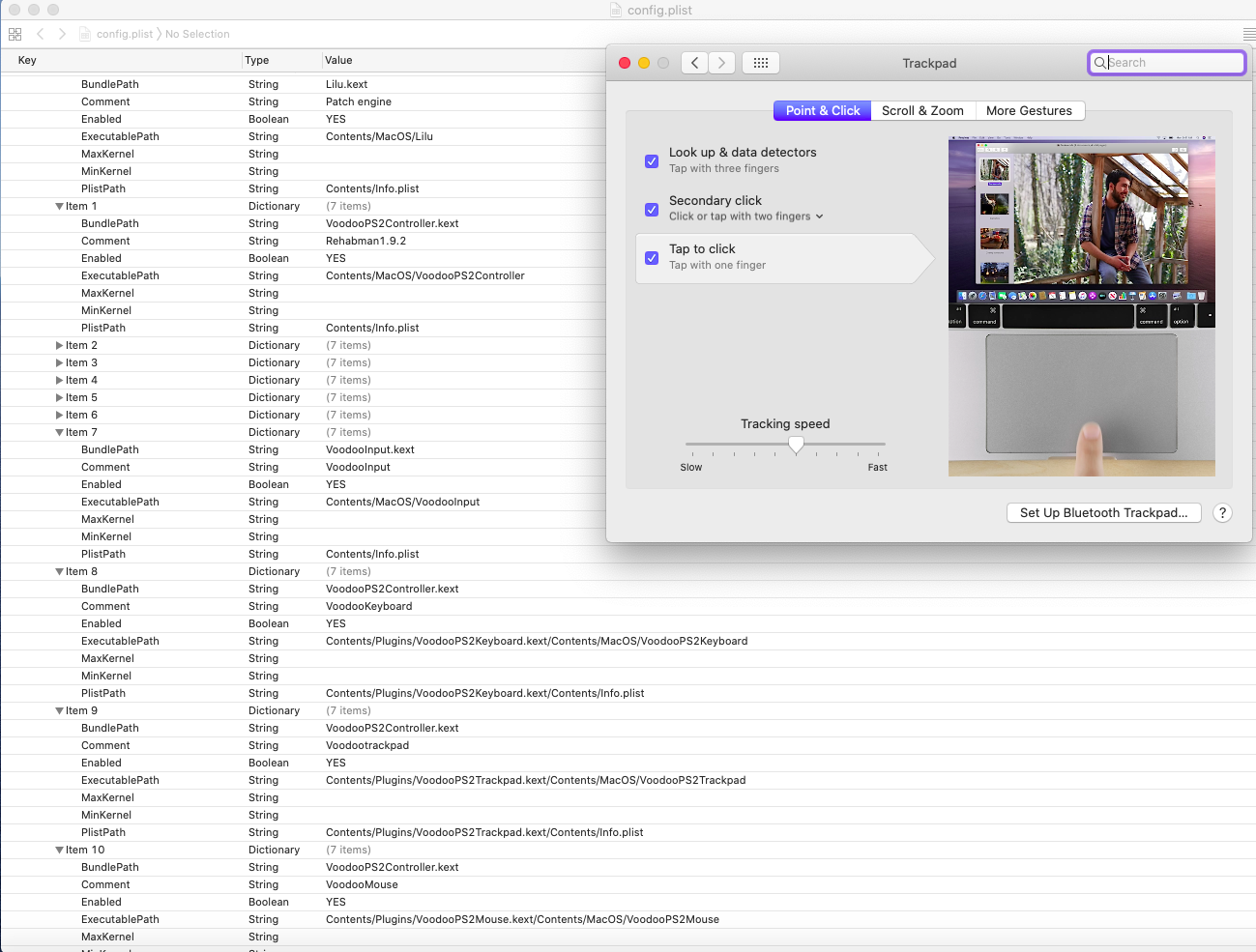

Hi. I've got a problem with touchpad. HP EliteBook 840 G1, 14" 1600x900 non touch, i5-4300U,

In system settings touchpad is not visible like a trackpad. Only works like a normal mouse but I can add three finger short in keyboard shortcuts, two finger for swipe works, but no one tap for click.

I use all method for voodoops2.

Rehabman voodoo - like I say on the beginning.

Rehabman voodoo + voodooinput - not work

Opencore voodoops2 -  nothing work.

VoodooI2C - nothing work.

ALPS and other kext and setting for touchpad - not work

I install clean system with rehabman guide for laptops - not work

Clean install with OpenCore 058/059

Clean install Catalina 15.4 and 15.1  - not work.



In windows in Aida64 I see only : Synaptics SMBus TouchPad.



What should I do to inject trackpad in settings? Maybe I do something wrong? But I do that same on probook 6470b and works fine.







debug_15435.zipEFI.zip

[Andrey1970]

10 minutes ago, mhkmichaell said:

In system settings touchpad is not visible like a trackpad.

Launch the notebook battery in macOS.

[mhkmichaell]

1 minute ago, Andrey1970 said:

Launch the notebook battery in macOS.

 I don't have battery right now in this laptop. I will try when get new one and I set everything to work. Thanks.

[Tiem]

I didn't see it specifically in the docs, but does clearing NVRAM interfere at all with Bootstrap? I've been afraid to touch it since setting it up. @vit9696

[sxbkdljb]

On 12/23/2019 at 12:11 PM, DanielMac said:



Thank you very much for your help! I added an IRQ in that IRQNoFlags to:

 {0,8,11,15}

in my case and it worked without blocking the kext. Thank you so much!



Hi Daniel, I think I am having a problem very similar to what you had before on audio output. I'm building a Hackintosh on Optiplex 5060 micro, i5 8500T, Q370, UHD 630, ALC3234(255). I'm using Opencore 0.5.9 and trying to install Catalina 10.15.5. I can boot into the system fine, but there is no audio. If I go to "System Preference->Sound->Output" it tells me "No output devices found". After some research I found these posts. It seems that I need to make some change DSDT. Would you mind giving me more details on how to change DSDT and what exactly to change in DSDT? Thank you very much. And please do shout out if you need any more information. I know it has been a long time but perhaps you can shed some light on me

System DSDT.aml

Config.plist

[markl18]

23 hours ago, eSaF said:



Reboot machine, at the boot menu press space bar and click on Clean/Clear NVRAM, the machine will reboot, quickly press the delete key to into the BIOS. Once in the BIOS go to where you set which disk to boot from and set Opencore as the boot disk and disable the named disk Catalina is on save and reboot and all should be ok.

i dont think you getting it goes right into windows there is no menu for opencore  or anything am I supposed to replace that efi file inside microsoft/boot/ to bootx64.efi or something to get the op menu to show up

[Sherlocks]

Launch the notebook battery in macOS.

Andrey, is there other driver for elan ps2?

나의 SM-N960N 의 Tapatalk에서 보냄

[eSaF]

14 hours ago, markl18 said:

i dont think you getting it goes right into windows there is no menu for opencore  or anything am I supposed to replace that efi file inside microsoft/boot/ to bootx64.efi or something to get the op menu to show up

No - you're the one who is not getting it - before a machine boots into an operating system, one is able or should be able to go into the BIOS before it loads any operating system. That is what I was trying to explain to you but it seems all that went right over your head. Right let me start again, when you boot your machine start hitting the delete key as soon as you hear the Post BIOS Beep, by doing so you should be able to go straight into the BIOS before it boots windows. Here is where you can make any necessary changes to the operation of the machine and this is as far as I am prepared to go on the subject. Good luck.

[MacNB]

Feeling confident with OC, I thought I would take next adventure with my even older Hack and try OC Legacy boot.



System is a Dell Inspiron LGA 775 P35 Chipset with Xeon E5450 CPU with Legacy BIOS.

Currently successfully booting via Clover r5110. Running very stable for over 10 years !
It boots Windows 10, High-Sierra, Sierra, El-Capitan, Yosemite and even Snow Leopard

Graphics is an nVidia Tesla GT240 (and that's the reason why I never updated this system OS higher that High Sierra).
Audio, Sleep, Wake, Restart, Shutdown, iMessage, FaceTime, etc all working fine with Clover.



I backed & removed all traces of Clover from the Main boot drive (including emulated NVRAM).

I installed OC 0.5.9 Debug released version onto a USB stick using this guide.

OC starts but here I encounter my first problem. The boot file installed by bootinstall.command on the USB root does not "see" any of my SATA drives. BootPicker (Builtin) only shows EFI Shell.

I had to replace it with one I picked up from @fusion71au's MPS 1530 config-download here and then the BootPicker lists the bootable drives.
(So the boot file issue still needs to be solved as the "official" method does not work - to be solved)

Selecting High Sierra, OC starts the boot and the Kernel Panics on NVDAStartup. Since OC has no Quirks to "InjectNvdia", I had injected Device Properties for the GPU. But these did not work (even though OC log shows "success" for each Add. So I removed them.

I solved the problem by editing the DSDT and adding the GPU device properties under GFX0. And now the OS boots.



Sleep & Wake seem to work. Shutdown works. But Restart fails - screen clears but the system hangs.

Booting via Clover had no issue with Restart. To be solved.



I then installed OC onto the main SSD's ESP. Again I had to replace the boot file since the "official" one does not detect my SATA drives.



Next (main) problem is that this old system has no working FW NVRAM.

It was emulated when I was Using Clover.
With OC, I had setup Legacy method from the guide here



This is now my bigger problem as emulated NVRAM does not work - without it, it's impossible to auto boot.

I had installed Logouthook and then ran it again to generate the nvram.plist which was copied to the root of the ESP.
But OC cannot set the default boot drive.

I tried CTL+ENTER when selecting a macOS drive in the BootPicker (and the OS boots).
Log confirms Default is set but on reboot, it defaults to an EFI drive and NOT the Default.



I tried setting the default via System Prefs Startup Disk but that makes no difference.
The nvram.plist file is updated and there's an entry for BootOrder but looks like OC is not reading it or something else wrong.

I read back the defaults for com.apple.loginwindow LogoutHook and it shows:

sudo defaults read com.apple.loginwindow
{
    LogoutHook = "/Users/MacNB/LogoutHook/LogoutHook.command";
}

Summary settings in config are

Booter->Quirks:
• AvoidRuntimeDefrag: YES,
• DisableVariableWrite: NO
• EnableWriteUnprotector: YES
Misc->Security: ExposeSensitiveData: 15
NVRAM->LegacyEnable: YES



So, three problems I need to solve (in priority order):
1. Emulated NVRAM
2. Restart hang
3. Legacy boot file from LegacyBoot utility not working.



Any help with getting the Emulated NVARM would be appreciated (or the other issues).

Attached last OC log file, nvram.plist and my config.plist
Thanks





opencore-2020-06-14-124848.txt

MacNB-config.plist

nvram.plist
