4 hours ago, SavageAUS said:

So this is my bios boot selection. EFI Hard Drive 1 is macOS, the rest is self explanatory.



This is what shows up in OC.

The EFI partition does not boot, just a black screen.

No linux options.





Just my opinion: The EFI partition is for OC, to boot macOS try to select Hackintosh HD in Opencanopy.

Link to comment
Share on other sites



Just my opinion: The EFI partition is for OC, to boot macOS try to select Hackintosh HD in Opencanopy.

I’m trying to boot Arch Linux on my laptop from OC. macOS and windows boot just fine but Arch Linux doesn’t appear in boot picker, just the EFI entry that boots to black screen.



@anyone where would I put .contentDetails to change the name of a Linux entry? On my desktop it appears as NO NAME and I want to rename it (It is Arch Linux) and boots just fine which is why I don’t understand why it won’t on my laptop. Booting Arch Linux via bios menu works fine too but want to use picker.





Sent from my iPhone using Tapatalk

  • Like 1
Link to comment
Share on other sites

Adding Force_Load_FalconSMUFW property to config.plist causes KP on navi rx 5700 from Catalina 10.15.5. I know it is Apple’s bug and that there is probably nothing to fix on the OpenCore side. But as I remember some users found a workaround to make SMU Firmware loading again, just inject some named Framebuffer like “Adder”.Is it a good idea considering that Whatevergreen manual doesn’t recommend it at all ?

Link to comment
Share on other sites

Great job with all the updates for the 0.5.9 release guys, and also to PMheart for ConfigValidity utility as it gave me a quick overview for upgrading. Nice!

Edited by blackosx
  • Like 3
Link to comment
Share on other sites

On 5/31/2020 at 7:09 AM, SavageAUS said:

[mention]apianti [/mention] I just installed arch on an ssd in my desktop and it is listed as NO NAME entry in OC and it boots just fine. I installed it the same way as I did on my laptop but no entry exists for it. I’ll try reinstall the boot loader for arch on my laptop and try again and see how it goes. Now to figure out how to rename the NO NAME to Arch Linux on my desktop.



Weird...



18 hours ago, SavageAUS said:

So this is my bios boot selection. EFI Hard Drive 1 is macOS, the rest is self explanatory.

This is what shows up in OC.

The EFI partition does not boot, just a black screen.

No linux options.



Is that disabled EFI entry the same disk as arch or a different one? I wonder what the load options variables actually look like, maybe there is a mistake or something else. The ScanPolicy is not affecting what is being shown? That seems to contradict the documentation. I think I linked you previously how to change the entries, did I not? You can also just find it in the documentations.

9 hours ago, SavageAUS said:

I’m trying to boot Arch Linux on my laptop from OC. macOS and windows boot just fine but Arch Linux doesn’t appear in boot picker, just the EFI entry that boots to black screen.



@anyone where would I put .contentDetails to change the name of a Linux entry? On my desktop it appears as NO NAME and I want to rename it (It is Arch Linux) and boots just fine which is why I don’t understand why it won’t on my laptop. Booting Arch Linux via bios menu works fine too but want to use picker.



The documentation says how to rename with .contentDetails, etc:

2. How to customise boot entries?
OpenCore follows standard Apple Bless model and extracts the entry name from .contentDetails and .disk_label.contentDetails files in the booter directory if present. These files contain an ASCII string with an entry title, which may then be customised by the user.



Link to comment
Share on other sites

OCUI: Entry kind 16 unsupported for IconOCB: ShowMenu failed - Unsupported
Halting on critical error

Still seeing this error on every update. Restarting the installer is a workaround but can someone from the OC team guide me in the right direction?

  • Confused 1
Link to comment
Share on other sites

5 hours ago, Tiem said:

OCUI: Entry kind 16 unsupported for IconOCB: ShowMenu failed - Unsupported
Halting on critical error

Still seeing this error on every update. Restarting the installer is a workaround but can someone from the OC team guide me in the right direction?

Fixed in master :)

  • Thanks 2
Link to comment
Share on other sites

Thanks Vit



Anyone know why a SSDt-PNLF.aml would cause a ACPI Warning in the Table?

how to get around a 64 Bit constant in a 32 bit table?  I recompiled the SSDT-PNFL and the DSDT.  Restarting after a shutdown, the issue reoccured.



Recompiled both files with different MaciASL.  Problem sill persists.



Added a PNLF patch to DSDT.  unloaded the SSDT-PNLF.  Problem persists without SSDT-PNLF

Recompiled DSDT removing PNLF patch.  Problem goes away.



Found a different PNLF patch but does not brighten. Slider works gets dark gets bright but not very bright.  Brightlevels are not the normal levels.  Very dim.

looking at this DSDT to compare with SSDT-PNLF



Did not have this problem until High Sierra and then Mojave.

During boot up, onscreen this message:



ACPI: Executed 5 Blocks of module-level executable AML code

ACPI: Warning Truncated 64 bit constant in 32 bit table: fffffffffffffff0 => fffffff0 (20160930/dsobject) - 832



Tried many things.  AppleBacklight.kext, IntelBacklight.kext, AppleBacklightFixup.kext



Thanks



Link to comment
Share on other sites

9 hours ago, apianti said:



Weird...





Is that disabled EFI entry the same disk as arch or a different one? I wonder what the load options variables actually look like, maybe there is a mistake or something else. The ScanPolicy is not affecting what is being shown? That seems to contradict the documentation. I think I linked you previously how to change the entries, did I not? You can also just find it in the documentations.



The documentation says how to rename with .contentDetails, etc:


2. How to customise boot entries?
OpenCore follows standard Apple Bless model and extracts the entry name from .contentDetails and .disk_label.contentDetails files in the booter directory if present. These files contain an ASCII string with an entry title, which may then be customised by the user.



Ok i have renamed my entry on my laptop and it shows Arch Linux correctly without any modifications to config.plist. Arch still does not boot with OC. I am wondering if it is because i have my dGPU disabled for macOS?



config.plist

  • Like 1
Link to comment
Share on other sites

35 minutes ago, SavageAUS said:

Ok i have renamed my entry on my laptop and it shows Arch Linux correctly without any modifications to config.plist. Arch still does not boot with OC. I am wondering if it is because i have my dGPU disabled for macOS?



config.plist

Such issues are usually caused by incompatible Booter Quirk set (e.g. RebuildAppleMemoryMap, ProtectUefiServices, SyncRuntimePermissions, ProtectMemoryRegions, etc.). You should also make sure that your ACPI tables contain nothing bad. See this issue for some relevant information:

https://github.com/acidanthera/bugtracker/issues/491

  • Thanks 1
Link to comment
Share on other sites

30 minutes ago, vit9696 said:

Such issues are usually caused by incompatible Booter Quirk set (e.g. RebuildAppleMemoryMap, ProtectUefiServices, SyncRuntimePermissions, ProtectMemoryRegions, etc.). You should also make sure that your ACPI tables contain nothing bad. See this issue for some relevant information:

https://github.com/acidanthera/bugtracker/issues/491

Thanks @vit9696 that helped...kinda

I made some changes based on https://opencore.slowgeek.com/ <--- not sure how accurate it is.

Windows 10 & Arch Linux boot 100% fine but now macOS will not boot.

I made quite a few changes so now i need to go back 1 by 1 and see which one will bring back macOS booting and keep Arch booting as well.

non booting config.plist

config.plist

Edited by SavageAUS
Link to comment
Share on other sites

First of all, congratulations to all OpenCore's team.



Awesome work!



Well, there's a lot of changes in 0.5.9, but to me some was specially usefull:

  • Removed HideSelf by pattern recognising BOOTx64.efi
  • Fixed warnings for empty NVRAM variables (e.g. rtc-blacklist)
  • Added partial hotkey support to OpenCanopy (e.g. Ctrl+Enter)
  • Improved playback performance in AudioDxe
  • Added first-class Windows support to bless model



So, thanks to all hard work and enjoy vacations!

Edited by Maf3r0
Link to comment
Share on other sites

Guys,



Is still HDMI Audio a No-No for AudioDxe???



I can't get to work the boot chime on my GTX 760 in HDMI. I placed the correct path and the volume but it doesn't work.



Anyone had luck with this?

Link to comment
Share on other sites

11 hours ago, makk said:

Thanks Vit



Anyone know why a SSDt-PNLF.aml would cause a ACPI Warning in the Table?

how to get around a 64 Bit constant in a 32 bit table?  I recompiled the SSDT-PNFL and the DSDT.  Restarting after a shutdown, the issue reoccured.



Recompiled both files with different MaciASL.  Problem sill persists.



Added a PNLF patch to DSDT.  unloaded the SSDT-PNLF.  Problem persists without SSDT-PNLF

Recompiled DSDT removing PNLF patch.  Problem goes away.



Found a different PNLF patch but does not brighten. Slider works gets dark gets bright but not very bright.  Brightlevels are not the normal levels.  Very dim.

looking at this DSDT to compare with SSDT-PNLF



Did not have this problem until High Sierra and then Mojave.

During boot up, onscreen this message:



ACPI: Executed 5 Blocks of module-level executable AML code

ACPI: Warning Truncated 64 bit constant in 32 bit table: fffffffffffffff0 => fffffff0 (20160930/dsobject) - 832



Tried many things.  AppleBacklight.kext, IntelBacklight.kext, AppleBacklightFixup.kext



Thanks







i have HD3000 and before Whatevergreen.kext, used a variety of methods to get backlight. the rehabman SSDT-PNLF method still works. But i can also revert to basic PNLF definition and get the same result.



                Device (PNLF)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Name (_HID, EisaId ("APP0002"))  // _HID: Hardware ID
                    Name (_CID, "backlight")  // _CID: Compatible ID
                    Name (_UID, 14)  // _UID: Unique ID
                    Name (_STA, 0x0B)  // _STA: Status
                }


so PNLF above + Whatevergreen = backlight



and in ioreg -l



1808 = 0x710 and all is good.

    | +-o PNLF@0  <class IOACPIPlatformDevice, id 0x10000015b, registered, matched, active, busy 0 (39 ms), retain 9>

    | | | {

    | | |   "compatible" = <"backlight">

    | | |   "AppleBacklightAtBoot" = 4436

    | | |   "AppleMaxBrightness" = 1808

    | | |   "_UID" = "14"

    | | |   "device-properties" = {"acpi-device"="IOACPIPlatformDevice is not serializable","acpi-path"="IOACPIPlane:/_SB/PCI0@0/IGPU@20000/PNLF@0"}

    | | |   "ApplePanelRawBrightness" = 1808

    | | |   "_STA" = 11

    | | |   "_ADR" = 0

    | | |   "name" = <"APP0002">

    | | | }

    | | |

    | | +-o AppleIntelPanelA  <class AppleIntelPanelA, id 0x100000352, registered, matched, active, busy 0 (0 ms), retain 6>

    | |     {

    | |       "IOProbeScore" = 2000

    | |       "CFBundleIdentifier" = "com.apple.driver.AppleBacklight"

    | |       "IOMatchCategory" = "IODisplayParameters"

    | |       "IOClass" = "AppleIntelPanelA"

    | |       "IOProviderClass" = "IOACPIPlatformDevice"

    | |       "CFBundleIdentifierKernel" = "com.apple.driver.AppleBacklight"

    | |       "IONameMatch" = "backlight"

    | |       "IONameMatched" = "backlight"

    | |       "IODisplayParameters" = {"commit"={"reg"=0}}

    | |       "ApplePanel" = {"F14Txxxx"=<00110000003400520073009400be00fa0136017201c5022f02b90360041a050a060e0710>}

    | |     }



Link to comment
Share on other sites

1 hour ago, MAC_SO said:

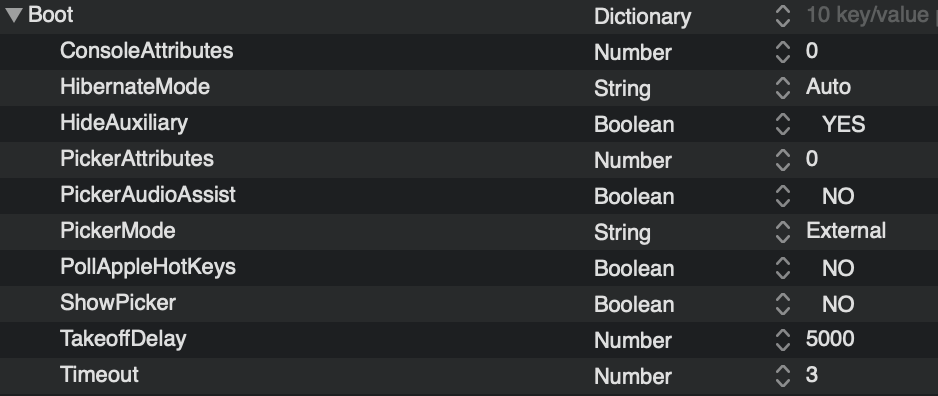

Opencore 0.5.9 how to disable Verbose Boot it persists by start up before the apple appears:(

Are you using the debug version?

Link to comment
Share on other sites

Hi

With the update to the latest version, I get a KP early in the boot process.

Does anyone understand the reason?

panic(cpu 4 caller 0xffffff801ed7a747): "Zone cache element was used after free! Element 0xffffff805c916b40 was corrupted at beginning; Expected 0x40a87f385f55bea9 but found 0x1; canary 0xbf5780b803c4d5e9; zone 0xffffff801f6a4820 (kalloc.96)"com.apple./AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.121.2/osfmk/kern/zcache.c:658
Backtrace (CPU 4), Frame : Return Address
0xffffff83b7a33690 : 0xffffff801ed1f5cd
0xffffff83b7a336e0 : 0xffffff801ee58b05
0xffffff83b7a33720 : 0xffffff801ee4a68e
0xffffff83b7a33770 : 0xffffff801ecc5a40
0xffffff83b7a33790 : 0xffffff801ed1ec97
0xffffff83b7a33890 : 0xffffff801ed1f087
0xffffff83b7a338e0 : 0xffffff801f4c27cc
0xffffff83b7a33950 : 0xffffff801ed7a747
0xffffff83b7a33990 : 0xffffff801ed76a57
0xffffff83b7a33ac0 : 0xffffff801ed2c4b4
0xffffff83b7a33b30 : 0xffffff801ed2ce04
0xffffff83b7a33b60 : 0xffffff7f9ff8853e
0xffffff83b7a33b90 : 0xffffff7f9ffd37d2
0xffffff83b7a33c90 : 0xffffff7f9ffe095f
0xffffff83b7a33f30 : 0xffffff7f9ffce6e8
0xffffff83b7a33fa0 : 0xffffff801ecc513e
      Kernel Extensions in backtrace:
         com.apple.filesystems.apfs(1412.120.2)[E8865550-525E-3E0A-8BEA-D96D9CD57917]com.apple.0xffffff7f9ff08000-com.apple.driver.0xffffff7fa002ffff
            dependency: com.apple.kec.corecrypto(1.0)[525BC31B-E9A9-3FE6-B565-5DC6BA91D8ED]com.apple.0xffffff7f9f69f000
            dependency: com.apple.driver.AppleEffaceableStorage(1.0)[5024BA75-70AA-3554-B8EB-0A71A64479E0]com.apple.0xffffff7f9feb4000
            dependency: com.apple.iokit.IOStorageFamily(2.1)[E13E9C61-F1F5-3A81-B1EF-65669C3CBDBF]com.apple.0xffffff7f9f665000

BSD process name corresponding to current thread: kernel_task
Boot args: npci=0x2000 darkwake=0 -nvmefdbg

Mac OS version:
19F101

Kernel version:
Darwin Kernel Version 19.5.0: Tue May 26 20:41:44 PDT 2020; root:xnu-6153.121.2~2/RELEASE_X86_64
Kernel UUID: 54F1A78D-6F41-32BD-BFED-4381F9F6E2EF
Kernel slide:     0x000000001ea00000
Kernel text base: 0xffffff801ec00000
__HIB  text base: 0xffffff801eb00000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002d8)

System uptime in nanoseconds: 2863001157
last loaded kext at 2413515347: com.apple.driver.usb.IOUSBHostHIDDevice	1.2 (addr 0xffffff7f9fa8d000, size 49152)
loaded kexts:
org.hwsensors.driver.GPUSensors	1802
org.hwsensors.driver.LPCSensors	1802
as.acidanthera.mieze.IntelMausi	1.0.3
at.obdev.nke.LittleSnitch	5474
com.osy86.USBWakeFixup	1
hu.interferenc.TSCAdjustReset	1.1
org.hwsensors.driver.CPUSensors	1802
org.acidanthera.NVMeFix	1.0.2
as.lvs1974.VegaGraphicsFixup	1.2.4
com.rehabman.driver.USBInjectAll	0.7.5
as.vit9696.AppleALC	1.5.0
as.vit9696.WhateverGreen	1.4.0
org.netkas.driver.FakeSMC	1802
as.vit9696.Lilu	1.4.5
com.apple.iokit.IOBluetoothUSBDFU	7.0.5f6
com.apple.iokit.SCSITaskUserClient	422.120.3
com.apple.filesystems.apfs	1412.120.2
com.apple.driver.AppleAHCIPort	341.0.2
com.apple.driver.AppleFileSystemDriver	3.0.1
com.apple.driver.AppleVirtIO	1.0
com.apple.filesystems.hfs.kext	522.100.5
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless	1.0.0d1
com.apple.BootCache	40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib	1.0.0
com.apple.private.KextAudit	1.0
com.apple.driver.AppleACPIButtons	6.1
com.apple.driver.AppleHPET	1.8
com.apple.driver.AppleACPIEC	6.1
com.apple.driver.AppleRTC	2.0
com.apple.driver.AppleSMBIOS	2.1
com.apple.driver.AppleAPIC	1.7
com.apple.security.AppleImage4	1
com.apple.nke.applicationfirewall	303
com.apple.security.TMSafetyNet	8
com.apple.AppleSystemPolicy	2.0.0
com.apple.iokit.EndpointSecurity	1
com.apple.driver.usb.IOUSBHostHIDDevice	1.2
com.apple.driver.usb.cdc	5.0.0
com.apple.driver.usb.networking	5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice	1.2
com.apple.driver.usb.AppleUSBHub	1.2
com.apple.iokit.IOSCSIMultimediaCommandsDevice	422.120.3
com.apple.iokit.IOBDStorageFamily	1.8
com.apple.iokit.IODVDStorageFamily	1.8
com.apple.iokit.IOCDStorageFamily	1.8
com.apple.iokit.IOAHCIBlockStorage	316.100.5
com.apple.iokit.IOAHCISerialATAPI	268
com.apple.driver.AppleXsanScheme	3
com.apple.driver.AppleIntelLpssI2C	3.0.60
com.apple.driver.AppleIntelLpssGspi	3.0.60
com.apple.driver.usb.AppleUSBXHCIPCI	1.2
com.apple.driver.usb.AppleUSBXHCI	1.2
com.apple.iokit.IOAHCIFamily	290.0.1
com.apple.iokit.IONVMeFamily	2.1.0
com.apple.iokit.IOAudioFamily	300.2
com.apple.vecLib.kext	1.2.0
com.apple.iokit.IOSerialFamily	11
com.apple.iokit.IOSurface	269.11
com.apple.filesystems.hfs.encodings.kext	1
com.apple.driver.usb.AppleUSBHostPacketFilter	1.0
com.apple.iokit.IOUSBFamily	900.4.2
com.apple.driver.AppleEFINVRAM	2.1
com.apple.driver.AppleEFIRuntime	2.1
com.apple.iokit.IOSMBusFamily	1.1
com.apple.iokit.IOHIDFamily	2.0.0
com.apple.security.quarantine	4
com.apple.security.sandbox	300.0
com.apple.kext.AppleMatch	1.0.0d1
com.apple.driver.DiskImages	493.0.0
com.apple.driver.AppleFDEKeyStore	28.30
com.apple.driver.AppleEffaceableStorage	1.0
com.apple.driver.AppleKeyStore	2
com.apple.driver.AppleUSBTDM	489.120.1
com.apple.iokit.IOSCSIBlockCommandsDevice	422.120.3
com.apple.driver.AppleCredentialManager	1.0
com.apple.driver.KernelRelayHost	1
com.apple.driver.AppleSEPManager	1.0.1
com.apple.driver.IOSlaveProcessor	1
com.apple.iokit.IOTimeSyncFamily	840.3
com.apple.iokit.IONetworkingFamily	3.4
com.apple.iokit.IOUSBMassStorageDriver	157.121.1
com.apple.iokit.IOSCSIArchitectureModelFamily	422.120.3
com.apple.iokit.IOStorageFamily	2.1
com.apple.iokit.IOUSBHostFamily	1.2
com.apple.driver.AppleUSBHostMergeProperties	1.2
com.apple.driver.usb.AppleUSBCommon	1.0
com.apple.driver.AppleBusPowerController	1.0
com.apple.iokit.CoreAnalyticsFamily	1
com.apple.driver.AppleMobileFileIntegrity	1.0.5
com.apple.kext.CoreTrust	1
com.apple.iokit.IOReportFamily	47
com.apple.driver.AppleACPIPlatform	6.1
com.apple.driver.AppleSMC	3.1.9
com.apple.driver.watchdog	1
com.apple.iokit.IOPCIFamily	2.9
com.apple.iokit.IOACPIFamily	1.4
com.apple.kec.pthread	1
com.apple.kec.Libm	1
com.apple.kec.corecrypto	1.0

I was constantly updating with latest betas until last week without problems.... first time in a long time I get a KP during boot.

Any insights here?



Thanks, Mike

Link to comment
Share on other sites

1 hour ago, Mike Ranger said:

Hi

With the update to the latest version, I get a KP early in the boot process.

Does anyone understand the reason?


panic(cpu 4 caller 0xffffff801ed7a747): "Zone cache element was used after free! Element 0xffffff805c916b40 was corrupted at beginning; Expected 0x40a87f385f55bea9 but found 0x1; canary 0xbf5780b803c4d5e9; zone 0xffffff801f6a4820 (kalloc.96)"com.apple./AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.121.2/osfmk/kern/zcache.c:658
Backtrace (CPU 4), Frame : Return Address
0xffffff83b7a33690 : 0xffffff801ed1f5cd
0xffffff83b7a336e0 : 0xffffff801ee58b05
0xffffff83b7a33720 : 0xffffff801ee4a68e
0xffffff83b7a33770 : 0xffffff801ecc5a40
0xffffff83b7a33790 : 0xffffff801ed1ec97
0xffffff83b7a33890 : 0xffffff801ed1f087
0xffffff83b7a338e0 : 0xffffff801f4c27cc
0xffffff83b7a33950 : 0xffffff801ed7a747
0xffffff83b7a33990 : 0xffffff801ed76a57
0xffffff83b7a33ac0 : 0xffffff801ed2c4b4
0xffffff83b7a33b30 : 0xffffff801ed2ce04
0xffffff83b7a33b60 : 0xffffff7f9ff8853e
0xffffff83b7a33b90 : 0xffffff7f9ffd37d2
0xffffff83b7a33c90 : 0xffffff7f9ffe095f
0xffffff83b7a33f30 : 0xffffff7f9ffce6e8
0xffffff83b7a33fa0 : 0xffffff801ecc513e
      Kernel Extensions in backtrace:
         com.apple.filesystems.apfs(1412.120.2)[E8865550-525E-3E0A-8BEA-D96D9CD57917]com.apple.0xffffff7f9ff08000-com.apple.driver.0xffffff7fa002ffff
            dependency: com.apple.kec.corecrypto(1.0)[525BC31B-E9A9-3FE6-B565-5DC6BA91D8ED]com.apple.0xffffff7f9f69f000
            dependency: com.apple.driver.AppleEffaceableStorage(1.0)[5024BA75-70AA-3554-B8EB-0A71A64479E0]com.apple.0xffffff7f9feb4000
            dependency: com.apple.iokit.IOStorageFamily(2.1)[E13E9C61-F1F5-3A81-B1EF-65669C3CBDBF]com.apple.0xffffff7f9f665000

BSD process name corresponding to current thread: kernel_task
Boot args: npci=0x2000 darkwake=0 -nvmefdbg

Mac OS version:
19F101

Kernel version:
Darwin Kernel Version 19.5.0: Tue May 26 20:41:44 PDT 2020; root:xnu-6153.121.2~2/RELEASE_X86_64
Kernel UUID: 54F1A78D-6F41-32BD-BFED-4381F9F6E2EF
Kernel slide:     0x000000001ea00000
Kernel text base: 0xffffff801ec00000
__HIB  text base: 0xffffff801eb00000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002d8)

System uptime in nanoseconds: 2863001157
last loaded kext at 2413515347: com.apple.driver.usb.IOUSBHostHIDDevice	1.2 (addr 0xffffff7f9fa8d000, size 49152)
loaded kexts:
org.hwsensors.driver.GPUSensors	1802
org.hwsensors.driver.LPCSensors	1802
as.acidanthera.mieze.IntelMausi	1.0.3
at.obdev.nke.LittleSnitch	5474
com.osy86.USBWakeFixup	1
hu.interferenc.TSCAdjustReset	1.1
org.hwsensors.driver.CPUSensors	1802
org.acidanthera.NVMeFix	1.0.2
as.lvs1974.VegaGraphicsFixup	1.2.4
com.rehabman.driver.USBInjectAll	0.7.5
as.vit9696.AppleALC	1.5.0
as.vit9696.WhateverGreen	1.4.0
org.netkas.driver.FakeSMC	1802
as.vit9696.Lilu	1.4.5
com.apple.iokit.IOBluetoothUSBDFU	7.0.5f6
com.apple.iokit.SCSITaskUserClient	422.120.3
com.apple.filesystems.apfs	1412.120.2
com.apple.driver.AppleAHCIPort	341.0.2
com.apple.driver.AppleFileSystemDriver	3.0.1
com.apple.driver.AppleVirtIO	1.0
com.apple.filesystems.hfs.kext	522.100.5
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless	1.0.0d1
com.apple.BootCache	40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib	1.0.0
com.apple.private.KextAudit	1.0
com.apple.driver.AppleACPIButtons	6.1
com.apple.driver.AppleHPET	1.8
com.apple.driver.AppleACPIEC	6.1
com.apple.driver.AppleRTC	2.0
com.apple.driver.AppleSMBIOS	2.1
com.apple.driver.AppleAPIC	1.7
com.apple.security.AppleImage4	1
com.apple.nke.applicationfirewall	303
com.apple.security.TMSafetyNet	8
com.apple.AppleSystemPolicy	2.0.0
com.apple.iokit.EndpointSecurity	1
com.apple.driver.usb.IOUSBHostHIDDevice	1.2
com.apple.driver.usb.cdc	5.0.0
com.apple.driver.usb.networking	5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice	1.2
com.apple.driver.usb.AppleUSBHub	1.2
com.apple.iokit.IOSCSIMultimediaCommandsDevice	422.120.3
com.apple.iokit.IOBDStorageFamily	1.8
com.apple.iokit.IODVDStorageFamily	1.8
com.apple.iokit.IOCDStorageFamily	1.8
com.apple.iokit.IOAHCIBlockStorage	316.100.5
com.apple.iokit.IOAHCISerialATAPI	268
com.apple.driver.AppleXsanScheme	3
com.apple.driver.AppleIntelLpssI2C	3.0.60
com.apple.driver.AppleIntelLpssGspi	3.0.60
com.apple.driver.usb.AppleUSBXHCIPCI	1.2
com.apple.driver.usb.AppleUSBXHCI	1.2
com.apple.iokit.IOAHCIFamily	290.0.1
com.apple.iokit.IONVMeFamily	2.1.0
com.apple.iokit.IOAudioFamily	300.2
com.apple.vecLib.kext	1.2.0
com.apple.iokit.IOSerialFamily	11
com.apple.iokit.IOSurface	269.11
com.apple.filesystems.hfs.encodings.kext	1
com.apple.driver.usb.AppleUSBHostPacketFilter	1.0
com.apple.iokit.IOUSBFamily	900.4.2
com.apple.driver.AppleEFINVRAM	2.1
com.apple.driver.AppleEFIRuntime	2.1
com.apple.iokit.IOSMBusFamily	1.1
com.apple.iokit.IOHIDFamily	2.0.0
com.apple.security.quarantine	4
com.apple.security.sandbox	300.0
com.apple.kext.AppleMatch	1.0.0d1
com.apple.driver.DiskImages	493.0.0
com.apple.driver.AppleFDEKeyStore	28.30
com.apple.driver.AppleEffaceableStorage	1.0
com.apple.driver.AppleKeyStore	2
com.apple.driver.AppleUSBTDM	489.120.1
com.apple.iokit.IOSCSIBlockCommandsDevice	422.120.3
com.apple.driver.AppleCredentialManager	1.0
com.apple.driver.KernelRelayHost	1
com.apple.driver.AppleSEPManager	1.0.1
com.apple.driver.IOSlaveProcessor	1
com.apple.iokit.IOTimeSyncFamily	840.3
com.apple.iokit.IONetworkingFamily	3.4
com.apple.iokit.IOUSBMassStorageDriver	157.121.1
com.apple.iokit.IOSCSIArchitectureModelFamily	422.120.3
com.apple.iokit.IOStorageFamily	2.1
com.apple.iokit.IOUSBHostFamily	1.2
com.apple.driver.AppleUSBHostMergeProperties	1.2
com.apple.driver.usb.AppleUSBCommon	1.0
com.apple.driver.AppleBusPowerController	1.0
com.apple.iokit.CoreAnalyticsFamily	1
com.apple.driver.AppleMobileFileIntegrity	1.0.5
com.apple.kext.CoreTrust	1
com.apple.iokit.IOReportFamily	47
com.apple.driver.AppleACPIPlatform	6.1
com.apple.driver.AppleSMC	3.1.9
com.apple.driver.watchdog	1
com.apple.iokit.IOPCIFamily	2.9
com.apple.iokit.IOACPIFamily	1.4
com.apple.kec.pthread	1
com.apple.kec.Libm	1
com.apple.kec.corecrypto	1.0

I was constantly updating with latest betas until last week without problems.... first time in a long time I get a KP during boot.

Any insights here?



Thanks, Mike

Looking at your log, i think there is some problem in apfs driver loading:

Kernel Extensions in backtrace:
         com.apple.filesystems.apfs(1412.120.2)[E8865550-525E-3E0A-8BEA-D96D9CD57917]com.apple.0xffffff7f9ff08000-com.apple.driver.0xffffff7fa002ffff

Did you check your config.plist, you need to have this subsection at "UEFI" :

Screenshot 2020-06-02 at 20.04.33.png

Link to comment
Share on other sites

×
×
  • Create New...
