mathew2019 Posted May 22, 2020 Share Posted May 22, 2020 Hi Guys I am trying to test the latest i9 10900K CPU and Z490 Asrock gaming 4 motherboard but stuck on Apple logo screen. is this hardware does not compatible at the moment? Thanks 1 Link to comment Share on other sites More sharing options...
mathew2019 Posted May 22, 2020 Share Posted May 22, 2020 I have attached error screen if this helps Thanks Link to comment Share on other sites More sharing options...
Humanate Posted May 22, 2020 Share Posted May 22, 2020 Hi all I am a noob with OC and my Hackintosh knowledge is intermediate. I have a stable system dual booting Catalina 10.15.4 with Windows 10. I am using the OpenCanopy boot picker and OC 0.5.8 I have made a clone of my Win10 installation to use as backup, however, when I restart system, I see 2 x Windows 10 options in bootpicker so I don't know which one I am booting from, my nvme Win10 or my SSD backup. Is there a way to identify the two drives in bootpicker so I know which is which. I did name the backup drive "Windows 10 Backup" in Windows, but this does not carry forward in the OC bootpicker. Can anyone help me to achieve this? Many thanks Link to comment Share on other sites More sharing options...
arsradu Posted May 22, 2020 Share Posted May 22, 2020 28 minutes ago, Humanate said: Hi all I am a noob with OC and my Hackintosh knowledge is intermediate. I have a stable system dual booting Catalina 10.15.4 with Windows 10. I am using the OpenCanopy boot picker and OC 0.5.8 I have made a clone of my Win10 installation to use as backup, however, when I restart system, I see 2 x Windows 10 options in bootpicker so I don't know which one I am booting from, my nvme Win10 or my SSD backup. Is there a way to identify the two drives in bootpicker so I know which is which. I did name the backup drive "Windows 10 Backup" in Windows, but this does not carry forward in the OC bootpicker. Can anyone help me to achieve this? Many thanks Sound like you might need some custom entries. See if this post helps you out. While you're there, you can also read the one right above it. 1 Link to comment Share on other sites More sharing options...
makk Posted May 22, 2020 Share Posted May 22, 2020 getting on boot screen 64bit truncated to 32 bit, some application. with address but unable to pause the boot process to read the information since it is a lot. FFFFFFFFFFFFF > FFFFFFFFFF to address (2xxxxxxxxxx) after a while of being logged into Desktop, the GUI freezes, unresponsive, but mouse works just can't open or shut. complete no activity. keyboard numlock caps lock works with lints on and off. what could be the problem causing this? New to OpenCore so I'm not sure what settings do what. Put in SSDT's for EC-LAPTOP, IMEI, SBUS-MCHC, PNLF, USBX, changed SSDT.aml > SSDT-PM, Changed SSDT-2.aml which has the CPU0 > SSDT-PLUG.aml, OpenCore config.plist attached IOREG attached config.plist.zip MacBook Pro8,2.zip Link to comment Share on other sites More sharing options...
arsradu Posted May 22, 2020 Share Posted May 22, 2020 6 minutes ago, makk said: getting on boot screen 64bit truncated to 32 bit, some application. with address but unable to pause the boot process to read the information since it is a lot. FFFFFFFFFFFFF > FFFFFFFFFF to address (2xxxxxxxxxx) after a while of being logged into Desktop, the GUI freezes, unresponsive, but mouse works just can't open or shut. complete no activity. keyboard numlock caps lock works with lints on and off. what could be the problem causing this? New to OpenCore so I'm not sure what settings do what. Put in SSDT's for EC-LAPTOP, IMEI, SBUS-MCHC, PNLF, USBX, changed SSDT.aml > SSDT-PM, Changed SSDT-2.aml which has the CPU0 > SSDT-PLUG.aml, OpenCore config.plist attached IOREG attached config.plist.zip MacBook Pro8,2.zip I'm no expert in laptops by any stretch of the imagination. My only laptop is an actual MacBook. But..don't you need AAPL,ig-platform-id enabled? Looks disabled right now. But maybe there's something I'm missing here... As I said, I never attempted to hackintosh a laptop. And I know it's not an easy task. So...if it's not related to graphics...I don't know. WEG seems to be installed. I'm guessing it's probably also up to date. So that's probably not it... Link to comment Share on other sites More sharing options...
mathew2019 Posted May 22, 2020 Share Posted May 22, 2020 Hi Guys Is there anyone tried latest i9 10900K CPU and Z490motherboard with OpenCore? I am stuck at Apple boot screen. Thanks Link to comment Share on other sites More sharing options...
makk Posted May 22, 2020 Share Posted May 22, 2020 59 minutes ago, arsradu said: I'm no expert in laptops by any stretch of the imagination. My only laptop is an actual MacBook. But..don't you need AAPL,ig-platform-id enabled? Looks disabled right now. But maybe there's something I'm missing here... As I said, I never attempted to hackintosh a laptop. And I know it's not an easy task. So...if it's not related to graphics...I don't know. WEG seems to be installed. I'm guessing it's probably also up to date. So that's probably not it... thanks, yes the ig-platform-id is from the Windows one. For Apple Sandybridge = snb-platform-id. loaded the Truncate issue Truncated 64-bit constant found in 32-bit table: FFFFFFFFFFFFFFF0 => FFFFFFF0 (2016093/dsobject-832) 20200522_171641.jpg.zip 1 Link to comment Share on other sites More sharing options...
makk Posted May 22, 2020 Share Posted May 22, 2020 (edited) UPDATE: Fixed Keyboard. No driver in UEFI. Downloaded from .5.8 x--still no keyboard after many trials on 5.9 >> UEFI>Drivers>PS2KeyboardDxe.efi <<apparently the OCBuilder did not install this file!? 1-- LegacySchema in NVRAM. getting boot up messages --using LegacyBoot. Should I just delete? OR UPDATE: Fixed Downloaded and replaced necessary files. x--I used OCBuilder to build. It came out to 5.9. x--what would be the problem and how would I switch back to 5.8? x--What folders and files would I replace copy over in from 5.8? NEED ASSISTANCE: this shows up immediately after ACPI patching on boot up: <--Truncated 64-bit constant found in 32-bit table: FFFFFFFFFFFFFFF0 => FFFFFFF0 (2016093/dsobject-832)-->. Apparently this is an out of sync APIC.aml >> however in OC there is no Origin folder to place. For Clover this is to patch it and place the patched one in Origin Folder. But for OC where to place the patched one? How to correct this table? Thanks Edited May 23, 2020 by makk Found reasons for Truncated 64-bit constant by Rehabman. Link to comment Share on other sites More sharing options...

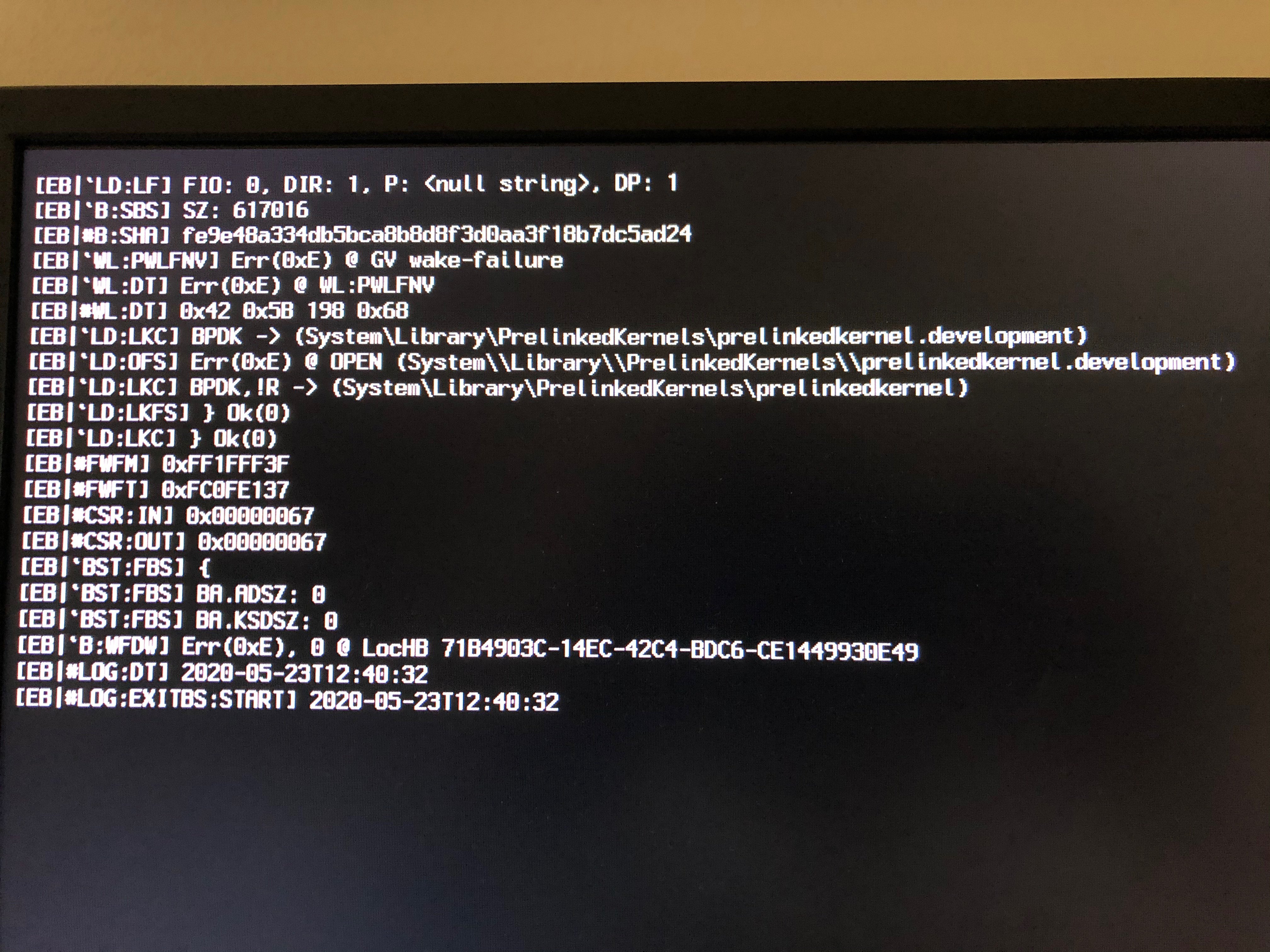

makk Posted May 23, 2020 Share Posted May 23, 2020 how to get the OpenCore boot log ? in Mojave --would like to see all the messages during OC bootloader startup. apparently there are several errors relating to APCI and ACPI and a few SSDT CpuPm, P-states, C-states and a Truncated 64-bit constant in a 32-bit table Link to comment Share on other sites More sharing options...
SavageAUS Posted May 23, 2020 Share Posted May 23, 2020 If I wanted to switch from clover to oc on my desktop would a fresh install be best or just clear nvram is enough? Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
nmano Posted May 23, 2020 Share Posted May 23, 2020 Thanks for new update 0.5.9 Image work smooth. https://github.com/acidanthera/OcBinaryData How to enable OCEFIAudio_en_Files config.plist? Thanks for your support. Link to comment Share on other sites More sharing options...
justin Posted May 23, 2020 Share Posted May 23, 2020 12 minutes ago, koder said: please help me fix issue with sleep https://github.com/acidanthera/bugtracker/issues/931 why did you spam the bugtracker. it is not right, you know it. upload your current EFI and provide your detailed hardware information, people here could probably help. Link to comment Share on other sites More sharing options...
SavageAUS Posted May 23, 2020 Share Posted May 23, 2020 1 hour ago, nmano said: Thanks for new update 0.5.9 Image work smooth. https://github.com/acidanthera/OcBinaryData How to enable OCEFIAudio_en_Files config.plist? Thanks for your support. https://dortania.github.io/OpenCore-Desktop-Guide/extras/gui.html Link to comment Share on other sites More sharing options...
arsradu Posted May 23, 2020 Share Posted May 23, 2020 (edited) 4 hours ago, makk said: how to get the OpenCore boot log ? in Mojave --would like to see all the messages during OC bootloader startup. apparently there are several errors relating to APCI and ACPI and a few SSDT CpuPm, P-states, C-states and a Truncated 64-bit constant in a 32-bit table Use OpenCore DEBUG version, set config: Misc -> Debug -> Target to 83, for example (this will also save as a file so you can examine it later), and enjoy! Log will be saved to your EFI partition. More info about that you can find in the Configuration.pdf. (page 33/34) Edited May 23, 2020 by arsradu Link to comment Share on other sites More sharing options...
arsradu Posted May 23, 2020 Share Posted May 23, 2020 10 hours ago, mathew2019 said: Hi Guys Is there anyone tried latest i9 10900K CPU and Z490motherboard with OpenCore? I am stuck at Apple boot screen. Thanks We can't afford it. I mean, at least I can't. :)) Check here if you've got everything set up correctly. Especially APCI. 1 Link to comment Share on other sites More sharing options...

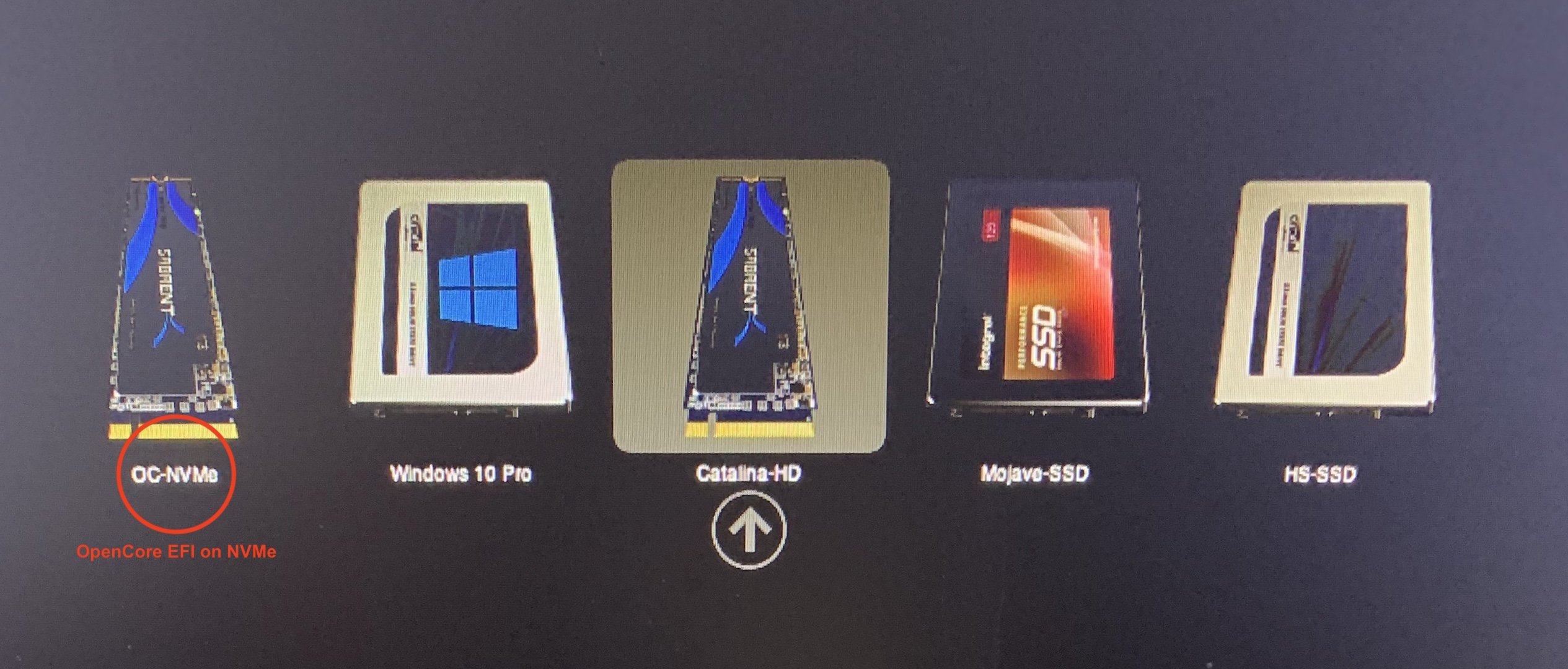

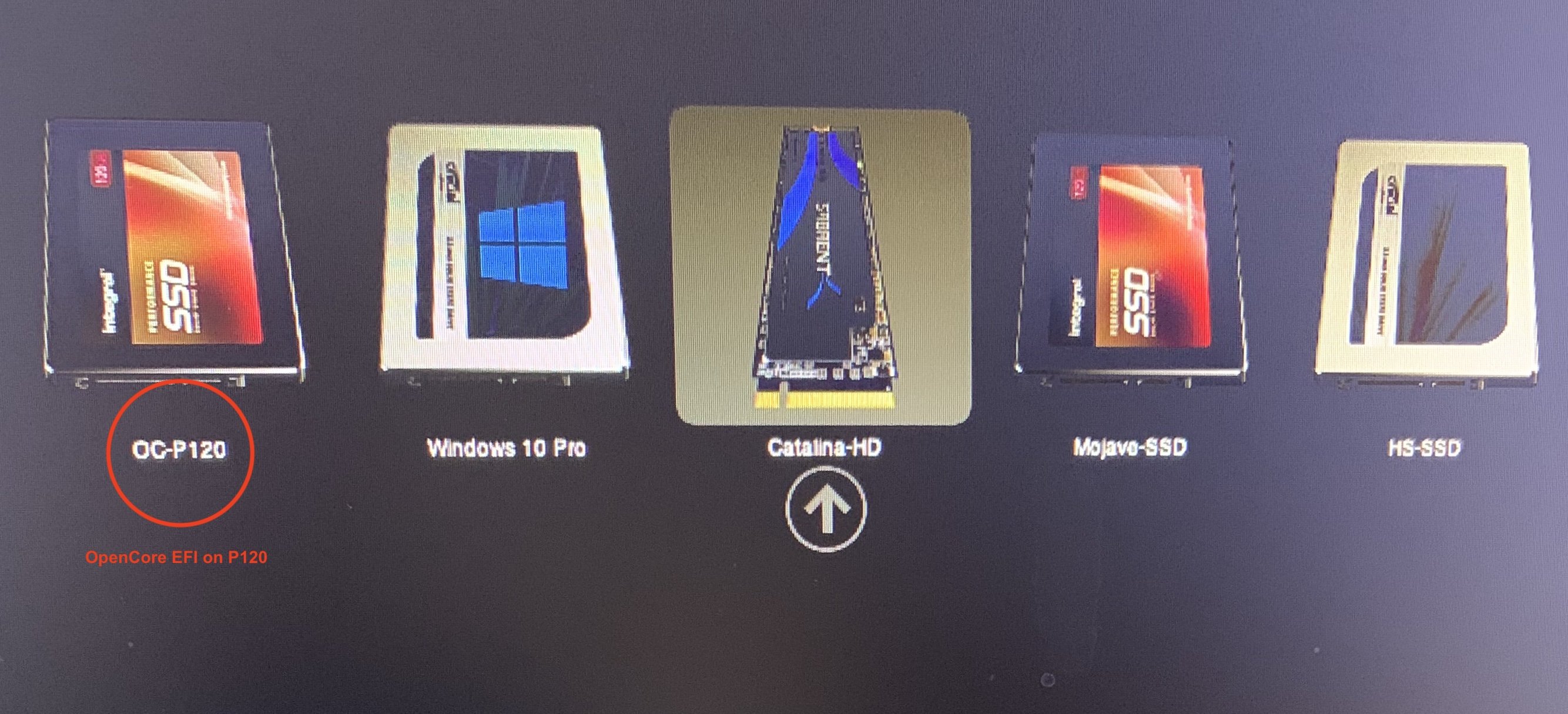

Humanate Posted May 23, 2020 Share Posted May 23, 2020 On 5/27/2019 at 12:13 PM, Andrey1970 said: There a name which you see in the menu OC. Hi, I was referred to this post by @arsradu - thanks. I am not using bootcamp, have windows on a separate disk and use OC 0.5.8 with OpenCanopy bootpicker. I want to change the name of the Windows drive shown in bootpicker. I mounted the Windows disk, then placed a plain text file ".contentDetails" in EFI/Boot as shown here with the name I want: On reboot, nothing changes, drive still called "Windows". I guess I am misunderstanding something. Can anyone help me please? Link to comment Share on other sites More sharing options...
arsradu Posted May 23, 2020 Share Posted May 23, 2020 (edited) 1 hour ago, Humanate said: Hi, I was referred to this post by @arsradu - thanks. I am not using bootcamp, have windows on a separate disk and use OC 0.5.8 with OpenCanopy bootpicker. I want to change the name of the Windows drive shown in bootpicker. I mounted the Windows disk, then placed a plain text file ".contentDetails" in EFI/Boot as shown here with the name I want: On reboot, nothing changes, drive still called "Windows". I guess I am misunderstanding something. Can anyone help me please? OK, I had to test this myself. Aaand yes, it seems to be working. And I don't think it has anything to do with BootCamp. But it might have something to do with your Picker configuration. So .contentDetails added to the Windows EFI partition. That looks ok. OC config: Misc -> Boot -> Picker Attributes: 1 Picker Mode: External. That's probably already set up. Aaand...at least for me, that worked out brilliantly. I'm using 0.5.9 though... But I don't think that makes a difference. But if you do, you can find attached the one I built a few days ago. OpenCore-0.5.9-RELEASE.zip Edited May 23, 2020 by arsradu 1 Link to comment Share on other sites More sharing options...
Humanate Posted May 23, 2020 Share Posted May 23, 2020 (edited) 32 minutes ago, arsradu said: OK, I had to test this myself. Aaand yes, it seems to be working. And I don't think it has anything to do with BootCamp. But it might have something to do with your Picker configuration. So .contentDetails added to the Windows EFI partition. That looks ok. OC config: Misc -> Boot -> Picker Attributes: 1 Picker Mode: External. That's probably already set up. Aaand...at least for me, that worked out brilliantly. I'm using 0.5.9 though... But I don't think that makes a difference. But if you do, you can find attached the one I build a few days ago. OpenCore-0.5.9-RELEASE.zip Thanks for testing. I am obviously missing something being a noob and all I looked at your attached 0.5.9 for some insight but I think this is just the release, no config. plist in the attached file Can I check the basics? 1. Do I make a plain .txt file called ".contentDetails" and put the name I want in there or do I find an existing file somewhere and modify it? 2. I have tried making a .txt file as above and then mounting my windows drive (within macOS, not Bootcamp though) and placing the .txt file called ".contentDetails" in EFI/Boot, nothing changes 3. I do have Picker Attributes: 1 now, it was set to 0 and Picker Mode is External Edited May 23, 2020 by Humanate Link to comment Share on other sites More sharing options...
AudioGod Posted May 23, 2020 Share Posted May 23, 2020 1 hour ago, arsradu said: We can't afford it. I mean, at least I can't. :)) Check here if you've got everything set up correctly. Especially APCI. It’s not a icelake 10nm cpu brother the 10900k is a cometlake 14nm cpu or in other words a coffeelake cpu with two more cores glued on. theres no support for it in Catalina yet though. 2 Link to comment Share on other sites More sharing options...
arsradu Posted May 23, 2020 Share Posted May 23, 2020 1 minute ago, AudioGod said: It’s not a icelake 10nm cpu brother the 10900k is a cometlake 14nm cpu or in other words a coffeelake cpu with two more cores glued on. theres no support for it in Catalina yet though. I see... Alright then. I didn't know that. I've learned something new today. Thank you! Link to comment Share on other sites More sharing options...
AudioGod Posted May 23, 2020 Share Posted May 23, 2020 Just now, arsradu said: I see... Alright then. I didn't know that. I've learned something new today. Thank you! 1 Link to comment Share on other sites More sharing options...
eSaF Posted May 23, 2020 Share Posted May 23, 2020 1 minute ago, AudioGod said: Hmmmm - A wealth of information ....... 'She canna take anymore captain she'll blow I tell yah, she'll blow' - nice one AG 1 Link to comment Share on other sites More sharing options...
arsradu Posted May 23, 2020 Share Posted May 23, 2020 (edited) 19 minutes ago, Humanate said: Thanks for testing. I am obviously missing something being a noob and all I looked at your attached 0.5.9 but I think this is just the release, no config. plist in the attached file Can I check the basics? 1. Do I make a plain .txt file called ".contentDetails" and put the name I want in there or do I find an existing file somewhere and modify it? 2. I have tried making a .txt file as above and then mounting my windows drive (within macOS, not Bootcamp though) and placing the .txt file called ".contentDetails" in EFI/Boot, nothing changes 3. I do have Picker Attributes: 1 now, it was set to 0 and Picker Mode is External Yes, that's how it comes out when you build it from sources. You need to replace only certain files. Ok, let's leave that for another time then. :)) You need to make a blank file, so not txt, called .contentDetails. The content on that file needs to be the name you want to show up on the boot picker. In my case (attached), I named it "Windows 10 Pro". You can edit this one if you want. To make a blank file, you can use Sublime Text, for example, on MacOS. Or any text editor. But again, it's not a .txt file. It's a blank file. There's no extension on it. So, in Sublime for example, you just go to File -> New File -> enter your custom name in that file -> Save As -> ".contentDetails". In order to be able to create that hidden file, you need to set hidden files to visible. To do that, easiest way is to press: CMD (or Windows key if you're on a Windows keyboard) + Shift + . (yes, that's the dot symbol on your keyboard). So CMD + SHIFT + . To disable (make hidden files invisible again), just repeat the same command. Here's the before and after. The file is present in both cases, but one is with hidden files disabled, the other one is with them enabled. .contentDetails Edited May 23, 2020 by arsradu 1 Link to comment Share on other sites More sharing options...
AudioGod Posted May 23, 2020 Share Posted May 23, 2020 1 minute ago, eSaF said: Hmmmm - A wealth of information ....... 'She canna take anymore captain she'll blow I tell yah, she'll blow' - nice one AG I picked up my sample Z490 Master yesterday. Woooaaahhhhh it’s a lovely board Mr eSaF, I have no intention of buying a 10900k though, if I get one for free as well then I won’t complain but my 9900k is a good enough furnace for me to keep my warm toastie.. 3 Link to comment Share on other sites More sharing options...
