markl18 Posted April 23, 2020 Share Posted April 23, 2020 (edited) what is 0a0c in device numberthe hackintool shows it as device 0x80869c20 sub device 0x17aa3978 name series 8 hd controller i need the number i can input into config file Edited April 24, 2020 by markl18 Link to comment Share on other sites More sharing options...
Andrey1970 Posted April 23, 2020 Share Posted April 23, 2020 8 minutes ago, anmool said: i don't see any realmac macOS Installer icon during boot with USB Installer only i see orange icon Install macOS Catalina on GUI PickerAttributes 1 1 Link to comment Share on other sites More sharing options...

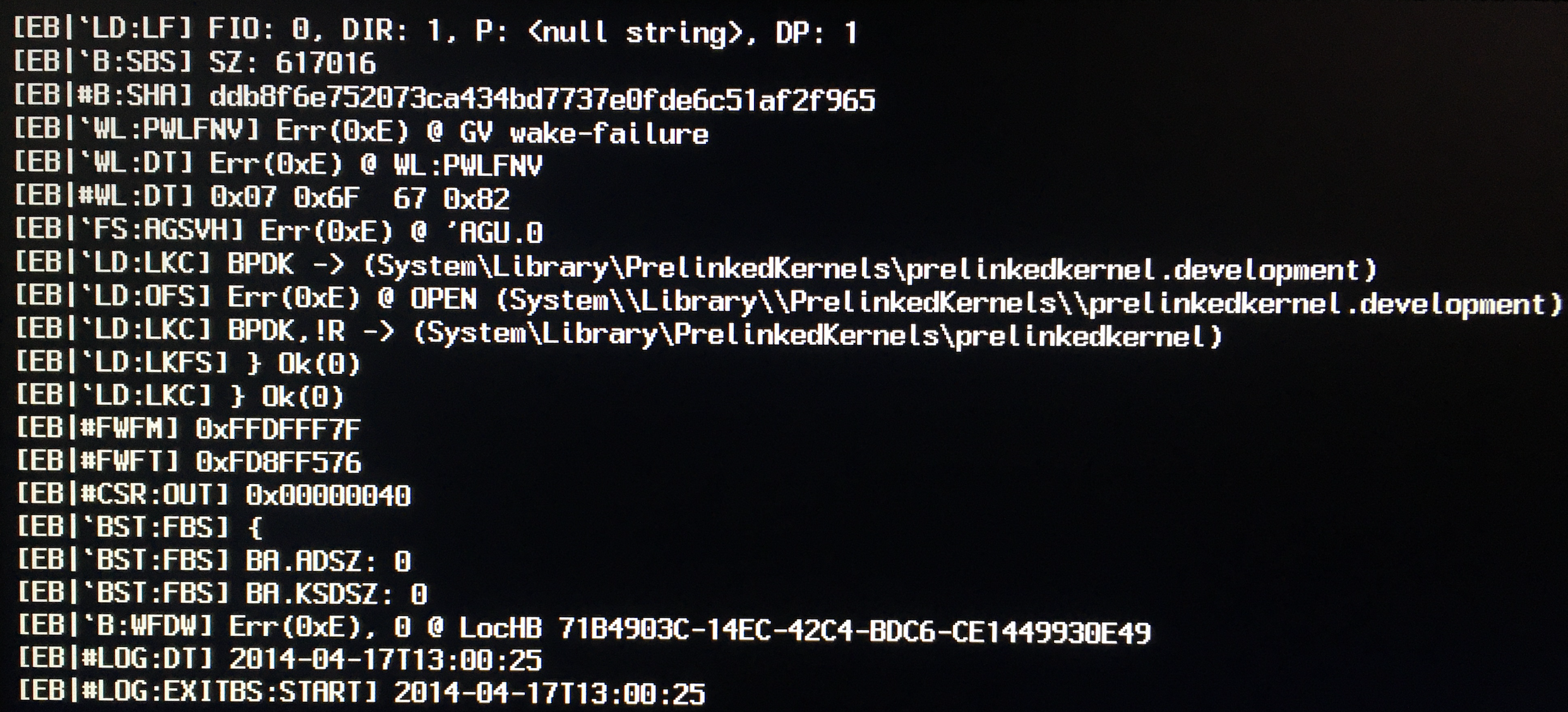

MacNB Posted April 23, 2020 Share Posted April 23, 2020 4 hours ago, hardcorehenry said: Base: _xcpm_bootstrap Comment: _xcpm_bootstrap (Ivy Bridge) 10.15.4+ Count: 1 Enabled: YES Find: 80C3C480FB42 Identifier: kernel Limit: 0 Mask: FFFF00FFFFFF MinKernel: 19.05.00 MaxKernel: 19.99.99 Replace: 80C3C680FB42 ReplaceMask: 0000FF000000 Skip: 0 Thx. That patch does not work. First, I'm on macOS 10.15.4 (19E287) and OC identifies it as 19.4.0 so that patch had to be modified so that MinKernel = 19.04.00. Second, I never had the Mask and ReplaceMask to work so they are left empty. Here's the patch: Then OC successfully patches the kernel (which I assume means that it found the "Find" value and replaced it "Replace" value : 15:093 00:010 OC: Read kernel version 19.4.0 (190400) 15:095 00:001 OC: Kernel patcher skips kernel (_xcpm_bootstrap (Ivy Bridge) 10.13-10.14) patch at 1 due to version 0 <= 190400 <= 180700 15:098 00:003 OCAK: _xcpm_bootstrap (Ivy Bridge) 10.15.4+ replace count - 1 15:100 00:001 OC: Kernel patcher result 2 for kernel (_xcpm_bootstrap (Ivy Bridge) 10.15.4+) - Success ...but that does not enable XCPM. There's nothing in the log to say that XCPM mode is enabled. Where did you get this patch from ? Is is meant for 10.15.5 ??? Link to comment Share on other sites More sharing options...
ameenjuz Posted April 23, 2020 Share Posted April 23, 2020 9 minutes ago, Andrey1970 said: PickerAttributes 1 as instruction of vit9696 said PickerAttributes set to 0 but didn't work now as your instruction PickerAttributes i set to 1 solved thanks so much Andrey1970 PickerAttributes set to 1 worked Link to comment Share on other sites More sharing options...
hardcorehenry Posted April 23, 2020 Share Posted April 23, 2020 41 minutes ago, MacNB said: Thx. That patch does not work. First, I'm on macOS 10.15.4 (19E287) and OC identifies it as 19.4.0 so that patch had to be modified so that MinKernel = 19.04.00. Second, I never had the Mask and ReplaceMask to work so they are left empty. Here's the patch: Then OC successfully patches the kernel (which I assume means that it found the "Find" value and replaced it "Replace" value : 15:093 00:010 OC: Read kernel version 19.4.0 (190400) 15:095 00:001 OC: Kernel patcher skips kernel (_xcpm_bootstrap (Ivy Bridge) 10.13-10.14) patch at 1 due to version 0 <= 190400 <= 180700 15:098 00:003 OCAK: _xcpm_bootstrap (Ivy Bridge) 10.15.4+ replace count - 1 15:100 00:001 OC: Kernel patcher result 2 for kernel (_xcpm_bootstrap (Ivy Bridge) 10.15.4+) - Success ...but that does not enable XCPM. There's nothing in the log to say that XCPM mode is enabled. Where did you get this patch from ? Is is meant for 10.15.5 ??? In bootstrap patch you only have to replace C4 with calculated value for your processor IvyBridge C6. I may have miscalculated MinKernel, but it is meant for 10.15.4. Do you have SSDT-PLUG.aml in your ACPI folder and config? Did you rebuild kernel cache after applying this patch? Link to comment Share on other sites More sharing options...
topolino1 Posted April 23, 2020 Share Posted April 23, 2020 Hi, After updating to 10.15.4 The system does not start. There was a problem: The system starts at 0.5.5 - But this problem occurs. On OC 0.5.8. Does not start. How to fix it? Thx. Link to comment Share on other sites More sharing options...
4everAnoob Posted April 23, 2020 Share Posted April 23, 2020 I need to change device ID for the IMEI device, PciRoot(0x0)/Pci(0x16,0x0) However, using device-id dict in Device Properties has no effect. The device id change is ignored. It works fine if I want to change device ID for graphics card. But for IMEI it is always ignored. Result: no QE CI. Clover works perfectly. pls help? I need to change device ID for the IMEI device, PciRoot(0x0)/Pci(0x16,0x0) However, using device-id dict in Device Properties has no effect. The device id change is ignored. It works fine if I want to change device ID for graphics card. But for IMEI it is always ignored. Result: no QE CI. Clover works perfectly. pls hlep Link to comment Share on other sites More sharing options...
MacNB Posted April 23, 2020 Share Posted April 23, 2020 (edited) 55 minutes ago, hardcorehenry said: In bootstrap patch you only have to replace C4 with calculated value for your processor IvyBridge C6. I may have miscalculated MinKernel, but it is meant for 10.15.4. Do you have SSDT-PLUG.aml in your ACPI folder and config? Did you rebuild kernel cache after applying this patch? I see where you got that patch from. That was from @nmano's list for Haswell, Skylake and later. They don't work for Ivy Bridge. Yes I have an SSDT for my CPU PM and it's does set Plugin-Type to 1. No I had not rebuild the cache as patch ing live on relinked kernel. I did it anyway just to prove rebelling cache makes no difference. I got my Ivy Bridge patch for High Sierra & Mojave from Clover sources for KernelXCPM quirk and will need to check if they updated it for Catalina. Thanks anyway. Edited April 23, 2020 by MacNB Link to comment Share on other sites More sharing options...
markl18 Posted April 23, 2020 Share Posted April 23, 2020 (edited) hi anyone any ideas last message repeated 2 times --- Apr 23 00:01:27 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. Apr 23 00:01:49 --- last message repeated 1 time --- Apr 23 00:01:49 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 1 seconds. Pushing respawn out by 9 seconds. Apr 23 00:01:58 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. Apr 23 00:02:29 --- last message repeated 2 times --- Apr 23 00:02:29 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. Apr 23 00:02:50 --- last message repeated 1 time --- Apr 23 00:02:50 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 1 seconds. Pushing respawn out by 9 seconds. Apr 23 00:02:59 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. Apr 23 00:03:01 ms-iMac com.apple.xpc.launchd[1] (com.apple.xpc.launchd.domain.pid.mdmclient.2582): Failed to bootstrap path: path = /usr/libexec/mdmclient, error = 108: Invalid path Apr 23 00:03:09 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. Apr 23 00:03:40 --- last message repeated 2 times --- Apr 23 00:03:40 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. Apr 23 00:04:11 --- last message repeated 2 times --- Apr 23 00:04:11 ms-iMac com.apple.xpc.launchd[1] (com.apple.wifi.WiFiAgent): Sermac-pc@ms-iMac log % /usr/libexec/mdmclient mdmclient: Client Management MDM client this is what caused this kxld[as.vt9696.virtualsmc] following symbols are unresolved __zn14basedeviceinfo3getev what in the world I never seen this that all of these kexts share same vt9696 and something doesnt get loaded rpoperly and then it kp's who is this russian guy vitaliy @vit9696 who wrote whole slew of these kexts that has his name all over the place @Andrey1970 Edited April 24, 2020 by markl18 Link to comment Share on other sites More sharing options...
markl18 Posted April 23, 2020 Share Posted April 23, 2020 1 hour ago, topolino1 said: Hi, After updating to 10.15.4 The system does not start. There was a problem: The system starts at 0.5.5 - But this problem occurs. On OC 0.5.8. Does not start. How to fix it? Thx. just had same issue And don't forget to disable the following from your config.plist under Kernel -> Quirks: AppleCpuPmCfgLock AppleXcpmCfgLock 同样问题,已解决,我的是cfg lock的问题,如果没有解锁将Config—–Kernel—–Quirks下AppleCpuPmCfgLock设为yes ,AppleXcpmCfgLock设为yes,Config—–UEFI—-Quirks下IgnoreInvalidFlexRatio设为yes The same problem has been solved. My problem is the cfg lock. If it is not unlocked, set AppleCpuPmCfgLock to yes under Config—Kernel—Quirks, set yes to AppleXcpmCfgLock, and set IgnoreInvalidFlexRatio to yes under Config—UEFI—Quirks. these 3 should do the trick Link to comment Share on other sites More sharing options...
Andrey1970 Posted April 23, 2020 Share Posted April 23, 2020 2 hours ago, anmool said: as instruction of vit9696 said PickerAttributes set to 0 but didn't work now as your instruction PickerAttributes i set to 1 solved thanks so much Andrey1970 PickerAttributes set to 1 worked Set bit0 = 1 Link to comment Share on other sites More sharing options...

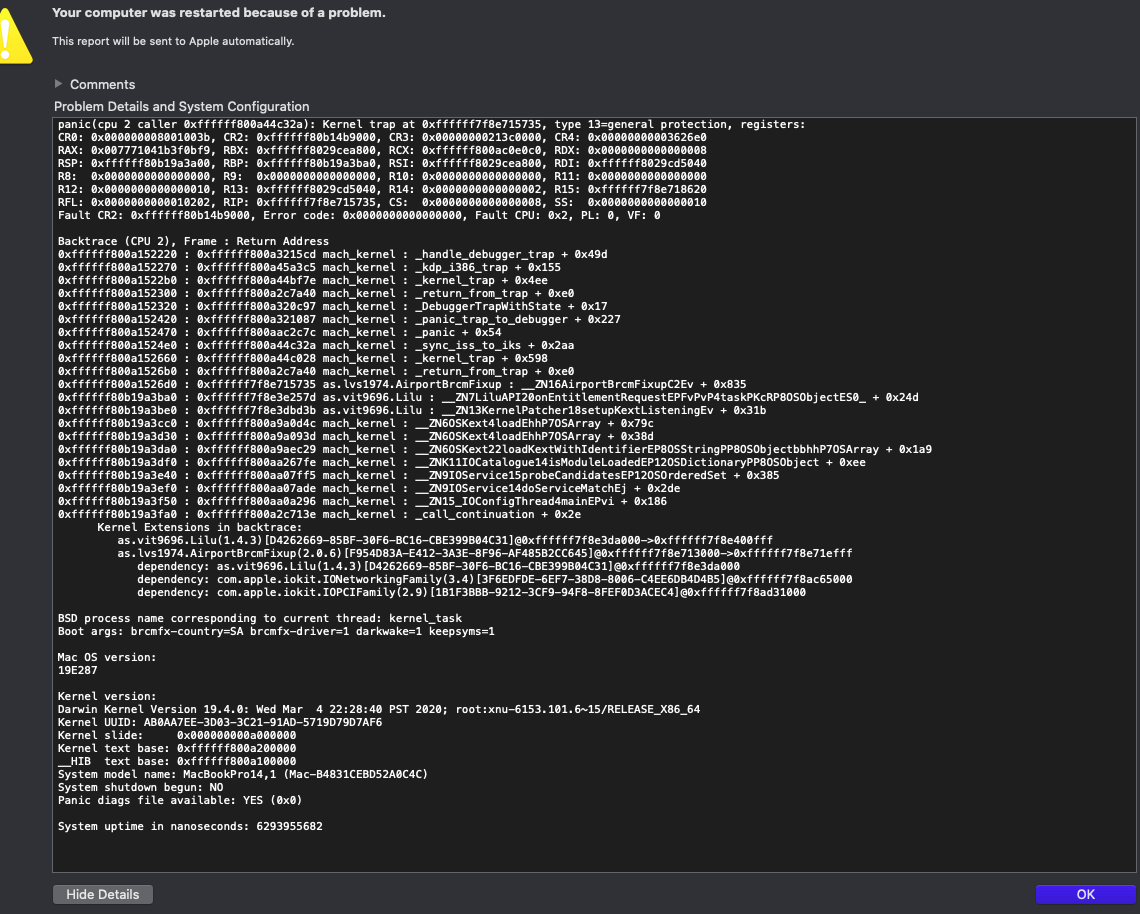

ameenjuz Posted April 23, 2020 Share Posted April 23, 2020 @Andrey1970 sometime break my boot in half apple logo and restart again i have no idea what is this issue but i updated all kexts no luck i attached screenshot of report Link to comment Share on other sites More sharing options...
topolino1 Posted April 23, 2020 Share Posted April 23, 2020 54 minutes ago, markl18 said: just had same issue And don't forget to disable the following from your config.plist under Kernel -> Quirks: AppleCpuPmCfgLock AppleXcpmCfgLock 同样问题,已解决,我的是cfg lock的问题,如果没有解锁将Config—–Kernel—–Quirks下AppleCpuPmCfgLock设为yes ,AppleXcpmCfgLock设为yes,Config—–UEFI—-Quirks下IgnoreInvalidFlexRatio设为yes The same problem has been solved. My problem is the cfg lock. If it is not unlocked, set AppleCpuPmCfgLock to yes under Config—Kernel—Quirks, set yes to AppleXcpmCfgLock, and set IgnoreInvalidFlexRatio to yes under Config—UEFI—Quirks. these 3 should do the trick Thanks @ markl18. AppleCpuPmCfgLock yes, AppleXcpmCfgLock yes, I had it corrected. I changed IgnoreInvalidFlexRatio to yes, but it didn't work. How to fix it? Link to comment Share on other sites More sharing options...
AudioGod Posted April 23, 2020 Share Posted April 23, 2020 Just now, topolino1 said: Thanks @ markl18. AppleCpuPmCfgLock yes, AppleXcpmCfgLock yes, I had it corrected. I changed IgnoreInvalidFlexRatio to yes, but it didn't work. How to fix it? Have you sat down and made yourself a drink and spent the time to read though the OpenCore guide? I think you might find it very helpful if you do. I would say this is your best course or action as you will learn what to do and where your going wrong? Your issues are all very basic and all the answers you need are there for you in the guide. There’s no better way of doing it other then learning how to do something for yourself buddy. more so when it’s something so basic. 2 Link to comment Share on other sites More sharing options...
topolino1 Posted April 23, 2020 Share Posted April 23, 2020 (edited) 11 hours ago, AudioGod said: Czy usiadłeś, zrobiłeś sobie drinka i spędziłeś czas na czytaniu przewodnika OpenCore? Myślę, że może ci się to bardzo przydać. Powiedziałbym, że to twój najlepszy kurs lub działanie, ponieważ dowiesz się, co robić i gdzie popełnisz błąd? Twoje problemy są bardzo podstawowe, a wszystkie potrzebne odpowiedzi znajdziesz w przewodniku. Nie ma lepszego sposobu, aby to zrobić inaczej niż nauczenie się, jak zrobić coś dla siebie. tym bardziej, gdy jest to coś tak podstawowego. Hi @AudioGod I read a lot of drinks while reading Yes, I read the guide many times and I keep coming back to it. I can't find the answer to this problem, maybe it's about poor English. I remind you that I mean: Could you tell where to look? @AudioGod is not a basic guide issue, so as you say you know say it. Because I was looking for solutions and it is not so easy. Edited April 24, 2020 by topolino1 Link to comment Share on other sites More sharing options...
SavageAUS Posted April 24, 2020 Share Posted April 24, 2020 Not sure if it is implemented yet or not but can we change the icons for macOS / Windows etc with opencanopy? If so how? Link to comment Share on other sites More sharing options...

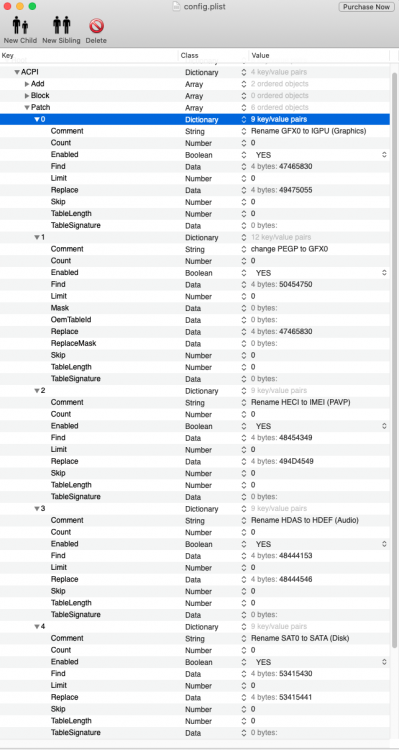

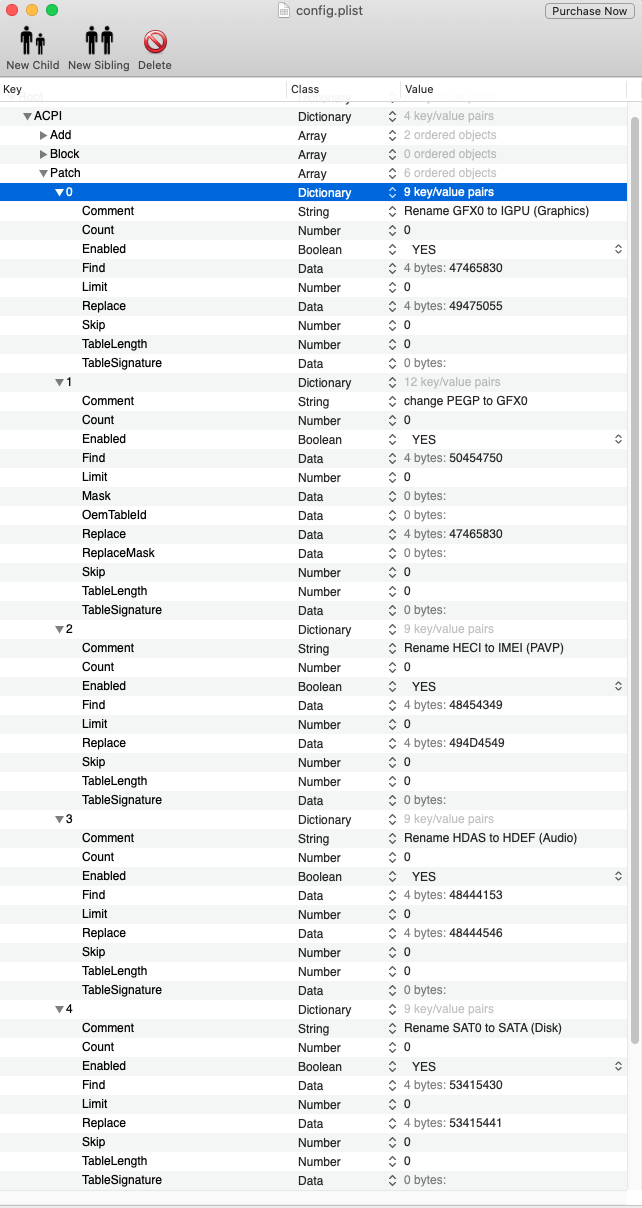

FARZAD11 Posted April 24, 2020 Share Posted April 24, 2020 On 3/25/2020 at 8:58 PM, AudioGod said: Quick Question to anybody and probably a dumb one. Should I still be using device rename patches in OpenCore or should I of dropped all of that a while ago? opencore is just simple, nust klik file ,snapshot then choose folder OC then klik open then 2 Link to comment Share on other sites More sharing options...
AudioGod Posted April 24, 2020 Share Posted April 24, 2020 (edited) 10 hours ago, topolino1 said: Hi @AudioGod I read a lot of drinks while reading Yes, I read the guide many times and I keep coming back to it. I can't find the answer to this problem, maybe it's about poor English. I remind you that I mean: Could you tell where to look? @AudioGod is not a basic guide issue, so as you say you know say it. Because I was looking for solutions and it is not so easy. @AudioGod. I knew you didn't know the solution, Yes anyone can write. Many people had this problem here and hardly anyone solved it. What are you talking about dude, I live in the U.K. and I was doing something called sleeping as it was late believe it or not but I’m glad you think I don’t know....lol.....Your attitude will get no help from me buddy but for the record I was never offering to help in the first place, I was just making a suggestion to you. Edited April 24, 2020 by AudioGod 1 Link to comment Share on other sites More sharing options...
vit9696 Posted April 24, 2020 Share Posted April 24, 2020 10 hours ago, anmool said: @Andrey1970 sometime break my boot in half apple logo and restart again i have no idea what is this issue but i updated all kexts no luck i attached screenshot of report Provide kernel panic with debug AirportBrcmFixup and Lilu versions. Link to comment Share on other sites More sharing options...
mhaeuser Posted April 24, 2020 Share Posted April 24, 2020 @Synapsis Fixed at https://github.com/acidanthera/OpenCorePkg/commit/fbecde80663ea688ff0a83c4303cecbb49fd766f 2 Link to comment Share on other sites More sharing options...
lvs1974 Posted April 24, 2020 Share Posted April 24, 2020 11 hours ago, anmool said: @Andrey1970 sometime break my boot in half apple logo and restart again i have no idea what is this issue but i updated all kexts no luck i attached screenshot of report Could you try attached version, please? AirportBrcmFixup-2.0.7-DEBUG.zip Link to comment Share on other sites More sharing options...
topolino1 Posted April 24, 2020 Share Posted April 24, 2020 (edited) 1 hour ago, AudioGod said: What are you talking about dude, I live in the U.K. and I was doing something called sleeping as it was late believe it or not but I’m glad you think I don’t know....lol.....Your attitude will get no help from me buddy but for the record I was never offering to help in the first place, I was just making a suggestion to you. @AudioGod, I am so sorry. I just can't find a solution. I found nothing in the documentation. Often, everyone write see documentation, but I set the config based on the documentation. I changed the config a lot of times and it doesn't work Edited April 24, 2020 by topolino1 Link to comment Share on other sites More sharing options...

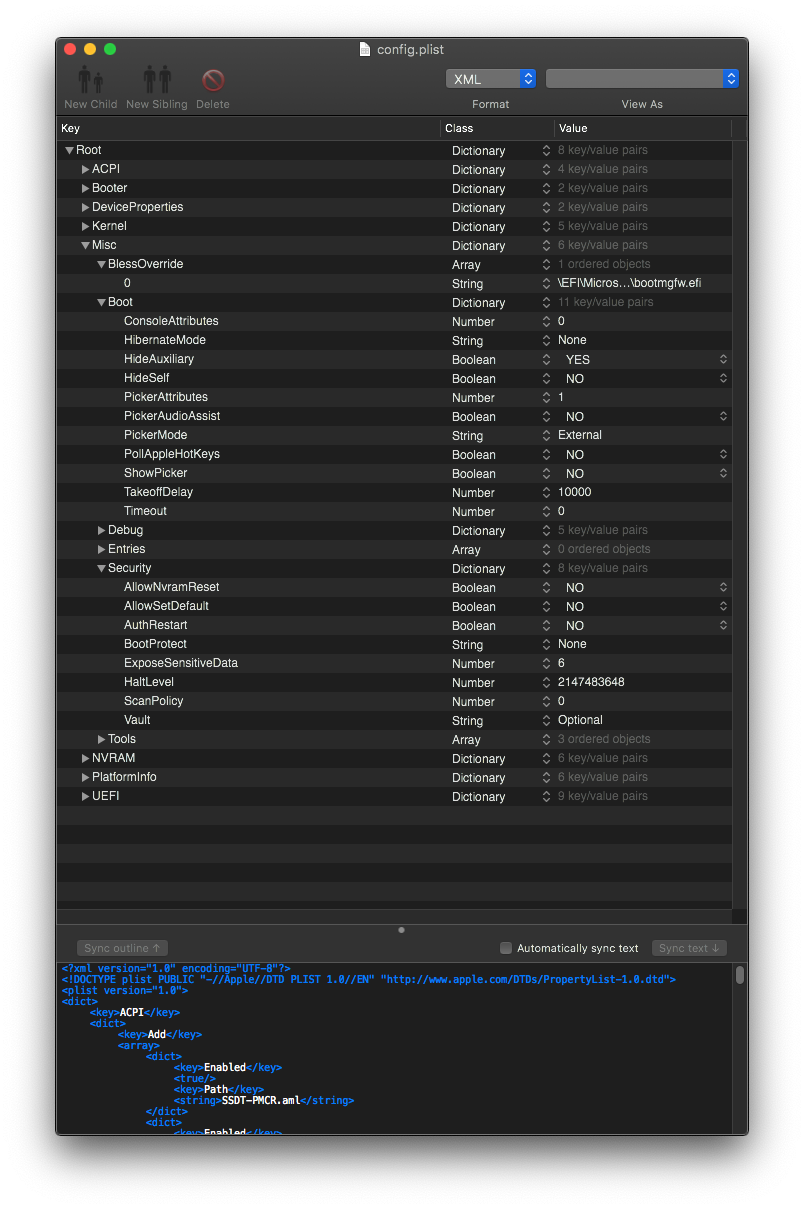

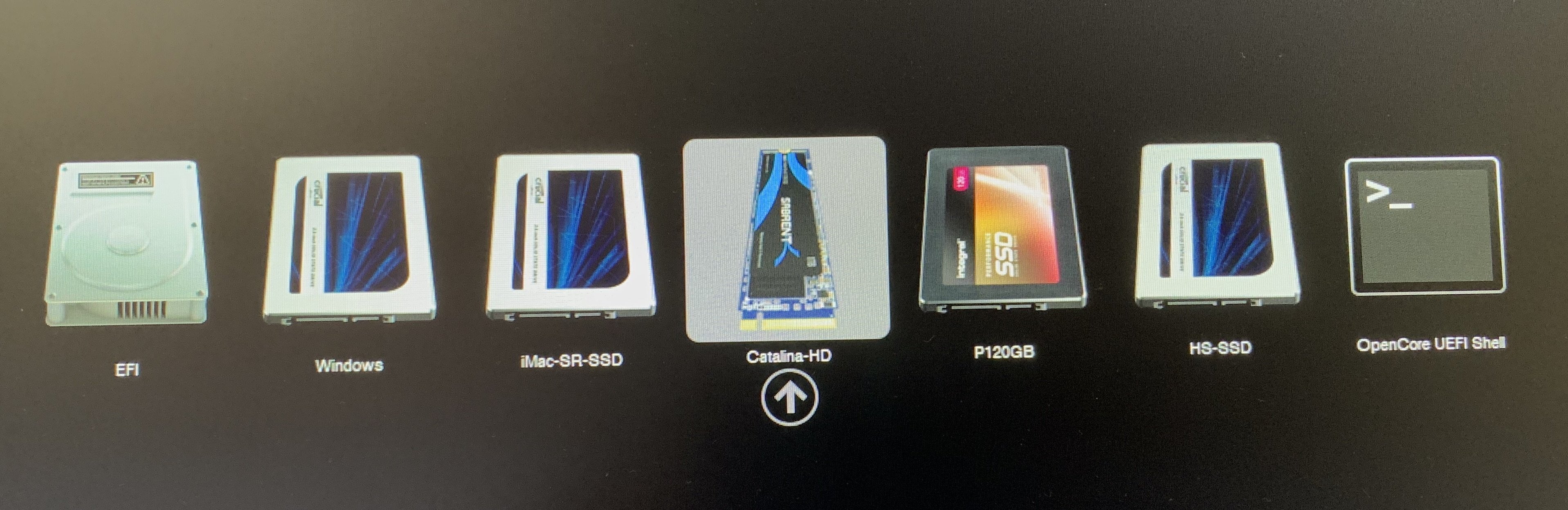

MacNB Posted April 24, 2020 Share Posted April 24, 2020 (edited) 20 hours ago, SavageAUS said: Not sure if it is implemented yet or not but can we change the icons for macOS / Windows etc with opencanopy? If so how? Yes you can. After vit9696's explanation, Windows partition's icon can be displayed too. Here's what mine looks like: See Configuration.pdf Section 8.3 (5) - PickerAttributes. It'd early days for OpenCanopy (pre-release) so not all features are implemented and/or working. This is what I did: 1. Set PickerAttributes=1 2. Create your icons. I used Image2icon App and rename it .VolumeIcon.icns 3. For APFS volumes, I had to mount the preboot partition (diskutil mount diskXsy) and copy the .VolumeIcon.icns to the root of the preboot partition. Unmount the partition (diskutil unmount diskXsy) 4. For HFS volume, just copy the .VolumeIcon.icns to the root of the volume 5. For Windows, copy the .VolumeIcon.icns file to the root of EFI partition from where Windows boots. YMMV EDIT: Here's what preboot looks like: % ls -ail /volumes/preboot total 10432 2 drwxr-xr-x@ 5 root wheel 160 11 Apr 15:45 . 24273 drwxr-xr-x 10 root wheel 320 24 Apr 12:03 .. 153 d-wx--x--t 4 root wheel 128 24 Feb 18:16 .Trashes 1236 -rw-r--r--@ 1 root wheel 2193241 14 Apr 19:00 .Volumeicon.icns 16 drwxr-xr-x 7 root wheel 224 22 Nov 2018 E279060B-74D4-3B85-A4C4-6835F84A3C7A % Here's what the EFI folder (where Windows is booted from): % ls -ail /volumes/efi total 5184 2 drwxrwxrwx@ 1 MacNB staff 1024 24 Apr 12:43 . 24273 drwxr-xr-x 10 root wheel 320 24 Apr 13:56 .. 193933 drwxrwxrwx 1 MacNB staff 512 16 Dec 2017 .TemporaryItems 3 drwxrwxrwx@ 1 MacNB staff 512 24 Apr 13:56 .Trashes 26897 -rwxrwxrwx@ 1 MacNB staff 2192190 14 Apr 21:39 .VolumeIcon.icns 4 -rwxrwxrwx 1 MacNB staff 4096 2 Dec 2016 ._.Trashes 26889 -rwxrwxrwx 1 MacNB staff 4096 24 Apr 12:43 ._.VolumeIcon.icns 26887 drwxrwxrwx 1 MacNB staff 512 24 Apr 13:56 .fseventsd 999999999 -rwxrwxrwx 1 MacNB staff 0 2 Oct 2017 .metadata_never_index 1530 drwxrwxrwx 1 MacNB staff 1024 7 Nov 2018 EFI 332437 -rwxrwxrwx 1 MacNB staff 450048 27 Sep 2017 boot % Edited April 25, 2020 by MacNB Extra info & correction Link to comment Share on other sites More sharing options...
AudioGod Posted April 24, 2020 Share Posted April 24, 2020 7 minutes ago, topolino1 said: @AudioGod, I am so sorry. I just can't find a solution. I found nothing in the documentation. Often, everyone write see documentation, but I set the config based on the documentation. I changed the config a lot of times and it doesn't work PM me your EFI and also a run down of your spec and il have a look though it for you? im not a mean Guy I promise lol 2 Link to comment Share on other sites More sharing options...
vit9696 Posted April 24, 2020 Share Posted April 24, 2020 You need to put the icon on the volume your bootloader is. For Windows the bootloader is on ESP volume, so you need to put the icon to EFI partition of your Windows installation. 1 3 Link to comment Share on other sites More sharing options...
