Andrey1970 Posted April 22, 2020 Share Posted April 22, 2020 35 minutes ago, markl18 said: does any one have a clue and @Andrey1970 doesnt seem to care maybe because I am not from moscow but from lvov don't know also my sound doesnt work but video is not what I would call stelar maybe the device numbers are wrong Я не знаю откуда ты, мне это не важно. Если ты русскоговорящий, то проще спросить на https://applelife.ru Link to comment Share on other sites More sharing options...
ammoune78 Posted April 22, 2020 Share Posted April 22, 2020 (edited) 5 hours ago, Andrey1970 said: In a firmware crude tables. Don't use them. If i simply apply the patches that I do with clover using OpenCore, it doesn't work at all. I still never get passed the IOConsleusers: gIOScreenLock at the moment. Pretty weird, this is why i'm looking into another strategy "Fix the problem from it's beginning". I started checking all the ACPI tables and I'm still doing it, to find what i can better do! I'm not scarred because a CH341A is the medicament of that situations, and maybe recompiling the XSDT will be better solution, like I did for my old Z97 and Z87 boards Edited April 22, 2020 by ammoune78 Link to comment Share on other sites More sharing options...
markl18 Posted April 22, 2020 Share Posted April 22, 2020 2 hours ago, Andrey1970 said: Я не знаю откуда ты, мне это не важно. Если ты русскоговорящий, то проще спросить на https://applelife.ru After 40 not present there my Russian and yours are miles apart in my time the word Fishka was meaningless now it means a usb stock language has evolved mine didn’t but once I got your attention can you help me get the touch working it for hd4400 4510 yoga 2 pro yes I do understand Russian Pushkin and lermontov but not fishka Link to comment Share on other sites More sharing options...
ameenjuz Posted April 22, 2020 Share Posted April 22, 2020 Thanks for all guys to good celarification @Andrey1970 @vit9696 @MacNB @telepati i agree with this sentence @vit9696All the above works fine in both builtin UI and OpenCanopy, yet Ctrl+Enter is indeed not yet implemented in OpenCanopy. If more developers start to contribute quality patches, it would have become easier @Andrey1970 Remember that OpenCanopy is preview version Link to comment Share on other sites More sharing options...
saleh99 Posted April 22, 2020 Share Posted April 22, 2020 Thanks for everyone behind OC project, I was using previous methods since 2006, but while using OC I can see during pre setup how this project is too big and had a good work my simple question is, I have NVIDIA 1070 GPU, well it going to work on os x 10.13.6 or do I need use iGPU first then install webdriver then back to dGPU? and if so, do I nedd to deactivate dGPU before start? or no? cause I will use it after install os x 10.13.6 thanks again Link to comment Share on other sites More sharing options...
Andrey1970 Posted April 22, 2020 Share Posted April 22, 2020 1 hour ago, markl18 said: After 40 not present there my Russian and yours are miles apart in my time the word Fishka was meaningless now it means a usb stock language has evolved mine didn’t but once I got your attention can you help me get the touch working it for hd4400 4510 yoga 2 pro yes I do understand Russian Pushkin and lermontov but not fishka You confuse AAPL,ig-platform-id and device-id. 12040000 is device-id. Better for you to pass into this topic and read a manual. I know nothing about a touchscreen. Link to comment Share on other sites More sharing options...
markl18 Posted April 22, 2020 Share Posted April 22, 2020 36 minutes ago, Andrey1970 said: You confuse AAPL,ig-platform-id and device-id. 12040000 is device-id. Better for you to pass into this topic and read a manual. I know nothing about a touchscreen. on the last post I left couple of aml files that a wrong or need some more renditioning and editing with knowledgeable eye Link to comment Share on other sites More sharing options...
MacNB Posted April 22, 2020 Share Posted April 22, 2020 On 4/5/2020 at 2:59 AM, nmano said: _xcpm_bootstrap 10.15.4 I test X99 & X299. If you Add XCPM bootstrap patch you have to Emulate Original CPU ID like this. #Kernel->Emulate->Your CPU Original ID #CPUID 0x050657 Cascade Lake-X Cpuid1Data <-> 57060500 00000000 00000000 00000000 Cpuid1Mask <-> FFFFFFFF 00000000 00000000 00000000 #Emulate 0x050654 Skylake-X/Skylake-H 0x0406E3 Cpuid1Data <-> 54060500 00000000 00000000 00000000 Cpuid1Mask <-> FFFFFFFF 00000000 00000000 00000000 #Emulate 0x0306F2 Haswell-E/Haswell 0x0306C3 Cpuid1Data <-> F2060300 00000000 00000000 00000000 Cpuid1Mask <-> FFFFFFFF 00000000 00000000 00000000 #Emulate 0x0406F1 Broadwell-E/Broadwell 0x0306D4 Cpuid1Data <-> F1060400 00000000 00000000 00000000 Cpuid1Mask <-> FFFFFFFF 00000000 00000000 00000000 Base: _xcpm_bootstrap Comment: xcpm_bootstrap HASwell-E/Cascade Lake-X (c) Pike R. Alpha Modify By N.Mano Count: 0 Enabled: YES Find: 80C3C480 FB42 Identifier: kernel Limit: 0 Mask: (LEAVE THIS EMPTY) MatchKernel: Replace: 80C3C180 FB42 ReplaceMask: (LEAVE THIS EMPTY) Skip: 0 Base: _xcpm_bootstrap Comment: xcpm_bootstrap Skylake-X (c) Pike R. Alpha Modify By N.Mano Count: 0 Enabled: YES Find: 80C3C480 FB42 Identifier: kernel Limit: 0 Mask: (LEAVE THIS EMPTY) MatchKernel: Replace: 80C3BD80 FB42 ReplaceMask: (LEAVE THIS EMPTY) Skip: 0 Base: _xcpm_bootstrap Comment: xcpm_bootstrap Broadwell-E (c) Pike R. Alpha Modify By N.Mano Count: 0 Enabled: YES Find: 80C3C480 FB42 Identifier: kernel Limit: 0 Mask: (LEAVE THIS EMPTY) MatchKernel: Replace: 80C3BC80 FB42 ReplaceMask: (LEAVE THIS EMPTY) Skip: 0 I have and Ivy Bridge CPU and have successfully used a xcpm_bootstrap patch for 10.14 using : The same values for Find/Replace do not work with 10.15 (Catalina). Do you happen to have a patch for 10.15 for Ivy Bridge ? Thx. Link to comment Share on other sites More sharing options...
pieropontra Posted April 22, 2020 Share Posted April 22, 2020 Hey guys! I just switched from SMBIOS/DATAHUB/etc into Platform Info in my config.plist to Automatic / General. With previous method I was able to use CPUType to correctly display 18 core Xeon W for my 9980XE, now about this Mac shows only "3 GHz" and nothing else. What am I missing? Thanks Link to comment Share on other sites More sharing options...

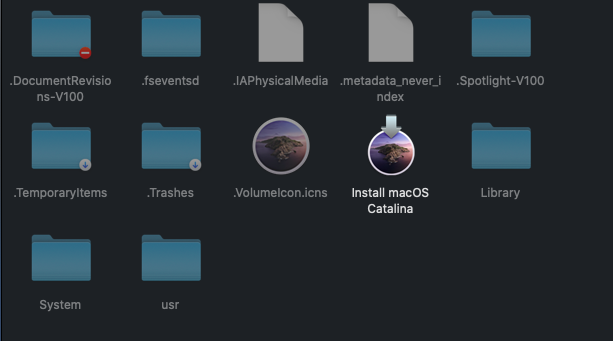

ameenjuz Posted April 23, 2020 Share Posted April 23, 2020 (edited) @Andrey1970 i put it .VolumeIcon.icns into root volume for custom macOS Installer but didn't show macOS Installer Icon in GUI such like this Edited April 23, 2020 by anmool edited Link to comment Share on other sites More sharing options...
mhaeuser Posted April 23, 2020 Share Posted April 23, 2020 @anmool Installer icons use an icns format not supported by 0.5.7, wait for 0.5.8 rolling out 1 Link to comment Share on other sites More sharing options...
ameenjuz Posted April 23, 2020 Share Posted April 23, 2020 45 minutes ago, Download-Fritz said: @anmool Installer icons use an icns format not supported by 0.5.7, wait for 0.5.8 rolling out thanks for replying i m using latest commit changes compiled 5.8 and using icns format Link to comment Share on other sites More sharing options...
pieropontra Posted April 23, 2020 Share Posted April 23, 2020 9 hours ago, pieropontra said: Hey guys! I just switched from SMBIOS/DATAHUB/etc into Platform Info in my config.plist to Automatic / General. With previous method I was able to use CPUType to correctly display 18 core Xeon W for my 9980XE, now about this Mac shows only "3 GHz" and nothing else. What am I missing? Thanks So, OpenCore isn't able to retrieve all the CPUType in automatic? When I was using SMBIOS/DataHub/PlatformNVRAM I added "3841" (0xF01 in Hex) to SMBIOS-->ProcessorType and it showed correctly "Intel Xeon W 18 core" since I got a 9980XE and MacPro7,1 SMBIOS. Now, with latest changes to config.plist sample, we're forced to use the Automatic/Generic mode which doesn't give us the ability to modify ProcessorType. Is there a way to solve this? I know in other SMBIOSes / CPUs OpenCore is able to retrieve ProcessorType automatically, will this functionality be updated for MacPro7,1 / X299 Skylake-X (and newer). Thanks. Link to comment Share on other sites More sharing options...

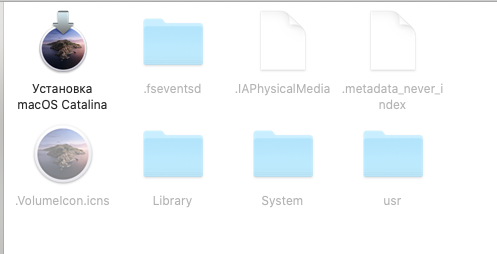

Andrey1970 Posted April 23, 2020 Share Posted April 23, 2020 (edited) 1 hour ago, anmool said: thanks for replying i m using latest commit changes compiled 5.8 and using icns format Mac USB installer already contains .VolumeIcon.icns, you don't need to add. OpenCore shows installer icons as on real Mac. Edited April 23, 2020 by Andrey1970 1 Link to comment Share on other sites More sharing options...
Shaneee Posted April 23, 2020 Share Posted April 23, 2020 Has the nvram for finding OC version changed? shaneee@iMac-Pro ~ % nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:opencore-version nvram: Error getting variable - '4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:opencore-version': (iokit/common) data was not found I can still pull other info but not OC version shaneee@iMac-Pro ~ % nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:oem-vendor 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:oem-vendor Micro-Star International Co., Ltd. Link to comment Share on other sites More sharing options...
Paksman Posted April 23, 2020 Share Posted April 23, 2020 3 hours ago, Shaneee said: Has the nvram for finding OC version changed? shaneee@iMac-Pro ~ % nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:opencore-version nvram: Error getting variable - '4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:opencore-version': (iokit/common) data was not found I can still pull other info but not OC version shaneee@iMac-Pro ~ % nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:oem-vendor 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:oem-vendor Micro-Star International Co., Ltd. Do you have ExposeSensitiveData set to 6 in config.plist ? I just tried and reading OC version from NVRAM works. Link to comment Share on other sites More sharing options...

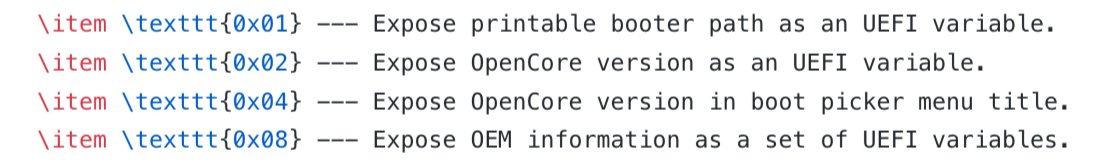

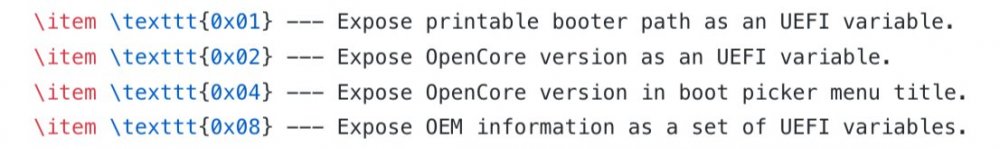

Shaneee Posted April 23, 2020 Share Posted April 23, 2020 8 minutes ago, Paksman said: Do you have ExposeSensitiveData set to 6 in config.plist ? I just tried and reading OC version from NVRAM works. It's set to 8 to display more info. Was working on the release of 0.5.7 but I am currently booting with the latest sources I compiled. Link to comment Share on other sites More sharing options...
vit9696 Posted April 23, 2020 Share Posted April 23, 2020 6 hours ago, anmool said: thanks for replying i m using latest commit changes compiled 5.8 and using icns format Make sure that PickerAttributes have BIT0 set. If it is the case and you are on master, please upload the relevant file, OpenCore debug log, and your EFI directory. Link to comment Share on other sites More sharing options...
Paksman Posted April 23, 2020 Share Posted April 23, 2020 30 minutes ago, Shaneee said: It's set to 8 to display more info. Was working on the release of 0.5.7 but I am currently booting with the latest sources I compiled. Try setting 10 or 14 Link to comment Share on other sites More sharing options...
Shaneee Posted April 23, 2020 Share Posted April 23, 2020 32 minutes ago, Paksman said: Try setting 10 or 14 14 fixed it. Thanks 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:opencore-version REL-058-2020-04-22 Link to comment Share on other sites More sharing options...

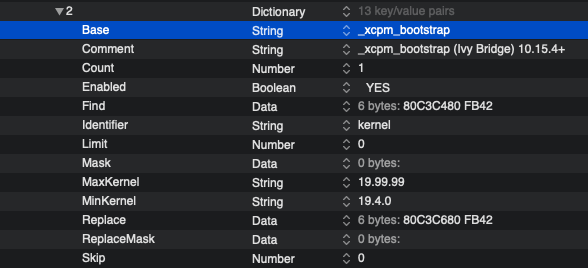

hardcorehenry Posted April 23, 2020 Share Posted April 23, 2020 (edited) 22 hours ago, MacNB said: I have and Ivy Bridge CPU and have successfully used a xcpm_bootstrap patch for 10.14 using : The same values for Find/Replace do not work with 10.15 (Catalina). Do you happen to have a patch for 10.15 for Ivy Bridge ? Thx. Base: _xcpm_bootstrap Comment: _xcpm_bootstrap (Ivy Bridge) 10.15.4+ Count: 1 Enabled: YES Find: 80C3C480FB42 Identifier: kernel Limit: 0 Mask: MinKernel: 19.04.00 MaxKernel: 19.99.99 Replace: 80C3C680FB42 ReplaceMask: Skip: 0 Edited April 23, 2020 by hardcorehenry Link to comment Share on other sites More sharing options...

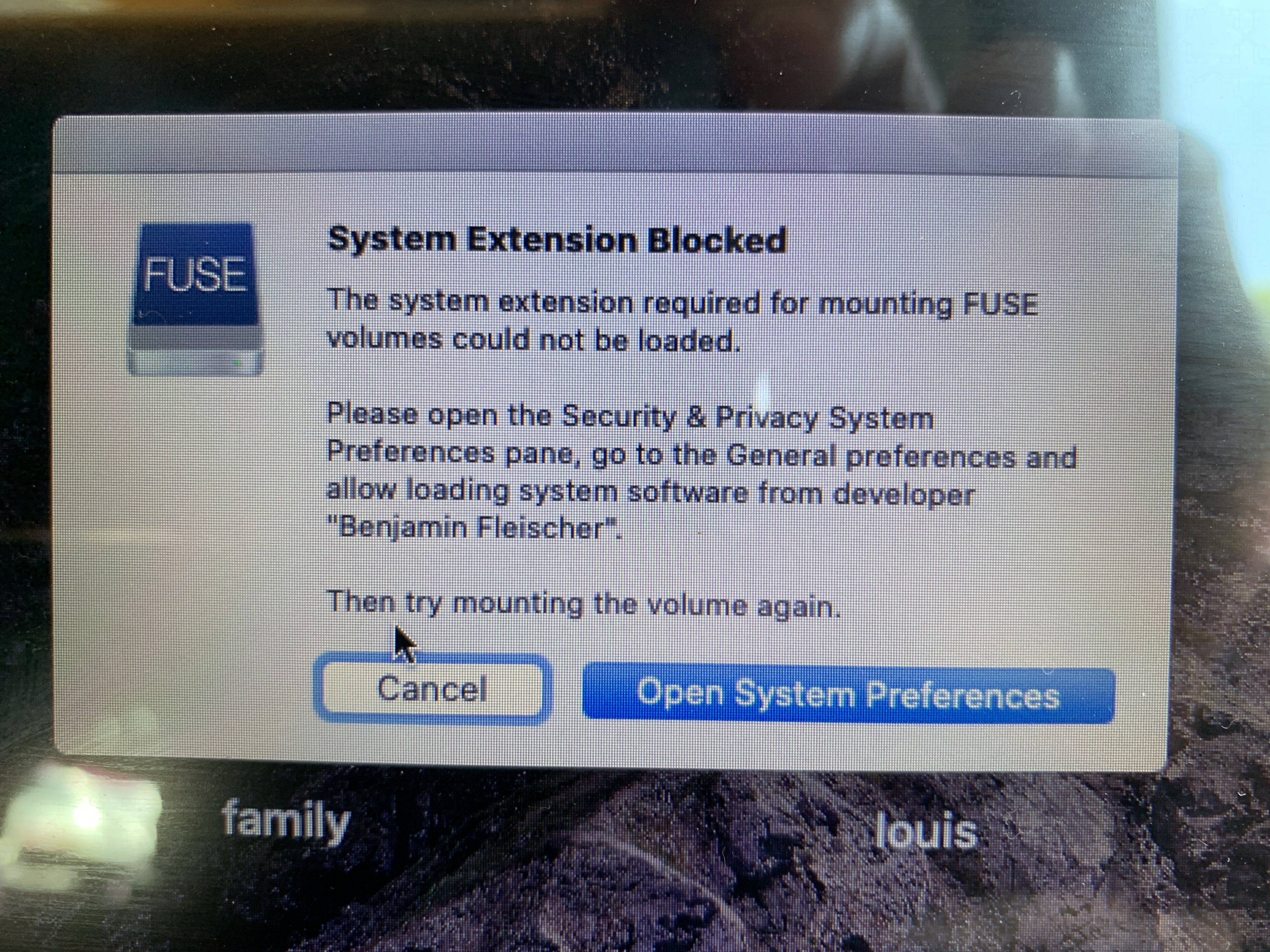

ltooz_audis Posted April 23, 2020 Share Posted April 23, 2020 Hello all, After a few days trials and errors, I got the 0.5.7 to boot to my MacBookPro11,2 Catalina 15.4, but I got this message on my OSXFUSE. What do I need to do to? Clover is fine with read/write to NTFS. Thanks, Louis Link to comment Share on other sites More sharing options...
markl18 Posted April 23, 2020 Share Posted April 23, 2020 hi I have problem booting stuck at initial screen dependency com.apple.iokt.IOHIDSystem fallback to com.apple.iokitIOHIDFamily succeeded please fix your kext Link to comment Share on other sites More sharing options...
Synapsis Posted April 23, 2020 Share Posted April 23, 2020 Has anybody tried to build OC with GCC lately? It compiled without a lot of fuzz previously now it's spilling some new errors. src/repos/OpenCorePkg/UDK/OpenCorePkg/Library/OcBootManagementLib/OcBootManagementLib.c:52:1: error: conflicting types for ‘OcShowSimpleBootMenu’ 52 | OcShowSimpleBootMenu ( | ^~~~~~~~~~~~~~~~~~~~ In file included from /src/repos/OpenCorePkg/UDK/OpenCorePkg/Library/OcBootManagementLib/BootManagementInternal.h:21, from /src/repos/OpenCorePkg/UDK/OpenCorePkg/Library/OcBootManagementLib/OcBootManagementLib.c:15: /src/repos/OpenCorePkg/UDK/OpenCorePkg/Include/Library/OcBootManagementLib.h:768:1: note: previous declaration of ‘OcShowSimpleBootMenu’ was here 768 | OcShowSimpleBootMenu ( | ^~~~~~~~~~~~~~~~~~~~ rm -f /src/repos/OpenCorePkg/UDK/Build/OpenCorePkg/DEBUG_GCC5/X64/OpenCorePkg/Library/OcCompilerIntrinsicsLib/OcCompilerIntrinsicsLib/OUTPUT/OcCompilerIntrinsicsLib.lib make: *** [GNUmakefile:363: /src/repos/OpenCorePkg/UDK/Build/OpenCorePkg/DEBUG_GCC5/X64/OpenCorePkg/Library/OcBootManagementLib/OcBootManagementLib/OUTPUT/OcBootManagementLib.obj] Error 1 Building ... /src/repos/OpenCorePkg/UDK/MdePkg/Library/UefiRuntimeServicesTableLib/UefiRuntimeServicesTableLib.inf [X64] build.py... : error 7000: Failed to execute command make tbuild [/src/repos/OpenCorePkg/UDK/Build/OpenCorePkg/DEBUG_GCC5/X64/OpenCorePkg/Library/OcBootManagementLib/OcBootManagementLib] build.py... : error F002: Failed to build module /src/repos/OpenCorePkg/UDK/OpenCorePkg/Library/OcBootManagementLib/OcBootManagementLib.inf [X64, GCC5, DEBUG] - Failed - Build end time: 21:40:28, Apr.23 2020 Build total time: 00:00:06 Link to comment Share on other sites More sharing options...

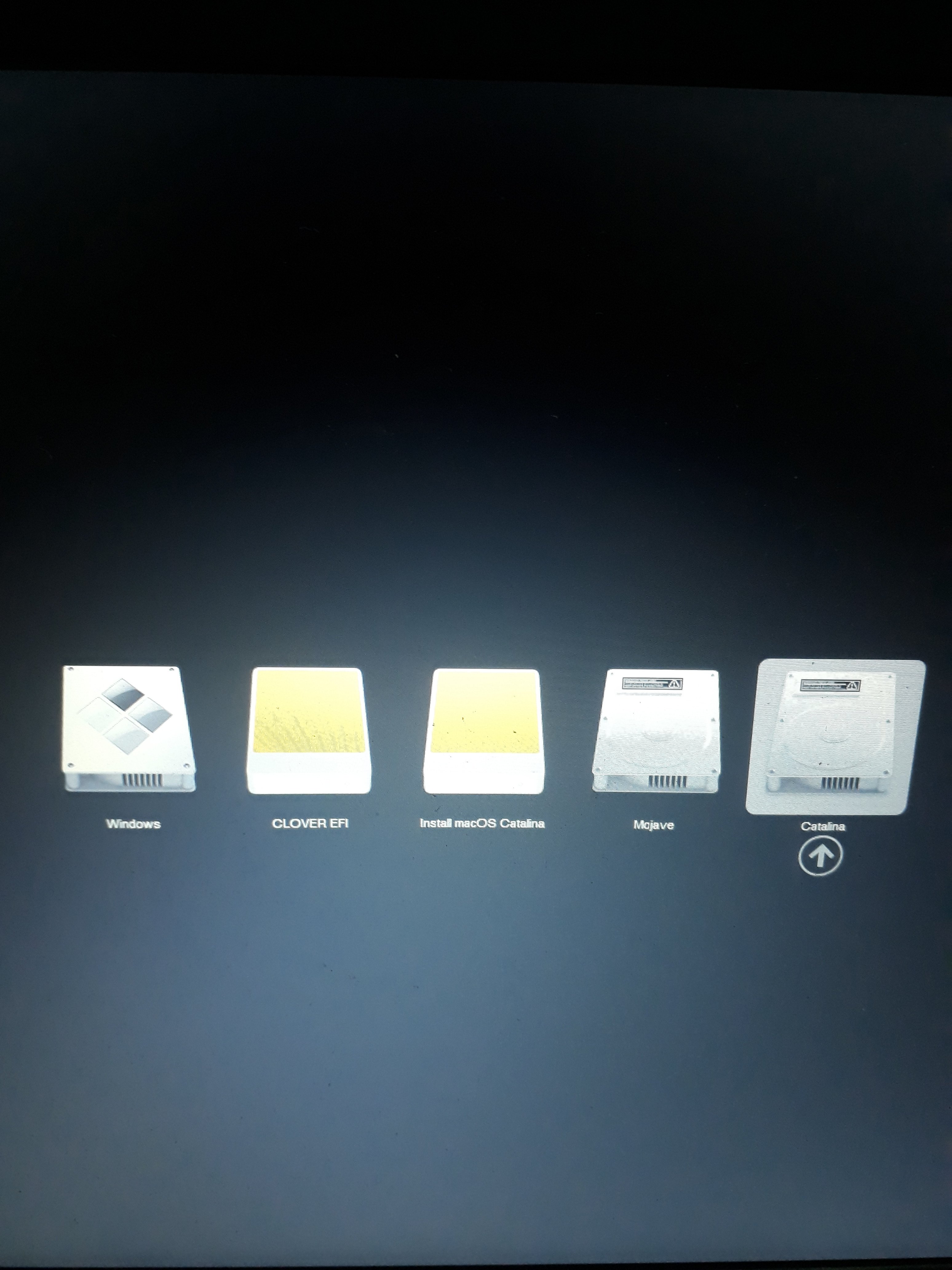

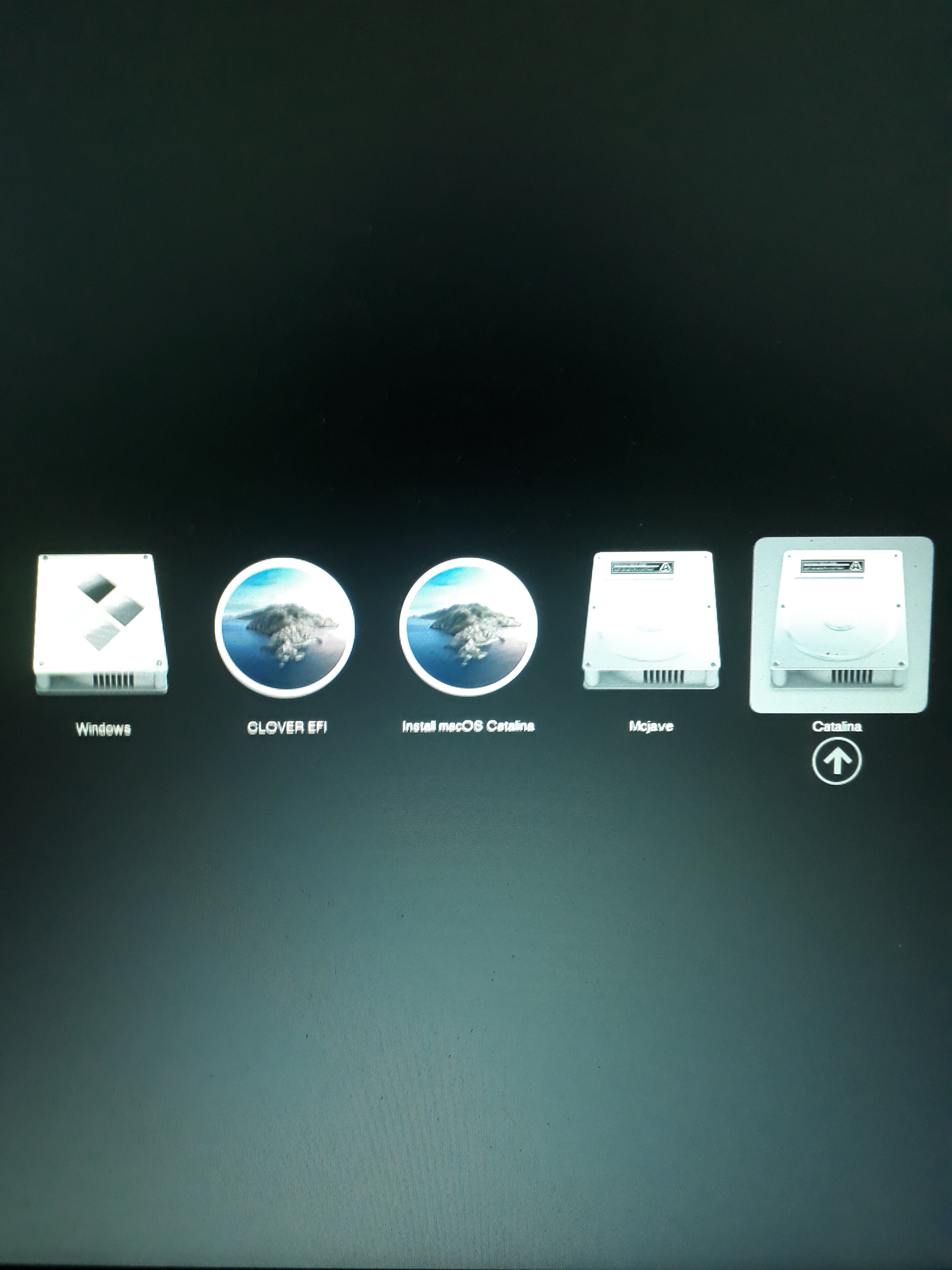

ameenjuz Posted April 23, 2020 Share Posted April 23, 2020 10 hours ago, Andrey1970 said: Mac USB installer already contains .VolumeIcon.icns, you don't need to add. OpenCore shows installer icons as on real Mac. 5 hours ago, vit9696 said: Make sure that PickerAttributes have BIT0 set. If it is the case and you are on master, please upload the relevant file, OpenCore debug log, and your EFI directory. i followed as your instruction i don't see any realmac macOS Installer icon during boot with USB Installer only i see orange icon Install macOS Catalina on GUI i attached screenshot and EFI folder OpenCore-EFI.zip Link to comment Share on other sites More sharing options...
