1 hour ago, crusher said:

how to skip DSDT when I want to boot windows, because I have ACPI errors on Windows boot. If I disable DSDT in config I can boot but then I lose xcpm x86PlatformPlugin.

Your DSDT shall be made counting upon Windows too.
Your signature doesn't require custom DSDT, use SSDT with dependence for Darwin only.

Look ACPI Samples.

  • Like 1
Link to comment
Share on other sites

1 hour ago, topolino1 said:

Hi @EdoardoConti
You have a lot of errors in config.
You don't need DSDT.

Review this guide:
https://khronokernel.github.io/Opencore-Vanilla-Desktop-Guide/config.plist/skylake.html

It should work for you.



I re-created the config.plist and the EFI folder following that guide ( as I did before ).



But it's the same boot time... without DSDT.aml I get no info in the PCI tab in System Information. Why the DSDT is not needed?



I've also uploaded the logs.

Schermata 2020-03-25 alle 15.34.59.png

EFI.zip

opencore-2020-03-25-142337.txt

Link to comment
Share on other sites

15 hours ago, topolino1 said:

Hi everyone.



I have a problem restarting the computer after leaving sleep?

The first exit from sleep is usually correct, the second entry into the state of sleep lasts a very long time, the third ends with a restart.

Sometimes after the first time there is a restart.



My computer:

Intel i7 6700K processor

Mobo: GA-Z170X-Gaming 7

Ati Radeon Sapphire pulse 570 8GB

Ram 32GB 2800 Mgh



Please help. I do not know what it can be;(



Thank you.

A.







This is probably the USB3.1 controller that stays off after sleep. Disable it, or disable Thunderbolt if not needed.

Link to comment
Share on other sites

On 3/25/2020 at 3:36 PM, EdoardoConti said:



I re-created the config.plist and the EFI folder following that guide ( as I did before ).



But it's the same boot time... without DSDT.aml I get no info in the PCI tab in System Information. Why the DSDT is not needed?



I've also uploaded the logs.

Schermata 2020-03-25 alle 15.34.59.png

EFI.zip

opencore-2020-03-25-142337.txt

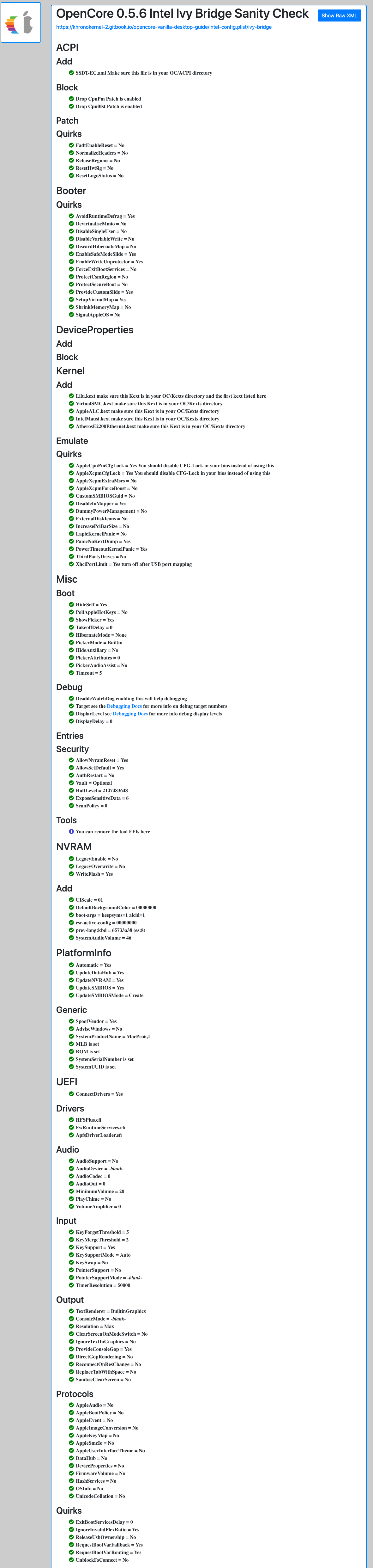

Try:



Edited by topolino1
Link to comment
Share on other sites

On 3/22/2020 at 11:30 AM, Download-Fritz said:

@topolino1 Do you use AudioDxe by Goldfish? If you use AudioDxe from AppleSupportPkg and configure it via config.plist, NVRAM resets should not break VoiceOver

Hi @Download-Fritz

I use from the site:

https://github.com/acidanthera/applesupportpkg/releases

Is this good AudioDxe.efi? The sound now works.



Where should I find the correct version?

Link to comment
Share on other sites

2 hours ago, topolino1 said:

Thank you I tried it.

It seems faster before reaching the boot picker. After the auto-boot it's the same.

There's a moment where it stops printing verbose for about 4-5 seconds and then restart.

Edited by EdoardoConti
Link to comment
Share on other sites

On 3/23/2020 at 12:52 AM, baddles said:

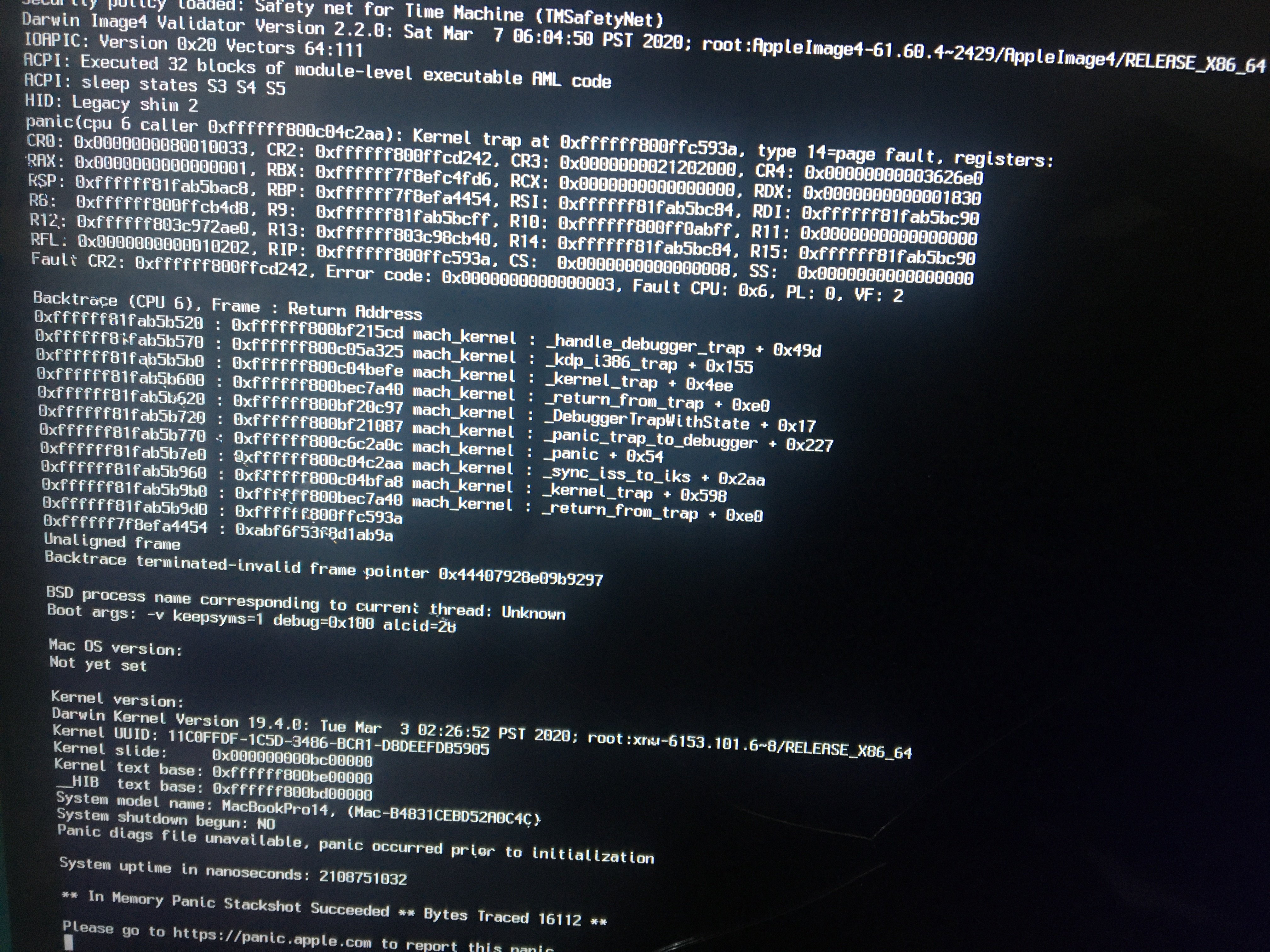

I need help please, currently I have the following attached error but I don't know what the cause of the issue is.

I have attached my OC folder as a .zip file.

Here's my laptop specs:

Dell Inspiron 7373(i7373-7443slv)

CPU: Intel Core i7-8550u

GPU: Intel UHD Graphics 620

RAM: 16GB

SSD: 256GB Micron M.2 SATA SSD.

Currently running macOS 10.15.4 developer beta 5, OpenCore 0.5.6


OC.zip

Any help please?

Link to comment
Share on other sites

5 hours ago, wern apfel said:

This is probably the USB3.1 controller that stays off after sleep. Disable it, or disable Thunderbolt if not needed.

Hi @wern apfe, thank you for the info;)
I'm testing this solution, it seems to be better.

Thank you again.



I am delighted with the OC version 0.5.7.
Thanks to everyone who worked at it.



Link to comment
Share on other sites

After updating to 10.15.4 I get this message when trying to set primary boot disk with bless tool: "The nvram tool was unable to set a preference"

Second problem is booting to black screen with or without agdpmod=vit9696/agdpmod=pikera boot arguments on SMBIOS iMac Pro1,1. With SMBIOS Mac Pro7,1 booting is working without any boot arguments.

I'm on OC 0.5.6 and everything was working fine in Catalina 10.15.3



Any ideas?

Edited by obus
Link to comment
Share on other sites

20 minutes ago, insanefrancis said:

How do I compile OpenCore 0.5.7? Should I just clone the repo on my computer and run


./macbuild.tool

Tried these and went successful but somehow I cannot find the compiled files.



Go to Binaries/Release

  • Like 1
Link to comment
Share on other sites

36 minutes ago, insanefrancis said:

How do I compile OpenCore 0.5.7? Should I just clone the repo on my computer and run


./macbuild.tool

Tried these and went successful but somehow I cannot find the compiled files.

it's in the binaries folder.

  • Like 1
Link to comment
Share on other sites

On 3/21/2020 at 9:53 PM, vit9696 said:

This is with AppleALC, the crash in particular should be resolved in master. But the rest is up to you.



Thanx a lot! Builded latest version of AppleALC from Git and now I can boot to Recovery mode.



Btw having another problem (not related to AppleALC) - when finally booted to Recovery partition, I do not have any video output. If I reconnect monitor - output appears. If hack go to sleep and wake again - also output appears. But no acceleration - when moving windows they glitched a little. What can it be?

My Video card is Nvidia GT 740.



* When booting to normal macOS - everything just fine.



Thank you!

  • Sad 1
Link to comment
Share on other sites

On 3/25/2020 at 7:04 AM, AudioGod said:



Yup I've read it many a time and thanks for the response. I was just double triple checking before I went ahead :)

Thanks guys



Update - All done and miles better and more fool me for not removing them a long time ago. It was hard reprogramming my mind from Clover to OpenCore but im getting there now.



Thanks again Guys and OC 0.5.7 is Awesome. Love it, Love it, Love it. Keep up the Fantastic work :thumbsup_anim:

Dropping some of the patches causes issues. For example, dropping Rename SAT0 to SATA (Disk) results in massive beach balling in Photoshop when saving files.



YMMV

  • Confused 1
Link to comment
Share on other sites

19 minutes ago, Tiem said:

Dropping some of the patches causes issues. For example, dropping Rename SAT0 to SATA (Disk) results in massive beach balling in Photoshop when saving files.



YMMV

Thats because you shouldn't be using ACPI Patches for renames, as the Configuration.pdf states. Use SSDTs

Link to comment
Share on other sites

10 hours ago, tarkh said:

Btw having another problem (not related to AppleALC) - when finally booted to Recovery partition, I do not have any video output. If I reconnect monitor - output appears. If hack go to sleep and wake again - also output appears. But no acceleration - when moving windows they glitched a little. What can it be?

My Video card is Nvidia GT 740.



* When booting to normal macOS - everything just fine.



Thank you!

This is normal, the nvidia card drivers are not loaded in recovery mode and so graphics are running in basic software mode without acceleration.

Link to comment
Share on other sites

On 3/25/2020 at 11:42 AM, wangjunwang said:

Hi everyone.



I have a problem it takes 45 seconds to boot my macintosh, i think it take too long for my build ,this is my boot.log.



when look into my boot.log. I think major issue is about apfs, but i dont know how to solve this.



My computer:

Intel i7 9700K processor

Mobo: Z390M gaming

Radeon Sapphire RX5700 8GB

Ram 32GB 2666 kingston

opencore 0.5.6 debug



Please help. I do not know what it can be;(thisn is my boot.log



00:987 00:004 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
00:991 00:004 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
00:995 00:004 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
00:999 00:004 OCBP: Predefined <nil> \boot.efi is missing - Not Found
01:003 00:004 OCB: Filesystem 0 (354D0718) named D (Not Found) has 0 entries
01:007 00:004 OCBP: APFS Volume Info is missing
01:011 00:004 OCBP: Blessed file is missing
01:016 00:004 OCBP: Blessed folder is missing
01:020 00:004 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
01:024 00:004 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
01:029 00:004 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found
01:033 00:004 OCB: Filesystem 1 (3548FC18) named NO NAME (Success) has 1 entries
01:037 00:004 OCBP: APFS Volume Info is missing
01:041 00:004 OCBP: Blessed file is missing
01:045 00:004 OCBP: Blessed folder is missing
01:049 00:004 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
01:053 00:004 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
01:057 00:004 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
01:061 00:004 OCBP: Predefined <nil> \boot.efi is missing - Not Found
01:066 00:004 OCB: Filesystem 2 (3543B198) named __ (Not Found) has 0 entries
01:070 00:004 OCBP: APFS Volume Info is missing
01:074 00:004 OCBP: Blessed file is missing
01:078 00:004 OCBP: Blessed folder is missing
01:082 00:004 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
01:086 00:004 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
01:090 00:004 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
01:094 00:004 OCBP: Predefined <nil> \boot.efi is missing - Not Found
01:098 00:004 OCB: Filesystem 3 (3543B818) named F (Not Found) has 0 entries
01:103 00:004 OCB: Filesystem 4 (34F53598) named EFI (Not Found) has 0 entries
01:107 00:004 OCBP: APFS Volume Info - 3471DB98 (131072, F9056D16-7984-4766-910E-9326E0DBA63D, 16)
01:111 00:004 OCBP: APFS Container Info - 3471D698 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:115 00:004 OCBP: BlessedFileHEX (1/5 276) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 1D 01 01 06 00 00 00 03 17 10 00 01 00 00 00 00 25 38 5C 91 B0 9A 9A 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 E0 1F 2E 3A 00 00 00 00
01:121 00:006 OCBP: BlessedFileHEX (2/5 276) - 99 D8 DB D6 C7 C3 23 47 92 19 C5 E0 E2 71 C0 63 02 02 04 03 24 00 F7 FC 74 BE 7C 0B F3 49 91 47 01 F4 04 2E 68 42 16 6D 05 F9 84 79 66 47 91 0E 93 26 E0 DB A6 3D 04 04 9A 00 5C 00 43 00 43 00
01:125 00:003 OCBP: BlessedFileHEX (3/5 276) - 44 00 37 00 38 00 44 00 30 00 30 00 2D 00 36 00 30 00 30 00 42 00 2D 00 34 00 39 00 36 00 38 00 2D 00 41 00 31 00 44 00 37 00 2D 00 34 00 32 00 37 00 31 00 42 00 42 00 44 00 38 00 38 00 33 00
01:129 00:003 OCBP: BlessedFileHEX (4/5 276) - 41 00 38 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00 62 00
01:133 00:003 OCBP: BlessedFileHEX (5/5 276) - 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
01:137 00:004 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,9A-9A-B0-91-5C-38-25-00)/HD(2,GPT,D6DBD899-C3C7-4723-9219-C5E0E271C063,0x64028,0x3A2E1FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,166D05F984796647910E9326E0DBA63D)/\CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\boot.efi
01:141 00:003 OCBP: Blessed file is valid
01:145 00:003 OCBP: 10 filesystems for APFS - Success
01:148 00:003 OCBP: APFS Volume Info is missing
01:152 00:003 OCBP: No APFS info 0 of 10 - Not Found
01:156 00:003 OCBP: APFS Volume Info is missing
01:160 00:003 OCBP: No APFS info 1 of 10 - Not Found
01:164 00:003 OCBP: APFS Volume Info is missing
01:168 00:004 OCBP: No APFS info 2 of 10 - Not Found
01:172 00:003 OCBP: APFS Volume Info is missing
01:176 00:003 OCBP: No APFS info 3 of 10 - Not Found
01:180 00:003 OCBP: APFS Volume Info is missing
01:184 00:003 OCBP: No APFS info 4 of 10 - Not Found
01:188 00:003 OCBP: APFS Volume Info - 3471D898 (131072, F9056D16-7984-4766-910E-9326E0DBA63D, 16)
01:192 00:004 OCBP: APFS Container Info - 3471CE98 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:196 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 5 of 10 - 1
01:200 00:004 OCBP: Missing partition F9056D16-7984-4766-910E-9326E0DBA63D on preboot - Not Found
01:204 00:004 OCBP: No APFS booter 5 of 10 for F9056D16-7984-4766-910E-9326E0DBA63D - Not Found
01:208 00:003 OCBP: APFS Volume Info - 3471D818 (131072, FF032E59-6D64-30D1-8435-6A5557CBB6C3, 64)
01:212 00:003 OCBP: APFS Container Info - 3471D598 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:216 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 6 of 10 - 1
01:220 00:003 OCBP: Missing partition FF032E59-6D64-30D1-8435-6A5557CBB6C3 on preboot - Not Found
01:224 00:004 OCBP: No APFS booter 6 of 10 for FF032E59-6D64-30D1-8435-6A5557CBB6C3 - Not Found
01:231 00:007 OCBP: APFS Volume Info - 3471D598 (131072, B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59, 4)
01:235 00:004 OCBP: APFS Container Info - 3471CA98 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:239 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 7 of 10 - 1
01:245 00:005 OCBP: Missing partition B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 on preboot - Not Found
01:249 00:003 OCBP: No APFS booter 7 of 10 for B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 - Not Found
01:252 00:003 OCBP: APFS Volume Info - 3471D618 (131072, E8045238-C98B-45C3-B1BA-59DBF8DBB28B, 8)
01:258 00:005 OCBP: APFS Container Info - 3471DC18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:262 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 8 of 10 - 1
01:266 00:004 OCBP: Missing partition E8045238-C98B-45C3-B1BA-59DBF8DBB28B on preboot - Not Found
01:270 00:003 OCBP: No APFS booter 8 of 10 for E8045238-C98B-45C3-B1BA-59DBF8DBB28B - Not Found
01:274 00:003 OCBP: APFS Volume Info - 3471D918 (131072, CCD78D00-600B-4968-A1D7-4271BBD883A8, 1)
01:278 00:003 OCBP: APFS Container Info - 3471CF18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:282 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 9 of 10 - 1
01:286 00:003 OCBP: Found partition CCD78D00-600B-4968-A1D7-4271BBD883A8 on preboot
01:290 00:003 OCBP: Want predefined list for APFS 16 at CCD78D00-600B-4968-A1D7-4271BBD883A8
01:294 00:003 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \System\Library\CoreServices\boot.efi was found
01:298 00:003 OCBP: Found APFS booter 9 of 10 for CCD78D00-600B-4968-A1D7-4271BBD883A8 (3717A7A8)
01:301 00:003 OCBP: APFS bless for 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8:<null string> is Success
01:306 00:004 OCB: Filesystem 5 (348B6918) named Preboot (Success) has 1 entries
01:310 00:004 OCBP: APFS Volume Info - 3471D698 (131072, FF032E59-6D64-30D1-8435-6A5557CBB6C3, 64)
01:314 00:004 OCBP: APFS Container Info - 3471DB98 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:318 00:004 OCB: Filesystem 6 (34871818) named Macintosh - Data (Not Found) has 0 entries
01:322 00:004 OCBP: APFS Volume Info - 3471DB98 (131072, B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59, 4)
01:326 00:004 OCBP: APFS Container Info - 3471D698 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:330 00:004 OCB: Filesystem 7 (348B6518) named Recovery (Not Found) has 0 entries
01:334 00:004 OCBP: APFS Volume Info - 3471D698 (131072, E8045238-C98B-45C3-B1BA-59DBF8DBB28B, 8)
01:339 00:004 OCBP: APFS Container Info - 3471DB98 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:343 00:004 OCB: Filesystem 8 (34729D18) named VM (Not Found) has 0 entries
01:346 00:003 OCBP: APFS Volume Info - 3471DB98 (131072, CCD78D00-600B-4968-A1D7-4271BBD883A8, 1)
01:351 00:004 OCBP: APFS Container Info - 3471D698 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:355 00:004 OCB: Filesystem 9 (3468FF98) named Macintosh (Not Found) has 0 entries
01:359 00:004 OCB: Adding entry 0, external - 0, skip recovery - 0
01:363 00:004 DevicePath - PciRoot(0x0)/Pci(0x1B,0x4)/Pci(0x0,0x0)/NVMe(0x1,00-00-00-00-00-00-00-01)/HD(1,GPT,71E9F8C5-E94C-4B51-BA1C-6F2BF005511F,0x1000,0x96000)/\EFI\BOOT\BOOTX64.EFI
01:367 00:004 OCBP: APFS recovery volume handle missing - \EFI\BOOT\
01:371 00:004 OCB: Adding entry 1, external - 0, recovery (<null>) - Not Found
01:375 00:004 OCB: Adding entry 1, external - 0, skip recovery - 0
01:379 00:004 DevicePath - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,9A-9A-B0-91-5C-38-25-00)/HD(2,GPT,D6DBD899-C3C7-4723-9219-C5E0E271C063,0x64028,0x3A2E1FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,166D05F984796647910E9326E0DBA63D)/\CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\boot.efi
01:384 00:004 OCBP: APFS Container Info - 3717AF18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:388 00:004 OCBP: 10 filesystems for APFS - Success
01:392 00:004 OCBP: APFS Volume Info is missing
01:396 00:004 OCBP: No APFS info 0 of 10 - Not Found
01:400 00:004 OCBP: APFS Volume Info is missing
01:404 00:003 OCBP: No APFS info 1 of 10 - Not Found
01:408 00:003 OCBP: APFS Volume Info is missing
01:412 00:003 OCBP: No APFS info 2 of 10 - Not Found
01:416 00:004 OCBP: APFS Volume Info is missing
01:420 00:003 OCBP: No APFS info 3 of 10 - Not Found
01:424 00:004 OCBP: APFS Volume Info is missing
01:428 00:004 OCBP: No APFS info 4 of 10 - Not Found
01:432 00:004 OCBP: APFS Volume Info - 3471DB98 (131072, F9056D16-7984-4766-910E-9326E0DBA63D, 16)
01:436 00:003 OCBP: APFS Container Info - 3471C298 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:440 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 5 of 10 - 1
01:444 00:003 OCBP: Missing partition F9056D16-7984-4766-910E-9326E0DBA63D on preboot - Not Found
01:448 00:003 OCBP: No APFS booter 5 of 10 for F9056D16-7984-4766-910E-9326E0DBA63D - Not Found
01:452 00:003 OCBP: APFS Volume Info - 3471DB98 (131072, FF032E59-6D64-30D1-8435-6A5557CBB6C3, 64)
01:456 00:003 OCBP: APFS Container Info - 3471C298 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:460 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 6 of 10 - 1
01:464 00:003 OCBP: Missing partition FF032E59-6D64-30D1-8435-6A5557CBB6C3 on preboot - Not Found
01:470 00:006 OCBP: No APFS booter 6 of 10 for FF032E59-6D64-30D1-8435-6A5557CBB6C3 - Not Found
01:476 00:005 OCBP: APFS Volume Info - 3471DB98 (131072, B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59, 4)
01:480 00:003 OCBP: APFS Container Info - 3471C298 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:484 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 7 of 10 - 1
01:487 00:003 OCBP: Missing partition B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 on preboot - Not Found
01:491 00:003 OCBP: No APFS booter 7 of 10 for B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 - Not Found
01:495 00:003 OCBP: APFS Volume Info - 3471DB98 (131072, E8045238-C98B-45C3-B1BA-59DBF8DBB28B, 8)
01:499 00:003 OCBP: APFS Container Info - 3471C298 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:503 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 8 of 10 - 1
01:507 00:003 OCBP: Missing partition E8045238-C98B-45C3-B1BA-59DBF8DBB28B on preboot - Not Found
01:511 00:003 OCBP: No APFS booter 8 of 10 for E8045238-C98B-45C3-B1BA-59DBF8DBB28B - Not Found
01:515 00:003 OCBP: APFS Volume Info - 3471DB98 (131072, CCD78D00-600B-4968-A1D7-4271BBD883A8, 1)
01:519 00:003 OCBP: APFS Container Info - 3471C298 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:523 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 9 of 10 - 1
01:529 00:006 OCBP: Found partition CCD78D00-600B-4968-A1D7-4271BBD883A8 on preboot
01:533 00:003 OCBP: Want predefined list for APFS 16 at CCD78D00-600B-4968-A1D7-4271BBD883A8
01:537 00:003 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \System\Library\CoreServices\boot.efi was found
01:541 00:003 OCBP: Found APFS booter 9 of 10 for CCD78D00-600B-4968-A1D7-4271BBD883A8 (0)
01:545 00:003 OCBP: APFS bless for 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8:CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\ is Success
01:549 00:003 OCBP: APFS Volume Info - 3717AF18 (131072, CCD78D00-600B-4968-A1D7-4271BBD883A8, 1)
01:553 00:004 OCBP: APFS Container Info - 3471D698 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:557 00:003 OCBP: APFS Volume Info is missing
01:561 00:003 OCBP: APFS recovery info 0/10 due to 2CDB8E06-0000-0000-F045-DC2C00000000/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/0 - Not Found
01:565 00:003 OCBP: APFS Volume Info is missing
01:569 00:004 OCBP: APFS recovery info 1/10 due to 2CDB8E06-0000-0000-F045-DC2C00000000/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/0 - Not Found
01:573 00:004 OCBP: APFS Volume Info is missing
01:577 00:004 OCBP: APFS recovery info 2/10 due to 2CDB8E06-0000-0000-F045-DC2C00000000/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/0 - Not Found
01:581 00:003 OCBP: APFS Volume Info is missing
01:585 00:003 OCBP: APFS recovery info 3/10 due to 2CDB8E06-0000-0000-F045-DC2C00000000/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/0 - Not Found
01:589 00:003 OCBP: APFS Volume Info is missing
01:595 00:006 OCBP: APFS recovery info 4/10 due to 2CDB8E06-0000-0000-F045-DC2C00000000/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/0 - Not Found
01:599 00:003 OCBP: APFS Volume Info - 3717AF18 (131072, F9056D16-7984-4766-910E-9326E0DBA63D, 16)
01:603 00:004 OCBP: APFS Container Info - 3471CF98 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:609 00:005 OCBP: APFS recovery info 5/10 due to 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/10 - Success
01:613 00:004 OCBP: APFS Volume Info - 3471CF98 (131072, FF032E59-6D64-30D1-8435-6A5557CBB6C3, 64)
01:617 00:003 OCBP: APFS Container Info - 3717AF18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:621 00:004 OCBP: APFS recovery info 6/10 due to 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/40 - Success
01:625 00:004 OCBP: APFS Volume Info - 3717AF18 (131072, B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59, 4)
01:629 00:004 OCBP: APFS Container Info - 3471CF98 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:633 00:004 OCBP: APFS recovery info 7/10 due to 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/9ED4DD98-F9E7-40CD-945B-DC53F32E52F8/4 - Success
01:637 00:004 OCFS: Filename \CCD78D00-600B-4968-A1D7-4271BBD883A8\ has trailing slash
01:641 00:004 OCFS: Filename \CCD78D00-600B-4968-A1D7-4271BBD883A8\ has trailing slash
01:645 00:004 OCB: Adding entry 2, external - 0, recovery (\CCD78D00-600B-4968-A1D7-4271BBD883A8\) - Success
01:649 00:004 OCB: Scanning got 3 entries
01:654 00:004 Trying to get label from \EFI\BOOT\.contentDetails
01:658 00:004 Trying to get label from \EFI\BOOT\.disk_label.contentDetails
01:662 00:004 Trying to detect Microsoft BCD
01:666 00:004 OCB: Entry 0 is BOOTCAMP Windows at \EFI\BOOT\ (T:3|F:0)
01:670 00:004 OCB: Entry 0 is BOOTCAMP Windows at dp PciRoot(0x0)/Pci(0x1B,0x4)/Pci(0x0,0x0)/NVMe(0x1,00-00-00-00-00-00-00-01)/HD(1,GPT,71E9F8C5-E94C-4B51-BA1C-6F2BF005511F,0x1000,0x96000)/\EFI\BOOT\BOOTX64.EFI
01:674 00:004 OCBP: APFS Container Info - 3717A898 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:678 00:004 OCBP: 10 filesystems for APFS - Success
01:682 00:003 OCBP: APFS Volume Info is missing
01:686 00:004 OCBP: No APFS info 0 of 10 - Not Found
01:690 00:004 OCBP: APFS Volume Info is missing
01:694 00:003 OCBP: No APFS info 1 of 10 - Not Found
01:698 00:004 OCBP: APFS Volume Info is missing
01:702 00:003 OCBP: No APFS info 2 of 10 - Not Found
01:706 00:003 OCBP: APFS Volume Info is missing
01:710 00:003 OCBP: No APFS info 3 of 10 - Not Found
01:714 00:004 OCBP: APFS Volume Info is missing
01:718 00:004 OCBP: No APFS info 4 of 10 - Not Found
01:722 00:003 OCBP: APFS Volume Info - 34672F98 (131072, F9056D16-7984-4766-910E-9326E0DBA63D, 16)
01:726 00:004 OCBP: APFS Container Info - 34672B18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:730 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 5 of 10 - 1
01:734 00:003 OCBP: Missing partition F9056D16-7984-4766-910E-9326E0DBA63D on preboot - Not Found
01:738 00:003 OCBP: No APFS booter 5 of 10 for F9056D16-7984-4766-910E-9326E0DBA63D - Not Found
01:742 00:003 OCBP: APFS Volume Info - 34672F98 (131072, FF032E59-6D64-30D1-8435-6A5557CBB6C3, 64)
01:746 00:003 OCBP: APFS Container Info - 34672B18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:750 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 6 of 10 - 1
01:754 00:004 OCBP: Missing partition FF032E59-6D64-30D1-8435-6A5557CBB6C3 on preboot - Not Found
01:758 00:003 OCBP: No APFS booter 6 of 10 for FF032E59-6D64-30D1-8435-6A5557CBB6C3 - Not Found
01:762 00:004 OCBP: APFS Volume Info - 34672F98 (131072, B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59, 4)
01:766 00:003 OCBP: APFS Container Info - 34672B18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:769 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 7 of 10 - 1
01:773 00:003 OCBP: Missing partition B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 on preboot - Not Found
01:777 00:003 OCBP: No APFS booter 7 of 10 for B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 - Not Found
01:781 00:003 OCBP: APFS Volume Info - 34672F98 (131072, E8045238-C98B-45C3-B1BA-59DBF8DBB28B, 8)
01:785 00:003 OCBP: APFS Container Info - 34672B18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:789 00:003 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 8 of 10 - 1
01:793 00:004 OCBP: Missing partition E8045238-C98B-45C3-B1BA-59DBF8DBB28B on preboot - Not Found
01:797 00:004 OCBP: No APFS booter 8 of 10 for E8045238-C98B-45C3-B1BA-59DBF8DBB28B - Not Found
01:801 00:003 OCBP: APFS Volume Info - 34672F98 (131072, CCD78D00-600B-4968-A1D7-4271BBD883A8, 1)
01:805 00:003 OCBP: APFS Container Info - 34672B18 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:812 00:006 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 9 of 10 - 1
01:816 00:003 OCBP: Found partition CCD78D00-600B-4968-A1D7-4271BBD883A8 on preboot
01:820 00:004 OCBP: Want predefined list for APFS 16 at CCD78D00-600B-4968-A1D7-4271BBD883A8
01:826 00:006 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \System\Library\CoreServices\boot.efi was found
01:830 00:003 OCBP: Found APFS booter 9 of 10 for CCD78D00-600B-4968-A1D7-4271BBD883A8 (0)
01:834 00:003 OCBP: APFS bless for 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8:CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\ is Success
01:838 00:003 Trying to get label from \CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\.contentDetails
01:842 00:004 Trying to get label from \CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\.disk_label.contentDetails
01:847 00:004 OCB: Entry 1 is Macintosh at \CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\ (T:1|F:0)
01:851 00:003 OCB: Entry 1 is Macintosh at dp PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,9A-9A-B0-91-5C-38-25-00)/HD(2,GPT,D6DBD899-C3C7-4723-9219-C5E0E271C063,0x64028,0x3A2E1FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,166D05F984796647910E9326E0DBA63D)/\CCD78D00-600B-4968-A1D7-4271BBD883A8\System\Library\CoreServices\boot.efi
01:855 00:003 OCBP: APFS Container Info - 34673218 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:859 00:003 OCBP: 10 filesystems for APFS - Success
01:863 00:004 OCBP: APFS Volume Info is missing
01:867 00:004 OCBP: No APFS info 0 of 10 - Not Found
01:871 00:004 OCBP: APFS Volume Info is missing
01:875 00:003 OCBP: No APFS info 1 of 10 - Not Found
01:880 00:005 OCBP: APFS Volume Info is missing
01:884 00:003 OCBP: No APFS info 2 of 10 - Not Found
01:888 00:003 OCBP: APFS Volume Info is missing
01:892 00:004 OCBP: No APFS info 3 of 10 - Not Found
01:896 00:003 OCBP: APFS Volume Info is missing
01:900 00:004 OCBP: No APFS info 4 of 10 - Not Found
01:904 00:004 OCBP: APFS Volume Info - 34673F98 (131072, F9056D16-7984-4766-910E-9326E0DBA63D, 16)
01:908 00:004 OCBP: APFS Container Info - 3471C898 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:912 00:004 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 5 of 10 - 1
01:916 00:004 OCBP: Missing partition F9056D16-7984-4766-910E-9326E0DBA63D on preboot - Not Found
01:920 00:003 OCBP: No APFS booter 5 of 10 for F9056D16-7984-4766-910E-9326E0DBA63D - Not Found
01:924 00:004 OCBP: APFS Volume Info - 34673F98 (131072, FF032E59-6D64-30D1-8435-6A5557CBB6C3, 64)
01:928 00:004 OCBP: APFS Container Info - 3471C898 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:932 00:004 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 6 of 10 - 1
01:936 00:004 OCBP: Missing partition FF032E59-6D64-30D1-8435-6A5557CBB6C3 on preboot - Not Found
01:941 00:004 OCBP: No APFS booter 6 of 10 for FF032E59-6D64-30D1-8435-6A5557CBB6C3 - Not Found
01:945 00:003 OCBP: APFS Volume Info - 34673F98 (131072, B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59, 4)
01:950 00:005 OCBP: APFS Container Info - 3471C898 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:955 00:004 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 7 of 10 - 1
01:961 00:006 OCBP: Missing partition B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 on preboot - Not Found
01:965 00:004 OCBP: No APFS booter 7 of 10 for B4AD7B6C-6072-4E36-B2F7-DF5EEA8D3C59 - Not Found
01:969 00:004 OCBP: APFS Volume Info - 34673F98 (131072, E8045238-C98B-45C3-B1BA-59DBF8DBB28B, 8)
01:973 00:004 OCBP: APFS Container Info - 3471C898 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:977 00:004 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 8 of 10 - 1
01:981 00:004 OCBP: Missing partition E8045238-C98B-45C3-B1BA-59DBF8DBB28B on preboot - Not Found
01:986 00:004 OCBP: No APFS booter 8 of 10 for E8045238-C98B-45C3-B1BA-59DBF8DBB28B - Not Found
01:990 00:004 OCBP: APFS Volume Info - 34673F98 (131072, CCD78D00-600B-4968-A1D7-4271BBD883A8, 1)
01:994 00:004 OCBP: APFS Container Info - 3471C898 (1, 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8)
01:998 00:004 OCBP: APFS match container 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 vs 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8 for 9 of 10 - 1
02:002 00:004 OCBP: Found partition CCD78D00-600B-4968-A1D7-4271BBD883A8 on preboot
02:006 00:003 OCBP: Want predefined list for APFS 16 at CCD78D00-600B-4968-A1D7-4271BBD883A8
02:010 00:003 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \System\Library\CoreServices\boot.efi is missing - Not Found
02:014 00:003 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
02:018 00:004 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \EFI\BOOT\BOOTX64.EFI is missing - Not Found
02:022 00:004 OCBP: Predefined CCD78D00-600B-4968-A1D7-4271BBD883A8 \boot.efi was found
02:027 00:004 OCBP: Found APFS booter 9 of 10 for CCD78D00-600B-4968-A1D7-4271BBD883A8 (0)
02:031 00:003 OCBP: APFS bless for 9ED4DD98-F9E7-40CD-945B-DC53F32E52F8:CCD78D00-600B-4968-A1D7-4271BBD883A8\ is Success
02:034 00:003 Trying to get label from \CCD78D00-600B-4968-A1D7-4271BBD883A8\.contentDetails
02:038 00:003 Trying to get label from \CCD78D00-600B-4968-A1D7-4271BBD883A8\.disk_label.contentDetails
02:042 00:003 Trying to detect Microsoft BCD
02:046 00:003 Trying to get recovery from \CCD78D00-600B-4968-A1D7-4271BBD883A8\SystemVersion.plist
02:050 00:004 OCB: Entry 2 is Recovery 10.15.3 at \CCD78D00-600B-4968-A1D7-4271BBD883A8\ (T:2|F:1)
02:054 00:003 OCB: Entry 2 is Recovery 10.15.3 at dp PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,9A-9A-B0-91-5C-38-25-00)/HD(2,GPT,D6DBD899-C3C7-4723-9219-C5E0E271C063,0x64028,0x3A2E1FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6C7BADB47260364EB2F7DF5EEA8D3C59)/\CCD78D00-600B-4968-A1D7-



opencore-2020-03-24-165116.txt



Link to comment
Share on other sites

Which part I am making wrong? I am trying to use all debug targets and display levels down below but when I use it no debuglog.txt I don't get it why? Here is what am I doing;



Target; I want to use all.



0x01 — Enable Logging

0x02 — Enable Onscreen debug

0x04 — Enable logging to Data Hub.

0x08 — Enable serial port logging.

0x10 — Enable UEFI variable logging.

0x20 — Enable non-volatile UEFI variable logging.

0x40 — Enable logging to file.



0x01 + 0x02 + 0x04 + 0x08 + 0x10 + 0x20 + 0x40 = 0x85



0x85 converted to decimal 133 (This is my target right)



Looks like calculation of target is wrong. It must be 127



DisplayLevel; I want to use all again.



0x00000002 — DEBUG_WARN in DEBUG, NOOPT, RELEASE.

0x00000040 — DEBUG_INFO in DEBUG, NOOPT.

0x00400000 — DEBUG_VERBOSE

0x80000000 — DEBUG_ERROR in DEBUG, NOOPT, RELEASE.



0x80400042 Converted to decimal Misc -> Debug -> DisplayLevel -> 2151678018



When I use these settings nothing works. No debug log. are my settings wrong?



If I remove those everything works;



0x04 — Enable logging to Data Hub.

0x08 — Enable serial port logging.

0x20 — Enable non-volatile UEFI variable logging.



0x00400000 — DEBUG_VERBOSE



0x53 converted to decimal 83



0x80000042 Converted to decimal Misc -> Debug -> DisplayLevel -> 2147483714



But I want to see this in log;

0x00400000 — DEBUG_VERBOSE



Now everything works.

Edited by telepati
Link to comment
Share on other sites

1 minute ago, telepati said:

Which part I am making wrong? I am trying to use all debug targets and display levels down below but when I use it no debuglog.txt I don't get it why? Here is what am I doing;



Target; I want to use all.



0x01 — Enable Logging

0x02 — Enable Onscreen debug

0x04 — Enable logging to Data Hub.

0x08 — Enable serial port logging.

0x10 — Enable UEFI variable logging.

0x20 — Enable non-volatile UEFI variable logging.

0x40 — Enable logging to file.



0x01 + 0x02 + 0x04 + 0x08 + 0x10 + 0x20 + 0x40 = 0x85



0x85 converted to decimal 133 (This is my target right)



DisplayLevel; I want to use all again.



0x00000002 — DEBUG_WARN in DEBUG, NOOPT, RELEASE.

0x00000040 — DEBUG_INFO in DEBUG, NOOPT.

0x00400000 — DEBUG_VERBOSE in custom builds.

0x80000000 — DEBUG_ERROR in DEBUG, NOOPT, RELEASE.



0x80400042 Converted to decimal Misc -> Debug -> DisplayLevel -> 2151678018



When I use these settings nothing works. No debug log. are my settings wrong?

first you should use debug vesion,second,DisableWatchDog-yse,DisplayDelay=0,DisplayLevel=0,Target=67

Link to comment
Share on other sites

15 minutes ago, wangjunwang said:

first you should use debug vesion,second,DisableWatchDog-yse,DisplayDelay=0,DisplayLevel=0,Target=67

I already know that. Also, DisplayLevel not to be =0



And I want to see this in log;



#define DEBUG_VERBOSE 0x00400000 // Detailed debug messages that may

                                                        // significantly impact boot performance

Edited by telepati
Link to comment
Share on other sites

×
×
  • Create New...
