OpenCore General Discussion

[Hector van der Aa]

1 hour ago, _npc_10f2c said:

I'm a bit confused, I've been reading the OpenCore Vanilla guide, I believe I have to follow the legacy options considering I have a Bloomfield. The problem is the setup requires a working macOS system while the rest of the guide is ok with using Windows/Linux to get everything working.



Is it even possible to set everything up using Windows for a legacy system? Or should I just be using Clover instead?



Up to a few days ago I had High Sierra running on dual monitors, I don't know what went through my mind and I decided to see if I could install Catalina, I got decently far but once it was installed it wouldn't boot. I'm going to assume it was wishful thinking that a Bloomfield could be compatible? Overall I'd like to get High Sierra up and running again, let me know your thoughts.



follow this tutorial (u will make a new installer)

then message on the forum that u are done and I will help you from there



check your mobo internet chip

and use the appropriate kext (replacing intel mausi Ethernet) for you ethernet chip

intel(all apart 211 at)   IntelMausiEthernet.kext.zip

ALX ethernet. ALXEthernet.kext.zip

intel 211at ethernet. SmallTreeIntel82576.kext.zip

atheros ethernet. AtherosE2200Ethernet.kext.zip



you will need nullcpupowermanagement.kext if you are running on and and based platform







[medallo]

Hello guys,

i need help guide for asus p8z77-m (I7 3770-NVIDIA GeForce GT 710_2GB-ssd120G KINGSTON)

Thanks





[_npc_10f2c]

1 hour ago, Hector van der Aa said:

follow this tutorial (u will make a new installer)

then message on the forum that u are done and I will help you from there



check your mobo internet chip

and use the appropriate kext (replacing intel mausi Ethernet) for you ethernet chip

intel(all apart 211 at)   IntelMausiEthernet.kext.zip

ALX ethernet. ALXEthernet.kext.zip

intel 211at ethernet. SmallTreeIntel82576.kext.zip

atheros ethernet. AtherosE2200Ethernet.kext.zip



you will need nullcpupowermanagement.kext if you are running on and and based platform





Yep, done. I did that a few days ago, but this is what confused me. The instructions don't have a 'Do in Windows' options (does it matter if I skip this?)



I do not have Ethernet within reach, nor a WiFi card. What I was using before I accidentally ruined my Hackintosh build was a TP-LINK USB WiFi dongle, which worked perfectly as long as the system could run the TP-LINK app.

I followed the video, and the OC vanilla guide. I think I have everything I've gone over it a few times. I still have two questions:



* Since OpenCore uses DuetPkg to emulate UEFI on legacy systems does this mean I can install 10.14+ on my hardware?

* Since I won't have internet access, can I build a full installer USB later after I use the USB I built following the video?

      * If not: Is there a way to do it now so the installer doesn't need to download anything?



Attached is my USB directory.

Thanks for the help

[kocoman]

With BIOS and DUET/EDK2 2.70 I get



Can not initalize conlose

Boot failed: will sleep for 10 seconds before exiting

OC: Boot failed - aborted

OCB: Startimage failed - Aborted

Halting on critical error



How to fix? thanks

[nmano]

Hi All

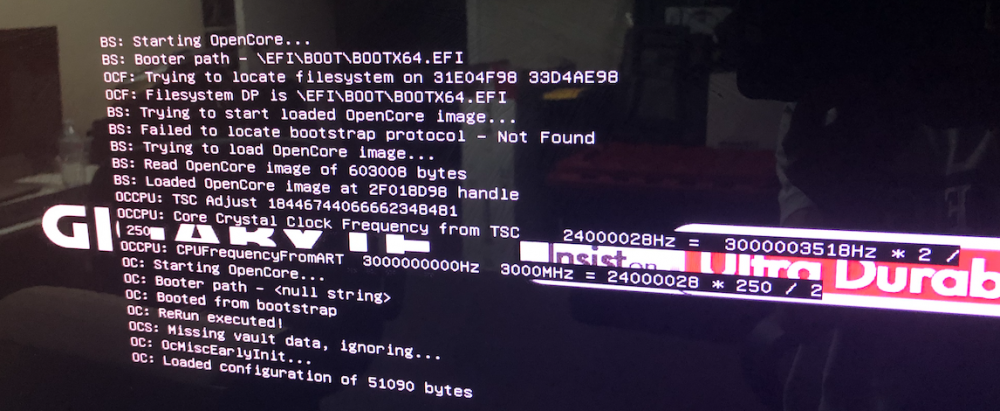

OC boot from USB Flash Drive{EFI}.



Failed to locate bootstrap protocol - Not Found



I have this  Error Its normal or not?

Thanks for your support.





[nmano]

19 hours ago, tarkh said:

Hello guys,

maybe my problem related to OpenCore, so I'll post here.



I'm having KP while trying to boot Recovery partition.

macOS 10.14.6 works just fine without issues.



My system: OpenCore, ASUS x99 Deluxe, Intel 5960X, Nvidia GT 740

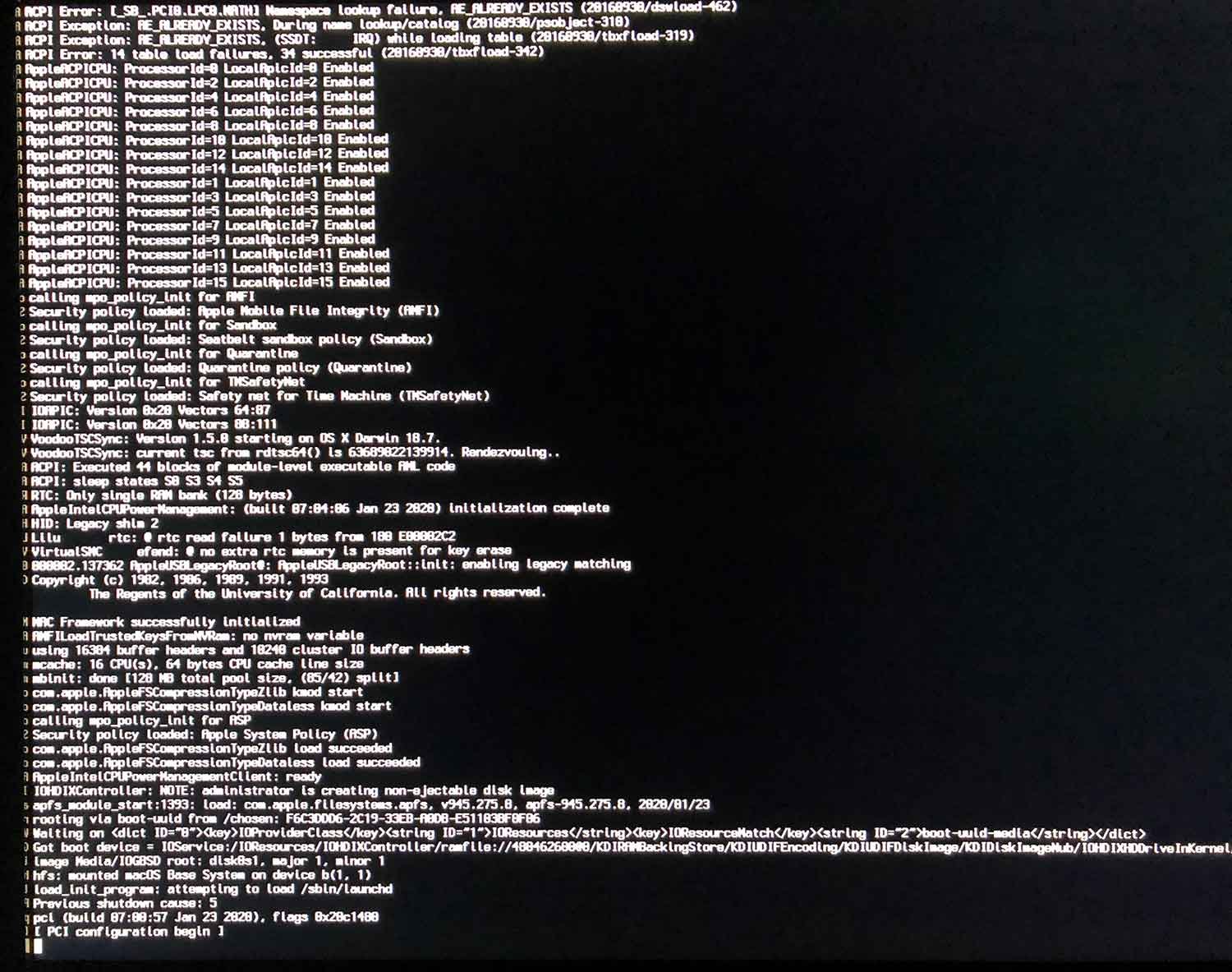

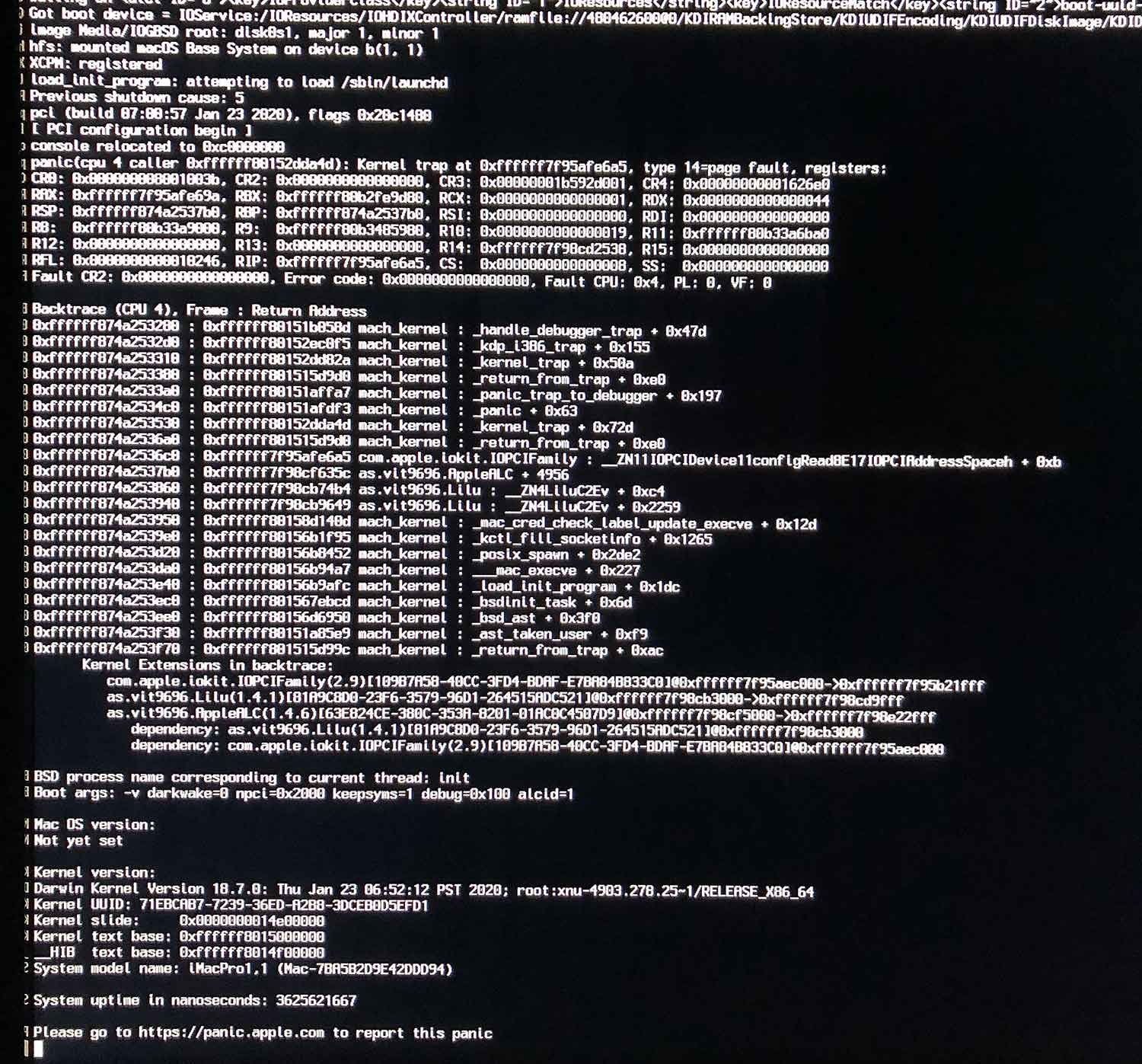

Attaching screenshot and my EFI folder.

Help would be appreciated !



-----



Some update: If I disable _xcpm_bootstrap Pike R. Alpha kernel patch, then I'm getting different error - hanging on PCI configuration begin (IMG attached)



-----

EFI.zip

I check your EFI.

I thing you have wrong ACPI folder.

please remove All SSDT.

[telepati]

34 minutes ago, nmano said:

Hi All

OC boot from USB Flash Drive{EFI}.



Failed to locate bootstrap protocol - Not Found



I have this  Error Its normal or not?

Thanks for your support.





You won't boot from EFI. You will boot from USB itself.

[Bluesnowball3]

I am still unable to boot from the USB installer-Catalina-Z170 P-Skylake. After the Apple symbol it shuts down.

One of the error messages is:AppleUSBHostPort Disconnect: numerous enumeration failures. For some reason this message appears on the screen but I cannot see it in the boot log. I have now tried disconnecting the mouse and keyboard and the message disappears. Obiously I need to map the USB ports but I do not see how I can do this until I can boot in to Catalina. I cannot access disk utulity. If I press command plus R after the Apple symbole nothing happens, the same if I do it earlier. it still shuts down after the Apple symbol.



I have extracted DSDT using SSDTime and put it in my ACPI folder. I read somewhere that Opencore does this and so it is not needed, is this correct? I have set Platform info for MacPro 1,1.

I have compiled SSDT-PLUG and  SSDT-EC-USBX using iasl-win and SSDTime as per the Skylake vanilla desktop guide and Opencore Base Set Up guide.

I do not know how to set Plug In type, however I now have access to a Mac and will try to figure this out.



One of the error messages when I boot with the Windows disc attached is:
 OCB: Matching <> args on type 3 0
31:337 00:229 OCFS: Filename \ has trailing slash

Should I change the slash to the other way? When I boot with the Window disc disconnected I do not get this message. My target disc is formatted as HFS+ and GPT using Paragon.

Thanks in advance for any help. I attach the boot file with the windows disc connected, the second one is with it disconneted and my config.plist.



David

opencore-2020-03-17-200146.txt

opencore-2020-03-17-201424.txt

config.plist

[Shaneee]

17 hours ago, Hector van der Aa said:

you will need nullcpupowermanagement.kext if you are running on and and based platform



No you don't. Either use the DummyPowerManagement quirk or use an appropriate SSDT_PLUG file.

[nmano]

50 minutes ago, telepati said:

You won't boot from EFI. You will boot from USB itself.

I am booting from USB.

config.plist

How to fix that Error?

[Andrey1970]

1 hour ago, nmano said:

Failed to locate bootstrap protocol - Not Found

Its normal

[telepati]

24 minutes ago, nmano said:

I am booting from USB.

config.plist

How to fix that Error?

Your config.plist is just a mess. Are you really need all those patches? Skylake-X just needs 3 SSDT's your config has full off SSDT's. You are not using Audio but you activate Audio driver. WHY?  Also, the sound! You are almost using every sound option in your system. alcid=, Device Properties and SSDT's. Choose one and delete others. If you are using the easiest method (alcid=) why you also activate the sound in your Device Properties? USB port limit patches WHY? You are already created USBport.kext with Hackintool why you need port limit patches? Read Vanilla Desktop Guide and configure your plist from the start.



Man, you don't even delete the warning messages are you really need those?

[telepati]

1 hour ago, Bluesnowball3 said:

I am still unable to boot from the USB installer-Catalina-Z170 P-Skylake. After the Apple symbol it shuts down.

One of the error messages is:AppleUSBHostPort Disconnect: numerous enumeration failures. For some reason this message appears on the screen but I cannot see it in the boot log. I have now tried disconnecting the mouse and keyboard and the message disappears. Obiously I need to map the USB ports but I do not see how I can do this until I can boot in to Catalina. I cannot access disk utulity. If I press command plus R after the Apple symbole nothing happens, the same if I do it earlier. it still shuts down after the Apple symbol.



I have extracted DSDT using SSDTime and put it in my ACPI folder. I read somewhere that Opencore does this and so it is not needed, is this correct? I have set Platform info for MacPro 1,1.

I have compiled SSDT-PLUG and  SSDT-EC-USBX using iasl-win and SSDTime as per the Skylake vanilla desktop guide and Opencore Base Set Up guide.

I do not know how to set Plug In type, however I now have access to a Mac and will try to figure this out.



One of the error messages when I boot with the Windows disc attached is:
 OCB: Matching <> args on type 3 0
31:337 00:229 OCFS: Filename \ has trailing slash

Should I change the slash to the other way? When I boot with the Window disc disconnected I do not get this message. My target disc is formatted as HFS+ and GPT using Paragon.

Thanks in advance for any help. I attach the boot file with the windows disc connected, the second one is with it disconneted and my config.plist.



David

opencore-2020-03-17-200146.txt

opencore-2020-03-17-201424.txt

config.plist

Why do you think people have recorded system information in their signature area? is it for fun?

[nmano]

45 minutes ago, telepati said:

Your config.plist is just a mess. Are you really need all those patches? Skylake-X just needs 3 SSDT's your config has full off SSDT's. You are not using Audio but you activate Audio driver. WHY?  Also, the sound! You are almost using every sound option in your system. alcid=, Device Properties and SSDT's. Choose one and delete others. If you are using the easiest method (alcid=) why you also activate the sound in your Device Properties? USB port limit patches WHY? You are already created USBport.kext with Hackintool why you need port limit patches? Read Vanilla Desktop Guide and configure your plist from the start.



Man, you don't even delete the warning messages are you really need those?

I agree my config its mess.

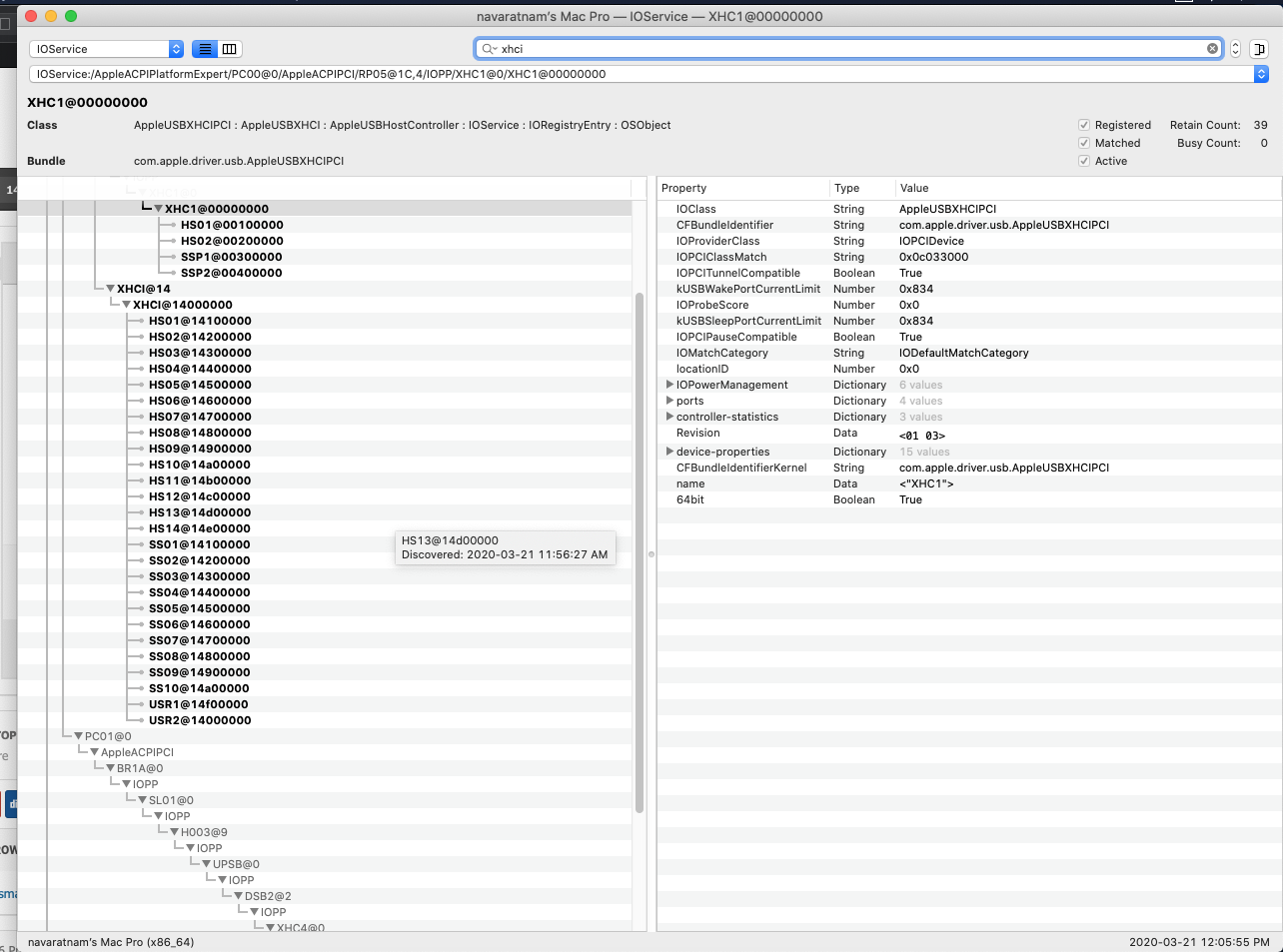

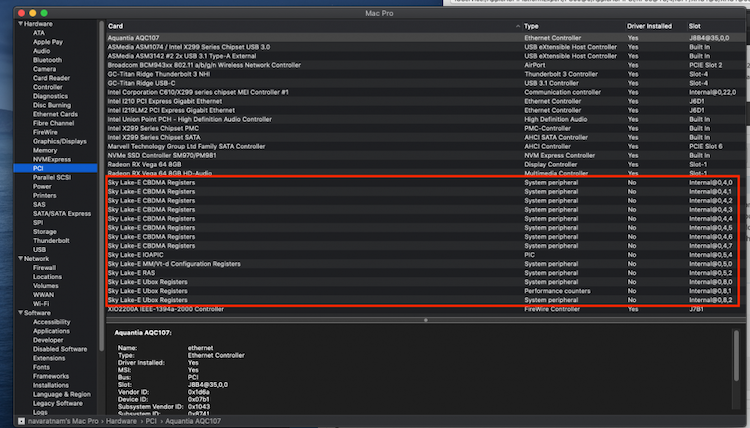

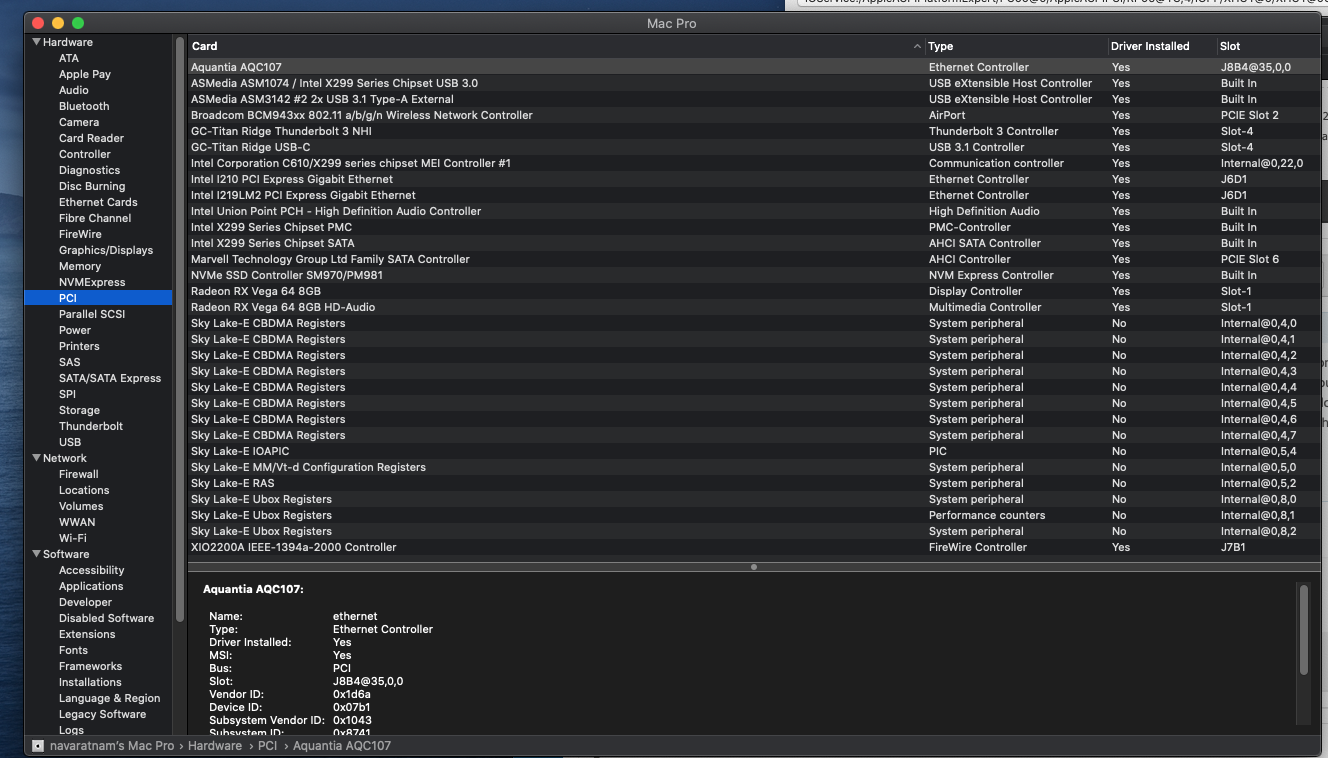

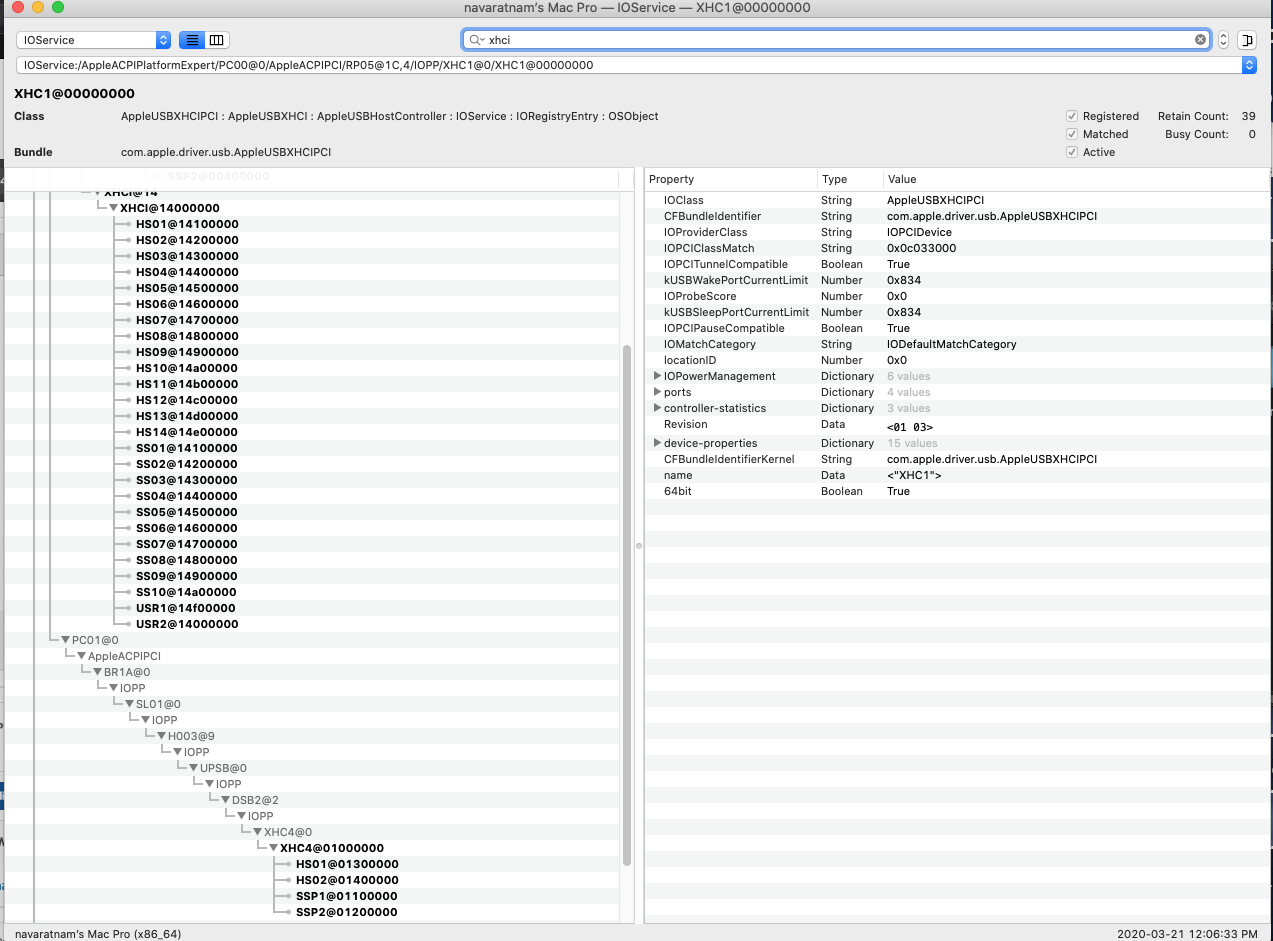

My System  have 34 USB pors.

I Disable AudioDxe.efi

I don't Active sound in Device Properties.Its was Disable.

Check My config.plist

Thank you









[telepati]

@nmano are using all ports. Probably No! if the port is empty just disable it you don't need that.

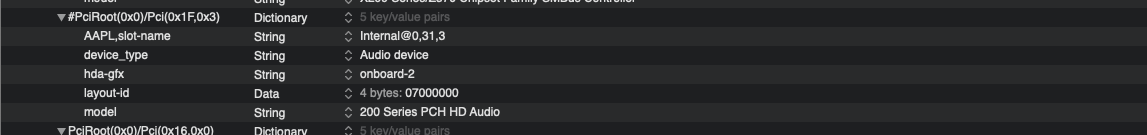

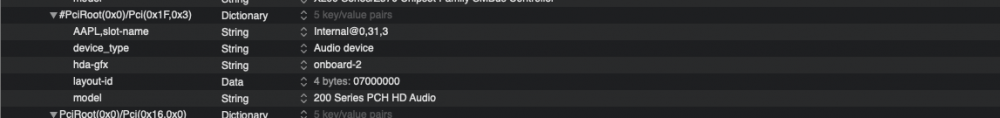

The picture you show for the sound it is clearly saying audio is active.

These are all rubbish.





Edited March 21, 2020 by telepati

[nmano]

10 minutes ago, telepati said:

@nmano are using all ports. Probably No! if the port is empty just disable it you don't need that.

These are all rubbish.

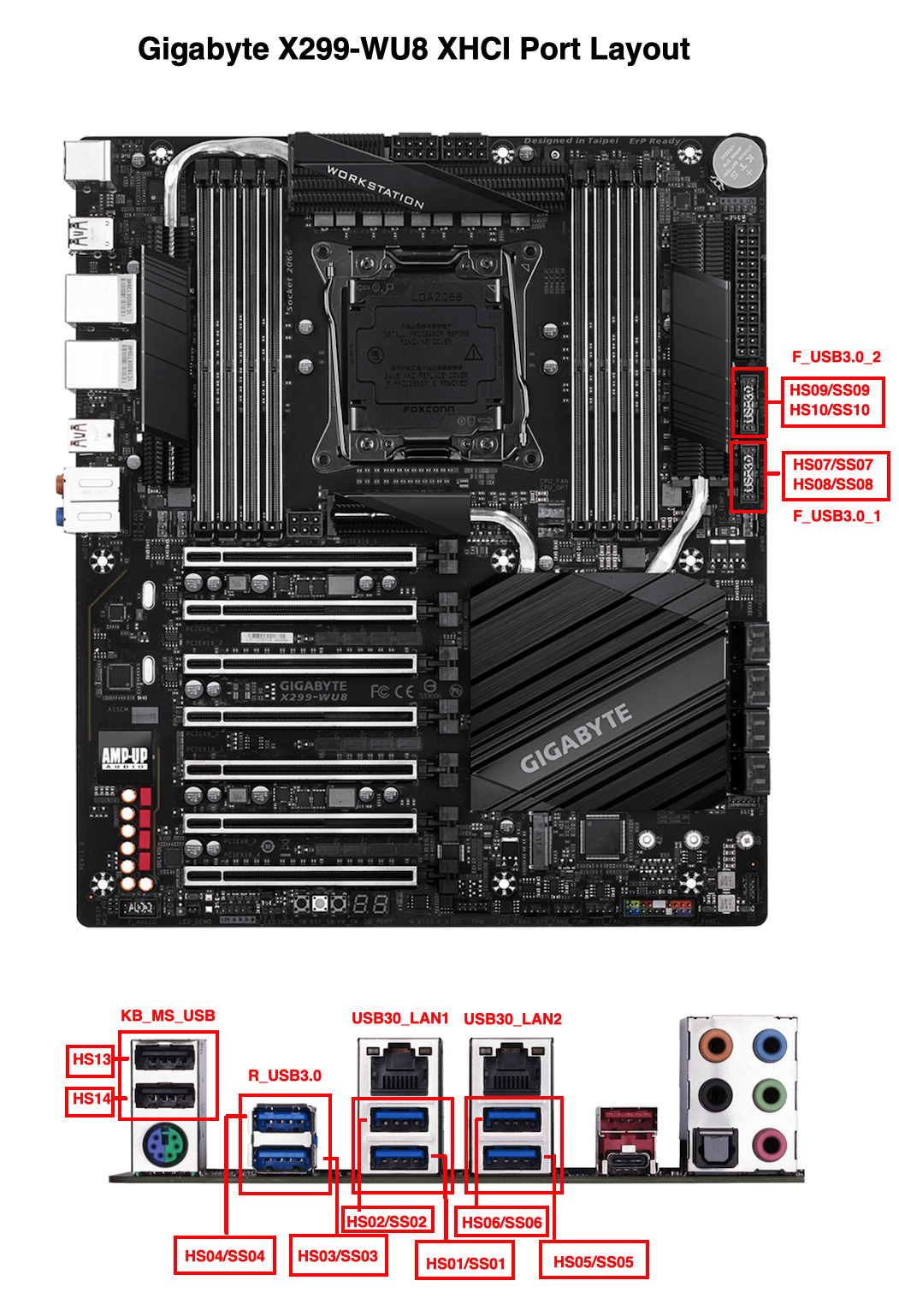

If I want to Disable

HS07/SS07

HS08/SS08

How to do that?





USBPorts.kext.zip



Thanks.

[telepati]

@nmano Write down the ports you use, then create a new USBport.kext with the help of Hackintool. There is a guide on how to do it in Hackintool.

Edited March 21, 2020 by telepati

[vit9696]

On 3/20/2020 at 8:26 PM, tarkh said:

Hello guys,

maybe my problem related to OpenCore, so I'll post here.



I'm having KP while trying to boot Recovery partition.

macOS 10.14.6 works just fine without issues.



My system: OpenCore, ASUS x99 Deluxe, Intel 5960X, Nvidia GT 740

Attaching screenshot and my EFI folder.

Help would be appreciated !



-----



Some update: If I disable _xcpm_bootstrap Pike R. Alpha kernel patch, then I'm getting different error - hanging on PCI configuration begin (IMG attached)



-----

EFI.zip

This is with AppleALC, the crash in particular should be resolved in master. But the rest is up to you.

[topolino1]

On 3/5/2020 at 6:55 PM, MacNB said:



I enabled AudioPicker it works well.

I don't really need it as my eye sight is fine (at the moment).



I turned it off, then enabled PlayChime and rebooted.



Hi,  @vit9696, @Download-Fritz, @Pavo @MacNB and everyone.

I am very happy with the graphic and sound mode.
Thanks to everyone who worked on it.

It gets really interesting;)

This is my problem:
PickerAudioAssist works for me. During start the sound "OCEFIAudio_en_Welcome.wav" starts.
PlayChime was also working, "AXEFIAudio_VoiceOver_Boot.wav" could be heard when starting OS X.
After NVRAM restart, "AXEFIAudio_VoiceOver_Boot.wav" cannot be heard.

One more question, does the mouse work in graphic mode?

Can anyone know what needs to be repaired?

Thank you for your help.

A

Edited March 23, 2020 by topolino1

[mhaeuser]

@topolino1 Do you use AudioDxe by Goldfish? If you use AudioDxe from AppleSupportPkg and configure it via config.plist, NVRAM resets should not break VoiceOver

[emperor95]

Hi,



Thanks to Hector van der Aa, I followed the YouTube tutorial that he attached. I found out that my ACPI folder was incorrect and the DSDT.aml file was missing.

Now I successfully installed Catalina, but I had no keyboard during install. (When it asked username I pasted letters one by one from the previous user agreement textbox). The OS was booted correctly, everything was fine except for I had no keyboard, while mouse worked flawelessly.

When I rebooted I cannot type in my password, so can't enter to macOS.



At startup keyboard leds are on for my keyboard and mouse. I can go to UEFI. I have keyboard until I choose my macOS drive from OC command window.

Then suddenly keyboard and mouse leds shuts off, after 10-20 secs mouse comes back, but the keyboard doesn't.



I tried all USB ports on my MoBo (USB2, USB3) and a PS2 keyboard, but my problem is not solved. Everything is set to enabled under USB option in UEFI. (EHCI, XHCI) While mouse works on all usb ports, so they are enabled, I think...



Do you have any further ideas what can be the solution? (My MoBo: Asrock Z77 Extreme4)



Update: Added GenericUSBXHCI.kext, but nothing has changed.



My EC folder looks like this now:

ACPI
 -DSDT.aml
 -SSDT-EC.aml
 -SSDT-EC.dsl
Drivers
 -ApfsDriverLoader.efi
 -AudioDxe.efi
 -FwRuntimeServices.efi
 -HfsPlus.efi
Kexts
 -AppleAHCIPort.kext
 -AppleALC.kext
 -FakePCIID.kext
 -FakePCIID_BCM57XX_as_BCM57765.kext
 -IONetworkingFamily.kext
 -Lilu.kext
 -SMCProcessor.kext
 -SMCSuperIO.kext
 -USBInjectAll.kext
 -VirtualSMC.kext
 -WhateverGreen.kext
 -.DS_Store
Tools
config.plist
OpenCore.efi

Edited March 22, 2020 by emperor95

[telepati]

Anyone knows what is this ACPI error and is it important or not? am I fix these? how?



2020-03-22 17:17:03.566688+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566688+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566690+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> [\_PR_.PR00]
2020-03-22 17:17:03.566690+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> [\_PR_.PR00]
2020-03-22 17:17:03.566691+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  Namespace lookup failure, AE_NOT_FOUND
2020-03-22 17:17:03.566692+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  Namespace lookup failure, AE_NOT_FOUND
2020-03-22 17:17:03.566693+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/dswload-292)
2020-03-22 17:17:03.566694+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/dswload-292)
2020-03-22 17:17:03.566695+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566695+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566696+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> During name lookup/catalog
2020-03-22 17:17:03.566696+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> During name lookup/catalog
2020-03-22 17:17:03.566698+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/psobject-310)
2020-03-22 17:17:03.566698+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/psobject-310)
2020-03-22 17:17:03.566728+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566729+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566731+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> (SSDT:freqdata) while loading table
2020-03-22 17:17:03.566731+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> (SSDT:freqdata) while loading table
2020-03-22 17:17:03.566732+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-319)
2020-03-22 17:17:03.566733+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-319)
2020-03-22 17:17:03.566993+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566993+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566994+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> 1 table load failures, 14 successful
2020-03-22 17:17:03.566994+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> 1 table load failures, 14 successful
2020-03-22 17:17:03.566996+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-342)
2020-03-22 17:17:03.566996+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-342)



[medallo]

hi.

is there any guide to start with opencore? .thanks

[telepati]

20 minutes ago, medallo said:

hi.

is there any guide to start with opencore? .thanks

https://khronokernel-2.gitbook.io/opencore-vanilla-desktop-guide/

[Matgen84]

29 minutes ago, telepati said:

Anyone knows what is this ACPI error and is it important or not? am I fix these? how?



2020-03-22 17:17:03.566688+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566688+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566690+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> [\_PR_.PR00]
2020-03-22 17:17:03.566690+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> [\_PR_.PR00]
2020-03-22 17:17:03.566691+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  Namespace lookup failure, AE_NOT_FOUND
2020-03-22 17:17:03.566692+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  Namespace lookup failure, AE_NOT_FOUND
2020-03-22 17:17:03.566693+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/dswload-292)
2020-03-22 17:17:03.566694+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/dswload-292)
2020-03-22 17:17:03.566695+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566695+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566696+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> During name lookup/catalog
2020-03-22 17:17:03.566696+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> During name lookup/catalog
2020-03-22 17:17:03.566698+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/psobject-310)
2020-03-22 17:17:03.566698+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/psobject-310)
2020-03-22 17:17:03.566728+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566729+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Exception: AE_NOT_FOUND,
2020-03-22 17:17:03.566731+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> (SSDT:freqdata) while loading table
2020-03-22 17:17:03.566731+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> (SSDT:freqdata) while loading table
2020-03-22 17:17:03.566732+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-319)
2020-03-22 17:17:03.566733+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-319)
2020-03-22 17:17:03.566993+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566993+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> ACPI Error:
2020-03-22 17:17:03.566994+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> 1 table load failures, 14 successful
2020-03-22 17:17:03.566994+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf> 1 table load failures, 14 successful
2020-03-22 17:17:03.566996+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-342)
2020-03-22 17:17:03.566996+0300  localhost kernel[0]: (AppleACPIPlatform) <AppleACPIPlatform`AcpiOsVprintf>  (20160930/tbxfload-342)





I don't know if it's important or not. But few days ago, I've ACPI errors on my Z390: I replace SSDT-Awak to SSDT-RTC0: no warning messages.
