Bluesnowball3 Posted March 18, 2020 Share Posted March 18, 2020 The last boot log entry when windows disc is removed is: OCSMC:SmcReadValue Key 4D535463 Size 1 and OCSMC: SmcReadValue Key 4D534163 Size 2 David Link to comment Share on other sites More sharing options...
polkaholga Posted March 18, 2020 Share Posted March 18, 2020 Hi folks, my hack is booting fine with OC 0.5.7 but I get an error at booting right before OC kicks in... "failed to parse field string of type 2" I get this twice, anyone having an idea which field string that could be ? I've read the manual and all about debugging but even with debugging and the appropriate drivers I can't find the relevant string ( dumb or blindness may be another option... ) any hints appreciated... Thanks Link to comment Share on other sites More sharing options...
Matgen84 Posted March 18, 2020 Share Posted March 18, 2020 26 minutes ago, polkaholga said: Hi folks, my hack is booting fine with OC 0.5.7 but I get an error at booting right before OC kicks in... "failed to parse field string of type 2" I get this twice, anyone having an idea which field string that could be ? I've read the manual and all about debugging but even with debugging and the appropriate drivers I can't find the relevant string ( dumb or blindness may be another option... ) any hints appreciated... Thanks Hi @polkaholga You can use plutil via Terminal: type plutil, drag and drop your config.plist. Compare your config.plist to sample.plist: I do that when there are some changes. 1 Link to comment Share on other sites More sharing options...
polkaholga Posted March 18, 2020 Share Posted March 18, 2020 Hi @Matgen84 thanks for your input, output from Terminal was ok in all instances.... nevertheless after leaving the config alone for a while and returning back i could solve it by filling out some empty comment strings i hereby declare myself blind.... or dumb... still not sure what applies 1 Link to comment Share on other sites More sharing options...
Hector van der Aa Posted March 18, 2020 Share Posted March 18, 2020 (edited) i have a working hackintosh but only when my r9 280x is in my top pcie slot i would like to disable this top slot just when im in the hackintosh(i want to put my 2060 Super in the top slot) and have the r9 280x in the bottom slot does anyone know if this is possible and how thx Hector my config is down below config.plist Edited March 18, 2020 by Hector van der Aa Link to comment Share on other sites More sharing options...
polkaholga Posted March 18, 2020 Share Posted March 18, 2020 36 minutes ago, polkaholga said: i hereby declare myself blind.... or dumb... still not sure what applies well... 2nd option is true as soon as I apply timeout @misc/booter they're back anyway, though OC is still in development this is the closest real MAC experience one can have with a hackintosh respect and thanks to all involved !! Link to comment Share on other sites More sharing options...
XLNC Posted March 18, 2020 Share Posted March 18, 2020 On 3/14/2020 at 8:45 PM, Pehem17260 said: I've the same problem Have you resolved the trouble shooting. I send to you ma config.plist my specs : CPU : AMD FX-8370E Eight-Core Processor Motherboard : Asus M5A97 R2.0 Memory : Kingston 16 GB (2 x 8 GB) DDR3- Storage : TOSHIBA MK1646GSX 150 GO MAXTOR STM3250310AS 250 GO Video Card : Radeon RX 590 PCIe 8Go LAN : Realtek RTL8168F/8111F PCI Express Gigabit Ethernet config.plist use the DEBUG version for now. it will let you use keyboard. Link to comment Share on other sites More sharing options...
Hector van der Aa Posted March 19, 2020 Share Posted March 19, 2020 (edited) i have a working hackintosh but only when my r9 280x is in my top pcie slot i would like to disable this top slot just when im in the hackintosh(i want to put my 2060 Super in the top slot) and have the r9 280x in the bottom slot does anyone know if this is possible and how thx Hector my config is down below config.plist Edited March 19, 2020 by Hector van der Aa Link to comment Share on other sites More sharing options...
emperor95 Posted March 19, 2020 Share Posted March 19, 2020 (edited) Hi, I spent the last 3 days trying to install Catalina on my PC but so far with no luck. I created my USB stick for that (USB2 8GB Kingston). When OpenCore starts to run and the stick is selected for boot, after 2-3 minutes I always get an error with prohibited sign and unreadable glitchy texts("Still waiting for root device" is the last line). In my opinion for some reason all of my USB ports are blocked (both keyboard and mouse leds are shuts off by that time I got this message by themselves), that's why OC can't read from my stick. I copied my files from OpenCore-0.5.6-DEBUG folder and USB is created 100% by Ivy Bridge tutorial perfectly. Set everything in the MOBO which settings where present. These are the following things that I have tried so far from various macOS forum posts: -Connected my stick to all USB ports on my MOBO (Both SATA2 and SATA3) -Disconnected keyboard and mouse right after OC starts -With and without USBInjectAll kext in Kextsfolder (same with XHCI-unsupported.kext) -HDD was connected to SATA2 then SATA3 right into MOBO My config: CPU: Intel i5 3570k MOBO: Asrock Z77 Extreme 4 MEM: Kingston 8GB DDR3 1600 (2x4) VGA: nVidia GTX 680 LAN : Broadcom BCM57781 Can you help me please what I am doing wrong? I attached the needed files + you can find my error message pitcures here: https://imgur.com/a/DVkv6MJ Thank you all opencore-2020-03-19-104712.txt config.plist Edited March 19, 2020 by emperor95 Link to comment Share on other sites More sharing options...
Hector van der Aa Posted March 19, 2020 Share Posted March 19, 2020 5 hours ago, emperor95 said: Hi, I spent the last 3 days trying to install Catalina on my PC but so far with no luck. I created my USB stick for that (USB2 8GB Kingston). When OpenCore starts to run and the stick is selected for boot, after 2-3 minutes I always get an error with prohibited sign and unreadable glitchy texts("Still waiting for root device" is the last line). In my opinion for some reason all of my USB ports are blocked (both keyboard and mouse leds are shuts off by that time I got this message by themselves), that's why OC can't read from my stick. I copied my files from OpenCore-0.5.6-DEBUG folder and USB is created 100% by Ivy Bridge tutorial perfectly. Set everything in the MOBO which settings where present. These are the following things that I have tried so far from various macOS forum posts: -Connected my stick to all USB ports on my MOBO (Both SATA2 and SATA3) -Disconnected keyboard and mouse right after OC starts -With and without USBInjectAll kext in Kextsfolder (same with XHCI-unsupported.kext) -HDD was connected to SATA2 then SATA3 right into MOBO My config: CPU: Intel i5 3570k MOBO: Asrock Z77 Extreme 4 MEM: Kingston 8GB DDR3 1600 (2x4) VGA: nVidia GTX 680 LAN : Broadcom BCM57781 Can you help me please what I am doing wrong? I attached the needed files + you can find my error message pitcures here: https://imgur.com/a/DVkv6MJ Thank you all opencore-2020-03-19-104712.txt config.plist Do you have a running windows 7,8 or 10 OS on the computer u want to install macOS on Link to comment Share on other sites More sharing options...
telepati Posted March 19, 2020 Share Posted March 19, 2020 (edited) is anyone can boot in safe mode with OpenCore? I am trying but I can't. After finishing the verbose monitor goes to sleep but all fans are working. EnableSafeModeSlide YES ProvideCustomSlide YES I tried with HotKey (Shift) and -x boot arg but I never boot it. Any idea what can I try? When I in verbose looks like the system does not load the video card kexts. Verbose not stuck or anything but I read a couple of lines AMD9500Controller and AMDRadeonX4000 shows not loaded. I thought probably monitor goes the sleep because of that. But I am not sure. Edit; I tried without these Quirks but nothing changed. Here is my verbose; Its clearly saying kexts are not loadable in safe mode. I think it is not possible to boot in safe mode on Hackintosh. Edited March 19, 2020 by telepati 1 Link to comment Share on other sites More sharing options...
emperor95 Posted March 19, 2020 Share Posted March 19, 2020 1 hour ago, Hector van der Aa said: Do you have a running windows 7,8 or 10 OS on the computer u want to install macOS on Oh, I forgot to mention, that I would like to install as only OS on a separate Sata2 HDD. I have a Win10 on my SSD, but it's plugged out from MOBO. So I want a clean install on my HDD. (It was a storage HDD on Win10, then I formatted as NTFS as wiped all data from it) Link to comment Share on other sites More sharing options...
aylamrin Posted March 19, 2020 Share Posted March 19, 2020 1 hour ago, emperor95 said: Oh, I forgot to mention, that I would like to install as only OS on a separate Sata2 HDD. I have a Win10 on my SSD, but it's plugged out from MOBO. So I want a clean install on my HDD. (It was a storage HDD on Win10, then I formatted as NTFS as wiped all data from it) Have you checked your BIOS settings for USB? Is EHC and XHC Hand-Off enabled? Link to comment Share on other sites More sharing options...
tyufhl Posted March 20, 2020 Share Posted March 20, 2020 @telepati HotKey (Shift) 1 Link to comment Share on other sites More sharing options...
emperor95 Posted March 20, 2020 Share Posted March 20, 2020 (edited) 15 hours ago, aylamrin said: Have you checked your BIOS settings for USB? Is EHC and XHC Hand-Off enabled? I have only 4 options under my USB advanced settings in BIOS: USB Controller USB3 Controller USB Legacy support (As I googled this option is EHC) USB3 Legacy support (Its secondary text is = (XHC), so I guess it has to be the XHC handoff setting for me) All of the above settings are set to enabled. But unfortunately I have no EHC option anywhere in BIOS, just the 4 options that I mentioned. UPDATE: I have triple checked every settings in UEFI, and when I save settings and reboot, MOBO gives a message that PC is cannot be started in CSM mode disabled, so it sets back automatically to enabled. Whereas OC Vanilla guide says it has to be disabled. Maybe I have to pick out my VGA and try again with IGP? Edited March 20, 2020 by emperor95 Link to comment Share on other sites More sharing options...
telepati Posted March 20, 2020 Share Posted March 20, 2020 4 hours ago, tyufhl said: @telepati HotKey (Shift) How? is it a laptop? if you don't mind could you please share your config without the PlatformData section? 1 Link to comment Share on other sites More sharing options...
tyufhl Posted March 20, 2020 Share Posted March 20, 2020 26 minutes ago, telepati said: How? is it a laptop? if you don't mind could you please share your config without the PlatformData section? this is H170M, i5-6500. config.plist.zip 1 Link to comment Share on other sites More sharing options...
telepati Posted March 20, 2020 Share Posted March 20, 2020 (edited) 1 hour ago, tyufhl said: this is H170M, i5-6500. config.plist.zip What is your primary GPU? Edit: I checked your config.plist and looks like you are using Builtin Key Support. Builtin Key Support never worked for me. But I will make a couple of tests with your settings. Thank you. Edited March 20, 2020 by telepati Link to comment Share on other sites More sharing options...
telepati Posted March 20, 2020 Share Posted March 20, 2020 Guys, do you recommended activating PEG - ASPM on BIOS? Link to comment Share on other sites More sharing options...
Hector van der Aa Posted March 20, 2020 Share Posted March 20, 2020 (edited) 20 hours ago, emperor95 said: Oh, I forgot to mention, that I would like to install as only OS on a separate Sata2 HDD. I have a Win10 on my SSD, but it's plugged out from MOBO. So I want a clean install on my HDD. (It was a storage HDD on Win10, then I formatted as NTFS as wiped all data from it) follow this tutorial (u will make a new installer) then message on the forum that u are done and I will help you from there check your mobo internet chip and use the appropriate kext (replacing intel mausi Ethernet) for you ethernet chip intel(all apart 211 at) IntelMausiEthernet.kext.zip ALX ethernet. ALXEthernet.kext.zip intel 211at ethernet. SmallTreeIntel82576.kext.zip atheros ethernet. AtherosE2200Ethernet.kext.zip you will need nullcpupowermanagement.kext if you are running on and and based platform Edited March 20, 2020 by Hector van der Aa Link to comment Share on other sites More sharing options...
Hector van der Aa Posted March 20, 2020 Share Posted March 20, 2020 38 minutes ago, telepati said: Guys, do you recommended activating PEG - ASPM on BIOS? NO NO NO 1 Link to comment Share on other sites More sharing options...
telepati Posted March 20, 2020 Share Posted March 20, 2020 (edited) @tyufhl I tested it but there is no chance. I think the problem is WEG for me. As far as I see your GPU is supported natively and you are not using WEG. But I need WEG I cant manage the boot without it. And when I using WEG, on SafeMode command OpenCore disabling WEG somehow and I can't make a boot. No chance for me boot in SafeMode Edited March 20, 2020 by telepati Link to comment Share on other sites More sharing options...

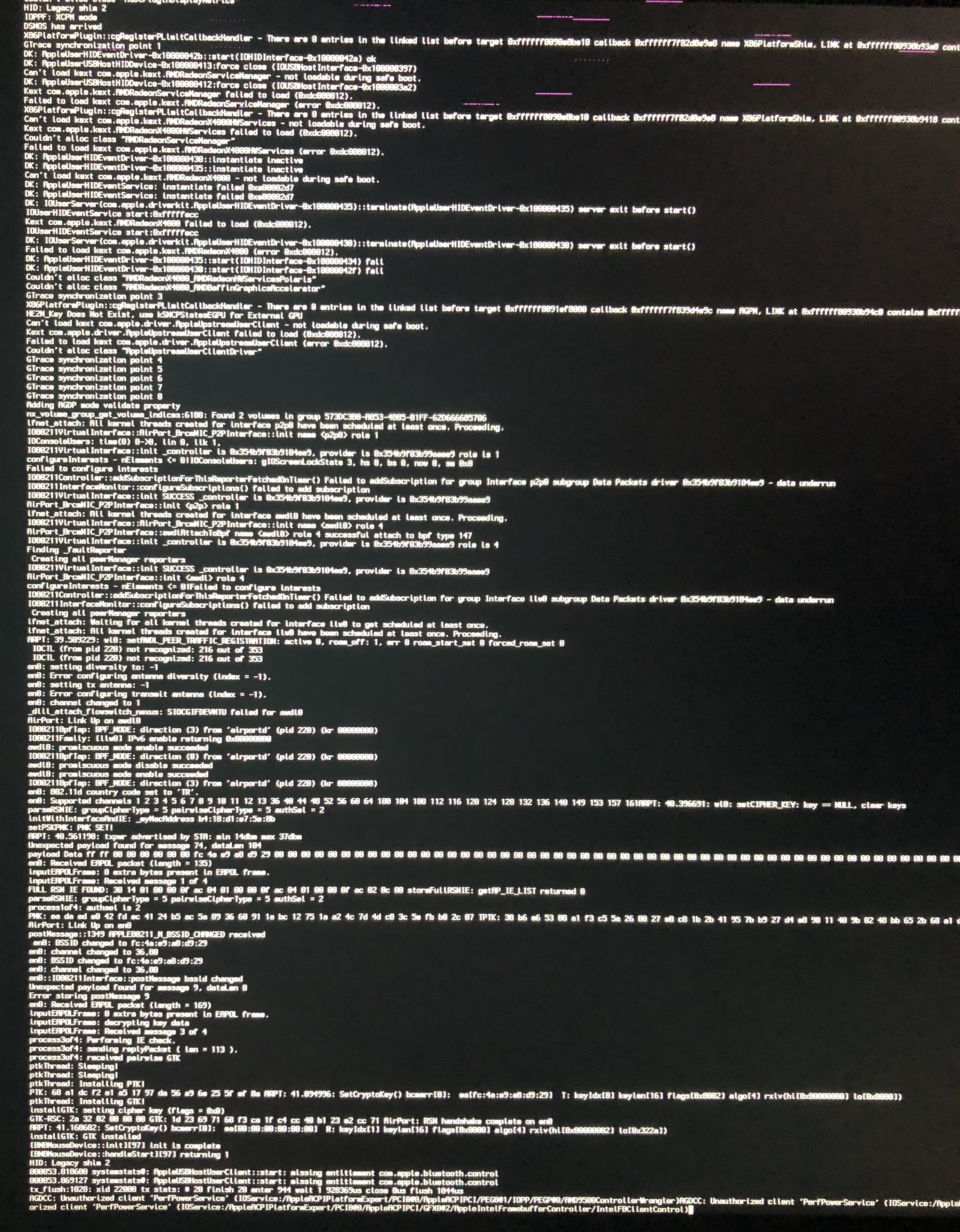

tarkh Posted March 20, 2020 Share Posted March 20, 2020 (edited) Hello guys, maybe my problem related to OpenCore, so I'll post here. I'm having KP while trying to boot Recovery partition. macOS 10.14.6 works just fine without issues. My system: OpenCore, ASUS x99 Deluxe, Intel 5960X, Nvidia GT 740 Attaching screenshot and my EFI folder. Help would be appreciated ! ----- Some update: If I disable _xcpm_bootstrap Pike R. Alpha kernel patch, then I'm getting different error - hanging on PCI configuration begin (IMG attached) ----- EFI.zip Edited March 20, 2020 by tarkh Link to comment Share on other sites More sharing options...
tyufhl Posted March 20, 2020 Share Posted March 20, 2020 @telepati It's kind of weird. GPU Yes, I do not use WEG. Link to comment Share on other sites More sharing options...
_npc_10f2c Posted March 20, 2020 Share Posted March 20, 2020 I'm a bit confused, I've been reading the OpenCore Vanilla guide, I believe I have to follow the legacy options considering I have a Bloomfield. The problem is the setup requires a working macOS system while the rest of the guide is ok with using Windows/Linux to get everything working. Is it even possible to set everything up using Windows for a legacy system? Or should I just be using Clover instead? Up to a few days ago I had High Sierra running on dual monitors, I don't know what went through my mind and I decided to see if I could install Catalina, I got decently far but once it was installed it wouldn't boot. I'm going to assume it was wishful thinking that a Bloomfield could be compatible? Overall I'd like to get High Sierra up and running again, let me know your thoughts. Link to comment Share on other sites More sharing options...
