WizeMan
WizeMan
Posted
Posted (edited)

So when I set ShowPicker to NO and I do reset, even I hold or spam the Opt (Alt) key (or the ESC key) on my Magic Keyboard, the BootPicker will not show. When I shut down the Hackintosh and turn it on again, and press the Alt (Opt) key, the boot picker does show.



1. Is this by design? The action key working only when cold booting and not after a reset. (P.S. I also tested using AppleUsbKbDxe.efi and setting UEFI -> Input -> KeySupport to NO - Same effect / I also tested altering TakeoffDelay, reached up to 1.500.000 - Same effect)

2. Is it a logical user experience that when the picker shows (if summoned by the action key - in my case only upon cold boot), the timeout is applied? I think Apple's stock boot picker does not have a timeout so I guess even the internal boot picker should do the same when summoned by the action key.







Edited by WizeMan
Link to comment
Share on other sites
telepati
telepati
Posted
Posted (edited)

@WizeMan BuitIn KeySupport never worked for me. I tried every possible way (which you also give me a couple of idea) but no. On the other hands AppleUsbKbDxe.efi works like magic within every aspect. Reset, Restart, First Start it doesnt matter its always working. When I need a ClearNvram I just pressing Opt+Command+P+R also Recovery works actually all key options work like a magic and I am not using TakeOffDelay or Timeout.



When using AppleUsbKbDxe.efi you must always be holding not keep pressing. When you see your motherboard logo just hold Opt key or use CleanNVRAM key combination or what ever you want.

Edited by telepati
  • Like 1
Link to comment
Share on other sites
MacNB
MacNB
Posted
Posted
20 hours ago, Andrey1970 said:

Resources of nearly 100 MB, but basic reason it content Apple.



The size should not matter. The audio files (the biggest folder) would only be downloaded once and then subsequently, only the changes. So there's no reason for the Resources to be part of the build.

The least that the build tool should do is to create the Resources folders.



"content Apple" does not make sense. Apple content (if you are referring to the EFI HFS driver) is already on GitHub so downloading it during the build should no be a problem.



Link to comment
Share on other sites
mhaeuser
mhaeuser
Posted
Posted

@WizeMan

1. Is Fast Boot on?

2. I agree this behaviour makes no sense, however there might be edge-cases where people believe it does. The point is, you can fix this by setting Timeout to 0 with no explicit drawback, so this is will-not-fix.

13 minutes ago, MacNB said:

"content Apple" does not make sense. Apple content (if you are referring to the EFI HFS driver) is already on GitHub so downloading it during the build should no be a problem.



The point is not whether it is on GitHub, the point is whether it is refered by an elementary repository. Would you prefer OpenCorePkg or some trash repository vanishing? A script referencing the data could be enough to justify a claim in the worst case, so we stay safe, which most definitely makes sense.

  • Like 1
Link to comment
Share on other sites
rottenpants
rottenpants
Posted
Posted

I just want to thank every opencore/acidanthera developer for their hard work creating this amazing bootloader and all the drivers and kexts.



Its simply awesome :thumbsup_anim:



Shame that Apple is thinking about ditching intel processors in favor of arm in the near future...

  • Like 1
Link to comment
Share on other sites
WizeMan
WizeMan
Posted
Posted (edited)
2 hours ago, Download-Fritz said:

@WizeMan

1. Is Fast Boot on?

2. I agree this behaviour makes no sense, however there might be edge-cases where people believe it does. The point is, you can fix this by setting Timeout to 0 with no explicit drawback, so this is will-not-fix.


1. Fast boot is off

2. The workaround makes total sense. Thank you.

Edited by WizeMan
Link to comment
Share on other sites
iGPU
iGPU
Posted
Posted
3 hours ago, WizeMan said:

So when I set ShowPicker to NO and I do reset, even I hold or spam the Opt (Alt) key (or the ESC key) on my Magic Keyboard, the BootPicker will not show. When I shut down the Hackintosh and turn it on again, and press the Alt (Opt) key, the boot picker does show.







Could warm re-boot be using a different EFI partition (and using a different version/setup of OC) than used with the cold boot?

Link to comment
Share on other sites
WizeMan
WizeMan
Posted
Posted
19 minutes ago, Download-Fritz said:

@WizeMan No clue then, the issue is not with OpenCore but with the firmware. You might want to try to play further with the settings (TakeoffDelay, TimerResolution, ...)


Thank you, I will experiment.



12 minutes ago, iGPU said:



Could warm re-boot be using a different EFI partition (and using a different version/setup of OC) than used with the cold boot?


No way that would be happening, there is only one drive with one EFI partition on my setup :\

Link to comment
Share on other sites
Bluesnowball3
Bluesnowball3
Posted
Posted

Hi , I am trying to install Catalina on a Asus z170 p, using Opencore, it is hanging on 'installation requires internet' can anyone give me an idea what I need to fix in the config.plist to solve this?



David



I attach my config.plist. I realised I do not have SSDT plug installed

. I am trying to use SSDTime but keep getting a message 'could not find SSDTime.py, despite it being in the same folder.























config.plist

Link to comment
Share on other sites
metaphysics
metaphysics
Posted
Posted (edited)

I got stuck at :

20:243 00:031 OCSMC: SmcReadValue Key 4D535463 Size 1
20:267 00:023 OCSMC: SmcReadValue Key 4D534163 Size 2

G4600 @ MSI B250i pro ac + Nvidia 1050

00:000 00:000 OC: OpenCore DBG-056-2020-03-02 is loading in Optional mode (0/0)...
00:017 00:017 OC: Boot timestamp - 2020.03.13 18:38:06
00:034 00:016 OCCPU: MP services threads 4 (enabled 4) - Success
00:051 00:017 OCCPU: MP services Pkg 1 Cores 2 Threads 2 - Success
00:068 00:017 OCCPU: Found Intel(R) Pentium(R) CPU G4600 @ 3.60GHz
00:085 00:017 OCCPU: Signature 906E9 Stepping 9 Model 9E Family 6 Type 0 ExtModel 9 ExtFamily 0 uCode 8E
00:112 00:026 OCCPU: Detected Apple Processor Type: 00 -> 0905
00:129 00:017 OCCPU: Ratio Min 8 Max 36 Current 36 Turbo 36 36 36 36
00:154 00:025 OCCPU: Timer address is 1808 from PMC ACPI
00:280 00:126 OCCPU: CPUFrequencyFromTSC  3599997991Hz  3599MHz
00:306 00:025 OCCPU: CPUFrequency  3599997991Hz  3599MHz
00:332 00:025 OCCPU: FSBFrequency    99999944Hz    99MHz
00:357 00:025 OCCPU: Pkg 1 Cores 2 Threads 4
00:382 00:025 OC: OcLoadNvramSupport...
00:408 00:025 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale, matches add

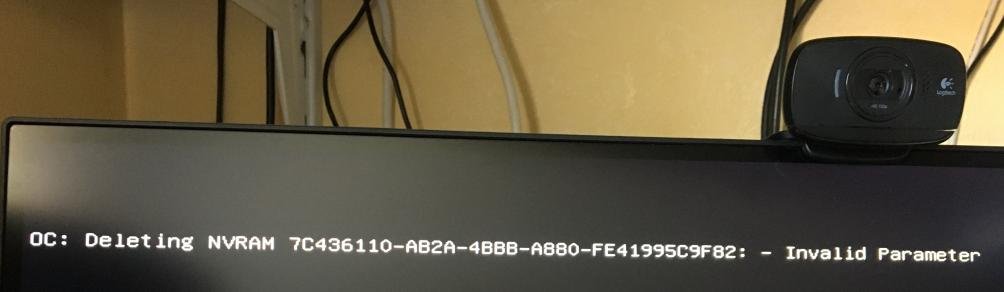

00:444 00:035 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:479 00:035 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success
00:507 00:027 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - ignored, exists
00:544 00:037 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:581 00:036 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success
00:607 00:026 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists
00:647 00:040 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:nvda_drv - ignored, exists
00:682 00:034 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - ignored, exists
00:717 00:034 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists
00:751 00:034 OC: Current version is DBG-056-2020-03-02
00:777 00:026 OC: OcLoadUefiSupport...
00:848 00:071 AIFTimerBoostInit Current timer is 550000
00:960 00:111 AIFTimerBoostInit changed period 550000 to 50000
01:059 00:098 gST->ConIn 8EB27618 vs found 8EB27618
01:095 00:035 OCABC: Firmware has 4092691 free pages (492307 in lower 4 GB)
01:173 00:078 OC: Got 4 drivers
01:240 00:066 OC: Driver ApfsDriverLoader.efi at 0 is being loaded...
01:409 00:169 Starting ApfsDriverLoader ver. 2.1.5
01:475 00:065 OC: Driver ApfsDriverLoader.efi at 0 is successfully loaded!
01:504 00:028 OC: Driver ApfsDriverLoader.efi at 0 needs connection.
01:569 00:064 OC: Driver FwRuntimeServices.efi at 1 is being loaded...
01:603 00:033 OC: Driver FwRuntimeServices.efi at 1 is successfully loaded!
01:632 00:029 OC: Driver NvmExpressDxe.efi at 2 is being loaded...
01:662 00:030 OC: Driver NvmExpressDxe.efi at 2 is successfully loaded!
01:694 00:031 OC: Driver NvmExpressDxe.efi at 2 needs connection.
01:723 00:028 OC: Driver VBoxHfs.efi at 3 is being loaded...
01:759 00:036 OC: Driver VBoxHfs.efi at 3 is successfully loaded!
01:788 00:029 OC: Driver VBoxHfs.efi at 3 needs connection.
01:817 00:028 OC: Connecting drivers...
01:985 00:168 OC: Connecting drivers done...
02:013 00:027 OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
02:044 00:030 OC: Requested resolution is 0x0@0 (max: 1) from Max
02:075 00:031 OCC: Requesting 0x0@0 (max: 1) resolution, curr 2, total 3
02:113 00:038 OCC: Mode 0 - 800x600:1
02:144 00:030 OCC: Mode 1 - 1024x768:1
02:174 00:030 OCC: Mode 2 - 1280x1024:1
02:205 00:031 OCC: Current mode matches desired mode 2
02:236 00:031 OC: Changed resolution to 0x0@0 (max: 1) from Max - Success
02:267 00:031 OCC: Using builtin text renderer with 1 scale
02:335 00:067 OCC: Install console control (8E1D16C0/0/0), current - Success
02:411 00:075 OC: Requested console mode is 0x0 (max: 0) from
02:428 00:017 OC: Requested not to use audio
02:445 00:016 OC: OcLoadAcpiSupport...
02:461 00:016 OCA: Found 20 ACPI tables
02:478 00:016 OCA: Detected table 50434146 (00002049204D2041) at 8F1E91E0 of 276 bytes at index 0
02:495 00:016 OCA: Detected table 43495041 (00002049204D2041) at 8F1E92F8 of 132 bytes at index 1
02:512 00:016 OCA: Detected table 54445046 (00002049204D2041) at 8F1E9380 of 68 bytes at index 2
02:529 00:016 OCA: Detected table 54444946 (00000049204D2041) at 8F1E93C8 of 156 bytes at index 3
02:553 00:023 OCA: Detected table 4746434D (00002049204D2041) at 8F1E9468 of 60 bytes at index 4
02:571 00:018 OCA: Detected table 54445353 (6C62615461746153) at 8F1E94A8 of 931 bytes at index 5
02:588 00:017 OCA: Detected table 54445353 (0020746473536153) at 8F1E9850 of 12662 bytes at index 6
02:605 00:017 OCA: Detected table 54445353 (0074647353676550) at 8F1EC9C8 of 9637 bytes at index 7
02:622 00:017 OCA: Detected table 54445353 (7076525F72656854) at 8F1EEF70 of 3557 bytes at index 8
02:639 00:017 OCA: Detected table 54445353 (38307076725F6878) at 8F1EFD58 of 2601 bytes at index 9
02:656 00:016 OCA: Detected table 49464555 (00002049204D2041) at 8F1F0788 of 66 bytes at index 10
02:673 00:016 OCA: Detected table 54445353 (0074647353757043) at 8F1F07D0 of 3806 bytes at index 11
02:690 00:016 OCA: Detected table 5449504C (00000000004C424B) at 8F1F16B0 of 148 bytes at index 12
02:707 00:017 OCA: Detected table 54445353 (0000707344616448) at 8F1F1748 of 321 bytes at index 13
02:725 00:017 OCA: Detected table 54445353 (62756872736E6573) at 8F1F1890 of 671 bytes at index 14
02:742 00:017 OCA: Detected table 54445353 (6376654464697450) at 8F1F1B30 of 12290 bytes at index 15
02:759 00:017 OCA: Detected table 54445353 (4365707954746254) at 8F1F4B38 of 1303 bytes at index 16
02:776 00:017 OCA: Detected table 50474244 (0000000000000000) at 8F1F5050 of 52 bytes at index 17
02:793 00:017 OCA: Detected table 32474244 (0000000000000000) at 8F1F5088 of 84 bytes at index 18
02:810 00:017 OCA: Detected table 544D5357 (00002049204D2041) at 8F1F50E0 of 40 bytes at index 19
02:836 00:025 OCA: Inserted table 54445353 (0067756C50757043) of 167 bytes into ACPI at index 20
02:853 00:017 OCA: Inserted table 54445353 (0000434574647353) of 278 bytes into ACPI at index 21
02:870 00:017 OCA: FACS signature is 0 (0)
02:886 00:016 OCA: Exposing XSDT table 50434146 (00002049204D2041) at 8F1E91E0 of 276 bytes at index 0
02:904 00:017 OCA: Exposing XSDT table 43495041 (00002049204D2041) at 8F1E92F8 of 132 bytes at index 1
02:964 00:060 OCA: Exposing XSDT table 54445046 (00002049204D2041) at 8F1E9380 of 68 bytes at index 2
02:982 00:018 OCA: Exposing XSDT table 54444946 (00000049204D2041) at 8F1E93C8 of 156 bytes at index 3
02:999 00:017 OCA: Exposing XSDT table 4746434D (00002049204D2041) at 8F1E9468 of 60 bytes at index 4
03:016 00:016 OCA: Exposing XSDT table 54445353 (6C62615461746153) at 8F1E94A8 of 931 bytes at index 5
03:033 00:016 OCA: Exposing XSDT table 54445353 (0020746473536153) at 8F1E9850 of 12662 bytes at index 6
03:050 00:016 OCA: Exposing XSDT table 54445353 (0074647353676550) at 8F1EC9C8 of 9637 bytes at index 7
03:067 00:016 OCA: Exposing XSDT table 54445353 (7076525F72656854) at 8F1EEF70 of 3557 bytes at index 8
03:084 00:016 OCA: Exposing XSDT table 54445353 (38307076725F6878) at 8F1EFD58 of 2601 bytes at index 9
03:101 00:016 OCA: Exposing XSDT table 49464555 (00002049204D2041) at 8F1F0788 of 66 bytes at index 10
03:118 00:016 OCA: Exposing XSDT table 54445353 (0074647353757043) at 8F1F07D0 of 3806 bytes at index 11
03:143 00:024 OCA: Exposing XSDT table 5449504C (00000000004C424B) at 8F1F16B0 of 148 bytes at index 12
03:161 00:017 OCA: Exposing XSDT table 54445353 (0000707344616448) at 8F1F1748 of 321 bytes at index 13
03:178 00:017 OCA: Exposing XSDT table 54445353 (62756872736E6573) at 8F1F1890 of 671 bytes at index 14
03:195 00:017 OCA: Exposing XSDT table 54445353 (6376654464697450) at 8F1F1B30 of 12290 bytes at index 15
03:212 00:017 OCA: Exposing XSDT table 54445353 (4365707954746254) at 8F1F4B38 of 1303 bytes at index 16
03:229 00:017 OCA: Exposing XSDT table 50474244 (0000000000000000) at 8F1F5050 of 52 bytes at index 17
03:246 00:017 OCA: Exposing XSDT table 32474244 (0000000000000000) at 8F1F5088 of 84 bytes at index 18
03:263 00:017 OCA: Exposing XSDT table 544D5357 (00002049204D2041) at 8F1F50E0 of 40 bytes at index 19
03:280 00:017 OCA: Exposing XSDT table 54445353 (0067756C50757043) at 8F562000 of 167 bytes at index 20
03:297 00:017 OCA: Exposing XSDT table 54445353 (0000434574647353) at 8F561000 of 278 bytes at index 21
03:314 00:017 OCA: Exposing RSDT table 50434146 (00002049204D2041) at 8F1E91E0 of 276 bytes at index 0
03:331 00:017 OCA: Exposing RSDT table 43495041 (00002049204D2041) at 8F1E92F8 of 132 bytes at index 1
03:348 00:017 OCA: Exposing RSDT table 54445046 (00002049204D2041) at 8F1E9380 of 68 bytes at index 2
03:366 00:017 OCA: Exposing RSDT table 54444946 (00000049204D2041) at 8F1E93C8 of 156 bytes at index 3
03:383 00:017 OCA: Exposing RSDT table 4746434D (00002049204D2041) at 8F1E9468 of 60 bytes at index 4
03:407 00:023 OCA: Exposing RSDT table 54445353 (6C62615461746153) at 8F1E94A8 of 931 bytes at index 5
03:425 00:018 OCA: Exposing RSDT table 54445353 (0020746473536153) at 8F1E9850 of 12662 bytes at index 6
03:442 00:017 OCA: Exposing RSDT table 54445353 (0074647353676550) at 8F1EC9C8 of 9637 bytes at index 7
03:459 00:017 OCA: Exposing RSDT table 54445353 (7076525F72656854) at 8F1EEF70 of 3557 bytes at index 8
03:476 00:017 OCA: Exposing RSDT table 54445353 (38307076725F6878) at 8F1EFD58 of 2601 bytes at index 9
03:538 00:061 OCA: Exposing RSDT table 49464555 (00002049204D2041) at 8F1F0788 of 66 bytes at index 10
03:555 00:017 OCA: Exposing RSDT table 54445353 (0074647353757043) at 8F1F07D0 of 3806 bytes at index 11
03:572 00:017 OCA: Exposing RSDT table 5449504C (00000000004C424B) at 8F1F16B0 of 148 bytes at index 12
03:679 00:106 OCA: Exposing RSDT table 54445353 (0000707344616448) at 8F1F1748 of 321 bytes at index 13
03:731 00:052 OCA: Exposing RSDT table 54445353 (62756872736E6573) at 8F1F1890 of 671 bytes at index 14
03:784 00:052 OCA: Exposing RSDT table 54445353 (6376654464697450) at 8F1F1B30 of 12290 bytes at index 15
03:837 00:052 OCA: Exposing RSDT table 54445353 (4365707954746254) at 8F1F4B38 of 1303 bytes at index 16
03:889 00:052 OCA: Exposing RSDT table 50474244 (0000000000000000) at 8F1F5050 of 52 bytes at index 17
03:942 00:052 OCA: Exposing RSDT table 32474244 (0000000000000000) at 8F1F5088 of 84 bytes at index 18
03:995 00:052 OCA: Exposing RSDT table 544D5357 (00002049204D2041) at 8F1F50E0 of 40 bytes at index 19
04:048 00:052 OCA: Exposing RSDT table 54445353 (0067756C50757043) at 8F562000 of 167 bytes at index 20
04:100 00:052 OCA: Exposing RSDT table 54445353 (0000434574647353) at 8F561000 of 278 bytes at index 21
04:153 00:052 OC: OcLoadPlatformSupport...
04:206 00:052 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success
04:259 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (18) - Success
04:312 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (24) - Success
04:365 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success
04:418 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success
04:479 00:060 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success
04:532 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success
04:586 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success
04:639 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success
04:692 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success
04:745 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:REV (6) - Success
04:798 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RBr (8) - Success
04:851 00:053 Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success
04:904 00:052 OCSMB: SmbiosLookupHost failed to lookup SMBIOSv3 - Not Found
04:957 00:052 OCSMB: Found DMI Anchor 8FA67000 v3.0 Table Address 8FA64000 Length 1038
05:009 00:052 OCSMB: Number of CPU cache entries is 3
05:107 00:097 OCSMB: Applying 2156 (1) prev 8FA67000 (4152/31), 0 (0/0)
05:218 00:111 OCSMB: Patched 8EDA0000 v3.2 Table Address 8EDA1000 Length 086C 1E 17
05:274 00:056 OC: Setting HW_BID Mac-4B682C642B45593E - Success
05:329 00:055 OC: Setting HW_ROM 11:22:33:00:00:00 - Success
05:382 00:052 OC: Setting ROM 11:22:33:00:00:00 - Success
05:435 00:052 OC: Setting HW_MLB M000000000001 - Success
05:488 00:052 OC: Setting MLB M000000000001 - Success
05:541 00:052 OC: Setting FirmwareFeatures FC0FE137 - Success
05:593 00:052 OC: Setting ExtendedFirmwareFeatures 00000000FC0FE137 - Success
05:646 00:052 OC: Setting FirmwareFeaturesMask FF1FFF3F - Success
05:699 00:052 OC: Setting ExtendedFirmwareFeaturesMask 00000000FF1FFF3F - Success
05:752 00:052 OC: OcLoadDevPropsSupport...
05:804 00:052 OC: Removing devprop PciRoot(0x0)/Pci(0x1b,0x0):MaximumBootBeepVolume - Not Found
05:857 00:052 OC: Setting devprop PciRoot(0x0)/Pci(0x1b,0x0):layout-id - Success
05:910 00:052 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):AAPL,ig-platform-id - Success
05:962 00:052 OC: OcMiscLateInit...
06:022 00:059 OC: LoadHandle is 8C7C3598 - Success
06:076 00:053 OC: Translated HibernateMode None to 0
06:128 00:052 OC: Hibernation detection status is Not Found
06:181 00:052 OC: OcLoadKernelSupport...
06:234 00:052 OC: OpenCore is loaded, showing boot menu...
06:286 00:052 OCB: Performing OcScanForBootEntries...
06:339 00:052 OCB: Found 7 potentially bootable filesystems
06:392 00:052 OCB: Filesystem 0 (8C7C3598) named BOOT (Not Found) has 0 entries
06:445 00:052 OCBP: APFS Volume Info is missing
06:497 00:052 OCBP: Blessed file is missing
06:550 00:052 OCBP: Blessed folder is missing
06:603 00:052 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
06:656 00:052 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
06:752 00:096 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
06:869 00:116 OCBP: Predefined <nil> \boot.efi is missing - Not Found
06:925 00:056 OCB: Filesystem 1 (89E82618) named NO NAME (Not Found) has 0 entries
06:981 00:056 OCBP: APFS Volume Info is missing
07:034 00:052 OCBP: Blessed file is missing
07:087 00:052 OCBP: Blessed folder is missing
07:140 00:053 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
07:194 00:053 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
07:247 00:053 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found
07:303 00:055 OCB: Filesystem 2 (89E70418) named NO NAME (Success) has 1 entries
07:356 00:052 OCBP: APFS Volume Info is missing
07:408 00:052 OCBP: Blessed file is missing
07:461 00:052 OCBP: Blessed folder is missing
07:514 00:053 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
07:567 00:052 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
07:620 00:052 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
07:679 00:059 OCBP: Predefined <nil> \boot.efi is missing - Not Found
07:734 00:054 OCB: Filesystem 3 (89E6AB98) named 850EVO (Not Found) has 0 entries
07:787 00:052 OCBP: APFS Volume Info is missing
07:839 00:052 OCBP: Blessed file is missing
07:892 00:052 OCBP: Blessed folder is missing
07:944 00:052 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
07:997 00:052 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
08:050 00:052 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:103 00:052 OCBP: Predefined <nil> \boot.efi is missing - Not Found
08:155 00:052 OCB: Filesystem 4 (89E6A718) named NO NAME (Not Found) has 0 entries
08:208 00:052 OCBP: APFS Volume Info is missing
08:261 00:052 OCBP: Blessed file is missing
08:313 00:052 OCBP: Blessed folder is missing
08:366 00:052 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:463 00:097 OCBP: Predefined <nil> \EFI\APPLE\X64\BOOT.EFI is missing - Not Found
08:576 00:112 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:632 00:055 OCBP: Predefined <nil> \boot.efi is missing - Not Found
08:687 00:055 OCB: Filesystem 5 (89965F98) named ST2000LM015 (Not Found) has 0 entries
08:739 00:052 OCBP: APFS Volume Info is missing
08:802 00:062 OCBP: BlessedFileHEX (1/3 150) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 14 03 05 06 00 12 00 04 01 2A 00 02 00 00 00 00 48 06 00 00 00 00 00 00 98 8E 03 00 00 00 00 67 9B 06 E3 00 00 00 00 00 00 00 00 00 00 00 00
08:893 00:091 OCBP: BlessedFileHEX (2/3 150) - 01 01 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00
08:982 00:089 OCBP: BlessedFileHEX (3/3 150) - 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
09:035 00:052 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x12,0x0)/HD(2,MBR,0xE3069B67,0x64800,0x38E9800)/\System\Library\CoreServices\boot.efi
09:088 00:052 OCBP: Blessed file is valid
09:140 00:052 OCB: Filesystem 6 (8C7AB198) named macOS Base System (Success) has 1 entries
09:193 00:052 OCB: Adding entry 0, external - 0, skip recovery - 0
09:246 00:052 DevicePath - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\BOOT\BOOTX64.EFI
09:299 00:053 OCBP: APFS recovery volume handle missing - \EFI\BOOT\
09:351 00:052 OCB: Adding entry 1, external - 0, recovery (<null>) - Not Found
09:407 00:055 OCB: Adding entry 1, external - 1, skip recovery - 0
09:467 00:060 DevicePath - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x12,0x0)/HD(2,MBR,0xE3069B67,0x64800,0x38E9800)/\System\Library\CoreServices\boot.efi
09:521 00:054 OCBP: APFS recovery volume handle missing - \System\Library\CoreServices\
09:574 00:052 OCB: Adding entry 2, external - 1, recovery (<null>) - Not Found
09:627 00:052 Skipping equal alternate device path 8C7AB198
09:680 00:052 OCB: Scanning got 2 entries
09:733 00:052 Trying to get label from \EFI\BOOT\.contentDetails
09:788 00:055 Trying to get label from \EFI\BOOT\.disk_label.contentDetails
09:842 00:054 Trying to detect Microsoft BCD
09:896 00:054 OCB: Entry 0 is BOOTCAMP Windows at \EFI\BOOT\ (T:3|F:0)
09:949 00:052 OCB: Entry 0 is BOOTCAMP Windows at dp PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\BOOT\BOOTX64.EFI
10:038 00:088 Trying to get label from \System\Library\CoreServices\.contentDetails
10:091 00:052 Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
10:144 00:052 OCB: Entry 1 is macOS Base System at \System\Library\CoreServices\ (T:1|F:0)
10:241 00:097 OCB: Entry 1 is macOS Base System at dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0x12,0x0)/HD(2,MBR,0xE3069B67,0x64800,0x38E9800)/\System\Library\CoreServices\boot.efi
10:355 00:114 OCB: Performing OcShowSimpleBootMenu... 0
10:411 00:056 OCB: BootNext has not been found
10:467 00:055 OCB: efi-boot-device-data - Not Found
10:521 00:053 OCB: efi-backup-boot-device-data - Not Found
10:574 00:052 OCB: efi-apple-recovery-data - Not Found
10:626 00:052 OCB: Dumping BootOrder
10:679 00:052 OCB: 0 -> Boot0000 = HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
10:732 00:052 OCB: Predefined list
10:785 00:052 OCB: 0 -> Boot0080 - failed to read
10:838 00:052 OCB: 1 -> Boot0081 - failed to read
10:890 00:052 OCB: 2 -> Boot0082 - failed to read
10:943 00:052 OCB: Predefined list
10:996 00:053 OCB: Default DP pre-fix - HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
11:049 00:052 OCB: Default DP post-fix - HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
11:102 00:052 OCB: Default DP post-fix remainder - HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
11:162 00:060 OCB: Expanded DP - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,DFBC2917-C777-4896-BA2B-2FA38077015E,0xE1800,0x31800)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
11:252 00:089 OCB: Expanded DP remainder - \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
11:305 00:052 OCB: Short-form DP could not be expanded
11:357 00:052 OCB: Failed to match a default boot option
11:410 00:052 OCB: Initial default is 0, fallback
13:096 01:686 OCB: Should boot from macOS Base System (T:1|F:0|DEF:0)
13:118 00:021 OCB: Perform boot macOS Base System to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0x12,0x0)/HD(2,MBR,0xE3069B67,0x64800,0x38E9800)/\System\Library\CoreServices\boot.efi (0/0)
13:245 00:126 OCB: Matching <> args on type 1 0
13:274 00:029 OCOS: OS set: <null> Mac OS X 10.15
13:297 00:022 OCOS: OS set: Apple Inc. Mac OS X 10.15
13:325 00:028 OCABC: Only 128/256 slide values are usable!
13:343 00:018 OCABC: Valid slides - 128-255
13:532 00:188 Trying XNU hook on System\Library\PrelinkedKernels\prelinkedkernel.development
13:649 00:117 Kext reservation size 8130560
19:502 05:852 Result of XNU hook on System\Library\PrelinkedKernels\prelinkedkernel.development is Success
19:537 00:034 OC: Read kernel version 19.3.0 (190300)
19:557 00:020 OCAK: Replacing _xcpm_core_scope_msrs data 226 76
19:576 00:018 OCAK: Replacing _xcpm_core_scope_msrs data 226 13200
19:595 00:018 OCAK: Replacing _xcpm_core_scope_msrs data 226 16384
19:613 00:018 OCAK: Not matching _xcpm_core_scope_msrs data 46 29660
19:634 00:020 OCAK: XcpmCfgLockRel replace count - 2
19:673 00:039 OCAK: PanicKextDump replace count - 1
19:692 00:018 OCAK: Patch success kext dump
19:722 00:030 OCAK: PowerStateTimeout replace count - 1
19:742 00:020 OCAK: Patch success power state
19:784 00:041 OCAK: AppleCpuPmCfgLock v1 replace count - 10
19:803 00:018 OCAK: Patch v1 success com.apple.driver.AppleIntelCPUPowerManagement
19:822 00:019 OCAK: AppleCpuPmCfgLock v2 replace count - 0
19:841 00:019 OCAK: RemoveUsbLimitIoP1 replace count - 1
19:869 00:028 OCAK: Patch success com.apple.iokit.IOUSBHostFamily
19:894 00:024 OCAK: RemoveUsbLimitV2 replace count - 1
19:913 00:018 OCAK: Patch success com.apple.driver.usb.AppleUSBXHCI
19:932 00:019 OCAK: AppleIoMapper replace count - 1
19:951 00:018 OCAK: Patch success com.apple.iokit.IOPCIFamily AppleIoMapper
19:991 00:039 OC: Prelink injection Lilu.kext (Patch engine) - Success
20:021 00:030 OC: Prelink injection VirtualSMC.kext (SMC emulator) - Success
20:054 00:032 OC: Prelink injection WhateverGreen.kext (Video patches) - Success
20:086 00:032 OC: Prelink injection AppleALC.kext (Audio patches) - Success
20:116 00:030 OC: Prelink injection NullCPUPowerManagement.kext () - Success
20:157 00:041 OC: Prelink injection RealtekRTL8111.kext () - Success
20:212 00:054 Prelinked status - Success
20:243 00:031 OCSMC: SmcReadValue Key 4D535463 Size 1
20:267 00:023 OCSMC: SmcReadValue Key 4D534163 Size 2



EFI.zip

Edited by metaphysics
Link to comment
Share on other sites
Pehem17260
Pehem17260
Posted
Posted
On 3/7/2020 at 10:23 PM, XLNC said:

Hi !
Does anyone has any idea why the keyboard is not working in opencore menu when using 0.5.6 RELEASE , but is working fine in 0.5.6 DEBUG.
and when i was on 0.5.5 RELEASE it was working fine.
i tried both Keysupport= Enabled in config.plist and AppleUsbKbDxe.efi vice-versa but not together ofc.




opencore-2020-03-07-195355.txt.zip
config.plist.zip







I've the same problem

Have you resolved the trouble shooting. I send to you ma config.plist

my specs :

CPU : AMD FX-8370E Eight-Core Processor
Motherboard : Asus M5A97 R2.0
Memory : Kingston 16 GB (2 x 8 GB) DDR3-
Storage : TOSHIBA MK1646GSX 150 GO
      MAXTOR STM3250310AS 250 GO
Video Card : Radeon RX 590 PCIe 8Go
LAN : Realtek RTL8168F/8111F PCI Express Gigabit Ethernet


config.plist

Link to comment
Share on other sites
metaphysics
metaphysics
Posted
Posted
34 minutes ago, anmool said:

i still see bootcamp windows to GUI with latest changes

this Replaced `BOOTCAMP Windows` with `Windows` to match the original

did i miss something?

I just figured out and resolve the problem.

1.using a similar config.list

2.clear cmos  each time after change anything in EFI

Link to comment
Share on other sites
Pehem17260
Pehem17260
Posted
Posted
14 minutes ago, telepati said:

Anyone knows what causes this error;






1 hour ago, anmool said:

how to clear cmos

I"m unlucky I've succeed with OC now Catalina boot but at list I have two black screen withe the old install or two white screen with the clean install

perhaps something isn't ok in config.plist

config.plist

Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted

Hi @vit9696

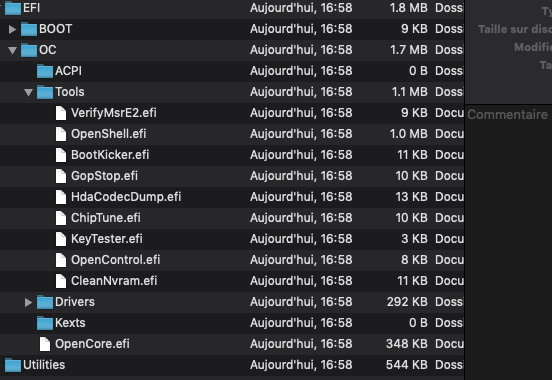

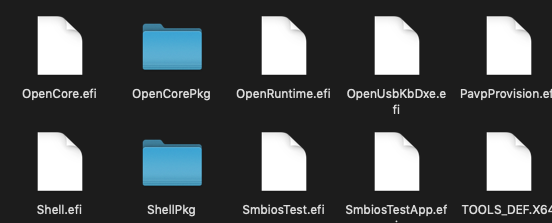

I don't understand: Shell keep his name when I build latest Beta.



 -  Added bundled `Shell.efi` originally available as OpenCoreShell
 +  Added bundled `OpenShell` originally available as OpenCoreShell

@Andrey1970



Before Sample.plist update I use 0x3E92003 for my 9700K. I read somewhere 0x3E980003.

What is the difference between 0x3E91003 (Sample.plist) and the two others ig-platform. I don't understand which one to use now.

  • Like 1
Link to comment
Share on other sites
Andrey1970
Andrey1970
Posted
Posted (edited)



1 hour ago, Matgen84 said:

Before Sample.plist update I use 0x3E92003 for my 9700K. I read somewhere 0x3E980003.

What is the difference between 0x3E91003 (Sample.plist) and the two others ig-platform. I don't understand which one to use now.

By default WEG injects 0x3E91003 for CFL IQSV.

But you can use any.

— 0x3E920003 (desktop, 0 connectors, no fbmem, 1 MB)
— 0x3E910003 (desktop, 0 connectors, no fbmem, 1 MB)
— 0x3E980003 (desktop, 0 connectors, no fbmem, 1 MB)

On real Mac are used different platformID, for example: iMac19,1 with a CFL 9-series uses 0x3E980003.

For CFL Hackintosh any from these three works equally.

Edited by Andrey1970
  • Like 1
  • Thanks 1
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
