OpenCore General Discussion

[btwise]

13 minutes ago, vit9696 said:

either your audio card is unsupported, or your AudioOut is not correct, try to bruteforce all the values from 0 to N-1 outputs.

I also think the sound card is not supported, but I don't know exactly which models AudioDxe supports. The output values of 0 and 1 log have no errors, and the error is indicated after trying 2, so there are not many values to try！



You are a developer god worth worshipping！

[Andrey1970]

5 hours ago, Andres ZeroCross said:

OpenCore latest Commit with External GUI + Audio (Boot Chime and VoiceAssistant)



You move only on one step to the menu, try to click quickly arrows several times, you shall transfer directly to some steps. Otherwise it is a problem ndk.

[Andres ZeroCross]

5 minutes ago, Andrey1970 said:



You move only on one step to the menu, try to click quickly arrows several times, you shall transfer directly to some steps. Otherwise it is a problem ndk.

Ok, i tested with PickerMode Builtin and external

With Builtin
- After boot chime then VoiceAssistant will mention all entry until finish (i can't interrupt it with arrow button even with many press on it, is this by designed??)
- After VoiceAssistant finish mention all entry, then i press then arrow 1x and Voice assistant mention entry name, then i press arrow key several times (4x maybe) and i can fast move the entry selection (I though it good and normal)

With External
- After boot chime then VoiceAssistant will mention all entry until finish (i can't interrupt it with arrow button even with many press on it, is this by designed??)
- After VoiceAssistant finish mention all entry, then i press then arrow 1x and Voice assistant mention entry name, then i press arrow key several times (4x maybe) and I CAN'T fast move the entry selection (I thought it's NDK-BootPicker.efi problem / bug)

[Andrey1970]

3 minutes ago, Andres ZeroCross said:

and I CAN'T fast move the entry selection (I thought it's NDK-BootPicker.efi problem / bug)

Yes it is bug ndk.

[Andrey1970]

7 minutes ago, Andres ZeroCross said:

After boot chime then VoiceAssistant will mention all entry until finish (i can't interrupt it with arrow button even with many press on it, is this by designed??)

Yes it is normal.

You shall understand that it for people with sight problems.

[Mike Ranger]

35 minutes ago, Andrey1970 said:

HDMI not support.

If there is no specified language, there will be an English automatically.



Well.... then if HDMI Audio is not supported please add it to the documentation.

To me that is a crucial feature, because ideally you have audio from your monitor... my monitor only supports HDMI audio.

For Notebooks this is a different situation, but I guess most users here use Desktop machines.

Is it technically feasible to have HDMI audio as well?

Another thought.... there might be users who just want the chime without the other audio support... something to consider.



Thanks



[Andrey1970]

8 minutes ago, Mike Ranger said:



Well.... then if HDMI Audio is not supported please add it to the documentation.

To me that is a crucial feature, because ideally you have audio from your monitor... my monitor only supports HDMI audio.

For Notebooks this is a different situation, but I guess most users here use Desktop machines.

Is it technically feasible to have HDMI audio as well?

Another thought.... there might be users who just want the chime without the other audio support... something to consider.



Thanks





Ask https://github.com/Goldfish64

[Andrey1970]

23 minutes ago, Mike Ranger said:

Well.... then if HDMI Audio is not supported please add it to the documentation.

Done.

https://github.com/acidanthera/AppleSupportPkg#audiodxe

[filamento]

Guys, I'm having lots of problems trying to install Catalina (with OpenCore 0.55) in this computer:

CPU: intel i7-2600 (Sandy Bridge)
MAINBOARD: Gigabyte GA-P67A-D3-B3 (rev. 1.0) bios F7
GPU: ASUS GT640-2GD3 (Kepler)

I've carefully followed this guide, using Legacy Emulated NVRAM settings:
https://khronokernel.github.io/Opencore-Vanilla-Desktop-Guide/config.plist/ivy-bridge.html

But the computer hangs at the Apple Logo, and I noticed that all my BIOS settings are reset to factory defaults!!

This mainboard unfortunately has the dreaded "Gigabyte Hybrid EFI" bios, and I'm guessing that's the source of my suffering  Is there anything I can do?

This computer is able to boot with Clover (using legacy boot), but I'd really like to migrate to OpenCore

[Pavo]

Realtek ALC1220 on AMD MSI mobo, somewhat works. It only plays the boot chime sound 1/3 of the length though.



OCAU: Matching PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x4)/VenMsg(A9003FEB-D806-41DB-A491-5405FEEF46C3,00000000)
OCAU: 1/2 PciRoot(0x0)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x1)/VenMsg(A9003FEB-D806-41DB-A491-5405FEEF46C3,00000000) (6 outputs) - Success
OCAU: 2/2 PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x4)/VenMsg(A9003FEB-D806-41DB-A491-5405FEEF46C3,00000000) (5 outputs) - Success



Edited February 29, 2020 by Pavo

[telepati]

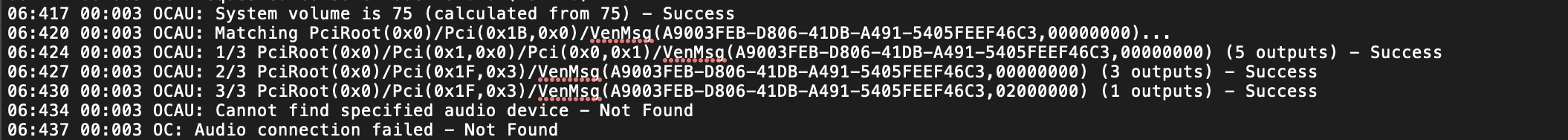

Guys finally I got this and saying Audio connection failed.

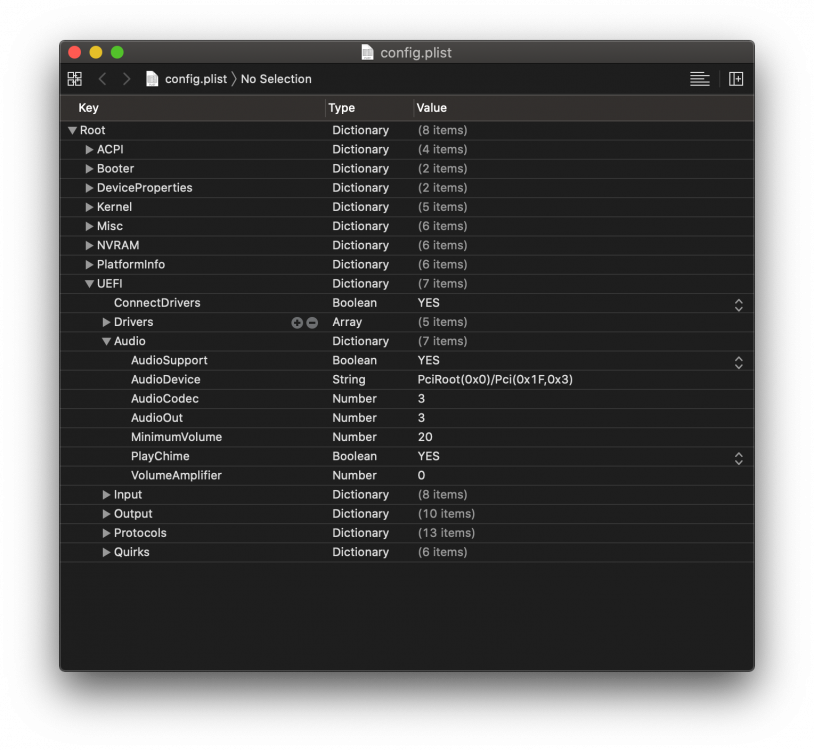

I set up this way but still saying Audio Connection Failed;



[Pavo]

Just now, telepati said:

Guys finally I got this and saying Audio connection failed.





I set up this way but still saying Audio Connection Failed;



Your AudioCodec and AudioOut is wrong, AudioCodec should be 0 and AudioOut looks like it is 0 or 2.

[btwise]

2 hours ago, vit9696 said:

either your audio card is unsupported, or your AudioOut is not correct, try to bruteforce all the values from 0 to N-1 outputs.

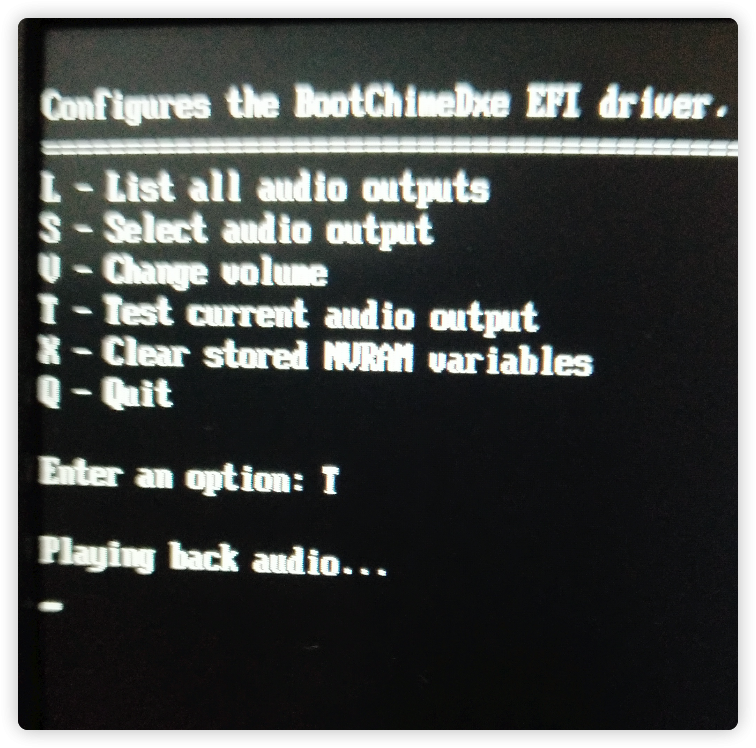

In the same environment, using bootchimecfg of goldfish, test playing the built-in ChimeData is completely normal, but it cannot be played under OC!

[telepati]

9 minutes ago, Pavo said:

Your AudioCodec and AudioOut is wrong, AudioCodec should be 0 and AudioOut looks like it is 0 or 2.

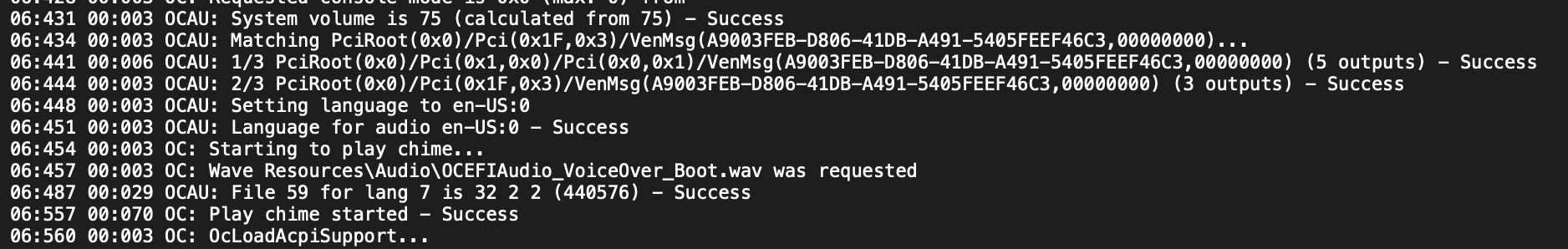

I used 0/0 and looks like working on debug.log. But I can't hear the sound on boot that's weird.



[filamento]

Guys,



Should I edit my config.plist with "WriteFlash" to NO when using Legacy BIOS with emulated nvram?





[n.d.k]

7 hours ago, Download-Fritz said:



@n.d.k Your GUI seems to not handle entry hiding properly with VoiceOver (it takes 3 for 4, etc)

I moved the playaudio function call  on VoiceOver Auxiliary entry switch to after Entries and Icons displayed process are done on version 0.1.5.   Let me know if problem still exists.

[vit9696]

Regarding audio support.



1. AudioDxe in AppleSupportPkg is functionally not different from https://github.com/Goldfish64/AudioPkg, and it only contains bugfixes. Therefore every sound card that originally worked with AudioDxe will work with our version too. We expect that AudioDxe may later migrate to OpenCorePkg with AudioPkg being deprecated. If the particular HDMI audio worked with the original AudioDxe, it will still work fine (as far as I know they do not though).



2. BootChimeCfg is not compatible with OpenCore, but it is writing exactly the same values we have in AudioDevice/AudioCodec/AudioOut to NVRAM. Therefore if you can get your audio to work with BootChimeCfg and cannot with OpenCore it is because you have borked configuration somewhere. Reading is hard, but you have a pdf with a decent amount of details.



3. Different audio cards support different audio formats, and unsupported message in the log means that either the port you tried to output to cannot play audio at all or you have your boot chime in an incompatible format. In the latter case you can always consult to the specification of your audio codec and e.g. reencode the chime wav into some other format e.g. 48 KHz, mono, etc.

[siuying]

Hi,



I recently install Catalina 10.15.3 using OpenCore, on a X570 3950X machine with 5700 XT. Everything working seemingly at first. However I noticed the machine will automatically restart after shutdown, sometime immediate, sometime a few minutes later.



- This do not happen if I shut down in Windows or Linux.

- The motherboard is ITX and each USB controller is well within 15 ports. I have also tried to create USB Mapping DSDT to rename XCI0/XCI1 to other names, and also map each port correctly.

- I have unplugged everything (other than onboard Broadcom wifi)

- There is no kernel panic or error report on restart

- I disable everything related to sleep or wake on LAN

- I have clean reinstall macOS and rebuild EFI



Now I'm running out of idea and don't sure where to look at. It would be great if I can get some pointer on how to diagnostic this issue.



Edited February 29, 2020 by siuying

[telepati]

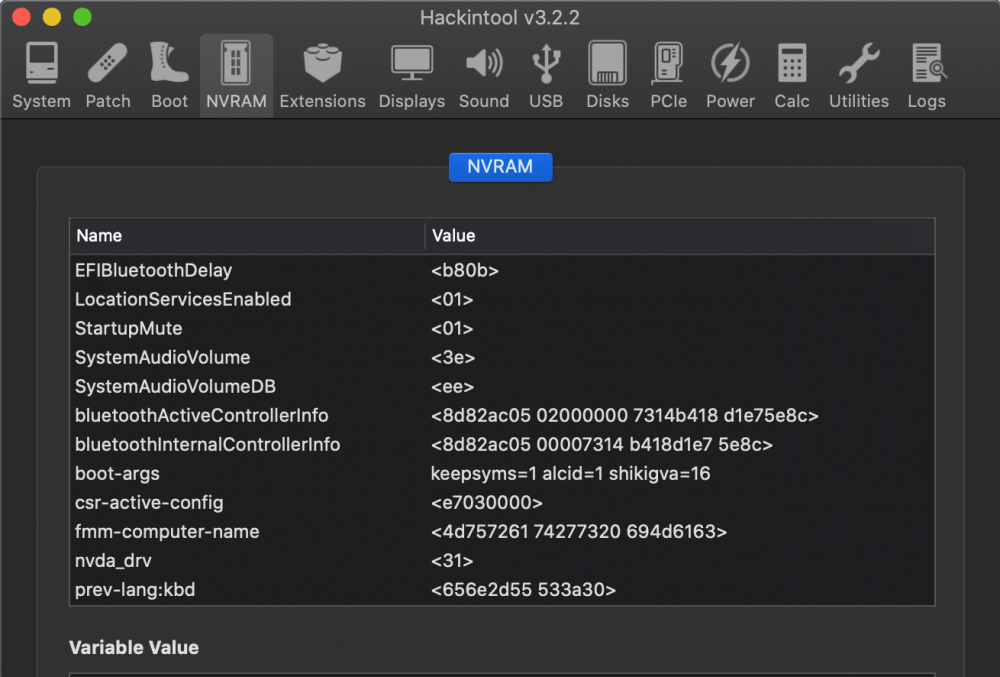

Why StartupMute shows 01 in NVRAM? Is that mean Startup Chime disabled by deafult in NVRAM?

Edited February 29, 2020 by telepati

[Andres ZeroCross]

1 hour ago, telepati said:

Why StartupMute shows 01 in NVRAM? Is that mean Startup Chime disabled by deafult in NVRAM?

Where (how) did you see this information???

[telepati]

1 hour ago, Andres ZeroCross said:

Where (how) did you see this information???

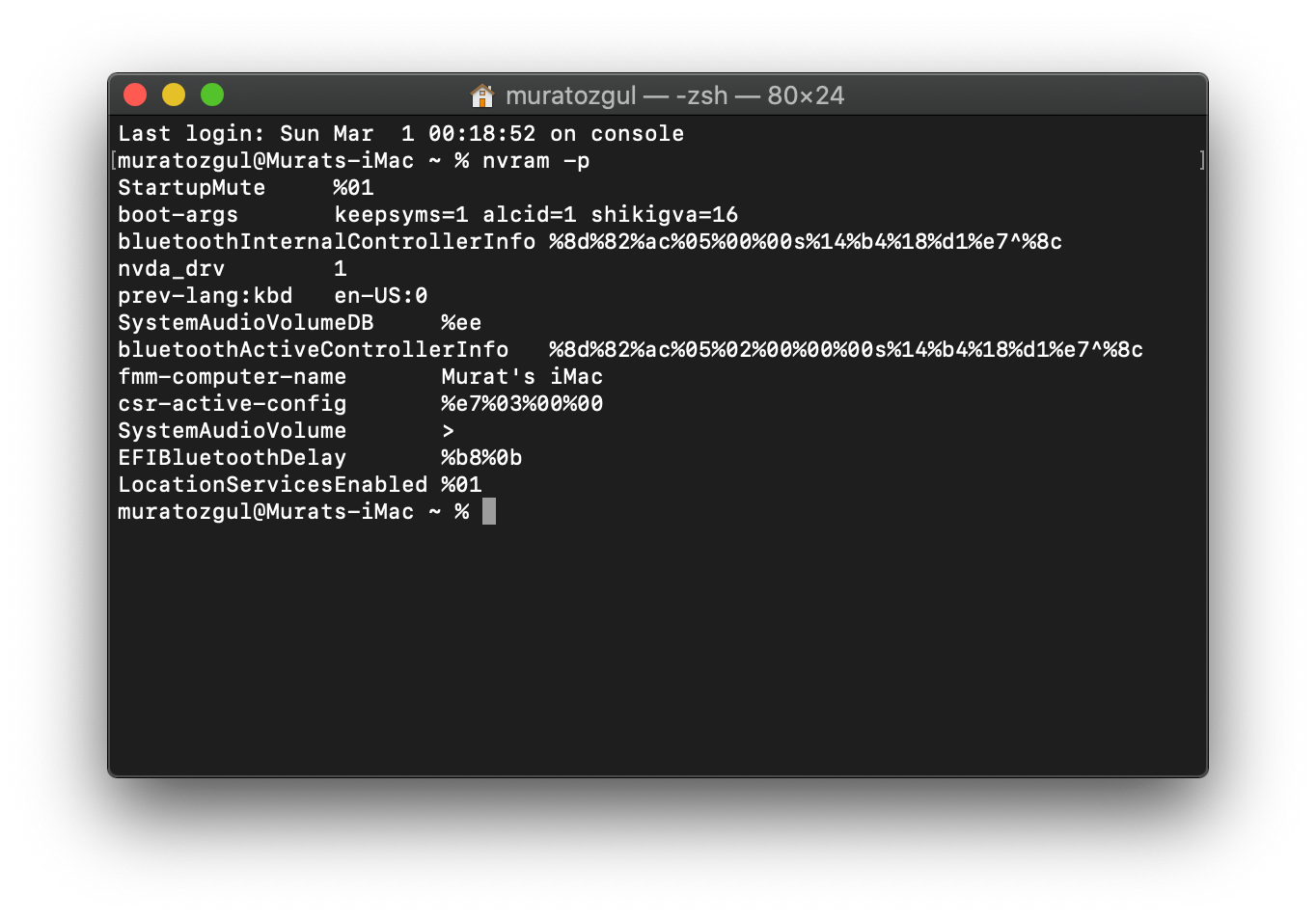

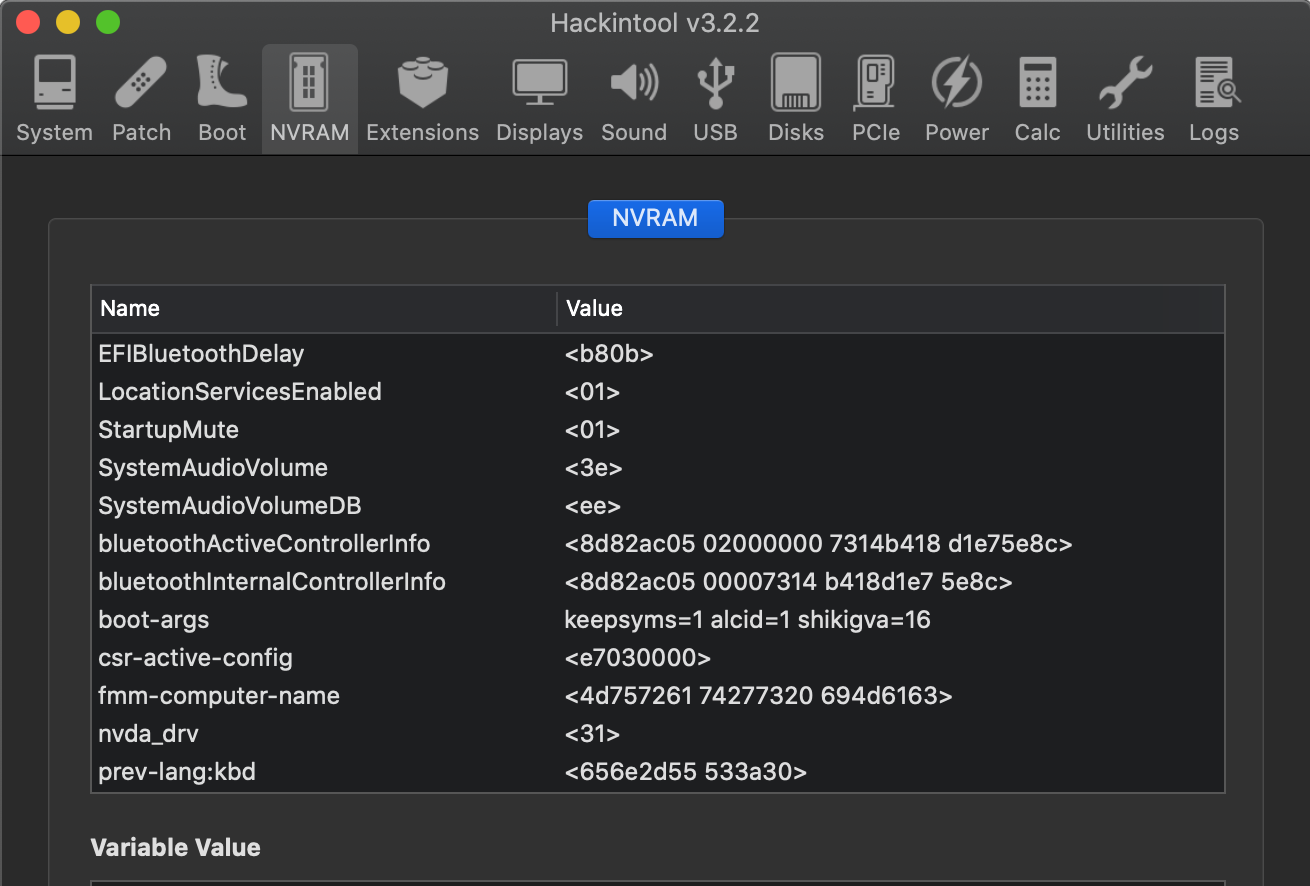

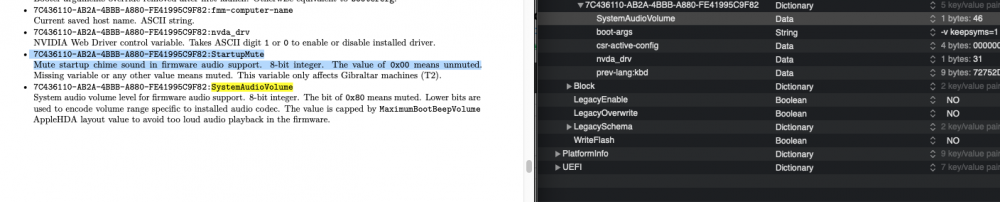

nvram -p command and hackintool shows this. As far as I know "sudo nvram StartupMute=%00" activate Startup Chime on newer mac "sudo nvram StartupMute=%01" re-activating it.



Edited February 29, 2020 by telepati

[Andres ZeroCross]

47 minutes ago, telepati said:

nvram -p command and hackintool shows this. As far as I know "sudo nvram StartupMute=%00" activate Startup Chime on newer mac "sudo nvram StartupMute=%01" re-activating it.

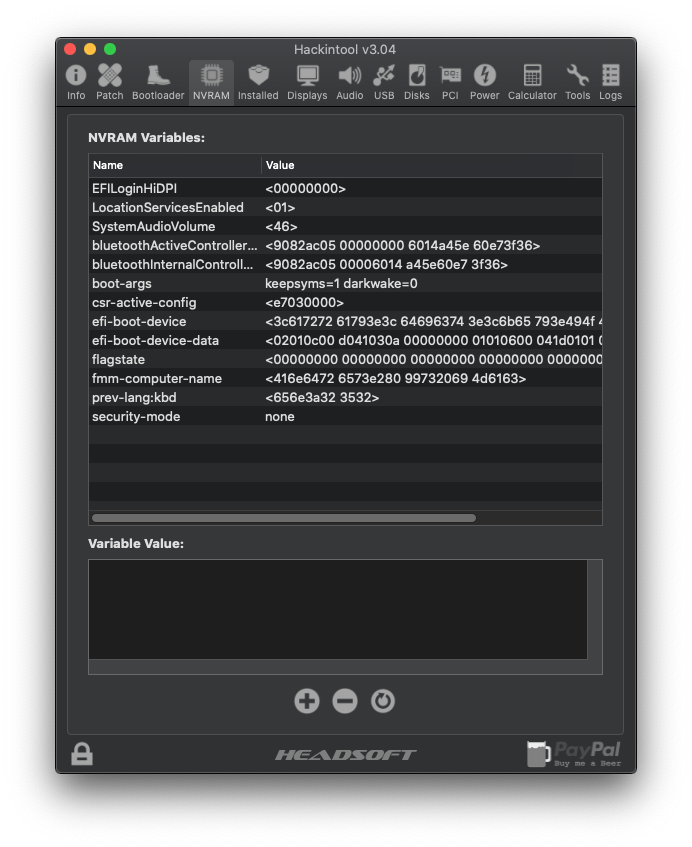

I don't have that in my NVRAM,did you manually inject it from terminal????

[Andres ZeroCross]

54 minutes ago, telepati said:

nvram -p command and hackintool shows this. As far as I know "sudo nvram StartupMute=%00" activate Startup Chime on newer mac "sudo nvram StartupMute=%01" re-activating it.

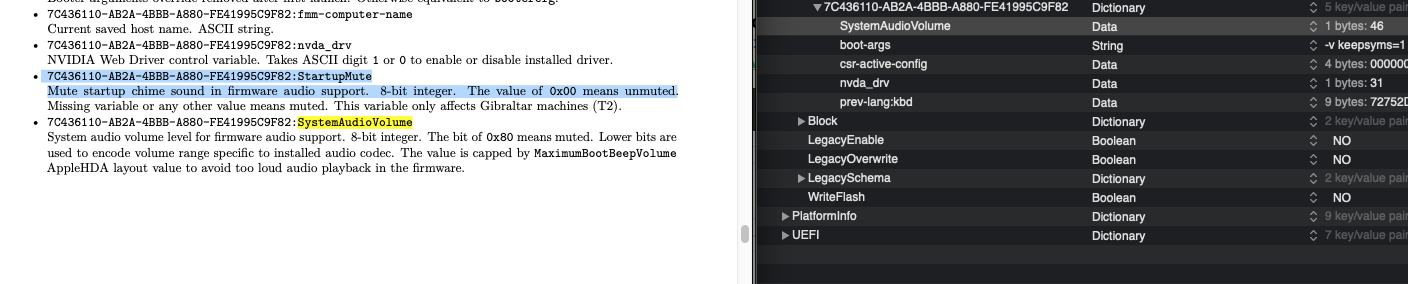

Check your NVRAM Properties in config.plist. I don't add it. Or maybe just add "StartupMute = 0"

However i didn't use this properties for my NVRAM because i didn't see it in SampleFull.plist

[telepati]

1 hour ago, Andres ZeroCross said:





Check your NVRAM Properties in config.plist. I don't add it. Or maybe just add "StartupMute = 0"

However i didn't use this properties for my NVRAM because i didn't see it in SampleFull.plist

How is your StartupMute showing with nvram -p command? is it shows <00> or <01>?

[Andrey1970]

Read Сonfiguration about MinimumVolume.
