mhaeuser Posted February 24, 2020 Share Posted February 24, 2020 3 hours ago, Andres ZeroCross said: we talk about "NdkBootPicker.efi (GUI Driver for OC)" not about OpenCore itself Yes, that is the issue, this topic is about OpenCore. Please move here 4 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted February 24, 2020 Share Posted February 24, 2020 6 minutes ago, Download-Fritz said: Yes, that is the issue, this topic is about OpenCore. Please move here @droples said about FORK OC,, honestly "NdkBootPicker.efi" is GUI Drivers for OC (official and forked ones). And yes, GUI Problem from NdkBootPicker.efi should be discussed in another thread. But i just want to say "NdkBootPicker.efi" is not about "Fork OC / UnOfficially OC Version". Sorry for bad english 2 Link to comment Share on other sites More sharing options...
mhaeuser Posted February 24, 2020 Share Posted February 24, 2020 @Andres ZeroCross Well, yes, but the thread is for the GUI driver and the fork anyway... I'm honestly not convinced relying on HII is a good idea, it looks like a bloated mess just like dynamic PCD, so probably we don't want a big discussion about this here Link to comment Share on other sites More sharing options...
atsankov Posted February 24, 2020 Share Posted February 24, 2020 @mhkmichaell Thank you so much for sharing your ETF. With a few change, I also have a working Opencore. 1 Link to comment Share on other sites More sharing options...
telepati Posted February 24, 2020 Share Posted February 24, 2020 I am very curious about how the new Audio feature will work. But still, no information has been added to the documentation. Link to comment Share on other sites More sharing options...
vit9696 Posted February 25, 2020 Share Posted February 25, 2020 Recently added audio features are designed to bring screen reading support to both OpenCore (picker menu) and boot.efi (FV2 Login Window on 10.13+). We mostly got it to work with @Andrey1970 using @Goldfish64's AudioDxe driver with some modifications. I will update the documentation as time permits. 2 3 Link to comment Share on other sites More sharing options...
syn909 Posted February 25, 2020 Share Posted February 25, 2020 On 2/8/2020 at 5:10 AM, nmano said: 9 ACPI Sleep patch 9 ACPI patch for sleep config-OC.plist All Intel Motherboard. I test X99,X299. @nmano what does this do exactly? Link to comment Share on other sites More sharing options...

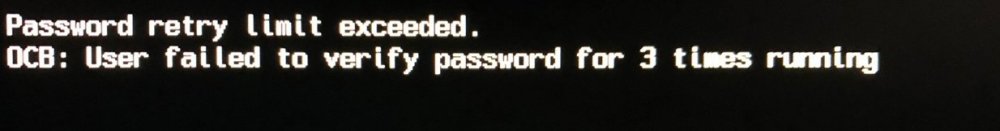

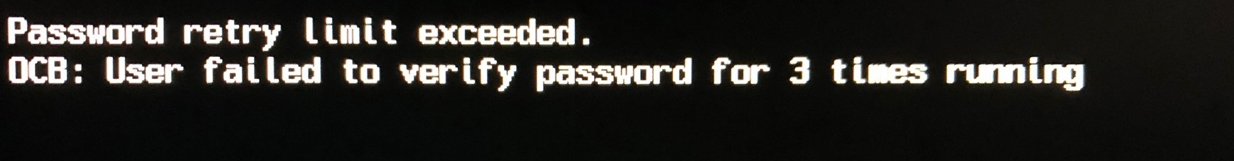

zisqo Posted February 26, 2020 Share Posted February 26, 2020 (edited) i was update a OpenCorePkg-R0.5.6-DevBuild-02252020_230249.zip and AppleSupportPkg-R2.1.6-DevBuild-02262020_001206.zip (Recently OCpkg and ApplesupportPkg files) however after updating, password: screen appears and must be booted by pressing ESC key. if i entered my Mac OS system password, it just get an error as shown in the screenshot. and i couldn't see the boot disk list when press ESC at the booted. ex) 1. Bootcamp 2. macOS 3. recoverly hd what was my problem? previously "OpenCorePkg-R0.5.6-DevBuild-02242020_025048.zip" oc bootloader are working fine. configuration.pdf and difference.pdf don't have any explanation for this problem, so i wondering somebody ask this issue. i think some options are slipped it in Config.plist or Is something missing from the source code in OCpkg & ApplesupportPkg. how think about this is? Edited February 26, 2020 by zisqo 1 Link to comment Share on other sites More sharing options...
vit9696 Posted February 26, 2020 Share Posted February 26, 2020 @zisqo, please rebuild using macbuild.tool. The name of your archive implies you used some unsupported method of compilation. Link to comment Share on other sites More sharing options...
zisqo Posted February 26, 2020 Share Posted February 26, 2020 17 minutes ago, vit9696 said: @zisqo, please rebuild using macbuild.tool. The name of your archive implies you used some unsupported method of compilation. i was get downloaded https://github.com/acidanthera/OpenCorePkg in Download ZIP then build with macbuild.tool but still same problem. Password: string is showing first at the booted and press ESC will booted up. Link to comment Share on other sites More sharing options...
vit9696 Posted February 26, 2020 Share Posted February 26, 2020 Do you use any kind of external UIs or similar stuff? Please ensure that you have them disabled. Include your config.plist please. Link to comment Share on other sites More sharing options...
Erroruser Posted February 26, 2020 Share Posted February 26, 2020 (edited) 12 minutes ago, vit9696 said: Do you use any kind of external UIs or similar stuff? Please ensure that you have them disabled. Include your config.plist please. just build from using ocbuilder an this is what showed on my log on asus z390-a i9 9900k 00:000 00:000 OCB: Failed to match a default boot option (i know this one) the rest? an set to no 00:043 00:043 OC: Nested ReRun is not supported 00:085 00:041 OC: Boot failed - Already started 00:126 00:041 OCB: StartImage failed - Already started Edited February 26, 2020 by Erroruser Link to comment Share on other sites More sharing options...
zisqo Posted February 26, 2020 Share Posted February 26, 2020 (edited) 2 hours ago, vit9696 said: 당신은 어떤 종류의 외부 UI 또는 유사한 것들을 사용합니까? 당신이 그들을 비활성화했는지 확인하십시오. config.plist를 포함하십시오. i'm just using a TUI mode (it meant basically Built in UI) here is my config.plist (removed an UUID/system serial and Platfrom tree) Edited February 26, 2020 by zisqo Link to comment Share on other sites More sharing options...
vit9696 Posted February 26, 2020 Share Posted February 26, 2020 14 minutes ago, zisqo said: i'm just using a TUI mode (it meant basically Built in UI) here is my config.plist (removed an UUID/system serial and Platfrom tree) Config.plist Resolved in master, thank you. 2 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted February 26, 2020 Share Posted February 26, 2020 28 minutes ago, vit9696 said: Resolved in master, thank you. Sukses boot with latest commit of AppleSupportPkg and OpenCorePkg. new line about Audio has been applied,, no error stuff. And now waiting for Guide of Audio 2 Link to comment Share on other sites More sharing options...

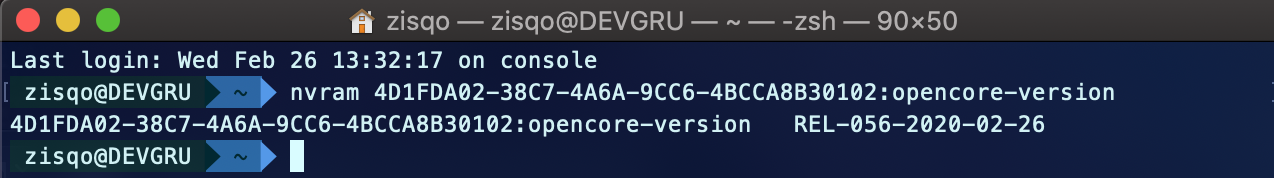

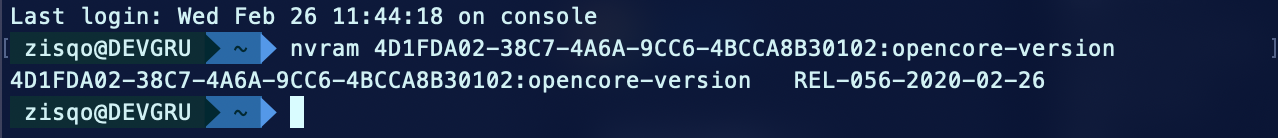

zisqo Posted February 26, 2020 Share Posted February 26, 2020 46 minutes ago, vit9696 said: Resolved in master, thank you. thanks a lot @vit9696!!! from now on, after rebuild up from master build with mcbuild.tool, no longer showing up the "Password:" string when booted. Link to comment Share on other sites More sharing options...
telepati Posted February 26, 2020 Share Posted February 26, 2020 Where can I find memcheck.efi? It is inside of the sample.plist but can find any info about it on Docs. 1 Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 26, 2020 Share Posted February 26, 2020 1 hour ago, telepati said: Where can I find memcheck.efi? It is inside of the sample.plist but can find any info about it on Docs. The third-party program, it is simple for an example. But it exists. 1 Link to comment Share on other sites More sharing options...
telepati Posted February 26, 2020 Share Posted February 26, 2020 (edited) 55 minutes ago, Andrey1970 said: The third-party program, it is simple for an example. But it exists. Ok, but where can we find this utility? 'Cause I googled it but can't find anything about it? is this similar thing with Memtest? BTW, HideAuxiliary does not hide Tools on the BootPicker. I added HdaCodecDump.efi to Tools and my HideAuxiliary set to YES, but it's just hiding Clear NVRAM and Recovery. Doesn't HideAuxiliary hide Tools? Edited February 26, 2020 by telepati Link to comment Share on other sites More sharing options...
epxpc01 Posted February 27, 2020 Share Posted February 27, 2020 i am trying to learn patching dsdt's. I have been trying to understand an Opencore guide (here: https://khronokernel.github.io/Getting-Started-With-ACPI/Desktops/desktop-ec.html to patch a Coffee Lake AWAC issue and just don't get it. I really need to learn so I can test many different motherboards. What I have done: So I used SSDTTime to dump my dsdt, then I used iasel to decompile, then go over to Maciasl to add the necessary Coffee Lake patches form here: https://khronokernel-2.gitbook.io/opencore-vanilla-desktop-guide/intel-config.plist/coffee-lake and that is where I am lost. In Clover RTC it is an easy Acpi Patch, but I am just not getting this lol. Link to comment Share on other sites More sharing options...
vit9696 Posted February 27, 2020 Share Posted February 27, 2020 7 hours ago, telepati said: Ok, but where can we find this utility? 'Cause I googled it but can't find anything about it? is this similar thing with Memtest? BTW, HideAuxiliary does not hide Tools on the BootPicker. I added HdaCodecDump.efi to Tools and my HideAuxiliary set to YES, but it's just hiding Clear NVRAM and Recovery. Doesn't HideAuxiliary hide Tools? HideAuxiliary only hides tools that are explicitly marked as Auxiliary = YES. Read the manual please 1 1 Link to comment Share on other sites More sharing options...
telepati Posted February 27, 2020 Share Posted February 27, 2020 18 minutes ago, vit9696 said: HideAuxiliary only hides tools that are explicitly marked as Auxiliary = YES. Read the manual please Thanks, man, I got it to know, why every tool have an "Auxiliary" key. Link to comment Share on other sites More sharing options...
Tiem Posted February 27, 2020 Share Posted February 27, 2020 47 minutes ago, vit9696 said: HideAuxiliary only hides tools that are explicitly marked as Auxiliary = YES. Read the manual please There are more parameters than that. You don't have to mark something explicitly for it to be hidden with this setting. An entry is considered auxiliary when at least one of the following applies: • Entry is macOS recovery.• Entry is explicitly marked as Auxiliary. • Entry is system (e.g. Clean NVRAM). Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted February 27, 2020 Share Posted February 27, 2020 3 hours ago, vit9696 said: HideAuxiliary only hides tools that are explicitly marked as Auxiliary = YES. Read the manual please I know this too early,, but any hints to get BootChime work?? i have used latest OpencorePkg and AppleSupportPkg Link to comment Share on other sites More sharing options...

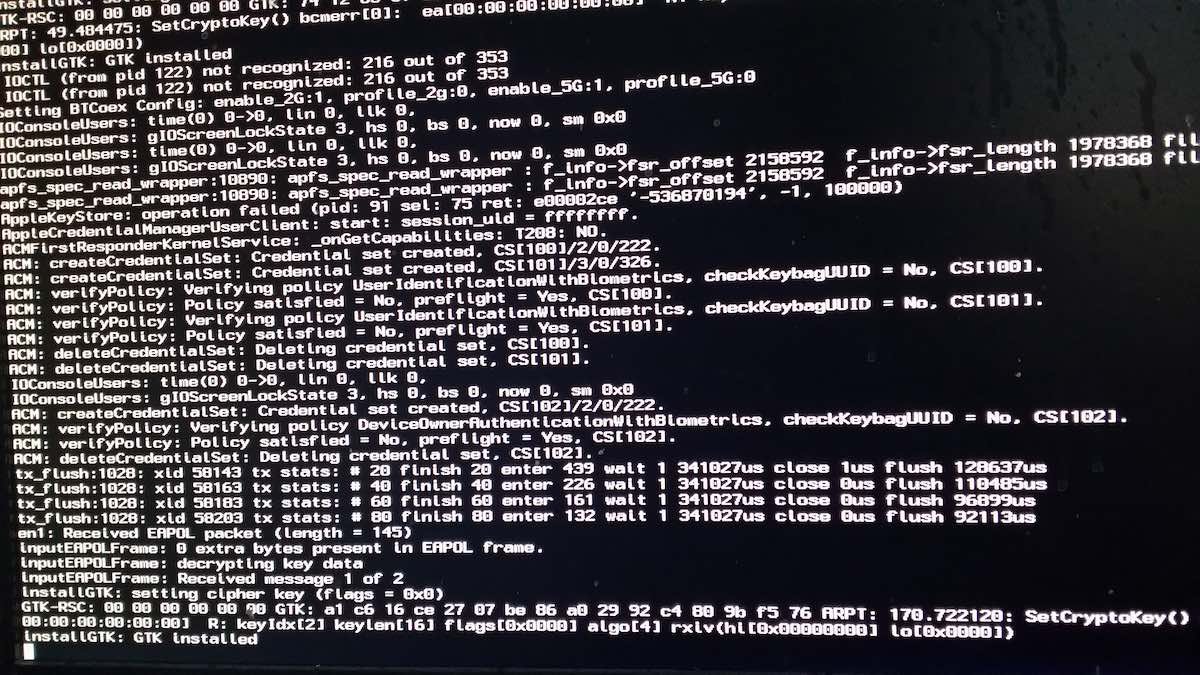

mikorist Posted February 27, 2020 Share Posted February 27, 2020 (edited) I'm trying a few days of OpenCore on the Lenovo G50-70. When the boot starts - goes in the loop - ACM endlessly tries to register Biometrics and ends with tx_flush: 1028.... and here it stands As far as I know my G50-70 doesn't have a finger print reader. There is no such setup in BIOS either. Here is my last version of OC EFI (with ACM loop). MacOS Catalina 10.15.3 (19D76)Maybe someone can fix it. Thanks for help. OC EFI G50-70 Version 10.zip Edited February 27, 2020 by mikorist Link to comment Share on other sites More sharing options...
