Andrey1970 Posted December 23, 2019 Share Posted December 23, 2019 22 minutes ago, fabiosun said: Then, how to debug seriously this new AMD cpu/bios problem? It won't solve your problem. Don't use quirk DevirtualiseMmio. Link to comment Share on other sites More sharing options...
Guest Posted December 23, 2019 Share Posted December 23, 2019 1 minute ago, Andrey1970 said: It won't solve your problem. Don't use quirk DevirtualiseMmio. Yes I know , i have tested all advice see also in opencore GitHub, also calculate my free slide but Always same problem I would like to do a serious debugging as DF said above..if you can address me i will try Thank you Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 24, 2019 Share Posted December 24, 2019 Leaving this here for anyone who's got a well zipped up EFI and good knowledge of what needs to happen to have a good system but cant boot into Catalina. I discovered I couldn't get in if I had any SATA ports enabled in bios. I disabled them and scoped out everything. All seemed well. After a day or so I found adding AppleAHCIPortHotplug.kext prevented OC from having a panic. Thats all! AppleAHCIPortHotplug.kext.zip 2 Link to comment Share on other sites More sharing options...
remix0120 Posted December 24, 2019 Share Posted December 24, 2019 Do you guys know how to create your own "SSDT-EHCx_OFF"? Currently I don't have "SSDT-EHCx_OFF" and system still bootable. it doesn't have usbinjectall.kext and usbports.kext. should I create it? I have z87 mobo, i5-4570, RX580 Link to comment Share on other sites More sharing options...
Slice Posted December 24, 2019 Share Posted December 24, 2019 39 minutes ago, remix0120 said: Do you guys know how to create your own "SSDT-EHCx_OFF"? Currently I don't have "SSDT-EHCx_OFF" and system still bootable. it doesn't have usbinjectall.kext and usbports.kext. should I create it? I have z87 mobo, i5-4570, RX580 You have good enough mobo to live without all them. 1 Link to comment Share on other sites More sharing options...
remix0120 Posted December 24, 2019 Share Posted December 24, 2019 2 minutes ago, Slice said: You have good enough mobo to live without all them. Unbelievable. I also made a SSDT-PLUG from SSDTTime. Not sure if i need this or not? Link to comment Share on other sites More sharing options...
Andrey1970 Posted December 24, 2019 Share Posted December 24, 2019 5 hours ago, remix0120 said: Do you guys know how to create your own "SSDT-EHCx_OFF"? Currently I don't have "SSDT-EHCx_OFF" and system still bootable. it doesn't have usbinjectall.kext and usbports.kext. should I create it? I have z87 mobo, i5-4570, RX580 You can take SSDT-EHCx_OFF in ACPI samples OpenCore. But you shall understand for what it, read the comment there. Link to comment Share on other sites More sharing options...

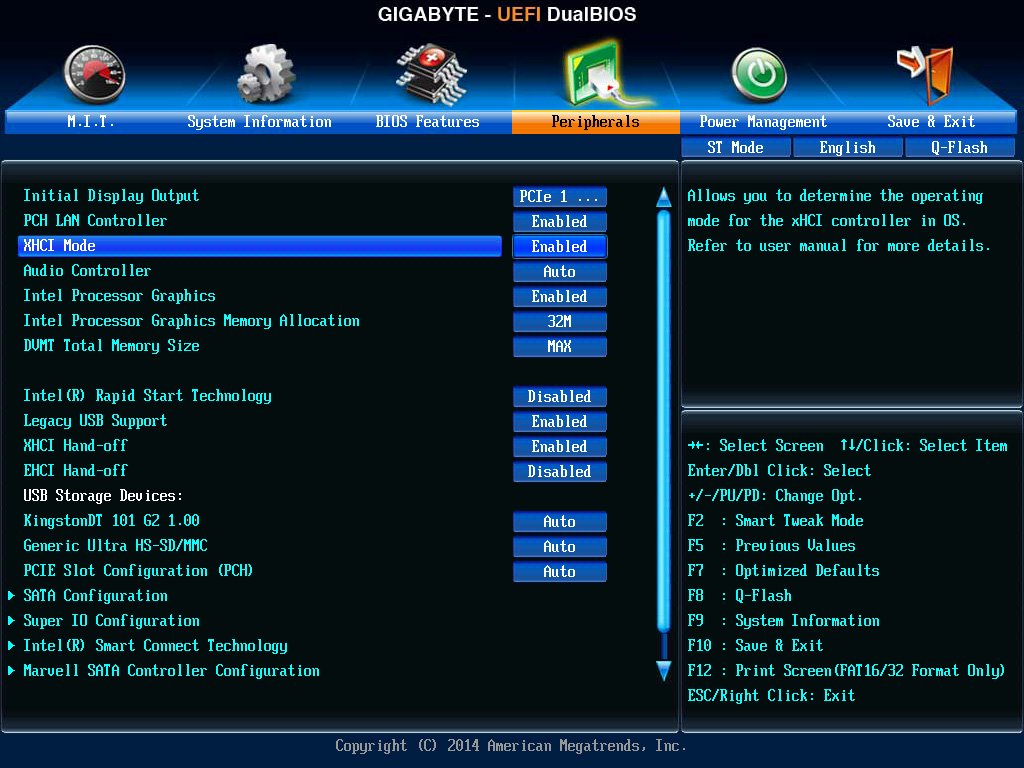

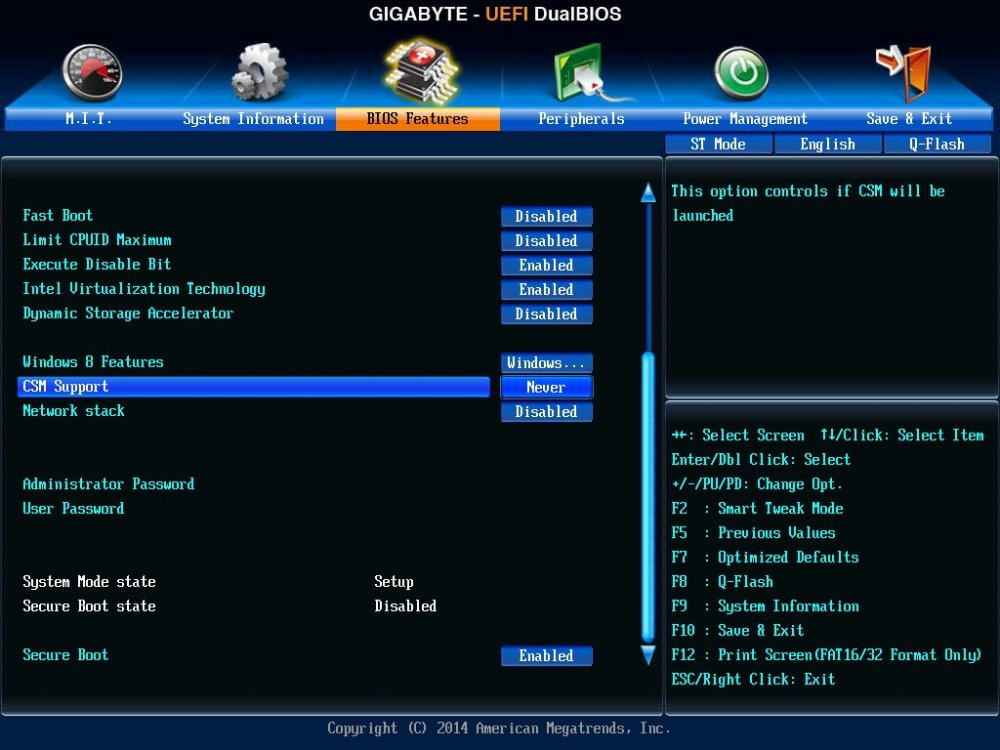

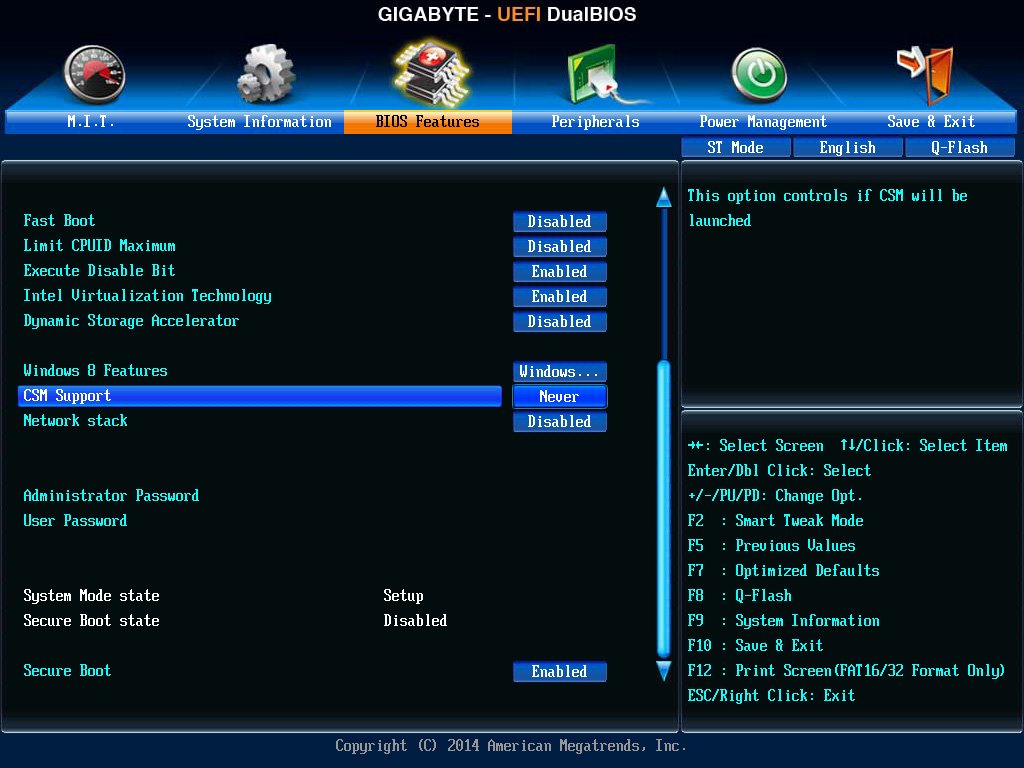

remix0120 Posted December 24, 2019 Share Posted December 24, 2019 (edited) 6 hours ago, Andrey1970 said: You can take SSDT-EHCx_OFF in ACPI samples OpenCore. But you shall understand for what it, read the comment there. Hi, I just realized we have same motherboard, Z87-UD4H Do you mind share your "EFI" file? I can change Serial number, UUID by myself. my system still not stable especially YouTube audio choppy after sleep. For BIOS setting, I pretty much follow the OpenCore guide, but it didn't mention the following "XHCI Mode" - I have "XHCI Hand-off" Enabled, don't know what's the difference. "Secure Boot" "Super IO Configuration" "Intel Processor Graphic" - I have RX580, so this is Enabled. "Intel Processor Graphics Memory Allocation" "DVMT Total Memory Size" Thank you, if you can share your set up and file would be awesome. Edited December 24, 2019 by remix0120 Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 24, 2019 Share Posted December 24, 2019 Does this look right for native NVRAM to you all? Specifically the first two lines. 00:769 00:001 OC: OcLoadNvramSupport... 00:771 00:002 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - Not Found 00:774 00:002 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Not Found 00:777 00:002 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - Success 00:780 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success 00:783 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:nvda_drv - Success 00:786 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - Success 00:789 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - Success Link to comment Share on other sites More sharing options...
Pavo Posted December 25, 2019 Share Posted December 25, 2019 16 minutes ago, NorthAmTrans said: Does this look right for native NVRAM to you all? Specifically the first two lines. 00:769 00:001 OC: OcLoadNvramSupport... 00:771 00:002 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - Not Found 00:774 00:002 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Not Found 00:777 00:002 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - Success 00:780 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success 00:783 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:nvda_drv - Success 00:786 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - Success 00:789 00:002 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - Success That doesn't tell you anything about if you have working native NVRAM or not, you need to use the normal terminal method to test native NVRAM. 1 Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 25, 2019 Share Posted December 25, 2019 2 hours ago, Pavo said: That doesn't tell you anything about if you have working native NVRAM or not, you need to use the normal terminal method to test native NVRAM. Just did, all is well. Thanks! I was just a little confused on why it deletes the first two items UI Scale and Boot-Args. Im guessing that's by design I'm just trying to educate myself. Link to comment Share on other sites More sharing options...
n.d.k Posted December 25, 2019 Share Posted December 25, 2019 27 minutes ago, NorthAmTrans said: Just did, all is well. Thanks! I was just a little confused on why it deletes the first two items UI Scale and Boot-Args. Im guessing that's by design I'm just trying to educate myself. In your config.plist, you have NVRAM->Block->Item 0 and 1, those Block items are deleting.. 1 Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 25, 2019 Share Posted December 25, 2019 @n.d.k welp that was a dumb one. Thank you. Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 26, 2019 Share Posted December 26, 2019 On 12/23/2019 at 6:09 PM, NorthAmTrans said: Leaving this here for anyone who's got a well zipped up EFI and good knowledge of what needs to happen to have a good system but cant boot into Catalina. I discovered I couldn't get in if I had any SATA ports enabled in bios. I disabled them and scoped out everything. All seemed well. After a day or so I found adding AppleAHCIPortHotplug.kext prevented OC from having a panic. Thats all! AppleAHCIPortHotplug.kext.zip Heh, this broke. Couldn't recreate it when I tried again though it did help someone else. This might be too off topic to continue here but any advice is welcome otherwise! Short version again: SATA ports enabled causes a panic and reboot right at the start of the progress bar. AHCI enabled/disabled has no effect. Link to comment Share on other sites More sharing options...
canyondust Posted December 26, 2019 Share Posted December 26, 2019 3 hours ago, NorthAmTrans said: Heh, this broke. Couldn't recreate it when I tried again though it did help someone else. This might be too off topic to continue here but any advice is welcome otherwise! Short version again: SATA ports enabled causes a panic and reboot right at the start of the progress bar. AHCI enabled/disabled has no effect. Release version of OC? I’ve never seen anyone have this in a hackintosh ever, regardless of hardware or bootloader... 1 Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 26, 2019 Share Posted December 26, 2019 (edited) 13 hours ago, canyondust said: Release version of OC? I’ve never seen anyone have this in a hackintosh ever, regardless of hardware or bootloader... This makes me feel less crazy. OC version has no effect. Next up, roll back bios version. UPDATE: BIOS rollback did nothing. Edited December 26, 2019 by NorthAmTrans update Link to comment Share on other sites More sharing options...
Andrey1970 Posted December 26, 2019 Share Posted December 26, 2019 (edited) On 12/24/2019 at 7:55 PM, remix0120 said: Hi, I just realized we have same motherboard, Z87-UD4H Do you mind share your "EFI" file? EFI.zip BIOS F11b Edited December 26, 2019 by Andrey1970 Link to comment Share on other sites More sharing options...
remix0120 Posted December 26, 2019 Share Posted December 26, 2019 2 hours ago, Andrey1970 said: EFI.zip BIOS F11b Thanks a lot! it works now~ Link to comment Share on other sites More sharing options...
valinor61 Posted December 27, 2019 Share Posted December 27, 2019 (edited) On 12/21/2019 at 10:23 PM, valinor61 said: Hi, I have weird issue since catalina. My bios suddenly becomes a black screen I cant enter my bios settigs. The problem is in both opencore and clover. In clover every boot was causing black screen. I succesfully managed to switch opencore and its nvram reset option fixed that black screen issue but after few reboots I'm getting black screen error again when error occurs my bios also removes opencore from boot selection part. Only way to access it again reflashing my nvram with a bios tool. I have never experianced that kind of issue before on mojave. Device: Asus FX553VD/GL553VD i-7700hq. Here is my opencore files. OpenCoreGL553VD.zip Sorry, I think I wasn't so clear about my problem so after repeatedly tryied now I can explain my problem more clearly. I can use opencore with OSX without problem with disable variable write and legacy nvram. I can use windows directly booted from bios as normally. But if I boot windows from OpenCore my boot entries duplicates itself. On that time I cant access bios getting black screen. In my conclusion my when I boot windows from opencore my bios rewrites boot entries to nvram again and when I try to open bios duplicate entries makes a conflict so it becomes black screen. It's happening on clover as well. I need help. My Last Opencore Build: OC.zip Full BIOS Image GL553VD-F1.307.zip Edited December 27, 2019 by valinor61 Link to comment Share on other sites More sharing options...
tmbt Posted December 27, 2019 Share Posted December 27, 2019 Hello, just an easy question : The ThirdPartyDrives quirk does something about NVME power managent ? I remember when i had a NVME drive on my laptop power consumption was huge even on idle while on the same laptop using a normal m.2 sata disk the power consumption was as expected. Being a laptop i'm concerned about battery duration Thanks Mattia Link to comment Share on other sites More sharing options...
Andrey1970 Posted December 27, 2019 Share Posted December 27, 2019 12 minutes ago, tmbt said: The ThirdPartyDrives quirk does something about NVME power managent ? No. Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 27, 2019 Share Posted December 27, 2019 28 minutes ago, tmbt said: Hello, just an easy question : The ThirdPartyDrives quirk does something about NVME power managent ? I remember when i had a NVME drive on my laptop power consumption was huge even on idle while on the same laptop using a normal m.2 sata disk the power consumption was as expected. Being a laptop i'm concerned about battery duration Thanks Mattia Check out the bottom of page 23 https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/Configuration.pdf Link to comment Share on other sites More sharing options...
tmbt Posted December 27, 2019 Share Posted December 27, 2019 1 hour ago, NorthAmTrans said: Check out the bottom of page 23 https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/Configuration.pdf That's what i did. Apply vendor patches to enable native features for third party drivers ... Apple original NVME has power management while it is not working on third party NVME .. what i'm asking is if this patches implement some kind of power management also for third party NVME drives ... Link to comment Share on other sites More sharing options...
lilins Posted December 27, 2019 Share Posted December 27, 2019 Hi, I have an annoying issue switching from clover to OpenCore 0.5.3 with Catalina 10.15.1 on ryzentosh 3700x x570 I aorus pro wifi + Vega 64 I have checked with someone my basic EFI folder and it seems good but when I choose shut down the computer, right at the moment when the last power is going out the computer just start up back... any ideas? been following the guide with shutdown fix and all. no changes. I know sleep is broken on Catalina, but if I can't put my computer to sleep I need it to shut down at least. I also have some minor issues with picker and nvram behavior but these can wait... Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 27, 2019 Share Posted December 27, 2019 On 12/25/2019 at 9:47 PM, canyondust said: Release version of OC? I’ve never seen anyone have this in a hackintosh ever, regardless of hardware or bootloader... Fixed it. I was using the old IntelMausiEthernet instead of IntelMausi and that threw it for a loop. In the process though I now found the correct AHCIPortInjector for my board vs Generic so thats cool. 2 Link to comment Share on other sites More sharing options...
