canyondust Posted December 3, 2019 Share Posted December 3, 2019 Opencore 0.5.3 up and running smooth. Great work everyone! Shell.efi: any "<command> -b" that lists my NVMe path hard locks my system for some reason: map = fine map -b = freeze devices = fine devices -b = freeze Thoughts? 1 Link to comment Share on other sites More sharing options...
karacho Posted December 4, 2019 Share Posted December 4, 2019 (edited) Hi All. Maybe someone can point me to the right direction to boot my Linux on a separate SSD with OpenCore. OpenCore boots without any error Message to Boot Picker and into macOS and Windows (all on separate Drives). When i try to boot Linux, it boots fine to the Grub Menu. But then, the Backlight on my Keyboard and Mouse going off and nothing more happens. I'm also not able to install a new Linux from a Pendrive when booting with OpenCore. Grabbing the Pendrive from UEFI-Bootmenu works fine. I guess something with USB Power went wrong when using OpenCore to boot Linux, because Lights on Keyboard and Mouse turn off. Have my EFI attached. Thank You. *bump* EFI.zip Edited December 6, 2019 by karacho_ak Link to comment Share on other sites More sharing options...
Diiuuz Posted December 4, 2019 Share Posted December 4, 2019 (edited) Hello guys, maybe someone can help me. I am stuck at this point. Trying to run Catalina with IGPU. my system: Intel 6700k MSI Z170 EGPU: RTX2080 (disabled with boot-arg) EFI_Old.zip Edited December 4, 2019 by Diiuuz Link to comment Share on other sites More sharing options...
kaoskinkae Posted December 4, 2019 Share Posted December 4, 2019 (edited) OpenCorePkg-R0.5.4-DevBuild-12042019_134644 EFI.zip Edited December 4, 2019 by kaoskinkae Link to comment Share on other sites More sharing options...
DanielMac Posted December 4, 2019 Share Posted December 4, 2019 I am trying to move from Clover to Opencore and got most everything working, except my Sound card. I have a Dell Optiplex 7060 with ALC3234 sound chip. In Clover, I used Audio device, inject 27. In opencore I added in DeviceProperties/Add: PciRoot(0x0)/Pci(0x1f,0x3) / layout-id: 1B000000 of my config.plist file, but no device appears in my Sound preferences. I attach a IOReg capture of the device. Is this a bug or am I doing something wrong? Thank you for any pointers! Link to comment Share on other sites More sharing options...
tmbt Posted December 4, 2019 Share Posted December 4, 2019 Hi, here again ... I've upgraded to Catalina but the same opencore configuration that was working for high sierra doesn't work for Catalina and i'm stuck. Here is my EFI folder and here is a screeshot where it freezee at boot (it seems to hangs after VoodooPS2 keyboard or if i enable it after VoodooI2C) .. maybe after that it shoud load Whatevergreen ... i'm not sure P.S. All the kexts i'm using EFI.zipare up to date Link to comment Share on other sites More sharing options...
SavageAUS Posted December 4, 2019 Share Posted December 4, 2019 I am trying to move from Clover to Opencore and got most everything working, except my Sound card. I have a Dell Optiplex 7060 with ALC3234 sound chip. In Clover, I used Audio device, inject 27. In opencore I added in DeviceProperties/Add: PciRoot(0x0)/Pci(0x1f,0x3) / layout-id: 1B000000 of my config.plist file, but no device appears in my Sound preferences. I attach a IOReg capture of the device. Is this a bug or am I doing something wrong? Thank you for any pointers! Try layout 28: 1c000000Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
DanielMac Posted December 5, 2019 Share Posted December 5, 2019 9 hours ago, SavageAUS said: Try layout 28: 1c000000 I am not in front of my hack right now, but will try that tonight. I've found all the different numbers to test in the layout-id on the AppleALC supported codecs page, but is there a method here, or just trial and error? Why do you suggest 28? Thanks! Link to comment Share on other sites More sharing options...
SavageAUS Posted December 5, 2019 Share Posted December 5, 2019 I am not in front of my hack right now, but will try that tonight. I've found all the different numbers to test in the layout-id on the AppleALC supported codecs page, but is there a method here, or just trial and error? Why do you suggest 28? Thanks! I have the same codec on one of my hacks. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
nmano Posted December 5, 2019 Share Posted December 5, 2019 (edited) New update worked. X99 and X299 try this EFI 0.5.4 EFI.zip Before boot add your TSCAdjustReset.kext Every open core update you have to update Drivers (AppleSupportPKG) too. After boot you can patch or add kext & Kernel & Bios & SSDT or DSDT. Edited December 5, 2019 by nmano Link to comment Share on other sites More sharing options...
kaoskinkae Posted December 5, 2019 Share Posted December 5, 2019 Solution to the error shown before memori with the new compilation is to have udate efi driver/ApfsDirverLoader.efi an FwRuntimeServies.efi Link to comment Share on other sites More sharing options...
karacho Posted December 5, 2019 Share Posted December 5, 2019 14 hours ago, meaganmargaret said: So, the 11-05-2019 version of 0.5.3 works, and the 11-14-2019 (the released version, the date on the file is 12-2) is a bit of a stinker..... Not just change OpenCore.efi and BOOTx64.efi. You have to install the new .efi Drivers with the release version too. 2 Link to comment Share on other sites More sharing options...
DanielMac Posted December 5, 2019 Share Posted December 5, 2019 10 hours ago, SavageAUS said: I have the same codec on one of my hacks. Unfortunately that didn't fix it for me Link to comment Share on other sites More sharing options...
DanielMac Posted December 5, 2019 Share Posted December 5, 2019 11 hours ago, SavageAUS said: I have the same codec on one of my hacks. Totally noob question, but how can I verify that the layout-id was correctly applied? I have tried all the layout-ids from the AppleALC wiki and none of them work. Now I wonder if I didn't make a typo or something else is off. I tried checking in "About this Mac" then "System Report" and in the "PCI" section, but there's nothing there. So, where can I check this? Link to comment Share on other sites More sharing options...
SavageAUS Posted December 5, 2019 Share Posted December 5, 2019 (edited) 3 hours ago, DanielMac said: Totally noob question, but how can I verify that the layout-id was correctly applied? I have tried all the layout-ids from the AppleALC wiki and none of them work. Now I wonder if I didn't make a typo or something else is off. I tried checking in "About this Mac" then "System Report" and in the "PCI" section, but there's nothing there. So, where can I check this? Have you tried all layouts for your codec? layout 3, 11, 13, 15, 17, 18, 21, 27, 28, 30, 31, 99 Upload your config. Remove serials. Edited December 5, 2019 by SavageAUS Link to comment Share on other sites More sharing options...
Andrey1970 Posted December 6, 2019 Share Posted December 6, 2019 4 hours ago, DanielMac said: Totally noob question, but how can I verify that the layout-id was correctly applied? I have tried all the layout-ids from the AppleALC wiki and none of them work. Now I wonder if I didn't make a typo or something else is off. Use gfxutil for check HDEF PciRoot. 2 Link to comment Share on other sites More sharing options...
texem Posted December 6, 2019 Share Posted December 6, 2019 Hi, unfortunately NVRAM handling seems to be broken on 0.53 RELEASE. I had a working native NVRAM on older versions (and beta 0.53 as well) But since I had to replace FwRuntimeServices.efi for successful booting the official release , NVRAM is no longer persistent. Yes, I am on z390 here but in my case this was never a problem (works on Clover till today.) I have two scenarios , one without any DSDT and a fully patched DSDT version. Both fails now. Whats going on here ? Link to comment Share on other sites More sharing options...

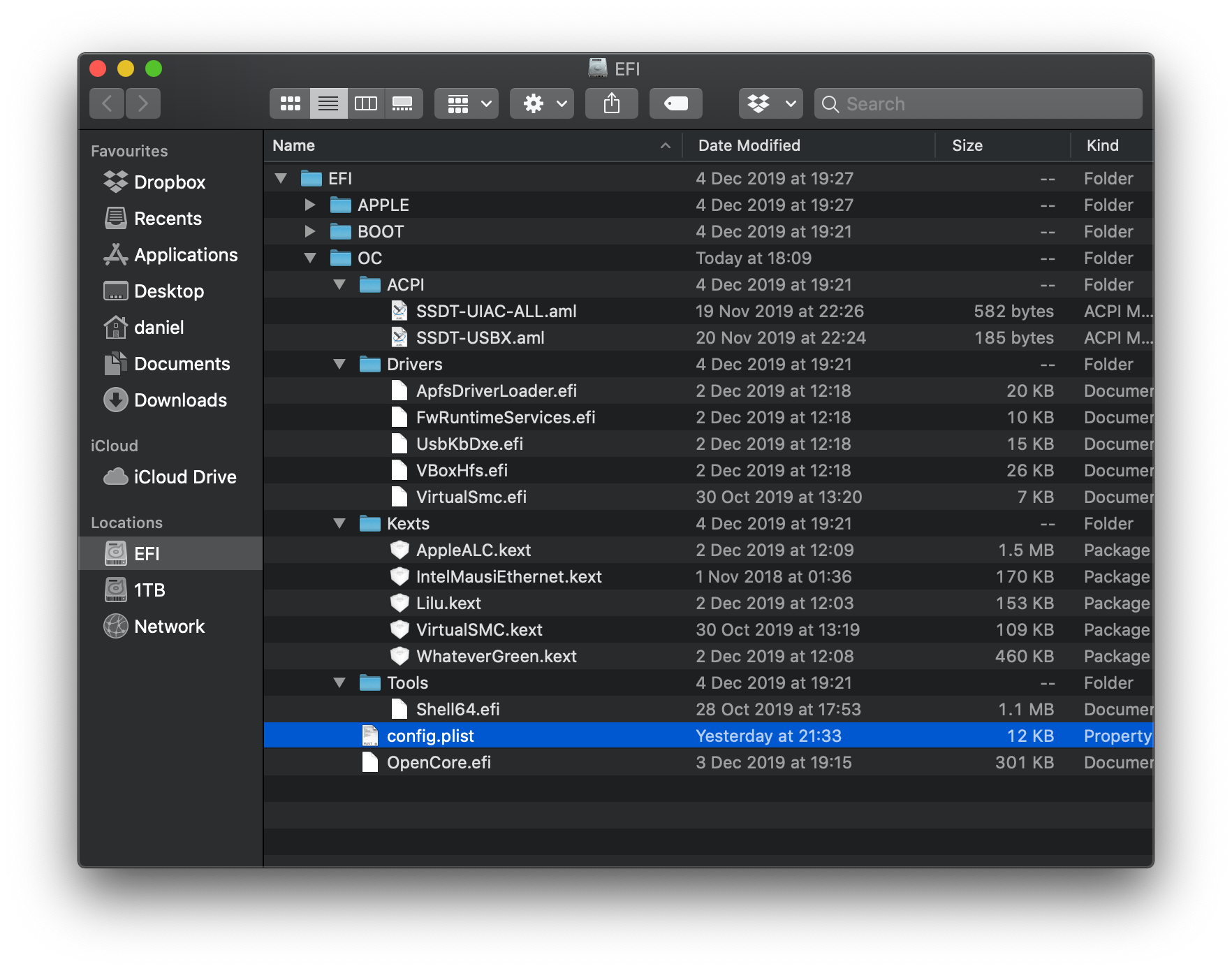

DanielMac Posted December 6, 2019 Share Posted December 6, 2019 17 hours ago, SavageAUS said: Have you tried all layouts for your codec? layout 3, 11, 13, 15, 17, 18, 21, 27, 28, 30, 31, 99 Upload your config. Remove serials. Yes, I tried all of those. I put it back to 27 in the config.plist below because that's what was working with Clover. I also attach my EFI folder structure, just in case. Thank you! config.plist 16 hours ago, Andrey1970 said: Use gfxutil for check HDEF PciRoot. HDEF is definitively on 0x1f,0x3: PCI0.pci8086,3ec2 = PciRoot(0x0)/Pci(0x0,0x0) PCI0.IGPU = PciRoot(0x0)/Pci(0x2,0x0) PCI0.pci8086,1911 = PciRoot(0x0)/Pci(0x8,0x0) PCI0.pci8086,a379 = PciRoot(0x0)/Pci(0x12,0x0) PCI0.XHC = PciRoot(0x0)/Pci(0x14,0x0) PCI0.pci8086,a36f = PciRoot(0x0)/Pci(0x14,0x2) PCI0.I2C0 = PciRoot(0x0)/Pci(0x15,0x0) PCI0.IMEI = PciRoot(0x0)/Pci(0x16,0x0) PCI0.SAT0 = PciRoot(0x0)/Pci(0x17,0x0) PCI0.LPCB = PciRoot(0x0)/Pci(0x1f,0x0) PCI0.HDEF = PciRoot(0x0)/Pci(0x1f,0x3) PCI0.SBUS = PciRoot(0x0)/Pci(0x1f,0x4) PCI0.pci8086,a324 = PciRoot(0x0)/Pci(0x1f,0x5) PCI0.GLAN = PciRoot(0x0)/Pci(0x1f,0x6) Question I had was how to check which layout-id was injected by AppleALC ? Link to comment Share on other sites More sharing options...
mhaeuser Posted December 6, 2019 Share Posted December 6, 2019 On 12/4/2019 at 5:10 PM, karacho_ak said: EFI.zip Might be an ACPI issue, old Linux kernels die with the same symptom for me because of Ryzen ACPI (no clue about the precise issue). Enable a higher kernel (preferably maximum) log level to see the error, it should be a boot arg. Link to comment Share on other sites More sharing options...
karacho Posted December 6, 2019 Share Posted December 6, 2019 (edited) Thx for reply @Download-Fritz, but i'm already with the newest Kernel on Manjaro Deepin (Arch). Kernelversion is vmlinuz-5.4-x86_64 Will try the find the Issue. Do you recommend to use the OC Debug Version? Edited December 6, 2019 by karacho_ak Link to comment Share on other sites More sharing options...
NorthAmTrans Posted December 6, 2019 Share Posted December 6, 2019 3 hours ago, texem said: Hi, unfortunately NVRAM handling seems to be broken on 0.53 RELEASE. I had a working native NVRAM on older versions (and beta 0.53 as well) But since I had to replace FwRuntimeServices.efi for successful booting the official release , NVRAM is no longer persistent. Yes, I am on z390 here but in my case this was never a problem (works on Clover till today.) I have two scenarios , one without any DSDT and a fully patched DSDT version. Both fails now. Whats going on here ? I'm having similar issues with native NVRAM on my z370. I have to reset NVRAM to get in often. 1 Link to comment Share on other sites More sharing options...
mhaeuser Posted December 6, 2019 Share Posted December 6, 2019 @karacho_ak I didn't suggest your issue was an old kernel, just that is what caused issues for me (lack of Ryzen ACPI support) to confirm ACPI is an option. As OC loads ACPI tables and applies ACPI patches OS agnostic, that's your best bet, but check the early log as I said 1 Link to comment Share on other sites More sharing options...
Sniki Posted December 6, 2019 Share Posted December 6, 2019 I understand the importance of If (_OSI ("Darwin")) in order to be able to boot other operating systems without being affected by macOS patches, but i would like to know what should be the best approach / recommended way to patch Methods/Devices/Objects in ACPI. I don't want to used patched DSDT, i prefer hotpatch because Patched DSDT has it's own issue of SystemMemory address changes that can happen by changing a single bios setting, you will have to re-dump, re-extract, re-patch and re-place the DSDT every time you do a single change and that is a PITA which also means that no one can use your files if you have a guide. Hotpatch doesn't have that problem at all, it is working perfect for me with renames and stuff (Rehabman's way) but that remains a "working perfect" scenario if the only OS present will be macOS. As of now, i can't figure out a good/possible way to do a If (_OSI ("Darwin")) hotpatch for Laptop Battery Status (especially ones that have dual batteries) and the other thing is Keyboard Function (FN) keys. Keyboard: Current excellent working Keyboard Map but macOS only is this way: Method (_Q14,Q15,Q... renamed to XQ14,XQ15... etc) Then patched Methods are available on this addon SSDT-KBD: // Lenovo ThinkPad X240 Keyboard Map. // Note: aside from Brightness keys, the rest of these should be assigned from SysPrefs > Keyboard > Shortcuts. // My examples are provided in comments of each Method. DefinitionBlock("", "SSDT", 2, "X240", "_KBD", 0) { External (_SB.PCI0.LPC.EC, DeviceObj) External (_SB.PCI0.LPC.KBD, DeviceObj) Scope (_SB.PCI0.LPC.EC) { Method (_Q14, 0, NotSerialized) // (F15) - Brightness Up { Notify (KBD, 0x0406) } Method (_Q15, 0, NotSerialized) // (F14) - Brightness Down { Notify (KBD, 0x0405) } Method (_Q6A, 0, NotSerialized) // (F4) Microphone Mute - Siri { Notify (KBD, 0x033E) } Method (_Q16, 0, NotSerialized) // Projector / Mirror mode { Notify (KBD, 0x046E) } Method (_Q64, 0, NotSerialized) // (F8) Radio ON/OFF - Notification Center { Notify (KBD, 0x0342) } Method (_Q66, 0, NotSerialized) // (F16) Settings - System Preferences... { Notify (KBD, 0x0367) } Method (_Q67, 0, NotSerialized) // (F17) Windows Search - Spotlight Search { Notify (KBD, 0x0368) } Method (_Q68, 0, NotSerialized) // (F18) App Switcher - Mission Control { Notify (KBD, 0x0369) } Method (_Q69, 0, NotSerialized) // (F19) Start Menu - Launchpad { Notify (KBD, 0x036A) } } } Original method example from my DSDT (example Q14): Method (_Q14, 0, NotSerialized) // _Qxx: EC Query, xx=0x00-0xFF { If (\_SB.PCI0.LPC.EC.HKEY.MHKK (0x8000)) { \_SB.PCI0.LPC.EC.HKEY.MHKQ (0x1010) } If (\NBCF) { If (\VIGD) { Notify (\_SB.PCI0.VID.LCD0, 0x86) // Device-Specific } Else { Notify (\_SB.PCI0.PEG.VID.LCD0, 0x86) // Device-Specific } } Else { Local0 = \BRLV If ((Local0 != 0x0F)) { Local0++ \BRLV = Local0 } If (\VIGD) { \UCMS (0x16) \_SB.PCI0.LPC.EC.BRNS () } Else { \VBRC (Local0) } \_SB.PCI0.LPC.EC.HKEY.MHKQ (0x6050) } } What would be the proper way of implementing Keyboard (Fn) function keys in this case so they work only with Darwin and possibly as you recommend: without renames ? Link to comment Share on other sites More sharing options...
vandroiy2012 Posted December 6, 2019 Share Posted December 6, 2019 1 hour ago, Sniki said: I don't want to used patched DSDT, i prefer hotpatch because Patched DSDT has it's own issue of SystemMemory address changes that can happen by changing a single bios setting, you will have to re-dump, re-extract, re-patch and re-place the DSDT every time you do a single change For this case there is RebaseRegions quirk. Link to comment Share on other sites More sharing options...
vit9696 Posted December 7, 2019 Share Posted December 7, 2019 @Sniki, renaming _Q14 to XQ14 is just fine, it will work on Windows too, as long as in your _Q14 method you immediately call the original method for anything but Darwin. I.e. you do if OSI Darwin check and put keyboard notification inside, and then else and call XQ14(). 2 Link to comment Share on other sites More sharing options...
